PPQ-WN5301A802.11b/g Wireless LAN PCI Card

User’s Manual Wireless LAN 802.11b/g Device Version 1.0 Wireless LAN 802.11b/g Device 2 Information in this document is subject to change without notice. Microsoft, Encarta, MSN, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. PART NUMBER 5188-3746 Wireless LAN 802.11b/g Device 3 Table of Contents 1 Introduction ............................................................................................... 5 1.1 Inventory Checklist .............................................................................................. 5 1.2 Supported Security .............................................................................................. 6 2 Antenna Attachment................................................................................... 7 3 Windows® XP Wireless Zero Configuration ................................................ 8 3.1 Launching Microsoft® Windows® XP Wireless Network Configuration ...... 8 3.2 Setting the Network Key Automatically ........................................................... 9 3.3 Setting the Network Key Manually.................................................................. 11 3.3.1 WEP: Setting the Network Key (Network Security) .............................. 14 3.3.2 WPA/WPA2: Setting the Network Key (Network Security) ................. 16 Appendix A: Troubleshooting.......................................................................... 20 Appendix B: Regulatory Notices................................................................... 21 Appendix C: Product Specifications............................................................. 26 Index.............................................................................................................. 28 Wireless LAN 802.11b/g Device 4 Table of Figures Figure 1: Antenna Attachment ........................................................................................................ 7 Figure 2: Wireless Network Icon..................................................................................................... 8 Figure 3: Wireless Network Connection dialog box ....................................................................... 9 Figure 4: Wireless Network Connection dialog box ..................................................................... 10 Figure 5: Connecting to Wireless ................................................................................................. 10 Figure 6: Wireless Network Connection dialog box ..................................................................... 11 Figure 7: Wireless Network Connection dialog box ..................................................................... 12 Figure 8: Wireless Network Connection Properties dialog box ................................................... 12 Figure 9: Internet Protocol (TCP/IP) Properties dialog box ......................................................... 13 Figure 10: Manually adding a Wireless Network.......................................................................... 14 Figure 11: Wireless Network Properties dialog box ..................................................................... 15 Figure 12: Wireless Network Connection Properties dialog box ................................................. 16 Figure 13: Wireless Network Properties dialog box ..................................................................... 17 Wireless LAN 802.11b/g Device 5 1 Introduction Welcome! Your HP PC includes a Wireless LAN 802.11b/g Device. This device allows you to establish a wireless network using your HP PC as a Wireless Client (Station Mode) if you already have a wireless network running. If you have already established a wireless network with access to the internet, you can wirelessly connect this HP PC to your wireless network 1.1 Inventory Checklist Included with your HP PC should be the following items for your Wireless LAN 802.11b/g Device: • Documentation CD (Contains full User’s Manual) • Antenna (Screws to the connector on the back of your HP PC. See Chapter 2) • Printed Quick Install Guide Wireless LAN 802.11b/g Device 6 1.2 Supported Security In order to secure your network from passive or active intrusion key features are enabled on Windows® XP Wireless Zero Configuration : • WPA/WPA2 personal security • WEP encryption Please see Chapter 3 for information on security settings for your Wireless LAN 802.11b/g Device . Wireless LAN 802.11b/g Device 7 2 Antenna Attachment This chapter contains instructions for antenna installation. Important It is assumed that there is an existing wireless LAN network with an internet connection that has been set up on your computer prior to using Wireless LAN 802.11b/g Device . Please consult your ISP for further information. If you have already attached the antenna to your HP PC, please skip to Chapter 3. 1. Screw the antenna connector (A) to the antenna jack (B) located on the back of the HP PC. Figure 1: Antenna Attachment 2. Place the HP PC on a table or place the antenna in an elevated and open area to achieve the best wireless performance. A B A B OR Wireless LAN 802.11b/g Device 8 3 Windows® XP Wireless Zero Configuration It is necessary to complete the steps in Chapter 2, Antenna Attachment prior to using Windows® XP Wireless Network Configuration. Note: It is assumed that there is an existing wireless network with connection to the internet. If not, please consult your ISP for further information on establishing an internet connection. If you have already established a wireless network with access to the internet and you would like to wirelessly connect this HP PC to your wireless network, use Windows® XP Zero Configuration (Windows® XP Wireless Network Configuration). 3.1 Launching Microsoft® Windows® XP Wireless Net…

Text truncated - open the document above for the full version.

LITE-ON TECHNOLOGY CORP. 90 ,Chien I Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. TEL: 886-2-2222-6181 I FAX: 886-2-2226-6749 AGENCY AUTHORIZATION LETTER FCC lD: PPQ-WN5301ADate: Nov 4,2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. lf you have any questions regarding the authorization, please don't hesitate to contact us. Thank vou. Sincerely, LITE-ON TECHNOLOGY CORP rEL: 886-2-2222-6181 ; FAX: 886-2-2226-6749

LITE-ON TECHNOLOGY CORP. 90 ,Chien I Road, Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. TEL: 886-2-2222-6181 ; FAX: 886-2-2226-6'749 FGC lD: PPQ-WN5301A Date: Nov 4,2005 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division C o nf ide ntia litv Req u est Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this aoolication. Sincerely, ,"... ( /l \ tl ., \ ---.\ \---\ Lr - \/' . ---- - Arrow [in / Supervisor LITE-ON TECHNOLOGY CORP rEL:886-2-2222-6181 , F AX . 886-2-2226-67 49

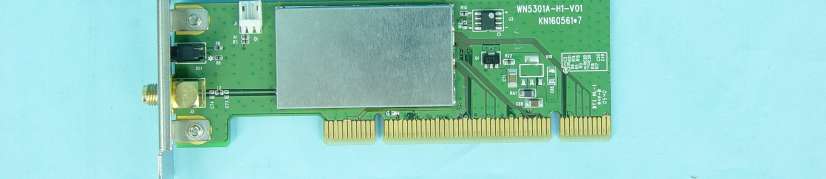

Page 1 CONSTRUCTION PHOTOS OF EUT Dipole antenna without extended cable Page 2 Dipole antenna with extended cable Page 3

Regulatory Label Location (761x457x16M jpeg)

Page 4 Page 5

FCC ID: PPQ-WN5301A Report No.: RF941025L09 Technical Description This device is a 802.11b/g Wireless LAN PCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: PPQ-WN5301A Report No: SA941025L09 1 RF EXPOSURE REPORT REPORT NO.: SA941025L09 MODEL NO.: WN5301A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: LITE-ON TECHNOLOGY CORP. ADDRESS: 6F, 16, Sec. 4, Nanking E. Rd., Taipei, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PPQ-WN5301A Report No: SA941025L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PPQ-WN5301A Report No: SA941025L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PPQ-WN5301A Report No: SA941025L09 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Antenna gain with 2dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.0870.0131.0 6243740.1790.0131.0 11246240.3650.0131.0 Antenna gain with 0.597dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.0870.0091.0 6243740.1790.0091.0 11246240.3650.0091.0 802.11g OFDM modulation Antenna gain with 2dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241246.1320.0151.0 6243745.4990.0141.0 11246245.0820.0141.0 Antenna gain with 0.597dBi: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241246.1320.0111.0 6243745.4990.0101.0 11246245.0820.0101.0

FCC ID: PPQ-WN5301A Report No.: RF941025L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941025L09 MODEL NO.: WN5301A RECEIVED: Oct. 24, 2005 TESTED: Oct. 24 ~ 26, 2005 ISSUED: Nov. 01, 2005 APPLICANT : LITE-ON TECHNOLOGY CORP. ADDRESS : 6F, 16, Sec. 4, Nanking E. Rd., Taipei, Taiwan, R.O.C ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: PPQ-WN5301A Report No.: RF941025L092Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS ..............................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3GENERAL INFORMATION .......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...........................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................11 4TEST TYPES AND RESULTS ................................................................................12 4.1CONDUCTED EMISSION MEASUREMENT .........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................12 4.1.2 TEST INSTRUMENTS............................................................................................12 4.1.3 TEST PROCEDURES ............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................13 4.1.5 TEST SETUP .........................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...........................................................................15 4.1.7 TEST RESULTS .....................................................................................................16 4.2RADIATED EMISSION MEASUREMENT ..............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................22 4.2.2 TEST INSTRUMENTS............................................................................................23 4.2.3 TEST PROCEDURES ............................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................24 4.2.5 TEST SETUP .........................................................................................................25 4.2.6 EUT OPERATING CONDITIONS ...........................................................................25 4.2.7 TEST RESULTS .....................................................................................................26 4.36dB BANDWIDTH MEASUREMENT .....................................................................34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................34 4.3.2 TEST INSTRUMENTS............................................................................................34 4.3.3 TEST PROCEDURE...............................................................................................34 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................34 4.3.5 TEST SETUP .........................................................................................................35 4.3.6 EUT OPERATING CONDITIONS ...........................................................................35 4.3.7 TEST RESULTS .....................................................................................................36 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................42 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................42 4.4.2 TEST INSTRUMENTS............................................................................................42 4.4.3 TEST PROCEDURES ............................................................................................43 4.4.4 DEVIATION FROM TEST STANDARD ..................................................................43 4.4.5 TEST SETUP .........................................................................................................43 4.4.6 EUT OPERATING CONDITIONS ...........................................................................43 FCC ID: PPQ-WN5301A Report No.: RF941025L093Report Format Version 2.0.4 4.4.7 TEST RESULTS .....................................................................................................44 4.5POWER SPECTRAL DENSITY MEASUREMENT ................................................45 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..............................45 4.5.2 TEST INSTRUMENTS....................…

Text truncated - open the document above for the full version.

FCC ID: PPQ-WN5301A Report No.: RF941025L0962Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) FCC ID: PPQ-WN5301A Report No.: RF941025L0963Report Format Version 2.0.4 CONDUCTED EMISSION TEST (TEST MODE B) FCC ID: PPQ-WN5301A Report No.: RF941025L0964Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE A) FCC ID: PPQ-WN5301A Report No.: RF941025L0965Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE B)
