PPQ-WN6508A802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module

Kaysa Lee Page 1 6/25/2012 8 8 0 0 2 2 . . 1 1 1 1 a a / / b b / / g g / / n n , , 2 2 . . 4 4 G G / / 5 5 G G 3 3 T T 3 3 R R W W i i r r e e l l e e s s s s M M o o d d u u l l e e W W N N 6 6 5 5 0 0 8 8 A A U U s s e e r r ’ ’ s s M M a a n n u u a a l l Kaysa Lee Page 2 6/25/2012 REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Kaysa Lee Page 3 6/25/2012 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. The operation frequency of the device is in the 5150-5250 MHz band is for indoor use only. A warning message should be provided in the user’s manual. Kaysa Lee Page 4 6/25/2012 Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). This device has been certified for use in Canada. Status of the listing in the Industry Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Dell est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil Dell de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne). Ce périphérique est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à l’appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada rendez-vous sur: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng Pour des informations supplémentaires concernant l'exposition aux RF au Canada rendez-vous sur : http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Kaysa Lee Page 5 6/25/2012 INTRODUCTION The Atheros 802.11n Wireless Adapter is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequen…

Text truncated - open the document above for the full version.

RF_160, Issue 02 LITE-ON TECHNOLOGY CORP. Declaration of Authorization We Name: LITE-ON TECHNOLOGY CORP.. Address: 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C.  City: Taipei ... Country: Taiwan ..... Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Type designation: WN6508A Trademark: LITE-ON on our behalf. Date: 2012/06/19.. City:  Taipei .. Name: TC Wu .. (2) Function:  Director  Signature:  Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WN6508A 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2223-6749 Federal Communications Commission June 19 , 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WN6508A) Schem Block Diagram: (WN6508A) BlkDia Operational Description: (WN6508A) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON TECHNOLOGY CORP.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WN6508A 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Federal Communications Commission June 19 , 2012 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WN6508A Product: 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Model: WN6508A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------ TC Wu / Director LITE-ON TECHNOLOGY CORP.

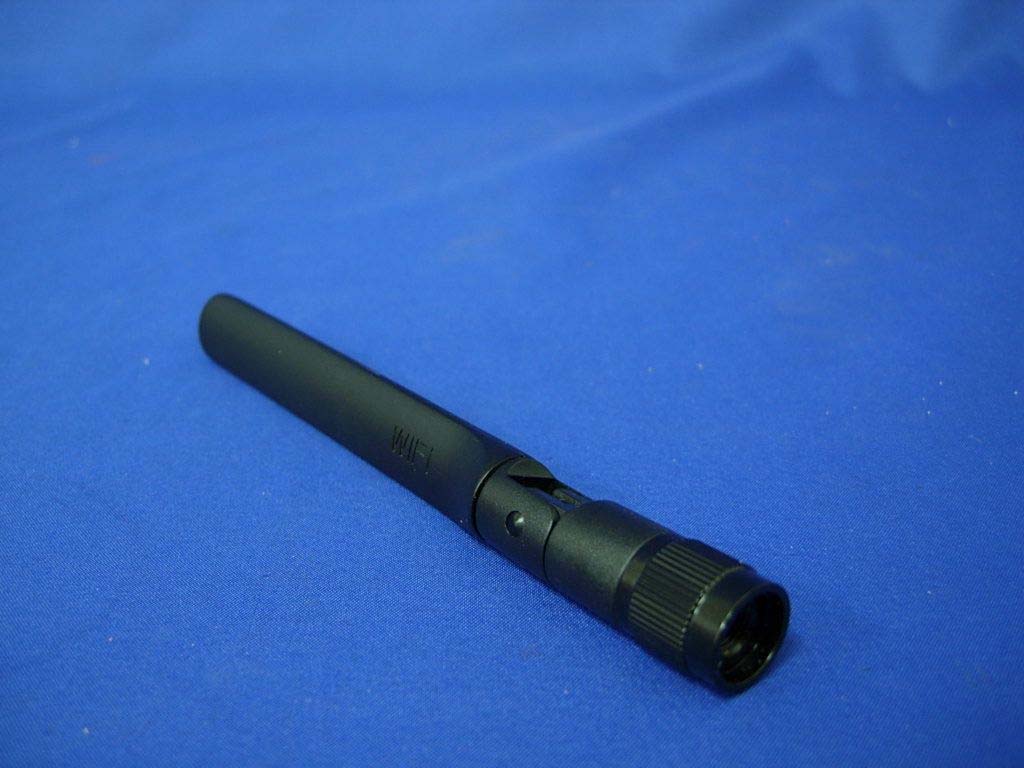

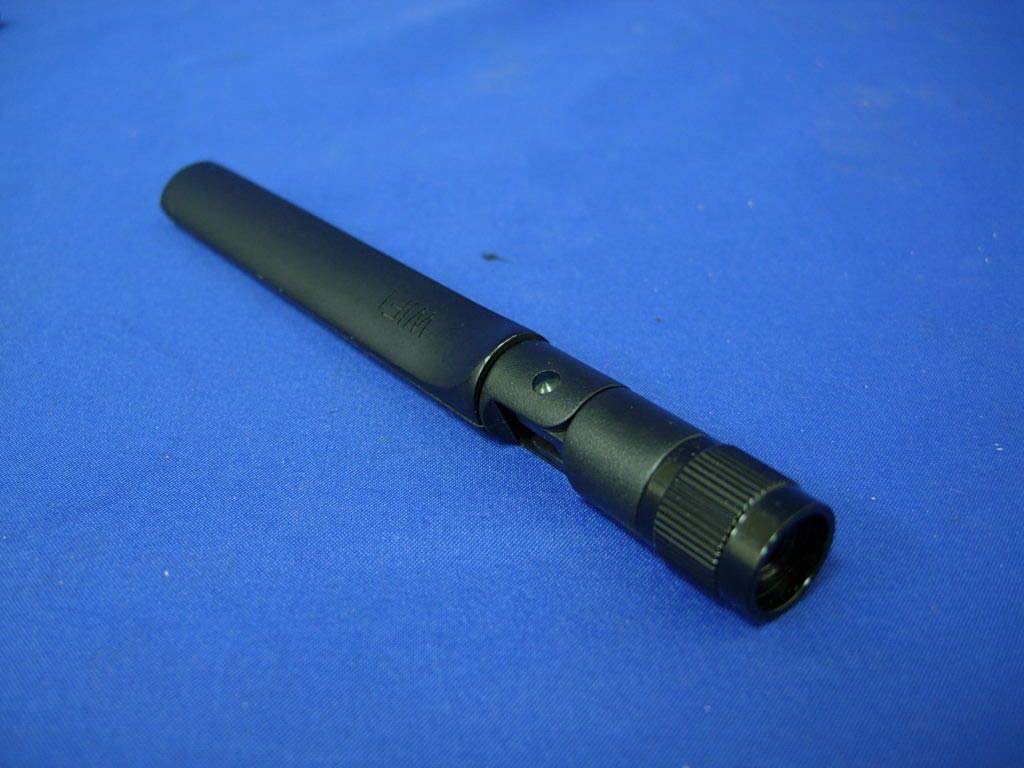

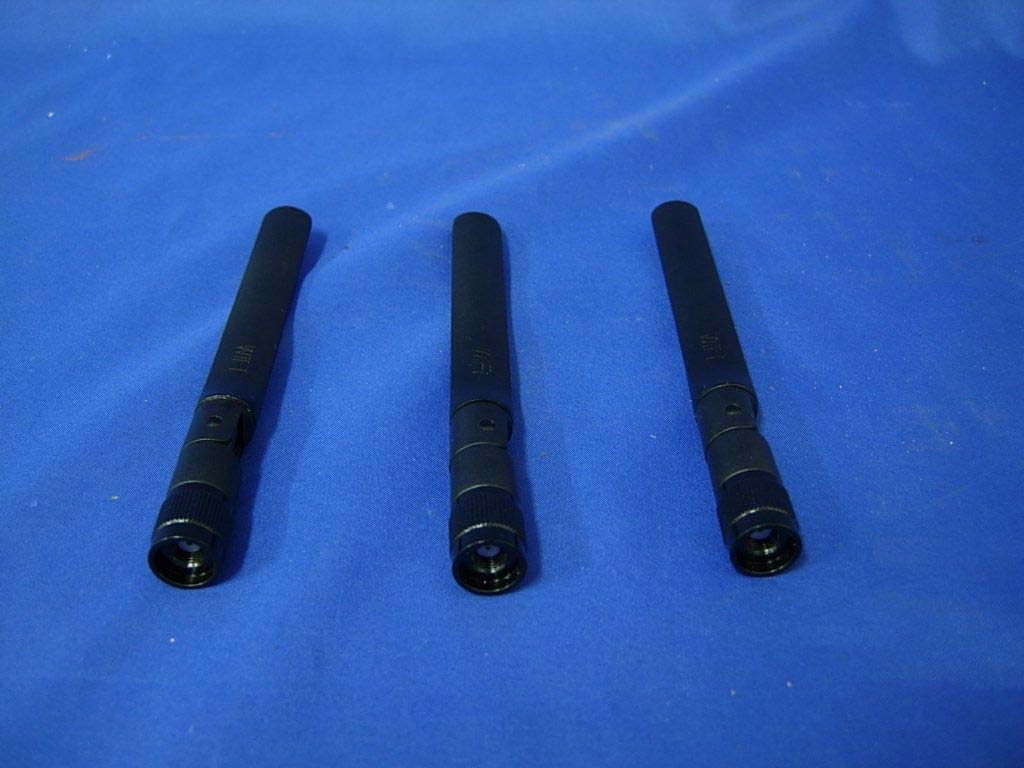

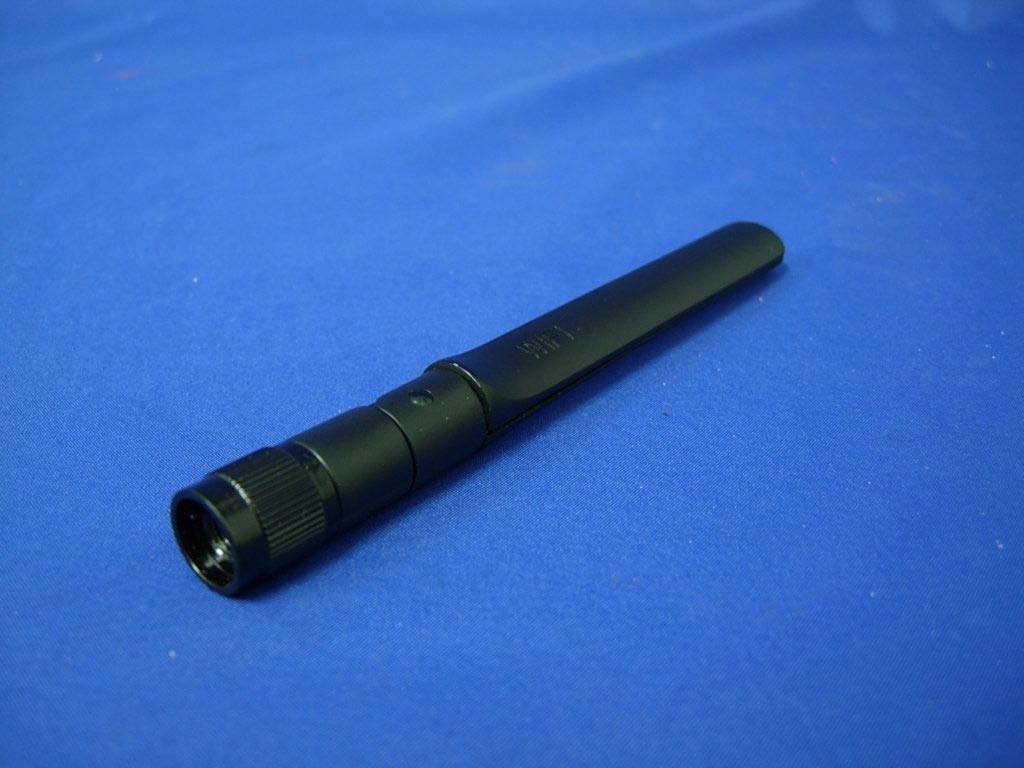

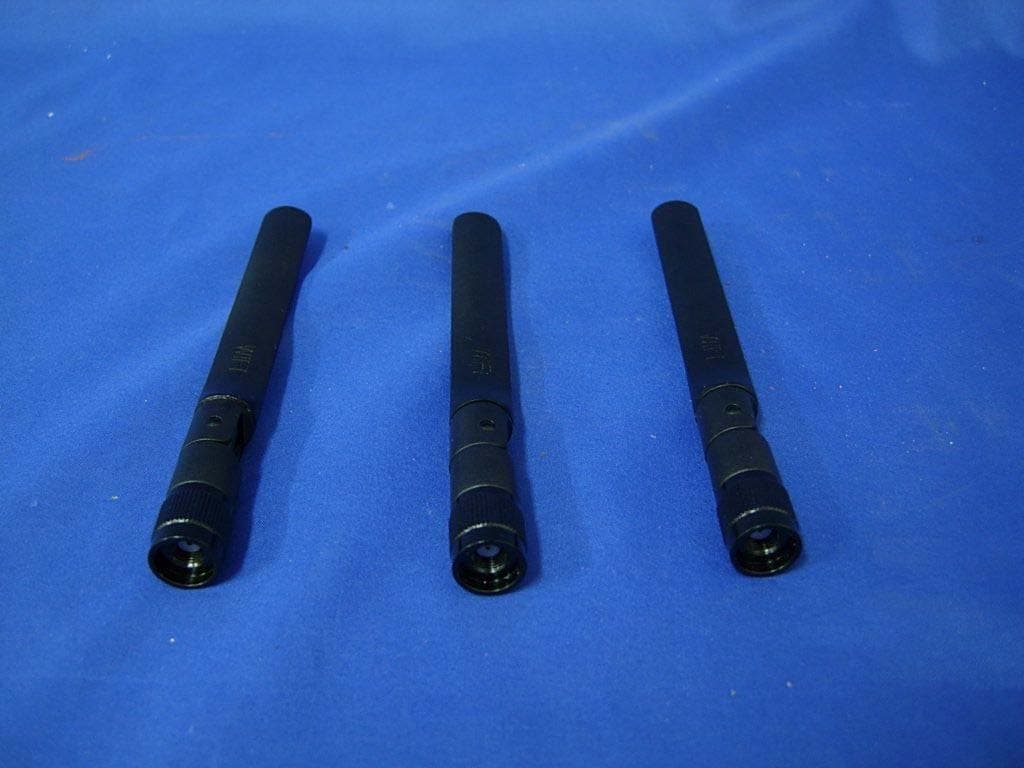

Report No.: 126112R-RFUSP32V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 126112R-RFUSP32V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 126112R-RFUSP32V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 126112R-RFUSP32V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WN6508A 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WN6508A 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 FCC ID Label

Report No.: 126112R-RFUSP32V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 126112R-RFUSP32V01 Page : 6 of 6 (11) EUT Photo (12) EUT Photo

Report No. 126112R-RFUSP42V01 Page: 1 of 8 RF Exposure Evaluation declaration Product Name : 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Model No. : WN6508A FCC ID : PPQ-WN6508A Applicant : LITE-ON TECHNOLOGY CORP. Address : 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt : June 01., 2012 Date of Declaration: June 14, 2012 Report No. : 126112R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 126112R-RFUSP42V01 Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 126112R-RFUSP42V01 Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product : 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (2.15dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 190.9853 0.062335 6 2437.00 185.7804 0.060636 11 2462.00 170.2159 0.055556 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (2.15dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 307.6097 0.100399 6 2437.00 368.1290 0.120152 11 2462.00 265.4606 0.086642 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 208.4491 0.082743 157 5785.00 196.7886 0.078114 165 5825.00 183.6538 0.072901 The RF exposure at 20 cm is below limit. Report No. 126112R-RFUSP42V01 Page: 4 of 8 802.11n-20MHz_21.7Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (2.15dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 625.1727 0.204047 06 2437.00 719.4490 0.234818 11 2462.00 532.1083 0.173672 The RF exposure at 20 cm is below limit. 802.11n-40MHz_45Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (2.15dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 03 2422.00 538.2698 0.175683 06 2437.00 724.4360 0.236445 09 2452.00 409.2607 0.133577 The RF exposure at 20 cm is below limit. 802.11n-20MHz_21.7Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 534.5644 0.212193 157 5785.00 503.5006 0.199862 165 5825.00 511.6818 0.203110 The RF exposure at 20 cm is below limit. 802.11n-40MHz_45Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 524.8075 0.208320 159 5795.00 503.5006 0.199862 The RF exposure at 20 cm is below limit. Report No. 126112R-RFUSP42V01 Page: 5 of 8 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 23.0144 0.009135 44 5220.00 26.4241 0.010489 48 5240.00 27.6058 0.010958 52 5260.00 66.0693 0.026226 60 5300.00 68.0769 0.027023 64 5320.00 63.5331 0.025219 100 5500.00 44.5656 0.017690 120 5600.00 51.5229 0.020452 140 5700.00 47.2063 0.018738 The RF exposure at 20 cm is below limit. 802.11n-20MHz_21.7Mbps Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 36.4754 0.014479 44 5220.00 37.0681 0.014714 48 5240.00 34.6737 0.013764 52 5260.00 161.0646 0.063934 60 5300.00 158.4893 0.062912 64 5320.00 89.5365 0.035541 100 5500.00 103.2761 0.040995 120 5600.00 142.5608 0.056589 140 5700.00 146.8926 0.058308 The RF exposure at 20 cm is below limit. Report No. 126112R-RFUSP42V01 Page: 6 of 8 802.11n-40MHz_45Mbps Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (3dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 30.8319 0.012239 46 5230.00 34.6737 0.013764 54 5270.00 135.2073 0.053670 62 5310.00 37.2392 0.014782 102 5510.00 40.7380 0.016171 118 5590.00 110.4079 0.043826 134 5670.00 122.4616 0.048611 The RF exposure at 20 cm is below limit.

Report No. 126112R-RFUSP28V01-A Page: 1 of 30 Dynamic Frequency Selection (DFS) Test Report Product Name 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Model No WN6508A FCC ID PPQ-WN6508A Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Performed Location: Quietek Corporation (Linkou Laboratory) No. 5-22, Rueishu Keng, Linkou Dist., New Taipei City 24451, Taiwan. R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Date of Receipt June 01, 2012 Issued Date June 11, 2012 Report No. 126112R-RFUSP28V01-A Report Version V1.0 Report No. 126112R-RFUSP28V01-A Page: 2 of 30 DFS Test Report Issued Date: June 11, 2012 Report No.: 126112R-RFUSP28V01-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. WN6508A FCC ID. PPQ-WN6508A EUT Rated Voltage DC 3.3V (Power by PCI Express) EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2010 FCC 06-96 Test Result Complied Documented By : (Senior Adm. Specialist / Genie Chang ) Tested By : ( Vice Supervisor / Tom Hsieh ) Approved By : ( Manager / Vincent Lin ) Report No. 126112R-RFUSP28V01-A Page: 3 of 30 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................................4 1.1. EUT Description ............................................................................................................................................................................4 1.2. Standard Requirement....................................................................................................................................................................6 1.3. UNII Device Description ...............................................................................................................................................................6 1.4. Test Equipment ..............................................................................................................................................................................7 1.5. Test Setup ......................................................................................................................................................................................8 1.6. DFS Requirements Prior to Use of a Channel ...............................................................................................................................8 1.7. DFS requirements during normal operation...................................................................................................................................9 1.8. DFS Detection Thresholds.............................................................................................................................................................9 1.9. Radar Test Waveforms .................................................................................................................................................................10 1.10. Radar Waveform Calibration .......................................................................................................................................................14 1.11. Radar Waveform Calibration Result ............................................................................................................................................15 1.12. Slave Data Traffic Plot Result......................................................................................................................................................17 2. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ......................................................................18 2.1. Test Procedure .............................................................................................................................................................................18 2.2. Test Requirement .........................................................................................................................................................................18 2.3. Uncertainty ..................................................................................................................................................................................18 2.4. Test Result of Channel Move Time and Channel Closing Transmission Time and Non-Occupancy Period ...............................19 3. DFS TEST SETUP PHOTO......................................................................................................................29 Attachment 1: EUT Test Photographs Report No. 126112R-RFUSP28V01-A Page: 4 of 30 1. GENERAL INFORMATION 1.1. EUT Description Product Name 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Trade Name LITE-ON FCC ID. PPQ-WN6508A Model No. WN6508A Frequency Range 802.11a/n-20MHz: 5180-5240MHz, 5260-5320MHz, 5500-5580MHz, 5660-5700MHz 802.11n-40MHz: 5190-5230MHz, 5270-5310MHz, 5510-5590MHz, 5670MHz-5795MHz Number of Channels 802.11b/g/n-20MHz: 11, n-40MHz: 7 802.11a/n-20MHz: 16, n-40MHz: 9 Channel Control Auto Data Rate 802.11a/g: 6-54Mbps, 802.11n: up to 450Mbps Channel Separation 802.11a/n-20MHz: 20MHz 802.11n-40MHz: 40MHz Type of Modulation OFDM (BP…

Text truncated - open the document above for the full version.

Report No. 126112R-RFUSP32V01 Page: 1 of 197 Test Report Product Name 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Model No WN6508A FCC ID PPQ-WN6508A Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt June 01, 2012 Issued Date June 07, 2012 Report No. 126112R-RFUSP32V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 126112R-RFUSP32V01 Page: 2 of 197 Test Report Certification Issued Date: June 07, 2012 Report No.: 126112R-RFUSP32V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. WN6508A FCC ID. PPQ-WN6508A EUT Rated Voltage DC 3.3V (Power by PCI Express) EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2010 ANSI C63.4: 2003; FCC KDB-789033 Test Result Complied Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Report No. 126112R-RFUSP32V01 Page: 3 of 197 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Transmit Power ................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedur ...............................................................................................................................19 3.5. Uncertainty ..................................................................................................................................19 3.6. Test Result of Peak Transmit Power............................................................................................20 4. Peak Power Spectral Density....................................................................................................57 4.1. Test Equipment............................................................................................................................57 4.2. Test Setup ....................................................................................................................................57 4.3. Limits ..........................................................................................................................................57 4.4. Test Procedure .............................................................................................................................58 4.5. Uncertainty ..................................................................................................................................58 4.6. Test Result of Peak Power Spectral Density ...............................................................................59 5. Peak Excursion ..........................................................................................................................93 5.1. Test Equipment..............................................................................................…

Text truncated - open the document above for the full version.

Report No. 126112R-RFUSP32V01 Page: 39 of 197 Channel 48 -Chain C Channel 52 -Chain C Report No. 126112R-RFUSP32V01 Page: 40 of 197 Channel 60 -Chain C Channel 64 -Chain C Report No. 126112R-RFUSP32V01 Page: 41 of 197 Channel 100 -Chain C Channel 120 -Chain C Report No. 126112R-RFUSP32V01 Page: 42 of 197 Channel 140 -Chain C Report No. 126112R-RFUSP32V01 Page: 43 of 197 Product : 802.11 a/b/g/n, 2.4G/5G 3T3R Wireless Module Test Item : Peak Transmit Power Test Site : No.3 OATS Test Mode : Mode 3: Transmitter (802.11n-40BW 45Mbps) CHAIN A Cable loss=1dB Peak Power Output Data Rate (Mbps) 21.7 43.365 86.7130.7 173.3195 216.7 Channel No. Frequency (MHz) Measurement Level (dBm) Required Limit 38 5190 9.92 -- -- -- -- -- -- -- <17dBm 46 5230 11.11 11.05 10.96 10.82 10.73 10.61 10.56 10.43 <17dBm 54 5270 16.54 -- -- -- -- -- -- -- <17dBm 62 5310 11.16 11.08 10.94 10.86 10.77 10.62 10.53 10.48 <24dBm 102 5510 10.25 -- -- -- -- -- -- -- <24dBm 118 5590 14.86 14.76 14.67 14.53 14.42 14.38 14.29 14.17 <24dBm 134 5670 15.21 -- -- -- -- -- -- -- <24dBm Note: Peak Power Output Value =Reading value on peak power meter + cable loss CHAIN B Cable loss=1dB Peak Power Output Data Rate (Mbps) 21.7 43.365 86.7130.7 173.3195 216.7 Channel No. Frequency (MHz) Measurement Level (dBm) Required Limit 38 5190 10.26 -- -- -- -- -- -- -- <17dBm 46 5230 10.85 10.76 10.61 10.53 10.4810.410.35 10.28 <17dBm 54 5270 16.95 -- -- -- -- -- -- -- <17dBm 62 5310 11.62 11.57 11.46 11.35 11.27 11.13 11.09 10.98 <24dBm 102 5510 12.62 -- -- -- -- -- -- -- <24dBm 118 5590 16.53 16.46 16.37 16.26 16.18 16.09 15.97 15.84 <24dBm 134 5670 16.45 -- -- -- -- -- -- -- <24dBm Note: Peak Power Output Value =Reading value on peak power meter + cable loss Report No. 126112R-RFUSP32V01 Page: 44 of 197 CHAIN C Cable loss=1dB Peak Power Output Data Rate (Mbps) 21.7 43.365 86.7130.7 173.3195 216.7 Channel No. Frequency (MHz) Measurement Level (dBm) Required Limit 38 5190 10.18 -- -- -- -- -- -- -- <17dBm 46 5230 9.81 9.739.629.579.439.379.28 9.18 <17dBm 54 5270 16.08 -- -- -- -- -- -- -- <17dBm 62 5310 9.83 9.769.619.579.459.379.28 9.11 <24dBm 102 5510 10.74 -- -- -- -- -- -- -- <24dBm 118 5590 15.42 15.34 15.2915.215.18 15.11 15.07 14.96 <24dBm 134 5670 16.54 -- -- -- -- -- -- -- <24dBm Note: Peak Power Output Value =Reading value on peak power meter + cable loss Peak Transmit Power Measurement: (CHAIN A+ B+ C) Channel Number Frequency 26dB Bandwidth Chain A Power Chain B Power Chain C Power Output Power Output Power Limit (MHz) (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) dBm+10log(BW) 38 5190 46.900 9.92 10.26 10.18 14.89 17 20.71 46 5230 47.900 11.11 1…
