LITE-ON TECH. CORP. PRODUCT SPEC WV300A Specification Page 1/11 2011/08/23 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Transmitter Board WV300A Amimon AMN2110 + Amimon AMN3110 Version 1.2 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Liteon semi-P/N: B853HZ000G Change History: Revision Date Author Change List Draft 2010/07/12 Kenny Su Preliminary Version 1.0 2011/05/26 Kenny Su 1.Add PCBA Mechanical 2.Update Power Consumption Version 1.1 2011/07/20 Kenny Su Add “HID” feature Version 1.2 2011/08/23 Kenny Su Revise product feature Author: Kenny Su Approved by: Alfred But Editor: Kenny Su Project Leader: Alfred But WV300A Specification Page 2/11 2011/08/23 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Transmitter Board WV300A Amimon AMN2110 + Amimon AMN3110 Version 1.2 Networking B.U. Lite-on Technology Corporation 4F, 90, Chien I Rd. Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Phone: 886-2-2222-6181 Fax: 886-2-2221-5288 Contact: Product Marketing ML Wu #8266 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) WV300A Specification Page 3/11 2011/08/23 LTC Network Access Confidential CONTENT PRODUCT FEATURES .................................................................................................................... 4 MAIN CHIPSET................................................................................................................................. 5 FUNCTIONAL SPECIFICATIONS................................................................................................. 5 PCBA MECHANICAL ...................................................................................................................... 6 BLOCK DIAGRAM ........................................................................................................................... 7 ENVIRONMENTAL .......................................................................................................................... 7 OPERATING............................................................................................................................................ 7 STORAGE................................................................................................................................................ 7 WV300A Specification Page 4/11 2011/08/23 LTC Network Access Confidential PRODUCT FEATURES World band frequency 5150~5250;5725~5850MHz operation Coexists with 802.11a/n and 5.8GHz cordless devices 128/256-bit AES based encryption Supports 20 and 40 MHz channels for supreme video quality and high rate video/audio Signals WHDI 1.0 compliance, including HDCP 2.0 Support HDMI 1.4a video format and HDCP 1.2 with video encryption. Supports any uncompressed video resolutions with a pixel clock rate of up to 162 MHz, including: HD: 480p, 576p, 720p, 1080i, 1080p PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA(1600x1200) Panel: 854x800, 1280x768, 1366x768, 1920x1080 Uncompressed streaming of HD video and audio up to 30 meters(No walls) Less than 1mSec latency between video source and video sink Static Video Recognition High Definition Interface: 36-bit RGB or YCrCb (4:4:4) Enables the support of non-standard resolutions Audio: Up to 18 Mbps throughput of audio stream I²S: Up to eight PCM channels SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital Support HID Support IR blaster RoHS WV300A Specification Page 5/11 2011/08/23 LTC Network Access Confidential MAIN CHIPSET Amimon AMN2120 + AMN3110 FUNCTIONAL SPECIFICATIONS WHDI Function Standard WHDI 1.0 Bus Interface HDMI Data Rate 20MHz DL (Tx to Rx): 31.5 Mbps 40MHz DL (Tx to Rx): 63 Mbps Modulation Scheme Uses 18MHz or 40Mhz bandwidth and is carried over the 5GHz unlicensed band Frequency Range 5150~5250; 5725~5850MHz Operating Voltage 5 V ±5% supply voltage Security 128/256-bit AES based encryption Power Consumption 7.5Watt – 1080P Antenna Type Five PCB antennas WV300A Specification Page 6/11 2011/08/23 LTC Network Access Confidential PCBA MECHANICAL WV300A Specification Page 7/11 2011/08/23 LTC Network Access Confidential BLOCK DIAGRAM ENVIRONMENTAL Operating Operating Temperature: 10-35ºC ambient in still air (outside of case) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 C Relevant Humidity: 5-95% (non-condensing) WV300A Specification Page 8/11 2011/08/23 LTC Network Access Confidential FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the e…

Text truncated - open the document above for the full version.

LITE-ON Technology Corp. FCC ID.: PPQ-WV300A 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan.Tel : 886-2-2222-6181 Federal Communications Commission Oct. 17, 2011 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WV300A Product: WHDI Tx board Model: WV300A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

American TCB 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Subject: Model WV300A FCC ID: PPQ-WV300A Gentlemen: Please be advised that the Model WV300A is applying to modular approval and intending to indoor used only. The end product for this device is indoor use TV or TV peripherals device (video sensor and/or set-top box). Sincerely, TC WU / Director LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan

LITE-ON Technology Corp. FCC ID.: PPQ-WV300A 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Tel : 886-2-2222-6181 LITE-ON Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to the FCC Part 15 Section 15.212 Modular transmitters, LITE-ON Technology Corp..would like to request modular approval for the submission FCC ID: PPQ-WV300A. LITE-ON Technology Corp.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation(Please see the Circuit Diagram RF chip“MX25L8006EM1I-12G (U20)”). 3. The modular transmitter have its own power supply regulation, the power regulator chip is RT8015AGQW(U1)、RT8008GB(U2、U3)、RT9193-33GQW(U4). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration (Please see the test photo). 6. The modular transmitter is labeled with its own FCC ID number(Please see the label sample). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements(Please see the Uesr’s manual). 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

LITE-ON Technology Corp. FCC ID.: PPQ-WV300A 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Tel : 886-2-2222-6181 LITE-ON Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Oct. 17, 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WV300A) Schem Block Diagram: (WV300A) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

RF_160, Issue 01 Declaration of Authorization We Name: LITE-ON Technology Corp. Address: 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan City: Taipei Hsien  . Country: Taiwan...  Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: WHDI Tx board Type designation: WV300A Trademark: LITE-ON on our behalf. Date: 2011/10/17 City: Taipei Hsien Name: TC Wu / Director Signature: 

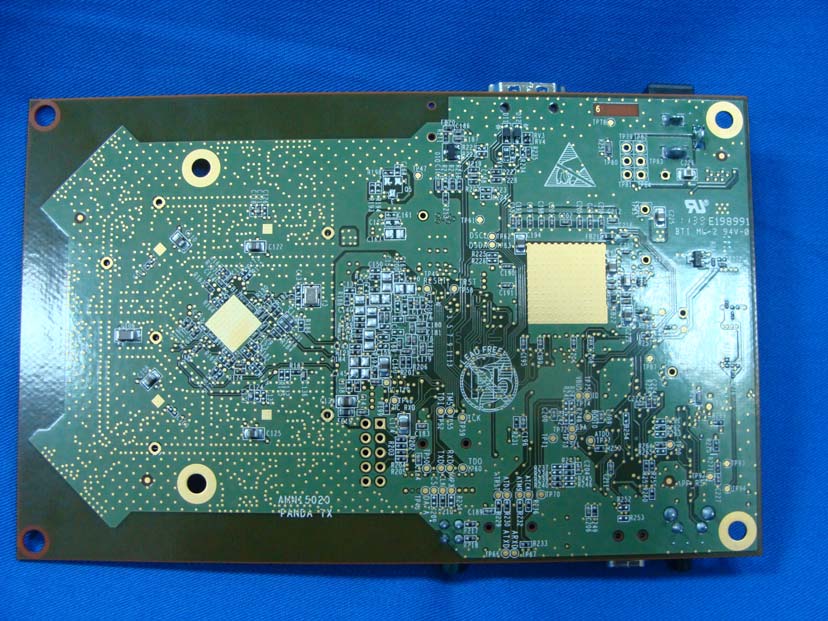

Report No.: 119315R-RFUSP32V01 Page : 1 of 1 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

LITE-ON Technology Corp. FCC ID.: PPQ-WV300A 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan.Tel : 886-2-2222-6181 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

LITE-ON Technology Corp. FCC ID.: PPQ-WV300A 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan.Tel : 886-2-2222-6181 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 119315R-RFUSP32V01 Page : 1 of 9 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 2 of 9 ٛٛ (3) EUT Photo (4) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 3 of 9 ٛٛ (5) EUT Photo (6) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 4 of 9 ٛٛ (7) EUT Photo (8) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 5 of 9 ٛٛ (9) EUT Photo (10) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 6 of 9 ٛٛ (11) EUT Photo (12) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 7 of 9 ٛٛ (13) EUT Photo (14) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 8 of 9 ٛٛ (15) EUT Photo (16) EUT Photo Report No.: 119315R-RFUSP32V01 Page : 9 of 9 ٛٛ (17) EUT Photo (18) EUT Photo

Report No. 119315R-RFUSP28V01 Page: 7 of 131 ٛٛ 1.2. Operational Description The EUT is a Full HD Video Wireless Transmitter Module with a built-in 5GHz transceiver, together with Full HD Video Wireless Receiver Module. It has a SIMO design of five channel and one slow rate output wireless channel, which generates an upstream channel for data content transmissions. The data modulation is OFDM, using five antennas to support 4(Transmit) * 1(Receive) technology. The device only provided one transmitting speed 31.5Mbps in 20MHz bandwidth mode and 63Mbps in 40MHz bandwidth mode. Presents the ultimate solution for converting any High Definition (HD) system, including Full HD, into a wireless one. These add-on modules enable wireless A/V applications that fit easily into the living room and eliminate traditional A/V wiring. The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. The device can transmit audio and video signal to associate equipment, device will receive signal form associate equipment when associate equipment request change operation frequency. The AMN2120 WHDITM baseband transmitter chip is the heart of the WV300A WHDI transmitter module. The AMN2120 interfaces the A/V source through the WHDI connector. The AMN2120 includes an internal microcontroller for controlling the physical level. The AMN2120 is based on MIMO technology transmitting through up to four output channels. Four digital-to-analog converters and one analog-to-digital converter are embedded within the chip. The AMN2120 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and then used as an internal system clock. The AMN2120 also generates a 10 MHz reference clock, derived from 40 MHz for general use. The AMN3110 is a fully-integrated direct conversion MIMO transmitter specifically designed for WHDI applications using OFDM modulation in 5.15-5.25GHz and 5.725~5.850GHz. The device consists of: ‧ Four Complete Downlink Direct Conversion Transmitters. ‧ One Uplink Receiver. ‧ Integrated Synthesizer. ‧ Internal DC Servo Loops. ‧ RSSI. ‧ IQ Detector. ‧ RF and Baseband Control Interface. ‧ Power Management Unit. ‧ 3-Wire SPI Interface. To complete the RF front-end solution, the AMN3110 uses external PA, RF switches, RF Band Pass Filters (BPF), RF BALUNs and a few passive components. The device antenna are use five FIFA(4TX, 1RX) and printed on PCB, for receiver function there are support one external antenna which can instead of printed antenna. Mode 1: Transmit (31.5Mbps 20MBW) Test Mode: Mode 2: Transmit (63Mbps 40MBW)

Report No. 119315R-RFUSP42V01 Page: 1 of 3 Version: 1.0 ٛٛ RF Exposure Evaluation declaration Product Name : WHDI Tx board Model No. : WV300A FCC ID : PPQ-WV300A Applicant : LITE-ON Technology Corp. Address : 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Date of Receipt : Sep. 16, 2011 Date of Declaration: Oct. 13, 2011 Report No. : 119315R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119315R-RFUSP42V01 Page: 2 of 3 Version: 1.0 ٛٛ 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 119315R-RFUSP42V01 Page: 3 of 3 Version: 1.0 ٛٛ 1.3. Test Result of RF Exposure Evaluation Product : WHDI Tx board Test Item : RF Exposure Evaluation Test Site : No.3 OATS (n20-chain A+B+C+D) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 32.5087 0.010250 44 5220.00 39.0841 0.012323 48 5240.00 36.5595 0.011527 The RF exposure at 20 cm is below limit. (n40-chain A+B+C+D) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 39.8107 0.012553 46 5230.00 48.4172 0.015266 The RF exposure at 20 cm is below limit. (n20-chain A+B+C+D) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 636.7955 0.200785 157 5785.00 554.6257 0.174876 165 5825.00 517.6068 0.163204 The RF exposure at 20 cm is below limit. (n40-chain A+B+C+D) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 528.4453 0.166621 159 5795.00 618.0164 0.194864 The RF exposure at 20 cm is below limit.

Report No. 119315R-RFUSP32V01 Page: 1 of 113 ٛٛ Test Report Product Name WHDI Tx board Model No WV300A FCC ID PPQ-WV300A Applicant LITE-ON Technology Corp. Address 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Date of Receipt Sep. 16, 2011 Issued Date Oct. 12, 2011 Report No. 119315R-RFUSP32V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119315R-RFUSP32V01 Page: 2 of 113 ٛٛ Test Report Certification Issued Date: Oct. 12, 2011 Report No.: 119315R-RFUSP32V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name WHDI Tx board Applicant LITE-ON Technology Corp. Address 4F, No.90, Chien 1 Rd., Chung-Ho, Taipei Hsien 235, Taiwan Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WV300A FCC ID. PPQ-WV300A EUT Rated Voltage DC 5V (Power by AC Adapter) EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2010 ANSI C63.4: 2009; FCC KDB-789033 Test Result Complied Documented By : ( Adm. Specialist / Joanne Lin ) Tested By : ( Assistant Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin ) Report No. 119315R-RFUSP32V01 Page: 3 of 113 ٛٛ TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Transmit Power ................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedur ...............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Transmit Power............................................................................................17 4. Peak Power Spectral Density....................................................................................................31 4.1. Test Equipment............................................................................................................................31 4.2. Test Setup ....................................................................................................................................31 4.3. Limits ..........................................................................................................................................31 4.4. Test Procedure .............................................................................................................................32 4.5. Uncertainty ..................................................................................................................................32 4.6. Test Result of Peak Power Spectral Density ...............................................................................33 5. Peak Excursion ..........................................................................................................................47 5.1. Test Equipment............................................................................................................................47 5.2. Test Setup ..........................…

Text truncated - open the document above for the full version.

Report No. 119315R-RFUSP32V01 Page: 39 of 113 ٛٛ Channel 48 – Chain C Report No. 119315R-RFUSP32V01 Page: 40 of 113 ٛٛ Channel 36 – Chain D Channel 44 – Chain D Report No. 119315R-RFUSP32V01 Page: 41 of 113 ٛٛ Channel 48 – Chain D Report No. 119315R-RFUSP32V01 Page: 42 of 113 ٛٛ Product : WHDI Tx board Test Item : Peak Power Spectral Density Test Site : No.3 OATS Test Mode : Mode 2: Transmit (63Mbps 40MBW) Channel Number Frequency (MHz) Chain A Power (dBm) Chain B Power (dBm) Chain C Power (dBm) Chain D Power (dBm) Measurement Level (dBm) Required Limit (dBm) Result 38 5190 -6.200 -2.850 -6.640 -6.070 0.873 <4 Pass 46 5230 -5.230 -3.780 -5.020 -5.470 1.197 <4 Pass Note: Measurement Level (dBm) = 10LOG (Chain A Power (mW)+ Chain B Power (mW)+ Chain C Power (mW)+ Chain D Power (mW)) Report No. 119315R-RFUSP32V01 Page: 43 of 113 ٛٛ Channel 38 – Chain A Channel 46 – Chain A Report No. 119315R-RFUSP32V01 Page: 44 of 113 ٛٛ Channel 38 – Chain B Channel 46 – Chain B Report No. 119315R-RFUSP32V01 Page: 45 of 113 ٛٛ Channel 38 – Chain C Channel 46 – Chain C Report No. 119315R-RFUSP32V01 Page: 46 of 113 ٛٛ Channel 38 – Chain D Channel 46 – Chain D Report No. 119315R-RFUSP32V01 Page: 47 of 113 ٛٛ 5. Peak Excursion 5.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 5.2. Test Setup Conduction Power Measurement 5.3. Limits The ratio of the peak excursion of the modulation envelope (measured suing a peak hold function) to the peak transmit power (measured as specified above) shall not exceed 13 dB across any 1 MHz bandwidth or the emission bandwidth whichever is less. 5.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to DTS test procedure of FCC KDB-789033 for compliance to FCC 47CFR Subpart E requirements. 5.5. Uncertainty ± 1.27 dB SMA Connector EUT Spectrum Analyzer RF Cable Report No. 119315R-RFUSP32V01 Page: 48 of 113 ٛٛ 5.6. Test Result of Peak Excursion Product : WHDI Tx board Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 1: Transmit (31.5Mbps 20MBW) Chain A Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 36 5180 10.790 <13 Pass 44 5220 11.300 <13 Pass 48 5240 11.970 <13 Pass Channel 36: Report No. 119315R-RFUSP32V01 Page: 49 of 113 ٛٛ Channel 44: Channel 48: Report No. 119315R-RFUSP32V01 Page: 50 of 113 ٛٛ Chain B Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 36 5180 11.750 <13 Pass 44 5220 11.820 <13 Pass 48 5240 12.090 <13 Pass Channel 36: Report No. 119315R-RFUSP32V01 Page: 51 of 113 ٛٛ Channel 44: Channel 48: Report No. 119315R-RFUSP32V01 Page: 52 of 113 ٛٛ Chain C Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 36 5180 11.650 <13 Pass 44 5220 12.120 <13 Pass 48 5240 10.440 <13 Pass Channel 36: Report No. 119315R-RFUSP32V01 Page: 53 of 113 ٛٛ Channel 44: Channel 48: Report No. 119315R-RFUSP32V01 Page: 54 of 113 ٛٛ Chain D Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 36 5180 12.190 <13 Pass 44 5220 12.220 <13 Pass 48 5240 10.970 <13 Pass Channel 36: Report No. 119315R-RFUSP32V01 Page: 55 of 113 ٛٛ Channel 44: Channel 48: Report No. 119315R-RFUSP32V01 Page: 56 of 113 ٛٛ Product : WHDI Tx board Test Item : Peak Excursion Test Site : No.3 OATS Test Mode : Mode 2: Transmit (63Mbps 40MBW) Chain A Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 38 5190 12.040 <13 Pass 46 5230 11.540 <13 Pass Channel 38: Report No. 119315R-RFUSP32V01 Page: 57 of 113 ٛٛ Channel 46: Report No. 119315R-RFUSP32V01 Page: 58 of 113 ٛٛ Chain B Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 38 5190 11.790 <13 Pass 46 5230 12.680 <13 Pass Channel 38: Report No. 119315R-RFUSP32V01 Page: 59 of 113 ٛٛ Channel 46:

Report No. 119315R-RFUSP32V01 Page: 60 of 113 ٛٛ Chain C Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 38 5190 12.090 <13 Pass 46 5230 12.460 <13 Pass Channel 38: Report No. 119315R-RFUSP32V01 Page: 61 of 113 ٛٛ Channel 46: Report No. 119315R-RFUSP32V01 Page: 62 of 113 ٛٛ Chain D Channel No. Frequency (MHz) Measurement Level (dB) Required Limit (dB) Result 38 5190 11.370 <13 Pass 46 5230 11.720 <13 Pass Channel 38: Report No. 119315R-RFUSP32V01 Page: 63 of 113 ٛٛ Channel 46: Report No. 119315R-RFUSP32V01 Page: 64 of 113 ٛٛ 6. Radiated Emission 6.1. Test Equipment The following test equipments are used during the radiated emission test: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. X Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier QTK QTK-AMP-03 / 0003 May, 2011 X Pre-Amplifier QTK AP-180C / CHM_0906076 Sep., 2011 X Pre-Amplifier MITEQ AMF-4D-180400-45-6P/ 925975 Mar, 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 X Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 6.2. Test Setup Radiated Emission Below 1GHz EUT FRP Dome Test Receiver The height of broad band antenna was scanned from 1m to 4m. The distance between antenna and turn table was 3m.. To Controller To Receiver Fully soldered Metal Ground Non-Conducted Table 3m 1m to 4m 80cm Report No. 119315R-RFUSP32V01 Page: 65 of 113 ٛٛ Radiated Emission Abo…
