PPQ-WV301AWHDI Rx board

產品名稱: WHDI Rx board 廠牌: LITE-ON, 型號: WV301A LITE-ON TECH. CORP. PRODUCT SPEC WV301A Specification Page 1/11 2011/08/26 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Receiver Board WV301A Amimon AMN2220 + AMN3210 Version 1.1 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Liteon semi-P/N: B853HZ100G Change History: Revision Date Author Change List Draft 2010/07/12 Kenny Su Preliminary Version 1.0 2011/05/18 Kenny Su Add PCBA Mechanical Version 1.1 2011/08/26 Kenny Su Revise Product Feature Author: Kenny Su Approved by: Alfred But Editor: Kenny Su Project Leader: Alfred But WV301A Specification Page 2/11 2011/08/26 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Receiver Board WV301A Amimon AMN2220 + AMN3210 Version 1.1 Networking B.U. Lite-on Technology Corporation 4F, 90, Chien I Rd. Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Phone: 886-2-2222-6181 Fax: 886-2-2221-5288 Contact: Product Marketing ML Wu #8266 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) WV301A Specification Page 3/11 2011/08/26 LTC Network Access Confidential CONTENT PRODUCT FEATURES .................................................................................................................... 4 MAIN CHIPSET ................................................................................................................................. 5 FUNCTIONAL SPECIFICATIONS ................................................................................................. 5 PCBA MECHANICAL ...................................................................................................................... 6 BLOCK DIAGRAM ........................................................................................................................... 7 ENVIRONMENTAL .......................................................................................................................... 7 OPERATING ............................................................................................................................................ 7 STORAGE ................................................................................................................................................ 7 WV301A Specification Page 4/11 2011/08/26 LTC Network Access Confidential PRODUCT FEATURES  World band frequency 5150~5250;5725~5850MHz operation  Coexists with 802.11a/n and 5.8GHz cordless devices  128/256-bit AES based encryption  Supports 20 and 40 MHz channels for supreme video quality and high rate video/audio Signals  WHDI 1.0 compliance, including HDCP 2.0  Support HDMI 1.4a video format and HDCP 1.2 with video encryption.  Supports any uncompressed video resolutions with a pixel clock rate of up to 162 MHz, including: HD: 480p, 576p, 720p, 1080i, 1080p PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA (1600x1200) Panel: 854x800, 1280x768, 1366x768, 1920x1080  Less than 1mSec latency between video source and video sink  Static Video Recognition  High Definition Interface: 36-bit RGB or YCrCb (4:4:4) Enables the support of non-standard resolutions  Audio: Up to 18 Mbps throughput of audio stream I²S: Up to eight PCM channels SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital  RoHS WV301A Specification Page 5/11 2011/08/26 LTC Network Access Confidential MAIN CHIPSET Amimon AMN2220 + AMN3210 FUNCTIONAL SPECIFICATIONS WHDI Function Standard WHDI 1.0 Bus Interface HDMI Data Rate 20MHz UL (Rx to Tx): Up to 30.0 Kbps 40MHz UL (Rx to Tx): Up to 60.0 Kbps Modulation Scheme Uses 18MHz or 40Mh z bandwidth and is ca rried over the 5GHz unlicensed band Frequency Range 5150~5250;5725~5850MHz Operating Voltage 5 V ±5% supply voltage Security 128/256-bit AES based encryption Power Consumption 7.5Watt – 1080P Antenna Type Five PCB antennas WV301A Specification Page 6/11 2011/08/26 LTC Network Access Confidential PCBA MECHANICAL WV301A Specification Page 7/11 2011/08/26 LTC Network Access Confidential LED BEHAVIOR Indication Function LED1 Link On/Off LED2 Power On/Off B LOCK DIAGRAM ENVIRONMENTAL Operating O perating Temperature: 10-35ºC ambient in still air (outside of case) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 C Relevant Humidity: 5-95% (non-condensing) WV301A Specification Page 8/11 2011/08/26 LTC Network Access Confidential FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation i…

Text truncated - open the document above for the full version.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WV301A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 Federal Communications Commission Oct. 25, 2011 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WV301A Product: WHDI Rx board Model: WV301A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON TECHNOLOGY CORP.

American TCB 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Subject: Model WV301A FCC ID: PPQ-WV301A Gentlemen: Please be advised that the Model WV301A is applying to modular approval and intending to indoor used only. The end product for this device is indoor use TV or TV peripherals device (video sensor and/or set-top box). Sincerely, TC WU / Director LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan

Lite-On Technology Corp. 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Attestation for FCC Declaration of Conformity FCC ID: PPQ-WV301A Data: Oct. 25, 2011 Please be notified that we, the undersigned, Lite-On Technology Corp., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001 (119322R-ITUSP02V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, TC Wu / Director Lite-On Technology Corp. TEL No: 886-2-2222-6181 FAX No.: 886-2-2226-6749 Email: [email protected]

Modular Approval Request FCC (per DA 00-1407) FCC ID: PPQ-WV301A Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, it is integrated in Chip MX25L8006EM1I-12G (MXIC) 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, it is integrated in Chip RT8058GQW and RT9193-33GQW (RICHTEK) 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labelled with its own FCC ID number 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): _ Mr. TC Wu ____ Date: Oct. 25, 2011 Signature:

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WV301A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 LITE-ON TECHNOLOGY CORP. 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Oct. 25, 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WV301A) Schem Block Diagram: (WV301A) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON TECHNOLOGY CORP.

RF_160, Issue 01 Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei  . Country: Taiwan, R.O.C..  Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: WHDI Rx board Type designation: WV301A Trademark: Lite-On on our behalf. Date:  2011/10/25  . City:  Taipei...  ..  Name:  ...TC Wu / Director.  .............. Signature: 

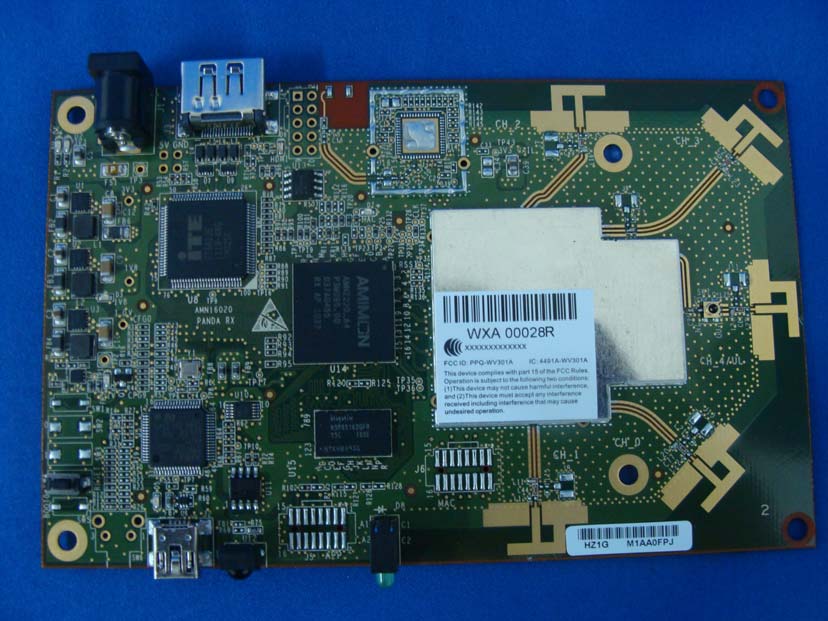

Report No.: 119322R-RFUSP28V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WV301A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

LITE-ON TECHNOLOGY CORP. FCC ID.: PPQ-WV301A 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-2222-6181 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 119322R-RFUSP28V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 119322R-RFUSP28V01 Page : 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 119322R-RFUSP28V01 Page : 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 119322R-RFUSP28V01 Page : 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 119322R-RFUSP28V01 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 119322R-RFUSP28V01 Page : 7 of 7 (13) EUT Photo (14) EUT Photo

Report No. 119322R-RFUSP28V01 Page: 7 of 62 1.2. Operational Description The EUT is a Full HD Video Wireless Receiver Module with a built-in 5GHz transceiver, together with Full HD Video Wireless Transmitter Module. It has a MISO design of five channel and one slow rate output wireless channel, which generates an upstream channel for data content transmissions. The data modulation is OFDM, using five antennas to support 1(Transmit) * 5(Receive) technology. The device only provided one transmitting speed 30kbps in 20MHz bandwidth mode and 60kbps in 40MHz bandwidth mode. Presents the ultimate solution for converting any High Definition (HD) system, including Full HD, into a wireless one. These add-on modules enable wireless A/V applications that fit easily into the living room and eliminate traditional A/V wiring. The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. The device can receive audio and video signal from associate equipment, device will transmit signal to request associate equipment change transmission frequency. The IC AMN2220 WHDI baseband receiver chip is the heart of the WV301A WHDI Receiver module. The AMN2220 interfaces the A/V sink through the WHDI connector and is controlled by the internal MAC uC. The AMN2220 is based on MIMO technology receiving up to five input channels. Five analog-to-digital converters and one digital-to-analog converter are embedded within the chip. The AMN2220 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and then used as an internal system clock. The IC AMN3210 is a fully-integrated Zero-IF MIMO receiver specifically designed for WHDI applications using OFDM modulation for single-band 5.15 -5.25GHz and 5.725 - 5.85 GHz. The device consists of: ‧ Five Complete Downlink Zero-IF Receivers. ‧ One Uplink Direct Conversion Transmitter. ‧ Integrated Synthesizer/VCO. ‧ Internal DC Servo Loops. ‧ RSSI, RF and Baseband Control Interface. ‧ Power Management Unit. ‧ 3-Wire SPI Interface. To complete the RF front-end solution, the AMN3210 uses external PA, RF Band Pass Filters (BPF), RF BALUNs and a few passive components. Mode 1: Transmit - 20BW Test Mode: Mode 2: Transmit - 40BW

Report No. 119322R Page: 1 of 4 RF Exposure Evaluation declaration Product Name WHDI Rx board Model No. WV301A FCC ID PPQ-WV301A Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Sep. 16, 2011 Date of DeclarationOct. 14, 2011 Report No. 119322R The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119322R Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 119322R Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : WHDI Rx board Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11n-20MHz_14.4Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 236.0478 0.074427 157 5785.00 260.6154 0.082173 165 5825.00 247.1724 0.077935 The RF exposure at 20 cm is below limit. 802.11n-40MHz_30Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 272.8978 0.086046 159 5795.00 268.5344 0.084670 The RF exposure at 20 cm is below limit. 802.11n-20MHz_14.4Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 23.7137 0.007477 44 5220.00 25.1768 0.007938 48 5240.00 27.7332 0.008744 The RF exposure at 20 cm is below limit. Report No. 119322R Page: 4 of 4 802.11n-40MHz_30Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190.00 25.4683 0.008030 46 5230.00 28.1838 0.008886 The RF exposure at 20 cm is below limit.

Report No. 119322R-RFUSP28V01 Page: 1 of 62 Test Report Product Name WHDI Rx board Model No WV301A FCC ID. PPQ-WV301A Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Date of Receipt Sep. 16, 2011 Issue Date Oct. 14, 2011 Report No. 119322R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119322R-RFUSP28V01 Page: 2 of 62 Test Report Certification Issue Date: Oct. 14, 2011 Report No.: 119322R-RFUSP28V01 Product Name WHDI Rx board Applicant LITE-ON TECHNOLOGY CORP. Address 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. WV301A EUT Rated Voltage DC 5V EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 119322R-RFUSP28V01 Page: 3 of 62 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment............................................................................................................................29 5.2. Test Setup ..................…

Text truncated - open the document above for the full version.

Report No.: 119322R-RFUSP28V01 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 119322R-RFUSP28V01 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 119322R-RFUSP28V01 Page : 3 of 4 Front View of Radiated Test (Horn) 1-18GHz Back View of Radiated Test (Horn) 1-18GHz Report No.: 119322R-RFUSP28V01 Page : 4 of 4 Front View of Radiated Test (Horn) 18-40GHz Back View of Radiated Test (Horn) 18-40GHz
