PPQ-WV400AWHDI TX Stick

LITE-ON TECH. CORP. WV400A Specification Page 2/11 2011/08/23 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Transmitter Stick WV400A Amimon AMN2120 + MAXIM MAX2850 Version 1.1 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Liteon semi-P/N: B853J3600G Change History: Revision Date Author Change List Draft 2011/01/05 Kenny Su Preliminary Version 1.0 2011/05/18 Kenny Su 1.Revise LED Behavior 2.Add PCBA Mechanical Version 1.1 2011/08/23 Kenny Su Revise product feature Author: Kenny Su Approved by: Alfred But Editor: Kenny Su Project Leader: Alfred But WV400A Specification Page 3/11 2011/08/23 LTC Network Access Confidential PRODUCT SPECIFICATION WHDI Transmitter Stick WV400A Amimon AMN2120 + MAXIM MAX2850 Version 1.1 Networking B.U. Lite-on Technology Corporation 4F, 90, Chien I Rd. Chung Ho, Taipei Hsien 235, Taiwan, R.O.C. Phone: 886-2-2222-6181 Fax: 886-2-2221-5288 Contact: Product Marketing ML Wu #8266 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) WV400A Specification Page 4/11 2011/08/23 LTC Network Access Confidential CONTENT PRODUCT FEATURES .................................................................................................................... 5 MAIN CHIPSET................................................................................................................................. 6 FUNCTIONAL SPECIFICATIONS................................................................................................. 6 PCBA MECHANICAL ...................................................................................................................... 7 LED BEHAVIOR ............................................................................................................................... 7 USB CABLE ...................................................................................................錯誤! 尚未定義書籤。 BLOCK DIAGRAM ........................................................................................................................... 8 ENVIRONMENTAL .......................................................................................................................... 8 OPERATING............................................................................................................................................ 8 STORAGE................................................................................................................................................ 8 WV400A Specification Page 5/11 2011/08/23 LTC Network Access Confidential PRODUCT FEATURES World band frequency 5150~5250;5725~5850MHz operation Coexists with 802.11a/n and 5.8GHz cordless devices 128/256-bit AES based encryption Supports 20 and 40 MHz channels for supreme video quality and high rate video/audio Signals WHDI 1.0 compliance, including HDCP 2.0 Support HDMI 1.4a video format and HDCP 1.2 with video encryption. Supports any uncompressed video resolutions with a pixel clock rate of up to 162 MHz, including: HD: 480p, 576p, 720p, 1080i, 1080p PC: VGA (640x480), SVGA (800x600), XGA (1024x768), UGA(1600x1200) Panel: 854x800, 1280x768, 1366x768, 1920x1080 Uncompressed streaming of HD video and audio up to 10 meters(No walls) Less than 1mSec latency between video source and video sink Static Video Recognition High Definition Interface: 36-bit RGB or YCrCb (4:4:4) Enables the support of non-standard resolutions Audio: Up to 18 Mbps throughput of audio stream I²S: Up to eight PCM channels SPDIF: Including AC-3, DTS HD, Dolby 5.1, Digital  RoHS WV400A Specification Page 6/11 2011/08/23 LTC Network Access Confidential MAIN CHIPSET Amimon AMN2120 + Maxim MAX2850 FUNCTIONAL SPECIFICATIONS WHDI Function Standard WHDI 1.0 Bus Interface HDMI Data Rate 20MHz DL (Tx to Rx): 31.5 Mbps 40MHz DL (Tx to Rx): 63 Mbps Modulation Scheme Uses 18MHz or 40Mhz bandwidth and is carried over the 5GHz unlicensed band Frequency Range 5150~5250; 5725~5850MHz Operating Voltage 5 V ±5% supply voltage Security 128/256-bit AES based encryption Power Consumption 2.5Watt – 1080P 2.1Watt – 720P Up to 2.7 Watt Antenna Type Two chip antennas ( One for downlink transmission only and one which is switched between downlink transmission and uplink reception) WV400A Specification Page 7/11 2011/08/23 LTC Network Access Confidential PCBA MECHANICAL LED BEHAVIOR Indication Function Video connection established On Power Off / No video input Off WV400A Specification Page 8/11 2011/08/23 LTC Network Access Confidential BLOCK DIAGRAM ENVIRONMENTAL Operating Operating Temperature: 10-35ºC ambient in still air (outside of case) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 C Relevant Humidity: 5-95% (non-condensing) FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and rec…

Text truncated - open the document above for the full version.

LITE-ON Technology Corp. FCC ID.: PPQ-WV400A 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235.Tel : 886-2-2222-6181 Federal Communications Commission Oct. 31, 2011 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WV400A Product: WHDI Tx Stick Model: WV400A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

American TCB 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Subject: Model WV400A FCC ID: PPQ-WV400A Gentlemen: Please be advised that the Model WV400A is applying to modular approval and intending to indoor used only. The end product for this device is indoor use TV or TV peripherals device (video sensor and/or set-top box). Sincerely, TC WU / Director LITE-ON TECHNOLOGY CORP. 4F, 90, Chien 1 Road, Chung Ho, Taipei Hsien 235, Taiwan

LITE-ON Technology Corp. FCC ID.: PPQ-WV400A 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235Tel : 886-2-2222-6181 LITE-ON Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Gentlemen: Regarding to FCC Part 15 Section 15.212 Modular transmitters, LITE-ON Technology Corp.would like to request modular approval for the submission FCC ID: PPQ-WV400A. LITE-ON Technology Corp.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. (Please see the circuit diagram, it is integrated in Chip M25P80-VMN6TP). 3. The modular transmitter have its own power supply regulation. (Please see the circuit diagram,it is integrated in Chip RT8025GJ5 and RT8020GQW). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter is labeled with its own FCC ID number 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

LITE-ON Technology Corp. FCC ID.: PPQ-WV400A 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 LITE-ON Technology Corp. 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Tel : 886-2-2222-6181 Fax: 886-2-2226-6749 Federal Communications Commission Oct. 31, 2011 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WV400A) Schem Block Diagram: (WV400A) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- TC Wu / Director LITE-ON Technology Corp.

RF_160, Issue 01 Declaration of Authorization We Name: LITE-ON Technology Corp. Address: 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 City: Taipei  . Country: Taiwan, R.O.C..  Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: WHDI Tx Stick Type designation: WV400A Trademark: LITE-ON on our behalf. Date:  2011/10/31  . City:  Taipei...  ..  Name:  ...TC Wu / Director.  .............. Signature: 

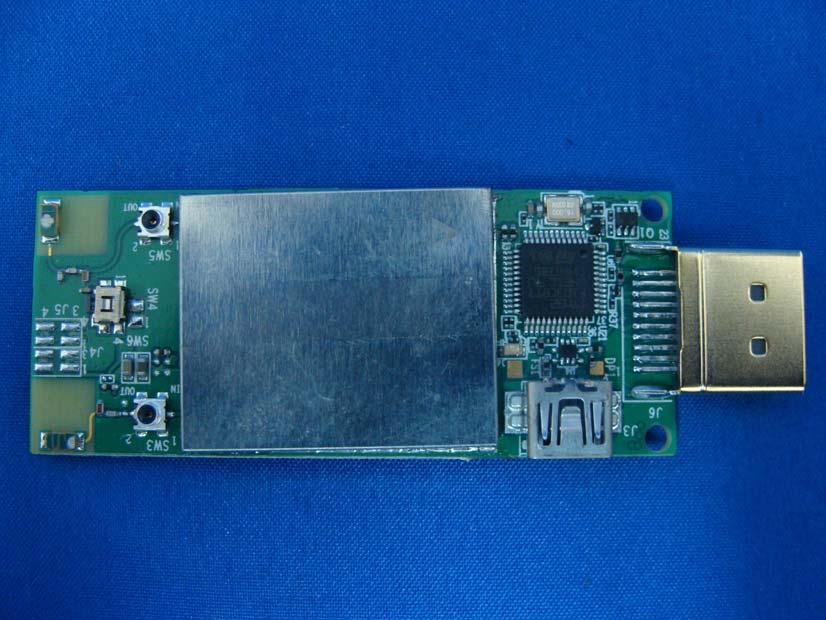

Report No.: 119323R-RFUSP24V02 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

LITE-ON Technology Corp. FCC ID.: PPQ-WV400A 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235.Tel : 886-2-2222-6181 FCC ID Label 標籤 The FCC ID and will be placed on the equipment as shown in the photograph below.

LITE-ON Technology Corp. FCC ID.: PPQ-WV400A 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235.Tel : 886-2-2222-6181 FCC ID Label 標籤 The FCC ID and will be placed on the equipment as shown in the photograph below.

Report No.: 119323R-RFUSP24V02 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 119323R-RFUSP24V02 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 119323R-RFUSP24V02 Page : 4 of 4 (7) EUT Photo (8) EUT Photo AntennaAntenna

Report No. 119323R-RFUSP32V01 Page: 7 of 79 1.2. Operational Description The EUT is a Full HD Video Wireless Transmitter Module with a built-in 5GHz transceiver, together with Full HD Video Wireless Receiver Module. It has a SIMO design of five channel and one slow rate output wireless channel, which generates an upstream channel for data content transmissions. The data modulation is OFDM, using five antennas to support 2(Transmit) * 1(Receive) technology. The device only provided one transmitting speed 31.5Mbps in 20MHz bandwidth mode and 63Mbps in 40MHz bandwidth mode, the operation frequency is from 5180MHz ~5240MHz and 5745~5825MHz. Presents the ultimate solution for converting any High Definition (HD) system, including Full HD, into a wireless one. These add-on modules enable wireless A/V applications that fit easily into the living room and eliminate traditional A/V wiring. The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. The device can transmit audio and video signal to associate equipment, device will receive signal form associate equipment when associate equipment request change operation frequency. The AMN2120 WHDITM baseband transmitter chip is the heart of the WV400A WHDI transmitter module. The AMN2120 interfaces the A/V source through the WHDI connector. The AMN2120 includes an internal microcontroller for controlling the physical level. The AMN2120 is based on MIMO technology transmitting through up to four output channels. Four digital-to-analog converters and one analog-to-digital converter are embedded within the chip. The AMN2120 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and then used as an internal system clock. The AMN2120 also generates a 10 MHz reference clock, derived from 40 MHz for general use. The MAX2850 is a RF transmitter IC designed for 5GHz wireless HDMI applications. The IX includes all circuitry required to implement the complete 4-channel MIMO RF transmitter function and crystal oscillator, providing a fully integrated transmit path, VCO, frequency synthesis, and baseband/control interface. It includes a fast-setting, sigma-delta RF fractional synthesizer with 76Hz frequency programming step size. The IC also integrates on-chip I/Q amplitude and phases-error calibration circuits. Dynamic on/off control of four external Pas is implemented with programmable precision voltages. A 4-to-1 analog mux routes external PA power-detect voltages to the RSSI pin. On-chip monolithic filters are included for transmitter I/Q baseband signal reconstruction to support both 20MHz and 40MHz RF channels. The baseband filtering and TX signal paths are optimized to meet stringent WHDI requirements. The upconverter local oscillator is coherent among all the transmitter channels.

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: Band I (5180~5240MHz) This is a portable device and the max peak output power (EIRP) is 6.75dBm, which is equal to 4.73 mW, Lower that low threshold (60/f GHz) mW = 11.53 mW (f=5.2GHz), d <20 cm general population category. Band IV (5745~5825MHz) This is a portable device and the max peak output power (EIRP) is 7.28dBm, which is equal to 5.35 mW, Lower that low threshold (60/f GHz) mW = 10.34 mW (f=5.8GHz), d <20 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 119323R-RFUSP28V01 Page: 1 of 88 Test Report Product Name WHDI Tx Stick Model No WV400A FCC ID. PPQ-WV400A Applicant LITE-ON Technology Corp. Address 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Date of Receipt Sep. 16, 2011 Issue Date Oct. 06, 2011 Report No. 119323R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119323R-RFUSP28V01 Page: 2 of 88 Test Report Certification Issue Date: Oct. 06, 2011 Report No.: 119323R-RFUSP28V01 Product Name WHDI Tx Stick Applicant LITE-ON Technology Corp. Address 4F, No.90, Chien 1 Rd., Chung-Ho,Taipei Hsien,Taiwan 235 Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WV400A EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage AC 120V/60Hz Trade Name LITE-ON Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Sabrina Tsai ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 119323R-RFUSP28V01 Page: 3 of 88 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment............................................................................................................................29 5.2. Test Setup .............................…

Text truncated - open the document above for the full version.

Report No. 119323R-RFUSP28V01 Page: 81 of 88 Figure Channel 165: (Chain B) Report No. 119323R-RFUSP28V01 Page: 82 of 88 Product : WHDI Tx Stick Test Item : Power Density Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 40BW (5755MHz) Channel No. Frequency (MHz) Chain A Power (dBm) Chain B Power (dBm) Chain A+B Power (dBm) Limit (dBm) Result 151 5755.00 -30.101 -30.435 -27.254 < 8dBm Pass Note: Power Density Value (dBm) = 10*LOG (Chain A (mW)+ Chain B (mW)) Figure Channel 151: (Chain A) Report No. 119323R-RFUSP28V01 Page: 83 of 88 Figure Channel 151: (Chain B) Report No. 119323R-RFUSP28V01 Page: 84 of 88 Product : WHDI Tx Stick Test Item : Power Density Data Test Site : No.3OATS Test Mode : Mode 2: Transmit - 40BW (5795MHz) Channel No. Frequency (MHz) Chain A Power (dBm) Chain B Power (dBm) Chain A+B Power (dBm) Limit (dBm) Result 159 5795.00 -27.869 -27.323 -24.577 < 8dBm Pass Note: Power Density Value (dBm) = 10*LOG (Chain A (mW)+ Chain B (mW)) Figure Channel 159: (Chain A) Report No. 119323R-RFUSP28V01 Page: 85 of 88 Figure Channel 159: (Chain B) Report No. 119323R-RFUSP28V01 Page: 86 of 88 9. EMI Reduction Method During Compliance Testing No modification was made during testing. Report No. 119323R-RFUSP28V01 Page: 87 of 88 Attachment 1: EUT Test Photographs Report No.: 119323R-RFUSP28V01 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 119323R-RFUSP28V01 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 119323R-RFUSP28V01 Page : 3 of 4 Front View of Radiated Test (Horn) 1-18GHz Back View of Radiated Test (Horn) 1-18GHz Report No.: 119323R-RFUSP28V01 Page : 4 of 4 Front View of Radiated Test (Horn) 18-40GHz Back View of Radiated Test (Horn) 18-40GHz Report No. 119323R-RFUSP28V01 Page: 88 of 88 Attachment 2: EUT Detailed Photographs Report No.: 119323R-RFUSP28V01 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 119323R-RFUSP28V01 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 119323R-RFUSP28V01 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 119323R-RFUSP28V01 Page : 4 of 4 (7) EUT Photo (8) EUT Photo AntennaAntenna
