PPQ-WZ400T2.4GHz ZigBee Module

By Tracy Chang 2010-03-04 Page 1/6 TI ZigBee Module WZ400T User’s Manual INTRODUCTION OF ZIGBEE ... 2 PRODUCT FEATURES ... 3 USER GUIDE ... 4 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ... 4 EUROPE – EU DECLARATION OF CONFORMITY ... 5 By Tracy Chang 2010-03-04 Page 2/6 Introduction of ZigBee ZigBee is a standard for a suite of high level communication protocols using small, low-power digital radios based on the IEEE 802.15.4-2003 standard for wireless personal area networks (WPANs). The technology defined by the ZigBee specification is intended to be simpler and less expensive than other WPANs, such as Bluetooth. ZigBee is targeted at radio-frequency (RF) applications that require a low data rate, long battery life, and secure networking. ZigBee protocols are intended for use in embedded applications requiring low data rates and low power consumption. ZigBee's current focus is to define a general-purpose, inexpensive, self-organizing mesh network that can be used for industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, home automation, etc. ZigBee is a mesh network architecture (see Picture 1). Its network layer supports three types of topologies: both star and tree typical networks and generic mesh networks. As one of its defining features, ZigBee provides facilities for carrying out secure communications, protecting establishment and transport of cryptographic keys, cyphering frames and controlling devices. It builds on the basic security framework defined in IEEE 802.15.4. Picture 1. ZigBee network model By Tracy Chang 2010-03-04 Page 3/6 Product Features The WZ400T is using TI CC2530+CC2591 solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables robust network nodes to work for ZigBee function. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The module has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.  RF function:  2.4GHz IEEE802.15.4 Compliant RF Transceiver  Excellent Receiver Sensitivity and Robustness to Interference  Programmable output power up to 17dBm for combination  Only a Single Crystal Needed for Mesh Network Systems  Embedded Microcontroller (8051) in main-chip:  High-Performance and Low Power 8051 Core with Code Pre-fetch  256KB In-System-Programmable Flash  8KB RAM with Retention in All Power Modes  Low power consumption  CSMA/CA Hardware Support  Accurate Digital RSSI/LQI Support  AES Security Coprocessor  Tiny Form Factor  RoHS Compliant Mechanical: Dimensions (L x W x H): 60mm (+/-0.1mm) x 18 mm (+/-0.1mm) x 1.6mm (+/-0.1mm); Weight: 5g. By Tracy Chang 2010-03-04 Page 4/6 User Guide The driver has been installed in WZ400T, user does not need to do any installation steps. Just connect devices, and then it works. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. By Tracy Chang 2010-03-04 Page 5/6 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: - The antenna must be installed such that 20 cm is maintained between the antenna and users. As long as condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Europe – EU …

Text truncated - open the document above for the full version.

Lite-On Technology Corp. FCC ID.: PPQ-WZ400T 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-22226181 Federal Communications Commission Mar. 18, 2010 Authorization and Evaluation Division ATTESTATION FCC ID: PPQ-WZ400T Product: 2.4GHz ZigBee Module Model: WZ400T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------- TC Wu / Deputy Director (R & D Division) Lite-On Technology Corp.

RF_160, Issue 02 Lite-On Technology Corp. Declaration of Authorization We Name: Lite-On Technology Corp. Address: 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. City: Taipei Country: Taiwan Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: ...2.4GHz ZigBee Module................... Type designation: ...WZ400T.................................. Trademark: ...Lite-On.................................. on our behalf. Date: ......2010/03/18........... City: ......Taipei ........ Name: ......TC Wu ........ (2) Function: ...Deputy Director (R & D Division)........ Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment:2.4GHz ZigBee Module Trademark(s) and Model(s):Lite-On and WZ400T Manufacturer:DONG GUAN G-COM COMPUTER CO., LTD. FCC ID in case other parts of this equipment are subject to certification: PPQ-WZ400T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: 103063R-RFUSP37V02 Mar.15, 2010 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Lite-On Technology Corp. Name/Title (legal representative): TC Wu / Deputy Director (R & D Division) Address: 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Phone: 886-2-22226181 Fax: 886-2-22266749 E-mail: [email protected] Date: Mar.18, 2010 Signature: FCC

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: PPQ-WZ400T Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, it is integrated in chip CC2530. 3. The modular transmitter must have its own power supply regulation. The EUT has regulator, it is integrated in chip CC2530. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): TC Wu / Deputy Director (R & D Division) Date: __Mar.18,2010__ Signature: ___________________________

Lite-On Technology Corp. 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. TEL No: 886-2-22226181 FAX No.: 886-2-22266749 Attestation for FCC Declaration of Conformity FCC ID: PPQ-WZ400T Data: Mar. 18, 2010 Please be notified that we, the undersigned, Lite-On Technology Corp., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is DOCTR0001 (103063R-RFUSP37V02). Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, TC Wu / Deputy Director (R & D Division) Lite-On Technology Corp. Tel: 886-2-22226181 Fax: 886-2-22266749 Email: [email protected]

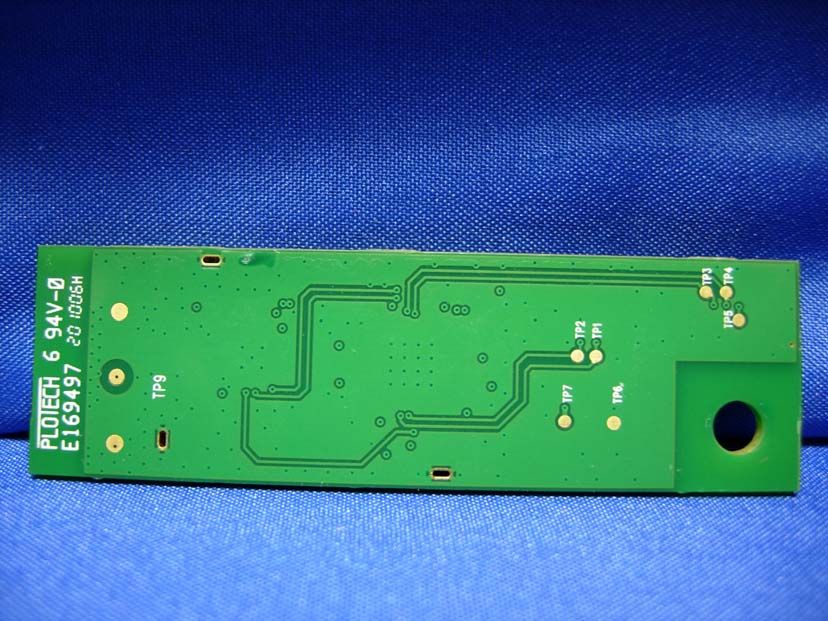

Report No.: 103063R-RFUSP29V01 Page : 1 of 3 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Lite-On Technology Corp. FCC ID.: PPQ-WZ400T 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C..Tel : 886-2-22226181 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 103063R-RFUSP29V01 Page : 2 of 3 Version:1.0 (3) EUT Photo (4) EUT Photo Monopole Antenna Report No.: 103063R-RFUSP29V01 Page : 3 of 3 Version:1.0 (5) EUT Photo

Report No. 103063R-RFUSP29V01 Page : 7 of 45 1.2. Operational Description The EUT is a 2.4GHz ZigBee Module, The Number of the channels is 15 in 2405~2475MHz. The device operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) modulation is O-QPSK. The Antenna is Monopole Antenna.

Report No. 103063R-RFUSP29V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : 2.4GHz ZigBee Module Model No. : WZ400T FCC ID : PPQ-WZ400T Applicant : Lite-On Technology Corp. Address : 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt : Mar. 02, 2010 Date of Declaration: Mar. 15, 2010 Report No. : 103063R-RFUSP29V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103063R-RFUSP29V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 103063R-RFUSP29V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 2.4GHz ZigBee Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5 dBi in logarithm scale. Zigbee Output Power Into Antenna & RF Exposure Evaluation Distance (1.5 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2405.00 71.9449 0.020218 8 2440.00 62.2300 0.017488 15 2475.00 48.8652 0.013732 The RF exposure at 20 cm is below limit.

Report No. 103063R-RFUSP29V01 Page : 1 of 45 Test Report Product Name 2.4GHz ZigBee Module Model No WZ400T FCC ID. PPQ-WZ400T Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Mar. 02, 2010 Issue Date Mar. 15, 2010 Report No. 103063R-RFUSP29V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103063R-RFUSP29V01 Page : 2 of 45 Test Report Certification Issue Date: Mar. 15, 2010 Report No.: 103063R-RFUSP29V01 Product Name 2.4GHz ZigBee Module Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WZ400T EUT Rated Voltage DC 3V EUT Test Voltage DC 3V Trade Name Lite-On Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Adm. Specialist / Leven Huang) Tested By : (Engineer / Eason Hung) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 103063R-RFUSP29V01 Page : 3 of 45 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 7 1.3. Tested System Details .................................................................................................... 8 1.4. Configuration of Tested System...................................................................................... 8 1.5. EUT Exercise Software .................................................................................................. 8 1.6. Test Facility...................................................................................................................10 2. Conducted Emission.................................................................................................. 11 2.1. Test Equipment............................................................................................................. 11 2.2. Test Setup .................................................................................................................... 11 2.3. Limits ............................................................................................................................ 12 2.4. Test Procedure ............................................................................................................. 12 2.5. Uncertainty ................................................................................................................... 12 2.6. Test Result of Conducted Emission.............................................................................. 13 3. Peak Power Output .................................................................................................... 15 3.1. Test Equipment............................................................................................................. 15 3.2. Test Setup .................................................................................................................... 15 3.3. Limits ............................................................................................................................ 15 3.4. Test Procedure ............................................................................................................. 15 3.5. Uncertainty ................................................................................................................... 15 3.6. Test Result of Peak Power Output ............................................................................... 16 4. Radiated Emission ..................................................................................................... 17 4.1. Test Equipment............................................................................................................. 17 4.2. Test Setup .................................................................................................................... 18 4.3. Limits ............................................................................................................................ 19 4.4. Test Procedure ............................................................................................................. 19 4.5. Uncertainty ................................................................................................................... 19 4.6. Test Result of Radiated Emission................................................................................. 20 5. RF antenna conducted test ....................................................................................... 24 5.1. Test Equipment............................................................................................................. 24 5.2. Test Setup .................................................................................................................... 24 5.3. Limits ............................................................................................................................ 24 5.4. Test Procedure ............................................................................................................. 25 5.5. Uncertainty ...................................................…

Text truncated - open the document above for the full version.

Report No. 103063R-RFUSP37V02 Page : 1 of 23 Test Report Product Name 2.4GHz ZigBee Module Model No WZ400T FCC ID. DoC Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Date of Receipt Mar. 02, 2010 Issue Date Mar. 15, 2010 Report No. 103063R-RFUSP37V02 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103063R-RFUSP37V02 Page : 2 of 23 Test Report Certification Issue Date: Mar. 15, 2010 Report No.: 103063R-RFUSP37V02 Product Name 2.4GHz ZigBee Module Applicant Lite-On Technology Corp. Address 4F,90,Chien 1 Road,Chung-Ho,Taipei Hsien 235,Taiwan,R.O.C. Manufacturer DONG GUAN G-COM COMPUTER CO., LTD. Model No. WZ400T FCC ID. DoC EUT Rated Voltage DC 3V EUT Test Voltage DC 3V Trade Name Lite-On Applicable Standard FCC CFR Title 47 Part 15 Subpart B: 2008 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Leven Huang) Tested By : (Engineer / Eason Hung) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 103063R-RFUSP37V02 Page : 3 of 23 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ............................................................................................................. 4 1.2. Tested System Details .................................................................................................... 6 1.3. Configuration of Tested System...................................................................................... 6 1.4. EUT Exercise Software .................................................................................................. 6 1.5. Test Facility..................................................................................................................... 8 2. Conducted Emission.................................................................................................... 9 2.1. Test Equipment............................................................................................................... 9 2.2. Test Setup ......................................................................................................................9 2.3. Limits ............................................................................................................................ 10 2.4. Test Procedure ............................................................................................................. 10 2.5. Uncertainty ................................................................................................................... 10 2.6. Test Result of Conducted Emission.............................................................................. 11 3. Radiated Emission ..................................................................................................... 13 3.1. Test Equipment............................................................................................................. 13 3.2. Test Setup .................................................................................................................... 14 3.3. Limits ............................................................................................................................ 15 3.4. Test Procedure ............................................................................................................. 15 3.5. Uncertainty ................................................................................................................... 16 3.6. Test Result of Radiated Emission................................................................................. 17 4. EMI Reduction Method During Compliance Testing ............................................... 21 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 103063R-RFUSP37V02 Page : 4 of 23 1. GENERAL INFORMATION 1.1. EUT Description Product Name 2.4GHz ZigBee Module Trade Name Lite-On Model No. WZ400T FCC ID. DoC Frequency Range 2405-2475MHz Number of Channels 15CH Type of Modulation DSSS (O-QPSK) Antenna Type Monopole Antenna Antenna Gain Refer to the table “Antenna List” Channel Control Auto Antenna List No. Manufacturer Part No. Peak Gain 1 DONG GUAN G-COM COMPUTER N/A 1.5dBi for 2.4 GHz Note: The antenna of EUT is conform to FCC 15.203 Report No. 103063R-RFUSP37V02 Page : 5 of 23 Center Frequency of Each Channel: Channel FrequencyChannel FrequencyChannel Frequency Channel Frequency Channel 01: 2405 MHz Channel 02: 2410 MHz Channel 03: 2415 MHz Channel 04: 2420 MHz Channel 05: 2425 MHz Channel 06: 2430 MHz Channel 07: 2435 MHz Channel 08: 2440 MHz Channel 09: 2445 MHz Channel 10: 2450 MHz Channel 11: 2455 MHz Channel 12: 2460 MHz Channel 13: 2465 MHz Channel 14: 2470 MHz Channel 15: 2475 MHz Note: 1. The EUT is a 2.4GHz ZigBee Module. 2. Regarding to the operation frequency, the lowest, middle and highest frequency are selected to perform the test. 3. These tests are conducted on a sample for demonstrating the compliance of ZigBee receiver with Part 15 Subpart B. 4. Part 15 Subpart C compliance for spread spectrum devices is shown on the report no. 103063R-RFUSP29V01 and certified under FCC ID: PPQ-WZ400T. Test Mode: Mode 1: Receive Report No. 103063R-RFUSP37V02 Page : 6 of 23 1.2. Tested System Details The types for all equipment, plus descriptions of all cables used in the tested system (including inserted …

Text truncated - open the document above for the full version.

Report No.: 103063R-RFUSP29V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 103063R-RFUSP29V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 103063R-RFUSP29V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
