PPQWN4300R802.11b/g USB Adapter

WN4300R Specification Page 1/8 2007/2/1 LTC Network Access Confidential PRODUCT SPECIFICATION 802.11b/g, 54Mbps Wireless LAN USB Module WN4300R Version 1.1 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. Change History: Revision Date Author Change List Version 1.0 2006/11/23 Vita Lee Preliminary Version 1.1 2006/11/23 Brian Liu Wording Modified Author: Brian Liu Approved by: Frank SS Lee Editor: Brian Liu Project Leader: Sam Chen WN4300R Specification Page 2/8 2007/2/1 LTC Network Access Confidential PRODUCT SPECIFICATION 802.11b/g, 54Mbps Wireless LAN USB Module WN4300R Version 1.1 Networking B.U. Lite-On Technology Corporation 4F, 90, Chien I Rd. Chung-Ho, Taipei Hsien 235, Taiwan, R.O.C. Phone: 886-2-2222-6181 Fax: 886-2-2222-3882 Contact: Product Marketing Mr. Brian Liu #8115 E-mail: [email protected] Customer Approval: (Signature) (Title) (Company) (Date) (Please Sign Back by FAX. For Confirming the Spec Only, not an Official Agreement for OEM/ODM Business) WN4300R Specification Page 3/8 2007/2/1 LTC Network Access Confidential CONTENT PRODUCT FEATURES .................................................................................................................... 4 PRODUCT SPECIFICATIONS ........................................................................................................ 4 MAIN CHIPSET........................................................................................................................................ 4 FUNCTIONAL SPECIFICATIONS............................................................................................................... 4 MECHANICAL......................................................................................................................................... 5 BLOCK DIAGRAM................................................................................................................................... 6 ENVIRONMENTAL .......................................................................................................................... 6 OPERATING............................................................................................................................................ 6 STORAGE................................................................................................................................................ 6 WN4300R Specification Page 4/8 2007/2/1 LTC Network Access Confidential PRODUCT FEATURES • Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate • USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed • IEEE standards support: IEEE 802.11b, 802.11g • Enterprise level security which can apply WPA2 certification • Rohs compliance • Wi-Fi Multimedia (WMM) supported. WMM is a component of the IEEE 802.11e wireless LAN standard for quality of service (QoS). Product specifications Main chipset Baseband / MAC: Ralink RT2571WF RF: Ralink RT2528L Functional Specifications Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11i, WMM Bus Interface Universal Serial Bus (USB2.0) Data Rate 802.11g compliant: 11, 5.5, 2, 1 (DSSS/CCK); 6, 9, 12, 18, 24, 36, 48, 54 (OFDM) Mbps data rates Media Access Control CSMA/CA with ACK Radio Technology 802.11b: DSSS (Direct Sequence Spread Spectrum) / CCK 802.11g: DSSS/CCK, OFDM (Orthogonal Frequency Division Multiplexing) Modulation Techniques 802.11b DSSS: CCK @ 11, 5.5 Mbps DQPSK @ 2 Mbps DBPSK @ 1 Mbps 802.11g OFDM: BPSK @ 6, 9 Mbps QPSK @ 12, 18 Mbps 16-QAM @ 24, 36 Mbps 64-QAM @ 48, 54 Mbps Network architecture Ad-hoc mode (Peer-to-Peer ) Infrastructure mode Operating Channel 802.11b & g 11: (Ch. 1-11) – N. America 14: (Ch. 1-14) – Japan 13: (Ch. 1-13) – Europe ETSI Frequency Range 802.11 b & g 2.412 ~ 2.462 GHz – N. America 2.412 ~ 2.484 GHz – Japan 2.412 ~ 2.472 GHz – Europe ETSI Transmit Output Power 802.11b 17 +-1.5 dBm 802.11 g 15 +-1.5 dBm WN4300R Specification Page 5/8 2007/2/1 LTC Network Access Confidential Receiver Sensitivity 802.11b @FER<8% 11 Mbps: -84 dBm 5.5 Mbps: -85 dBm 2 Mbps: -89 dBm 1 Mbps: -92 dBm 802.11 g @PER<10% 54 Mbps: -70 dBm 48 Mbps: -71 dBm 36 Mbps: -76 dBm 24 Mbps: -80 dBm 18 Mbps: -83 dBm 12 Mbps: -86 dBm 9 Mbps: -87 dBm 6 Mbps: -87 dBm Security 64-bit, 128-bit, 256-bit WEP, TKIP, AES, WPA, WPA2 Operating Voltage 5 V ±5% I/O supply voltage OS supported • Windows XP Pro/Home • Windows XP SP1 Pro/Home • Windows XP SP2 Pro/Home • Windows XP 64-bit • Windows Media Center Edition • Windows Vista (supported Q2, 2007) Power Consumption 802.11b Rx: 236 mA Tx: 333 mA Standby: 200 mA 802.11g Rx: 236 mA Tx: 300 mA Standby: 200 mA Antenna Type Dual antenna connector *Enviromental factors dependent Mechanical Dimensions (Length x Width x Height): 78.2 mm x 14 mm x mm Weight: g g ( ( o o z z ) ) Product ID WN4300R Specification Page 6/8 2007/2/1 LTC Network Access Confidential Block Diagram TBD ENVIRONMENTAL Operating Operating Temperature: 0 to 45 °C (32 to 113 °F) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 °C (-4 to 158 °F) Relevant Humidity: 5-95% (non-condensing) WN4300R Specification Page 7/8 2007/2/1 LTC Network Access Confidential Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined…

Text truncated - open the document above for the full version.

Confidential Letter Date: 2007/1/22 Federal Communications Commission Authorization and Evaluation Division FCC IDPPQWN4300R Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : LITE-ON Technology Corp. Applicant’s company address : 4F, No.90, Chien 1 Rd., Chung-Ho 235, Taipei Hsien, Taiwan R.O.C. Signature : Job Title and Dept. : Senior Manager / Engineering Support Dep.

Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2007/1/23 FCC ID: PPQWN4300R Dear Reviewer, We, LITE-ON Technology Corp. to have state-of-the-art 802.11b/g USB Adaptor approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip 93C66-TSSOP . 3. The requirement of power supply regulation: The part number of the power regulator is RT9166-18PVL. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement is fulfilled only for mobile application configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : LITE-ON Technology Corp. Company Address : 4F, No.90, Chien 1 Rd., Chung-Ho 235, Taipei Hsien, Taiwan R.O.C. Signature : Name : TC Wu Job Title : Senior Manager

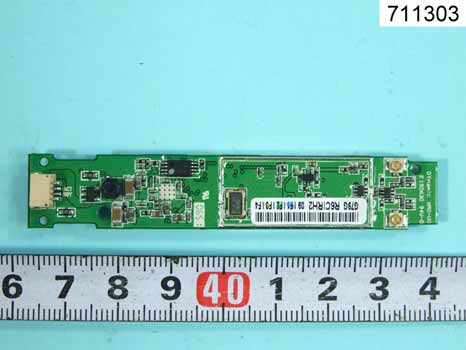

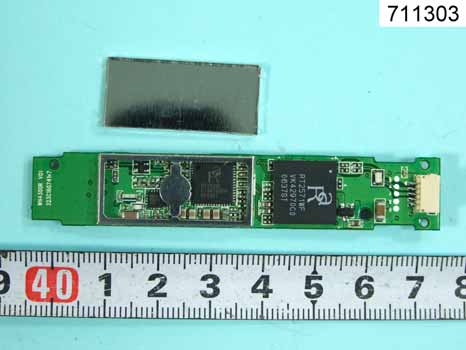

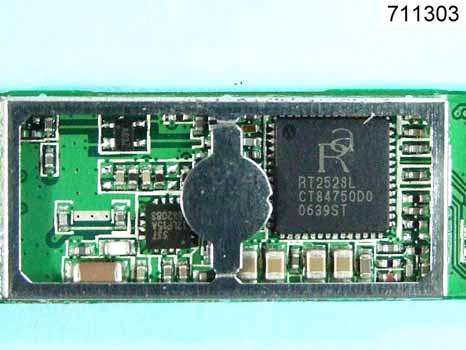

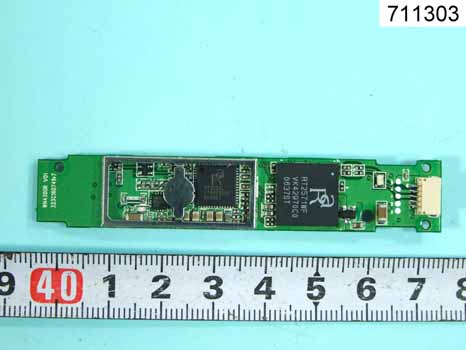

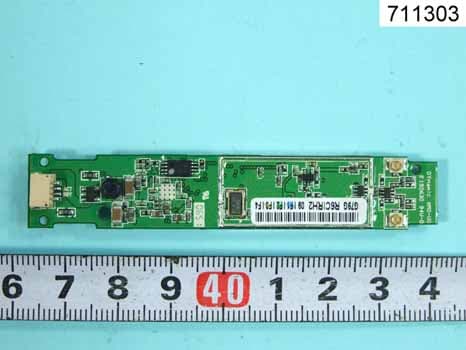

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: PIFA Antenna (INTERNAL) / 3.00 dBi SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: Dipole Antenna (W/O cable)-XCC / 2.00dBi SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: Dipole Antenna (With 1m cable)-XCD / 2.00dBi SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Joymax: Dipole Antenna (With 1m cable) / 1.95dBi SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 26cm-1.37Ø 26cm-1.13Ø SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 9.5cm-1.13Ø 9.5cm-1.37Ø

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: PIFA Antenna (INTERNAL) / 3.00 dBi SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: Dipole Antenna (W/O cable)-XCC / 2.00dBi SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Wistron: Dipole Antenna (With 1m cable)-XCD / 2.00dBi SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 Joymax: Dipole Antenna (With 1m cable) / 1.95dBi SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 26cm-1.37Ø 26cm-1.13Ø SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 29, 2007 FAX : 886-2-2696-2255 9.5cm-1.13Ø 9.5cm-1.37Ø

Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (W/m²) 377 2 E E Electric field (V/m) P Peak RF output power (W) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (m) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PIFA (INTERNAL) Max Conducted Power for IEEE 802.11b/g : 18.97dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3 1.9953 18.9700 78.8860 0.031329 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www. sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company LITE-ON Technology Corp Applicant Address 4F, No.90, Chien 1Rd, Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C. FCC ID PPQWN4300R Manufacturer’s company DONG GUAN G-COM COMPUTER CO., LTD Manufacturer Address 1 ST Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, Dong Guan City, Guang Dong, China Product Name 802.11b/g USB Adapter Brand Name LITE-ON Model Name WN4300R Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jan. 15, 2007 Final Test Date Jan. 26, 2007 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in AANSI C63.4-2003 and 447 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR711303 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: PPQWN4300R Issued Date : Jan. 29, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................... ........................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1.Product Details....................................................................................................................................................................................3 3.2.Accessories .........................................................................................................................................................................................3 3.3.Antenna composition .........................................................................................................................................................................4 3.4.Internal cable for Dipole Antenna ......................................................................................................................................................4 3.5.Table for Carrier Frequencies .............................................................................................................................................................5 3.6.Table for Test Modes ...........................................................................................................................................................................5 3.7.Table for Testing Locations..................................................................................................................................................................6 3.8.Table for Supporting Units ...................................................................................................................................................................6 3.9.Table for Parameters of Test Software Setting .....................................................................................................................................6 3.10. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1.AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2.Maximum Peak Output Power Measurement ...................................................................................................................................15 4.3.Power Spectral Density Measurement ..............................................................................................................................................17 4.4.6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5.Radiated Emissions Measurement ....................................................................................................................................................27 4.6.Band Edge Emissions Measurement .................................................................................................................................................63 4.7.Antenna Requirements .....................................................................................................................................................................70 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 71 6. TEST LOCATION............................................ .................................................................................................. 72 7 . NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 73 APPENDIX A. PHOTOGRAPHS OF EUT..................................... ..................................................................... A1 ~…

Text truncated - open the document above for the full version.

Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 63 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 4.6.BandEdgeEmissionsMeasurement 4.6.1.Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) FieldStrength (micorvolts/meter) MeasurementDistance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2.MeasuringInstrumentsandSetting Please refer to section 5 of equipments list in this report. The following table is the setting of the spectrum analyzer. SpectrumParameterSetting Attenuation Auto Span Frequency 100 MHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 100 KHz /100 KHz for Peak 4.6.3.TestProcedures 1.The test procedure is the same as section 4.5.3, only the frequency range investigated is limited to 100MHz around bandedges. 2.In case the emission is fail due to the used RB/VB is too wide, marker-delta method of FCC Public Notice DA00-705 will be followed. 4.6.4.TestSetupLayout This test setup layout is the same as that shown in section 4.5.4. 4.6.5.TestDeviation There is no deviation with the original standard. 4.6.6.EUTOperationduringTest The EUT was programmed to be in continuously transmitting mode. Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 64 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 4.6.7.TestResultofBandEdgeandFundamentalEmissions Temperature 22к Humidity56% TestEngineerVic Hsiao ConfigurationsMode 1 / 802.11b CH 1, 11 Channel1 Channel11 Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 65 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 Temperature 22к Humidity56% TestEngineerVic Hsiao ConfigurationsMode 1 / 802.11g CH 1, 11 Channel1 Channel11 Note: Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 66 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 Temperature 22к Humidity56% TestEngineerVic Hsiao ConfigurationsMode 2 / 802.11b CH 1, 11 Channel1 Channel11 Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 67 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 Temperature 22к Humidity56% TestEngineerVic Hsiao ConfigurationsMode 2 / 802.11g CH 1, 11 Channel1 Channel11 Note: Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 68 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 ForEmissionnotinRestrictedBand LowBandEdgePlotonConfigurationIEEE802.11b/2412MHz Ref 20 dBmAtt 30 dB * A Center 2.369 GHzSpan 100 MHz10 MHz/ SWT 500 ms * * * RBW 100 kHz VBW 100 kHz 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 4.66 dBm 2.414000000 GHz 1 Delta 1 [T1 ] -40.13 dB -17.200000000 MHz D1 4.66 dBm D2 -15.34 dBm F1 Date: 15.JAN.2007 08:29:15 HighBandEdgePlotonConfigurationIEEE802.11b/2462MHz Ref 20 dBmAtt 30 dB * A Center 2.506 GHzSpan 100 MHz10 MHz/ SWT 500 ms * * * RBW 100 kHz VBW 100 kHz 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 4.02 dBm 2.463800000 GHz 1 Delta 1 [T1 ] -51.28 dB 19.800000000 MHz D1 4.02 dBm D2 -15.98 dBm F1 Date: 15.JAN.2007 08:34:03 Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 69 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 LowBandEdgePlotonConfigurationIEEE802.11g/2412MHz Ref 20 dBmAtt 30 dB * A Center 2.371 GHzSpan 100 MHz10 MHz/ SWT 500 ms * * * RBW 100 kHz VBW 100 kHz 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -1.90 dBm 2.416200000 GHz 1 Delta 1 [T1 ] -34.57 dB -16.200000000 MHz D1 -1.9 dBm D2 -21.9 dBm F1 Date: 15.JAN.2007 08:40:04 HighBandEdgePlotonConfigurationIEEE802.11g/2462MHz Ref 20 dBmAtt 30 dB * A Center 2.503 GHzSpan 100 MHz10 MHz/ SWT 500 ms * * * RBW 100 kHz VBW 100 kHz 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -2.62 dBm 2.466000000 GHz 1 Delta 1 [T1 ] -45.26 dB 20.000000000 MHz D1 -2.62 dBm D2 -22.62 dBm F1 Date: 15.JAN.2007 08:45:24 Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 70 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 4.7.AntennaRequirements 4.7.1.Limit Except for special regulations, the Low-power Radio-frequency Devices must not be equipped with any jacket for installing an antenna with extension cable. An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. 4.7.2.AntennaConnectorConstruction Please refer to section 3.3 in this test report; antenna connector complied with the requirements. Report No.: FR711303 Report Format Version: RF-15.247-2006-6-16-e Page No. : 71 of 73 FCC ID: PPQWN4300RIssued Date : Jan. 29, 2007 5.LISTOFMEASURINGEQUIPMENTS InstrumentManufacturerModelNo.SerialNo.Characteristics Calibration Date Remark EMC Receiver R&S ESCS 30 100174 9kHz – 2.75GHz Feb. 21, 2006 Conduction (CO04-HY) LISN MessTec NNB-2/16Z 99079 9kHz – 30MHzMar. 28, 2006 Conduction (CO04-HY) LISN (Support Unit) EMCO 3810/2NM 97…

Text truncated - open the document above for the full version.

Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 1 of 9 Appendix B. Test Photos Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 2 of 9 1. Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 3 of 9 SIDE VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 4 of 9 Mode 2 FRONT VIEW REAR VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 5 of 9 SIDE VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 6 of 9 2. Photographs of Radiated Emissions Test Configuration Below 1GHz Mode 1 FRONT VIEW REAR VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 7 of 9 Mode 3 FRONT VIEW REAR VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 8 of 9 Above 1GHz Mode 1 FRONT VIEW REAR VIEW Report No.: FR711303 FCC ID: PPQWN4300R Page No. : 9 of 9 Mode 2 FRONT VIEW REAR VIEW
