PPQWN5401AWireless LAN PCI 802.11a/b/g Adapter

Wireless LAN 802.11a/b/g Device 1 Welcome! Congratulations on the purchase of your PC with the Wireless LAN 802.11a/b/g Device. You can establish a wireless network using your PC as a Wireless Access Point or you can use your PC as a client if you already have a wireless network functioning. Introduction Your PC functions as a Wireless Local Area Network (WLAN) connecting with other wireless product(s) via 802.11 technology. 802.11 technology allows over-the-air connection between devices. Your PC is equipped with an 802.11a/b/g product which allows fast (54Mbps) connection rates. If your PC is connected to the internet and you would like instructions on how to wirelessly connect other machines to this PC please refer to section C of this guide or refer to the section on Access Point Mode include in the User’s Manual available on the CD. If another machine is connected to the Internet and you would like to wirelessly connect this PC to the other connected machine, start with page 2 of this guide or find additional information on Station Mode in the full User’s Manual available on the CD. Wireless LAN 802.11a/b/g Device 2 Installing the Wireless LAN 802.11a/b/g Device Antenna The Wireless LAN 802.11a/b/g Device is embedded in the PC and needs the antenna supplied with your PC to be connected. Once connected, your PC is ready to begin functioning in station mode (as a client) with your Wireless Local Area Network. Note: It is assumed that there is an existing wireless LAN network with an Internet connection (please consult your ISP for further information). Package content consist of an antenna with a connector located at the end (A) that screws into the antenna jack located on th e back of the PC (B). A) Antenna Installation 1. Screw the antenna connector (A) to the antenna jack (B) located on the back of the PC. 2. Place the PC on a table or place the antenna in an elevated and open area to achieve the best wireless performance. A B B OR A Wireless LAN 802.11a/b/g Device 3 B) Windows XP  Wireless Zero Configuration The PC will begin functioning in Station Mode (as a Client) with your Wireless LAN Network as soon as the Network Key is set-up. Important If you do not have an existing wi reless network you will need to set up your Gateway prior to using your PC in Station Mode. If you are attempting to set your PC up to function as an Access Point please see Section C of this Quick Install Guide and / or refer to the complete User’s Manual provided on CD. 1. Find the Network Key (WEP Key or WPA Key) for your Wireless Network. 2. Start your PC 3. Right click on the Wireless Network icon in the system tray Note: There are two Network icons in the system tray. The wireless network connection icon is shown below. 4. Select View Available Wireless Networks from the Wireless Network icon menu. Wireless LAN 802.11a/b/g Device 4 The Wireless Network Connection dialog will appear. 5. Select the Wireless Network of your choice by clicking on its name and the entire block will become highlighted 6. Select Connect in the lower right corner The Wireless Network Connection dialog box will appear as shown below. 7. Enter your Network Key (WEP Key or WPA Key) for your Wireless Network 8. Input the Network Key a second time into the “Confirm network key” box Note : If your network is using WEP encryption, then a HEX or an ASCII format is necessary when entering your Network key: z HEX: 10 Characters in HEX notation for 40 bit or 26 characters for 128 bit encryption. z ASCII: 5 Characters for 40 bit or 13 characters for 128 bit encryption. Wireless LAN 802.11a/b/g Device 5 If your network is using WPA it is necessary to enter an 8 – 63 character alphanumeric key-phrase. The Network Key will accept any of these as it supports both WEP and WPA. 9. Select Connect The Wireless Network Connecting dialog box appears as you are being connected. After connection to the network the Wireless Network Connection dialog box will reappear showing the connection. To close this dialog box select the red X in the upper right corner. Wireless LAN 802.11a/b/g Device 6 C) Software Access Point Your PC is communicating wirelessly via an embedded Wireless LAN 802.11a/b/g Device. The Wireless Software Access Point installed on your HP PC has the capability to turn your PC into a fully function high performance access point. The main purpose of the Software Access Point is to provide internet sharing with other PCs through a common gateway (your home access point or wireless broadband router). If you have followed the instruction in this Quick Installation Guide, then your PC is now functioning in station mode (as a client). In order to switch your PC into access point mode: 1. Go to the Start menu. 2. Select All Programs . 3. Select Wireless Software Access Point . 4. Select Install Wireless Software Access Point . Wireless LAN 802.11a/b/g Device 7 The Software Access Point will install on your PC and your will be connected in access point mode. Please consult the User’s Manual available on the CD that came with this product for complete operating instructions and individual setting details. D) Troubleshooting Prior to contacting customer support check the following items and reboot the PC: 1. Verify that both the PC as well as the wireless broadband router/access point are powered. 2. Verify that the antenna is connected securely to the back of your PC. 3. Verify that both the Netw ork name (SSID) and the necessary network key ar e correctly entered and consistent with those of the access point or wireless broadband router that is being used. 4. If experiencing difficulties with connection under WPA settings, please reconfigure your wireless network and the Software Access Point settings to WEP security. 5. Consult he User’s Manual located on the CD for further information on the Wireless LAN 802.11a/b/g Device. Wireless LAN 802.11a/b/g Device 8 E) Customer Support Customer support information can be obtained from your PC: 1. Cl…

Text truncated - open the document above for the full version.

LITEON Technology CORPORATION 2f, No. 6, Lane 359, Sec.2, Chung-Shan Rd., Chung-Ho, Taiwan, R.O.C. TEL: +886-2-22211162 FAX: +886-2-22266749 Mar. 14 th , 2005 FCC IDPPQWN5401A Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: Block Diagram Circuit Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signiture Contact Name/Title: Jennifer Cho/ Safety Engineer Company Name: Lite-On Technology Corp. TEL: +886-2-22211162 ext:8342 FAX: +886-2-22266749 E-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 7, 2005 RE: Lite-On Technology FCC ID: PPQWN5401A I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please provide a ‘real’ label for this product. Generic labels which contain “xxxxxx” are not permitted. 2.) FYI: In the future, please carefully group your frequency bands on Form 731 into which ones should be approved under 15.247 and which ones should be 15.407. The 731 is the basic “instruction set” to any examining engineer and to be proper, we should not make assumptions about what a client wants. In addition, some clients are very picky about what a product is called. I recommend placing exactly how your client wishes to refer to this product under item 4(a) on our Form 731. In this case, I suggest “802.11a/b/g Wireless LAN PCI Adapter”. Kindly confirm with your client. 3.) The supplied Operational Description is generally not detailed enough to meet FCC’s definition of a proprietary document. Either provide a more detailed Operational Description or remove this item from the Confidentiality Request letter. In addition, I am not sure how this device can qualify as a “USB device”. Please review Operational Description for clarity. 4.) FYI: It is not necessary to carry RF power to six digits on Form 731. For most DTS and UNII devices, rounding off to the nearest mW is sufficient. 5.) Please review your 802.11b/g report. Kindly identify which data rates produced the highest RF peak power in your RF conducted power measurements. Was this same data rate used in all subsequent radiated emissions tests? What data rate produced “worst case” results in radiated restricted band tests on Channel 11? 6.) Please review your 802.11a report. Section 1.4 includes a frequency band that is not permitted in North America. Your comments would be appreciated. End users must not have access to any function which will permit operation in inappropriate bands. 7.) In Section 5.1, to what does the column “calculated power limit” refer? It is not necessary to re- do the report as long as I know what this means. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 April 7, 2005 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

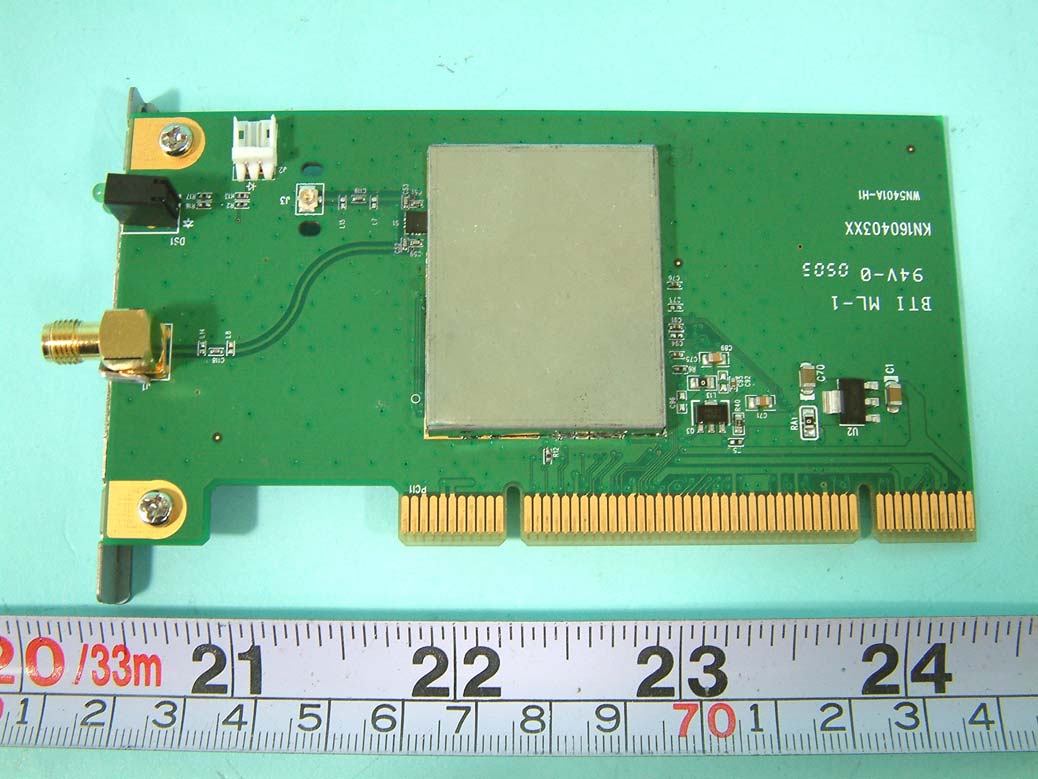

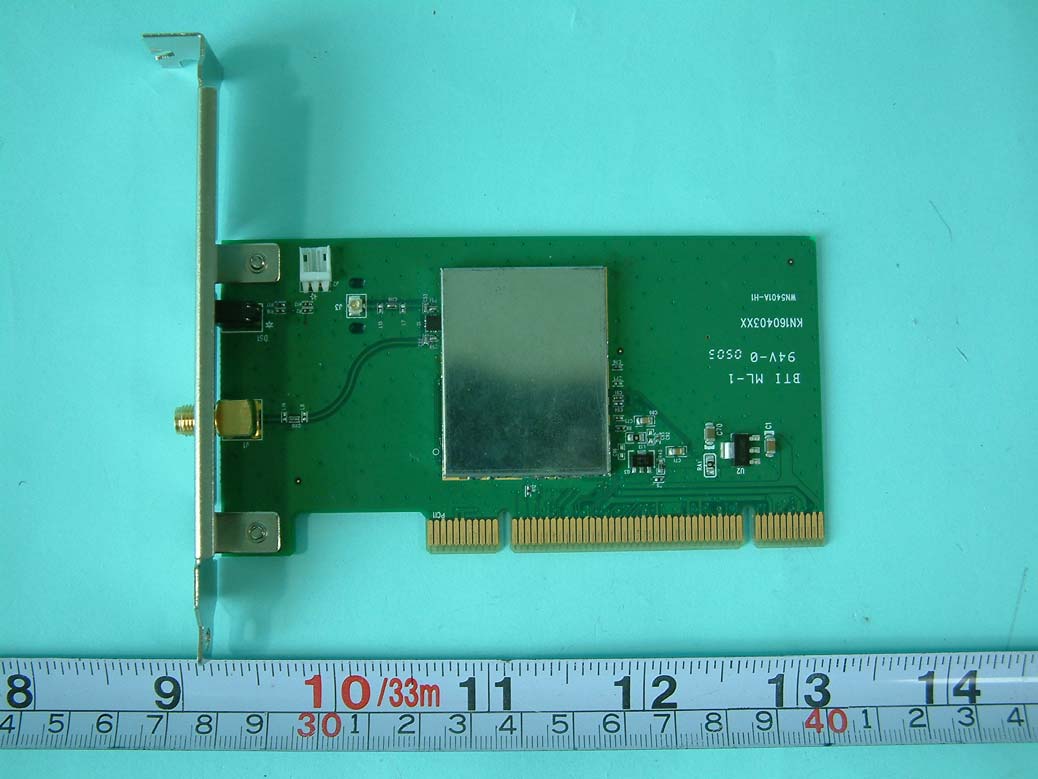

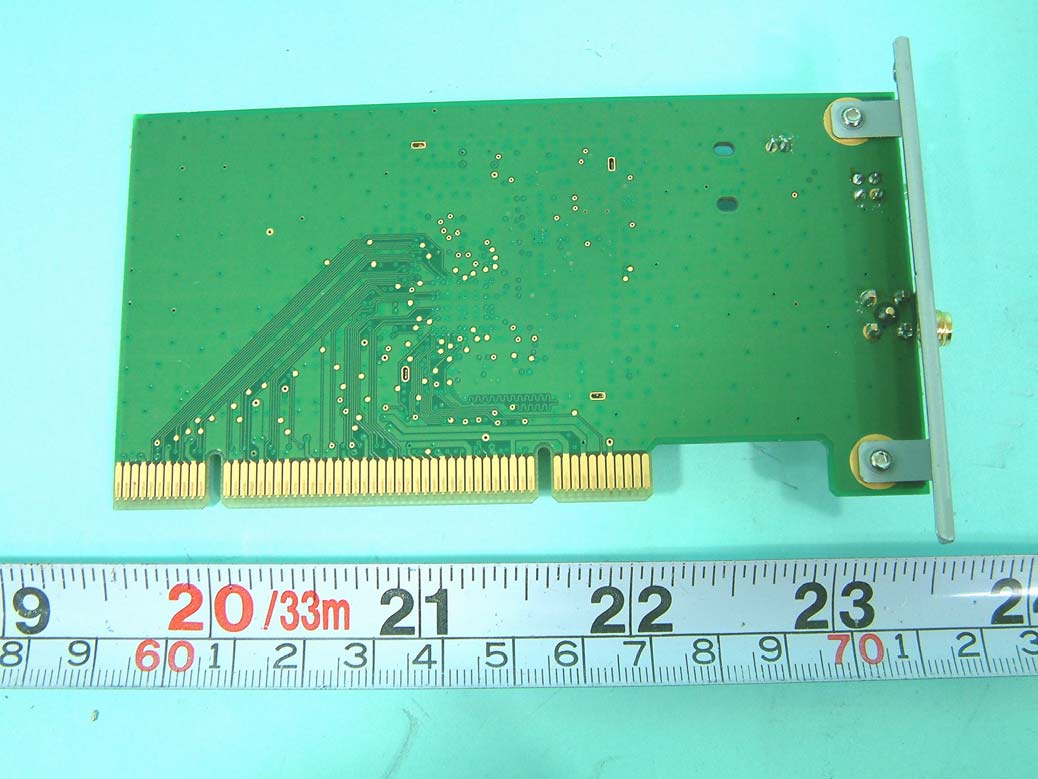

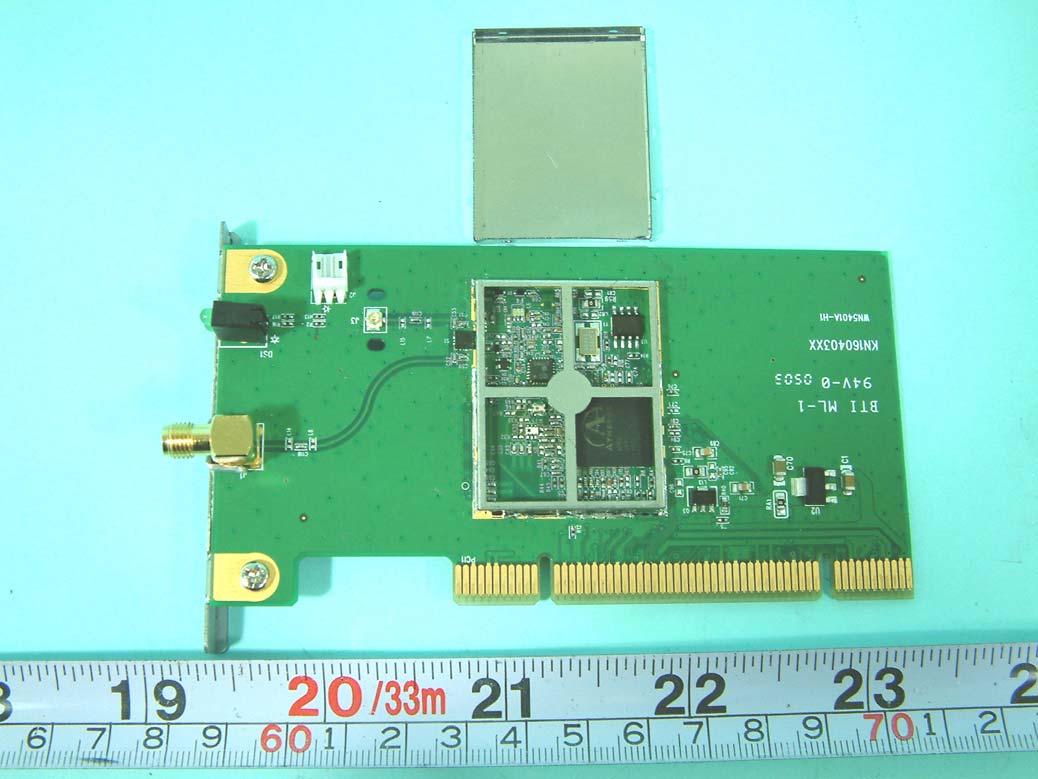

SPORTON International Inc. PAGE NUMBER : A1 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255

FCC ID: PPQWN5401A

SPORTON International Inc. PAGE NUMBER : A6 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 Embedded Patch Antenna (Internal patch) SPORTON International Inc. PAGE NUMBER : A13 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 Swivel Antenna (External dipole) SPORTON International Inc. PAGE NUMBER : A15 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 Flying Lead Antenna (External dipole) SPORTON International Inc. PAGE NUMBER : A19 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A20 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 Portable Antenna (External dipole) SPORTON International Inc. PAGE NUMBER : A21 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A22 OF A22 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2005 FAX : 886-2-2696-2255

Description of Operation EUT is a 802.11a/b/g PCI card with 11 channels for 802.11g and 17 channels for 802.11a. This device provided 1/2/5.5/11/6/9/12/18/24/36/48/54/108 Mbps of transmitting speed. The device of RF carrier is DQPSK,DBPSK,CCK and OFDM. The device adapts direct sequence spread spectrum modulation. The antenna is 1 internal Antenna and 3 external Antenna. This Wireless USB is an IEEE 802.11a/b/g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and 5GHz Orthogonal Frequency Division Multiplex-ing (OFDM) radio transmission, the 802.11a/b/g PCI card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm and the new industrial-strength WPA (Wi-Fi Protected AccessTM) security is used. In addition, its standard compliance ensures that it can communicate with any 802.11a/b/g network.

FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Fixed PRODUCT NAME : Wireless LAN PCI 802.11a/b/g Adapter FCC ID. : PPQWN5401A FILING TYPE : Certification BRAND NAME : LITE-ON, HP MODEL NAME : WN5401A, WN5401A-H1 APPLICANT : LITE-ON TECHNOLOGY CORP. 2F, No. 6, Lane 359, Sec. 2, Chung-Shan Rd., Chung-Ho, Taiwan, R.O.C. MANUFACTURER : DONGGUAN G-COM COMPUTER CO., LTD. 1st Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, Dong Guan City, Guang Dong, China ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: Only the test result of 802.11b/g part is shown in this test report. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. 1190 ILAC MRA FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT .....................................................................................................................II CERTIFICATE OF COMPLIANCE.......................................................................................................................III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST...........................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .....................................................................3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 3 2.3. Description of Test Supporting Units .............................................................................................................................................. 4 3. GENERAL INFORMATION OF TEST ..............................................................................................................5 3.1. Test Facility ..................................................................................................................................................................................... 5 3.2. Standards for Methods of Measurement......................................................................................................................................... 5 3.3. DoC Statement ............................................................................................................................................................................... 5 3.4. Frequency Range Investigated ....................................................................................................................................................... 5 3.5. Test Distance .................................................................................................................................................................................. 5 3.6. Test Software .................................................................................................................................................................................. 5 4. LIST OF MEASUREMENTS .............................................................................................................................7 4.1. Summary of the Test Results.......................................................................................................................................................... 7 5. TEST RESULT ..................................................................................................................................................8 5.1. Test of 6dB Spectrum Bandwidth ................................................................................................................................................... 8 5.2. Test of Maximum Peak Conducted Output Power........................................................................................................................ 14 5.3. Test of Peak Power Spectral Density ................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 57 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 58 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 59 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 60 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 61 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 5.6.9. Test Results for CH 06 / 2437 MHz ( for emission above 1GHz) ‚ Modulation Type: DSSS ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 62 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 63 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 64 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 65 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 66 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 67 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 ‚ Modulation Type: OFDM ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 68 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 69 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 70 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 71 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 72 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 73 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 5.6.10. Test Results for CH 11 / 2462 MHz (for emission above 1GHz) ‚ Modulation Type: DSSS ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 74 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: PPQWN5401A Issued on Mar. 09, 2005 Report No.: FR522506 SPORTON International Inc. Page No. : 75 of 101 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal FCC ID: PPQWN5401A Issued on…

Text truncated - open the document above for the full version.

Report No.: FD522506 SPORTON International Inc. Page No. : 14 of 119 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 5.5 Photographs of Conducted Powerline Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW Report No.: FD522506 SPORTON International Inc. Page No. : 114 of 119 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 6.5 Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. Mode 1 FRONT VIEW REAR VIEW Report No.: FD522506 SPORTON International Inc. Page No. : 115 of 119 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 2 FRONT VIEW REAR VIEW Report No.: FD522506 SPORTON International Inc. Page No. : 116 of 119 TEL : 886-2-2696-2468 Issued Date : Mar. 09, 2005 FAX : 886-2-2696-2255 Mode 3 FRONT VIEW REAR VIEW
