PQG-EX21EX21

RFID System S21 User’s Guide Lyngsoe RFID System S21 User’s Guide Part Number: 950061 First Edition August 2002 The information in this manual is for reference purposes only and is subject to change without notice. The contents of this manual and the associated Lyngsoe S21 Series hardware are the property of Lyngsoe Industries and are copyrighted©. All rights are reserved by Lyngsoe Industries. In no event is Lyngsoe Industries liable for incidental or consequential damages in connection with or arising from the use of this manual or any related documentation. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to an electronic medium or machine readable form without prior written consent from Lyngsoe Industries. © 2002- 2007 Lyngsoe Industries. All Rights Reserved. Lyngsoe is a registered trademark® of Lyngsoe Industries. All other product names and services listed are copyright and registered trademarks/ trade names of their respective owners. Use, duplication or disclosure by the Government is subject to restrictions as set forth in subdivision (b)(3)(ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Lyngsoe Industries. Printed in Canada. Lyngsoe Industries 5570 Kennedy Road, Unit B Mississauga, Ontario L4Z 2A9 CANADA Tel: +1 (905) 501-1533 Fax: +1 (905) 501-1538 FCC CLASS A Digital Device or Peripheral - Information to the User NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio energy and, if not installed and used in accordance with this guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case, the user will be required to correct the interference at his own expense. WA R N I N G : Changes or modifications not expressly approved by Lyngsoe Industries could void the user’s authority to operate the equipment. This page intentionally left blank. Table of Contents: Table of Contents: -1 Table of Contents: : Table of Contents: : List of Figures : Preface S21 What This Manual Contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii Text Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii Chapter 1: Introduction Transponder Identification System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 RFID Specific Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Transponder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Excitation Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Response Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Reading Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Communication Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 RFID System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Postal RFID System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 RFID System S21 Configuration Principles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Communication Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 System Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 System Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Reader Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Real Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Receiving UHF Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Reader Data Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Reader Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Reader Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Exciter Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Compatibility with RFID System 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Chapter 2: Reader RD21 Installation and Connections Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Mechanical Assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Connecting the RS232 Communication Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Connecting the RS485 Four-Wire Communication Line . . . . . . . . . . . . . . . . . . . . . . .3 Connecting the Exciter Communication Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

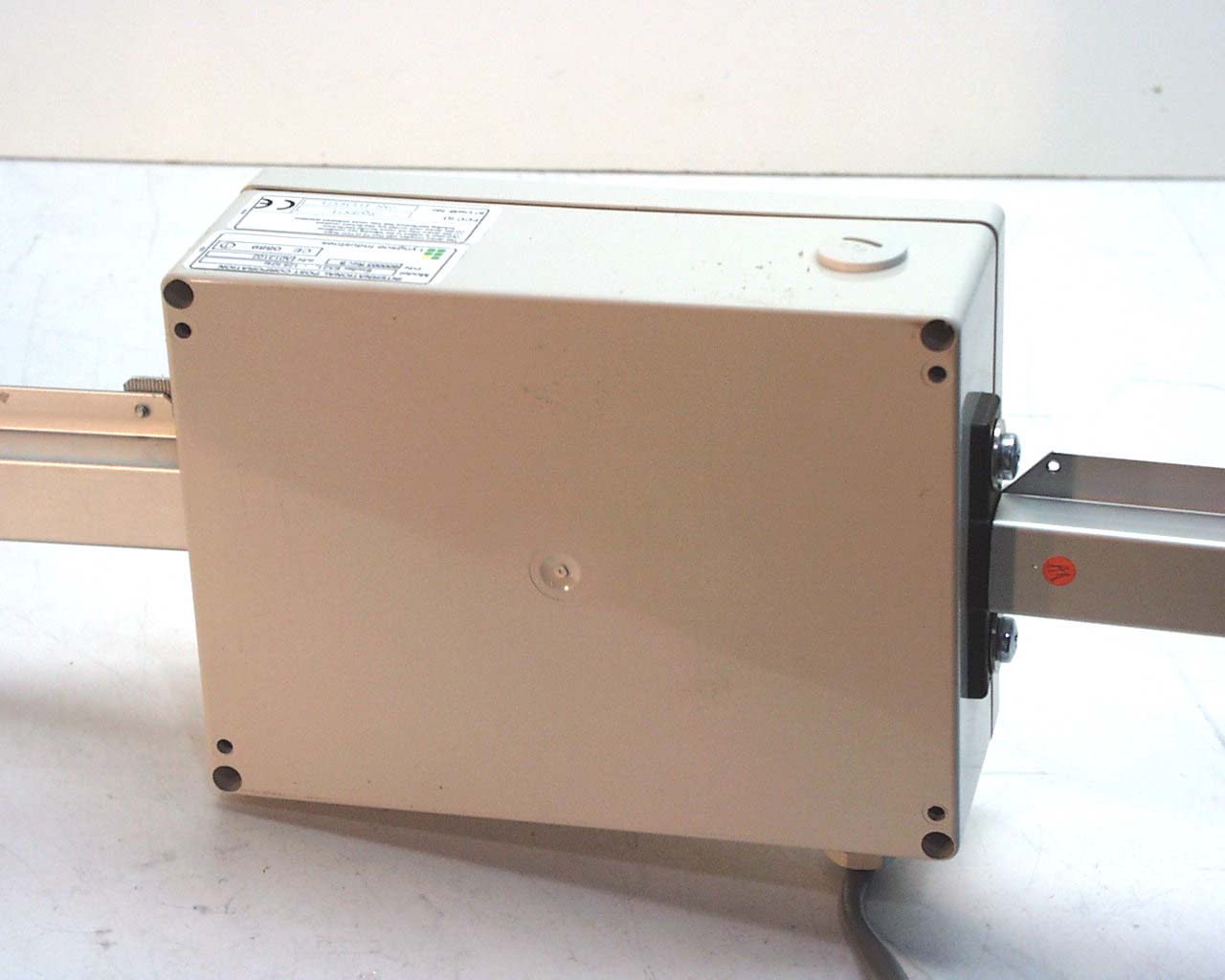

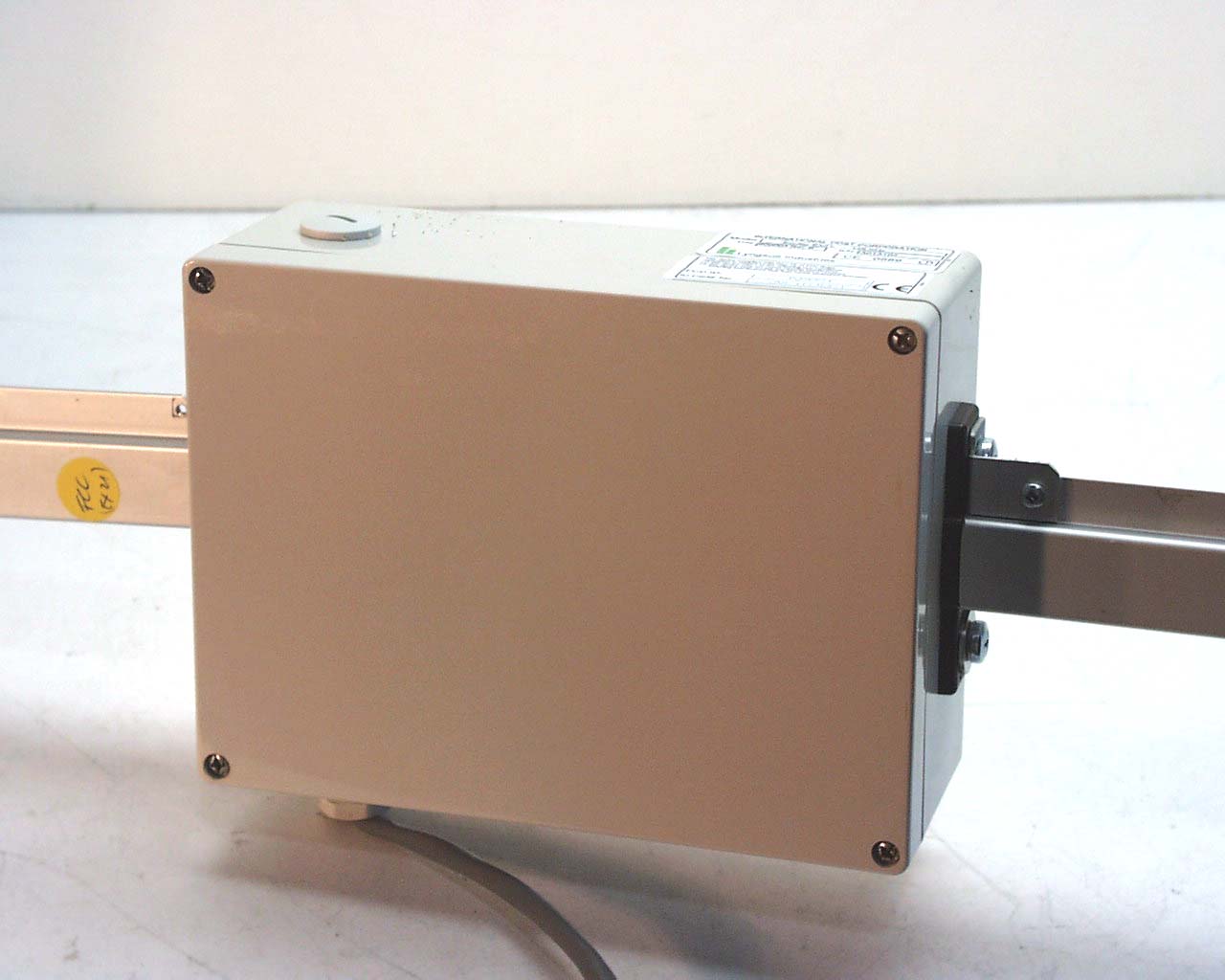

ANNEX 2 – EXTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A2 - 1 ANNEX 2 – EXTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A2 - 2 ANNEX 2 – EXTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A2 - 3

ANNEX 3 – INTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A3 - 1 ANNEX 3 – INTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A3 - 2 ANNEX 3 – INTERNAL EUT PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A3 - 3

Mar. 03, 2003 TIMCO ENGINEERING INC. P O BOX 370 849 N.W. STATE ROAD 45 NEWBERRY, FLORIDA USA, 32669 Subject:FCC Certification Authorization Application under FCC PART 15, Subpart C, Sec. 15.209 - Low Power Transmitter operating at 125 kHz and Sec. 15.231(e) - Momentarily Operation at 433.92 MHz. Product:Exciter Model No.:EX21 FCC ID:PQG-EX21 Dear Sir/Madam Enclosed you will find copy of the engineering report for test repeated with the 24 Vac supply input. If you have any queries, please do not hesitate to contact us. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT A96/TH/0093 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Mar. 03, 2003 Lyngsoe Industries Ltd. 5570 Kennedy Road, Unit B Mississauga, Ontario Canada, L4Z 2A9 Attn.:Don Ferguson Subject:FCC Certification Application Testing under FCC PART 15, Subpart C, Sec. 15.209 - Low Power Transmitter operating at 125 kHz and Sec. 15.231(e) - Momentarily Operation at 433.92 MHz. Product:Exciter Model No.:EX21 FCC ID:PQG-EX21 Dear Mr. Ferguson, Enclosed you will find copy of the engineering report for test repeated with the 24 Vac supply input. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT A96/TH/0093 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Exciter Model No.: EX21 FCC ID: PQG-EX21 Applicant: Lyngsoe Industries Ltd. 5570 Kennedy Road, Unit B Mississauga, Ontario Canada, L4Z 2A9 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, Sections 15.209 & 15.231(e) Low Power Transmitter & Momentarily Operation (125 kHz & 433.92 MHz) UltraTech's File No.: LYT-010F15C231 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Mar. 03, 2003 Report Prepared by: Dan HuynhTested by: Hung Trinh, RFI Technician Issued Date: Mar. 03, 2003Test Dates: Mar. 01 - 02, 2003 ß The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ß This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com, Email: [email protected], Email: [email protected] 2 31040/SITC-137646390-2049200093-000-034 FCC PART 15, SUB. C, Sec. 15.209 (125 kHz) and Sec. 15.231(e) (433.92 MHz) Contents i Exciter, Model EX21FCC ID: PQG-EX21 ULTRATECH GROUP OF LABSFile #: LYT-010F15C231 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Mar. 03, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST................................................................................................................................1 EXHIBIT 2.INTRODUCTION.................................................................................................................................................2 2.1.SCOPE....................................................................................................................................................................................2 2.2.RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................................2 2.3.NORMATIVE REFERENCES.................................................................................................................................................2 EXHIBIT 3.PERFORMANCE ASSESSMENT.....................................................................................................................3 3.1.CLIENT INFORMATION......................................................................................................................................................3 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..........................................................................................................3 3.3.EUT’S TECHNICAL SPECIFICATIONS................................................................................................................................4 3.4.LIST OF EUT’S PORTS.........................................................................................................................................................4 3.5.ANCILLARY EQUIPMENT..................................................................................................................................................4 3.6.GENERAL TEST SETUP.......................................................................................................................................................5 EXHIBIT 4.EUT OPERATION CONDITIONS AND CONFIGURATIONS DURING TESTS.....................................6 4.1.CLIMATE TEST CONDITIONS............................................................................................................................................6 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS.............................................................................6 EXHIBIT 5.SUMMARY OF TEST RESULTS.......................................................................................................................7 5.1.LOCATION OF TESTS..........................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A1 - 1 EUT WAS PLACED IN ORTHOGONAL POSITION # 1 (for both 433.92 Tx MHz & 125 kHz Tx) The E-field at 125 kHz was measured with the measuring active loop antenna placed at 10 meters and 30 meters distances. All measurements at other frequencies were performed at 3 meters distance. ANNEX 1 - TEST SETUP PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A1 - 2 EUT WAS PLACED IN ORTHOGONAL POSITION # 2 (for both 433.92 Tx MHz & 125 kHz Tx) The E-field at 125 kHz was measured with the measuring active loop antenna placed at 10 meters and 30 meters distances. All measurements at other frequencies were performed at 3 meters distance. ANNEX 1 - TEST SETUP PHOTOS Lyngsoe Industries Ltd. Exciter, Model EX21 FCC ID: PQG-EX21 A1 - 3 EUT WAS PLACED IN ORTHOGONAL POSITION # 3 (for both 433.92 Tx MHz & 125 kHz Tx) The E-field at 125 kHz was measured with the measuring active loop antenna placed at 10 meters and 30 meters distances. All measurements at other frequencies were performed at 3 meters distance.

ANNEX 2 - PHOTOGPRAPH OF TEST SET UP FOR AC POWER CONDUCTED EMISISONS Photo # 1 Exciter, Model EX21FCC ID: PQG-EX21 ANNEX 2 - PHOTOGPRAPH OF TEST SET UP FOR AC POWER CONDUCTED EMISISONS Photo # 2 Exciter, Model EX21FCC ID: PQG-EX21
