PQG-EX23GEXCITER EX23G

Lyngsoe Systems Exciter EX23G 950115B.pdf Page 1 of 7 Exciter EX23G User’s Guide Revision C – July 21, 2006 Lyngsoe Systems Exciter EX23G 950115B.pdf Page 2 of 7 1. General Exciter EX23G is designed to operate either as a stand alone exciter or as a unit in a multi-drop asynchronous network (RS485). When it’s connected to a network it shall be programmed with an unique address (NetId). Exciter EX23G provides the following main functions: -Remote control/configuration using a RS485 communication network; -Rotating LF excitation field, using a dual loop antenna system; -LF excitation field generation controlled optionally by a motion sensor -Wireless supervision, using 434MHz UHF channel; -Optical signalization 2. Installation This chapter explains how to power up and interconnect the Exciter EX23G. Typical installation of the Exciter EX23G is presented in the figure 2-1 and the connector location in figure 2-2 Figure 2-1 Exciter EX23G installation Lyngsoe Systems Exciter EX23G 950115B.pdf Page 3 of 7 2.1. EX23G Connections Power Connections WARNING Before you start the installation, check if the Power Supply provides the specified output voltage – 22Vac +/- 10% or 25.2-30.8Vdc, and min. 0.5A; any polarity can be used for the dc output. For the power connections use the 4.2mm Mini-Fit Jr receptacle (LS PN 350238) and the female crimp terminals for AWG18-24 (LS PN 350238). Strip the wire isolation 3.0-3.5 mm and crimp the terminals on the wire using the Molex crimping tool 11-01-0197. Insert the terminals in the receptacle body – terminals 1 and 3 for ac voltage and terminal 2 (middle) for the ground. Plug in the power connector into any of the corresponding headers on the EX23G. The POWER LED (green) goes ON. RS485 Connections For the RS485 connection use a standard Cat5 Ethernet cable and RJ45 plug. Crimp the connector using the recommended tool and the following color scheme: pin 1 - Wh/Or; pin 2 – Or; pin 3 – Wh/Gr; pin 4 – Bl; pin 5 – Wh/Bl; pin 6 – Gr; pin 7 – Wh /Br; pin 8 – Br. Lyngsoe Systems Exciter EX23G 950115B.pdf Page 4 of 7 2.2. PC Software Configuration The simplest way to control EX23G is by using a Terminal Emulation program on the PC. The general configuration procedure consists of: . • Open a Terminal Emulation program on your computer (Procomm, HyperTerminal, etc). . • Configure the computer’s COM port to which the EX23G is connected. The default configuration for the COM port is: COM port - COM1; Data rate - 19200 bps; Data bits - 8 bits; Parity – none; Stop bits – 1; Flow control – none. . • Use an adapter from USB to RS485 (LS PN 600057) . • From the PC send commands to EX23G and observe the responses on the PC. Other dedicated software can be used to control EX23G as long as the correct commands are provided for EX23G. 3. Operation 3.1. Remote control The operation of the Exciter EX23G is controlled by commands and parameters. The parameters values are set into EX23G during the configuration session. This configuration is controlled by a PC running serial communication program like Procomm, through a serial communication link type RS485. There are several specific commands to configure or to query the EX23G parameters values. When EX23G is connected in a network, it shall receive a unique address called NetId. The NetId is an integer in the range 0 to 255. Each command transmitted to an Exciter EX23G shall be preceded by a prefix specifying its NetId and must use the following syntax: #NetId <space><COMMAND> <CR>; the prefix #NetId is separated from the command itself by a space. The basic configuration of the communication network is presented in figure 3-1. RS485 Network 3.2. LF Field Generation The LF excitation field generated by EX23G has a 125 KHz carrier modulated with Lyngsoe Systems Exciter EX23G 950115B.pdf Page 5 of 7 ExcitationId frames. By using two loops to generate the field the resulting excitation field provides a more reliable excitation for tags (independent of their orientation) with a compact spatial presence compared with the previous exciter models. 3.3. UHF transmitter Exciter EX23G includes an UHF transmitter capable of transmitting its digital ID using messages on 433.92 MHz channel. These UHF messages can be used to communicate wirelessly the EX23G operational status and in the same time to check the reception performance of the Readers located in the neighborhood. The interval of time separating two transmissions and the number of messages in the packet are programmable by parameters, Table 2 listing the available user-programmable parameters. 4. Commands and Parameters Table 1 presents the commands accepted by EX23G. Table 1 – Exciter EX23G Commands Command Description B<CR> Enable the Excitation Field Generation C<CR> Disable the Excitation Field Generation Q<CR> Display the actual values of all parameters EV1<CR> Display the values of parameters EP1 and EA1 EV2<CR> Display the values of parameters EP2 and EA2 Table 2 presents the parameters defined for EX23G, with their type, range, default value and a short description. Table 2 – Exciter EX23G Parameters Prm. Type(*) Value Default Description TCC R/W 1...32 5 Number of User Data bytes per message; must be set before TUD TIP R/W 1...200 2 Number of messages transmitted per blink transmission TSD R/W 1...119 1 Subsequent delay between messages TBI R/W 1...255 60 Time interval between two consecutive blink transmissions (minutes) T95 R/W Y/N Y The on board test tag transmits either in S95 (Y) or in S21 format (N) TUD R/W string 00000 User Data content, bytes string; total number of bytes set by TCC ESN R/W string 0000000 Exciter board serial number, 7 bytes string; can be programmed only once; can be reprogrammed with password EVN R string n/a Firmware version number, 3 bytes string EBR R/W 1...4 1 RS485 baud rate: 1 - 19.2 kbps; 2 - 38.4 kbps; 3 - 57.6kbps; 4 -115.2kbps. EAD R/W 0...128 0 ExId = NetId; the value 254 is reserved, and it can be used to determine the EAD of a stand alone e…

Text truncated - open the document above for the full version.

July 20, 2006 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida 32669 USA Subject: Application for Equipment Authorization under FCC Part 15, Subpart C, Sections 15.209 (Low Power Transmitter at 125 kHz) & 15.231(Momentarily Operation at 433.92 MHz) Applicant: Lyngsoe Systems Ltd. Product: Exciter Model No.: EX23G FCC ID: PQG-EX23G Dear Sir/Madam, As appointed agent for Lyngsoe Systems Ltd., we would like to submit this application for equipment authorization of the above product. Please review all required documents uploaded to TIMCO Upload Web Site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs Ultratech’s Accreditations: 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

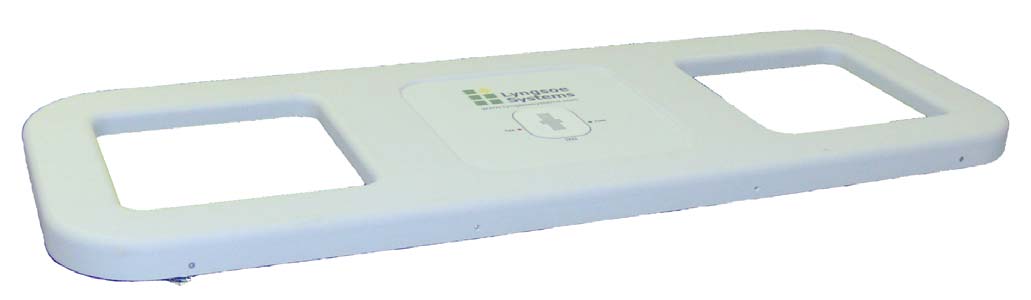

ANNEX 2 – EXTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A2 - 1 ANNEX 2 – EXTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A2 - 2 ANNEX 2 – EXTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A2 - 3

ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 1 ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 2 ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 3 ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 4 ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 5 ANNEX 3 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A3 - 6

Exciter Model No.: EX23G FCC ID: PQG-EX23G Applicant: Lyngsoe Systems Ltd. 5570 Kennedy Road, Unit B Mississauga, Ontario Canada L4Z 2A9 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Sections 15.209 & 15.231 Low Power Transmitter & Momentarily Operation (125 kHz & 433.92 MHz) UltraTech's File No.: LYI-025F15C231 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: July 20, 2006 Report Prepared by: Dan Huynh Issued Date: July 20, 2006 Tested by: Hung Trinh Test Dates: May 17 - June 18, 2006 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC Part 15, Subpart C, Sections 15.209 & 15.231 Exciter, Model No.: EX23G FCC ID: PQG-EX23G ULTRATECH GROUP OF LABS File #: LYI-025F15C231 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 20, 2006 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1: INTRODUCTION.............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2: PERFORMANCE ASSESSMENT.................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. LIST OF EUT’S PORTS............................................................................................................................................... 3 2.5. ANCILLARY EQUIPMENT ........................................................................................................................................... 3 2.6. TEST SETUP BLOCK DIAGRAM ................................................................................................................................ 4 EXHIBIT 3: EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS............................................... 5 3.1. CLIMATE TEST CONDITIONS.................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS..................................................................... 5 EXHIBIT 4: SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ....................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 EXHIBIT 5: MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ............................................... 7 5.1. TEST PROCEDURES.................................................................................................................................................. 7 5.2. MEASUREMENT UNCERTAINTIES ........................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ........................................................................................................................ 7 5.4. ANTENNA REQUIREMENTS [47 CFR § 15.203] ........................................................................................................ 7 5.5. AC POWERLINE CONDUCTED EMISSION [47 CFR 15.207(a)]................................................................................ 8 5.6. PROVISIONS FOR PERIODIC TRANSMITTERS [47 CFR 15.231(a)] ..................................................................... 11 5.7. TRANSMITTER RADIATED EMISSIONS [47 CFR §§ 15.231(b), 15.209 & 15.205]................................................. 12 5.8. 20 dB BANDWIDTH [47 CFR 15.231(c)].................................................................................................................... 18 EXHIBIT 6: MEASUREMENT UNCERTAINTY................................................................................................................. 21 6.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ......................................................................... 21 6.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY ....…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A1 - 1 Powerline Conducted Emissions (front view) ANNEX 1 - TEST SETUP PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A1 - 2 Powerline Conducted Emissions (side view) ANNEX 1 - TEST SETUP PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A1 - 3 Radiated Emissions at 10m Distance ANNEX 1 - TEST SETUP PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A1 - 4 Radiated Emissions at 10m Distance ANNEX 1 - TEST SETUP PHOTOGRAPHS Lyngsoe Systems Ltd. Exciter, Model EX23G FCC ID: PQG-EX23G IC: 4113A-EX23G A1 - 5 Radiated Emissions at 3m Distance
