PQRFXA2000-GIEEE802.11n/a/b/g Wireless LAN (Access Point/Station)

1 FXA2000-G IEEE802.11n/a/b/g Wireless LAN (Access point / Station) FXA2000-G Setup Guide CONTEC CO.,LTD. The FXA2000-G is an access point that conforms to IEEE 802.11n/a/b/g wireless networking standards and that supports a wide range of input power (5 to 30 VDC) and PoE. Packing List - Main unit (FXA2000-G)...1 - Setup Guide...1 - Magnet...2 - Tapping screws...2 - Connector cover (Installed in unit)...1 * You are free to download the manual of this product from the Contec’s website (http://www.contec.com/). How to Obtain Service For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased before returning any product. *No product will be accepted by CONTEC group without the RMA number. This device sold for OEM vendor only. Defalt setting This product is set up via a network using a Web browser. Connect this product to the PC with a LAN cable using the wired LAN connection and then access the default IP address in a web browser. This product's default settings are shown in the table to the right. Setting Item Default setting IP Address 192.168.0.1 Subnet Mask 255.255.255.0 ESSID LocalGroup Security (No input) User name admin Password pass Component Locations (1) Security slot (2) INIT Switch (3) LAN port (4) DC JACK (5) Power connector (6) Power disconnection prevention hook LED display INIT Switch LED name Status Indicator No. Name Operation / function POWER ON Indicates that the device is operating. 1 INIT Used to initialize this product (reset to factory default settings). When this switch is pressed, the POWER, WLAN, and LAN LEDs start to flash. If this switch is released during the period from when the LEDs start to flash and until they turn on (approximately 3 seconds), all of the access point's settings will be reset to the factory default when next started. Flashing Indicates that the device is being started (This device turned on) OFF Indicates that the device is power off. LAN ON Indicates that a wired LAN has been connected. Flashing Indicates that the product is transmitting/receiving data to/from the connected terminal through wired LAN. OFF Indicates that a wired LAN not logged-in. WLAN ON Indicates that the device has been connected. Flashing Indicates data is being transmitted to or received from the device connected through wireless LAN. * When initializing the product by turning the INIT signal on and off, the LEDs will continue flashing for a short time after the signal is turned off. This indicates the internal memory files are being deleted. If the power is turned off while the LEDs are flashing, the internal memory files may be damaged and the product may no longer be able to start properly. Always restart the product after the LEDs stop flashing. OFF Indicates that the device has been no connected. POWER/ LAN/ WLAN Flashing (simultaneously) Indicates that firmware has been reprogrammed. *1 POWER/LAN Blinking twice / On DHCP error *1 Not include LogFile Removing the connector cover While lightly pushing vertically on the center of the connector cover [(1) in the diagram], slide the entire cover [(2) in the diagram], and remove the connector cover. Power Supply When using the AC adapter (FX-AC052) Pass the DC plug through the connector cover opening and connect the AC adapter's DC plug to the product's DC jack. You can prevent the DC plug from being pulled out by hooking the cord on the power disconnection prevention hook located on the connector section. CAUTION When supplying power via PoE, do not use the power supplied from the power connector or the AC adapter. When supplying power from the power connector Power can be externally supplied using the power connector. Use the components indicated to the right for the power cable or use equivalent components. Function Power connector: MC1,5/3-ST-3,5(PHOENIX CONTACT), Cable: AWG28-16(on the condition that the cable length satisfies the power specifications) Pin No.Signal name Meaning 1 Vi+ Power supply (5 to 30 VDC ± 5%) 2 Vi- Power supply (GND) 3 FG Frame ground CAUTION - Carefully manufacture the power cable taking care not to mistake the wiring. In particular, if the power cable is used with mistaken housing pin numbers, there is a risk of malfunction or accidents. - Input voltage range: 5 to 30 VDC ± 5%. Use a power supply that rises to 4.75 VDC or higher in the input voltage range within 10 ms. There is a risk of damage to the device or accident if a power supply outside this range is used. - When supplying power with the AC adapter, do not use power supplied from the power connector. LAN Port Connect a LAN cable to this product's LAN port. CAUTION - Ensure that the cable length between this product and a PC or hub is 100 m or shorter. - When supplying power via PoE or when using 100BASE-TX, use a Category 5 or better cable. When using 10BASE-T, use a Category 3 or better cable. Attaching the security wire A commercially available security wire can be attached to the security slot located on the connector section. Recommended security wires: - KOKUYO EAS-L41, Buffalo BSL4DS, SANWA SUPPLY SL-31S Attaching the connector cover Attach the connector cover to the product. Using magnets for installation Attach the included magnets to the two magnet attachment locations on the back of the access point. To attach the magnets, push them in the direction of the arrow to insert them entirely into the attachment holes. CAUTION - Do not place the magnets near items that are susceptible to magnetic fields. - If the product is moved while attached to a steel desk or other object, it may damage the painted surface. Using the included screws for installation Referring to the diagram to the right, drive the two included screws into a sturdy, vertical wall surface while leaving around 3 mm of the screws sticking out from the wall surface. Hook the attachment holes on the back of the ac…

Text truncated - open the document above for the full version.

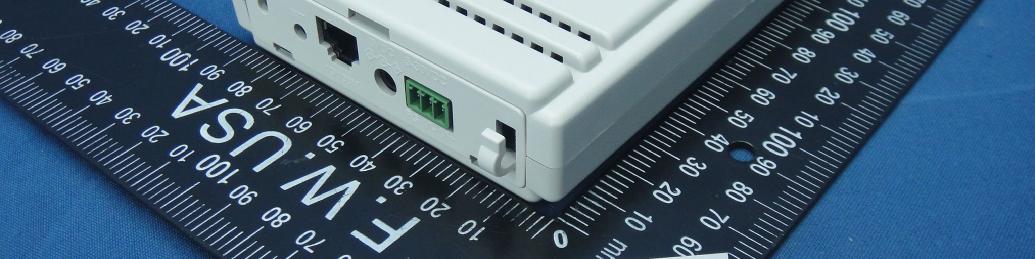

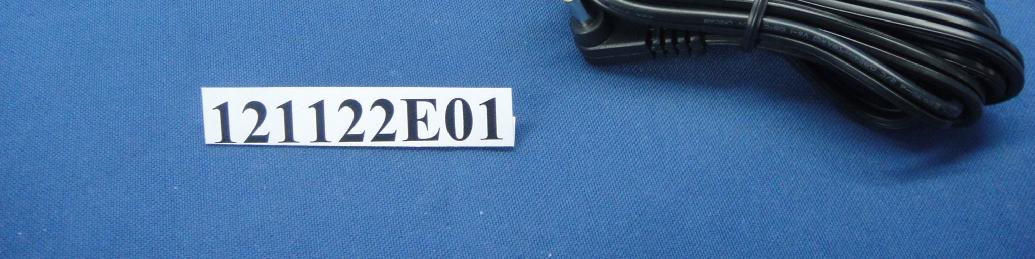

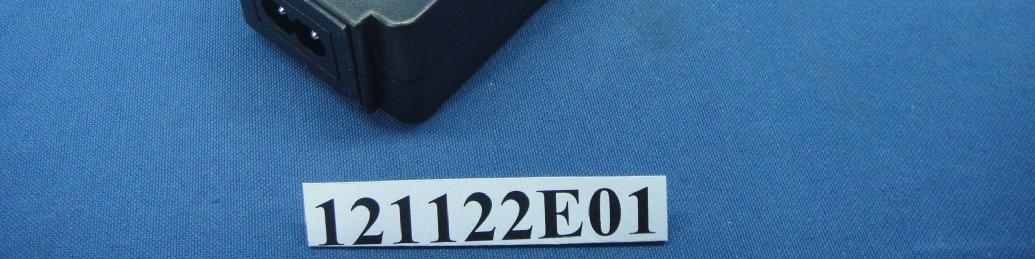

Report No.: 120113E07C Page 1 Reference No.:121122E01 CONSTRUCTION PHOTOS OF EUT Report No.: 120113E07C Page 2 Reference No.:121122E01 Report No.: 120113E07C Page 10 Reference No.:121122E01 Model : POW-CB50AF Report No.: 120113E07C Page 11 Reference No.:121122E01 Report No.: 120113E07C Page 12 Reference No.:121122E01 Model : SA-115B-05U Report No.: 120113E07C Page 13 Reference No.:121122E01 Report No.: 120113E07C Page 14 Reference No.:121122E01 Model : 3A-124DA12 Report No.: 120113E07C Page 15 Reference No.:121122E01 Report No.: 120113E07C Page 16 Reference No.:121122E01
