We, Contec Co., Ltd. located at 3-9-31, Himesato, Nishiyodogawa-ku Osaka Japan 555-0025, hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C/ 15E approvals and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch on our behal f shall have the same effects as acts of our own.

FCC ID: PQRFXE2000-G Report No.: RF120113E07 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch May 18, 2012 Dear Application Examiner, Alpha Networks Inc., It’s one Wireless LAN Adapter, FCC ID: PQRFXE2000-G would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9280. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9280. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PQRFXE2000-G Report No.: RF120113E07 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Deputy Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

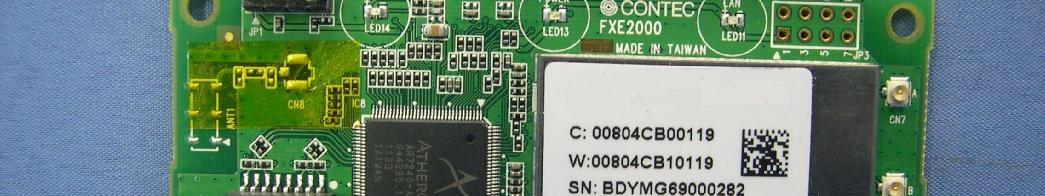

Report No.: 120113E07 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120113E07 Page 3 With antenna: AN1523 Report No.: 120113E07 Page 4 Report No.: 120113E07 Page 5 With antenna: MR-1700-W Report No.: 120113E07 Page 6 Report No.: 120113E07 Page 7 Report No.: 120113E07 Page 8 With antenna: MR-6000 Report No.: 120113E07 Page 9 Report No.: 120113E07 Page 10 Report No.: 120113E07 Page 11 Report No.: 120113E07 Page 12

Label Drawing Label Location

Report No.: 120113E07 Page 2

Report No.: SA120113E07 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120113E07 MODEL NO.: FXE2000-G FCC ID: PQRFXE2000-G RECEIVED: Jan. 13, 2012 TESTED: Apr. 17, 2012 ISSUED: May 15, 2012 APPLICANT: Contec Co., Ltd. ADDRESS: 3-9-31, Himesato, Nishiyodogawa-ku Osaka Japan 555-0025 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 9 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120113E07 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN....................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 7 Report No.: SA120113E07 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120113E07 Original release May 15, 2012 Report No.: SA120113E07 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless LAN Adapter BRAND NAME: CONTEC MODEL NO.: FXE2000-G TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Contec Co., Ltd. STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: FXE2000-G) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 15, 2012 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: May 15, 2012 ( May Chen, Deputy Manager ) Report No.: SA120113E07 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120113E07 Report Format Version 4.0.0 6 5. ANTENNA GAIN The antennas combinations were provided to the EUT, please refer to the following table: Set 1 Brand Model Antenna Type Peak Gain(dBi) (Exclude cable loss ) Net Gain (dBi) (Include cable loss ) Connecter Type Cable Length (cm) Cable Loss (dB) Transmitter Circuit FDK AN1523 chip 2.4GHz: 2 2.4GHz: 0.6 U.FL 16 1.4 Chain (0) & Chain (1) 5GHz :1 5GHz :-0.4 Set 2 Brand Model Antenna Type Peak Gain(dBi) (Exclude cable loss ) Net Gain (dBi) (Include cable loss ) Connecter Type Cable Length (cm) Cable Loss (dB) Total Cable Loss (dB) Transmitter Circuit Azure Solutions, Inc. MR-1700-W Vehicle 2.4GHz: 4 2.4GHz: 2.1695 Cable 1: R-SMA Cable 1: 152 Cable 1: 0.9305 1.8305 Chain (0) & Chain (1) Cable 2: U.FL Cable 2: 20 Cable 2: 0.9 Set 3 Brand Model Antenna Type Peak Gain(dBi) (Exclude cable loss ) Net Gain (dBi) (Include cable loss ) Connecter Type Cable Length (cm) Cable Loss (dB) Total Cable Loss (dB) Transmitter Circuit Azure Solutions, Inc. MR-6000 Vehicle 5GHz :4 5GHz: 0.7978 Cable 1: R-SMA Cable 1: 152 Cable 1: 1.5022 3.2022 Chain (0) & Chain (1) Cable 2: U.FL Cable 2: 20 Cable 2: 1.7 When operating Ant Set 2 or Set 3 that should connect cable1 & cable2 together. 1. 2. Main -- Wireless & BT / Aux -- Wireless Note : The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers. MODULATION MODE TX/RX FUNCTION 802.11b 2Tx/2Rx 802.11g 2Tx/2Rx 802.11a 2Tx/2Rx 802.11n (20MHz) 2Tx/2Rx 802.11n (40MHz) 2Tx/2Rx Report No.: SA120113E07 Report Format Version 4.0.0 7 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN (2.4GHz): 802.11b FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 120.640 5.18 20 0.079 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.18 802.11g FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 662.965 5.18 20 0.435 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5.18 802.11n (20MHz) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 480.912 2.1695 20 0.158 1.00 802.11n (40MHz) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dB…

Text truncated - open the document above for the full version.

Report No.:RF120113E07 1 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07dated Apr. 10, 2012 FCC TEST REPORT (15.247) REPORT NO.: RF120113E07 MODEL NO.: FXE2000-G FCC ID: PQRFXE2000-G RECEIVED: Jan. 13, 2012 TESTED: Jan. 19 to Apr. 17, 2012 ISSUED: May 15, 2012 APPLICANT: Contec Co., Ltd. ADDRESS: 3-9-31, Himesato, Nishiyodogawa-ku Osaka Japan 555-0025 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 112 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.:RF120113E07 2 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 5 1. CERTIFICATION .................................................................................................... 6 2. SUMMARY OF TEST RESULTS ............................................................................ 7 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 8 3. GENERAL INFORMATION ..................................................................................... 9 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 9 3.2 DESCRIPTION OF TEST MODES ....................................................................... 12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 16 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 17 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 18 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band) ............... 19 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 19 4.1.2 TEST INSTRUMENTS .......................................................................................... 19 4.1.3 TEST PROCEDURES .......................................................................................... 20 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 20 4.1.5 TEST SETUP ....................................................................................................... 21 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 21 4.1.7 TEST RESULTS ................................................................................................... 22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 24 4.2.2 TEST INSTRUMENTS .......................................................................................... 25 4.2.3 TEST PROCEDURES .......................................................................................... 26 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.5 TEST SETUP ....................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 27 4.2.7 TEST RESULTS (MODE 1, WITH ANTENNA SET1) ............................................ 28 4.2.8 TEST RESULTS (MODE 2, WITH ANTENNA SET2) ............................................ 41 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 54 4.3.2 TEST INSTRUMENTS .......................................................................................... 54 4.3.3 TEST PROCEDURE ............................................................................................. 54 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 54 4.3.5 TEST SETUP ....................................................................................................... 54 4.3.6 EUT OPERATING CONDITIONS ......................................................................... 55 4.3.7 TEST RESULTS ................................................................................................... 56 4.4 CONDUCTED OUTPUT POWER ......................................................................... 58 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..................... 58 4.4.2 INSTRUMENTS .................................................................................................... 58 Report No.:RF120113E07 3 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07dated Apr. 10, 2012 4.4.3 TEST PROCEDURES .......................................................................................... 58 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 58 4.4.5 TEST SETUP ...............................................…

Text truncated - open the document above for the full version.

Report No.: RF120113E07-1 1 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07-1 dated: Dec. 15, 2011 FCC TEST REPORT (15.407) REPORT NO.: RF120113E07-1 MODEL NO.: FXE2000-G FCC ID: PQRFXE2000-G RECEIVED: Jan. 13, 2012 TESTED: Jan. 19 to Apr. 17, 2012 ISSUED: May 15, 2012 APPLICANT: Contec Co., Ltd. ADDRESS: 3-9-31, Himesato, Nishiyodogawa-ku Osaka Japan 555-0025 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 115 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120113E07-1 2 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07-1 dated: Dec. 15, 2011 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 15 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION MEASUREMENT ............................................................. 23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................................... 23 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ..... 24 4.2.3 TEST INSTRUMENTS .......................................................................................... 25 4.2.4 TEST PROCEDURES .......................................................................................... 26 4.2.5 DEVIATION FROM TEST STANDARD ................................................................. 26 4.2.6 TEST SETUP ....................................................................................................... 27 4.2.7 EUT OPERATING CONDITION ............................................................................ 27 4.2.8 TEST RESULTS (MODE 1, WITH ANTENNA SET1) ............................................ 28 4.2.9 TEST RESULTS (MODE 2, WITH ANTENNA SET3) ............................................ 56 4.3 TRANSMIT POWER MEASUREMENT ................................................................ 84 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT ............................... 84 4.3.2 TEST INSTRUMENTS .......................................................................................... 84 4.3.3 TEST PROCEDURE ............................................................................................. 85 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 85 4.3.5 TEST SETUP ....................................................................................................... 86 4.3.6 EUT OPERATING CONDITIONS ......................................................................... 86 4.3.7 TEST RESULTS ................................................................................................... 87 4.4 PEAK POWER SPECTRAL DENSITY MEASUREMENT ..................................... 92 Report No.: RF120113E07-1 3 Report Format Version 4.2.0 Cancels and replaces the report No.: RF120113E07-1 dated: Dec. 15, 2011 4.4.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT ................... 92 4.4.2 TEST INSTRUMENTS .......................................................................................... 92 4.4.3 TEST PROCEDURES .................................…

Text truncated - open the document above for the full version.

Report No.: RF120113E07-2 1 Report Format Version 4.2.0 DFS TEST REPORT REPORT NO.: RF120113E07-2 MODEL NO.: FXE2000-G FCC ID: PQRFXE2000-G RECEIVED: Jan. 13, 2012 TESTED: May 14, 2012 ISSUED: May 15, 2012 APPLICANT: Contec Co., Ltd. ADDRESS: 3-9-31, Himesato, Nishiyodogawa-ku Osaka Japan 555-0025 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120113E07-2 2 Report Format Version 4.2.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION ...........................................................................................4 2. EUT INFORMATION .....................................................................................5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT...........................5 2.2 EUT SOFTWARE AND FIRMWARE VERSION ............................................5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT ..........................6 2.4 EUT MAXIMUM CONDUCTED POWER ......................................................7 2.5 EUT MAXIMUM EIRP POWER .....................................................................8 2.6 TRANSMIT POWER CONTROL (TPC) .........................................................8 2.7 STATEMENT OF MAUNFACTURER ............................................................8 3. U-NII DFS RULE REQUIREMENTS .............................................................9 3.1 WORKING MODES AND REQUIRED TEST ITEMS ....................................9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS .................................10 4. TEST & SUPPORT EQUIPMENT LIST .......................................................13 4.1 TEST INSTRUMENTS ................................................................................13 4.2 DESCRIPTION OF SUPPORT UNITS ........................................................13 5. TEST PROCEDURE ...................................................................................14 5.1 BVADT DFS MEASUREMENT SYSTEM: ...................................................14 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: .....................15 5.3 DEVIATION FROM TEST STANDARD .......................................................16 5.4 CONDUCTED TEST SETUP CONFIGURATION ........................................16 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE .......................................16 6. TEST RESULTS ..........................................................................................17 6.1 SUMMARY OF TEST RESULTS .................................................................17 6.2 DETAIL TEST RESULTS .............................................................................18 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE. ..................................................................................18 6.2.1.1 DFS DETECTION THRESHOLD ................................................................18 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME ......19 6.2.1.3 NON- OCCUPANCY PERIOD ....................................................................20 7. INFORMATION ON THE TESTING LABORATORIES ................................23 8. APPENDIX-A ..............................................................................................24 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ......................................................26 Report No.: RF120113E07-2 3 Report Format Version 4.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF120113E07 Original release May 15, 2012 Report No.: RF120113E07-2 4 Report Format Version 4.2.0 1. CERTIFICATION PRODUCT: Wireless LAN Adapter BRAND NAME : CONTEC MODEL NO.: FXE2000-G TEST SAMPLE: R&D SAMPLE APPLICANT: Contec Co., Ltd. TESTED: May 14, 2012 STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (Model: FXE2000-G) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and was in compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 15, 2012 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: May 15, 2012 ( May Chen, Deputy Manager ) Report No.: RF120113E07-2 5 Report Format Version 4.2.0 2. EUT INFORMATION 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT TABLE 1: OPERATING FREQUENCY BANDS AND MODE OF EUT OPERATIONAL MODE OPERATING FREQUENCY RANGE 5250~5350MHz 5470~5725MHz Client without radar detection and ad hoc function ̧ ̧ 2.2 EUT SOFTWARE AND FIRMWARE VERSION TABLE 2: THE EUT SOFTWARE/FIRMWARE VERSION NO. PRODUCT MODEL NO. SOFTWARE/FIRMWARE VERSION 1 Wireless LAN Adapter FXE2000-G 1.03.06 (2012-02-24) Report No.: RF120113E07-2 6 Report Format Version 4.2.0 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT TABLE 3: ANTENNA LIST Set 1 Brand Model Antenna Type Peak Gain(dBi) (Exclude cable loss ) Net Gain (dBi) (Include cable loss ) Conn…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (With antenna set 1, below 1GHz) 3 RADIATED EMISSION TEST (With antenna set 1, above 1GHz) 4 RADIATED EMISSION TEST (With antenna set 2) 5 RADIATED EMISSION TEST (With antenna set 3)

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Master mode Master (UUT) Slave (UUT)
