PS6SR1000-A1MMDS Customer Premises Equipment

070-20000330-01 Rev A, August 2001 PACKETWAVE Fixed Broadband Wireless Access System PACKETWAVE 100 SERIES SUBSCRIBER EQUIPMENT Installation and Operation Manual PacketWave 100 Installation and Operation ©Copyright 2001 by Aperto Networks All rights reserved. Specifications subject to change. Aperto, PacketWave, and WaveCenter are trademarks of Aperto Networks. All other trademarks used herein are the property of their respective owners. Aperto Networks 1637 South Main Street Milpitas, CA 95035 USA Phone: 408.719.9977 Fax: 408.719.9970 www.apertonet.com iii070-20000330-01 REGULATORY INFORMATION FCC PART 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two con- ditions: 1) this device may not cause harmful electromagnetic interference, and 2) this device must accept any interference received includinginterference that may cause undes- ired operations. FCC NOTICE: Radio and Television Interference The PacketWave 100 Series Subscriber Equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment or device. • Connect the equipment to an outlet other than the receiver's. • Consult a dealer or an experienced radio/TV technician for assistance. RF Exposure Notice The installer shall mount all transmit antennas so as to comply with the limits for human exposure to radio frequency (RF) fields per paragraph 1.1307 of FCC regulations. The FCC requirements incor- porate limits for Maximum Permissible Exposure (MPE) in terms of electric field strength, magnetic field strength, and power density. iv070-20000330-01 CAUTION (5.8 GHz UNII) To comply with FCC RF exposure requirements, antennas used for this devie must be installed to provide a separation distance of at leaset 1.5m from all persons to satisfy RF exposure compliance. CAUTION (2.5 GHz MMDS) To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between this antenna and all persons. This Class B digital apparatus complies with Canadian ICES-003 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada v070-20000330-01 Rev A TABLE OF CONTENTS Table of Contents P REFACE Scope of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii Conventions Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii Intended Audience for this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii General Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix C HAPTER 1. Q UICK S TART G UIDE C HAPTER 2. O VERVIEW Subscriber Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1 Outdoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4 C HAPTER 3. S ITE P LANNING Location of the Indoor Unit (Bridge/Router) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 Location of the Outdoor Unit (Radio/Antenna) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 Cables and Cable Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3 Subscriber LAN/Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3 C HAPTER 4. O UTDOOR U NIT I NSTALLATION Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 Mounting the Outdoor Unit (Radio/Antenna) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2 Running Cables Between Outdoor and Indoor Units . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3 Signal Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3 Control Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4 Grounding the Outdoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5 vi070-20000330-01 Rev A C HAPTER 1. C HAPTER 5. I NDOOR U NIT I NSTALLATION Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3 Connecting Radio/Antenna Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3 Connecting to the Local PC or LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4 Powering Up the Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5 C HAPTER 6. S TARTING U P Running the CPE Installation (Antenna Alig…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018email: [email protected] 30 October 2001 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Aperto Networks Equipment: MMDS Customer Premises Transceiver (Response Station) FCC ID: PS6SR1000-A1 To whom it may concern, Request is hereby submitted, on behalf of my client Aperto Networks., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Theory of operation Rationale for request for confidentiality: Aperto has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Aperto Networks

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018email: [email protected] 14 November 2001 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Aperto Networks Equipment: MMDS Customer Premises Transceiver (Response Station) FCC ID: PS6SR1000-A1 To whom it may concern, Request is hereby submitted, on behalf of my client Aperto Networks., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block diagrams Parts list Theory of operation Rationale for request for confidentiality: Aperto has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Aperto Networks

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018email: [email protected] 16 November 2001 FCC Laboratory 7435 Oakland Mills Road Columbia MD 21046 Attention: Reviewing Engineer Re: Please correct emission designators FCC ID: PS6SR1000-A1 Hello, I made an entry error on both emissions designators. The correct emissions designators are 5M70G7W 5M70D7W Please make this correction. Thank you for your attention to this matter. Sincerely, Tom Cokenias

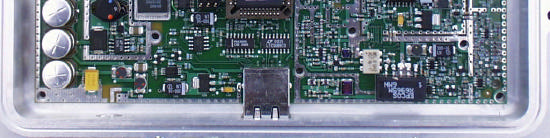

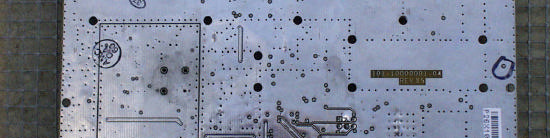

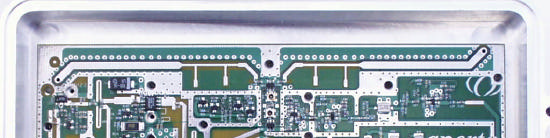

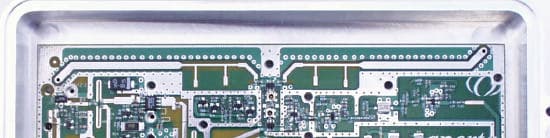

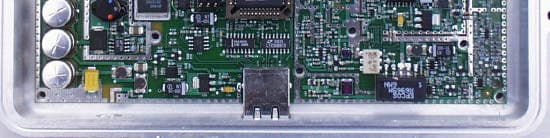

Aperto Networks FCC ID: PS6SR1000-A1 Photographs, Subscriber Indoor Unit Model PacketWave 100

Aperto FCC ID: PS6SR1000-A1 label and location (rear surface) This device complies with Part 15 of theFCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC ID: PS6SR1000-A1 This device complies with Part 15 of theFCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC ID: PS6R3000-A1

Aperto Networks 2.5 GHz MMDS CPE Unit FCC ID: PS6SR1000-A1 RF Hazard Distance Calculation mW/cm2 from Table1:1.00 Max RF Power TX AntennaMPE P, dBmG, dBiSafe Distance, cm 17.017.515.0 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less The CPE antenna is a flat panel array will be integrally mounted on the outdoor transmitter unit. Maximum antenna gain is 17.5 dB. Manufacturer: Mti Wireless Edge Ltd. Model No. MT-364011 Antenna specification sheet is attached. Specification FLAT PANEL DIRECTIONAL ANTENNA THE ANTENNA WILL COMPLY WITH ETSI EN 301 525 V I.I.I (2000-06) TS1-TS3 This document specifies the electrical, mechanical & environmental characteristics of dual polarization, directional antenna MT-364011 . MTI Part No MT-364011 Type Regulatory Compliance ETSI EN 301 525 V1.1.1(2000-06)TS1- TS3 Electrical Frequency Range 2.5-2.695 GHz Gain (vs. frequency) 2.5-2.54 GHz 2.54-2.58 GHz 2.58-2.695 GHz 16.5 dBi (min) 17dBi (min) 17.5dBi (min) 3 dB BW Azimuth Elevation 20 deg (typ) 20 deg (typ) PolarizationDual-Vertical and Horizontal VSWR1.5 : 1 (typ) 2.0 : 1 (max) Cross Polarization- 20 dB (max) -25 dB (nom) F/B Ratio- 30 dB (max) Input Impedance50 Ohms Power1 Watt Port to port isolation25 dB (max) First side lobes-14.5 dB (max) -18 dB (typ) Mechanical Dimensions (LXWXD) mm300 x 300 x 10 mm (max) Weight (kgs)500 g (max) Temperature (operating)- 40 º C to +65º C Input Ped2 x Hole for 1.3mm Pin

Location CPE RF Hazard Label Notice to be in 14 point type (visible from 1 m separation): CAUTION To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm is required between this antenna and all persons.

Aperto NetworksFCC ID: PS6SR1000-A1 page 1 of 21 Product Description and Operation Overview General Overview The Aperto Networks MMDS band radio consists of a indoor unit (IDU) network interface and an outdoor unit (ODU) radio head. The IDU connects to the digital network via CAT5 cable. The IDU is connected to the ODU via shielded CAT5 cable for control and an RG6 with F connector for signal/data. (from user manual): The outdoor radio can be configured as either customer premises equipment (CPE) or as a base station unit (BSU). The radios are identical, except that the CPE uses an integral antenna, and the BSU has an antenna connector for separately mounted antennas. The base station IDU and subscriber IDU are different, but the output signals are the same and the radio heads used with them are the same except as outlined above. A description of the theory of operation and product configuration is found in an attachment to this application and report. SPECIFICATIONS ODU RF Head Frequency range: 2503 - 2683 MHz Channelization:6 MHz channels, 1 MHz spacings Power output:17 dBm Modulation type: QPSK, 16QAM IDU IF Head Frequency range: 44 MHz IF 10 MHz reference clock Data transfer rate, air link:Up to 20 MBAs in a 6 MHz channel Block diagram and theory of operation is provided in a separate attachment. Aperto NetworksFCC ID: PS6SR1000-A1 page 2 of 21 FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2. 2.1033(c)1Applicant:Aperto Networks 1635 S. Main Street Milpitas CA 95037 2.1033(c)2FCC ID: PS6SR1000-A1 2.1033(c)3 Installation instructions are found in separate document. 2.1033(c)4 Emission type: QPSK and 16QAM Up to 20 MBPS Emission designator: 5M70G7W 2.1033(c)5 Frequency range: 2503 - 2683 MHz (6 MHz channel, 1 MHz spacings) 2.1033(c)6 Range of Operating Power 0 - 17 dBm 2.1033(c)7 Maximum Power Rating 17 dBm Maximum allowed per 21.909(g)2: 2 watts (33 dBm) 2.1033(c)8 Applied voltages and currents into the final transistor elements Refer to schematics, separate submission accompanying this application 2.1033(c)9 Tune-up procedure Refer to installation instructions in separate attachment. RF channel selection is achieved via control and set-up PC software via GUI. 2.1033(c)10 Circuit and Functional Block Diagram, Description of Circuitry Complete product schematics are provided in separate attachments. Circuit description and theory of operation are found in separate attachment. 2.1033(c)11 FCC ID Label Refer to separate attachment. 2.1033(c)12 Product Photographs Refer to separate attachment. Aperto NetworksFCC ID: PS6SR1000-A1 page 3 of 21 2.1033(c)13 Description of Modulation System Refer to theory of operation, separate attachment 2.1033(c)14 Test Data per 2.1046 – 2.1057 (2) RF Output Power Measurements Measurement equipment used: Agilent E4440A Spectrum Analyzer Coaxial cable (worst case 1.9 dB attenuation at 26 GHz ) Test set-up: Figure 1 10/100 RG-6 (DC, IF, clock) baseT CAT 5 (alarm, radio control) PC PW100 indoor unit (IDU) Outdoor radio unit (ODU) spectrum analyzer Test Procedures 1. Set the IDU channel bandwidth parameters and output level to desired values. Output level is chosen to maximize RF output level from ODU. 2. Connect cable between E4440A and ODU antenna output port. Activate Channel Power subroutine via E4440A soft keys, plot and record results. Test Results F(MHz)P requestedP delivered 250317 dBm17.08 dBm 259317 dBm17.03 dBm 268317 dBm17.05 dBm IDU output signal to ODU input port is shown below also. Aperto NetworksFCC ID: PS6SR1000-A1 page 4 of 21 Power Output Spectrum Analyzer Graphs fo = 2503 MHz (low channel) Aperto NetworksFCC ID: PS6SR1000-A1 page 5 of 21 Power Output Spectrum Analyzer Graphs fo = 2593 MHz (middle channel) Aperto NetworksFCC ID: PS6SR1000-A1 page 6 of 21 Power Output Spectrum Analyzer Graphs fo = 2683 MHz (highest channel) Aperto NetworksFCC ID: PS6SR1000-A1 page 7 of 21 IDU Output (10 MHz reference and 44 MHz IF) Aperto NetworksFCC ID: PS6SR1000-A1 page 8 of 21 Section 2.1047 Modulation Characteristics Measurement equipment used: Agilent E4440A Spectrum Analyzer Coaxial cable (worst case 1.9 dB attenuation at 26 GHz ) Test set-up: Refer to Fig. 1. Test Procedures Software was run to produce a continuous pseudo random bit stream (prbs). Parameters were set to produce maximum IF output at the IDU. Test Results PASS. Refer to attached spectrum analyzer charts for three channels: Lowest: 2503 MHz Middle: 2593 MHz Highest: 2683 MHz Emissions masks at Lowest and Highest channels are shown with blue mask lines superimposed on spectrum analyzer charts. Aperto NetworksFCC ID: PS6SR1000-A1 page 9 of 21 Channel Mask for fo = 2503 MHz (lowest channel) Aperto NetworksFCC ID: PS6SR1000-A1 page 10 of 21 Channel mask for fo = 2683 MHz (highest channel) Copyright 2000 Agilent Technologies 10:48:52 Oct 5, 2001 Select Marker 1234 Normal Delta Delta Pair (Tracking Ref) Ref ∆ Span Pair SpanCenter Off More 1 of 2 Marker Ref 21.9 dBm#Atten 32 dB ∆ Mkr1 -6.00 MHz -62.656 dB #Avg Log 10 dB/ Offst 1.9 dB PAvg 100 W1S2 S3FS AA ¤(f): FTun Swp Center 2.503 00 GHz #Res BW 100 kHzVBW 100 kHz Span 20 MHz Sweep 7.64 ms 1 1R Marker ∆ -6.000000 MHz -62.656 dB The adjacent channel power ratio (ACPR) measured at a 6 MHz offset to the lower sideband at a channel frequency of 2503 MHz. A:\SCREN049.WMF file saved 10:49:21 Oct 5, 2001 Select Marker 1234 Normal Delta Delta Pair (Tracking Ref) Ref ∆ Span Pair SpanCenter Off More 1 of 2 Marker Ref 21.9 dBm#Atten 32 dB ∆ Mkr1 -3.25 MHz -52.834 dB #Avg Log 10 dB/ Offst 1.9 dB PAvg 100 W1S2 S3FS AA ¤(f): FTun Swp Center 2.503 00 GHz #Res BW 100 kHzVBW 100 kHz Span 20 MHz Sweep 7.64 ms 1 1R Marker ∆ -3.250000 MHz -52.834 dB The ACPR at a 3.25 MHz offset to the lower side band at a channel frequency of 2503 MHz. A:\SCREN050.WMF file saved 10:49:44 Oct 5, 2001 Select Marker 1234 Normal Delta Delta Pair (Tracking Ref) Ref ∆ Span Pair SpanCenter Off More 1 of 2 Marker Ref 21.9 dBm#Atten 32…
