PURRFU7iDEN RadioBlade

EXHIBIT L – USER MANUAL FCC ID# PURRFU7 981-0620-00 Rev A RadioFrame Networks™, Inc.; 18211 NE 68th St. Suite E-120 Redmond, WA 98052 sales: [email protected] or 425.883.2088 iDEN RadioBlade FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Specifications Agency Compliance FCC Class A CSA 22.2 No. 60950 ISTA 2A transit Operating Environment • Operating Ambient Temperature: +0 o C to +55 o C (+32 o F to +131 o F) • Storage Temperature: -40 o C to +70 o C (-40 o F to +158 o F) • Relative Humidity: 10-90% non condensing • Altitude: -200 to +8000 feet above mean sea level; above 8000', reduce maximum operating ambient temperature by 2 o C per 1000' to a maximum of 13000' • Shock: 40 g’s • Vibration: Level 3 earthquake • Keep product free from dust, wind, salt, liquids Physical Specifications • Dimensions: 3" wide x 4" high (plus antenna) x 0.5" thick (approx.) • Weight: 1 lb (approx.) Input Power • 3.3 VDC, 720mA max • 2.5 VDC, 50mA max Tx and Rx Power and Center Frequency Ranges • Tx center frequency range: 851.0125 to 869.9875MHz Tx power range: -20 to +8dBm +/-3dB • Rx center frequency range: 806.0125 to 824.9875MHz 981-0620-00 Rev A Installation Instructions and Guidelines 1. Find these items in the shipping box: up to four (4) iDEN RadioBlades in individually wrapped anti-static bags. 2. Insert one iDEN RadioBlade into the specified slot in the RadioFrame Unit (RFU) as shown in the diagram above. For safe operation, follow these guidelines: • Do not mount the unit in any orientation other than that specified in the diagram. • Do not force the RadioBlade, or damage to equipment can occur. • Slide the top of the RadioBlade into the metal slot on top of the RFU until the RadioBlade connector seats firmly into the backplane. Copyrights/Trademarks/Warranty RadioFrame Networks, RadioBlades, and the RadioFrame Networks logo are trademarks or service marks of RadioFrame Networks™, Inc. You may not use these or any other RadioFrame Networks trademarks or service marks without the written permission of RadioFrame Networks™, Inc. All other trademarks and trade names are the property of their respective owners. RadioFrame Networks warrants that this product is new and free from defects in materials, workmanship, and design. This warranty will continue for one (1) year following installation of the product at a customer site. RadioFrame System Installation Guide Version 1.0 http://www.radioframenetworks.com September 2001 981-6200-00 Rev A ii The specifications and information regarding the products in this manual are subject to change without notice. All statements, information, and recommendations in this manual are believed to be accurate but are presented without warranty of any kind, express or implied. Users must take full responsibility for their application of any products. United States Federal Communications Commission Notice The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Limited Warranty Hardware. RadioFrame Networks warrants that this product is new and free from defects in materials, workmanship, and design. This warranty will continue for one (1) year following installation of the product at a customer site. In no event shall RadioFrame Networks or its suppliers be liable for any indirect, special, consequential, or incidental damages, including, without limitation, lost profits or loss or damage to data arising out of the use or inability to use this manual, even if RadioFrame Networks or its suppliers have been advised of the possibility of such damages. Software. RadioFrame Networks warrants that commencing from the date of delivery to customer and continuing for a period of one (1) year, the Software substantially conforms to its published specifications. Except for the foregoing, the Software is provided AS IS. This limited warranty extends only to the customer who is the original licensee. Customer’s sole and exclusive remedy and the entire liability of RadioFrame Networks and its suppliers under this limited warranty will be, at RadioFrame Networks’ option, repair or replacement of the Software if reported to RadioFrame …

Text truncated - open the document above for the full version.

EXHIBIT I – Request for Confidentiality Letter FCC ID# PURRFU7

EXHIBIT A – Agent Authorization Letter FCC ID# PURRFU7

EXHIBIT C – Cover letter from Agent FCC ID# PURRFU7 NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 September 14, 2001 Dear Application Examiner: On behalf of RadioFrame Networks TM , Northwest EMC, Inc is submitting this application for the certification of the iDEN RadioBlade, FCC ID: PURRFU7. It operates from 851.0125 to 869.9875 MHz (center frequency to center frequency), with a peak output power of 3.5 uW to 13.8 mW. The radio supports the 800MHz iDEN air interface standard and performs the functions of a single micro base station transceiver. It utilizes quadrature modulation techniques. The radio will only be used as a subassembly in RadioFrame Networks TM Radio Frequency Units. The Radio Frequency Units (RFUs) are professionally installed at fixed in-door locations. The minimum distance between each RFU is 10 feet. Up to 7 radios can be installed in each RFU. The EUT can be configured with only one antenna. Data is supplied with this application in support of this antenna. The technical report and exhibits demonstrate compliance with FCC rules 47 CFR 90.691. The attached email from the FCC documents Northwest EMC’s eligibility as a TCB to grant certification. To facilitate the review process, an index of exhibits has been provided (see file “Index of exhibits.pdf”). Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc. Page 1 of 2 file://C:\DOCUME~1\gkiemel\LOCALS~1\Temp\eud2F.htm9/24/2001 X-Mailer: Novell GroupWise 5.5.2 Date: Wed, 19 Sep 2001 14:04:00 -0400 From: "Raymond Laforge" <[email protected]> To: <[email protected]> Subject: Re: TCB Eligibility X-MIME-Autoconverted: from quoted-printable to 8bit by nwemc.nwemc.com id f8JHkcB30667 For exposure purposes, all the transmitters (max number and output) and antennas operating off that box should be considered. It is unclear if all the transmitters will require licensing, if not, it would be incorrect to indicate exposure is determined at the time of licensing. therefore, procedure B may not apply. They may be able to do it under item (II) (a) of the Exclusion List (not on outdoor permanent structures and less than the MPE exclusion) but need to take the outputs of all transmitter cards into account to qualify for the MPE exclusion and incorporate appropriate grant conditions (not the one in procedures C) - indoor fixed-mounted to provide 20 cm or more from persons etc. If the total output exceeds MPE exclusion requirements, it should be submitted to the FCC because the concepts/procedures of 1.1307 (b)(3) need to be adapted for transmitters operating at different frequencies with different MPE limits to determine distance and compliance etc. >>> Greg Kiemel <[email protected]> 09/11/01 08:17PM >>> A client is seeking FCC authorization under Part 90 for a radio transceiver card. The card operates at 851 MHz to 870 MHz with a maximum output power of 14 mW. The radio contains an on-board omni antenna. It utilizes the Motorola iDEN communication protocol. The card is designed to be professionally installed in a fixed-mounted enclosure. The enclosure contains a backplane that supports up to six additional radio cards for the addition of other communication protocols. The additional cards could support GSM, CDMA, TDMA, 3G, Wireless LAN, or Bluetooth (all at a similar output power of less than 50mW). Each card has its own on-board antenna. Only one iDEN radio card would be installed per enclosure. Each enclosure is designed to provide radio coverage for a 100ft. radius It appears from the "TCB RF Exposure procedures" that Section B of the Review & Approval procedures would allow a TCB to grant certification for the radio described above. The grant condition would include the statement, "RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3)." Please confirm TCB eligibility. Thank you for your attention to this matter. Best regards, Greg Kiemel Northwest EMC, Inc. ph. (503) 844-4066 email [email protected]

Exhibits for the FCC application of RadioFrame Network TM iDEN RadioBlade FCC ID: PURRFU7 Exhibit Description File Name Confidential Exhibit A Agent Authorization Letter Agent Authorization Letter.pdf Exhibit B Antenna Description Antenna Description.pdf Exhibit C Cover Letter From Agent Cover Letter from Agent.pdf Exhibit D External Photos External Photos.pdf Exhibit E FCC ID Label & Location on Radio FCC ID Label & Location.pdf Exhibit F Frequency Block Diagram Frequency Block Diagram.pdf YES Exhibit G Internal Photos Internal Photos.pdf Exhibit H Operational Description Operational Description.pdf YES Exhibit I Request for Confidentiality Letter Request for Confidentiality Letter.pdf Exhibit J Schematics Schematics.pdf YES Exhibit K Bill of Materials Bill of materials.pdf YES Exhibit L User Manual User Manual.pdf Exhibit M Test Setup Photos Test Setup Photos.pdf Exhibit N Output Power Output Power.pdf Exhibit O Frequency Stability Frequency Stability.pdf Exhibit P Spurious RF Conducted Emissions Spurious RF Conducted Emissions.pdf Exhibit Q Tune-up Procedure Tune-up Procedure.pdf Exhibit R Spurious Radiated Emissions Spurious Radiated Emissions.pdf Exhibit S Occupied Bandwidth Occupied Bandwidth.pdf Exhibit T Technical Report Technical Report.pdf

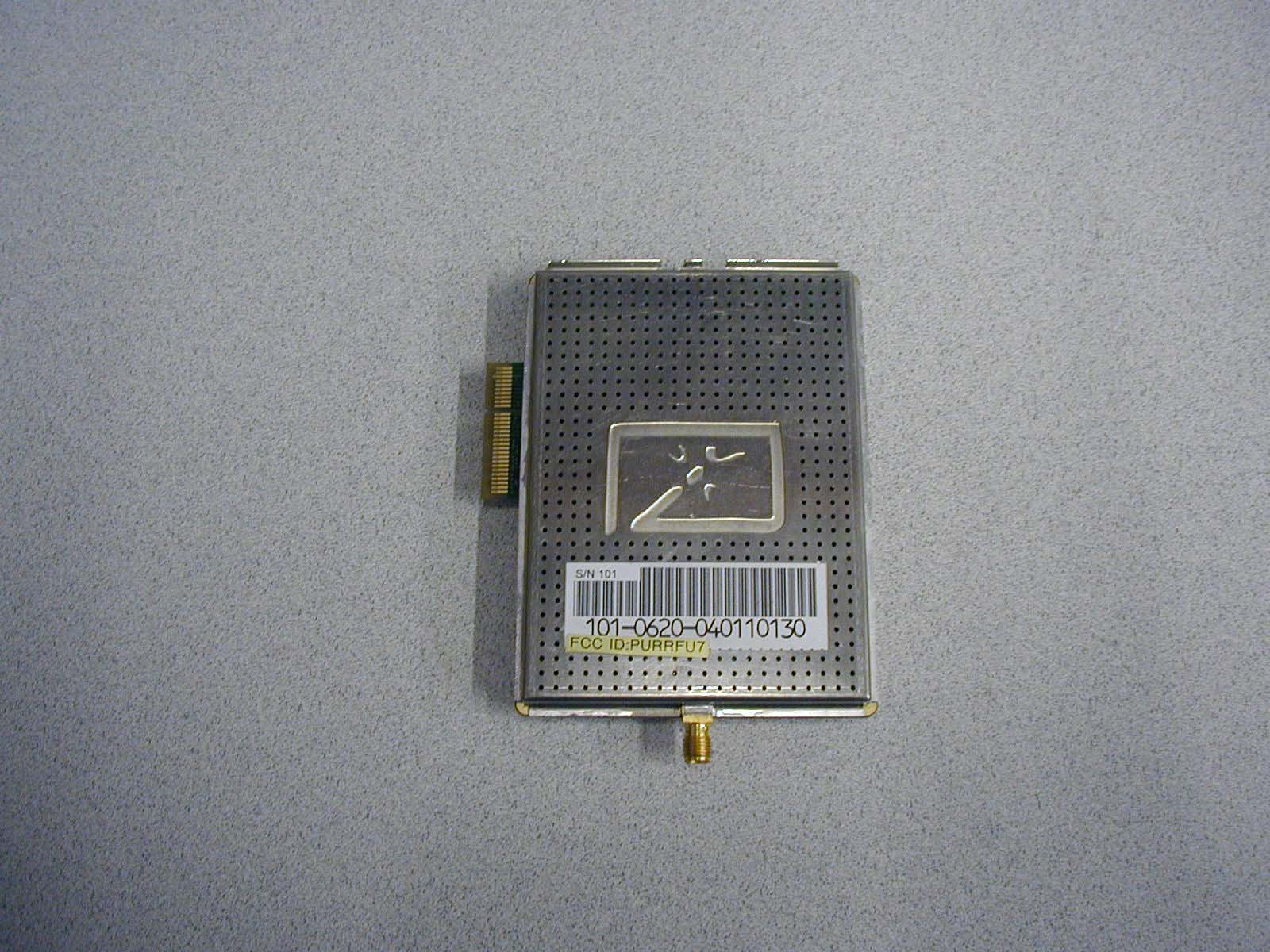

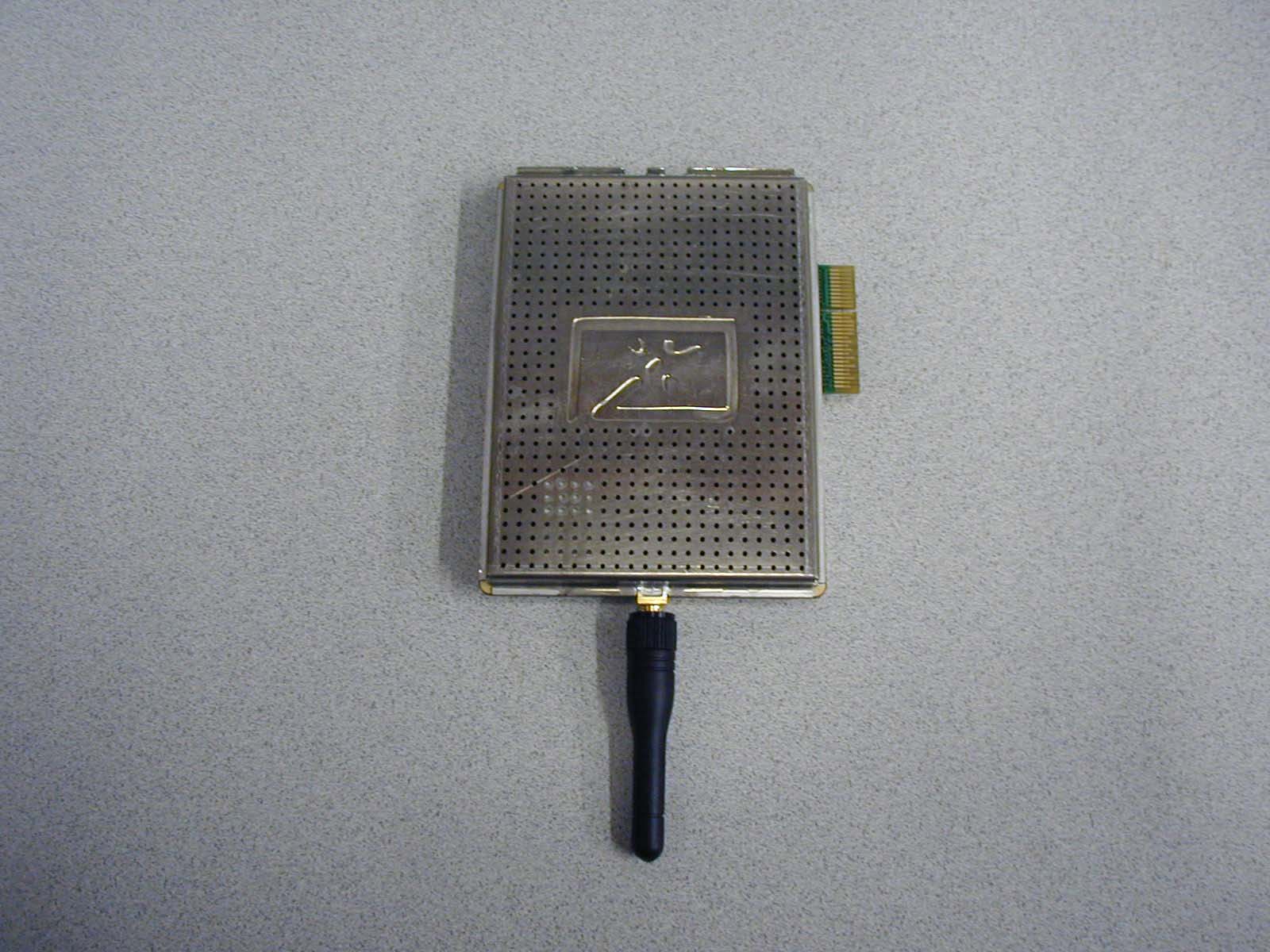

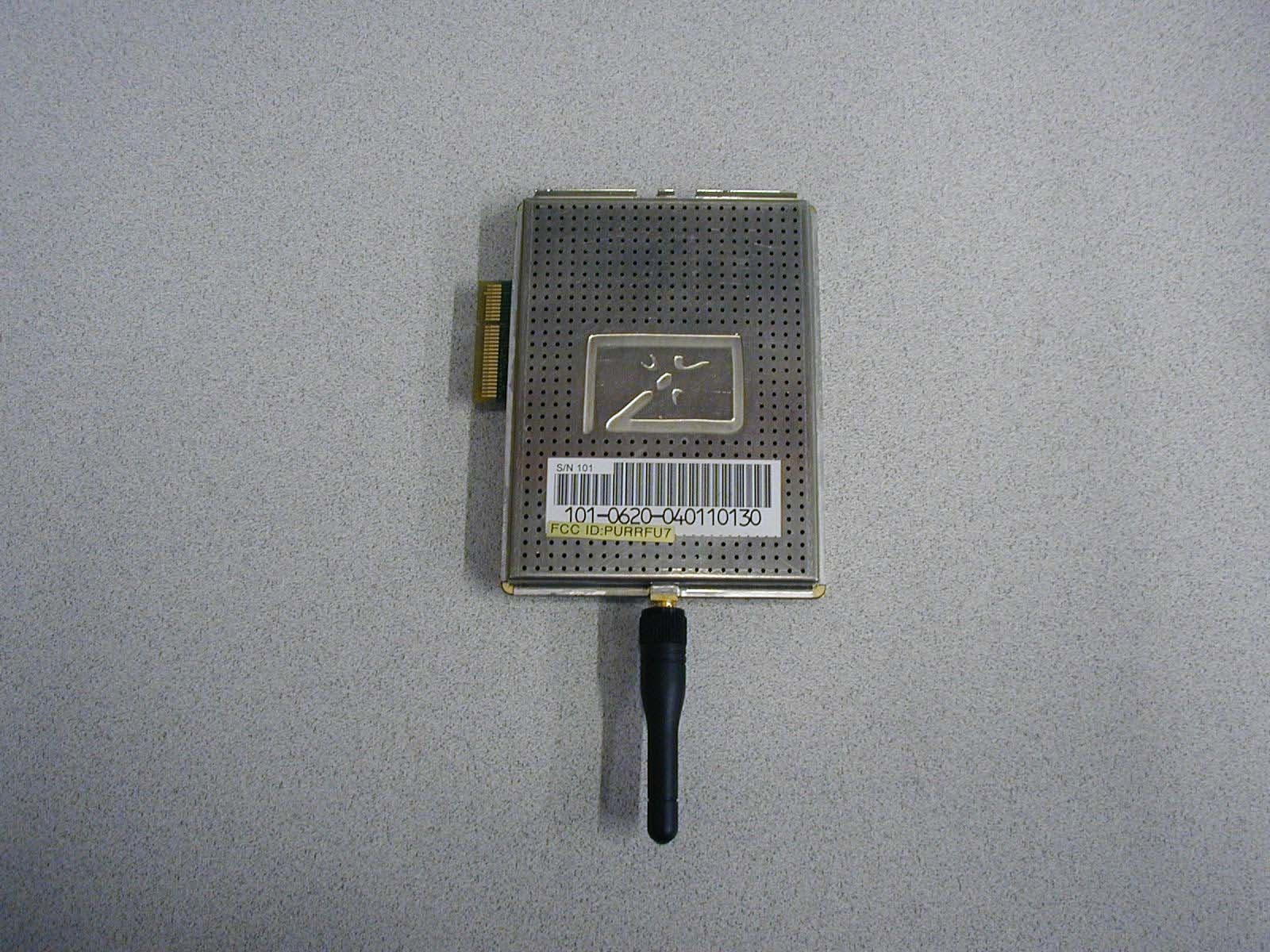

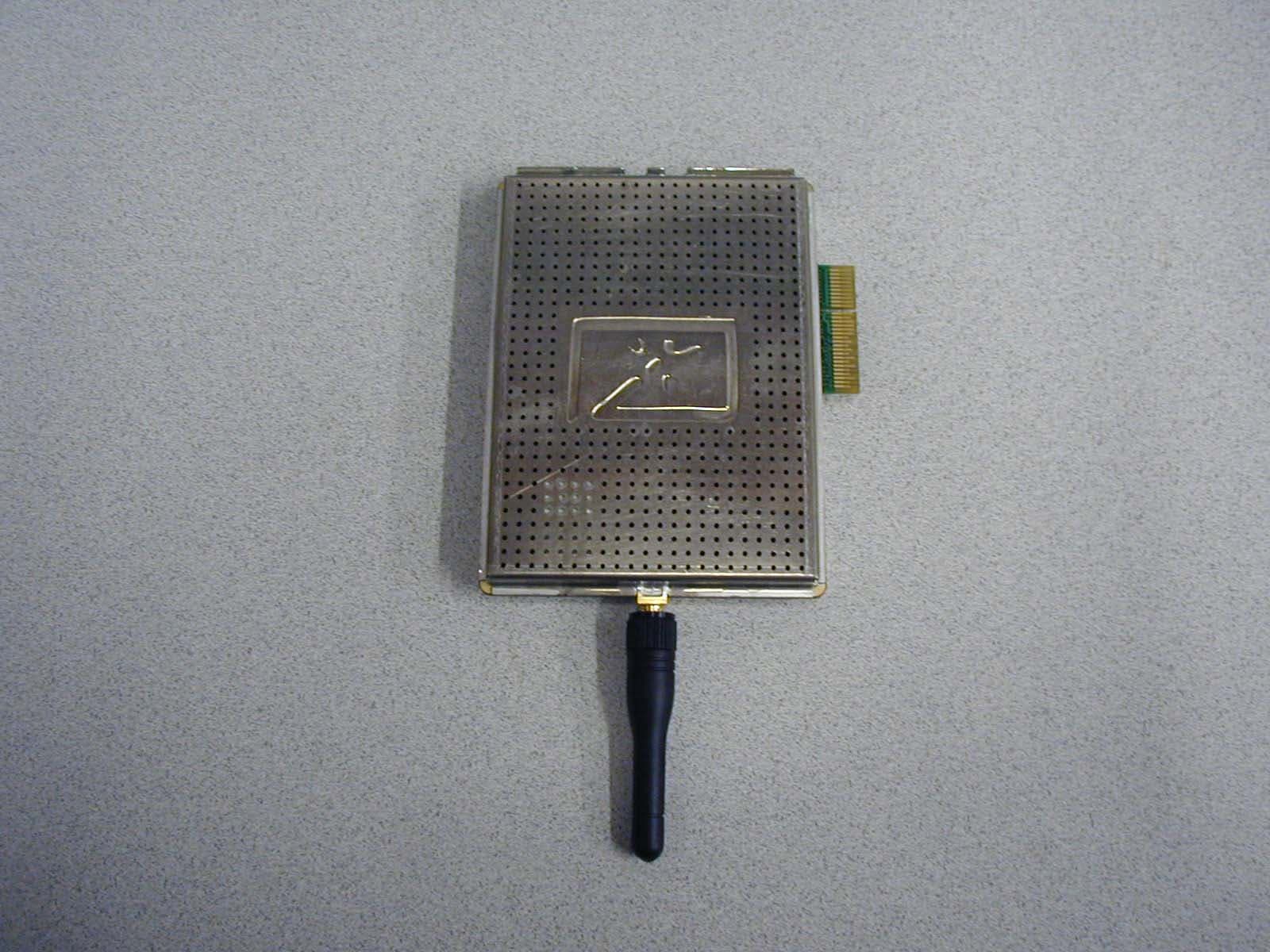

EXHIBIT D – External Photos FCC ID# PURRFU7

EXHIBIT E – FCC ID Label & Location FCC ID# PURRFU7

EXHIBIT G – Internal Photos FCC ID# PURRFU7

EXHIBIT B – Antenna Description FCC ID# PURRFU7 Antenna Description The RadioFrame Unit, 7 Slot, FCC ID: PURRFU7 will use the following antenna: Manufacturer: Aston Antenna Co. Part No: AXQ8SM-32S Gain: 0 dBi Type: ¼ wave whip Connector: SMA Plug Impedance: 50 ohm nominal Frequency Range: 824 – 896 MHz

EXHIBIT Q – Tune Up Procedure FCC ID# PURRFU7 Excerpt taken from RadioFrame System Installation Guide, Page 19 Tune-up Procedure Frequency 1 Set the center frequency of each transceiver using the Customer-supplied transceiver control interface. Once the frequency has been set, the power must be set. Transmit Power 2 Install the system management software user interface provided by RadioFrame Networks. 3 Set the transmit power of each transceiver to within the allowed limits as specified in the iDEN radioblade specification sheet.

EXHIBIT N – Output Power FCC ID# PURRFU7 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.217Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass13.8 mW SIGNATURE Tested By: DESCRIPTION OF TEST 851.012513.8 mW3.7 uW EMISSIONS DATA SHEET Output Power - Low, Mid, & High Channels None CW mode - no modulation Maximum peak conducted output power does not exceed 120 mW Frequency (MHz) Power Lowest Power SettingHighest Power Setting 865.9875 869.9875 3.5 uW13.1 mW 3.6 uW13.8 mW

EXHIBIT O – Frequency Stability FCC ID# PURRFU7 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: IDEN RadioWork Order: DATC0007 Serial Number: 170Date:07/27/01 Customer: Radio Frame NetworksTemperature: See data Attendees: Dean BushTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120V, 60 HzJob Site: EV09 TEST SPECIFICATIONS Specification: 47 CFR 2.1055 & 90.217Year: Most CurrentMethod: TIA/EIA - 603Year: 1993 SAMPLE CALCULATIONS ppm = [(Measured Frequency / Assigned Frequency) -1] * 1e6 COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSMINIMUM FREQUENCY STABILITY Pass0.0118ppm SIGNATURE Tested By: DESCRIPTION OF TEST Frequency Stability with Variation of Ambient Temperature (Primary Supply = 120V, 60Hz) Frequency Stability with Variation of Primary Supply Voltage (Ambient Temperature = 25 o C) Frequency Stability with Variation of Battery Voltage (Ambient Temperature = 25 o C) (Does not apply because EUT is not a battery powered portable unit ( o C) Minimum frequency stability of 1.0 parts per million (ppm) for variations of temperature and supply voltage Frequency Stability TempAssigned FrequencyMeasured FrequencyToleranceSpecification (MHz)(MHz) EMISSIONS DATA SHEET None Transmitting with no modulation (CW mode). (ppm)(ppm) 1 -20851.012520851.0125200.00001 -30851.012520851.0125200.0000 1 0851.012520851.0125250.00591 -10851.012520851.0125250.0059 1 20851.012520851.0125200.00001 10851.012520851.0125250.0059 1 40851.012520851.0125100.01181 30851.012520851.0125200.0000 1 VoltageAssigned FrequencyMeasured FrequencyToleranceSpecification 50851.012520851.0125200.0000 (ppm) 138 (115%)851.012520851.0125200.001 (VAC, 60Hz)(MHz)(MHz)(ppm) 1 126 (105%)851.012520851.0125200.001 132 (110%)851.012520851.0125200.00 1 114 (95%)851.012520851.0125200.001 120 (100%)851.012520 1 102 (85%)851.012520851.0125200.001 108 (90%)851.012520851.0125200.00 851.0125200.00 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: IDEN RadioWork Order: DATC0007 Serial Number: 170Date:07/27/01 Customer: Radio Frame NetworksTemperature: See data Attendees: Dean BushTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120V, 60 HzJob Site: EV09 TEST SPECIFICATIONS Specification: 47 CFR 2.1055 & 90.217Year: Most CurrentMethod: TIA/EIA - 603Year: 1993 SAMPLE CALCULATIONS ppm = [(Measured Frequency / Assigned Frequency) -1] * 1e6 COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSMINIMUM FREQUENCY STABILITY Pass0.0199ppm SIGNATURE Tested By: DESCRIPTION OF TEST Frequency Stability with Variation of Ambient Temperature (Primary Supply = 120V, 60Hz) Frequency Stability with Variation of Primary Supply Voltage (Ambient Temperature = 25 o C) Frequency Stability with Variation of Battery Voltage (Ambient Temperature = 25 o C) (Does not apply because EUT is not a battery powered portable unit 856.0125130.00 856.0125130.00 1 102 (85%)856.012513856.0125130.001 108 (90%)856.012513 856.0125130.00 1 114 (95%)856.012513856.0125130.001 120 (100%)856.012513 (MHz)(ppm) 1 126 (105%)856.012513856.0125130.001 132 (110%)856.012513 856.0125150.0023 (ppm) 138 (115%)856.012513856.0125130.001 (VAC, 60Hz)(MHz) 856.0125200.0082 1 VoltageAssigned FrequencyMeasured FrequencyToleranceSpecification 50856.012513 856.0125150.0023 1 40856.012513856.0125200.00821 30856.012513 856.0125300.0199 1 20856.012513856.0125130.00001 10856.012513 856.0125200.0082 1 0856.012513856.0125250.01401 -10856.012513 (ppm)(ppm) 1 -20856.012513856.0125250.01401 -30856.012513 EMISSIONS DATA SHEET None Transmitting with no modulation (CW mode). ( o C) Minimum frequency stability of 1.0 parts per million (ppm) for variations of temperature and supply voltage Frequency Stability TempAssigned FrequencyMeasured FrequencyToleranceSpecification (MHz)(MHz) NORTHWEST2 EMC Rev BETA 01/30/01 EUT: IDEN RadioWork Order: DATC0007 Serial Number: 170Date:07/27/01 Customer: Radio Frame NetworksTemperature: See data Attendees: Dean BushTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120V, 60 HzJob Site: EV09 TEST SPECIFICATIONS Specification: 47 CFR 2.1055 & 90.217Year: Most CurrentMethod: TIA/EIA - 603Year: 1993 SAMPLE CALCULATIONS ppm = [(Measured Frequency / Assigned Frequency) -1] * 1e6 COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSMINIMUM FREQUENCY STABILITY Pass0.0174ppm SIGNATURE Tested By: DESCRIPTION OF TEST Frequency Stability with Variation of Ambient Temperature (Primary Supply = 120V, 60Hz) Frequency Stability with Variation of Primary Supply Voltage (Ambient Temperature = 25 o C) Frequency Stability with Variation of Battery Voltage (Ambient Temperature = 25 o C) (Does not apply because EUT is not a battery powered portable unit ( o C) Minimum frequency stability of 1.0 parts per million (ppm) for variations of temperature and supply voltage Frequency Stability TempAssigned FrequencyMeasured FrequencyToleranceSpecification (MHz)(MHz) EMISSIONS DATA SHEET None Transmitting with no modulation (CW mode). (ppm)(ppm) 1 -20863.012530863.0125200.01161 -30863.012530863.0125250.0058 1 0863.012530863.0125300.00001 -10863.012530863.0125250.0058 1 20863.012530863.0125300.00001 10863.012530863.0125200.0116 1 40863.012530863.0125200.01161 30863.012530863.0125250.0058 1 VoltageAssigned FrequencyMeasured FrequencyToleranceSpecification 50863.012530863.0125150.0174 (ppm) 138 (115%)863.012530863.0125300.001 (VAC, 60Hz)(MHz)(MHz)(ppm) 1 126 (105%)863.012530863.0125300.001 132 (110%)863.012530863.0125300.00 1 114 (95%)863.012530863.0125300.001 120 (100%)863.012530 1 102 (85%)863.012530863.0125300.001 108 (90%)863.012530863.0125300.00 863.0125300.00

EXHIBIT P – Spurious RF Conducted Emissions FCC ID# PURRFU7 Spurious RF Conducted Emissions Output Power Set to +11 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 0MHz-1GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 1GHz-3GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 3GHz-6GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Low Channel 6GHz - 9GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 0MHz-1GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 1GHz-3GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST Maximum level of any spurious emission must be attenauted below the specified emission mask. EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions - Mid Channel 3GHz - 6GHz None Modulated by 16 QAM. Max Output powered measured at +11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATI…

Text truncated - open the document above for the full version.

EXHIBIT R – Spurious Radiated Emissions FCC ID# PURRFU7 NORTHWEST EMC Rev 4.10 07/06/01 EUT: iDEN Radios Work Order: RAFN0005 Serial Number: Engineering UnitDate: 08/17/01 Customer: Radio Frame NetworksTemperature: 20 Attendees: N/ATester: James TilleyHumidity: 63% Customer Ref. No.: N/APower: N/AJob Site: SU07 TEST SPECIFICATIONS Specification: FCC 90.691Year: Most RecentMethod: TIA / EIA 603Year: Most Recent SAMPLE CALCULATIONS Power into an Ideal Half-Wave dipole is determined by the substitution method described in TIA/EIA 603, Sec. 2.2.12 COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD RESULTSDISTANCE (m)LINERUN PASS3 OTHER Tested By Frequency Antenna Polarit y Table Azimuth Antenna Hei ght Power Into an Ideal Half- Wave Dipol eSpec. LimitMargin (MHz)(degrees) (meters)(dBm)(dBm)(dB) 719.163HLPA140.02.0-38.5-13.0-25.5 719.163VLPA210.01.0-39.3-13.0-26.3 721.663HLPA160.02.5-40.7-13.0-27.7 726.663HLPA40.02.5-40.8-13.0-27.8 726.663VLPA345.01.0-40.9-13.0-27.9 724.163HLPA150.02.5-41.9-13.0-28.9 1200.003VHRN215.01.0-42.0-13-29.0 728.647VLPA350.01.0-42.3-13.0-29.3 721.663VLPA90.01.0-42.6-13.0-29.6 731.158HLPA135.02.8-42.7-13.0-29.7 728.663HLPA45.02.5-43.2-13.0-30.2 1297.749VHRN312.01.9-43.3-13-30.3 724.164VLPA170.01.0-43.6-13.0-30.6 1297.821HHRN46.01.6-43.7-13-30.7 731.158VLPA180.01.0-43.8-13.0-30.8 734.140VLPA180.01.0-45.3-13.0-32.3 599.996VLPA0.01.0-46.6-13.0-33.6 734.121HLPA135.02.5-48.1-13.0-35.1 1199.843HHRN82.01.6-48.9-13-35.9 575.001VLPA160.01.2-53.2-13.0-40.2 599.996HLPA120.02.5-53.9-13.0-40.9 299.998HLPA260.01.0-56.3-13.0-43.3 575.001HLPA110.02.5-56.5-13.0-43.5 299.986VLPA0.02.0-66.5-13.0-53.5 Power of Spurious Radiation into an Ideal Half-Wave Dipole Radiated and Conducted Emissions 7 IDEN RadioBlades (101, 108, 110, 111, 114, 118, 121) installed in Radio Frame Unit. Transmitting into 50 ohm load. Transmitting at mid-band with modulation None -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10100100010000 Frequency (MHz) dBm

EXHIBIT S – Occupied Bandwidth FCC ID# PURRFU7 NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Emission Mask for EA-based Systems: Lowest Channel @ Highest Output Power None Modulated by 16 QAM. Maximum level of any spurious emission must be attenauted below the specified emission mask. 0 dB reference is 11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Emission Mask for EA-based Systems: Lowest Channel @ Highest Output Power None Modulated by 16 QAM. Maximum level of any spurious emission must be attenauted below the specified emission mask. 0 dB reference is 11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Emission Mask for EA-based Systems: Middle Channel @ Highest Output Power None Modulated by 16 QAM. Maximum level of any spurious emission must be attenauted below the specified emission mask. 0 dB reference is 11.4 dBm NORTHWEST2 EMC Rev BETA 01/30/01 EUT: iDEN Radio Work Order: RAFN0007 Serial Number: 148Date: 08/22/01 Customer: RadioFrame NetworksTemperature: 23 degrees C Attendees: Dean BuschTested by: Greg KiemelHumidity: 38% RH Customer Ref. No.: N/APower: 120 V, 60 Hz (host)Job Site: Customer TEST SPECIFICATIONS Specification: 47 CFR 90.691Year: Most CurrentMethod: TIA / EIA - 603Year: Most Current SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTSAMPLITUDE Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMI…

Text truncated - open the document above for the full version.
