PWJDK433RADIO KEYBOARD ERONE MOD. DIGIKEY SEDK2641A4

1 4 7 * 3 6 9 # 2 5 8 0 GUARANTEE Warranty period : 24 months from the production date placed inside. In this period if the appliance has any malfuction due to defective component, it will be repaired or replaced by the manufacturer. The warranty doesn't cover the plastic box The assistance will be perfomed at the manufacturer site. KEYPAD RCS-433KP We appreciate your choice of this product. This product is addressed to manage the access in automatic gates and door control systems. This keypad has been carefully manufactured and checked. The manufacturer has designed this system to assure the best rielability and satisfaction. We recommend that you read carefully this manual before proceeding with the installation Technical Specifications Operating Frequency433,92 MHz Power supply3 Vdc ModulationAM/ASK Number of keys12 Coding typeRolling Code 64 Number of combinations2 E.r.p.6 mW Absorbtion20 mA Range in open space 150 - 700 meters Transmission duration2 sec. Housing protectionIP 44 Operating temperaturefrom 14 °F to 131 °F Dimensions5.7x3.07x1.25 in Weight3.24 oz Battery typeLithium 123A Introduction This keypad is a radiotransmitter operating at 433,92 MHz in AM/ASK modulation. It can be used as master transmitter to program the block receiver RCS-433BMR. The security code is a rolling type: that means that it changes at each transmission avoiding any risk of copy and scanning. Each product is set-in-factory with a different serial number. This keypad can be used only as master transmitter but doesn’t activate any relay on the block receiver. Use the keys 0-9 to dial the number and the keys “*” and “#” for the commands YES and NO of the block receiver --> See the Installation Manual of the block receiver. NOTE: The appliance uses a lithium battery type CR123A-S-3V. The removal and the disposal of the battery must have effected before the elimination of the appliance and according to the current Regulations. ATTENTION: - Danger of explosion if the battery is not replaced in the correct way! Replace only with an equal or equivalent type. Battery replacement Remove the cover and extract the old battery from the bottom site of the electronic card with an upward traction. Insert the new battery on the battery location, respecting the right polarity. +- + - LITHIUM CR123A Use of the keypad keys 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 = Normal digits (*) = Corresponding to LEFT Key of a Master transmitter (#) = Corresponding to RIGHT key of a Master transmitter (0) = Corresponding to RIGHT+LEFT simultaneously key of a Master transmitter 1 4 7 * 3 6 9 # 2 5 8 0 Right key Left key During a dial phase, the key “*” has the functionality of a backspace. It can be used to correct a wrong dialing. Once finished the number dialing, the key “*” goes back to the standard functionality corresponding to the LEFT key of a Master transmitter. The keys “*” and “#” can even be pressed down simultaneously for the corresponding function LEFT+RIGHT of a master IS-TDKDCUK Rev.2 on 5/9/2003 RCS-433KP - SEDK2641A4 FCC ID : PWJDK433 This device complies with FCC Rules Part 15 Operation is subject to the following two conditions: 1) This device may not cause harmful interferences; 2) this device must accept interference that may cause undesired operation. Left key + Right key Made in Italy WARNING “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”

FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, July 31 st 2003 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDK433 to be kept confidential. Document: BLOCK DIAGRAMS The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare

FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, July 31 st 2003 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDK433 to be kept confidential. Document: SCHEMATICS The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare

FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, July 31 st 2003 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDK433 to be kept confidential. Document: PART LIST The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare

ELPRO INNOTEK SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.450091 - P.I. 03023780269 internet: www.erone.com - e-mail: [email protected] 11.2 External bottom view TCF-064 15/07/2002 Pag 21 of 22

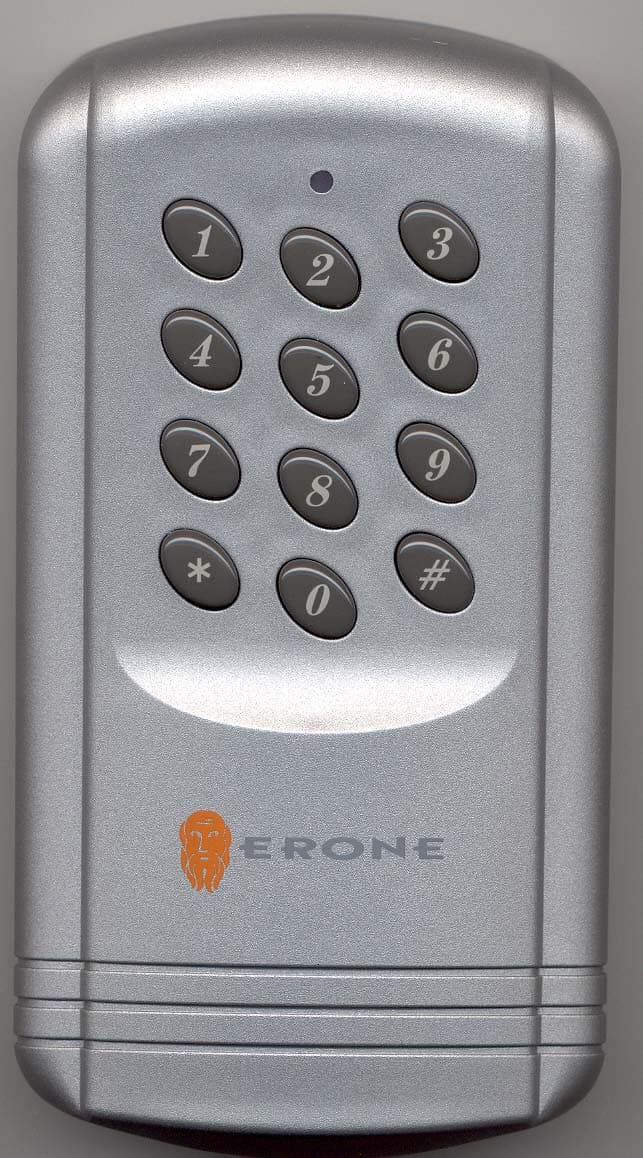

ELPRO INNOTEK S.p.A. TCF-064 ERONE DIGIKEY SEDK2641A4 – External front view Annex 1 = Photos Pag 2 of 3

ELPRO INNOTEK S.p.A. TCF-064 RADIO KEYBOARD ERONE DIGIKEY SEDK2641A4 The identification of this radio keyboard is carried out with a label on the bottom of the box and a label on the white packaging. On both the labels it is reported also the identification of the USA customer. For space reason, just on the product label, it is inserted only the main sentence of the FCC : "This device complies with FCC Rules Part.15". In the packaging label, the Sentence is reported completely. LABELS – Scale 1:1 1 Product label. RCS-433KP - SEDK2641A4 FCC ID : PWJDK433 This device complies with FCC Rules Part. 15 Freq. 4 33,92 MHz Lot. N° 000000-000000-FW 2. Packaging label RCS-433KP - SEDK2641A4 RADIO KEYBOARD FCC ID : PWJDK433 Freq. 433,92 MHz Annex 2 = Labels Pag 1 of 1

ELPRO INNOTEK S.p.A. TCF-064 Annex 1 = Photos Pag 4 of 5 ERONE DIGIKEY SEDK2641A4 – External view with label position

ELPRO INNOTEK S.p.A. TCF-064 ELECTRONIC CARD ERONE DIGIKEY SEDK2641A4 – PCB Front internal view ELECTRONIC CARD ERONE DIGIKEY SEDK2641A4 – back internal view Annex 1 = Photos Pag 1 of 3 ELPRO INNOTEK S.p.A. TCF-064 ERONE DIGIKEY SEDK2641A4 – External back view with battery access Annex 1 = Photos Pag 3 of 3

ELPRO INNOTEK SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.450091 - P.I. 03023780269 internet: www.erone.com - e-mail: [email protected] 4.0 Description 4.1 Introduction Erone Digikey is a codified radio keyboard operating at 433,92 MHz. The best use of the product is on applications where a codified radio signal has to be used to control: gates, garage doors, rolling shutters, sun-blinds, anti-burglar appliances, lightings, etc. The code has a very high security coding system. (KeeLoq ® Hopping code). The code sent by the transmitter changes at every activation, avoiding any scanning and copying risk. A special algorithm allows to keep synchronyzed transmitter and receiver. The radio transmission is enabled only after the dialing of a security user code. There are up to 6 + 2 different channels that can activate up to 6 different receivers or relays. The receiver that can be used to operate with, can be one of the Series Erone SEL2641R433. The internal memory can store up to 22 different security user codes and 1 Master code. The product fully complies with the European directives 73/23/CEE, 89/336/CEE, 99/05/CE. The keyboard has a Master Password factory-set to “11111”. No radio signal can be transmitted until the Master default Password hasn’t been changed If the Master Password remains the default one the following functions are allowed: Insertion of new User Codes; Cancellation of stored User Codes; Replacement of the Master key itself. The Master Password and the User code can have up to 5 digits. If the chosen string is shorter than 5 digits, press the key “#” after the last digit to complete the number as indicated below: Example 1 : User code 123 : Digit 1,2,3,#. Example 2 : User code 1234 : Digit 1,2,3,4,#. After 8 wrong dials of the master Password, the system disables the password and requests the dialing of the PUK code ( Password Unblocking Key). The procedure can be followed even if the Master Password is lost, in order to reset the security factory configuration. The PUK is provided inside the packaging of the product. Each user can access to the transmitter by dialing his own code. For this procedure you need to know the Master Password. For the transmission, the user has first to digit the User Code ( not the Master Password) and then to press the key to activate ( 1 , 2, 3, 4, 5, 6) 4.2 Special functions The key “*” cancel the dialing; The key “ # “ repeat the last command ( within 20 sec. ) The keyboard can transmit other 2 signals, different from the normal six signals of the keys ( 1 - 6). “Tamper switch signal” : Where installed, the tamper is a switch with a NO contact, which put the keyboard in transmission if the contact is released. The tamper-type signal is transmitted when the following conditions occur: 1) When the tamper is released; 2) At every command key activation in tamper released state. TCF-064 15/07/2002 Pag 6 of 22 ELPRO INNOTEK SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.450091 - P.I. 03023780269 internet: www.erone.com - e-mail: [email protected] “Low Battery signal” : The low battery alarm activates the RF transmission when the battery level is under the configured value. The signal is sent at every command key activation. The memorization of the special signals on the target receiver can be done as follows Tamper Signal: 1) Dial the Master Password 2) Press key “1” Low Battery Signal: 1) Dial the Master Password 2) Press key “2” 4.3 Rolling code synchronization system The code transmitted by the transmitted changes at each key activation. It means that the receiver has to be able to follow the right sequence in order to activate its outputs. The code actually transmitted is composed by 3 main blocks: a manufacturer key a serial number a counter number The manufacturer key is proprietary of the manufacturer and is fixed in each transmitter. The serial number is characteristic of each transmitter and is set-in-factory by the manufacturer during the programming of the micro; for this reason it is different for each transmitter. The counter number comes from a counter which increments at every activation. All the above numbers once assembled are encrypted and then sent to the modulator. The synchronization system operates as follows: 32768 65525 0 16 Once the serial number of the transmitter has been stored into the receiver memory, is the counter number received and the counter number of the receiver differ for less of 16 , the receiver updates its counter and enable the output. If the difference between the two counter numbers is greater that 16 but less then 32768, the synchronization can occur only after 2 consecutive received counter numbers ( that means two close transmissions with out any error of the transmitter). If the difference is greater of 32768 the receiver doesn't activate the outputs. TCF-064 15/07/2002 Pag 7 of 22

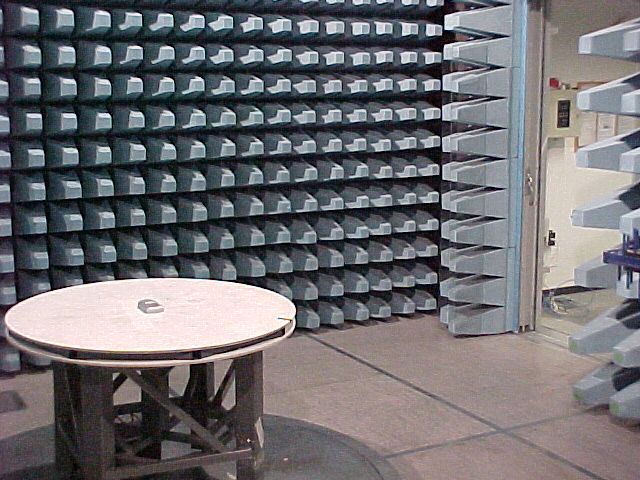

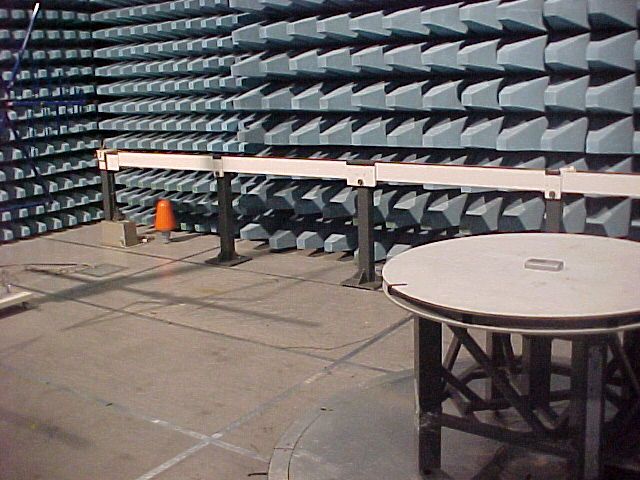

TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 3 3 . . 3 3 7 7 1 1 P P R R I I M M A A R R I I C C E E R R C C A A & & S S V V I I L L U U P P P P O O - - L L A A B B O O R R A A T T O O R R I I O O P P R R O O V V E E - - V V I I A A C C A A M M P P A A G G N N A A , , 5 5 8 8 - - 2 2 2 2 0 0 2 2 0 0 F F A A L L O O P P P P I I O O ( ( C C O O ) ) T T E E L L . . + + 3 3 9 9 ( ( 0 0 3 3 1 1 ) ) 3 3 5 5 0 0 0 0 0 0 1 1 1 1 F F A A X X + + 3 3 9 9 ( ( 0 0 3 3 1 1 ) ) 9 9 9 9 1 1 . . 3 3 0 0 9 9 Edit. 2.0sheet 1 of 16 Issue date: E E Q Q U U I I P P M M E E N N T T U U N N D D E E R R T T E E S S T T : : A A P P P P A A R R E E C C C C H H I I O O I I N N P P R R O O V V A A : : R R A A D D I I O O K K E E Y Y B B O O A A R R D D a a t t 4 4 3 3 3 3 . . 9 9 2 2 M M H H z z E E r r o o n n e e D D I I G G I I K K E E Y Y m m o o d d . . S S E E D D K K 2 2 6 6 4 4 1 1 A A 4 4 R R E E F F E E R R E E N N C C E E S S T T A A N N D D A A R R D D S S : : N N O O R R M M E E D D I I R R I I F F E E R R I I M M E E N N T T O O : : F F C C C C 4 4 7 7 C C F F R R P P a a r r t t 1 1 5 5 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: ELPRO INNOTEK SPA • Mr.: Sig.ra.: ING. G. MASSIMO DALLE CARBONARE • Address: Indirizzo: VIA PIAVE, 23 – 31020 S. PIETRO DI FELETTO (TV) - ITALY Tel. : Telefono : +39 0438.450860 Telefax: Fax : +39 0438.450091 • E-mail: [email protected] Site of test execution: Via Campagna, 58 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 06 /06/03 Date of start test: 23 /06/03 Data ricevimento campioni: Data inizio prove: Date of end test: 07/08/03 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Nobody / Nessuno ................................................................................................................... F. Barbierato .......................................................... Ing. V. La Fragola The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director. La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio. TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 3 3 . . 3 3 7 7 1 1 P P R R I I M M A A R R I I C C E E R R C C A A & & S S V V I I L L U U P P P P O O - - L L A A B B O O R R A A T T O O R R I I O O P P R R O O V V E E - - V V I I A A C C A A M M P P A A G G N N A A , , 5 5 8 8 - - 2 2 2 2 0 0 2 2 0 0 F F A A L L O O P P P P I I O O ( ( C C O O ) ) T T E E L L . . + + 3 3 9 9 ( ( 0 0 3 3 1 1 ) ) 3 3 5 5 0 0 0 0 0 0 1 1 1 1 F F A A X X + + 3 3 9 9 ( ( 0 0 3 3 1 1 ) ) 9 9 9 9 1 1 . . 3 3 0 0 9 9 Edit. 2.0sheet 2 of 16 Issue date: 0 0 C C O O N N T T E E N N T T S S .........Rev Date 0CONTENTS..........................................................................................................................................2 Abbreviations used in the test report :.......................................................................................................2 1TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT).........................................3 1.1E.U.T. identification......................................................................................................................3 1.2E.U.T. classification.....................................................................................................................3 1.3Modifications incorporated in E.U.T. ...........................................................................................3 1.4Ports identification ........................................................................................................................4 1.5Operating test modes and test Conditions .....................................................................................5 2SUMMARY OF TEST RESULTS .......................................................................................................6 2.1EMISSION TESTS .......................................................................................................................6 2.2TEST RESULTS...........................................................................................................................7 3EUT TECHNICAL DOCUMENTATION .........................................................................................14 3.1Wiring diagrams..........................................................................................................................14 3.2Technical manual ........................................................................................................................14 3.3Photographic documentation.......................................................................................................15 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 07.08.03 A A b b b b r r e e v v i i a a t t i i o o n n s s u u s s e e d d i i n n t t h h e e t t e e s s t t r r e e p p o o r r t t : : E.U.T.Equipment Under Test EMCElectromagnetic Compatibility N.A.Not Applicable N.R.Not requested by the client TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 3 3 . . 3 3 7 7 1 1 P P R R I I M M …
