PWJTMC1C9VPart 15 Security / Remote Control Transmitter

ELPRO INNOTEK SPA VIA PIAVE, 23 - 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 - P.I. 03023780269 internet: www.erone.com - e-mail: [email protected] PRODUCT TECHNICAL SPECIFICATIONS Product Brand Type File Rev. Date FCC-ID Encoded Transmitter Module - SETMC1C9V IS-TMC1C9V 2 19/1/2015 PWJTMC1C9V Description Saw transmitter module with external aerial and internal security code ( Keeloq Hopping code ) Applications RF Transmissions of digital signal from pure contacts Technical specifications Parameter Min Typ Max Unit Band 433,05 – 434,790 MHz Carrier frequency - 433,92 - MHz Carrier frequency tolerance  100 KHz E.r.p emitted power - - 60.50 dBμV/m Spurious emissions - - -73 dBm Modulation AM / ASK Baud-rate - 834 - Bit/sec Output load - 50 -  Power supply - +9 - V Current consumption - - 17 mA Dimensions ( l x h x p ) 45x 28 x 6 mm Operating temperature - 20  + 80 °C Wirings 9V Battery connection + 1 antenna + NO input 200 mm Input 1 - Range ( in open space ) 1000 m Input type Pure contact Security coding Keeloq Hopping code Security code combinations 2 64 Mechanical specifications 44 2 8 6 Block Diagram WIRINGS 1 : BLACK = N.O. INPUT CONTACT 2 : BLACK = N.O. INPUT CONTACT 7 : BLUE = ANTENNA 9 : RED = POWER SUPPLY (+ 9Vdc) 8 : BLACK = POWER SUPPLY 0V FCC Warning Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: this device is intended only for OEM integrators. Integration is strictly restricted under control of the Grantee. NOTES FOR INTEGRATORS For a host manufacture’s using a certified modular, if (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not have straightforward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC ID: PWJTMC1C9V” or “Contains FCC ID: PWJTMC1C9V” must be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 31/7/2014 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: PWJTMC1C9V including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Gian Massimo Dalle Carbonare Product manager Elpro Innotek Spa

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/7/2014 Request for Confidentiality Company name: ELPRO INNOTEK SPA FCC ID: PWJTMC1C9V FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 ELPRO INNOTEK SPA hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which ELPRO INNOTEK SPA considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, ELPRO INNOTEK SPA considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Gian Massimo Dalle Carbonare Product manager Elpro Innotek Spa

Modular Approval - FCC Source: § 15.212 Modular transmitters. Labelling requirements for Host device: (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Modular Approval Request Letter Date: 2014-09-03 FCC ID: PWJTMC1C9V Type of Equipment: SETMC1C9V The following requirements according to FCC Part 15.212 are met: i RF shielding The radio portion has his own shielding (see external photos). ii Buffered modulation/data inputs, has been integrated in the chipset iii Power supply regulation, is integrated iv Antenna requirements section 15.203, 15.204 b and 15.204 c The module comes with two permanently attached antennas. The spurious emission requirements are fulfilled (see attached test report). v Stand alone test configuration Please referring to test set up configuration photo vi Labelling The module has its own label. The instruction for labelling rules for the host device has been stated in the users manual vii Compliance on specific rule or operating requirements The required FCC rules has been fulfilled and all instructions for maintaining compliance has been clearly stated in the users manual viii RF Exposure, RF exposure requirements are fulfilled for mobile configuration. The installation of the module is restricted to mobile host devices what is clearly stated in the installation instruction of the user manual. For portable applications OEM integrators need SAR evaluation and an own FCC ID. Gian Massimo Dalle Carbonare Product manager Elpro Innotek Spa

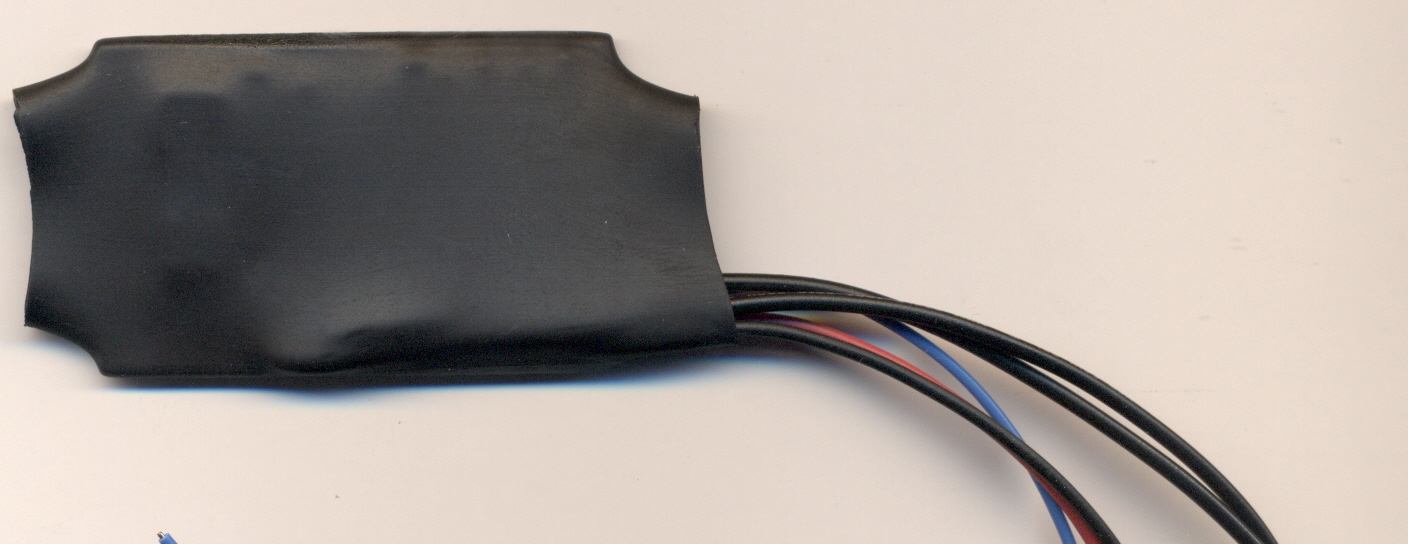

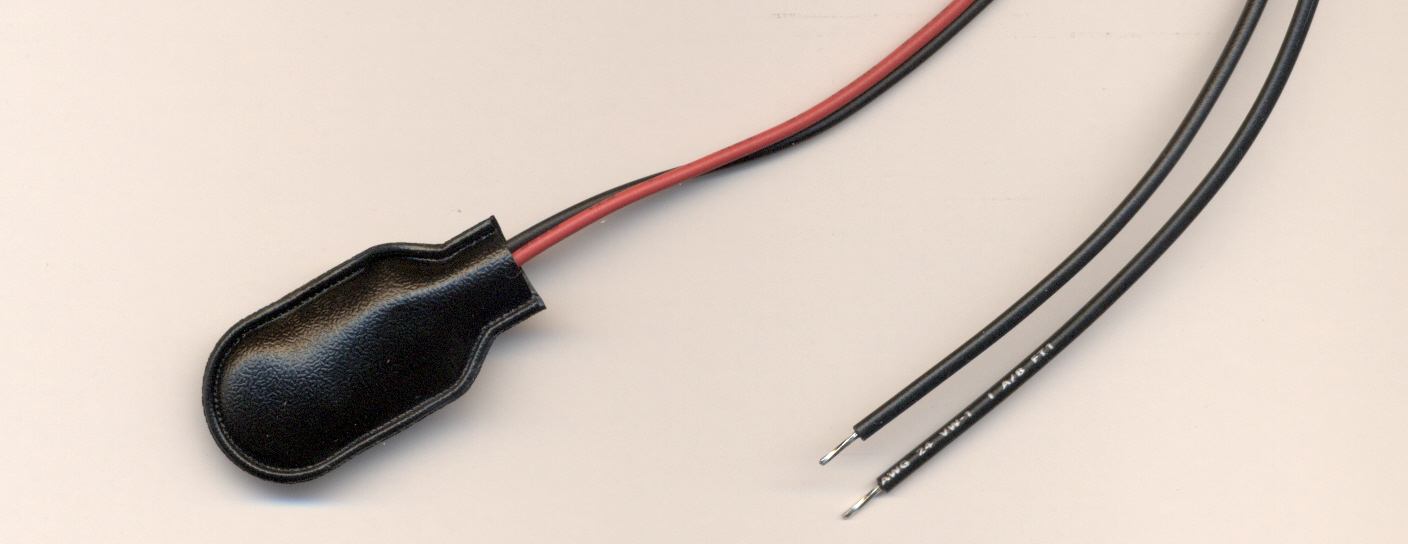

ELPRO INNOTEK S.p.A. TCF-114 Annex 1 = Photos Pag 3 of 4 TRANSMITTER MODULE SETMC1C9V –External front view ELPRO INNOTEK S.p.A. TCF-114 Annex 1 = Photos Pag 4 of 4 TRANSMITTER MODULE SETMC1C9V –External back view
