PWJTM128Transmitter MINI ERONE 128

www.erone.com - www.cdvigroup.com The transmitter Erone type SETR128AM2 (Fig. 1) is a very high security transmitter with GFSK modulation. The high degree of security is ensured by a 128-bit serial number, with a AES128 encryption and by a proprietary “rolling code algorithm” that avoids the risk of the scan and the subsequent retransmission of the code copied. A special system keeps aligned transmitter and receiver. TRANSMITTER ERONE SETR128AM2 1 Introduction Technical specifications Operating frequency ................433,92 MHz Modulation ...............................GFSK Erp: ..........................................150 ÷ 250 μW Power supply ...........................3 Vdc Battery type .............................CR2032 Lithium Battery life................................24 months Encoding system .....................Rolling code Encryption................................AES128 Serial number ..........................32 bit Range ( in open space) ...........150 - 250 m (*) Dimensions: .............................61 x 36 x 16 mm Weight .....................................30 gr. The warranty period for this product is 24 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at our discretion. The guarantee does not cover the plastic container integrity. After- sale service is supplied at the factory. Manufactured by : CDVI Wireless SPA Italy IS-TMN128ERML Rev.1 - 25/2/2021 2 For memorizing the transmitter in the receiver, follow the steps described in the manual of your receiver. Technical specifications 3 Memorization on the receiver 5 Guarantee To access the battery turn clockwise the battery door. Place the 2 lithium CR2016 batteries inserting a part of them under the door and taking care to push them just on the internal ring plane. NOTE: The disposal of the unloaded batteries must have effected making use of the special containers. 4 Battery replacement CR2032 Side (+) Side (-) Fig. 1 Fig. 2 FCC ID : PWJTM128 “The device complies with part 15 of the FCC Rules. Operation is subjected to the following 2 conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation”. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet. www.erone.com - www.cdvigroup.com L’émetteur Erone type SETR128AM2 (Fig.1) est un émetteur de très haute sécurité avec modulation GFSK. Le haut niveau de sécurité est assuré par un numéro de série de 128 bits, avec un cryptage AES128 et par un “algorithme rolling code” propriétaire, qui évite le risque de scan et retransmission du code copié. Un système spécial maintient l’émetteur et le récepteur alignés. ÉMETTEUR ERONE SETR128AM2 1 Presentation Technical specifications Fréquence ...............................433,92 MHz Modulation ...............................GFSK Erp: ..........................................150 ÷ 250 μW Alimentation .............................3 Vdc Pile...........................................CR2032 Lithium Durée de la pile .......................24 moins Code de sécurité .....................Rolling code Cryptage ..................................AES128 Numero seriel ..........................32 bit Portée en espace libre.............150 - 250 m Dimensions: .............................61 x 36 x 16 mm Poids........................................20 gr. Emetteur fabriqué et vendu avec un numéro de série unique sélectionné lors de la fabrication. Période de garantie : 24 mois à compter de la date de fabrication, uniquement pour les composants électronique, ne couvrant pas le boîtier. Fabriqué par : CDVI Wireless SPA Italy 2 Pour mémoriser l’émetteur dans le récepteur, suivez les étapes décrites dans le manuel de votre récepteur. Caracteristiques principales 3 Mémorisation 5 Garantie Pour accéder au vain porte batteries tourner le trappe en sens horaire (Fig.2). Positionner les 2 batteries au lithium CR 2016 en enfilant une partie sous le trappe et en ayant soin de lui étendre sur l’étage de l’anneau intérieur. NOTE: L’écoulement des batteries déchargé doit être effectué en utilisant les récipients spéciaux. 4 Accéss à la pile Côté (+) Côté (-) Fig. 1 CR2032 Fig. 2

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2/19/2021 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: PWJTM128 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Gian Massimo Dalle Carbonare Product manager CDVI Wireless Spa

CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 PIVA. 03023780269 internet: www.erone.com - e-mail: [email protected] Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2/19/2021 Request for Permanent Confidentiality Company name: CDVI Wireless SpA FCC ID: PWJTM128 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 CDVI Wireless SpA hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which CDVI Wireless SpA considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, CDVI Wireless SpA considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Gian Massimo Dalle Carbonare [Product manager] CDVI Wireless SpA Via Piave, 23 31020 S.Pietro di Feletto (TV ) - Italy

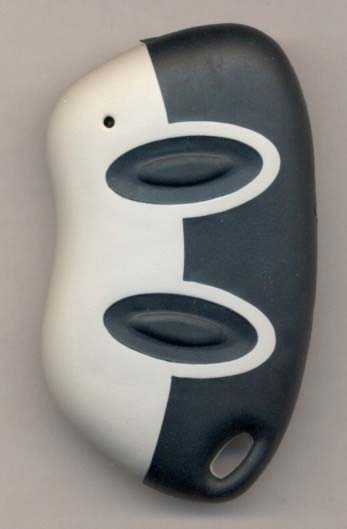

Annex 1B = External Photos 1 / 3 CDVI Wireless SPA TCF-192 Annex 1B: Front external view TX SETR128AM2 Annex 1B: Back external view w/battery door open Annex 1B: Back external view w/battery door closed Annex 1B = External Photos 2 / 3 Annex 1B = External Photos 3 / 3

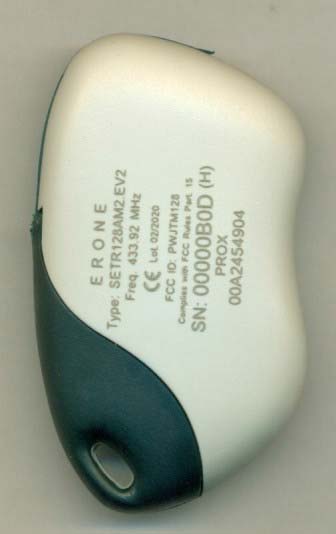

CDVI Wireless SPA TCF-192 Annex 2 = Labels Pag 1 of 1 LABELS – Scale 1:1 The product is marked directly on the back of the plastic enclosure, through a laser etching process, with the informations about the FCC Certification. The laser process assured the indelibility of the marking

CDVI Wireless SPA TCF-192 Annex 1A = Internal Photos Pag 1 of 1 TX SETR128AM2 Annex 1A: card – Front internal view Annex 1A: card – back internal view

TEST REPORT Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter A – General Part 2.1093 – Radiofrequency radiation exposure evaluation: portable devices Report Reference No. .................... : 394792TRFEMF Tested by (name, function and signature) ........ : S. Tessa (project handler) Approved by (name, function and signature) ........ : P. Barbieri (verifier) Date of issue .................................... : 2021-03-05 Testing Laboratory ........................ : Nemko Spa Address ........................................... : Via del Carroccio, 4 – 20853 Biassono (MB) – Italy Testing location Nemko Spa Address ........................................... : Via del Carroccio, 4 – 20853 Biassono (MB) – Italy Registration number ........................ : 682159 Applicant’s name ........................... : CDVI Wireless Spa Address ........................................... : Via Piave, 23 – 31020 S. Pietro di Feletto (TV) – Italy Test specification: Standard .......................................... : FCC CFR 47 Part 2 – Radiofrequency radiation exposure evaluation §2.1091 – Mobile devices §2.1093 – Portable devices Test procedure ................................ : Nemko WM L0077, WM L0177 and WM L1002 Test Report Form No. .................... : FCCTRFEMF TRF Originator ................................. : Nemko Spa Master TRF ...................................... : 2019-09 Nemko Spa, 20853 Biassono (MB), Italy. All rights reserved. This publication may be reproduced in whole for non-commercial purposes as long as Nemko Spa is acknowledged as copyright owner and source of the material. Nemko Spa takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : SRD International Radiators Trade Mark ...................................... : -- Manufacturer ................................... : CDVI WIRELESS SPA Address of manufacturer ................. : Via Piave, 23 – 31020 San Pietro di Feletto (TV) – Italy Model ............................................... : SETR128AM2 FCC ID ............................................. : PWJTM128 Ratings ............................................ : Battery type CR2032 Lithium Page 2 of 10 Report No. 394792TRFEMF Test Report No. : 394792TRFEMF 2021-03-05 ____________________________________________________________________________________________ Date of issue Short description of the EuT Copy of marking plate The EUT a manually operated four-button radio remote control powered by internal batteries. The EUT uses a unique internal non-detachable antenna. See photos Number of tested samples: 1 Serial number: 394792 1/2 (Number assigned by Nemko Spa) Operating frequency: 433.92 MHz Accessories and detachable parts included: The E.U.T. is composed by a single unit Other options included: -- Testing Date of receipt of test sample: 2020-03-30 Testing commenced on: 2020-04-08 Testing concluded on: 2020-04-10 Possible test case verdicts: test case does not apply to the test object: N (Not applicable) test object does meet the requirement: P (Pass) test object does not meet the requirement: F (Fail) Symbols used in this test report The crossed square indicates that the listed condition or equipment is applicable for this report. The empty square indicates that the listed condition or equipment is not applicable for this report. Throughout this report point is used as decimal separator. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. Verdict according to the standards listed at page 5: Pass Page 3 of 10 Report No. 394792TRFEMF PROJECT HISTORY Report number Modification to the report / comments Date 394792TRFEMF First release 2021-03-05 -- -- -- -- -- -- -- -- -- REMARKS PRODUCT VARIANTS Variant model Difference against the main model Test performed -- -- -- -- -- -- -- -- -- -- -- -- REMARKS Page 4 of 10 Report No. 394792TRFEMF Contents 1 T E S T S T A N D A R D S 5 2 E Q U I P M E N T U N D E R T E S T 5 2.1 POWER SUPPLY SYSTEM UTILISED 5 2.2 EUT OPERATION MODES 5 2.3 EUT CONFIGURATION MODES 5 2.4 INPUT/OUTPUT PORTS 6 2.5 EQUIPMENT USED DURING TEST 6 3 T E S T E N V I R O N M E N T 7 3.1 ADDRESS OF THE TEST LABORATORY 7 3.2 ENVIRONMENTAL CONDITIONS 7 3.3 TEST EQUIPMENT USED FOR THE MONITORING OF THE ENVIRONMENTAL CONDITIONS 7 3.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY 7 4 T E S T C O N D I T I O N S A N D R E S U L T S 8 4.1 FCC SAR EXEMPTION PER KDB 447498 8 5 E U T P H O T O S 9 Page 5 of 10 Report No. 394792TRFEMF 1 T E S T S T A N D A R D S The tests were performed according to following standards and procedures. NEMKO WM L0177: General routines for using instruments at Nemko NEMKO WM L1002: Measurement Uncertainty - Policy and Statement NEMKO WM L0077: General routines to perform EMC tests FCC CFR 47 Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 Part 2.1093 Radiofrequency radiation exposure evaluation: portable devices KDB 447498 D01 General RF Exposure Guidance v06 (October 23, 2015) 2 E Q U I P M E N T U N D E R T E S T 2.1 Power supply system utilised Power supply voltage: 230V/50 Hz / 1φ 115V/60Hz / 1φ 400V/50 Hz 3PE 400V/50 Hz 3NPE 3 V DC 6 V DC 2.2 EuT operation modes Mode Description 1 Continuous TX mode 2.3 EuT configuration modes The EuT was configured to measure its highest possible radiation level. The test modes selected are according to EuT instruction manual. Mode Description 1 The EUT has been tested supplied by its internal batteries Page 6 of 10 Report No. 394792TRFEMF 2.4 Input/Output Ports Port Name Type* Cable Max. >3m Cable Shielded Description 0 Enclosure N/E — — — *Note: AC = AC Power Port DC = DC P…

Text truncated - open the document above for the full version.

Test report – 394792-1TRFWL Date of issue: March 4, 2021 Applicant: CDVI Wireless Spa Via Piave, 23 – 31020 S. Pietro di Feletto (TV) – Italy Product: Remote control Model: SETR128AM2 FCC ID: PWJTM128 Specifications: ♦ FCC 47 CFR Part 15 Subpart C, §15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ♦ RSS 210 Licence-Exempt Radio Apparatus: Category I Equipment Annex A: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. Report reference ID: 394792-1TRFWL Page ; of <= Test location Company name Nemko Spa Address Via del Carroccio, 4 City Biassono Province MB Postal code 20853 Country Italy Telephone +39 039 220 12 01 Facsimile +39 039 220 12 21 Website www.nemko.com Site number FCC ID number 481407 (10 m semi anechoic chamber) ISED ID number 9109A (10 m semi anechoic chamber) Tested by (name, function and signature) S. Tessa (project handler) Reviewed by (name, function and signature) P. Barbieri (verifier) Date March 4, 2021 Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Spa’s ISO/IEC 17025 accreditation. Copyright notification Nemko Spa authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Spa accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Report reference ID: 394792-1TRFWL Page < of <= Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section . Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer info ............................................................................................................................................................................. 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section . Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C test results ............................................................................................................................................................................ 5 2.2 RSS 210 Annex A test results .................................................................................................................................................................................... 5 Section . Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 EUT exercise details .................................................................................................................................................................................................. 6 3.6 EUT setup diagram ................................................................................................................................................................................................... 6 3.7 EUT sub assemblies ...................................................................................................................................................................................…

Text truncated - open the document above for the full version.

CDVI Wireless spa TCF-192 Annex 7 = Test Setup Pag 1 of 2 TX ERONE SETR128AM2 Annex 7 : Test Setup CDVI Wireless spa TCF-192 Annex 7 = Test Setup Pag 2 of 2
