PWJS3RTPart 15 Security / Remote Control Transmitter

The Installer’s Choice www.cdvi.ca www.cdvi.ca 1 - INTRODUCTION The remote control RADIUM R1 - R2 - R4 is a 1-2-4 buttons key chain style transmitter, operating at 433,92 MHz. It has been designed for the control of automatic closing systems and anti-burglar systems, thanks to its very high security coding system (KeeLoq® Hopping code). The code sent by the transmitter changes at each activation, avoiding any scanning and copying risk. A special algorithm allows to keep synchronized transmitter and receiver. The transmitter can be equipped with passive tag ( see table for the reference ) The CR 2016 lithium batteries of the transmitter have a shelf life of about 6 months. The product fully complies with Part 15 of FCC Regulations and the European Directives 2006/95/CE, 2004/108/CE, 99/05/CE. 2 - TECHNICAL SPECIFICATIONS Operating frequency: 433,92 MHz Number of buttons: 1-2-4 Battery: 2 x 3V lithium CR2016 Battery life: 18 to 24 months Security code: Keeloq® Hopping code Number combinations: 2exp64 Operating temperature: -20°F to +131°F Overall dimensions: 2.83”x 1.4”x 0.47” Weight: 0.49 oz. (14 gr.) Radium Remote control R1R2 R4 P/NDescriptionTag ( 125 KHz ) R11 Button Remote- R1H1 Button RemoteHID R1P1 Button RemoteParadox R1C1 Button RemoteCDVI R22 Buttons Remote- R2H2 Buttons RemoteHID R2P2 Buttons RemoteParadox R2C2 Buttons RemoteCDVI R44 Buttons Remote- R4H4 Buttons RemoteHID R4P4 Buttons RemoteParadox R4C4 Buttons RemoteCDVI 3 - PRODUCT RANGE WIRELESS TECHNOLOGY The Installer’s Choice 8 - BATTERY ACCESS To access the battery slide out the battery door as shown in figure. Slide out the 2 old batteries and replace them with the new ones [CR2016] respecting the polarity, with the positive (+) side upward. NOTE: Please dispose of the batteries properly according to local laws and regulations. Test proper battery instal- lation by verifying that the LED illuminates when the button is pushed. 4 - NUMBERING Each transmitter is manufactured and sold with a diffe- rent factory-set serial number. 6 - PROGRAMMING The transmitter must be programmed into your system memory. 7 - OPERATION A - Firmly depress the button until the small red BLUE illuminates. B - After the LED has illuminated, release the button. If the device you are attempting to activate does not re- spond, repeat steps A and B or consult section 9 ( Troubleshooting ) of this manual. 9 - TROUBLESHOOTING PROBLEMSOLUTION The system does not receive the transmitter signal. The transmitter LED is ON Check to verify if the remote is programmed into your system The operating range is reduced The transmitter LED is blinking Low battery : replace batteries The system does responds. The transmitter LED is OFF Battery empty : replace batteries 5 - MAIN COMPONENTS This device complies with Part. 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including inter- ference that may cause undesired operation. FCC ID : PWJS3RT Notice Any changes or modification to CDVI equipment not expressly approved by CDVI could void the manufacturer’s warranty. Button A Button B Button C Button D Battery door 2 x CR2016 Blue LED Key ring Slide to open CDVI 1637 Highway 440 West, Laval, Québec, Canada, H7L3W3 Tel: (450) 682-7945, Toll Free Tel: 1-866-610-0102, Fax: (450) 682-9590, Toll Free Fax: 1-866-682-9590 Manufactured by: CDVI Wireless Made in ITALY WARRANTY The warranty period for this product is 60 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at our discretion. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the factory. IS-T15CDUK Rev. 0 15/1/2014 This EUT is in compliance with MPE for general population / uncontrolled exposure limits and it had been tested in accordance with the measurement methods and procedures specified in FCC 47 CFR § 1.1310 and 2.1091 . To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/2/2014 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: PWJS3RT including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Gian Massimo Dalle Carbonare Product manager Elpro Innotek Spa

FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, April, 2th 2014 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. ELPRO INNOTEK SPA would like the following documents regarding this submission for FCC ID PWJS3RT to be kept confidential. Documents:  OPERATIONAL DESCRIPTION  SCHEMATICS  BLOCK DIAGRAMS  PART LIST The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, G.Massimo Dalle Carbonare ELPRO INNOTEK SPA

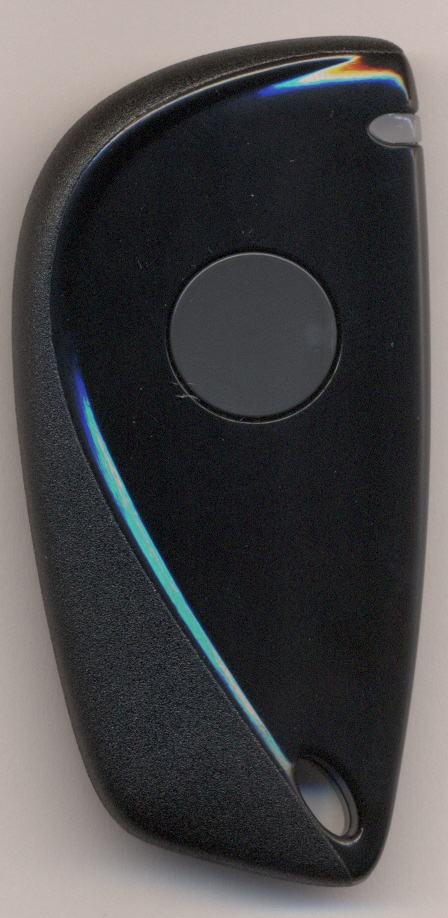

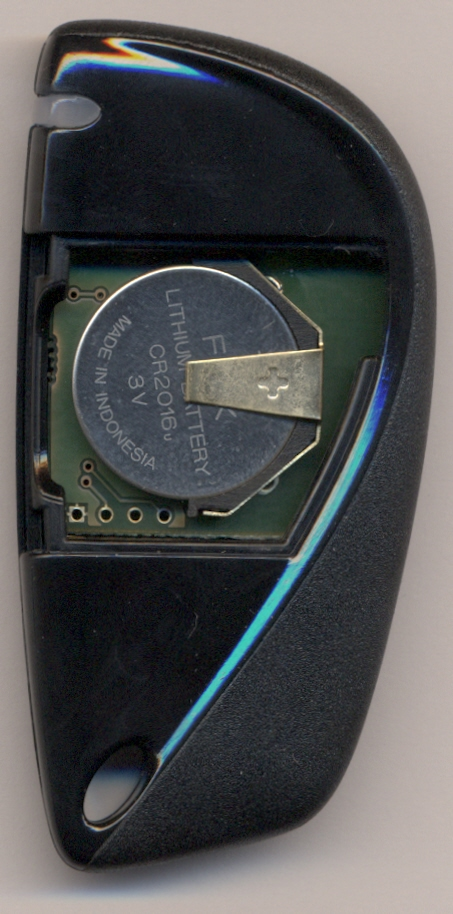

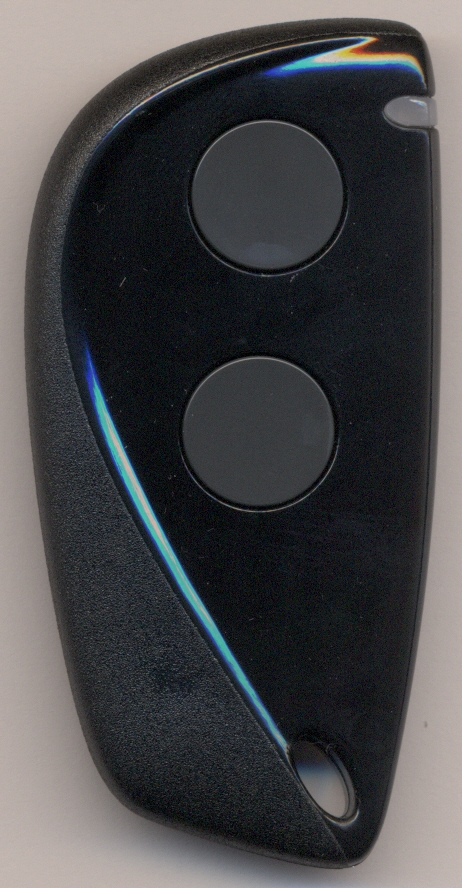

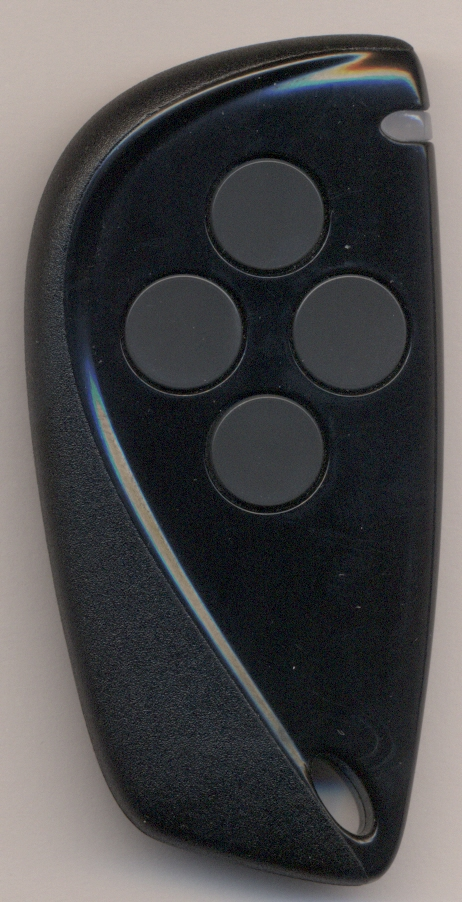

Elpro Innotek Spa TCF-152R1 Annex 1B = External Photos Pag 1 of 2 CDVI - Radium Annex 1B: R1 – Front external view Annex 1B: R2 – Front external view Elpro Innotek Spa TCF-152R1 Annex 1B = External Photos Pag 2 of 2 Annex 1B: R4 – Front external view Annex 1B: R1 – R2 – R4 – Back external view w/battery door open Annex 1B: R1 – R2 – R4 – Back external view w/battery door closed

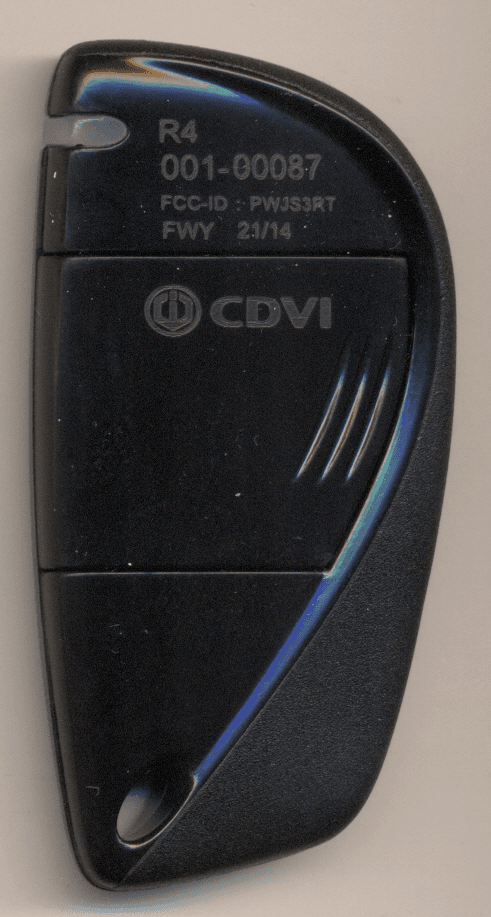

Elpro Innotek Spa TCF-152 Annex 2 = Labels Pag 1 of 1 LABELS – Scale 1:1 The product is marked directly on the back of the plastic enclosure, through a laser etching process, with the informations about the FCC Certification. The laser process assured the indelibility of the marking Label 2 A window on the carton box of the product allows to see from the outside the informations concerning the product

Elpro Innotek spa TCF-152 Annex 1A = Internal Photos Pag 1 of 1 CDVI - RADIUM Annex 1A: R1 card – Front internal view Annex 1A: R2 card – Front internal view Annex 1A: R4 card – Front internal view Annex 1A: R1, R2, R4 card – back internal view

PRIMARICERCA & SVILUPPO S.r.l. Sede operativa e Laboratori di prova / Headquarter and Testing lab: Via Campagna, 92 – I-22020 FALOPPIO (CO) Tel. +39 031 3500011 – Fax +39 031 991309 – [email protected] – www.primaricerca.it RAPPORTO DI PROVA / TEST REPORT Rif./Ref.No. MPETR_140342-0 Data / Date:20/05/2014 Pagine / Pages : 11 Scopo delle prove /Test object : Prove di tipo in accordo a / Type test acccording to FCC Cfr 47 part 2 - §2.1093, part 1 - §1.1310 Richiedente / Applicant : ELPRO INNOTEK S.p.a. Via Piave, 23 – 31020 S.Pietro di Feletto – TV – ITALY Tel. +39 0438 450860 Persona di riferimento / Applicant’s referee : Ing. Dalle Carbonare ([email protected]) Marchio commerciale / Trade mark : Fabbricante / Manufacturer : ELPRO INNOTEK S.p.a. Prodotto / Product : Transmitter 433MHz RADIUM series Modello / Model : R4 Data ricevimento campioni / Date of test samples receipt: 21/03/2014 Campioni verificati / No. of tested samples 1 Data verifiche / Testing date : 21/03/2014 Sito di prova / Testing site : Prima Ricerca & Sviluppo Via Campagna - 92 I-22020 FALOPPIO (CO) Esito delle valutazioni / Assessment results : CONFORME / COMPLIANT Verifiche effettuate da / Verifications carried out by : Giacomo ARMELLINI Responsabile Laboratorio EMC e RADIO/ EMC and RADIO Laboratory Manager Approvato / Approved by : Vincenzo LA FRAGOLA Direttore generale / Managing director Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page2 of 11 CONTENUTO / TABLE OF CONTENTS 0 RELEASE CONTROL RECORD................................................................................. 2 1 TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ....................... 3 1.1 EUT Identification .................................................................................................... 3 1.2 EUT Technical Data ................................................................................................ 3 1.3 Technical information .................................... Errore. Il segnalibro non è definito. 1.4 EUT ports identification ................................. Errore. Il segnalibro non è definito. 1.5 EUT modification ..................................................................................................... 5 1.6 Auxiliary equipment ................................................................................................. 5 2 REFERENCE STANDARDS ....................................................................................... 6 3 MEASUREMENTS AND CALCULATION RESULTSErrore. Il segnalibro non è definito. 3.1 Calculation Method ....................................... Errore. Il segnalibro non è definito. 3.2 Limits ............................................................. Errore. Il segnalibro non è definito. 3.3 Measurements and Calculation Results ........ Errore. Il segnalibro non è definito. 0 RELEASE CONTROL RECORD TEST REPORT NUMBER REASON OF CHANGE DATE OF ISSUE MPETR_140342-0 Original Release 20/05/2014 Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page3 of 11 1 TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 EUT Identification DESCRIPTION : Transmitter 433MHz RADIUM series TRADEMARK: MODEL: R4 S/N: Not present (prototype) MANUFACTURER: ELPRO INNOTEK S.p.a. COUNTRY OF MANUFACTURER: Italy COMPOSED BY: Single EUT DIMENSIONS : See photographic documentation EUT STANDING: Hand held use FCC ID: PWJS3RT Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page4 of 11 1.2 EUT Technical Data POWER SOURCE : Internal battery POWER SUPPLY NOMINAL VOLTAGE: 6Vdc (2x3Vdc CR2016 battery) NOMINAL POWER OR ABSORBING CURRENT : Not declared ANTENNA : Integral MODULATION : AM/ASK TYPICAL USAGE : Transmitter for automatical door TYPE: Intentional radiator Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page5 of 11 1.3 EUT ports identification This section contains descriptions of all ports, the length and the type of the cable provided by manufacturer needed for the tests. Moreover it is specified if the ports are ever or optionally connected. Port Description Connector Max cable length 1 Enclosure Plastic Pressure --- 2 AC mains input/output ports Port not present --- --- 3 DC mains input/output ports Port not present (battery powered) --- --- 4 Signals / Control Ports Port not present --- --- 5 Telecommunication port Port not present --- --- Note: During the test all cables must be what provided the manufacturer or the same that used in the real employment of the EUT. 1.4 EUT modification • None 1.5 Auxiliary equipment • None Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page6 of 11 2 REFERENCE STANDARDS CODE OF FEDERAL REGULATIONS Title 47 Part 1 Subpart I § 1.1310 Procedures Implementing the National Environmental Policy Act of 1969. Radiofrequency radiation exposure limits. Title 47 Part 2 Subpart J § 2.1093 Radiofrequency radiation exposure evaluation: Portable devices. KDB 447498 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies ANSI C63.4 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz – 40 GHz Rapporto di prova / Test report n.MPETR_140342-0. Data / Date 20/05/2014 Pagina / Page7 of 11 3 LIMITS The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial- average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compli…

Text truncated - open the document above for the full version.

PRIMA RICERCA & SVILUPPO S.r.l. Sede operativa e Laboratori di prova / Headquarter and Testing lab : Via Campagna, 92 – I-22020 FALOPPIO (CO) Tel. +39 031 3500 011 – Fax +39 031 9913 09 – [email protected] – www.primaricerca.it RAPPORTO DI PROVA / TEST REPORT Rif./Ref.No. FCCTR_140342-1 Data / Date: 16/04/2014 Pagine / Pages : 21 Scopo delle prove /Test object : Prove di tipo in accordo a / Type test acccording to FCC Cfr 47 part 15 - Subpart C §15.203; §15.205; §15.207; §15.209; §15.231 Richiedente / Applicant : ELPRO INNOTEK S.p.a. Via Piave, 23 – 31020 S.Pietro di Feletto – TV – ITALY Tel. +39 0438 450860 Persona di riferimento / Applicant’s referee : Ing. Dalle Carbonare ([email protected]) Marchio commerciale / Trade mark : Fabbricante / Manufacturer : ELPRO INNOTEK S.p.a. Prodotto / Product : Transmitter 433MHz RADIUM series Modello / Model : R4 Data ricevimento campioni / Date of test sample receipt: 21/03/2014 Campioni verificati / No. of tested samples 1 Data verifiche / Testing date : 21/03/2014 Sito di prova / Testing site : Prima Ricerca & Sviluppo Via Campagna - 92 I-22020 FALOPPIO (CO) Esito delle valutazioni / Assessment results : CONFORME / COMPLIANT Verifiche effettuate da / Verifications carried out by : Andrea Bortolotti Tecnico laboratorio / Laboratory technician Approvato / Approved by : Giacomo ARMELLINI Responsabile Laboratorio EMC e RADIO/ EMC and RADIO Laboratory Manager I risultati delle prove riportati nel presente rapporto di prova si riferiscono solo ai campioni esaminati./The test results reported in this test report shall refer only to the samples tested Questo Report non può essere riprodotto in modo parziale, salvo espressa autorizzazione scritta da parte del Laboratorio / This report may not be partially reproduced, except with the prior written permission of the issuing Laboratory Rapporto di prova / Test report n.FCCTR_140342-1. Data / Date 16/04/2014 FORM_FCCTR_3 rev.0 Pagina / Page 2 of 21 CONTENUTO / TABLE OF CONTENTS 1 RELEASE CONTROL RECORD ................................................................................ 2 2 TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ....................... 3 2.1 EUT Identification EUT Identification ....................................................................... 3 2.2 EUT Technical Data ................................................................................................ 4 2.3 EUT ports identification ........................................................................................... 5 2.4 Modifications incorporated in E.U.T. ........................................................................ 5 2.5 Auxiliary equipment ................................................................................................. 5 3 REFERENCE STANDARD ......................................................................................... 6 3.1 Test overview .......................................................................................................... 6 4 OPERATING TEST MODES AND CONDITIONS ....................................................... 6 5 SUMMARY OF TEST RESULTS ................................................................................ 7 6 TEST RESULTS .......................................................................................................... 7 7 LIST OF EQUIPMENT USED .................................................................................... 19 8 PHOTOGRAPHIC DOCUMENTATION .................................................................... 20 1 RELEASE CONTROL RECORD TEST REPORT NUMBER REASON OF CHANGE DATE OF ISSUE FCCTR_140342-0 Original release 21/03/2014 FCCTR_140342-1 Added FCC ID 16/04/2014 Rapporto di prova / Test report n.FCCTR_140342-1. Data / Date 16/04/2014 FORM_FCCTR_3 rev.0 Pagina / Page 3 of 21 2 TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 2.1 EUT Identification EUT Identification DESCRIPTION : Transmitter 433MHz RADIUM series TRADEMARK: MODEL: R4 S/N: Not present (prototype) MANUFACTURER: ELPRO INNOTEK S.p.a. COUNTRY OF MANUFACTURER: Italy COMPOSED BY: Single EUT DIMENSIONS : See photographic documentation EUT STANDING: Hand held use FCC ID: PWJS3RT Rapporto di prova / Test report n.FCCTR_140342-1. Data / Date 16/04/2014 FORM_FCCTR_3 rev.0 Pagina / Page 4 of 21 2.2 EUT Technical Data POWER SOURCE : Internal battery POWER SUPPLY NOMINAL VOLTAGE: 6Vdc (2x3Vdc CR2016 battery) NOMINAL POWER OR ABSORBING CURRENT : Not declared FCC CLASS: 47 CFR FCC Part 15 Subpart C § 15.231 ANTENNA : Integral MODULATION : AM/ASK TYPICAL USAGE : Transmitter for automatical door TYPE: Intentional radiator Rapporto di prova / Test report n.FCCTR_140342-1. Data / Date 16/04/2014 FORM_FCCTR_3 rev.0 Pagina / Page 5 of 21 2.3 EUT ports identification This section contains descriptions of all ports, the length and the type of the cable provided by manufacturer needed for the tests. Moreover it is specified if the ports are ever or optionally connected. Port Description Connector Max cable length 1 Enclosure Plastic Pressure --- 2 AC mains input/output ports Port not present --- --- 3 DC mains input/output ports Port not present (battery powered) --- --- 4 Signals / Control Ports Port not present --- --- 5 Telecommunication port Port not present --- --- Note: During the test all cables must be what provided the manufacturer or the same that used in the real employment of the EUT. 2.4 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None 2.5 Auxiliary equipment • None Rapporto di prova / Test report n.FCCTR_140342-1. Data / Date 16/04/2014 FORM_FCCTR_3 rev.0 Pagina / Page 6 of 21 3 REFERENCE STANDARD CODE OF FEDERAL REGULATIONS Title 47 Part 15 Subpart A Code of Regulations Part 15 (Radio Frequency Devices), Subpart A (General) of the Federal Communication Commission (FCC) Title 47 Part 15 Subpart C Code of Regulations Part 15 (Radio Frequency Devices), Subpart …

Text truncated - open the document above for the full version.

Elpro Innotek spa TCF-152 Annex 7 = Test Setup Pag 1 of 1 CDVI Atrium Annex 7 : Test Setup
