PWJDS433TRANSMITTER ERONE MOD. DS433

ERONE DS433 SETDS39433-E2 SETDS39433-E4 0 6 7 8 U SE R M A N U A L Thank you for choosing a product Erone.You are recommended to read carefully this manual before using the product. The radiocontrol ERONE DS433 has been designed for the control of automatic closing systems and anti-burglar systems. The operating frequency is among the European harmonised frequencies; the product fully complies with the European Regulations 89/336/CEE, 73/23/CEE, 99/05/CE. The receiver which makes the activation, once received the transmitter code, has to be connected during the installation to the device to control ( gate, garage door, rolling shutters, awnings, anti-burglar appliances, lighting ). The transmitter security code is obtained by means of a 9 ways three-state dip-switch which allows up to 19683 code combinations. All the receivers of the range Erone DS433 can store into the EEPROM the code of many transmitters. Each transmitter ( or its different keys ) can be stored into different receivers and hence can do more functions. In order to use the unused keys of the transmitter it is enough to connect the dedicated receiver to the mechanism to drive ( i.e. electrolock of a pedestrian gate, a buzzer, etc. ) and proceede to store the keys on its memory. Number of keys : 2 or 4 Supply : 12 Vdc Battery duration: from 12 to 24 months Battery type: 23A Current consumption : 25 mA Operating frequency : 433.92 MHz Security code combinations number: 19683 Modulation: AM/ASK E.r.p. : 50 - 100 uW Range in open space : from 100 to 200 m Operating temperature :from -10 °C to +55 °C Dimensions : 83 x 48 x 16 mm Weight : 40 g BUTTON 1 CHANNEL A RED LED RED LED BATTERY DOOR BUTTON 2 CHANNEL B BUTTON 4 CHANNEL D BUTTON 3 CHANNEL C 5 - CODING 2 buttons transmitter : Cod. SETDS39433E2 4 buttons transmitter :Cod.SETDS39433E4 Open the rotating door to access to the battery and the dip-switches.The dip-position will give the security code. Warning: Each transmitter is provided with the same code set on the dip-switches; it highly advisable to change this code by moving the dip-switches on the favourite position ( “+”, “0” , “-”). The transmitter code has to be stored into the receiver memory. The memorisation can be done by selflearning. The instructions for this operation are reported on the receiver installation manual. Your own installer will perform this operation during the installation or will give you the necessaries explications during the selling. Don’t forget that the still free buttons of your transmitter can be used for further wireless fuctions. Ask your installer the best suitable receiver. 6 - TRANSMITTER CODES MEMORISATION 7 - BATTERY AND DIP-SWITCH ACCESS 8 - TROUBLESHOOTING FAULT The radio signal is not verifiable The transmitter led doesn't switch on The radio signal is not verifiable The transmitter led switches on For further informations, please, visit the internet site www.erone.com The guarantee period of all Erone products is 24 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of the producer. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the producer's factory. GUARANTEE ERONE is a trademark by ELPRO INNOTEK S.r.l. Via Piave, 23 - I-31020 S.Pietro di Feletto (TV) ITALY Tel.: +39/0438/450879 - Fax.: +39/0438/457126 Toll-free number: 800.53.46.46 E-Mail: [email protected] Web: www.erone.com SOLUTION Replace the transmitter battery Check the power supply of the receiver Replace the transmitter battery 3 - EXTERNAL CHARACTERISTICS 1 - DESCRIPTION 2 - TECHNICAL SPECIFICATIONS 4 - MODEL TYPES ERONE - Type : SETDS39433E2-E4 FCC ID : PWJDS433 This device complies with FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Part. 15 of the THE SMART LIVING Notice Any changes or modification to ERONE equipment not expressly approved by ELPRO INNOTEK Spa could void the user's authority to operate the equipment. To access the battery slide out the battery door. Place the 23A alkaline battery between the 2 contacts. Respect the right polarity as indicated on the bottom of the box. NOTE: Please dispose of the batteries correctly, they are hazardous waste. Battery Rotating door Dip-switch Rotate to open

FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, March 11th 2005 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDS433 to be kept confidential. Document: BLOCK DIAGRAMS The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, March 11th 2005 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDS433 to be kept confidential. Document: ELECTRICAL DIAGRAMS The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, March 11th 2005 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDS433 to be kept confidential. Document: OPERATION DESCRIPTION The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare FEDERAL COMMUNICATIONS COMMISSION 7435, Oakland Mills Road Columbia, MD 21046 U.S.A. CONFIDENTIALITY REQUEST S. Pietro di Feletto, March 11th 2005 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ELPRO INNOTEK S.p.A. would like the following documents regarding this submission for FCC ID PWJDS433 to be kept confidential. Document: PART LIST The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, ELPRO INNOTEK S.p.A. G.Massimo Dalle Carbonare

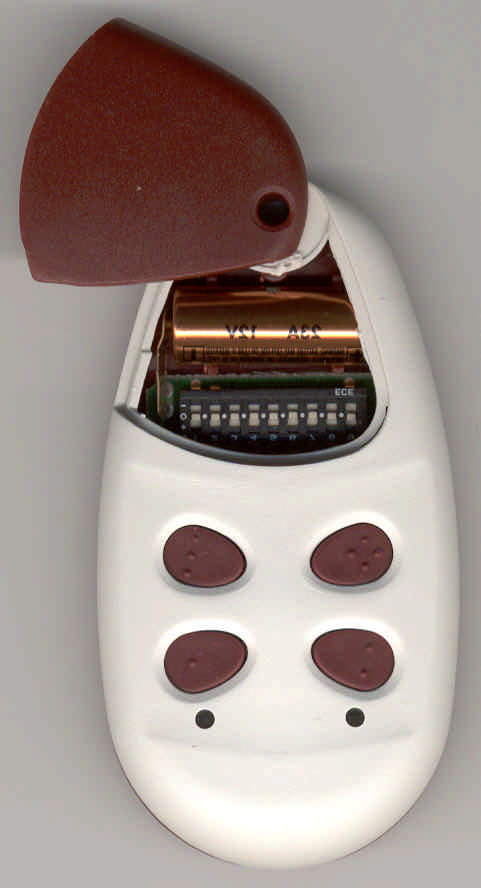

ELPRO INNOTEK S.p.A. TCF-067 Annex 1 = Photos Pag 2 of 4 TX DS433 Type : SETDS39433E2– External front view TX DS433 Type : SETDS39433E4– External front view ELPRO INNOTEK S.p.A. TCF-067 Annex 1 = Photos Pag 3 of 4 TX DS433 Type : SETDS39433E4– External view with battery access TX DS433 Type : SETDS39433E2-E4– External back view

ELPRO INNOTEK S.p.A. TCF-067 Annex 2 = Labels Pag 1 of 1 TX DS433 Types : SETDS39433E2 – E4 The identification of this transmitter is carried out with a label on the back of the transmitter itself and a label on the white packaging. On both the labels it is reported also the identification of the USA customer. For space reason, just on the product label, it is inserted only the main sentence of the FCC : "This device complies with FCC Rules Part.15". In the packaging label, the Sentence is reported completely. LABELS – Scale 1:1 1 Product label. RCS-433DT- SETDS39433 FCC ID : PWJDS433 This device complies with FCC Rules Part. 15 Freq. 433,92 MHz Lot. N° 000000-000000-FW 2. Packaging label ( version 4 buttons ) This device complies with FCC Rules Part.15. Operation is subject to the following two conditions: 1) This device may not cause harmful interferences; 2) this devices must accept interference that may cause undesired operation. Freq. 433,92 MHz 3. Packaging label ( version 2 buttons ) This device complies with FCC Rules Part.15. Operation is subject to the following two conditions: 1) This device may not cause harmful interferences; 2) this devices must accept interference that may cause undesired operation. Freq. 433,92 MHz

ELPRO INNOTEK S.p.A. TCF-067 Annex 1 = Photos Pag 3 of 4 TX DS433 Type : SETDS39433E4– External view with battery access TX DS433 Type : SETDS39433E2-E4– External back view ELPRO INNOTEK S.p.A. TCF-067 Annex 1 = Photos Pag 4 of 4 TX DS433 Type : SETDS39433E4– Packaging with identification label

ELPRO INNOTEK S.p.A. TCF-067 Annex 1 = Photos Pag 1 of 4 ELECTRONIC CARD TX DS433 Type : SETDS39433E2 – Front internal view ELECTRONIC CARD TX DS433 Type : SETDS39433E4– Front internal view ELECTRONIC CARD TX DS433 Type : SETDS39433E2-E4– back internal view

FCC.TR.TEST REPORT 05.187 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 2.0 Issue date:22/03/05sheet 1 of 28 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : TRANSMITTER ERONE series DS433 Mod. SETDS39433E4 DERIVED MODELS : MODELLI DERIVATI : ERONE series DS433 Mod. SETDS39433E2 REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: ELPRO INNOTEK S.r.l. • Mr.: Sig.: DALLE CARBONARE • Address: Indirizzo: VIA PIAVE, 23 – 31020 S.PIETRO DI FELETTO (TV) - ITALY • Tel. : Telefono : ++390438/450860 • Telefax: Fax : ++390438/455628 • E-mail: e-mail [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 10/02/05 Date of start test: 11/02/05 Data ricevimento campioni: Data inizio prove: Date of end test: 07/03/05 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Nobody / Nessuno ......................................................... .......................................................... R. Radice .......................................................... R. Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR.TEST REPORT 05.187 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 2.0 Issue date:22/03/05sheet 2 of 28 0. CONTENTS Page Rev Date 0.CONTENTS ...........................................................................................2 1.TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ..3 1.1 Identification .......................................................................................3 1.2 Technical data for equipment .............................................................3 1.3 Technical data for Transmitter ...........................................................4 1.4 Modifications incorporated in E.U.T. ..................................................5 1.5 Ports identification..............................................................................5 1.6 Auxiliary equipment............................................................................5 2.TEST CONDITIONS ..............................................................................6 2.1 Operating test modes and test conditions..........................................6 2.2 Test overview .....................................................................................6 3.REFERENCE STANDARD FOR PERFORMED TESTS .......................7 4.Summary of test results .........................................................................8 4.1 Tests ..................................................................................................8 4.2 Emission limits ...................................................................................9 5.TEST RESULTS..................................................................................10 6.EUT TECHNICAL DOCUMENTATION................................................21 6.1 Wiring diagrams ...............................................................................21 6.2 Technical manual.............................................................................21 6.3 Photographic documentation ...........................................................22 7.TECHNICAL REPORT OF ANALYSIS OF DERIVED PRODUCTS ....25 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 22/03/05 FCC.TR.TEST REPORT 05.187 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 2.0 Issue date:22/03/05sheet 3 of 28 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name:ERONE Equipment :TRANSMITTER Model name or No. :Series DS433 Code:SETDS39433E4 Serial number :Not present FCC ID :PWJDS433 Country of manufacturer:ITALY 1.2 Technical data for equipment Supply voltage:Internal Alkaline Battery 12V 23A Current consumption:25mA Typical usage :Remote controls of garage door opener, switch of car alarms, residential antithieft devices and generally building management systems. Transmitter OperationConform with section 15.231 (a)(1) Transmitter cease transmission immediately after being released. EUT single or system:Single EUT dimensions :88 x 47 x 17 mm. FCC.TR.TEST REPORT 05.187 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 0263586…

Text truncated - open the document above for the full version.

ELPRO INNOTEK S.p.A. TCF-067 TX DS433 Types : SETDS39433E2 – E4 Annex 7 : Test Setup Annex 7 = Test Setup Pag 1 of 1
