PWO271265Dual Band Wireless Booster Amplifier for Cell Phones

Amplifier Installation Guide DB Pro Adjustable Gain Smart Technology In-Building Dual Band Cellular SignalBooster Contents: Before Getting Started / How It Works · · · · · · · · · · · · · 1 Antenna Options and Accessories · · · · · · · · · · · · · · · · 1 Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · 2 Installation Diagram · · · · · · · · · · · · · · · · · · · · · · · · · · 2 Installing a Wilson Signal Booster · · · · · · · · · · · · · · · · 3 Powering Up a Wilson Signal Booster · · · · · · · · 4 Understanding the Signal Booster Lights · · · · · · 4 Warnings and Recommendations · · · · · · · · · · · · · · · · 5 Finding Signal Strength and Coverage Distance · · · · · · 5 Signal Booster Specifications · · · · · · · · · · · · · · · · 6 Guarantee and warranty · · · · · · · · · · · · · · · · Back Cover Warning: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your amplifier. ! 1 Installation Instructions for the Following Wilson Signal Boosters: DB Pro In-Building Wireless Cellular Smart Technology™ Amplifier Model # 271265 FCC ID: PWO271265 A 800/1900 MHz Omni-Directional Antenna (301201/301202) B 1900 MHz Yagi PCS Antenna (301124)* C 800 MHz Yagi Cellular Antenna (301129)* D Dual-Band Panel Antenna (301155) * Requires N-male to F-female adapter/converter (2F1128) * Yagi antennas are to be used only as outside fixed antennas, see RF Safety Warning (pg.5) Inside this Package Adjustable Gain DB Pro Wireless Signal Booster AC/DC Plug-in Power Supply Antenna Options & Accessories B C D A Before Getting Started This guide will help you properly install Wilson’s Adjustable Gain DB Pro - In-Building Wireless Signal Booster, with Smart Technology™. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, contact Wilson Technical Support at 866-294-1660. Bracket, Amplifier Wall Mount Reasons for Weak Cellular Signals Anyone who uses a cell phone or cellular data card knows the frustration of not being able to connect to or maintain a strong cellular signal. When this occurs, it’s generally due to one of two reasons: 1. Location of the Nearest Cell Tower – Cell towers are situated to provide broad coverage; however, there are many areas in which signal strength may be reduced by local government restrictions on the height or placement of the towers themselves. Rural areas generally have fewer cell towers than urban regions. 2. Natural and Man-Made Obstructions – Signal strength can also be negatively affected by trees, hills, buildings and other obstructions. You may be relatively close to a cell tower but still unable to make a call. This often occurs in homes, offices and other buildings in which stucco, concrete or metal walls block the signal. The Adjustable Gain DB Pro works with two antennas. The inside antenna communicates with your cell phone, and the outside antenna communicates with the cell tower. The outside antenna receives the outside signal and sends it through the coax cable to the Adjustable Gain DB Pro, where it is amplified and retransmitted through the inside antenna into the room. When the inside antenna picks up a signal from your cell phone, the Adjustable Gain DB Pro boosts that signal and transmits it through the cable to the outside antenna and back to the cell site. (Note: the Adjustable Gain DB Pro Signal Booster will only operate if there is adequate signal to amplify.) 2 Typical Installation Power Supply Signal Booster Inside Antenna Outside Antenna 1 3 2 1 Select a location to install the signal booster that is away from excessive heat, direct sunlight and moisture. 2 Select a location on the roof of the building to install the outside antenna. Use a cell phone in test mode to find the strongest signal from the cell tower (see pg. 5). Visit wilsonelectronics.com to find the test mode function for your particular cell phone. 3 Select a location for the inside antenna, preferably in the center of where the signal needs to be amplified. Separation between the booster and the inside antenna must be a minimum of 10 feet, to prevent oscillation. 4 Verify that both the outside antenna and the inside antenna are connected before powering up the signal booster. Lightning protection is recommended for all in-building installations. 5 Separation distance between the inside and outside antennas must be a minimum of 50 feet, 75 feet is even better. EASY TO INSTALL The following steps provide a summary of the signal booster/antenna installation process. However, they are not a substitute for the complete installation instructions on the following pages, which you should read thoroughly. Contact Wilson’s Technical Support Department with any questions at 866-294-1660. Warning: See RF safety warning on page 5. Installation Overview 3 Installing a Wilson Signal Booster Select a location to install the signal booster that is away from excessive heat, direct sunlight, moisture and that has proper ventilation. Do not place the signal booster in an air-tight enclosure. Recommended installation locations for in-building amplifiers are: • On a wall • In a closet • Near a power outlet Run the outside antenna cable to the signal booster and attach it to the connector labeled “outside antenna” on the signal booster. Run the inside antenna cable to the signal booster and attach it to the connector labeled “inside antenna” on the signal booster. Note: Be careful when plugging the connector in so as not to bend the center pins on the connectors. Ensure cables have a tight connection. AC/DC Power Supply Signal Booster Cell Site Supports Multiple Users Outside Antenna Omni-Dire…

Text truncated - open the document above for the full version.

June 16, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 271265 booster under FCC ID: PWO271265 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram and Parts Listing, filename: 271265 Schematic.pdf 2. Operational Description, filename: 271265 Operational Description.doc 3. Block Diagram, filename: 271265 Block Diagram.pdf The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Richard M. Kline Senior Electrical Engineer

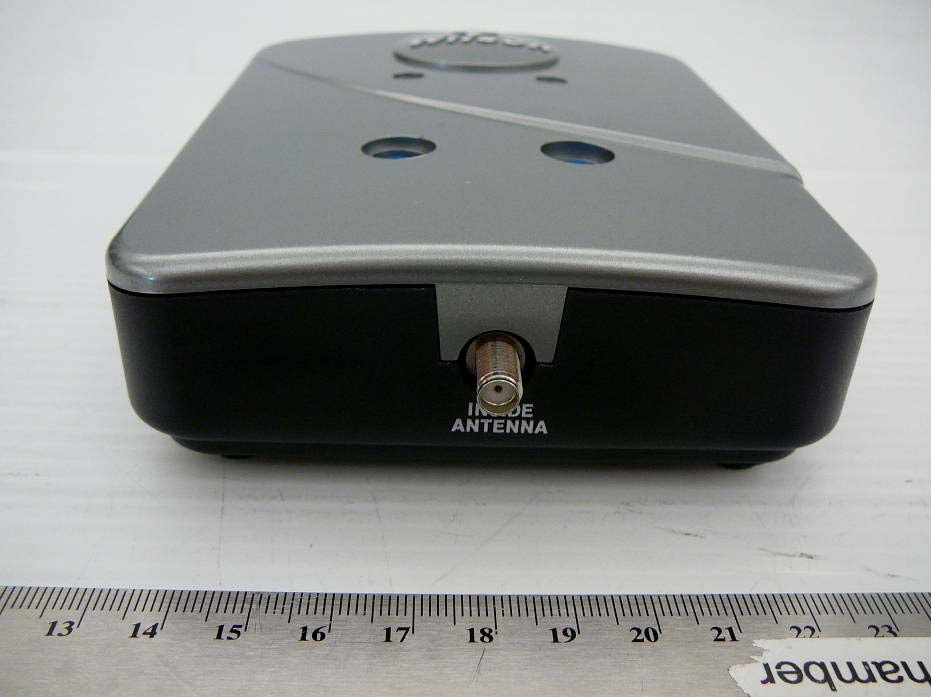

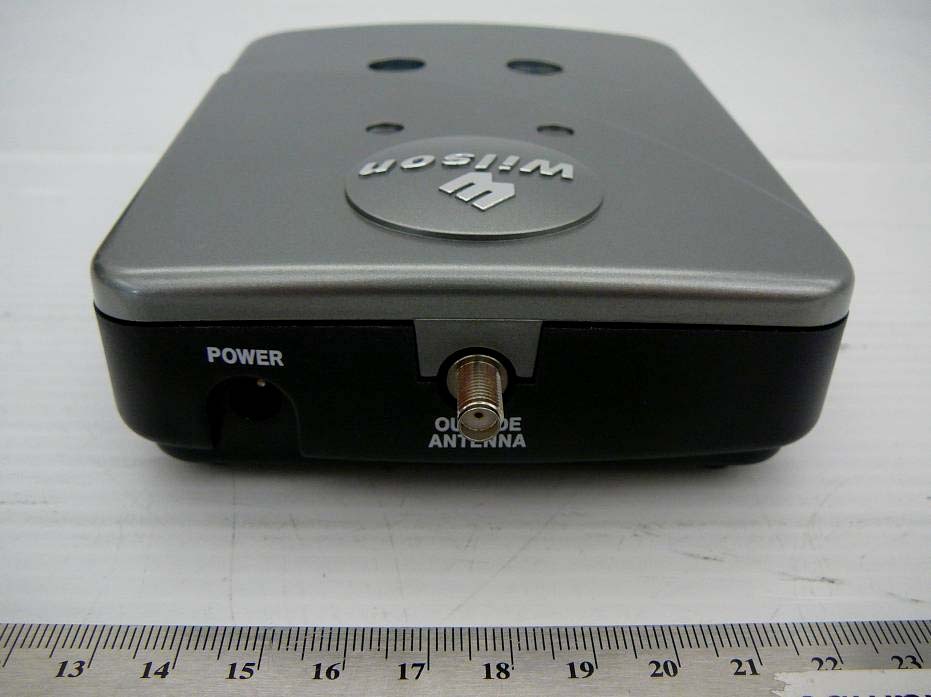

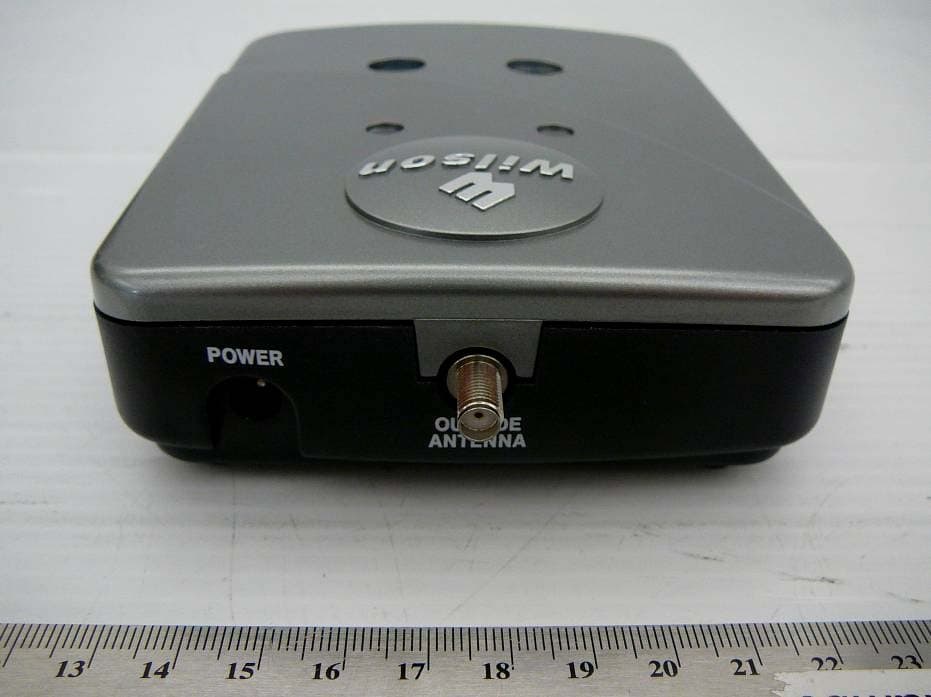

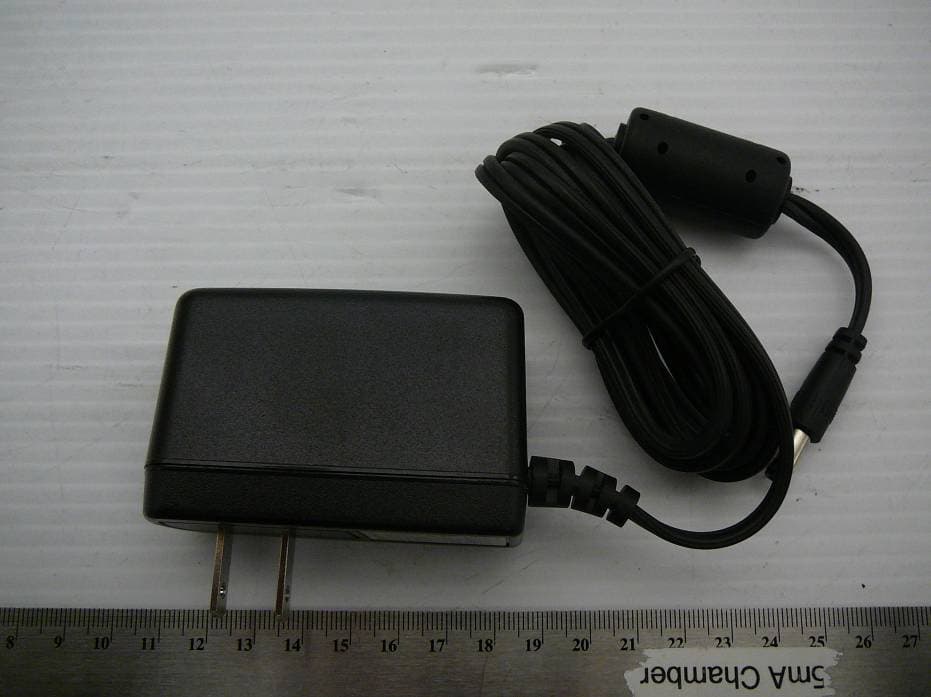

Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 134 of 139 FCC Part 22H/24E Test Report 14 EXHIBIT C - EUT PHOTOGRAPHS 14.1 EUT Top View 14.2 EUT - Bottom View Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 135 of 139 FCC Part 22H/24E Test Report 14.3 EUT - Port View (1) 14.4 EUT - Port View (2) Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 136 of 139 FCC Part 22H/24E Test Report 14.5 EUT – AC/DC adapter View (1) 14.6 EUT – AC/DC adapter View (2)

Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 131 of 139 FCC Part 22H/24E Test Report 12 EXHIBIT A - FCC ID LABELING REQUIREMENTS 12.1 FCC ID Label Requirement FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 12.2 FCC ID Label Content 12.3 FCC Label Location on EUT FCC ID: XXX-XXXXXX Label here

Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 137 of 139 FCC Part 22H/24E Test Report 14.7 EUT – Cover off View 14.8 EUT – Board Top View with Shielding Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 138 of 139 FCC Part 22H/24E Test Report 14.9 EUT – Board Top View without Shielding 14.10 EUT – PCB Board Bottom View with Shielding Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 139 of 139 FCC Part 22H/24E Test Report 14.11 EUT – Board Bottom View without Shielding ***** END OF REPORT *****

Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 126 of 139 FCC Part 22H/24E Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Test Result Please see the following MPE calculation for details. Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 127 of 139 FCC Part 22H/24E Test Report Cellular Band Outside: Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 128 of 139 FCC Part 22H/24E Test Report Cellular Band Inside: Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 129 of 139 FCC Part 22H/24E Test Report PCS Band Outside: Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 130 of 139 FCC Part 22H/24E Test Report PCS Band Inside:

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E TEST AND MEASUREMENT REPORT For Wilson Electronics, Inc. 3301 E. Deseret Dr., St. George, UT 84790, USA FCC ID: PWO271265 Report Type: Original Report Product Type: Bi-Directional Amplifier Test Engineer: Dennis Huang Report Number: R1001071-2224 Report Date: 2010-07-15 Reviewed By: Victor Zhang Test Engineer, RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 2 of 139 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 EUT INTERNAL CONFIGURATION...................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 7 2.6 EUT POWER SUPPLY INFORMATION.................................................................................................................. 7 2.7 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913 & §24.232 – RF OUTPUT POWER................................................................................9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.4 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 9 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049, §22.917 & §24.238 - OCCUPIED BANDWIDTH...................................................................... 13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 6.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 6.5 TEST RESULTS................................................................................................................................................. 14 7 FCC §…

Text truncated - open the document above for the full version.

Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 132 of 139 FCC Part 22H/24E Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions - Front View (Below 1 GHz) 13.2 Radiated Emissions - Rear View (Below 1 GHz) Wilson Electronics, Inc. FCC ID: PWO271265 Report Number: R1001071-2224 Page 133 of 139 FCC Part 22H/24E Test Report 13.3 Radiated Emissions - Front View (Above 1 GHz) 13.4 Radiated Emissions - Rear View (Above 1 GHz)
