Installation Guide Vehicle Signal Booster Kit DRIVE REACH A WILSON ELECTRONICS BRAND NEED HELP? support.weboost.com866.294.1660 ® ______ Index Package Contents 1 STEP 1: Mount Outside Magnetic Antenna 2 STEP 2: Mount Inside Antenna 4 STEP 3: Connect Outside Antenna To Booster 5 STEP 4: Connect Inside Antenna To Booster 6 STEP 5: Connect Power Supply To Booster 7 Booster Light Patterns 8 Troubleshooting 9 Safety Guidelines 10 Specifications 12 Warranty 13 DRIVE REACH VEHICLE SIGNAL BOOSTER 1 ________ Package Contents Booster Outside Antenna Inside Antenna Power Supply Optional: Adhesive disk for aluminum vehicles 2 VEHICLE SIGNAL BOOSTER DRIVE REACH ______ Step 1: Mount Outside Magnetic Antenna WORKS WITH ALL VEHICLES Identify a location on the top of your vehicle that is: • Near the center of the roof •At least 12 inches away from any other antennas • At least 12 inches away from any windows (including sunroofs) Cle an the surface where you will place the outside antenna. Mount the outside antenna by placing on top of vehicle. 12 in. away from windows (including sunroofs) NOTE: For aluminum roofs, an adhesive disk is included to mount the outside antenna (do not use if outside antenna will magnetize to the top of your vehicle). DRIVE REACH VEHICLE SIGNAL BOOSTER 3 NOTE: When going through a car wash, remember to remove your antenna. NOTE: The cable is strong enough that it may be routed under weather stripping and shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door. SUV/Van/Hatchback: Cable routed into top of hatchback door. Truck: Cable routed into side door. ______ (STEP 1 cont.) See options below on how cable can be routed with different vehicles. 4 VEHICLE SIGNAL BOOSTER DRIVE REACH ______ Step 2: Mount Inside Antenna Identify a place to mount the In-Vehicle Antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used. Use the Velcro® adhesive strip or the 2-sided adhesive strip provided and attach to the side of the antenna labeled “MOUNTING SIDE”. Then mount to desired location. In-Vehicle Antenna Dash Mount Velcro ® strip In-Vehicle Antenna Seat Mount WARNING: DO NOT MOUNT WHERE AIRBAGS WILL DEPLOY. DRIVE REACH VEHICLE SIGNAL BOOSTER 5 ______ Step 3: Connect Outside Antenna To Booster Connect the cable from the Outside Antenna to the port labeled “Outside Antenna” on the Drive Reach booster. from Outside Antenna NOTE: The Velcro® strip on the bottom of the booster can also be used to keep booster from sliding around. 6 VEHICLE SIGNAL BOOSTER DRIVE REACH ______ Step 4: Connect Inside Antenna To Booster Connect the cable from the In-Vehicle Antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna DRIVE REACH VEHICLE SIGNAL BOOSTER 7 ______ Step 5: Connect Power Supply To Booster Connect the power supply cord to the end of the booster, labeled “ ”, then plug the power adapter into vehicle’s 12V DC power supply. The Drive Reach will automatically power on when plugged in. If your Drive Reach is working correctly, the light on the power adapter will be red, and the light on the booster will be green. Use only the power supply provided in this package. NOTE: If the 12V Cigarette Lighter port on your car is always on (even when your vehicle is turned off) and you will be parking for extended periods of time (more than a day), we recommend you turn the booster off by pushing the LED light, which is also a button. This will prevent the Drive Reach from draining the battery in your vehicle. connect Power Supply Cord plug into vehicle’s DC Power Supply 8 VEHICLE SIGNAL BOOSTER DRIVE REACH ______ Booster Light Patterns NEED HELP? support.weboost.com866.294.1660 Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a minor feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. If you are already experiencing the desired signal boost, then no further adjustments are necessary. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section. Solid Red This is due to a major oscillation (feedback) loop. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. Refer to Troubleshooting section. Light Off If the Drive Reach Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the Booster. DRIVE REACH VEHICLE SIGNAL BOOSTER 9 FREQUENTLY ASKED QUESTIONS How can I contact customer support? Customer Support can be reached Monday thru Friday by calling 866.294.1660, or through our support site at support.weboost.com. Why do I need to create distance between the booster and the antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs. Oscillation can be thought of as noise, which causes the booster to scale down it’s power or shut down to prevent damage. The best way to keep these spheres of signal from overlapping is to maximize separation between the inside and outside antennas. ______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. 1 2 3 Unplug the Booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed bef…

Text truncated - open the document above for the full version.

August 19, 2020 Attestation For Wilson Signal Booster: FCC ID PWO460061 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: Attestation for FCC ID: PWO460061 To Whom It May Concern: Each Signal Booster certificated under FCC ID PWO460061 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. (6) Future software upgrade will not cause non-compliance. Sincerely, Mikel Parry Compliance Manager

Agent Authorization Letter August 19, 2020 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Letter of Agent Authorization To Whom It May Concern: Please be advised that we, Wilson Electronics, hereby authorize Compliance Testing LLC to act on our behalf in all matters relating to application for equipment authorization, FCC ID: PWO 460061, including the signing of all documents relating to these matters. Any and all acts carried out by Wilson Electronics or Compliance Testing LLC in matters pertaining to processes required in the FCC approval shall have the same legal authority as acts and communications by the undersigned. They are authorized to respond to any future issues or FCC requests regarding this project. Please send any query, acknowledgement or response to this letter directly to Wilson Electronics. Sincerely, Mikel Parry Compliance Manager

August 19, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460061 Signal Booster under FCC ID: PWO460061 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept in long-term confidentiality: 1. Schematic Diagram 2. Parts List – Bill of Materials (BOM) 3. Block Diagram 4. Operational Description 5. Final Amplification Stage Voltage and Current We request that the following documents be kept in short-term confidentiality until February 26, 2021: 1. Exterior Images 2. Test Setup Photos 3. Internal Photos 4. User Manual The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Mikel Parry Compliance Manager

Mobile Station Coupling Losses (MSCL) July 29, 2020 FCCID: PWO460061 The following formulas were used to calculate MSCL with a 2 m distance from transmitter to receiver antenna and a 45 degree polarity mismatch between the inside antenna and the mobile device for EUT model 460061 signal booster: 푴푴푴푴푴푴푴푴 ( 풅풅풅풅 ) =푷푷푷푷푷푷푷푷 푴푴푳푳푳푳푳푳 ( 풅풅풅풅 ) +푷푷푳푳푷푷푷푷푷푷푷푷푷푷푷푷 푴푴푳푳푳푳푳푳 ( 풅풅풅풅 ) −푮푮 푷푷 −푮푮 푷푷 푃푃푃푃푃푃 ℎ 퐿퐿퐿퐿퐿퐿퐿퐿 ( 푑푑푑푑 ) =20log ( 푑푑 ) +20log ( 푓푓 ) −27.55 푓푓=푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓 푀푀푀푀푀푀 푑푑=퐷퐷퐷퐷 퐿퐿푃푃푃푃푓푓푓푓푓푓 푓푓푓푓 퐿퐿푓푓 푃푃푓푓푃푃푓푓퐿퐿푓푓퐷퐷푃푃푃푃푓푓푓푓 푃푃퐿퐿 푓푓푓푓푓푓푓푓퐷퐷 푟푟푓푓푓푓 푃푃푓푓푃푃푓푓푓푓푓푓푃푃 (푓푓푓푓푃푃푓푓푓푓퐿퐿) 푃푃퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 퐿퐿퐿퐿퐿퐿퐿퐿 ( 푑푑푑푑 ) =20log� 퐸퐸 1 퐸퐸 2 � 푃푃퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 퐿퐿퐿퐿퐿퐿퐿퐿=20log� 퐸퐸 1 퐸퐸 1 sin (휏휏) �, 휏휏=45° 퐸퐸 1 =푀푀푃푃푀푀 퐷퐷푓푓푓푓푓푓 푝푝퐿퐿퐿퐿퐿퐿퐷퐷 푠푠푃푃푓푓 푓푓푃푃푚푚푓푓퐷퐷푃푃푓푓푑푑푓푓 퐿퐿푓푓 푃푃ℎ푓푓 퐸퐸푃푃푓푓푓푓푃푃푓푓퐷퐷푓푓 퐹퐹퐷퐷푓푓푃푃푑푑 푓푓푓푓 퐿퐿푓푓 푀푀퐿퐿푠푠퐷퐷푃푃푓푓 퐷퐷푓푓푟푟 퐷퐷푓푓푓푓 퐸퐸 2 =푀푀푃푃푚푚푓푓퐷퐷푃푃푓푓푑푑푓푓 퐿퐿푓푓 푃푃ℎ푓푓 푓푓푃푃푓푓푓푓푃푃푓푓퐷퐷푓푓 푓푓퐷퐷푓푓 푃푃푑푑 푓푓푓푓 퐿퐿푓푓 푃푃ℎ푓푓 푀푀퐿퐿푠푠퐷퐷푃푃푓푓 퐷퐷푓푓푟푟 퐷퐷푓푓푓푓 푤푤퐷퐷푃푃ℎ 푃푃 45° 푝푝퐿퐿푃푃푃푃푓푓퐷퐷푃푃푓푓 푓푓퐷퐷퐿퐿푓푓푃푃푃푃푓푓ℎ 퐸퐸 2 =퐸퐸 1 sin ( 휏휏 ) 퐺퐺 푡푡 =푈푈퐸퐸 푇푇푓푓푃푃푓푓퐿퐿푓푓퐷퐷푃푃푃푃푓푓푓푓 퐴퐴푓푓푃푃푓푓푓푓푓푓푃푃 퐺퐺푃푃퐷퐷푓푓 퐺퐺 푟푟 =푆푆퐷퐷푚푚푓푓푃푃푃푃 푑푑퐿퐿퐿퐿퐿퐿푃푃푓푓푓푓 푆푆푓푓푓푓푟푟푓푓푓푓 퐴퐴푓푓푃푃푓푓푓푓푓푓푃푃 퐺퐺푃푃퐷퐷푓푓 Path Loss Evaluation 푃푃푃푃푃푃 ℎ 퐿퐿퐿퐿퐿퐿퐿퐿 ( 푑푑푑푑 ) =20log ( 푑푑 ) +20log ( 푓푓 ) −27.55 푓푓=푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓푓 퐷퐷푓푓 푀푀푀푀푀푀 푑푑=퐷퐷퐷퐷 퐿퐿푃푃푃푃푓푓푓푓푓푓 푓푓푓푓 퐿퐿푓푓 푃푃푓푓푃푃푓푓퐿퐿푓푓푓푓푃푃푃푃푓푓푓푓 푃푃퐿퐿 푓푓푓푓푓푓푓푓퐷퐷 푟푟푓푓푓푓 푃푃푓푓푃푃푓푓푓푓푓푓푃푃 (푓푓푓푓푃푃푓푓푓푓퐿퐿) Frequency Range (MHz) f (MHz) d (m) Constant (dB) Path Loss (dB) 698-716 707 2 27.55 35.4 776-787 781.5 2 27.55 36.3 824-849 836.5 2 27.55 36.9 1710-1785 1747.5 2 27.55 43.3 1850-1915 1882.5 2 27.55 44.0 Polarity Loss Evaluation 푃푃퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 퐿퐿퐿퐿퐿퐿퐿퐿 ( 푑푑푑푑 ) =20log� 퐸퐸 1 퐸퐸 2 � 푃푃퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 퐿퐿퐿퐿퐿퐿퐿퐿 (푑푑푑푑) =20log� 퐸퐸 1 퐸퐸 1 sin (휏휏) �, 휏휏=45° 퐸퐸 1 =푀푀푃푃푀푀 퐷퐷푓푓푓푓푓푓 푝푝퐿퐿퐿퐿퐿퐿퐷퐷푠푠푃푃푓푓 푓푓푃푃푚푚푓푓퐷퐷푃푃푓푓푑푑푓푓 퐿퐿푓푓 푃푃ℎ푓푓 퐸퐸푃푃푓푓푓푓푃푃푓푓퐷퐷푓푓 퐹퐹퐷퐷푓푓푃푃푑푑 푓푓푓푓 퐿퐿푓푓 푀푀퐿퐿푠푠퐷퐷푃푃푓푓 퐷퐷푓푓푟푟 퐷퐷푓푓푓푓 퐸퐸 2 =푀푀푃푃푚푚푓푓퐷퐷푃푃푓푓푑푑푓푓 퐿퐿푓푓 푃푃ℎ푓푓 푓푓푃푃푓푓푓푓푃푃푓푓퐷퐷푓푓 푓푓퐷퐷푓푓 푃푃푑푑 푓푓푓푓 퐿퐿푓푓 푃푃ℎ푓푓 푀푀퐿퐿푠푠퐷퐷푃푃푓푓 퐷퐷푓푓푟푟 퐷퐷푓푓푓푓 푤푤퐷퐷푃푃ℎ 푃푃 45° 푝푝퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 푓푓퐷퐷퐿퐿푓푓푃푃푃푃푓푓ℎ 퐸퐸 2 =퐸퐸 1 sin ( 휏휏 ) 푃푃퐿퐿푃푃푃푃푓푓퐷퐷 푃푃푓푓 퐿퐿퐿퐿퐿퐿퐿퐿=20log� 1 퐿퐿퐷퐷푓푓 � 휋휋 180 � �=ퟑퟑ.ퟎퟎퟎퟎ 풅풅풅풅 UE Transmitter Antenna Gain Evaluation 퐺퐺 푡푡 =푈푈퐸퐸 푇푇푓푓푃푃푓푓퐿퐿푓푓퐷퐷푃푃푃푃푓푓푓푓 퐴퐴푓푓푃푃푓푓푓푓푓푓푃푃 퐺퐺푃푃퐷퐷푓푓=ퟎퟎ 풅풅풅풅 푷푷 Signal Booster Server Antenna Gain Evaluation Component Type Product Number Gain (dBi) / Loss (dB) B12 700 MHz B13 700 MHz B5 800 MHz B4 1700 MHz B2 1900 MHz B4 2200 MHz Server Cable N/A N/A 0 0 0 0 0 0 Server Antenna Panel 314401 2.1 2.1 2.9 1.7 2.7 2.1 314419 2.1 2.1 2.9 1.7 2.7 2.1 311160 1.3 2.6 3 1.7 0.7 0.1 Minimum MSCL Evaluation Maximum antenna gain and minimum coax loss was selected to calculate “worst case” limit for MSCL B12 700 MHz B13 700 MHz B5 800 MHz B4 1700 MHz B2 1900 MHz Path Loss (dB) 35.4 36.3 36.9 43.3 44 Polarity Loss (dB) 3.01 3.01 3.01 3.01 3.01 UE Antenna Gain (dBi) 0 0 0 0 0 Server Antenna Gain (dBi) 2.1 2.6 3 1.7 2.7 Server Coax Loss (dB) 0 0 0 0 0 Minimum MSCL (dB) 36.31 36.71 36.91 44.61 44.31 END OF REPORT

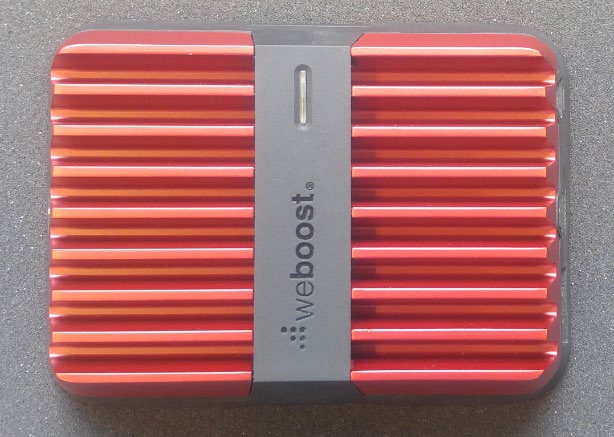

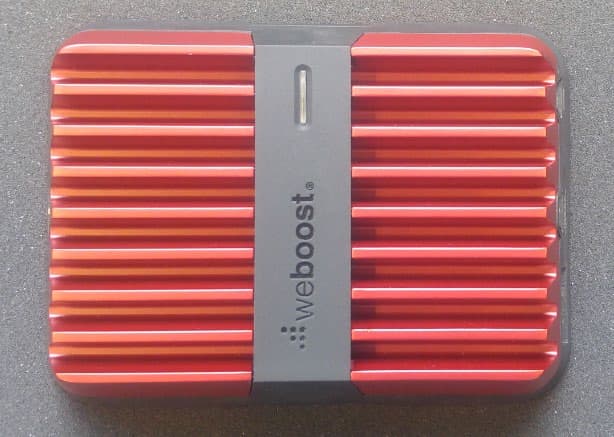

August 24, 2020 External Photos Model: 460061 Signal Booster

August 24, 2020 Label Locations Model: 460061 Signal Booster

September 21, 2020 Internal Photos Model: 460061 Signal Booster

September 3, 2020 Antenna Kitting Information Model 460061 Signal Booster Accessory Kit Options Fleet Component Type Product Number Gain (dBi) / Loss (dB) B12 B13 B5 B4 B2 B4 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz 2200 MHz Donor Antenna Omni 314405 3.2 3.2 3.1 1.9 1.9 0.9 Donor Cable RG-58 14' 904423 2 2 2.1 3.2 3.4 3.7 Server Cable N/A N/A 0 0 0 0 0 0 Server Antenna Panel 314401 2.1 2.1 2.9 1.7 2.7 2.1 314419 2.1 2.1 2.9 1.7 2.7 2.1 *All equivalent or lesser antennas and cables are suitable for use with 460061 signal boosters Accessory Kit Options RV Component Type Product Number Gain (dBi) / Loss (dB) B12 B13 B5 B4 B2 B4 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz 2200 MHz Donor Antenna Omni 311224 1.75 1.5 1.6 1.1 1.3 1.1 311230 1.15 0.75 1.45 2.5 2.2 1.5 304415 -0.25 -0.5 -0.45 -1.65 -1.45 -1.65 311215 0.5 0.5 1.1 0.8 0.41 0.77 311216 0.5 0.5 1.1 0.8 0.41 0.77 301126 0.5 0.5 1.1 0.8 0.41 0.77 314418 0.5 0.5 1.1 0.8 0.41 0.77 301113 0.5 0.5 1.1 0.8 0.41 0.77 Donor Cable RG-6 25' 950625 2.2 2.2 2.3 3.6 3.8 4.2 Server Cable N/A N/A 0 0 0 0 0 0 Server Antenna Panel 311160 1.3 2.6 3 1.7 0.7 0.1 *All equivalent or lesser antennas and cables are suitable for use with 460061 signal boosters Accessory Kit Options OTR Component Type Product Number Gain (dBi) / Loss (dB) B12 B13 B5 B4 B2 B4 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz 2200 MHz Donor Antenna Omni 304415 -0.25 -0.5 -0.45 -1.65 -1.45 -1.65 311229 -0.85 -1.25 -0.6 -0.25 -0.55 -1.25 Donor Cable N/A N/A 0 0 0 0 0 0 Server Cable N/A N/A 0 0 0 0 0 0 Server Antenna Panel 314401 2.1 2.1 2.9 1.7 2.7 2.1 314419 2.1 2.1 2.9 1.7 2.7 2.1 *All equivalent or lesser antennas and cables are suitable for use with 460061 signal boosters Accessory Kit Options Vehicle Component Type Product Number Gain (dBi) / Loss (dB) B12 B13 B5 B4 B2 B4 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz 2200 MHz Donor Antenna Omni 311215 0.5 0.5 1.1 0.8 0.41 0.77 311216 0.5 0.5 1.1 0.8 0.41 0.77 301126 0.5 0.5 1.1 0.8 0.41 0.77 314418 0.5 0.5 1.1 0.8 0.41 0.77 301113 0.5 0.5 1.1 0.8 0.41 0.77 304415 -0.25 -0.5 -0.45 -1.65 -1.45 -1.65 Donor Cable N/A N/A 0 0 0 0 0 0 Server Cable N/A N/A 0 0 0 0 0 0 Server Antenna Panel 314401 2.1 2.1 2.9 1.7 2.7 2.1 314419 2.1 2.1 2.9 1.7 2.7 2.1 *All equivalent or lesser antennas and cables are suitable for use with 460061 signal boosters Accessory Kit Options ALL Component Type Product Number Gain (dBi) / Loss (dB) B12 B13 B5 B4 B2 B4 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz 2200 MHz Server Antenna Panel 314401 2.1 2.1 2.9 1.7 2.7 2.1 314419 2.1 2.1 2.9 1.7 2.7 2.1 301211 1.9 3.2 3.6 2.6 1.7 1.2 311160 1.3 2.6 3 1.7 0.7 0.1 311155 5.0 5.8 6.2 9.5 9.4 7.3 311135 5.0 5.8 6.2 9.5 9.4 7.3 304451 5.0 5.8 6.2 9.5 9.4 7.3 304471 5.0 5.8 6.2 9.5 9.4 7.3 314440 5.75 5.75 6 7.3 7.33 7.62 314444 5.75 5.75 6 7.3 7.33 7.62 Dome 304419 2 2 2 4 4 4 304412 2 2 2 4 4 4 314406 7 7 7 7 7 7 314407 4 4 4 6 6 6 Server Cable RG-6 60’ 950660 5.1 5.4 5.6 8.5 8.9 9.6 Donor Cable RG-6 75’ 950675 7.7 8.2 8.5 13.1 13.6 14.6 Donor Antenna Panel 314473 5.2 5.2 4.4 10.1 10.6 8.2 314453 5.2 5.2 4.4 10.1 10.6 8.2 Omni 304423 2 2 2 5 5 5 304422 2 2 2 5 5 5 304424 2 2 2 4 4 4 304421 2 2 2 4 4 4 311215 0.5 0.5 1.1 0.8 0.41 0.77 311216 0.5 0.5 1.1 0.8 0.41 0.77 311224 1.75 1.5 1.6 1.1 1.3 1.1 304415 -0.25 -0.5 -0.45 -1.65 -1.45 -1.65 311703 1.9 1.9 5.1 -4 6.1 2.3 304420 2 2.6 2.6 1.7 1.7 1.9 301126 0.5 0.5 1.1 0.8 0.41 0.77 314418 0.5 0.5 1.1 0.8 0.41 0.77 301113 0.5 0.5 1.1 0.8 0.41 0.77 314405 3.2 3.2 3.1 1.9 1.9 0.9 Directional 314475 7.48 7.48 7.31 8.83 8.83 8.57 314411 7.48 7.48 7.31 8.83 8.83 8.57 314445 7.2 7.2 6.9 8.9 8.4 9.2 *All equivalent or lesser antennas and cables are suitable for use with 460061 signal boosters END OF REPORT

September 3, 2020 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Tuning and Adjustment of Wilson Model 460061 Signal Booster Model 460061 Signal Booster Tuned Frequency (MHz) Target Gain (dB) Maximum Gain (dB) Target Power (dBm) Maximum Power (dBm) Uplink 698-716 47.7 47.7 25.4 25.4 777-787 46.9 46.9 25.6 25.6 824-849 47.6 47.6 25.6 25.6 1710-1785 48.4 48.4 26.7 26.7 1850-1910 44.0 44.0 26.9 26.9 Downlink 728-746 48.3 48.3 4.8 4.8 746-756 47.8 47.8 4.8 4.8 869-894 47.4 47.4 4.8 4.8 1930-1990 48.1 48.1 4.5 4.5 2110-2155 47.8 47.8 4.6 4.6 There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. It is designed with advanced internal programming, which allows it to automatically adjust for a variety of conditions, while still amplifying weak signals. Tune-up Procedure: 1. Once the antennas and antenna cables are connected, turn the unit on by connecting the power supply cord into the vehicles 12VDC supply socket. 2. Standard installation Sincerely, Mikel Parry Compliance Manager Compliance Manager 3301 E Deseret Dr. St. George, UT 84790

RF MPE EXPOSURE September 3, 2020 FCC ID: PWO460061 The MPE calculations for EUT model 460061 signal booster were done for frequency bands: • 700 MHz (Band 12) • 700 MHz (Band 13) • 800 MHz (Band 5) • 1900 MHz (Band 2) • 1700/2100 MHz (Band 4) Antennas recommended for the EUT: Port Frequency Range (MHz) Antenna Product Number Coax Product Number Maximum Antenna Gain (dBi) Minimum Coax Loss (dB) Gain – Coax Loss (dB) Gain - Coax Loss (unitless) Donor 698-716 314405 904423 3.2 2 1.2 1.32 Donor 777-787 314405 904423 3.2 2 1.2 1.32 Donor 824-849 311215 N/A 1.1 0 1.1 1.29 Donor 1710-1785 311215 N/A 0.8 0 0.8 1.20 Donor 1850-1915 311215 N/A 0.4 0 0.4 1.10 Server 728-746 314401 N/A 2.1 0 2.1 1.62 Server 746-756 311160 N/A 2.6 0 2.6 1.82 Server 869-894 311160 N/A 3.0 0 3.0 2.00 Server 1930-1995 314401 N/A 2.7 0 2.7 1.86 Server 2110-2155 314401 N/A 2.1 0 2.1 1.62 *Maximum antenna gain and minimum cable losses were selected to compute “worst case” limit and are indicated in the antenna kitting specification for model 460061 EUT Operating Limits Limits for Uncontrolled Exposure 47 CFR 1.1310 Table 1(B) Frequency Range (MHz) Limit (mw/cm^2) 0.3-1.234 100 1.24-30 180/f^2 30-300 0.2 300-1500 f/1500 1500-100,000 1 EUT Operating Limits Evaluation Port Frequency Range (MHz) EUT Maximum Output power (dBm) EUT Maximum Output power (mw) Gain - Coax Loss (unitless) Power density limit (mw/cm^2) Power density evaluation (mw/cm^2) Minimum safe distance (cm) Donor 698-716 25.4 346.74 1.32 0.47 0.091 20 Donor 777-787 25.6 363.08 1.32 0.52 0.095 20 Donor 824-849 25.6 363.08 1.29 0.55 0.093 20 Donor 1710-1785 26.7 467.74 1.20 1 0.112 20 Donor 1850-1915 26.9 489.78 1.10 1 0.107 20 Server 728-746 4.8 3.02 1.62 0.49 0.001 20 Server 746-756 4.8 3.02 1.82 0.50 0.001 20 Server 869-894 4.8 3.02 2.00 0.58 0.001 20 Server 1930-1995 4.5 2.82 1.86 1 0.001 20 Server 2110-2155 4.6 2.88 1.62 1 0.001 20 *The lowest frequency in each band was used to compute the “worst case” limit. NOTE: Simultaneous transmission does not apply to consumer boosters as the output power is capped at 30 dBm EIRP regardless of how many signals are present. EUT Power Density Evaluation Calculated power density - Uplink: Band 12 (698-716 MHz) Power density is calculated using maximum uplink transmitted power of 346.74 mw and unitless antenna gain less coax loss of 1.32 S = P t G 4πr 2 = (346.74)(1.32) 4휋휋20 2 =0.091 (푚푚푚푚 푐푐푚푚 2 ⁄ ) 푆푆=푃푃푃푃푚푚 푃푃푃푃 퐷퐷푃푃퐷퐷퐷퐷퐷퐷퐷퐷퐷퐷 ( 푚푚푚푚 푐푐푚푚 2 ⁄) 푃푃 푡푡 =푇푇푃푃푇푇퐷퐷퐷퐷푚푚퐷퐷퐷퐷퐷퐷푃푃푃푃 푃푃푃푃푚푚 푃푃푃푃 ( 푚푚푚푚 ) 퐺퐺=퐴퐴퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 퐺퐺푇푇퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗퐶퐶푃푃푇푇퐶퐶 퐿퐿푃푃퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗푑푑푢푢퐷퐷퐷퐷 푐푐퐷퐷푐푐푛푛푃푃 ( % ) 푃푃=퐷퐷퐷퐷퐷퐷퐷퐷 푇푇퐷퐷푐푐푃푃 퐷퐷푃푃 푐푐푃푃퐷퐷퐷퐷푃푃푃푃 푃푃표표 푃푃푇푇푑푑퐷퐷푇푇퐷퐷퐷퐷푃푃퐷퐷 푃푃표표 푇푇퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 (푐푐푚푚) At the minimum safe distance of 20 cm, the power density of the EUT is 0.091 (푚푚푚푚 푐푐푚푚 2 ⁄ ), which is less than the operational limit of 0.47 (푚푚푚푚 푐푐푚푚 2 ⁄ ). Therefore, no minimum safe distance calculation is required. Band 13 (777-787 MHz) Power density is calculated using maximum uplink transmitted power of 363.08 mw and unitless antenna gain less coax loss of 1.32 S = P t G 4πr 2 = (363.08)(1.32) 4휋휋20 2 =0.095 (푚푚푚푚 푐푐푚푚 2 ⁄ ) 푆푆=푃푃푃푃푚푚 푃푃푃푃 퐷퐷푃푃퐷퐷퐷퐷퐷퐷퐷퐷퐷퐷 ( 푚푚푚푚 푐푐푚푚 2 ⁄) 푃푃 푡푡 =푇푇푃푃푇푇퐷퐷퐷퐷푚푚퐷퐷퐷퐷퐷퐷푃푃푃푃 푃푃푃푃푚푚 푃푃푃푃 ( 푚푚푚푚 ) 퐺퐺=퐴퐴퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 퐺퐺푇푇퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗퐶퐶푃푃푇푇퐶퐶 퐿퐿푃푃퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗푑푑푢푢퐷퐷퐷퐷 푐푐퐷퐷푐푐푛푛푃푃 ( % ) 푃푃=퐷퐷퐷퐷퐷퐷퐷퐷 푇푇퐷퐷푐푐푃푃 퐷퐷푃푃 푐푐푃푃퐷퐷퐷퐷푃푃푃푃 푃푃표표 푃푃푇푇푑푑퐷퐷푇푇퐷퐷퐷퐷푃푃퐷퐷 푃푃표표 푇푇퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 (푐푐푚푚) At the minimum safe distance of 20 cm, the power density of the EUT is 0.095 (푚푚푚푚 푐푐푚푚 2 ⁄ ), which is less than the operational limit of 0.52 (푚푚푚푚 푐푐푚푚 2 ⁄ ). Therefore, no minimum safe distance calculation is required. Band 5 (824-849 MHz) Power density is calculated using maximum uplink transmitted power of 363.08 mw and unitless antenna gain less coax loss of 1.29 S = P t G 4πr 2 = (363.08)(1.29) 4휋휋20 2 =0.093(푚푚푚푚 푐푐푚푚 2 ⁄ ) 푆푆=푃푃푃푃푚푚 푃푃푃푃 퐷퐷푃푃퐷퐷퐷퐷퐷퐷퐷퐷퐷퐷 ( 푚푚푚푚 푐푐푚푚 2 ⁄) 푃푃 푡푡 =푇푇푃푃푇푇퐷퐷퐷퐷푚푚퐷퐷퐷퐷퐷퐷푃푃푃푃 푃푃푃푃푚푚 푃푃푃푃 ( 푚푚푚푚 ) 퐺퐺=퐴퐴퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 퐺퐺푇푇퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗퐶퐶푃푃푇푇퐶퐶 퐿퐿푃푃퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗푑푑푢푢퐷퐷퐷퐷 푐푐퐷퐷푐푐푛푛푃푃 ( % ) 푃푃=퐷퐷퐷퐷퐷퐷퐷퐷 푇푇퐷퐷푐푐푃푃 퐷퐷푃푃 푐푐푃푃퐷퐷퐷퐷푃푃푃푃 푃푃표표 푃푃푇푇푑푑퐷퐷푇푇퐷퐷퐷퐷푃푃퐷퐷 푃푃표표 푇푇퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 (푐푐푚푚) At the minimum safe distance of 20 cm, the power density of the EUT is 0.093 (푚푚푚푚 푐푐푚푚 2 ⁄ ), which is less than the operational limit of 0.55 (푚푚푚푚 푐푐푚푚 2 ⁄ ). Therefore, no minimum safe distance calculation is required. Band 4 (1710-1785 MHz) Power density is calculated using maximum uplink transmitted power of 467.74 mw and unitless antenna gain less coax loss of 1.20 S = P t G 4πr 2 = (467.74)(1.20) 4휋휋20 2 =0.112 (푚푚푚푚 푐푐푚푚 2 ⁄ ) 푆푆=푃푃푃푃푚푚 푃푃푃푃 퐷퐷푃푃퐷퐷퐷퐷퐷퐷퐷퐷퐷퐷 ( 푚푚푚푚 푐푐푚푚 2 ⁄) 푃푃 푡푡 =푇푇푃푃푇푇퐷퐷퐷퐷푚푚퐷퐷퐷퐷퐷퐷푃푃푃푃 푃푃푃푃푚푚 푃푃푃푃 ( 푚푚푚푚 ) 퐺퐺=퐴퐴퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 퐺퐺푇푇퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗퐶퐶푃푃푇푇퐶퐶 퐿퐿푃푃퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗푑푑푢푢퐷퐷퐷퐷 푐푐퐷퐷푐푐푛푛푃푃 ( % ) 푃푃=퐷퐷퐷퐷퐷퐷퐷퐷 푇푇퐷퐷푐푐푃푃 퐷퐷푃푃 푐푐푃푃퐷퐷퐷퐷푃푃푃푃 푃푃표표 푃푃푇푇푑푑퐷퐷푇푇퐷퐷퐷퐷푃푃퐷퐷 푃푃표표 푇푇퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 (푐푐푚푚) At the minimum safe distance of 20 cm, the power density of the EUT is 0.112(푚푚푚푚 푐푐푚푚 2 ⁄ ), which is less than the operational limit of 1 (푚푚푚푚 푐푐푚푚 2 ⁄ ). Therefore, no minimum safe distance calculation is required. Band 2 (1850-1915 MHz) Power density is calculated using maximum uplink transmitted power of 489.78 mw and unitless antenna gain less coax loss of 1.10 S = P t G 4πr 2 = (489.78)(1.10) 4휋휋20 2 =0.107 (푚푚푚푚 푐푐푚푚 2 ⁄ ) 푆푆=푃푃푃푃푚푚 푃푃푃푃 퐷퐷푃푃퐷퐷퐷퐷퐷퐷퐷퐷퐷퐷 ( 푚푚푚푚 푐푐푚푚 2 ⁄) 푃푃 푡푡 =푇푇푃푃푇푇퐷퐷퐷퐷푚푚퐷퐷퐷퐷퐷퐷푃푃푃푃 푃푃푃푃푚푚 푃푃푃푃 ( 푚푚푚푚 ) 퐺퐺=퐴퐴퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 퐺퐺푇푇퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗퐶퐶푃푃푇푇퐶퐶 퐿퐿푃푃퐷퐷퐷퐷 ( 퐷퐷푃푃퐷퐷푛푛 푃푃푛푛 ) ∗푑푑푢푢퐷퐷퐷퐷 푐푐퐷퐷푐푐푛푛푃푃 ( % ) 푃푃=퐷퐷퐷퐷퐷퐷퐷퐷 푇푇퐷퐷푐푐푃푃 퐷퐷푃푃 푐푐푃푃퐷퐷퐷퐷푃푃푃푃 푃푃표표 푃푃푇푇푑푑퐷퐷푇푇퐷퐷퐷퐷푃푃퐷퐷 푃푃표표 푇푇퐷퐷퐷퐷푃푃퐷퐷퐷퐷푇푇 (푐푐푚푚) At the minimum safe distance of 20 cm, the power density of the EUT is 0.107 (푚푚푚푚 푐푐푚푚 2 ⁄ ), which is less than the operational limit of 1 (푚푚푚푚 푐푐푚푚 2 ⁄ ). Therefore, no minimum safe distance calculation is required. Calculated power density - Downlink: Band 12 (728-746 MHz) Power density is calculated using maximum downlink transmitted power of 3…
