PWO272365Wireless AWS Signal Booster

Wilson ® Electronics, Inc. Contents: Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . .1 Quick Install Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Installing a Wilson Electronics Signal Booster . . . . . . . . . . . . . . . .9 Powering up a Wilson Electronics Signal Booster . . . . . . . . . . . .10 Understanding the Signal Booster Lights . . . . . . . . . . . . . . . . . .12 Warnings and Recommendations . . . . . . . . . . . . . . . . . . . . . . . .15 Guarantee & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . AWS 70 Band 4, 70 dB Adjustable Gain In-Building Wireless Smart Technology ™ Signal Booster Installation Guide Signal Booster 1 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. 2 Installation Instructions for the Following Wilson Signal Booster: AWS 70 Band 4, 70 dB Adjustable Gain In-Building Wireless Smart Technology ™ Signal Booster Model # 272365 FCC ID: PWO272365 IC: 4726A-272365 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . How it Works Wilson Electronics Signal Boosters are bi-directional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage . They amplify a weak or shadowed signal in mobile, marine and in-building applications . When using a Wilson Electronics Signal Booster in conjunction with Wilson Electronics antennas, the outside antenna will collect the cell tower signal and send it through the cable to the Signal Booster . The signal is then amplified and re-transmitted through the inside antenna into the room . Cell phones and cellular data cards in that area then communicate with the improved signal . When a cell phone or cellular device transmits, the signal is received by the inside antenna, amplified by the Signal Booster and broadcasted back to the cell tower through the outside antenna . Inside this Package Signal Booster AC/DC Power Supply To purchase, call Wilson Electronics Sales Department at: 800-204-4104 Outdoor Antenna Options Indoor Antenna Options & Accessories 1 . Wide Band Directional Antenna 700 MHz - 2700 MHz (304411) A . Wide-Band Panel Antenna 700-2700MHz (301155) B . 50 Ohm Lightning Surge Protector N-Connector (859902) Splitter options on page 3 1 B A Note: Kits may contain different accessories 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. Select a location to install the Signal Booster that is away 1 . from excessive heat, direct sunlight, moisture and has proper ventilation . Do not place the Signal Booster in an air-tight enclosure . Select a location on the roof of the building to install the outside 2 . antenna . Use a cell phone in test mode to find the strongest signal from the cell tower . Visit www.WilsonElectronics.com to find test mode function for your particular cell phone . See page 6 . Select a location for the inside antenna, preferably in the 3 . center of where the signal needs to be amplified . A minimum separation distance (combined vertical/horizontal) of 20 feet is necessary for operation . If the inside coverage is not sufficient you may need as much as 50 feet of separation . See installation diagram on pages 3 & 4 . Run the outside antenna cable to the Signal Booster and 4 . attach it to the connector labeled “Outside Antenna” on the Signal Booster . Run the inside antenna cable to the Signal Booster and attach it to the connector labeled “Inside Antenna” on the Signal Booster . Note: Be careful when plugging the connectors in so as not to bend the center pins on the connectors. See page 8 for more information on running cable . Before powering up the Signal Booster, verify that both the 5 . outside antenna and the inside antenna are connected and check that all connections are tight . Lightning surge protection is recommended for all in-building installations . See page 7 . The Signal Booster has been packaged with the gain control 6 . knobs adjusted to the highest gain position . If one or both of the lights are not green, please refer to pages 12-14 . Warning: 7. Connecting the Signal Booster directly to a cell phone with use of an adapter will damage the cell phone and the Signal Booster . Quick Install Overview See Installation Diagram on page 3 . Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 . 3 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. 4 Typical Installation Splitter (if using multiple inside antennas) Outside Antenna Inside Antenna Installation Diagram Note: The inside panel antenna may be mounted on the wall directly under the outside antenna, in the null zone, if 20 feet of vertical separation can be maintained. Inside Antenna Preferred Method: Place the inside antenna in the ceiling facing down for the best coverage . Splitter Options: 3-way (859980) 4-way (859981) 2-way (859957) Note: A lightning su…

Text truncated - open the document above for the full version.

Wilson ® Electronics, Inc. Contents: Antenna Options & Accessories . . . . . . . . . . . . . . . . . . .1 Quick Install Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . .6 Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . .8 Installing a Wilson Electronics Signal Booster . . . . . . . . . 9 Powering up a Wilson Electronics Signal Booster . . . . .10 Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . .11 Understanding the Signal Booster Lights . . . . . . . . . . .13 Warnings and Recommendations . . . . . . . . . . . . . . . . .15 Guarantee & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .17 Specifications . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . AWS 70 Band 4, 70 dB Adjustable Gain In-Building Wireless Smart Technology ™ Signal Booster 1 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. 2 How it Works Wilson Electronics Signal Boosters are bi-directional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage . They amplify a weak or shadowed signal in mobile, marine, M2M and in-building applications . When using a Wilson Electronics Signal Booster in conjunction with Wilson Electronics antennas, the Outside Antenna will collect the cell tower signal and send it through the cable to the Signal Booster . The signal is then amplified and re-transmitted through the Inside Antenna into the room . Cell phones and cellular data cards in that area then communicate with the improved signal . When a cell phone or cellular device transmits, the signal is received by the Inside Antenna, amplified by the Signal Booster and broadcasted back to the cell tower through the Outside Antenna . Inside this Package Signal Booster AC/DC Power Supply To purchase, call Wilson Electronics Sales Department at: 800-204-4104 Outdoor Antenna Options Indoor Antenna Options & Accessories 1 . Wide Band Directional Antenna 700 MHz - 2700 MHz (304411) See RF Safety Warning (page 15) for proper installation . A . Wide Band Panel Antenna 700-2700MHz (301134 & 301135) B . 50 Ohm Lightning Surge Protector with N-Connector (859902) Splitter options on page 9 1 B A Note: Kits may contain different accessories Installation Instructions for the Following Wilson Signal Booster: AWS 70 Band 4, 70 dB Adjustable Gain In-Building Wireless Smart Technology ™ Signal Booster Model # 272365 FCC ID: PWO272365 IC: 4726A-272365 The term “IC” before the radio certification number signifies that Industry Canada technical specifications were met . 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. Select a location to install the Signal Booster that is away 1 . from excessive heat, direct sunlight, moisture and has proper ventilation . Do not place the Signal Booster in an air-tight enclosure . Select a location on the roof of the building to install the Outside 2 . Antenna . Use a cell phone in test mode to find the strongest signal from the cell tower . Visit www.WilsonElectronics.com to find test mode function for your particular cell phone (see page 11) . Run the Outside Antenna cable to the Signal Booster and 3 . attach it to the connector labeled “Outside Antenna” on the Signal Booster . Run the Inside Antenna cable to the Signal Booster and attach it to the connector labeled “Inside Antenna” on the Signal Booster (see page 7 for more information on running cable) . Lightning Surge Protection is recommended for all in-building installations (see page 6) . Select a location for the Inside Antenna, preferably in the 4 . center of where the signal needs to be amplified . A minimum separation distance (combined vertical/horizontal) of 20 feet is necessary for operation (see page 8) . If the inside coverage is not sufficient you may need as much as 50 feet of separation . See installation diagram on pages 3 & 4 . Before powering up the Signal Booster, verify that both the 5 . Outside Antenna and the Inside Antenna are connected and check that all connections are tight . Note: Be careful when plugging the connectors in so as not to bend the center pins on the connectors. The Signal Booster has been packaged with the gain control 6 . knobs adjusted to the highest gain position . If the light is not green, please refer to pages 13 & 14 . Warning: 7. Connecting the Signal Booster directly to a cell phone with use of an adapter may damage the cell phone and the Signal Booster . Quick Install Overview See Installation Diagram on page 3 . Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 . 3 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Hours: 7 am to 6 pm MST. 4 Typical Installation Outside Antenna Inside Antenna Installation Diagram (Optional second antenna for additional coverage). See RF Safety Warning (page 15) for proper installation . Note: The Inside Antenna may be mounted on the wall directly under the Outside Antenna, in the null zone, if 15 feet of vertical separation can be maintained. Inside Antenna Preferred Method: Place the Inside Antenna in the ceiling facing down for the best coverage . Per FCC rules, height not to exceed 10M (32’ 9”) above ground . Note: A Lightning Surge Protector is recommended for all building installations. Make sure the protector …

Text truncated - open the document above for the full version.

July 18, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 272365 signal booster under FCC ID: PWO272365 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram and Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Richard M. Kline Senior Electrical Engineer

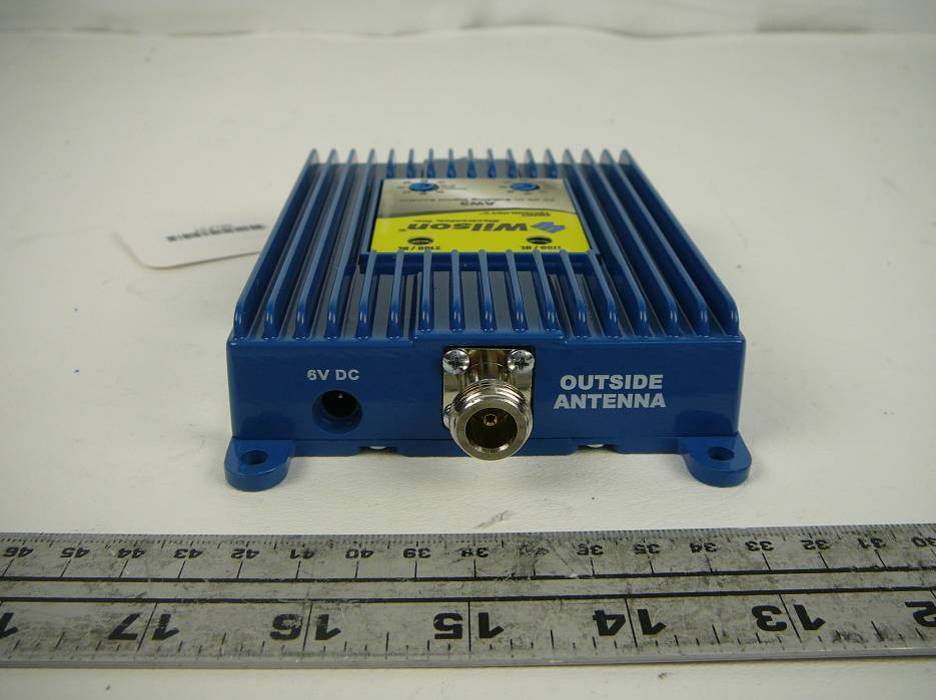

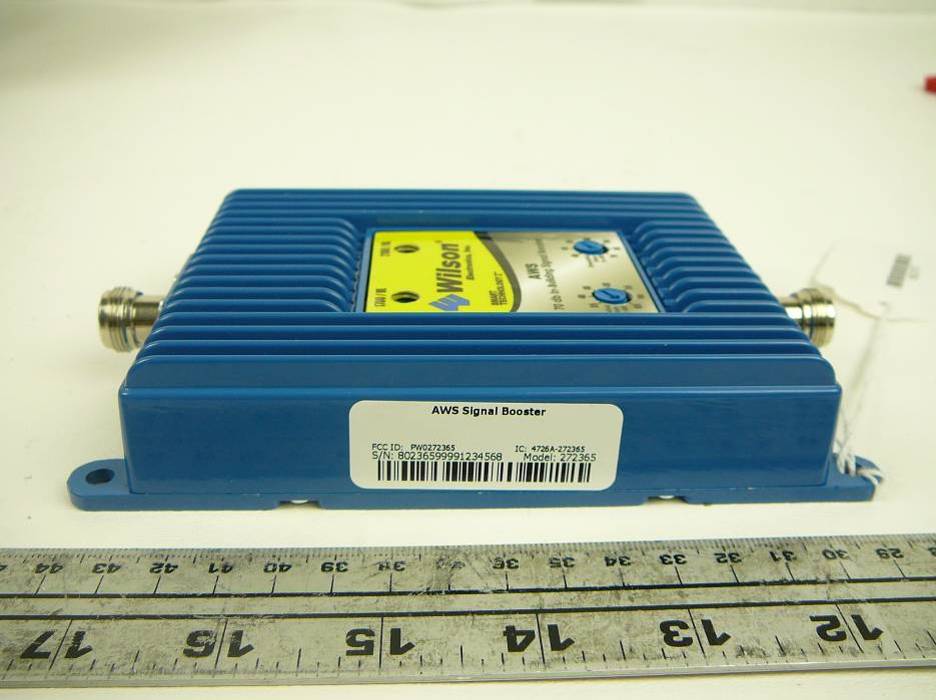

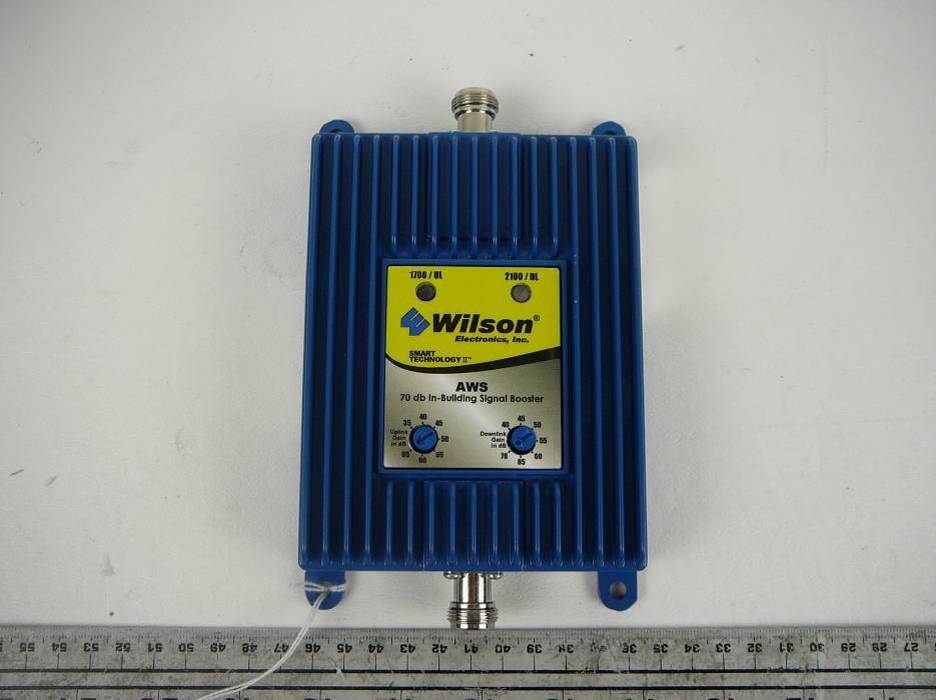

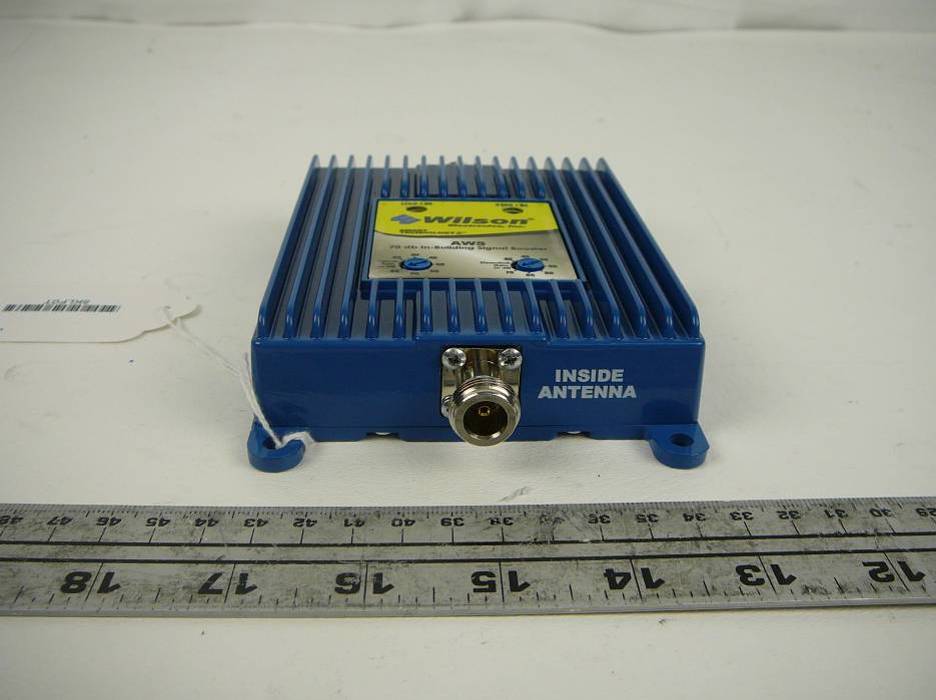

Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 99 of 104 FCC Part 27 Test Report 14 EXHIBIT C- EUT PHOTOGRAPHS 14.1 EUT - Top View 14.2 EUT - Side View 1 Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 100 of 104 FCC Part 27 Test Report 14.3 EUT - Side View 2 14.4 EUT – Uplink Port View Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 101 of 104 FCC Part 27 Test Report 14.5 EUT – Downlink Port View 14.6 EUT - Bottom View

Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 96 of 104 FCC Part 27 Test Report 12 EXHIBIT A - FCC ID LABEL REQUIREMENTS 12.1 FCC ID Label Requirement FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123. Where: XXX—Grantee Code, 123—Equipment Product Code 12.2 FCC ID Label Contents 12.3 FCC Label Location on EUT Label here

Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 102 of 104 FCC Part 27 Test Report 14.7 EUT – Cover off View 14.8 EUT – Cover off Close up View Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 103 of 104 FCC Part 27 Test Report 14.9 EUT – Main PCB Board Front (with shields) View 14.10 EUT – Main PCB Board Front (without shields) View Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 104 of 104 FCC Part 27 Test Report 14.11 EUT – Main PCB Board Rear View 14.12 Power Supply View ---End of Report---

Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 8 INPUT DATA Frequency MHz2110 Pout Watts0.23000 Duty Cycle Percent100.0% Ant. Gain dBi13.20 Coax Loss dB0.00 RESULTS OF CALCULATIONS Ant. Gain less Coax Loss dBi13.20 Min. Distance Inches7.70 Min. Distance Centimeters19.56 ERP (Watts)2.9301 EIRP (Watts)4.8054 REFERENCE DAT A Pout dBm23.62 Antenna Gain (non-log)20.89 Coax loss (non-log)1.00 FCC Limit (mw/cm 2 ) 1.00 Calculated limit (mw/cm 2 ) 1.00 NOTES: (1) Valid only between 300 MHz - 100,000 MHz. (2) Calculations are sufficient for determining antenna safe distance for mobile antennas and fixed inside antennas provided that calculated ERP < 1.5 watts for frequencies equal to or below 1.5 GHz, and calculated ERP < 3 watts for frequencies above 1.5 GHz. (3)Mobileantennadistancesandfixedindoorantennadistancesshallbenolessthan8inches(3) Mobile antenna distances and fixed indoorantenna distances shall be no less than inches. (4) There are no predefined ERP and distance limitations for fixed outside (building) antennas. (5) Mobile/portable stations are limited to 2 watts EIRP peak power in the 1900 MHz band (FCC rules §24.232[c]). SUMMARY FOR PUBLICATION For Amplifier Model Number:272365 2110-2155 MHz (downlink)Frequency Band (MHz) FixedMobile or Fixed? InsideOutside or Inside Antenna? Any antenna whose gain less Antenna Type:cable loss does not exceed 13.2 dBi 8 inchesSafe Distance (inches): Signature: July 12, 2011Date: 7/14/2011, 1:07 PMMPE Calculations.xls Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz1710 Pout Watts0.61900 Duty Cycle Percent100.0% Ant. Gain dBi7.90 Coax Loss dB5.90 RESULTS OF CALCULATIONS Ant. Gain less Coax Loss dBi2.00 Min. Distance Inches3.48 Min. Distance Centimeters8.84 ERP (Watts)0.5982 EIRP (Watts)0.9810 REFERENCE DAT A Pout dBm27.92 Antenna Gain (non-log)6.17 Coax loss (non-log)0.26 FCC Limit (mw/cm 2 ) 1.00 Calculated limit (mw/cm 2 ) 1.00 NOTES: (1) Valid only between 300 MHz - 100,000 MHz. (2) Calculations are sufficient for determining antenna safe distance for mobile antennas and fixed inside antennas provided that calculated ERP < 1.5 watts for frequencies equal to or below 1.5 GHz, and calculated ERP < 3 watts for frequencies above 1.5 GHz. (3) Mobile antenna distances and fixed indoor antenna distances shall be no less than 8 inches. (4)TherearenopredefinedERPanddistancelimitationsforfixedoutside(building)antennas(4) There are no predefined ERP and distance limitations for fixed outside(building) antennas. (5) Mobile/portable stations are limited to 2 watts EIRP peak power in the 1900 MHz band per FCC rules §24.232(c). (6) Fixed/Mobile/Portable stations are limited to 1 watt EIRP in 1710-1755 MHz band per FCC rules §27.50(d)(4). SUMMARY FOR PUBLICATION For Amplifier Model Number:272365 1710-1755 MHz (Uplink)Frequency Band (MHz) FixedMobile or Fixed? OutsideOutside or Inside Antenna? Any antenna whose gain less Antenna Type:cable loss does not exceed 2 dBi 8 inchesSafe Distance (inches): Signature: September 1, 2011Date: 9/1/2011, 3:11 PM272365 MPE Uplink (revised).xls

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 27 TEST AND MEASUREMENT REPORT For Wilson Electronics, Inc. 3301 East Deseret Drive, St. George, Utah 84790, USA FCC ID: PWO272365 Model: 272365 Report Type: Original Report Product Type: Signal Booster Test Engineer: Quinn Jiang Report Number: R1106071-27 Report Date: 2011-07-14 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (91) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Wilson Electronics, Inc. FCC ID: PWO272365 Report Number: R1106071-27 Page 2 of 104 FCC Part 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 6 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 7 2.5 INTERNAL CONFIGURATIONS OF EUT................................................................................................................ 7 2.6 INTERFACE PORTS AND CABLES........................................................................................................................ 7 2.7 TEST SETUP BLOCK DIAGRAM........................................................................................................................... 8 3 SUMMARY OF TEST RESULTS...................................................................................................................... 10 4 FCC §2.1046 & §27.50 – RF OUTPUT POWER............................................................................................... 11 4.1 APPLICABLE STANDARD.................................................................................................................................. 11 4.2 TEST PROCEDURE............................................................................................................................................ 11 4.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 11 4.5 TEST RESULTS................................................................................................................................................. 11 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 15 5.1 APPLICABLE STANDARD.................................................................................................................................. 15 5.2 TEST RESULT................................................................................................................................................... 15 6 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH ......................................................................................16 6.1 APPLICABLE STANDARD.................................................................................................................................. 16 6.2 TEST PROCEDURE............................................................................................................................................ 16 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 16 6.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 16 6.5 TEST RESULTS................................................................................................................................................. 17 7 FCC §2.1053 & §27.53 - …
