PWO274106SBIn-Biulding Wireless iDEN 900 MHz Amplifier

AmplifierAmplifier Installation Guide stallatiostallat In-Building Wireless Amplifi er Contents: Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1 Antenna Options and Accessories · · · · · · · · · · · · · · · · · 2 Before Getting Started / How It Works · · · · · · · · · · · · · · 3 Quick Start Guide · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4 Installing a Wilson Outside Antenna · · · · · · · · · · · · · · · · 5 Installing a Wilson Inside Antenna · · · · · · · · · · · · · · · · · 6 Installing a Wilson Amplifi er · · · · · · · · · · · · · · · · · · · · · · 7 Powering Up a Wilson Amplifi er · · · · · · · · · · · · · · · · · · · 8 Understanding the Amplifi er Lights · · · · · · · · · · · · · · · · · 9 Troubleshooting · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10 Cell Phone Overload Protection · · · · · · · · · · · · · · · · · · 11 Warnings and Recommendations · · · · · · · · · · · · · · · · · 11 Finding Signal Strength and Coverage Distance · · · · · · 12 Amplifi er Specifi cations · · · · · · · · · · · · · · · · · · Back Cover Wilson ® Electronics, Inc. Warning: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your amplifi er. ! 1 30-Day Money-Back Guarantee All Wilson Electronics products are protected by Wilson’s 30-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. 1-Year Warranty Wilson Electronics amplifi ers are warranted for one (1) year against defects in workmanship and / or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Amplifi ers may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer. This warranty does not apply to any amplifi ers determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. RMA numbers may be obtained by phoning Technical Support at 866-294-1660. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2007 Wilson Electronics, Inc. All rights reserved. 3301 East Deseret Drive, St. George UT 84790 For additional Technical Support visit www.wilsonelectronics.com Phone: 866-294-1660 Fax: 435-656-2432 Wilson ® Electronics, Inc. 2 Installation Instructions for the Following Wilson Amplifi er: In-Building Wireless iDEN Smart Technology™ 60 dB 900 MHz Amplifi er Model # 274106, Part # 804106 FCC ID: PWO274106SB IC: 4726A-274106SB The term “IC” before the radio certifi cation number only signifi es that Industry Canada technical specifi cations were met. A 880-965 MHz Yagi Antenna (301142) B Dual-Band Panel Antenna (301135) C Dual-Polarity Dome Antenna (301123) D Dual-Band Dome Antenna (301121) E Low Profi le Cellular Antenna (301106) F Amplifi er Soft Cases G Amplifi er Hard Kit Cases Antenna Options & Accessories A BC D E F G 3 Before Getting Started This guide will help you properly install Wilson’s In-Building Wireless Smart Technology™ Amplifi er. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, seek professional help, or contact Wilson Technical Support at 866-294-1660. Inside this Package • In-building wireless amplifi er • AC/DC 110 volt power supply Additional Required Equipment (sold separately) • Outside Yagi antenna • Inside dome, panel or low-profi le antenna • Antenna coax cable How it Works Wilson amplifi ers are small, portable, bi-directional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage. They amplify a weak or shadowed signal in mobile, marine and in-building applications. When using a Wilson amplifi er in conjunction with Wilson antennas, the outside antenna will collect the cell tower signal and send it through the cable to the amplifi er. The signal is then amplifi ed and broadcast from the inside antenna to the surrounding area. Cell phones and cellular data cards in that area then communicate with the improved signal. When a cell phone or cellular device transmits, the signal is received by the inside antenna, amplifi ed by the amplifi er and broadcast back to the cell tower through the outside antenna. In-building wireless amplifi er AC/DC plug-in power supply 4 Installation Overview The following steps provide…

Text truncated - open the document above for the full version.

May 9, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 274106 amplifier under FCC ID: PWO274106SB in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram - Downlink, filename: 274106rx.jpg 2. Schematic Diagram - Uplink, filename: 274106tx.jpg 3. Operational Description, filename: 274106 Operational Description.doc 4. Block Diagram, filename: 274106 Block Diagram.doc The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Richard M. Kline Senior Electrical Engineer

Non-Conformities FCC ID: PWO274106SB (CKC CS Ref # E07-000034-01) 1 Form 731 , item12 listed 0.151watts in the range of 940-960MHz, however the test report under 3.1033(c )(6) listed 0.166 watts in the operating range 940MHz- 960MHz. Please provide correct operating power Response: Please correct the 731 form to show 0.166 Watts. 2 Controller has an 8 MHz clock, which is not shown on the block diagram. Please provide a revised block diagram. Response: A revised block diagram has been uploaded. 3 Blockedge plots are not included in the test report. Please show compliance to meet block edge Response: Block edge and Intermodulation requirements are met simultaneously on the same plots. In this case, block edge emissions are met on spurious emissions data sheets. 4 The provided Antenna Conducted Emission data sets showed frequency range investigate: 30 MHz-10GHz, however the radiated spurious emission data sets shows 30kHz-10GHz. Please provide data or statements to demonstrate compliance with 2.1057 (a) requirement Response: A revised test report has been uploaded. 5 The limit line of Intermodulation plots Page 39 -41does not provide enough detail to show compliance outside the authorized band. Please provide intermodulation plots showing compliance outside the authorized band. The intermodulation plots contain emissions that appears to exceed an emission limit line. please clarify. Response: The marker indicates a displayed value lower than the limit represented by the display line. See also page 38-39 of test report for tabular data demonstrating compliance to this part. 6 22.239 states the power of any emission outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log (P) dB. Please provide justification complying to attenuation of at least 43+10Log(p) dB Response: Part 22 report -- Since in this case, the carrier and spurious emissions are measured in peak detection mode, the calculation is as follows: P(dBW) - (43+10*log(P)) = -43dBW = 94dBuV (power into a 50 ohm measurement system) Non-Conformities IC: 4726A-274106SB (CKC CS Ref # E07-000034-IC-01) 1 Missing statement, please provide user manual with the statements as requirement of RSS GEN 7.1.3, RSS-Gen 7.1.4 Response: This information is not needed because the EUT is not a low power device. 2 RSS 131 states a pass band gain shall not exceed the nominal gain by 1 dB. Please provide plots/data to show compliance. Response: I do not understand the purpose of this question - the manufacturer states the gain of the amplifier is 60dB; the measured gain is 60.3. This meets the requirements of RSS-131. 3 RSS 131 Passband gain and bandwidth are defined with reference to the nominal gain of the amplifier. Please provide pass band gain plots with reference to the gain (dB) of an amplifier Response: I do not understand the purpose of this question (see response to item 2) 4 RSS131requires gain vs frequency plot of up to at least 250% of the 20dB bandwidth. Please prove plots to satisfy the requirement Response: The passband width was measured as 40MHz. The span used on the plots provided is 100 MHz (2.5 * 40 MHz = 100 MHz). The plots provided comply with the measurement requirements of RSS-131.

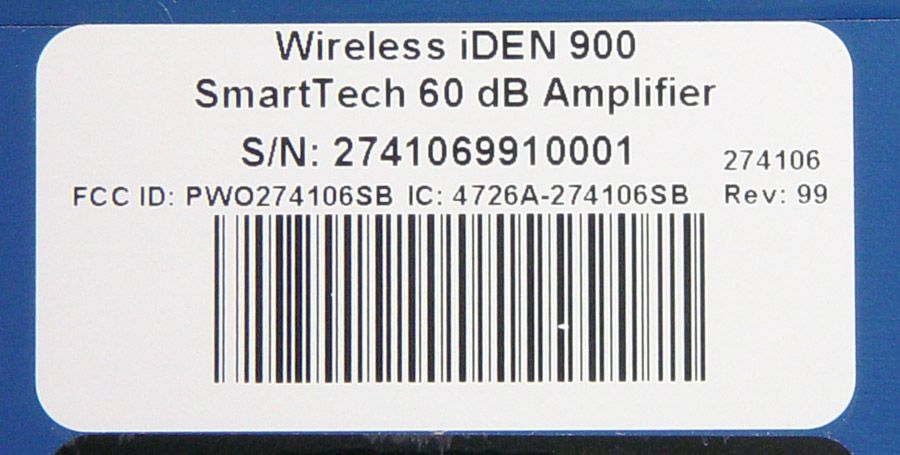

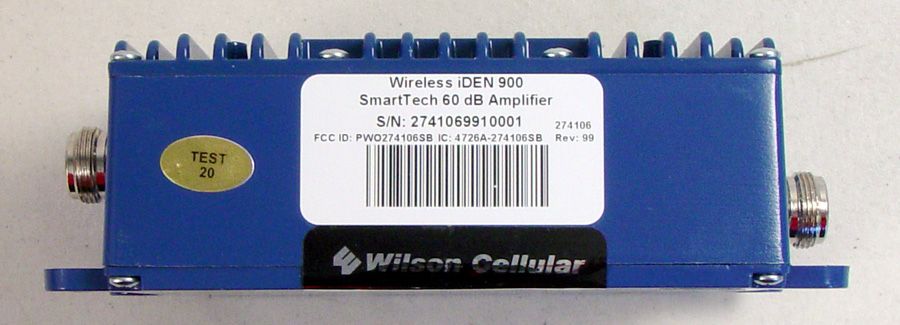

Top Bottom Outside Antenna Connection Inside Antenna Connection Power Connection

Top Cover Removed Bottom Cover Removed Board 1 Top Board 1 Bottom Board 2 Top Board 2 Bottom

2.1033(c)(8) DC Voltages While amplifying signals: Uplink 12VDC @ 2A, Downlink 5VDC @ 300mA 2.1033(c)(9) Tune-up Procedure Not Applicable. There are no adjustments to be made by the user of this equipment. Everything is internal and factory adjusted.

Page 1 of 49 Report No.: FC07-022A ADDENDUM WILSON ELECTRONICS TEST REPORT FC07-022 FOR THE IDEN 900 MHZ AMPLIFIER, 274106 FCC PART 22 AND RSS-131 ISSUE 2: 2003 COMPLIANCE DATE OF ISSUE: MAY 17, 2007 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: IDN274106-1 W.O. No.: 86003 Date of test: January 16 - April 25, 2007 Report No.: FC07-022A This report contains a total of 48 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 49 Report No.: FC07-022A TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................5 Conditions for Compliance ..............................................................................................5 Equipment Under Test (EUT) Description ......................................................................6 Equipment Under Test .....................................................................................................6 Peripheral Devices ...........................................................................................................6 Temperature and Humidity During Testing.....................................................................7 FCC 2.1033(c)(3) User’s Manual ....................................................................................7 FCC 2.1033(c)(4) Type of Emissions ..............................................................................7 FCC 2.1033(c)(5) Frequency Range................................................................................7 FCC 2.1033(c)(6) Operating Power.................................................................................7 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................7 FCC 2.1033(c)(8) DC Voltages .......................................................................................7 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................7 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................7 FCC 2.1033(c)(11) Label and Placement ........................................................................7 FCC 2.1033(c)(12) Submittal Photos ..............................................................................7 FCC 2.1033(c)(13) Modulation Information ...................................................................7 FCC 2.1033(c)(14)/2.1046/22 - RF Power Output ..........................................................8 RSS-131 - RF Power Output............................................................................................10 FCC 2.1033(c)(14)/2.1049(i) - Occupied Bandwidth......................................................14 Input Plots ........................................................................................................................16 Output Plots .....................................................................................................................20 FCC 2.1033(c)(14)/2.1051/22.359 - Spurious Emissions at Antenna Terminal..............24 FCC 2.1033(c)(14)/2.1053/22.359 - Field Strength of Spurious Radiation ....................36 Intermodulation Attenuation ............................................................................................38 Out of Band Amplification ..............................................................................................43 RSS-131 6.1 Pass Band Gain...........................................................................................45 RSS-131 6.1 Pass Band Width.........................................................................................47 RSS-131 6.2 MCE Output Power ....................................................................................49 Page 3 of 49 Report No.: FC07-022A ADMINISTRATIVE INFORMATION DATE OF TEST: January 16 - April 25, 2007 DATE OF RECEIPT: January 16, 2007 FREQUENCY RANGE TESTED: 30 MHz-10 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Riki Kline TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: FCC Part 22, RSS GEN and RSS-131 Issue 2: 2003 PURPOSE OF TEST: Original Report: To demonstrate the compliance of the iDEN 900 MHz Amplifier, 274106 with the requirements for FCC Part 22 and RSS-131 devices. Addendum A: To correct the frequency range tested on pages 3, 36 and 38. APPROVALS: Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Mike Wilkinson, EMC Engineer/Lab Page 4 of 49 Report No.: FC07-022A Manager Page 5 of 49 Report No.: FC07-022A FCC TO CANADA STANDARD CORRELATION MATRIX Canadian Standard Canadian Section FCC Standard FCC Section Test Description RSS 1315.4N/AN/AExternal Controls RSS 1315.547 CFR1.1307RF Exposure RSS 1316.1N/AN/APassband Gain and Bandwidth RSS 1316.2N/AN/ARF Power Output N/AN/A47 CFR22.913RF Power Output RSS 1316.3TIA/EIA603Non-Linearity (Intermodulation Attenuation) RSS 1316.447 CFR22.917Spurious Emissions Limitations RSS 1316.5N/AN/AFrequency Stability (Band Translators) 3082A-1784962Site File No. CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. Page 6 of 49 Report No.: FC07-022A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laborato…

Text truncated - open the document above for the full version.

Page 1 of 47 Report No.: FC07-026 WILSON ELECTRONICS TEST REPORT FOR THE IDEN 900 MHZ AMPLIFIER, 274106 FCC PART 90 AND RSS-131 ISSUE 2: 2003 COMPLIANCE DATE OF ISSUE: APRIL 25, 2007 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: IDN274106-1 W.O. No.: 86003 Date of test: January 16 – April 25, 2007 Report No.: FC07-026 This report contains a total of 47 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 47 Report No.: FC07-026 TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................4 Conditions for Compliance ..............................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/90.635 Power Output ...........................................................7 RSS-131 Power Output....................................................................................................9 FCC 2.1033(c)(14)/2.1049(i) - Occupied Bandwidth......................................................12 Input Plots ........................................................................................................................14 Output Plots .....................................................................................................................18 FCC 2.1033(c)(14)/2.1051/90.210 - Spurious Emissions at Antenna Terminal..............22 FCC 2.1033(c)(14)/2.1053/90.210 - Field Strength of Spurious Radiation ....................36 FCC 90.210(j) - Intermodulation Attenuation .................................................................38 Out of Band Amplification ..............................................................................................42 RSS-131 6.1 Pass Band Gain...........................................................................................44 RSS-131 6.1 Pass Band Width.........................................................................................46 Page 3 of 47 Report No.: FC07-026 ADMINISTRATIVE INFORMATION DATE OF TEST: January 16 – April 25, 2007 DATE OF RECEIPT: January 16, 2007 FREQUENCY RANGE TESTED: 9 kHz-10 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Riki Kline TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: FCC Part 90, RSS GEN and RSS-131 Issue 2: 2003 PURPOSE OF TEST: To demonstrate the compliance of the iDEN 900 MHz Amplifier, 274106 with the requirements for FCC Part 90 and RSS-131 devices. APPROVALS: Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Mike Wilkinson, EMC Engineer/Lab Manager Page 4 of 47 Report No.: FC07-026 FCC TO CANADA STANDARD CORRELATION MATRIX Canadian Standard Canadian Section FCC Standard FCC Section Test Description RSS 1315.4N/AN/AExternal Controls RSS 1315.547 CFR1.1307RF Exposure RSS 1316.1N/AN/APassband Gain and Bandwidth RSS 1316.247 CFR90.205RF Power Output RSS 1316.3TIA/EIA603Non-Linearity (Intermodulation Attenuation) RSS 1316.447 CFR90.210Spurious Emissions Limitations RSS 1316.5N/AN/AFrequency Stability (Band Translators) 3082A-1784962Site File No. CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. Page 5 of 47 Report No.: FC07-026 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. The EUT is a wireless, in-building, 900 MHz bi-directional amplifier for enhancing the range of iDEN cell phones. The amplifier is connected to an external antenna mounted outside the building, and to an internal antenna located inside the building. This …

Text truncated - open the document above for the full version.

Direct Connect Radiated Emissions
