PWO277380SINGLE-BAND CHANNELIZED SIGNAL BOOSTER

Contents: Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick Install Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing a Wilson Electronics Signal Booster . . . . . . . . . . . . . . . . . . . . .9 Powering up a Wilson Electronics Signal Booster . . . . . . . . . . . . . . . . .10 LCD, Uplink & Downlink Directions . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Understanding the Signal Booster Light & LCD Screen . . . . . . . . . . . .12 Warnings and Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Guarantee & Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . Channelized 800 MHz & 1900 MHz Adjustable Gain In-Building Wireless Smart Technology ™ Signal Boosters Appearance of device and accessories may vary . 1 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. 2 Installation Instructions for the Following Wilson Electronic Signal Boosters: Channelized 800 and 1900 MHz Adjustable Gain In-Building Wireless Smart Technology ™ Signal Booster Model # 277180 FCC ID: PWO277180 IC: 4726A-277180 Model # 277380 FCC ID: PWO277380 IC: 4726A-277380 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . How it Works Wilson Electronics Signal Boosters are bi-directional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage . They amplify a weak or shadowed signal in mobile, M2M, marine and in-building applications . When using a Wilson Electronics Signal Booster in conjunction with Wilson Electronics antennas, the outside antenna will collect the cell tower signal and send it through the cable to the Signal Booster . The signal is then amplified and re-transmitted through the Inside Antenna into the room . Cell phones and cellular data cards in that area then communicate with the improved signal . When a cell phone or cellular device transmits, the signal is received by the Inside Antenna, amplified by the Signal Booster and transmitted back to the cell tower through the Outside Antenna . Inside this Package Signal Booster AC/DC Power Supply (859912) To purchase, call Wilson Electronics Sales Department at: 800-204-4104 Outdoor Antenna Options Indoor Antenna Options & Accessories 1 . 800 MHz Yagi Cellular Antenna (301129) (Use with 807180) 2 . 1900 MHz Yagi PCS Antenna (301124) (Use with 807380) 3 . Wide Band Directional Antenna 700 MHz - 2700 MHz (304411) A . Wide-Band Panel Antenna 700-2700MHz (multiple mounting options) B . 50 Ohm Lightning Surge Protector N-Connector (859902) (Splitter options on page 9) 3 1 2 B A Note: Kits may contain different accessories Appearance of device and accessories may vary . We recommend using directional antennas with these Signal Boosters . 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. Select a location to install the Signal Booster that is away from 1 . excessive heat, direct sunlight, moisture and has proper ventilation . Do not place the Signal Booster in an air-tight enclosure . Select a location on the roof of the building to install the Outside Antenna . 2 . Use a cell phone in test mode to find the strongest signal from the cell tower . Refer to page 5 . Visit www.WilsonElectronics.com to find the test mode function for your particular cell phone . Run the Outside Antenna cable to the Signal Booster and attach it to 3 . the connector labeled “Outside Antenna” on the Signal Booster . Run the Inside Antenna cable to the Signal Booster and attach it to the connector labeled “Inside Antenna” on the Signal Booster . Refer to page 8 for more information on running cable . Lightning Surge Protection is recommended for all in-building installations refer to page 7 . Select a location for the Inside Antenna, preferably in the center of 4 . where the signal needs to be amplified . A minimum separation distance of 20 vertical feet (within the null zone) or 50 horizontal feet is necessary for proper operation . If the inside coverage is not sufficient you may need as much as 75 feet of horizontal separation (refer to installation diagram on pages 3 & 4) . Before powering up the Signal Booster, verify that both the Outside 5 . Antenna and the Inside Antenna are connected and check that all connections are tight . Refer to page 9 . Note: Be careful when plugging the connectors in so as not to bend the center pins on the connectors. Press yellow “CH Select” button to desired setting . Your channel will 6 . show on the LCD screen . Refer to pages 10-14 . The Signal Booster has been packaged with the gain control knobs 7 . adjusted to the highest gain position . If light is not green, please refer to pages 10-14 . Quick Install Overview See Installation Diagram on pages 3 & 4 . Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 . Wa…

Text truncated - open the document above for the full version.

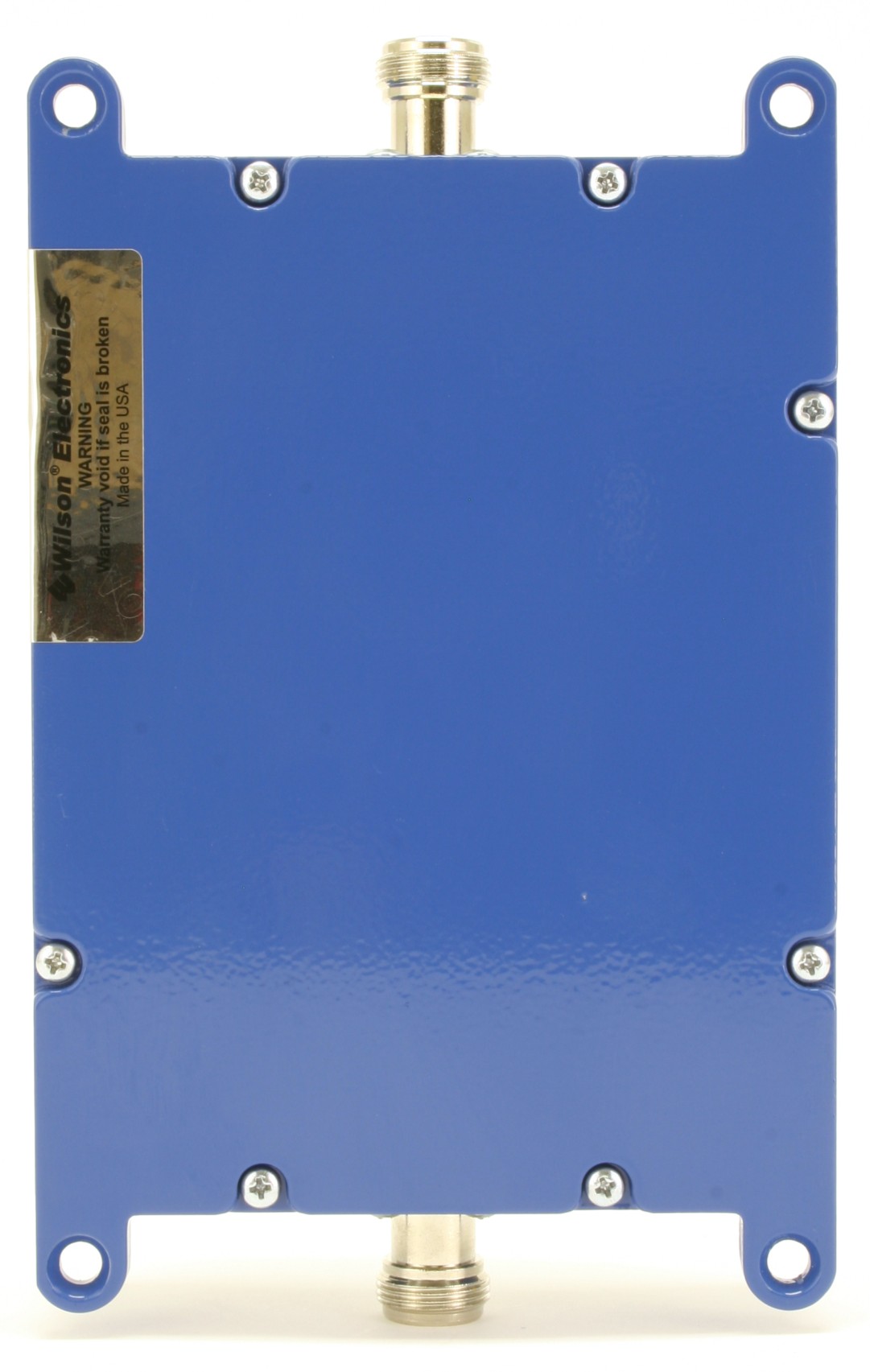

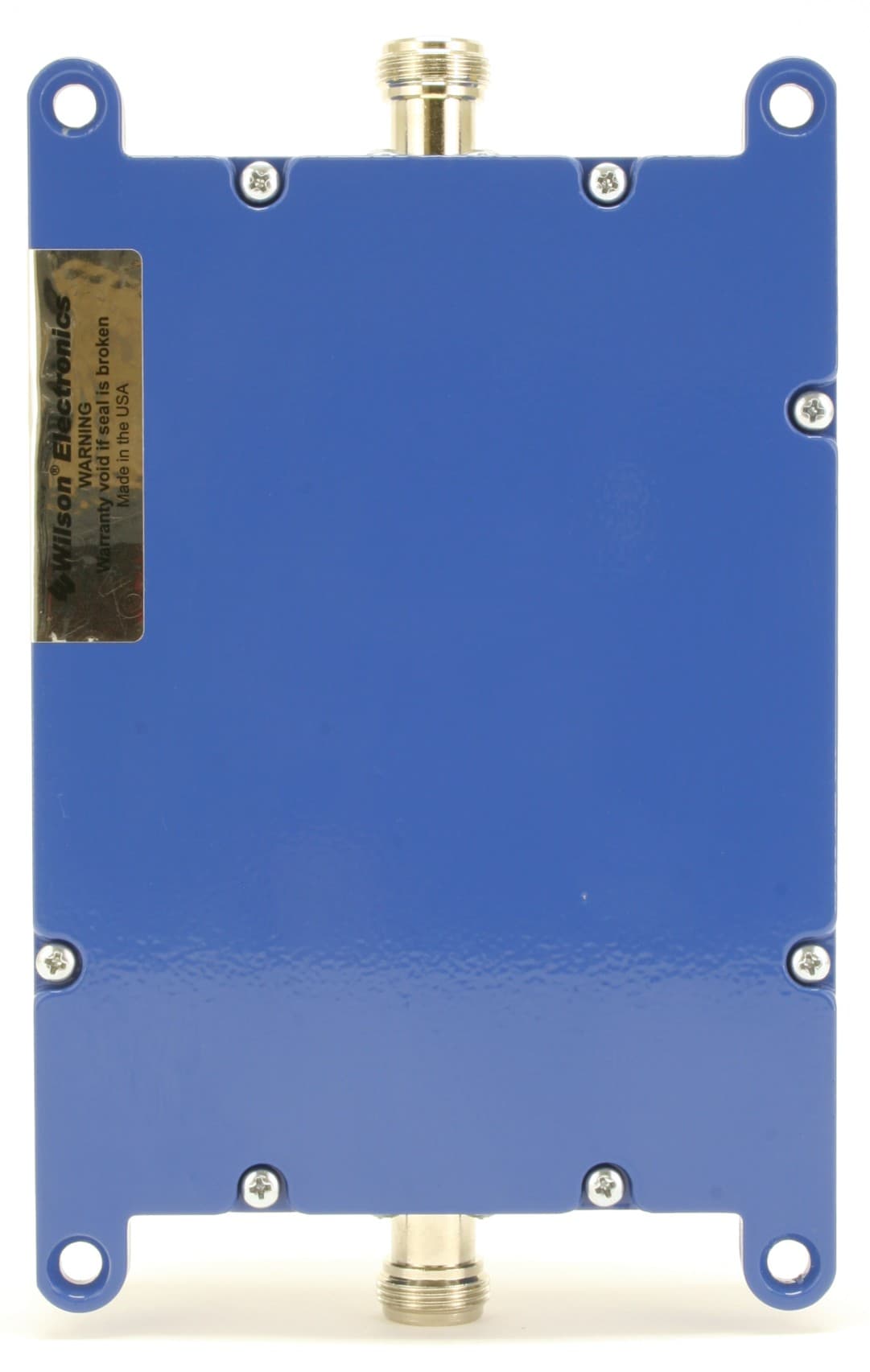

APPLICANT: WILSON ELECTRONICS INC. FCC ID: PWO277380 IC: 4726A-277380 EXTERNAL PHOTOS

APPLICANT: WILSON ELECTRONICS INC. FCC ID: PWO277380 IC: 4726A-277380 LABEL SAMPLE AND LOCATION

APPLICANT: WILSON ELECTRONICS INC. FCC ID: PWO277380 IC: 4726A-277380 INTERNAL PHOTOS

August 3, 2012 Tuning and Adjustment of Wilson Model 277380 Signal Booster There are no external tuning adjustments. The installer selects the channel and adjusts the gain of the booster as explained in pages 10 thru 12 of the User Manual. These adjustments are “fail safe” to prevent interference with cellular systems. If the adjustments are not made properly, the amplifier will either shut off or reduce its gain. Indication of these less then optimum conditions is evident by the booster’s LED indicator lights. Sincerely, Patrick L. Cook Senior Research and Development Engineer

August 2, 2012 Subject: RF MPE EXPOSURE Re: FCC ID: PWO277380 To Whom It May Concern: The MPE calculations for model 277380 signal booster were done for each frequency band: 1900 MHz. For each band two calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows: 1900 MHz band: 1. Fixed Outside Antenna 2. Inside Antenna The results of these calculations determine the safe distances and gains for antennas that may be connected to this signal booster as summarized below: Fixed Outside Antenna Inside Antenna Maximum Gain less Cable Loss (dBi) 15 6 Minimum Distance from All People (inches/cm) 22/55 8/21 Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz1850 Pout Watts1.17500 Duty Cycle Percent100.0% Ant. Gain dBi15.00 Coax Loss dB0.00 Distance From Antenna In cm55.0 Ant. Gain less Coax Loss dBi15.00 Distance From Antenna In Inches21.65 ERP (Watts)22.6566 EIRP (Watts)37.1568 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.98 REFERENCE DATA Pout dBm30.70 Antenna Gain (non-log)31.62 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 RESULTS OF CALCULATIONS 7/10/2012, 4:36 PM277380 1900 Outside Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz1930 Pout Watts1.23000 Duty Cycle Percent100.0% Ant. Gain dBi6.00 Coax Loss dB0.00 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi6.00 Distance From Antenna In Inches7.87 ERP (Watts)2.9858 EIRP (Watts)4.8967 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.97 REFERENCE DATA Pout dBm30.90 Antenna Gain (non-log)3.98 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 RESULTS OF CALCULATIONS 7/10/2012, 4:35 PM277380 1900 Inside

INDUSTRY CANADA RSS-131 AND FCC PART 22H AND PART 24E TEST REPORT Applicant WILSON ELECTRONICS, INC. Address 3301 E. DESERET DRIVE ST. GEORGE UTAH 84790 USA FCC ID PWO277380 IC Label IC: 4762A-277380 Model Number 277380 Product Description CHANNELIZED, WIRELESS, IN-BUILDING BI- DIRECTIONAL AMPLIFIER Date Sample Received 6/7/2011 Date Tested 6/17/2011 Tested By Nam Nguyen Approved By Mario de Aranzeta Report No. 1248AT11TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Test Certificate #0955-01 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO277380, IC: 4762A-277380 Report #: W\WILSON_PWO\1248AT11\1248AT11TestReport.doc Page 2 of 40 TABLE OF CONTENTS ATTESTATION STATEMENT ............................................................................ 3 REPORT SUMMARY ........................................................................................ 4 TEST ENVIRONMENT ..................................................................................... 4 TEST SETUP ................................................................................................... 4 DEVICE UNDER TEST INFORMATION ............................................................ 5 EQUIPMENT LIST ........................................................................................... 6 TEST PROCEDURE ......................................................................................... 7 RF POWER OUTPUT ..................................................................................... 10 Test Data Table 1 – Output Power – CDMA 1900 – Uplink/Downlink .................. 10 Test Data Table 2 – Output Power – EDGE 1900 – Uplink/Downlink .................. 10 Test Data Table 3 – Output Power – GSM 1900 – Uplink/Downlink .................... 10 Test Data Table 4 – Output Power – WCDMA 1900 – Uplink/Downlink ............... 10 INPUT/OUTPUT MODULATED AMPLITUDE COMPARISON AND BAND-EDGES COMPLIANCE ............................................................................................... 11 Test Data Table 5 – CDMA 1900 – Uplink/Downlink ........................................... 12 Test Data Table 6 – WCDMA 1900 – Uplink/Downlink ........................................ 16 Test Data Table 7 – EDGE 1900 – Uplink/Downlink ........................................... 20 Test Data Table 8 –GSM 1900 – Uplink/Downlink .............................................. 24 INTERMODULATION PRODUCT SPURIOUS EMISSIONS ............................... 28 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................................ 33 Test Data Table 9 – Conducted Emissions – CDMA 1900 – Uplink ...................... 33 Test Data Table 10 – Conducted Emissions – CDMA 1900 – Downlink ................ 33 Test Data Table 11 – Conducted Emissions – GSM 1900 - Uplink ....................... 34 Test Data Table 12 – Conducted Emissions – GSM 1900 - Downlink ................... 34 OUT OF BAND REJECTION: FREQUENCY RESPONSE ................................. 35 FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................. 37 Test Data Table 13 – Radiated Emissions - CW ................................................... 37 MEAN OUTPUT POWER FOR MULTI-CHANNEL ENHANCER (FOR IC ONLY) . 38 Test Data Table 14 – Mean Power ....................................................................... 38 PASSBAND GAIN AND BANDWIDTH (FOR IC ONLY) ..................................... 39 APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO277380, IC: 4762A-277380 Report #: W\WILSON_PWO\1248AT11\1248AT11TestReport.doc Page 3 of 40 ATTESTATION STATEMENT Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025:2005 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669. Authorized Signatory Name: Mario de Aranzeta Signature: Function: Engineer Date: 7/25/2011 APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO277380, IC: 4762A-277380 Report #: W\WILSON_PWO\1248AT11\1248AT11TestReport.doc Page 4 of 40 REPORT SUMMARY Disclaimer The test results relate only to the items tested. Report Purpose To demonstrate the DUT complies with FCC Part 22H and Pt 24 and Industry Canada RS-131 requirements for a dual band signal amplifier. Applicable Rule Part(s) Pt 22, Pt 24, Pt 15.109, RSS-131 Test Procedure(s) ANSI/TIA-603-C: 2004 TEST ENVIRONMENT Test Facilities All required tests were performed by Timco Engineering Inc. that is located at 849 NW State Road 45 Newberry, FL 32669. Test Conditions Temperature: 26ºC Relative Humidity: 50% TEST SETUP Deviation to the rules There was no deviation from the test standards. Modification to the DUT No modification was made to the DUT. Test Exercise (e.g. software description, test signal, etc.) The DUT was placed in continuous transmit mode of operation. APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO277380, IC: 4762A-277380 Report #: W\WILSON_PWO\1248AT11\1248AT11TestReport.doc Page 5 of 40 DEVICE UNDER TEST INFORMATION Manufactured by WILSON ELECTRONICS, INC. DUT Description CHANNELIZED, WIRELESS, IN-BUILDING BI- DIRECTIONAL AMPLIFIER FCC ID PWO277380 IC Label IC: 4762A-277380 Model Name 277380 Operating Frequency Uplink 1850 – …
