PWO2B2725TRI-BAND SIGNAL BOOSTER

To boost your phone’s signal power, the phone must be placed in the Sleek cradle. For best results, while the phone remains in the Sleek, use a Bluetooth headset, or hands free device. Appearance of device and accessories may vary. Smart Technology ™ 800 / (1700-2100) / 1900 MHz Cradle Cell Phone Signal Booster ® 4G-C Note: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your Sleek. Contents: Accessories ............................................................1 How it Works ...........................................................2 Install Diagrams - Vehicle .................................................2 Vehicle Installation .......................................................2 Power up the Wilson Electronics Sleek ......................................3 Adjusting the Sleek Arms .................................................4 Understanding the Sleek Lights ............................................4 Troubleshooting .........................................................4 In-Building Installation ....................................................5 Warnings ...............................................................6 About Wilson Electronics ..................................................6 Signal Booster Specifications .....................................Back Cover U.S. Patent No. 7,684,838; D626,953; 7,221,967; 7,729,669; 7,486,929; 7,729,656; 7,409,186; 7,783,318 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. 1 2 Inside this Package AC Power Supply *(859969) Mobile Power Supply (859984) Gooseneck Suction Cup Cradle Mount (901120) Cup Holder Cradle Mount (901130) Adjustable Desk Mount *(901137) Accessories for your Sleek ® Antenna Window Mount (Used with Mini-Magnet Mount Antenna) *(901128) Mini-Magnet Mount Antenna Vehicle Dash Adhesive Mounting Bracket DC Plug-In Power Supply & USB cable Sleek ® Cell Phone Signal Booster NOTE: If product #815225 & 812725 was ordered, package will only include Sleek wireless Signal Booster cradle, power supply, and mounting bracket. Vehicle Dash Mounting Kit -Rugged/Screw Mount- -Adhesive Mount- -Vent Clip Mount- (901134) * All 3 available together in the Home Accessory Kit - 859970 Adjustable Arms Appearance of device and accessories may vary. Sleek ® 4G-C Smart Technology ™ 800 / (1700-2100) / 1900 MHz Cradle Cell Phone Signal Booster Model # 2B2725 FCC ID: PWO2B2725 IC: 4726A-2B2725 FCC requires to never use the cell phone in the cradle next to your ear. The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. 1 2 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. General Your Wilson Electronics Sleek has been carefully engineered to significantly improve the performance of your phone. Together with an Outside Antenna, the Sleek’s state-of-the-art circuitry is designed to increase your phone’s signal to and from the cell tower. The Sleek reduces disconnects and dropouts and increases data communication rates on 2G, 3G networks and 4G on some models. How it Works With the phone in the cradle and while using a wireless Bluetooth ™ headset (or hands free device) the Outside Antenna collects the cell tower signal and sends it through its cable to the Sleek. The signal is then boosted by the Sleek and sent to the phone. When the phone transmits, the signal is picked up wirelessly and boosted by the Sleek and transmitted back to the cell tower through the Outside Antenna. Vehicle Installation Diagram NOTE: The cell phone must be placed in the cradle to work properly. Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may block cellular signals The Outside Antenna must be installed vertically. Antenna performance will be degraded if the antenna is not vertical. The antenna cable is small yet strong enough that it may be shut in most vehicle doors without damaging the cable. For a more professional-looking installation, run the antenna cable under the door seal. Carefully pull down the door seal. Run the cable under the seal and push the seal back into place. This prevents constant wear and tear on the cable as the door opens and closes. The antenna cable is small enough to easily tuck under the door seal or plastic molding. Mini-Magnet Mount Antenna Shown Carefully Pull Down Door Seal Run Cable Under Seal Vehicle Installation 1. Install the Outside Antenna To receive the best cell signal, select a location for the Outside Antenna that is preferably in the center of the vehicle’s roof, 12 inches (30 cm) away from any other antennas, free of obstructions, and at least 6 inches (15 cm) from the rear or side windows or sunroof. Sleek boosts signal to and from cell tower Outside Antenna communicates with cell tower Sleek w/phone Sleek w/phone 3 4 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. 3 4 2. Attach the Mounting Bracket A mounting bracket is provided for attaching the Sleek to your vehicle’s dash. Other options are also available from Wilson Electronics. Sleek power port. Connect Wilson Electronics power supply. Antenna connection Accessory USB power port 3. Attach the Sleek to the Bracket Once you have installed the bracket in the desired location, and waited 24 hours for adhesive to cure, attach the Sleek by aligning the rectangular hole on its back with the tab on the mount bracket, grasping the sides of the Sleek, and sliding it downward approximately ¼ inch (0.6 cm) into place. RF Safety Warning: The “Outside Antenna” must be either a Wilson Electronics Magnet …

Text truncated - open the document above for the full version.

August 30, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 2B2725 Signal Booster under FCC ID: PWO2B2725 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List (3 pages), filename: 2B2725 Schematic Diagram & Parts List.pdf 2. Operational Description, filename: 2B2725 Operational Description.pdf 3. Block Diagram, filename: 2B2725 Block Diagram.pdf The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Richard M. Kline Senior Electrical Engineer

August 30, 2012 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the six final amplification stages of the Model 2B2725 Signal Booster are: Uplink Amplifier (1710-1755 MHz): 4.0 V, 0.5 A (824-849 MHz): 4.0 V, 0.5 A (1850-1910 MHz): 4.0 V, 0.5 A Downlink Amplifier (2110-2155 MHz): 4.0 V, 0.5 A (869-894 MHz): 4.0 V, 0.5 A (1930-1990 MHz): 4.0 V, 0.5 A Sincerely, Richard M. Kline Senior Electrical Engineer

WILSON ELECTRONICS, INC. FCC ID: PWO2B2725 EXTERNAL PHOTOS

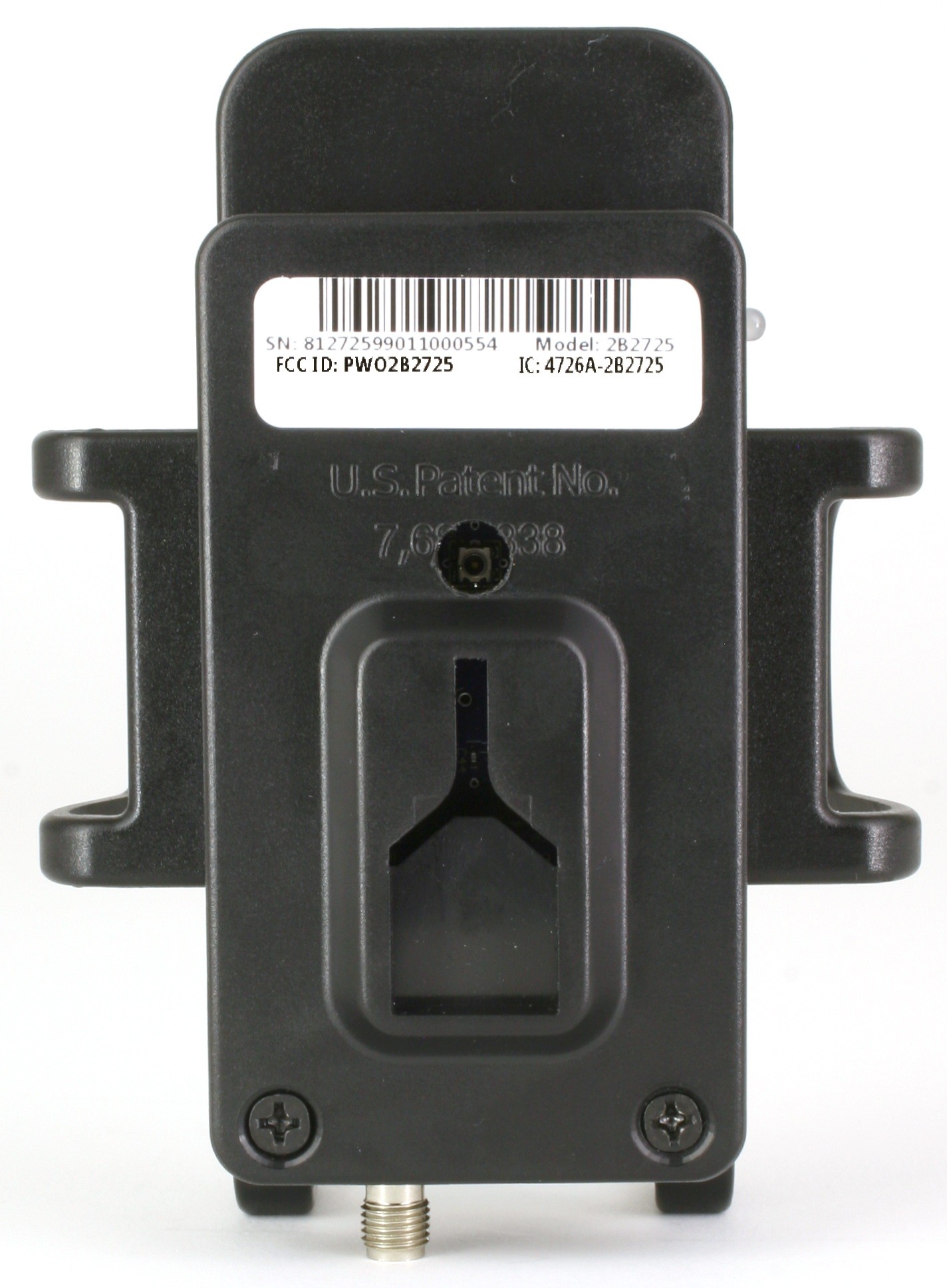

WILSON ELECTRONICS, INC. FCC ID: PWO2B2725 LABEL SAMPLE AND LOCATION

WILSON ELECTRONICS, INC. FCC ID: PWO2B2725 INTERNAL PHOTOS

August 30, 2012 Tuning and Adjustment of Wilson Model 2B2725 Signal Booster There are no external tuning adjustments. Sincerely, Richard M. Kline Senior Electrical Engineer

October 3, 2012 Subject: RF MPE EXPOSURE Re: FCC ID: PWO2B2725 To Whom It May Concern: The MPE calculations for model 2B2725 signal booster were done for each frequency band: 1700/2100 MHz, 800 MHz, and 1900 MHz. For each band three calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: mobile outside, fixed outside, and inside antennas. The order of the attached calculations is as follows: 1700/2100 MHz band: 1. Mobile Outside Antenna 2. Fixed Outside Antenna 3. Inside Antenna 800 MHz band: 4. Mobile Outside Antenna 5. Fixed Outside Antenna 6. Inside Antenna 1900 MHz band: 7. Mobile Outside Antenna 8. Fixed Outside Antenna 9. Inside Antenna The most conservative of these calculations is used to determine the safe distances and gains for antennas that may be connected to this signal booster as summarized below: Mobile Outside Antenna Fixed Outside Antenna Inside Antenna Maximum Gain less Cable Loss (dBi) 3.4 3.4 15 Minimum Distance from All People (cm) 20 20 20 Sincerely, Richard M. Kline Senior Electrical Engineer

FCC PART 22H, PART 24E AND 27 TEST REPORT Applicant WILSON ELECTRONICS, INC. Address 3301 E. DESERET DRIVE ST. GEORGE UTAH 84790 USA FCC ID PWO2B2725 Model Number 2B2725 Product Description WIRELESS, TRI-BAND SIGNAL BOOSTER Date Sample Received 7/25/2012 Date Tested 7/30/2012 Tested By Nam Nguyen Approved By Mario de Aranzeta Report No. 1851AUT12TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Test Certificate #0955-01 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO2B2725 Report #: W\WILSON_PWO\1851AUT12\1851AUT12TestReport.doc Page 2 of 114 TABLE OF CONTENTS ATTESTATION STATEMENT ............................................................................ 4 REPORT SUMMARY ........................................................................................ 5 TEST ENVIRONMENT ..................................................................................... 5 TEST SETUP ................................................................................................... 5 DEVICE UNDER TEST INFORMATION ............................................................ 6 EQUIPMENT LIST ........................................................................................... 7 TEST PROCEDURE ......................................................................................... 8 RF POWER OUTPUT ..................................................................................... 11 Test Data Table 1 – Output Power – CDMA 1900 – Uplink/Downlink .................. 11 Test Data Table 2 – Output Power – EVDO 1900 – Uplink/Downlink .................. 11 Test Data Table 3 – Output Power – HSPA 1900 – Uplink/Downlink ................... 11 Test Data Table 4 – Output Power – LTE 1900 – Uplink/Downlink ...................... 11 Test Data Table 5 – Output Power – GSM 1900 – Uplink/Downlink .................... 12 Test Data Table 6 – Output Power – EDGE 1900 – Uplink/Downlink .................. 12 Test Data Table 7 – Output Power – CDMA 1700 – Uplink/Downlink .................. 12 Test Data Table 8 – Output Power – EVDO 1700 – Uplink/Downlink .................. 12 Test Data Table 9 – Output Power – HSPA 1700 – Uplink/Downlink ................... 12 Test Data Table 10 – Output Power – LTE 1700 – Uplink/Downlink .................... 13 Test Data Table 11 – Output Power – GSM 1700 – Uplink/Downlink .................. 13 Test Data Table 12 – Output Power – EDGE 1700 – Uplink/Downlink ................ 13 Test Data Table 13 – Output Power – CDMA 800 – Uplink/Downlink .................. 13 Test Data Table 14 – Output Power – EVDO 800 – Uplink/Downlink .................. 13 Test Data Table 15 – Output Power – HSPA 800 – Uplink/Downlink ................... 14 Test Data Table 16 – Output Power – LTE 800 – Uplink/Downlink ...................... 14 Test Data Table 17 – Output Power – GSM 800 – Uplink/Downlink .................... 14 Test Data Table 18 – Output Power – EDGE 800 – Uplink/Downlink .................. 14 INPUT/OUTPUT MODULATED AMPLITUDE COMPARISON AND BAND-EDGES COMPLIANCE ............................................................................................... 15 Test Data Table 19 – CDMA 1900 – Uplink/Downlink ......................................... 16 Test Data Table 20 – EVDO 1900 – Uplink/Downlink ......................................... 20 Test Data Table 21 – HSPA 1900 – Uplink/Downlink .......................................... 24 Test Data Table 22 – LTE 1900 – Uplink/Downlink ............................................ 28 Test Data Table 23 –GSM 1900 – Uplink/Downlink ............................................ 32 Test Data Table 24 – EDGE 1900 – Uplink/Downlink ......................................... 36 Test Data Table 25 – CDMA 1700 – Uplink/Downlink ......................................... 40 Test Data Table 26 – EVDO 1700 – Uplink/Downlink ......................................... 44 Test Data Table 27 – HSPA 1700 – Uplink/Downlink .......................................... 48 Test Data Table 28 – LTE 1700 – Uplink/Downlink ............................................ 52 Test Data Table 29 –GSM 1700 – Uplink/Downlink ............................................ 56 Test Data Table 30 – EDGE 1700 – Uplink/Downlink ......................................... 60 Test Data Table 31 – CDMA 800 – Uplink/Downlink ........................................... 64 Test Data Table 32 – EVDO 800 – Uplink/Downlink ........................................... 68 Test Data Table 33 – HSPA 800 – Uplink/Downlink ............................................ 72 Test Data Table 18 – LTE 800 – Uplink/Downlink .............................................. 76 Test Data Table 35 – GSM 800 – Uplink/Downlink ............................................. 80 APPLICANT: WILSON ELECTRONICS, INC. FCC ID: PWO2B2725 Report #: W\WILSON_PWO\1851AUT12\1851AUT12TestReport.doc Page 3 of 114 Test Data Table 36 – EDGE 800 – Uplink/Downlink ........................................... 84 INTERMODULATION PRODUCT SPURIOUS EMISSIONS ............................... 88 1900 MHz .......................................................................................................... 89 1700 MHz .......................................................................................................... 91 800 MHz ............................................................................................................ 93 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................... 101 Test Data Table 37 – Conducted Emissions – CDMA 1900 – Uplink .................. 101 Test Data Table 38 – Conducted Emissions – CDMA 1900 – Downlink .............. 101 Test Data Table 39 – Conducted Emissions – GSM 1900 - Uplink ..................... 102 Test Data Table 40 – Condu…
