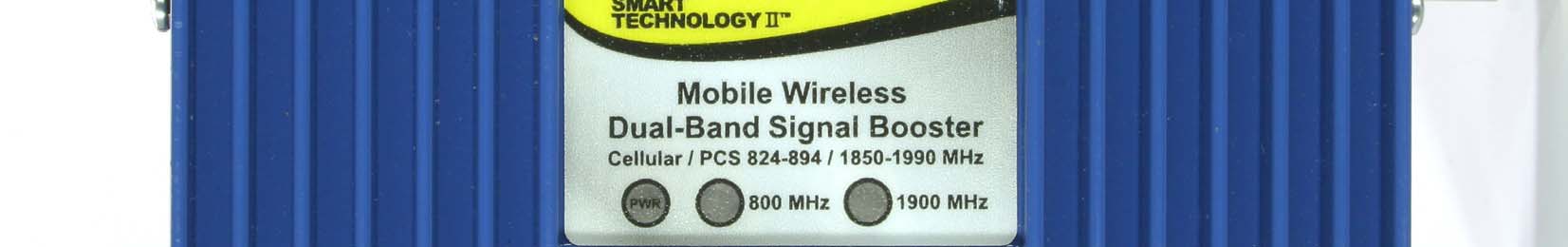

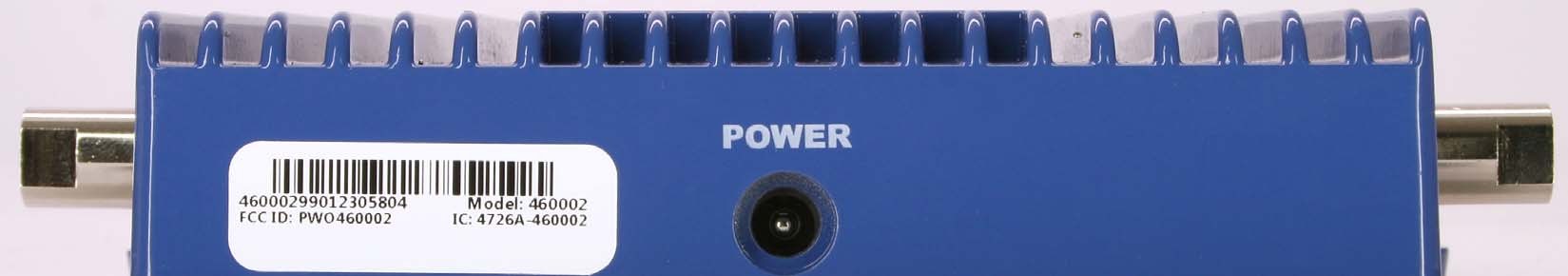

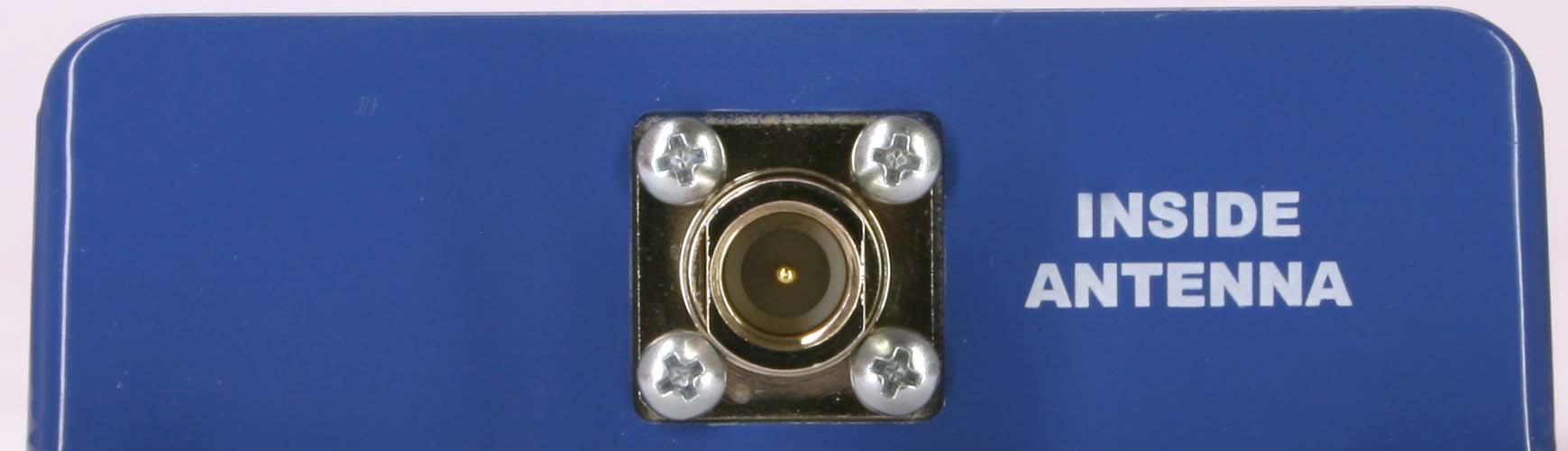

PWO460002Model 460002 Signal Booster

Contents: How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Quick Installation Overview . . . . . . . . . . . . . . . . . . . . . . . .2 Installing the Outside Antenna . . . . . . . . . . . . . . . . . . . . . .2 Installing the Low-Profile Antenna . . . . . . . . . . . . . . . . . . .3 Installing a Wilson Electronics Signal Booster . . . . . . . . . .3 Powering Up a Wilson Electronics Signal Booster . . . . . .3 Understanding the Signal Booster Lights . . . . . . . . . . . . .4 Warnings and Recommendations . . . . . . . . . . . . . . . . . . .5 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .6 Signal Booster Specifications . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . Mobile 3G Smart Technology ™ Signal Booster Appearance of device and accessories may vary . 12 Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660 Or email: [email protected] Mon.- Fri. Hours: 7am to 6 pm MST. Signal Booster DC power supply 6V / 2A (859913) How it Works Your new Wilson Signal Booster has been carefully engineered to significantly improve the performance of your cell phone and cellular data card in mobile applications . Together with an Outside Antenna, the Signal Booster’s state-of-the-art technology is designed to increase your signal, reduce dropped calls and increase data communication rates . The Outside Antenna will collect the cell tower signal and send it through the cable to the Signal Booster which is then boosted and sent to the Inside Antenna . Result – improved signal! KIT CONFIGURATION Wilson Electronics manufactures a wide variety of antennas to help you customize your Signal Booster for your specific application . See your dealer or visit www.WilsonElectronics.com . Installation Instructions for the Following Wilson Electronics Signal Boosters: Mobile 3G Smart Technology ™ Signal Booster Model # 460002 FCC ID: PWO460002 IC ID: 4726A-460002 INSIDE ANTENNA OPTIONS OUTSIDE ANTENNA OPTIONS 301152 - Slim Low Profile w/ 10’ RG174 311106 - Low Profile w/ 10’ RG58 Mini-Mag 301126 w/ 12 .5 RG174 cable- SMA 301113 w/ 12 .5 RG174 cable - FME 12” Mag Mount 311103 w/ 12 .5’ RG174 311125 w/ 12 .5’ RG174 311128 w/ 12 .5’ RG174 314202 w/ 12 .5’ RG174 Trucker Antenna 311101 w/10 .5’ RG58 311701 w/10 .5’ RG58 Trucker Antenna 311119 w/13 .5’ RG58 311133 w/13 .5’ RG58 Marine Antenna 311130-5810 w/10 .5’ RG58 Glass Mount 311102 w/14’ RG58 311114 w/14’ RG58 NMO Antenna Kit 311104-5810 • 800/1900 NMO Antenna • 10’ RG58 Cable Kit 311112-5810 • 800/1900 NMO Antenna • 10’ RG58 Cable Kit 314203-5810 • 800/900/1900 NMO Antenna • 10’ RG58 Cable Kit 311104-17410 • 800/1900 NMO Antenna • 10’ RG174 Cable Kit 311104-40015 • 800/1900 NMO Antenna • 15’ LMR400 Cable Kit 311112-17410 • 800/1900 NMO Antenna • 10’ RG174 Cable Kit 314203-17410 • 800/900/1900 NMO Antenna • 10’ RG174 Cable Kit 311112-40015 • 800/1900 NMO Antenna • 15’ LMR400 cable Kit 314203-40015 • 800/900/1900 NMO antenna • 15’ LMR400 cable The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . 2 Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660 Or email: [email protected] Mon.- Fri. Hours: 7am to 6 pm MST. Warning: In a wireless installation, do not plug the Signal Booster directly into the cell phone and/or data card using an antenna adapter . It may damage the Signal Booster, cell phone and/or data card . ! ! Quick Installation Overview Magnet - Mount Antenna Shown Part #301103 Carefully Pull Down Door Seal Run Cable Under Seal Tuck Cable Under Seal Installing the Outside Antenna To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches away from any other antennas or windows . If the vehicle has a sunroof, it is important to separate the Inside and Outside Antennas by at least five feet . This prevents the Signal Booster from overloading or oscillating . As shown above . Follow the specific antenna installation instructions included with the Outside Antenna . Separation of the Inside and Outside Antennas is very important . The metal roof of the vehicle acts as a barrier and helps shield the two antennas from each other, preventing oscillation (feedback) . The Outside Antenna must be installed vertically . Signal performance will be degraded if the antenna is not vertical . The antenna cable may run through the door to the Signal Booster . For a more professional looking installation, run the antenna cable under the door seal . The antenna cable is small enough to easily tuck under the door seal or plastic molding . Carefully pull down the door seal . Run the cable through the seal and push the seal back into place . This prevents constant wear and tear on the cable as the door opens and closes . Warning: Do not plug in the DC power supply until the Outside and Inside Antenna cables are attached to the Signal Booster . HUMMERHUMMER Installation Diagram Outside Antenna Inside Antenna Distance between antennas through a sunroof must be 5 feet or more . DC Power Supply Signal Booster Cell Phone PDA Notebook Before Getting Started This guide will help you properly install your Wilson Electronics Dual-Band Mobile Wireless Signal Booster . It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment . Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 . 34 Contact Wilson Electronics’s Techni…

Text truncated - open the document above for the full version.

Contents: How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Quick Installation Overview . . . . . . . . . . . . . . . . . . . . . . . .2 Installing the Outside Antenna . . . . . . . . . . . . . . . . . . . . . .2 Installing the Low-Profile Antenna . . . . . . . . . . . . . . . . . . .3 Installing a Wilson Electronics Signal Booster . . . . . . . . . .3 Powering Up a Wilson Electronics Signal Booster . . . . . .3 Understanding the Signal Booster Lights . . . . . . . . . . . . .4 Warnings and Recommendations . . . . . . . . . . . . . . . . . . .5 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .6 Signal Booster Specifications . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . Mobile 3G Smart Technology ™ Signal Booster Appearance of device and accessories may vary . 12 Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660 Or email: [email protected] Mon.- Fri. Hours: 7am to 6 pm MST. Signal Booster DC power supply 6V / 2A (859913) How it Works Your new Wilson Signal Booster has been carefully engineered to significantly improve the performance of your cell phone and cellular data card in mobile applications . Together with an Outside Antenna, the Signal Booster’s state-of-the-art technology is designed to increase your signal, reduce dropped calls and increase data communication rates . The Outside Antenna will collect the cell tower signal and send it through the cable to the Signal Booster which is then boosted and sent to the Inside Antenna . Result – improved signal! KIT CONFIGURATION Wilson Electronics manufactures a wide variety of antennas to help you customize your Signal Booster for your specific application . See your dealer or visit www.WilsonElectronics.com . Installation Instructions for the Following Wilson Electronics Signal Boosters: Mobile 3G Smart Technology ™ Signal Booster Model # 460002 FCC ID: PWO460002 IC ID: 4726A-460002 INSIDE ANTENNA OPTIONS OUTSIDE ANTENNA OPTIONS 301152 - Slim Low Profile w/ 10’ RG174 311106 - Low Profile w/ 14’ RG58 Mini-Mag 301126 w/ 12 .5 RG174 cable- SMA 301113 w/ 12 .5 RG174 cable - FME 12” Mag Mount 311103 w/ 12 .5’ RG174 311125 w/ 12 .5’ RG174 311128 w/ 12 .5’ RG174 314202 w/ 12 .5’ RG174 Trucker Antenna 311101 w/10 .5’ RG58 311701 w/10 .5’ RG58 Trucker Antenna 311119 w/13 .5’ RG58 311133 w/13 .5’ RG58 Marine Antenna 311130-5810 w/10 .5’ RG58 Glass Mount 311102 w/14’ RG58 311114 w/14’ RG58 NMO Antenna Kit 311104-5810 • 800/1900 NMO Antenna • 10’ RG58 Cable Kit 311112-5810 • 800/1900 NMO Antenna • 10’ RG58 Cable Kit 314203-5810 • 800/900/1900 NMO Antenna • 10’ RG58 Cable Kit 311104-17410 • 800/1900 NMO Antenna • 10’ RG174 Cable Kit 311104-40015 • 800/1900 NMO Antenna • 15’ LMR400 Cable Kit 311112-17410 • 800/1900 NMO Antenna • 10’ RG174 Cable Kit 314203-17410 • 800/900/1900 NMO Antenna • 10’ RG174 Cable Kit 311112-40015 • 800/1900 NMO Antenna • 15’ LMR400 cable Kit 314203-40015 • 800/900/1900 NMO antenna • 15’ LMR400 cable The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . 2 Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660 Or email: [email protected] Mon.- Fri. Hours: 7am to 6 pm MST. Warning: In a wireless installation, do not plug the Signal Booster directly into the cell phone and/or data card using an antenna adapter . It may damage the Signal Booster, cell phone and/or data card . ! ! Quick Installation Overview Magnet - Mount Antenna Shown Part #301103 Carefully Pull Down Door Seal Run Cable Under Seal Tuck Cable Under Seal Installing the Outside Antenna To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches away from any other antennas or windows . If the vehicle has a sunroof, it is important to separate the Inside and Outside Antennas by at least five feet . This prevents the Signal Booster from overloading or oscillating . As shown above . Follow the specific antenna installation instructions included with the Outside Antenna . Separation of the Inside and Outside Antennas is very important . The metal roof of the vehicle acts as a barrier and helps shield the two antennas from each other, preventing oscillation (feedback) . The Outside Antenna must be installed vertically . Signal performance will be degraded if the antenna is not vertical . The antenna cable may run through the door to the Signal Booster . For a more professional looking installation, run the antenna cable under the door seal . The antenna cable is small enough to easily tuck under the door seal or plastic molding . Carefully pull down the door seal . Run the cable through the seal and push the seal back into place . This prevents constant wear and tear on the cable as the door opens and closes . Warning: Do not plug in the DC power supply until the Outside and Inside Antenna cables are attached to the Signal Booster . HUMMERHUMMER Installation Diagram Outside Antenna Inside Antenna Distance between antennas through a sunroof must be 5 feet or more . DC Power Supply Signal Booster Cell Phone PDA Notebook Before Getting Started This guide will help you properly install your Wilson Electronics Dual-Band Mobile Wireless Signal Booster . It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment . Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 . 34 Contact Wilson Electronics’s Techni…

Text truncated - open the document above for the full version.

January 13, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460002 Each Signal Booster certificated under FCC ID PWO460002 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Senior Research and Development Engineer

September 5, 2013 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460002 Signal Booster are: Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1910 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1990 MHz): 4.3 V, 0.5 A Patrick L. Cook Senior Research and Development Engineer

July 20, 2013 Tuning and Adjustment of Wilson Model 460002 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, or downlink dependent region (RSSI) as provided in the test results. Sincerely, Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460002 CT Project: P1330010 From: Daniel Park Request for information Date: 12/6/13 1. The operational frequency in “Theory of Operation” was stated uplink as 1850-1910, however, at the page 3 of “Antenna Kitting” for PCS band and “Block Diagram” show “1850-1915” instead, and also the downlink side in “Block Diagram” has similar issue such as 1930-1995 instead of 1930-1990. Please verify and correct as necessary. CT – Please refer to updated files. 2. Please provide the full name of KDB 935210 D03 at the page 5 of “Test Report_p1330010_FCC_Part 20_Rev 1”. CT – Corrected. 3. Please provide justification for LTE exclusion for “out of Band emissions” testing in “Test Report_p1330010_FCC_Part 20_Rev 1” exhibit. CT – LTE, AWGN, and WCDMA are the three equivalent signal types only one of which must be tested which is the case here. 4. At the page 11 of “Test Report_p1330010_FCC_Part 20_Rev 1” exhibit, “Downlink Test Results” for 800 MHz band output does not agree with the test plot at the page 13 of the report. Please verify and correct the data as necessary. CT – The typographical error has been corrected. 5. At the page 14 in “Test Report_p1330010_FCC_Part 20_Rev 1” exhibit, the test data in the summary tables and the related plot outputs are not consistent. Please verify and correct as necessary. CT – Corrected 6. For the future improvement, please add the test limit on the “Conducted Spurious Emissions” test plots. CT – Noted. 7. At the page 41 of the RF test report, please also include the measured noise power results on the summary table at the inactive state and compared with FCC compliance Limit (<=‐70 dBm/Mhz) for showing compliance. CT – Page 42 of the test reports contain the plots associated with this test and the display line is set to -70 dBm/MHz and the off-state is clearly below the limit. Response by: John Erhard Submitted by: Jennifer Sanchez Date: 12/18/13

January 13, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460002 Signal Booster under FCC ID: PWO460002 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List (4 pages) 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460002 CRN: 169315 CT Project: P1330010 From: Tim Harrington (FCC OET office) Request for information Date: 3/19/14 1. Please confirm and explain that despite the different model/part numbers shown those are the same antennas. OR if appropriate please revise for consistency across all exhibits in this filing. Wilson Electronics – There was a typo in the description of the antenna length in the user manual for model 301106. Please see the revised user manual. The 301152 that is listed in the user manual is the correct part number. There was a part number change which was reflected in the revised install guide, but the was overlooked in the antenna kitting exhibit. Please see the revised antenna kitting exhibit. 2. Please explain whether and where pictures and/or specific install instructions are at grantee's website for the preceding specified antennas. OR if not webposted then please submit photos and/or specific install instructions herein. Wilson Electronics – Due to the extensive amount of changes required on the Wilson Electronics website, the updates are still in process. Attached are the installation instructions for both the 301152 and the 301106 antennas. Response by: Wilson Electronics Submitted by: Compliance Testing LLC Date: 3/24/14

October 15, 2013 Subject: Antenna Measurements and Testing Data To Whom It May Concern: The gains for each antenna were tested using a log periodic antenna calibrated by RTCE labs as the standard. Attached are the Wilson Electronics antenna measurements, the RTCE Antenna Testing Summary, and calibration information. Sincerely, Patrick L. Cook Senior Research and Development Engineer Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311103 311125 311128 314202 Gains-4.80.12.0-7.02.5CKA9/17/2013 311703Gains-15.0-4.20.7-2.01.2CKA9/17/2013 301113 301126 Gains-0.3-2.2-1.91.21.9CKA9/17/2013 311101Gains-4.50.41.7-3.66.1CKA9/17/2013 311701Gains-14.1-0.72.2-0.22.7CKA9/17/2013 311119Gains-1.40.41.2-2.33.6CKA9/17/2013 311133Gains-3.30.21.2-4.84.2CKA9/17/2013 311130Gains-1.0-1.60.7-1.73.6CKA9/17/2013 311102Gains-3.7-2.5-0.92.23.4CKA9/17/2013 311114Gains-7.5-6.1-5.42.61.4CKA9/17/2013 311104Gains-4.1-0.92.5-3.51.8CKA9/17/2013 311112Gains-3.2-0.52.5-2.6-0.7CKA9/17/2013 314203Gains-1.60.51.8-5.70.8CKA9/17/2013 301105Gains4.14.11.4-7.0CKA6/22/2010 MARINE ANTENNAS GLASS MOUNT ANTENNAS MINI GLASS MOUNT ANTENNAS NMO ANTENNAS TRUCKER ANTENNAS Outside Mobile Antennas MINI MAGNET MOUNT ANTENNAS MAGNET MOUNT ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 311127Gains-1.9-2.32.2-3.1-0.5DD9/25/2013 311106Gains-5.6-5.60.50.90.1DD9/25/2013 301143 301149 Gains-5.7-5.7-6.83.95.0CKA9/27/2010 301143 301149 Gains-7.0-7.0-8.0-16.0-15.0CKA9/27/2010 301146 301148 Gains-5.0-5.00.72.61.5CKA11/9/2012 301146 301148 Gains-7.0-7.0-8.0-16.0-15.0CKA11/9/2012 CRADLE PLUS ANTENNAS ULTRA SLIM ANTENNAS Inside Mobile Antennas LOW PROFILE ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311141Gains-2.9-0.61.2-0.45.5CKA9/17/2013 311202Gains-1.5-0.20.6-2.55.1CKA9/17/2013 301111Gains10.010.010.8-6.8-14.9CKA9/17/2013 311124Gains2.07.29.6-6.7-12.0CKA9/17/2013 311129Gains-18.7-18.7-23.49.110.9CKA9/17/2013 301142Gains-3.6-3.63.7-10.2CKA6/22/2010 314411 314475 Gains7.37.27.87.99.1CKA9/17/2013 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains3.83.64.48.210.0CKA9/17/2013 OMNI DIRECTIONAL ANTENNAS YAGI (LOG PERIODIC, WIDE BAND DIRECTIONAL) ANTENNAS YAGI ANTENNAS Outside Fixed Antennas EXTERIOR PANEL ANTENNA PANEL ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 301213Gains2.42.43.13.5-2.7CKA9/19/2013 301121 301151 Gains-2.5-2.51.53.01.5CKA8/18/2010 301123Gains-11.7-11.7-20.7-8.3-8.3CKA8/18/2010 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains4.24.26.19.86.7CKA9/19/2013 PANEL ANTENNAS DOME ANTENNAS Inside Fixed Antennas DESKTOP MOUNT ANTENNAS Test Date Friday, July 19, 2013 Tested By: Glenn Robb (919) 200-0292 [email protected] Axis Antenna Under Test Orientation Notes (See Coordinate Diagram Tab And Separate Setup Photos) +Z Axis is Theta= 0 & Phi=any Axis of intended use -Z Axis is Theta= 180 & Phi=any Axis of feed line RTCE Antenna Testing Summary Sample Description Notes And Observations XZ Cut (Turntable) is Theta=0-360 & Phi=0, or Theta=0-180 & Phi=0 then Theta=180-0 & Phi=180 YZ Cut is Theta=0-360 & Phi=90, or Theta=0-180 & Phi=90 then Theta=180-0 & Phi=270 XY Cut is Theta=90 & Phi=0-360 Other Coordinate Notes, 3-Axis Cuts in Spherical Coordinates ... www.RTCE.com Frequency (MHz) Main Axis Realized Gain "+Z" (dBi) Rear Axis Gain "-Z" (dBi) Front/Back Ratio (dB) Side Axis Realized Gain "+X" (dBi) Side Axis Realized Gain "-X" (dBi) Side Axis Realized Gain "+Y" (dBi) Side Axis Realized Gain "-Y" (dBi) 695 7.1 -2.59.6-9.0-9.8-4.1-3.9 700 7.3 -3.410.7-9.8-10.1-3.9-3.8 705 7.4 -4.311.7-11.1-10.6-4.0-3.9 710 7.3 -5.312.7-12.7-10.9-4.1-4.1 715 7.2 -6.413.6-15.1-11.1-4.2-4.3 720 7.1 -7.714.7-16.9-11.1-4.0-4.1 725 7.1 -8.715.7-16.5-12.9-4.0-4.0 730 7.0 -9.216.2-17.3-14.5-3.9-3.8 735 6.9 -9.716.6-18.4-15.4-3.5-3.6 740 7.1 -9.917.1-19.0-15.8-3.3-3.4 745 7.3 -10.317.6-19.5-16.0-3.3-3.4 750 7.4 -10.517.9-20.0-16.1-3.3-3.4 755 7.4 -10.718.1-20.4-16.2-3.2-3.4 760 7.5 -10.818.2-20.4-16.0-3.1-3.4 820 7.5 -10.818.2-17.0-13.2-4.0-3.6 825 7.6 -10.518.1-17.8-13.8-4.0-3.7 830 7.7 -10.317.9-18.0-14.5-3.9-3.8 835 7.7 -10.117.8-18.0-15.3-3.9-3.9 840 7.8 -9.917.6-17.8-16.0-3.9-3.9 845 7.8 -9.817.6-17.6-16.8-3.8-3.9 850 7.8 -9.817.6-17.2-17.4-3.8-3.9 870 8.0 -9.717.7-16.3-21.2-3.4-3.6 875 8.1 -9.617.7-16.2-22.6-3.2-3.5 880 8.1 -9.617.8-16.2-24.1-3.1-3.5 885 8.1 -9.917.9-16.5-25.6-3.3-3.6 890 8.0 -10.218.1-16.9-27.4-3.6-4.0 895 7.7 -10.518.2-17.6-29.0-4.0-4.4 1710 8.1 -17.025.1-11.3-11.5-1.40.0 1715 8.2 -16.725.0-11.6-12.2-1.40.1 1720 8.3 -16.224.5-11.9-13.3-1.30.3 1725 8.4 -15.724.1-11.8-14.2-1.30.4 1730 8.4 -15.123.6-11.7-15.0-1.20.5 1735 8.5 -14.823.3-11.5-15.5-1.30.6 1740 8.5 -14.623.1-11.4-15.5-1.30.7 1745 8.6 -14.523.1-11.0-15.3-1.30.7 1750 8.7 -14.423.0-10.9-14.7-1.20.7 1755 8.7 -14.823.5-10.8-14.0-1.10.8 1850 8.7 -17.826.5-13.8-15.8-1.6-0.2 1855 8.6 -18.026.7-13.7-15.0-1.6-0.2 1860 8.5 -18.326.8-13.3-14.1-1.7-0.3 1865 8.5 -18.927.4-13.1-13.4-1.8-0.3 1870 8.4 -19.628.0-12.8-12.9-1.9-0.4 1875 8.4 -20.629.1-12.5-12.6-2.0-0.4 1880 8.5 -21.930.4-12.4-13.0-1.9-0.3 1885 8.6 -22.431.0-12.2-13.1-1.8-0.1 1890 8.7 -24.533.2-11.9-13.0-1.80.2 1895 8.8 -25.634.4-11.7-12.8-1.80.4 1900 8.9 -26.535.4-11.7-13.1-1.90.4 1905 9.0 -26.235.2-12.0-13.9-1.80.4 1910 9.1 -24.63…

Text truncated - open the document above for the full version.

October 17, 2013 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460002 To Whom It May Concern: The MPE calculations for model 460002 signal booster were done for each frequency band: 800 MHz and 1900 MHz. For each band two calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: mobile outside and inside antennas. The order of the attached calculations is as follows: 800 MHz band: 1. Outside Antenna: 311127 2. Inside Antenna: 311104 1900 MHz band: 1. Outside Antenna: 311101 2. Inside Antenna: 311106 A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/17/2013, 12:51 PM460002 800 Outside INPUT DATA Frequency MHz824 Pout Watts0.00049 Duty Cycle Percent100.0% Ant. Gain dBi2.50 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi2.50 Distance From Antenna In Inches8.00 EIRP (Watts)0.0009 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.0002 REFERENCE DATA Pout dBm-3.10 Antenna Gain (non-log)1.78 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311104 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/17/2013, 12:51 PM460002 800 Inside INPUT DATA Frequency MHz869 Pout Watts0.21880 Duty Cycle Percent100.0% Ant. Gain dBi2.20 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi2.20 Distance From Antenna In Inches8.00 EIRP (Watts)0.3631 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.0701 REFERENCE DATA Pout dBm23.40 Antenna Gain (non-log)1.66 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311127 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/17/2013, 12:51 PM460002 1900 Outside INPUT DATA Frequency MHz1850 Pout Watts0.00081 Duty Cycle Percent100.0% Ant. Gain dBi6.10 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.10 Distance From Antenna In Inches8.00 EIRP (Watts)0.0033 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0006 REFERENCE DATA Pout dBm-0.92 Antenna Gain (non-log)4.07 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311101 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/17/2013, 12:51 PM460002 1900 Inside INPUT DATA Frequency MHz1930 Pout Watts0.00081 Duty Cycle Percent100.0% Ant. Gain dBi0.10 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi0.10 Distance From Antenna In Inches8.00 EIRP (Watts)0.0008 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0002 REFERENCE DATA Pout dBm-0.92 Antenna Gain (non-log)1.02 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311106 RESULTS OF CALCULATIONS

October 17, 2013 Subject: Antenna Kitting Re: FCC ID: PWO460002 To Whom It May Concern: The antenna kitting options for model 460002 signal booster were done for 18 Outside Antenna kit options and 2 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna Kit Options: 1. Kit Numbers 311103, 311125, 311128, 314202: Magnet Mount Antennas with 12.5’ RG-174 2. Kit Numbers 311113, 311126: Mini-Magnet Mount Antennas with 12.5’ RG-174 3. Kit Number 311101: Trucker Antenna with 10.5’ RG-58 3 4. Kit Number 311701: Trucker Antenna with 10.5’ RG-58 5. Kit Number 311119: Trucker Antenna with 13.5’ RG-58 6. Kit Number 311133: Trucker Antenna with 13.5’ RG-58 7. Kit Number 311104-17410: NMO Antenna with 10’ RG-174 8. Kit Number 311112-17410: NMO Antenna with 10’ RG-174 9. Kit Number 314203-17410: NMO Antenna with 10’ RG-174 10. Kit Number 311104-5810: NMO Antenna with 10’ RG-58 11. Kit Number 311112-5810: NMO Antenna with 10’ RG-58 12. Kit Number 314203-5810: NMO Antenna with 10’ RG-58 13. Kit Number 311104-40015: NMO Antenna with 15’ LMR 400 14. Kit Number 311104-40015: NMO Antenna with 15’ LMR 400 15. Kit Number 311104-40015: NMO Antenna with 15’ LMR 400 16. Kit Number 311130-5810: Marine Antenna with 10’ RG-58 17. Kit Number 311114: Mini-Glass Mount Antenna with 14’ RG-58 18. Kit Number 311102: Glass Mount Antenna with 14’ RG-58 Inside Antenna Kit Options: 1. Kit Number 311127: Slim Low Profile Antenna with 10’ RG-174 2. Kit Number 311106: Low Profile Antenna with 14’ RG-58 Sincerely, Patrick L. Cook Senior Research and Development Engineer Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)824-8491850-1910Uplink Frequency (MHz)824-8491850-1910 Uplink Output Power (dBm)23.423.4Uplink Output Power (dBm)23.423.4 1Magnet Mount w/12.5' RG-17410NMO Antenna w/10' RG-58 Antenna Gains (dBi)1.972.51Antenna Gains (dBi)2.481.8 Coax Loss (dB)3.74.7Coax Loss (dB)1.32.1 Final Gain less Loss (dB)-1.73-2.19Final Gain less Loss (dB)1.18-0.3 Output Power plus Final Gain (dBm EIRP)21.6721.2Output Power plus Final Gain (dBm EIRP)24.5823.1 Kit Numbers: 311103, 311125, 311128, 314202Kit Number: 311104-5810 2Mini-Mag Mount w/12.5' RG-17411NMO Antenna w/10' RG-58 Antenna Gains (dBi)-1.921.85Antenna Gains (dBi)2.47-0.65 Coax Loss (dB)3.74.7Coax Loss (dB)1.32.1 Final Gain less Loss (dB)-5.62-2.85Final Gain less Loss (dB)1.17-2.75 Output Power plus Final Gain (dBm EIRP)17.7820.6Output Power plus Final Gain (dBm EIRP)24.5720.65 Kit Numbers: 311113, 311126…
