PWO460003Model 460003 Signal Booster

Contents: How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Quick Install Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . .7 Finding the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . .9 Inside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing a Wilson Electronics Signal Booster . . . . . . . . . . . . 11 Powering up a Wilson Electronics Signal Booster . . . . . . . . .11 Signal Booster Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Warnings & Recommendations . . . . . . . . . . . . . . . . . . . . . . .14 Signal Booster Specifications . . . . . . . . . . . . . . . . .Back Cover Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . 700 (Band 17,13) / 800 / 1900 (Band 25) / AWS (1700 / 2100) MHz In-Building Wireless Smart Technology ™ Signal Booster DB Pro ™ 4G Adjustable Gain Appearance of device and accessories may vary . 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. Installation Instructions for the Following Wilson Electronics Signal Booster: DB Pro ™ 4G Adjustable Gain 700 (Band 17,13) / 800 / 1900 (Band) / AWS (1700 / 2100) MHz In-Building Wireless Smart Technology ™ Signal Booster Model # 460003 FCC ID: PWO460003 How it Works Wilson Electronics Signal Boosters are bi-directional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage . The Outside Antenna will collect the cell tower signal and send it through the cable to the Signal Booster . The signal is then boosted and sent to the Inside Antenna . Your cell phone or data card then communicates with the improved signal . When the cellular device transmits, the signal goes through the Inside Antenna, is boosted by the Signal Booster and transmitted to the cell tower through the Outside Antenna . Inside this Package DB Pro™ 4G Signal Booster AC/DC Power Supply 5V / 2 .5A (859948) Inside Antenna KitOutside Antenna Kit 311155-0630 • 75 Ohm Wall mount Panel Antenna • 30’ RG-6 Cable 314475-0630 • Wide Band Directional Antenna • 30’ RG-6 Cable Antenna Kit Configurations Kit 309900-50N • 2 - Wall Panel antennas • 1 - 50 ohm 3-Way Splitter Kit 309905-50N • 3 - Wall Panel Antennas • 3 - 2-Way 50 Ohm Splitters Kit 309902-75F • 2 - Wall Panel Antennas • 1 - 3-Way 75 Ohm Splitter Kit 309903-75F • 3 - Wall Panel Antennas • 3 - 2-Way 75 Ohm Splitters Inside Antenna Expansion Kit Options 1 2 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. Kit 301121-40010 • 50 Ohm Dome Antenna • 10’ LMR400 Kit 301151-0610 • 75 Ohm Dome Antenna • 10’ RG6 Cable Kit 311135-5820 • 50 Ohm Wall mount Panel Antenna • 20’ RG58 Cable Kit 311135-40060 • 50 Ohm Wall mount Panel Antenna • 60’ LMR400 Cable Kit 311155-40060 • 50 Ohm Wall Mount Panel Antenna • 60’ LMR400 Cable Kit 301151-1110 • 75 Ohm Dome Antenna • 10 ‘ RG11 cable Kit 311155-1150 • 75 Ohm Wall mount Panel Antenna • 50’ RG11 Cable Kit 301213 • Desktop Antenna w/ 5’ RG174 50 Ohm Outside Antennas Kit 314453-5825 • 50 Ohm Pole Mount Panel Antenna • 25’ RG58 Cable Kit 314411-5825 • 50 Ohm Wide Band Directional • 25’ RG58 Cable Kit 301111-5850 • Yagi Directional Antenna • 50’ RG58 Cable Kit 311124-5840 • 1900 MHz Yagi Directional • 40’ RG58 Cable Kit 311203-5820 • Omni-Directional antenna • 20’ RG58 Cable Kit 311129-5830 • 800 MHz Yagi Antenna • 30’ RG58 Cable Kit 314411-40075 • 50 Ohm Wide Band Directional • 75’ LMR400 Cable Kit 311203-40020 • Omni-Directional antenna • 20’ LMR400 Cable Kit 301111-400170 • Yagi Directional w/ N-Female • 170’ LMR400 Kit 311124-400100 • 1900 MHz Yagi Directional • 100’ LMR400 Cable Kit 311129-400100 • 800 MHz Yagi Antenna • 100’ LMR400 Cable Kit 314453-40075 • 50 Ohm Pole Mount Panel Antenna • 75’ LMR400 Cable Inside Antennas Kit 309904-75F • 1 - Wall Panel Antenna • 1 - 2-Way 75 Ohm Splitter 3 4 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. 75 Ohm Outside Antennas Kit 301111-0675 • Yagi Directional Antenna • 75’ RG6 Cable • N-Male to F-Female adapter Kit 311201-0620 • Omni Directional w/ F-Female • 20’ RG6 Cable Kit 311124-0660 • 1900 MHz Yagi Directional • 60’ RG6 Cable • N-Male to F-Female adapter Kit 311129-0650 • 800 MHz Yagi Directional • 50’ RG6 Cable • N-Male to F-Female adapter Kit 314473-0640 • 75 Ohm Pole Mount Panel Antenna • 40’ RG6 Cable Kit 311141-0620 • 75 Ohm Grey Brick Antenna • 20’ RG6 Cable Kit 301111-11140 • Yagi Directional Antenna • 140’ RG11 Cable • N-Male to F-Female adapter Kit 311201-1120 • Omni Directional w/ F-Female • 20’ RG11 Cable Kit 311124-11110 • 1900 MHz Yagi Directional • 110’ RG11 Cable • N-Male to F-Female adapter Kit 311129-1180 • 800 MHz Yagi Directional • 80’ RG11 Cable • N-Male to F-Female adapter Kit 314473 -1175 • 75 Ohm Pole Mount Panel Antenna • 75’ RG11 Cable Kit 314475-1175 • 75 Ohm Wide Band Directional • 75’ RG11 Cable Kit 311141-1120 • 75 Ohm Grey Brick Antenna • 20’ RG11 Cable 3 4 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST. 1 . Select a location to install the Signal Booster that is away from excessive heat, direct sunlight, moisture and has proper ventilation . Do not place the Signal Booster in an air-tight enclosure . 2 . Select a location on the roof of the b…

Text truncated - open the document above for the full version.

January 13, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460003 Each Signal Booster certificated under FCC ID PWO460003 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Senior Research and Development Engineer

January 13, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, LLC. respectfully requests confidentiality of certain documentation provided with the submission of our model 460003 Signal Booster under FCC ID: PWO460003 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

November 15, 2013 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460003 Signal Booster are: Uplink Amplifier (704-716 MHz): 4.3 V, 0.5 A Downlink Amplifier (734-746 MHz): 4.3 V, 0.5 A Uplink Amplifier (777-787 MHz): 4.3 V, 0.5 A Downlink Amplifier (746-756 MHz): 4.3 V, 0.5 A Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1915 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1995 MHz): 4.3 V, 0.5 A Uplink Amplifier (1710-1755 MHz): 4.3 V, 0.5 A Downlink Amplifier (2110-2155 MHz): 4.3 V, 0.5 A Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460003 CT Project: TCB-p1350022 From: Daniel Park Date: November 30, 2013 1. At the page 3 of the “Antenna Kitting” exhibits, the one column title on the left table is not correct frequency range. Please correct the spectrum range to 704-716 from 689-716 for the consistency. Also, the same matter has been found at the page 5 of the same report as well. Wilson – Please refer to RF Exposure_Antenna Kitting_Rev1_PWO460003 exhibit. 2. At the 16 of the User Manual for the “Signal Booster Specification Table”, the 800 MHz Downlink Maximum Power stated as 6.0, however, the RF test report was shown as 6.9dBm. Please verify and correct as necessary. Wilson – Please refer to User Manual_Rev1_PWO460003 exhibit. 3. At the page 22 of the RF test report for “Out-of-Band Emissions”, all the bands were tested for GSM, CDMA, and, WCDMA without LTE. In fact, at the section 7.5 Out-of-band emissions test procedure in “KDB 935210 D03 Wideband Consumer Signal Booster Measurement Guidance DR04 41516” has indicated different bandwidth requirements for each technology. Also, the current FCC indicated that certain spectrum should be associated with certain technology, for instance, 700 MHz bands and AWS Band (1700/2100 MHz) for LTE, and so forth. Therefore, the test result should demonstrate the proper spectrum with right technology instead of showing all the spectrums under one technology at the time. Please clarify and provide appropriate test results based on the right combination within spectrums and technologies. CT – Per the KDB, page 7 section 5.3 “the ability to replicate CMRS signal types GSM, CDMA, WCDMA (LTE is optional) with a pseudo-random symbol pattern” - MG 12/3/13 4. At the page 84 of the RF test report for “uplink inactivity”, please include the measured noise level data after entered into inactive state. CT – Looking that the plots, counting down from -30dBm ‘reference“, each line is -10dBm down from that. So the final value when it is in inactive state is below the -70dBm “transmit off value”,. For instance for 704 - 716 MHz plot it is -90dBm which is well below the -70dBm “transmit off value” In the future we can add another marker. - MG 12/3/13 Response by: Mike Graffeo & Wilson Electronics Submitted by: Amanda Reed Date: 1/29/14

Page 1 of 1 FCC ID: PWO460003 CT Project: TCB-p1350022 From: Daniel Park Date: 2/3/14 1. At the page 57 of RF Test report, the FCC Rule part should be stated as 27.53(e ) instead of 27.53(f). CT – Report has been updated, please refer to Rev 4. Response by: Mike Graffeo Submitted by: CTL Date: 2/5/14

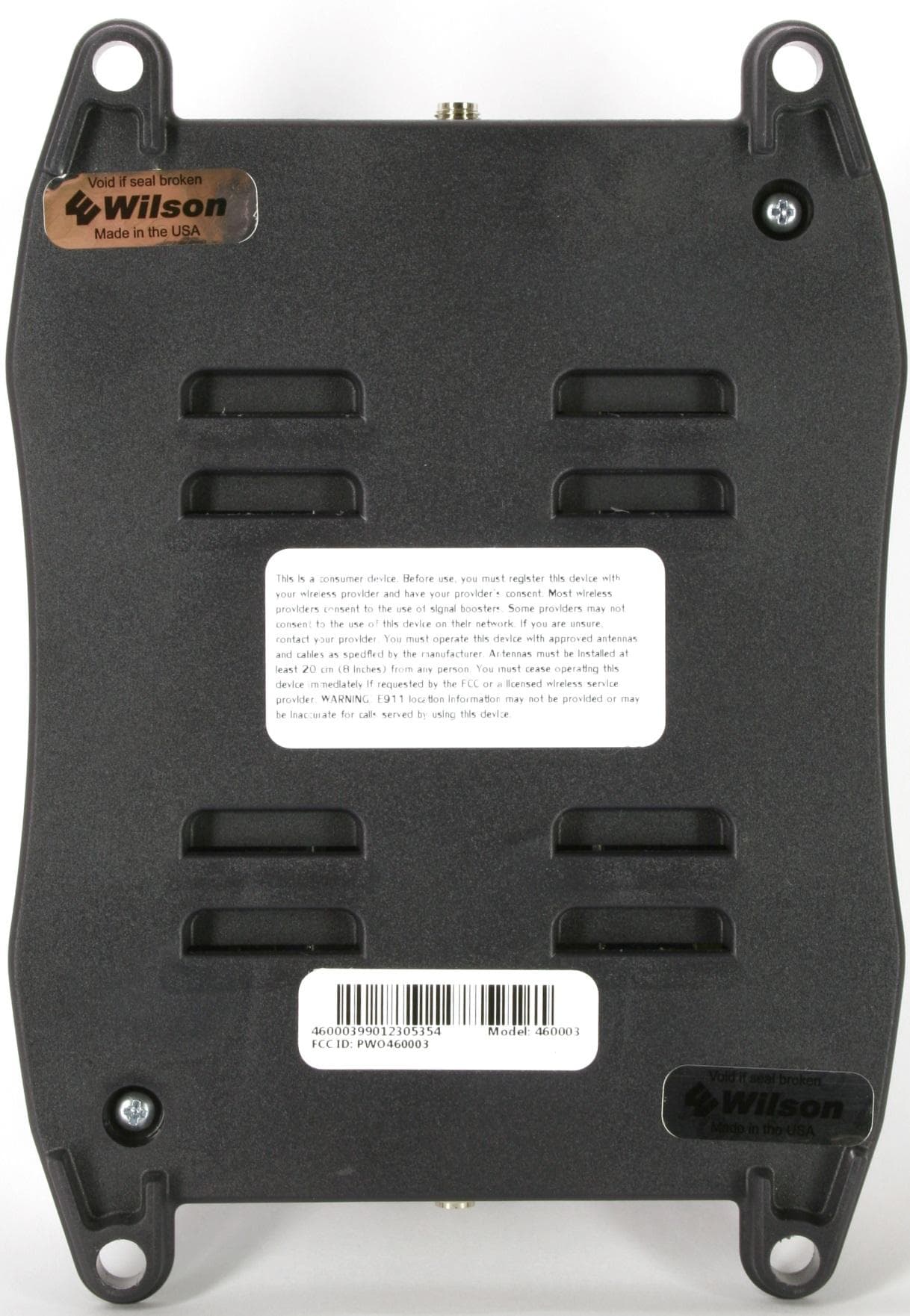

External Photos Wilson Electronics FCC ID: PWO460003 Model: 460003 External Photos Wilson Electronics FCC ID: PWO460003 Model: 460003 External Photos Wilson Electronics FCC ID: PWO460003 Model: 460003

Internal Photos Wilson Electronics FCC ID: PWO460003 Model: 460003 Internal Photos Wilson Electronics FCC ID: PWO460003 Model: 460003 Internal Photos Wilson Electronics FCC ID: PWO460003 Model: 460003 Internal Photos Wilson Electronics FCC ID: PWO460003 Model: 460003

November 19, 2013 Tuning and Adjustment of Wilson Model 460003 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Sincerely, Patrick L. Cook Senior Research and Development Engineer

January 21, 2014 Subject: Antenna Kitting Re: FCC ID: PWO460003 To Whom It May Concern: The antenna kitting options for model 460003 signal booster were done for 27 Outside Antenna kit options and 14 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna Kit Options: 1. Kit 314411-40075 2. Kit 314411-5825 3. Kit 314475-0630 4. Kit 301111-0675 5. Kit 301111-5850 6. Kit 311124-400100 7. Kit 311124-5840 8. Kit 311124-0660 9. Kit 311129-0650 10. Kit 311129-400100 11. Kit 311203-40020 12. Kit 311203-5820 13. Kit 311201-0620 14. Kit 301126 15. Kit 301111-11140 16. Kit 314453-5825 17. Kit 314453-40075 18. Kit 314473-0640 19. Kit 311141-0620 20. Kit 311129-1180 21. Kit 311201-1120 22. Kit 311124-11110 23. Kit 314475-1175 24. Kit 301111-400170 25. Kit 311141-1120 26. Kit 314473-1175 27. Kit 311129-5830 Inside Antenna Kit Options: 1. Kit 311135-40060 2. Kit 311155-40060 3. Kit 311135-5820 4. Kit 311155-0630 5. Kit 301121-40010 6. Kit 301151-0610 7. Kit 309900-50N 8. Kit 309902-75F 9. Kit 309903-75F 10. Ki t 309904-75F 11. Kit 309905-50N 12. Kit 311155-1150 13. Kit 301151-1110 14. Kit 301213 Sincerely, Patrick L. Cook Senior Research and Development Engineer FCC ID:PWO460003FCC ID:PWO460003 Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)704-716777-787824-8491710-17551850-1915Uplink Frequency (MHz)704-716777-787824-8491710-17551850-1915 Uplink Output Power (dBm)22.524.224.424.122.6Uplink Output Power (dBm)22.524.224.424.122.6 1Wide Band Directional Antenna With 75' LMR 400314411-400756Yagi Antenna 311124 With 100' LMR 400311124-400100 Antenna Gains (dBi)7.37.27.87.99.1Antenna Gains (dBi)1.957.189.64-6.67-11.97 Coax Loss (dB)2.83.03.64.45.4Coax Loss (dB)3.73.94.75.87.1 Final Gain less Loss (dB)4.54.24.23.53.7Final Gain less Loss (dB)-1.753.284.9-12.47-19.07 Output Power plus Final Gain (dBm EIRP)2728.428.627.626.3Output Power plus Final Gain (dBm EIRP)20.827.529.311.63.5 2Wide Band Directional Antenna With 25' RG-58314411-58257Yagi Antenna 311124 With 40' RG-58311124-5840 Antenna Gains (dBi)7.37.27.87.99.1Antenna Gains (dBi)1.957.189.64-6.67-11.97 Coax Loss (dB)2.93.13.25.15.4Coax Loss (dB)4.65.05.28.28.6 Final Gain less Loss (dB)4.44.14.62.83.7Final Gain less Loss (dB)-2.72.24.4-14.9-20.6 Output Power plus Final Gain (dBm EIRP)26.928.329.026.926.3Output Power plus Final Gain (dBm EIRP)19.926.428.89.22.0 3Wide Band Directional Antenna With 30' RG-6314775-06308Yagi Antenna 311124 With 60' RG-6311124-0660 Antenna Gains (dBi)7.37.27.87.99.1Antenna Gains (dBi)1.957.189.64-6.67-11.97 Coax Loss (dB)3.03.23.45.15.3Coax Loss (dB)4.564.865.07.68.0 Final Gain less Loss (dB)4.344.42.83.8Final Gain less Loss (dB)-2.612.324.64-14.29-19.95 Output Power plus Final Gain (dBm EIRP)26.828.228.826.926.4Output Power plus Final Gain (dBm EIRP)19.926.529.09.82.7 4Yagi Antenna 301111 With 75' RG-6301111-06759Yagi Antenna 311129 With 50' RG-6311129-0650 Antenna Gains (dBi)10.010.010.8-6.8-13.8Antenna Gains (dBi)-18.7-18.7-23.49.110.9 Coax Loss (dB)5.76.0756.39.5259.975Coax Loss (dB)3.84.054.26.46.7 Final Gain less Loss (dB)4.33.9254.5-16.325-23.775Final Gain less Loss (dB)-22.50-22.75-27.602.754.25 Output Power plus Final Gain (dBm EIRP)26.828.128.97.8-1.2Output Power plus Final Gain (dBm EIRP)0.01.5-3.226.926.9 5Yagi Antenna 301111 With 50' RG-58301111-585010Yagi Antenna 311129 With 100' LMR 400311129-400100 Antenna Gains (dBi)10.010.010.8-6.8-13.8Antenna Gains (dBi)-18.7-18.7-23.49.110.9 Coax Loss (dB)5.86.26.510.310.7Coax Loss (dB)3.73.94.75.87.1 Final Gain less Loss (dB)4.23.84.3-17.1-24.5Final Gain less Loss (dB)-22.4-22.6-28.13.33.8 Output Power plus Final Gain (dBm EIRP)26.728.028.77.0-1.9Output Power plus Final Gain (dBm EIRP)0.11.6-3.727.426.4 Fixed Outside Antenna Kit OptionsFixed Outside Antenna Kit Options FCC ID:PWO460003FCC ID:PWO460003 Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)704-716777-787824-8491710-17551850-1915Uplink Frequency (MHz)704-716777-787824-8491710-17551850-1915 Uplink Output Power (dBm)22.524.224.424.122.6Uplink Output Power (dBm)22.524.224.424.122.6 11Omni Directional Antenna (311203) With 20' LMR 400311203-4002016Panel Antenna With 25' RG-58314453-5825 Antenna Gains (dBi)-1.5-0.240.57-2.515.09Antenna Gains (dBi)3.843.634.48.2110.04 Coax Loss (dB)0.70.70.71.11.1Coax Loss (dB)2.93.13.25.15.4 Final Gain less Loss (dB)-2.2-0.94-0.13-3.614.0Final Gain less Loss (dB)0.90.51.23.14.6 Output Power plus Final Gain (dBm EIRP)20.323.324.320.526.6Output Power plus Final Gain (dBm EIRP)23.424.725.627.227.2 12Omni Directional Antenna (311203) With 20' RG-58311203-582017Panel Antenna With 75' LMR 400314453-40075 Antenna Gains (dBi)-1.5-0.240.57-2.515.09Antenna Gains (dBi)3.843.634.48.2110.04 Coax Loss (dB)2.32.52.64.14.3Coax Loss (dB)2.83.03.64.45.4 Final Gain less Loss (dB)-3.8-2.74-2.03-6.610.79Final Gain less Loss (dB)1.040.630.83.814.64 Output Power plus Final Gain (dBm EIRP)18.721.522.417.523.4Output Power plus Final Gain (dBm EIRP)23.524.825.227.927.2 13Omni Directional Antenna (311201) With 20' RG-6311201-062018Panel Antenna With 40' RG-6314473-0640 Antenna Gains (dBi)-1.5-0.240.57-2.515.09Antenna Gains (dBi)3.843.634.48.2110.04 Coax Loss (dB)1.51.61.72.52.7Coax Loss (dB)3.03.23.45.15.3 Final Gain less Loss (dB)-3-1.84-1.13-5.012.39Final Gain less Loss (dB)0.840.431.03.114.74 Output Power plus Final Gain (dBm EIRP)19.522.423.319.125.0Output Power plus Final Gain (dBm EIRP)23.324.625.427.227.3 14Mini-Mag Antenna With 12.5' RG-17430112619Grey Brick w/20' RG-6311141-0620 Antenna Gains (dBi)-4.880.091.97-6.996.89Antenna Gains (dBi)-2.9-0.61.2-0.45.5 Coax Loss (dB)2.83.03.74.54.7Coax Loss (dB)1.51.61.72.52.7 Final Gain less Loss (dB)-7.68-2.91-1.73-11.492.19Final Gain less Loss (dB)-4.4-2.2-0.5-2.92.8 Output Power plus Final Gain (dBm EIRP)14.821.322.712.…

Text truncated - open the document above for the full version.

October 15, 2013 Subject: Antenna Measurements and Testing Data To Whom It May Concern: The gains for each antenna were tested using a log periodic antenna calibrated by RTCE labs as the standard. Attached are the Wilson Electronics antenna measurements, the RTCE Antenna Testing Summary, and calibration information. Sincerely, Patrick L. Cook Senior Research and Development Engineer Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311103 311125 311128 314202 Gains-4.80.12.0-7.02.5CKA9/17/2013 311703Gains-15.0-4.20.7-2.01.2CKA9/17/2013 301113 301126 Gains-0.3-2.2-1.91.21.9CKA9/17/2013 311101Gains-4.50.41.7-3.66.1CKA9/17/2013 311701Gains-14.1-0.72.2-0.22.7CKA9/17/2013 311119Gains-1.40.41.2-2.33.6CKA9/17/2013 311133Gains-3.30.21.2-4.84.2CKA9/17/2013 311130Gains-1.0-1.60.7-1.73.6CKA9/17/2013 311102Gains-3.7-2.5-0.92.23.4CKA9/17/2013 311114Gains-7.5-6.1-5.42.61.4CKA9/17/2013 311104Gains-4.1-0.92.5-3.51.8CKA9/17/2013 311112Gains-3.2-0.52.5-2.6-0.7CKA9/17/2013 314203Gains-1.60.51.8-5.70.8CKA9/17/2013 301105Gains4.14.11.4-7.0CKA6/22/2010 MARINE ANTENNAS GLASS MOUNT ANTENNAS MINI GLASS MOUNT ANTENNAS NMO ANTENNAS TRUCKER ANTENNAS Outside Mobile Antennas MINI MAGNET MOUNT ANTENNAS MAGNET MOUNT ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 311127Gains-1.9-2.32.2-3.1-0.5DD9/25/2013 311106Gains-5.6-5.60.50.90.1DD9/25/2013 301143 301149 Gains-5.7-5.7-6.83.95.0CKA9/27/2010 301143 301149 Gains-7.0-7.0-8.0-16.0-15.0CKA9/27/2010 301146 301148 Gains-5.0-5.00.72.61.5CKA11/9/2012 301146 301148 Gains-7.0-7.0-8.0-16.0-15.0CKA11/9/2012 CRADLE PLUS ANTENNAS ULTRA SLIM ANTENNAS Inside Mobile Antennas LOW PROFILE ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311141Gains-2.9-0.61.2-0.45.5CKA9/17/2013 311202Gains-1.5-0.20.6-2.55.1CKA9/17/2013 301111Gains10.010.010.8-6.8-14.9CKA9/17/2013 311124Gains2.07.29.6-6.7-12.0CKA9/17/2013 311129Gains-18.7-18.7-23.49.110.9CKA9/17/2013 301142Gains-3.6-3.63.7-10.2CKA6/22/2010 314411 314475 Gains7.37.27.87.99.1CKA9/17/2013 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains3.83.64.48.210.0CKA9/17/2013 OMNI DIRECTIONAL ANTENNAS YAGI (LOG PERIODIC, WIDE BAND DIRECTIONAL) ANTENNAS YAGI ANTENNAS Outside Fixed Antennas EXTERIOR PANEL ANTENNA PANEL ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 301213Gains2.42.43.13.5-2.7CKA9/19/2013 301121 301151 Gains-2.5-2.51.53.01.5CKA8/18/2010 301123Gains-11.7-11.7-20.7-8.3-8.3CKA8/18/2010 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains4.24.26.19.86.7CKA9/19/2013 PANEL ANTENNAS DOME ANTENNAS Inside Fixed Antennas DESKTOP MOUNT ANTENNAS Test Date Friday, July 19, 2013 Tested By: Glenn Robb (919) 200-0292 [email protected] Axis Antenna Under Test Orientation Notes (See Coordinate Diagram Tab And Separate Setup Photos) +Z Axis is Theta= 0 & Phi=any Axis of intended use -Z Axis is Theta= 180 & Phi=any Axis of feed line RTCE Antenna Testing Summary Sample Description Notes And Observations XZ Cut (Turntable) is Theta=0-360 & Phi=0, or Theta=0-180 & Phi=0 then Theta=180-0 & Phi=180 YZ Cut is Theta=0-360 & Phi=90, or Theta=0-180 & Phi=90 then Theta=180-0 & Phi=270 XY Cut is Theta=90 & Phi=0-360 Other Coordinate Notes, 3-Axis Cuts in Spherical Coordinates ... www.RTCE.com Frequency (MHz) Main Axis Realized Gain "+Z" (dBi) Rear Axis Gain "-Z" (dBi) Front/Back Ratio (dB) Side Axis Realized Gain "+X" (dBi) Side Axis Realized Gain "-X" (dBi) Side Axis Realized Gain "+Y" (dBi) Side Axis Realized Gain "-Y" (dBi) 695 7.1 -2.59.6-9.0-9.8-4.1-3.9 700 7.3 -3.410.7-9.8-10.1-3.9-3.8 705 7.4 -4.311.7-11.1-10.6-4.0-3.9 710 7.3 -5.312.7-12.7-10.9-4.1-4.1 715 7.2 -6.413.6-15.1-11.1-4.2-4.3 720 7.1 -7.714.7-16.9-11.1-4.0-4.1 725 7.1 -8.715.7-16.5-12.9-4.0-4.0 730 7.0 -9.216.2-17.3-14.5-3.9-3.8 735 6.9 -9.716.6-18.4-15.4-3.5-3.6 740 7.1 -9.917.1-19.0-15.8-3.3-3.4 745 7.3 -10.317.6-19.5-16.0-3.3-3.4 750 7.4 -10.517.9-20.0-16.1-3.3-3.4 755 7.4 -10.718.1-20.4-16.2-3.2-3.4 760 7.5 -10.818.2-20.4-16.0-3.1-3.4 820 7.5 -10.818.2-17.0-13.2-4.0-3.6 825 7.6 -10.518.1-17.8-13.8-4.0-3.7 830 7.7 -10.317.9-18.0-14.5-3.9-3.8 835 7.7 -10.117.8-18.0-15.3-3.9-3.9 840 7.8 -9.917.6-17.8-16.0-3.9-3.9 845 7.8 -9.817.6-17.6-16.8-3.8-3.9 850 7.8 -9.817.6-17.2-17.4-3.8-3.9 870 8.0 -9.717.7-16.3-21.2-3.4-3.6 875 8.1 -9.617.7-16.2-22.6-3.2-3.5 880 8.1 -9.617.8-16.2-24.1-3.1-3.5 885 8.1 -9.917.9-16.5-25.6-3.3-3.6 890 8.0 -10.218.1-16.9-27.4-3.6-4.0 895 7.7 -10.518.2-17.6-29.0-4.0-4.4 1710 8.1 -17.025.1-11.3-11.5-1.40.0 1715 8.2 -16.725.0-11.6-12.2-1.40.1 1720 8.3 -16.224.5-11.9-13.3-1.30.3 1725 8.4 -15.724.1-11.8-14.2-1.30.4 1730 8.4 -15.123.6-11.7-15.0-1.20.5 1735 8.5 -14.823.3-11.5-15.5-1.30.6 1740 8.5 -14.623.1-11.4-15.5-1.30.7 1745 8.6 -14.523.1-11.0-15.3-1.30.7 1750 8.7 -14.423.0-10.9-14.7-1.20.7 1755 8.7 -14.823.5-10.8-14.0-1.10.8 1850 8.7 -17.826.5-13.8-15.8-1.6-0.2 1855 8.6 -18.026.7-13.7-15.0-1.6-0.2 1860 8.5 -18.326.8-13.3-14.1-1.7-0.3 1865 8.5 -18.927.4-13.1-13.4-1.8-0.3 1870 8.4 -19.628.0-12.8-12.9-1.9-0.4 1875 8.4 -20.629.1-12.5-12.6-2.0-0.4 1880 8.5 -21.930.4-12.4-13.0-1.9-0.3 1885 8.6 -22.431.0-12.2-13.1-1.8-0.1 1890 8.7 -24.533.2-11.9-13.0-1.80.2 1895 8.8 -25.634.4-11.7-12.8-1.80.4 1900 8.9 -26.535.4-11.7-13.1-1.90.4 1905 9.0 -26.235.2-12.0-13.9-1.80.4 1910 9.1 -24.63…

Text truncated - open the document above for the full version.

November 15, 2013 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460003 To Whom It May Concern: The MPE calculations for model 460003 signal booster were done for each frequency band: 1700/2100 MHz, 800 MHz, 700 MHz Band 13, 700 MHz Band 12, and 1900 MHz. For each band two calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows: 1700/2100 MHz band: 1. Fixed Outside Antenna: 314453-40075 2. Inside Antenna: 311155 800 MHz band: 1. Fixed Outside Antenna: 311124-400100 2. Inside Antenna: 311155 700 MHz Band 13: 1. Fixed Outside Antenna: 314411-40075 2. Inside Antenna: 311155 700 MHz Band 12: 1. Fixed Outside Antenna: 314411 2. Inside Antenna: 311155 1900 MHz band: 1. Fixed Outside Antenna: 311129-1180 2. Inside Antenna: 309904-75F A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:47 PM460003 1700 MHz Outside INPUT DATA Frequency MHz1710 Pout Watts0.25704 Duty Cycle Percent100.0% Ant. Gain dBi8.20 Coax Loss dB4.36 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi3.84 Distance From Antenna In Inches8.00 EIRP (Watts)0.6223 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1201 REFERENCE DATA Pout dBm24.10 Antenna Gain (non-log)6.61 Coax loss (non-log)0.37 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 314453-40075 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:47 PM460003 2100 MHz Inside INPUT DATA Frequency MHz2110 Pout Watts0.00174 Duty Cycle Percent100.0% Ant. Gain dBi6.70 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.70 Distance From Antenna In Inches8.00 EIRP (Watts)0.0081 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0016 REFERENCE DATA Pout dBm2.41 Antenna Gain (non-log)4.68 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311155 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:47 PM460003 800 MHz Outside INPUT DATA Frequency MHz824 Pout Watts0.27542 Duty Cycle Percent100.0% Ant. Gain dBi9.64 Coax Loss dB4.70 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.94 Distance From Antenna In Inches8.00 EIRP (Watts)0.8590 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1657 REFERENCE DATA Pout dBm24.40 Antenna Gain (non-log)9.20 Coax loss (non-log)0.34 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311124-400100 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:47 PM460003 800 MHz Inside INPUT DATA Frequency MHz869 Pout Watts0.00282 Duty Cycle Percent100.0% Ant. Gain dBi6.10 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.10 Distance From Antenna In Inches8.00 EIRP (Watts)0.0115 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.0022 REFERENCE DATA Pout dBm4.50 Antenna Gain (non-log)4.07 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311155 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:47 PM460003 700 MHz Band 13 Outside INPUT DATA Frequency MHz776 Pout Watts0.26303 Duty Cycle Percent100.0% Ant. Gain dBi7.20 Coax Loss dB3.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.20 Distance From Antenna In Inches8.00 EIRP (Watts)0.6918 FCC Power Density Limit (mw/cm 2 ) 0.52 Calculated Power Density (mw/cm 2 ) 0.1335 REFERENCE DATA Pout dBm24.20 Antenna Gain (non-log)5.25 Coax loss (non-log)0.50 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 314411-40075 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:48 PM460003 700 MHz Band 13 Inside INPUT DATA Frequency MHz746 Pout Watts0.00282 Duty Cycle Percent100.0% Ant. Gain dBi4.20 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.20 Distance From Antenna In Inches8.00 EIRP (Watts)0.0074 FCC Power Density Limit (mw/cm 2 ) 0.50 Calculated Power Density (mw/cm 2 ) 0.0014 REFERENCE DATA Pout dBm4.50 Antenna Gain (non-log)2.63 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311155 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:48 PM460003 700 MHz Band 12 Outside INPUT DATA Frequency MHz704 Pout Watts0.17783 Duty Cycle Percent100.0% Ant. Gain dBi7.30 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi7.30 Distance From Antenna In Inches8.00 EIRP (Watts)0.9550 FCC Power Density Limit (mw/cm 2 ) 0.47 Calculated Power Density (mw/cm 2 ) 0.1842 REFERENCE DATA Pout dBm22.50 Antenna Gain (non-log)5.37 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 314411 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 11/19/2013, 12:48 PM460003 700 MHz Band 12 Inside INPUT DATA Frequency MHz734 Pout Watts0.00295 Duty Cycle Percent100.0% Ant. Gain dBi4.20 Coax Loss dB0.00 Distance From Antenna In cm20.…
