Cellular Signal Booster 462005/462205 with Directional Antenna Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST DB Pro ™ 2 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST IT IS VERY IMPORTANT TO POWER YOUR SIGNAL BOOSTER USING A SURGE PROTECTED AC POWER STRIP WITH AT LEAST A 1000 JOULE RATING. FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. !! THE SIGNAL BOOSTER UNIT IS DESIGNED FOR USE IN AN INDOOR, TEMPERATURE- CONTROLLED ENVIRONMENT (LESS THAN 150 DEGREES FAHRENHEIT). IT IS NOT INTENDED FOR USE IN ATTICS OR SIMILAR LOCATIONS SUBJECT TO TEMPERATURES IN EXCESS OF 150°F. Contents Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Find the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Installation Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Quick Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Signal Booster Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Inside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Powering Up the Signal Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Troubleshooting & Understanding Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Safety Guidelines & Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover Installation Instructions for the Following Wilson Electronics Signal Booster: DB Pro™ Adjustable Gain 800/1900 MHz In-Building Wireless Smart Technology ™ Signal Booster Model # 460005 FCC ID: PWO460005 3 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Before Getting Started Before you install your DB Pro and start enjoying improved cellular reception in your facility, please do the following: 1. Read through all the installation steps. This will help you know what to expect from start to fi nish. 2. Watch the YouTube video demonstrating the DB Pro installation at wilsonelectronics.com/DBProvideo. 3. Familiarize yourself with all materials in your product package. This will allow you to know which pieces are referenced in the instructions. 4. Identify the location of your best available cellular signal. See instructions that follow. 5. Determine the best installation locations for your Outside Antenna, Signal Boost, and Inside Antenna. Test the function of your DB Pro system before fi nalizing installation. DBPro Package Contents AC Power Supply 6V / 2.5A (Not included with some models) (859912) Panel Antenna Kit Inside Panel Antenna 30’ RG6 coax cable (311155-0630) Outside Antenna Kit 75 Ohm Wide Band Antenna 30’ RG6 coax cable (314475-0630) Tools Required for Installation: (depending on your particular installation, you will need the following tools) 1. Pole mount - 10 mm open-end wrench or adjustable wrench 2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver Find the Strongest Cellular Signal Before you install your DB Pro signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance from your DB Pro. You can fi nd the strongest signal outside your building, typically at the highest point available, using any of the following methods: 1. Best method: Connect the Outside Antenna to the DB Pro signal booster, and the DB Pro to the Inside Antenna. Have one person outside (on the roof for best results) rotate the Outside Antenna with a second person inside the building near the Inside Antenna watching the signal strength on a phone. This allows you to read the signal strength from nearby cell towers. a. The person inside should have the phone in test mode so the numerical signal strength can be read. This is more accurate than Wall Mount BracketPole Mount Bracket 4 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST the bar indicator. Go to www. wilsonelectronics.com/test-mode- instructions for help in fi nding the test mode for your phone. b. The person on the roof should turn the Outside Antenna 45 degrees at a time. Allow 30 seconds for the phone to register with each turn. R o t a t e c. The person inside should note the readings on the phone with each turn. Signal readings usually appear as a negative number. The closer the number gets to zero, the stronger the signal (for example, -86 dB would be a moderately good reading while -55 dB would be an excellent reading, and -110 dB would be a weak, or unusable signal). R o t a t e - 8 0 d B d. Once you have determined which direction provides the strongest outside signal, you can install the Outside Antenna in that general direction. 2. Good methods: a. Place calls from several locations outside your building. As you move to different locations, note where you get the best reception. b. If you have a smart phone, you…

Text truncated - open the document above for the full version.

January 9, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460005 Each Signal Booster certificated under FCC ID PWO460005 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Senior Research and Development Engineer

November 1, 2013 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460005 Signal Booster are: Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1910 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1990 MHz): 4.3 V, 0.5 A Sincerely, Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460005 IC ID: CT Project: P1350025 From: John Erhard Date: December 2, 2013 1. No test setup photos were provided. Please provide them for the review on all projects. CT – Test Photos exhibit provided. 2. Occupied bandwidth plots on page 10 do not use the same RBW. CT – Retook plot for page 55, changed report to rev 4. 3. Note to laboratory – Input OCC BW plots on page 64 have very little dynamic range shown and it is difficult to ensure proper linearity in this condition. The associated output plot does show a very clean signal so in this case no re-testing is required but be advised that without sufficient dynamic range this could reviews in subsequent devices could be affected. CT – Acknowledged about the dynamic range, next time I will use pre-amp. Response by: Mike Graffeo Submitted by: Jennifer Sanchez Date: 12/2/13

January 9, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460005 Signal Booster under FCC ID: PWO460005 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

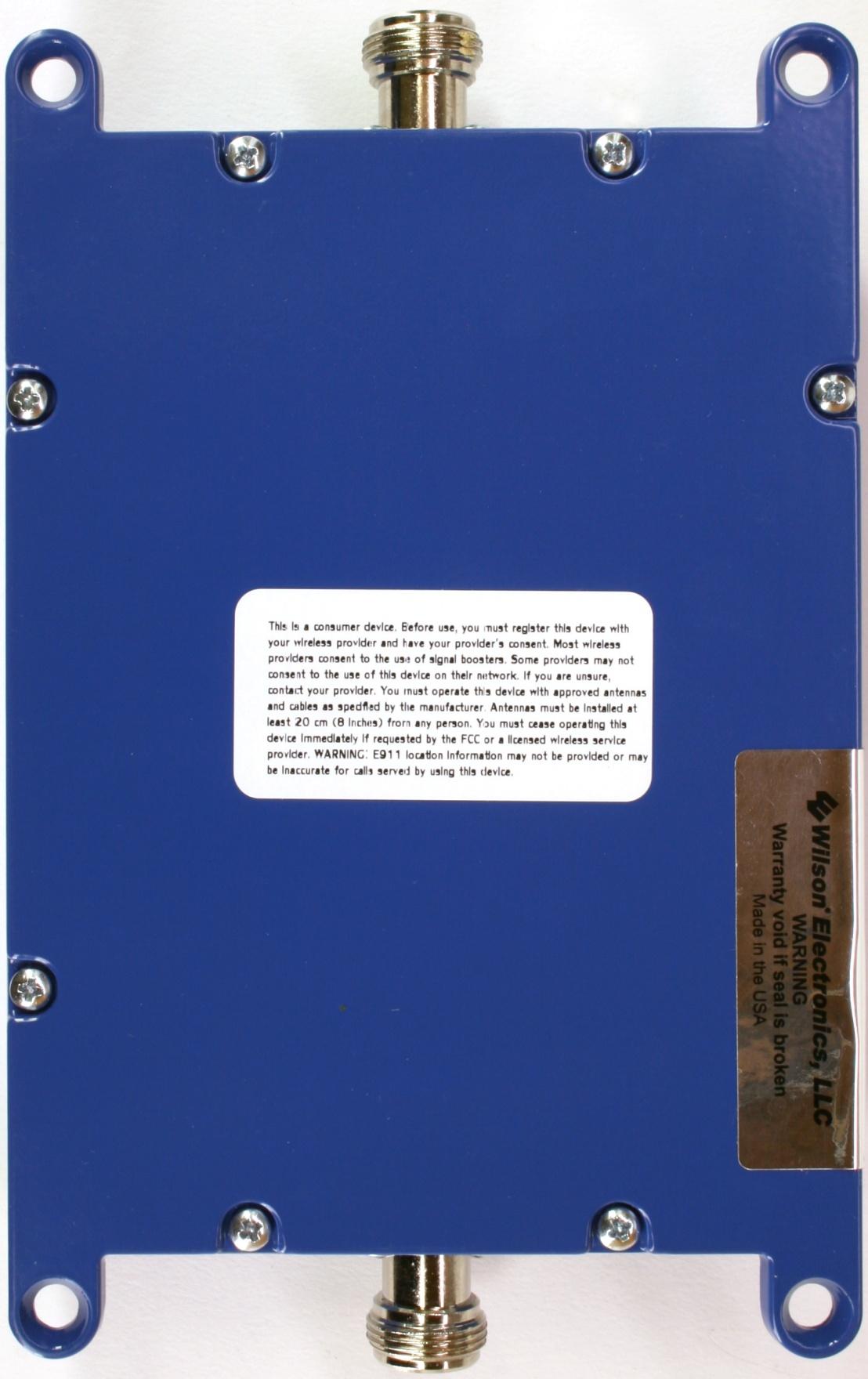

External Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 External Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 External Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005

Internal Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 Internal Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 Internal Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 Internal Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005 Internal Photos Wilson Electronics FCC ID: PWO460005 Model: 460005 IC: 4726A-460005

October 15, 2013 Subject: Antenna Measurements and Testing Data To Whom It May Concern: The gains for each antenna were tested using a log periodic antenna calibrated by RTCE labs as the standard. Attached are the Wilson Electronics antenna measurements, the RTCE Antenna Testing Summary, and calibration information. Sincerely, Patrick L. Cook Senior Research and Development Engineer Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311103 311125 311128 314202 Gains-4.80.12.0-7.02.5CKA9/17/2013 311703Gains-15.0-4.20.7-2.01.2CKA9/17/2013 301113 301126 Gains-0.3-2.2-1.91.21.9CKA9/17/2013 311101Gains-4.50.41.7-3.66.1CKA9/17/2013 311701Gains-14.1-0.72.2-0.22.7CKA9/17/2013 311119Gains-1.40.41.2-2.33.6CKA9/17/2013 311133Gains-3.30.21.2-4.84.2CKA9/17/2013 311130Gains-1.0-1.60.7-1.73.6CKA9/17/2013 311102Gains-3.7-2.5-0.92.23.4CKA9/17/2013 311114Gains-7.5-6.1-5.42.61.4CKA9/17/2013 311104Gains-4.1-0.92.5-3.51.8CKA9/17/2013 311112Gains-3.2-0.52.5-2.6-0.7CKA9/17/2013 314203Gains-1.60.51.8-5.70.8CKA9/17/2013 301105Gains4.14.11.4-7.0CKA6/22/2010 MARINE ANTENNAS GLASS MOUNT ANTENNAS MINI GLASS MOUNT ANTENNAS NMO ANTENNAS TRUCKER ANTENNAS Outside Mobile Antennas MINI MAGNET MOUNT ANTENNAS MAGNET MOUNT ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 311127Gains-1.9-2.32.2-3.1-0.5DD9/25/2013 311106Gains-5.6-5.60.50.90.1DD9/25/2013 301143 301149 Gains-5.7-5.7-6.83.95.0CKA9/27/2010 301143 301149 Gains-7.0-7.0-8.0-16.0-15.0CKA9/27/2010 301146 301148 Gains-5.0-5.00.72.61.5CKA11/9/2012 301146 301148 Gains-7.0-7.0-8.0-16.0-15.0CKA11/9/2012 CRADLE PLUS ANTENNAS ULTRA SLIM ANTENNAS Inside Mobile Antennas LOW PROFILE ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #698-716776-787824-849 1710- 1755 1850- 1995 InitialsDate Measured 311141Gains-2.9-0.61.2-0.45.5CKA9/17/2013 311202Gains-1.5-0.20.6-2.55.1CKA9/17/2013 301111Gains10.010.010.8-6.8-14.9CKA9/17/2013 311124Gains2.07.29.6-6.7-12.0CKA9/17/2013 311129Gains-18.7-18.7-23.49.110.9CKA9/17/2013 301142Gains-3.6-3.63.7-10.2CKA6/22/2010 314411 314475 Gains7.37.27.87.99.1CKA9/17/2013 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains3.83.64.48.210.0CKA9/17/2013 OMNI DIRECTIONAL ANTENNAS YAGI (LOG PERIODIC, WIDE BAND DIRECTIONAL) ANTENNAS YAGI ANTENNAS Outside Fixed Antennas EXTERIOR PANEL ANTENNA PANEL ANTENNAS Wilson Electronics Antenna Average Gain (dBi)Recommended Band for Use ---cable loss not includedMarginal Band Last updated by Erin Elder 10/15/13Not Recommended Band Antenna #728-746746-756869-894 1930- 1995 2110- 2155 InitialsDate Measured 301213Gains2.42.43.13.5-2.7CKA9/19/2013 301121 301151 Gains-2.5-2.51.53.01.5CKA8/18/2010 301123Gains-11.7-11.7-20.7-8.3-8.3CKA8/18/2010 311135 311155 314451 314471 314452 314472 314453 314473 314447 Gains4.24.26.19.86.7CKA9/19/2013 PANEL ANTENNAS DOME ANTENNAS Inside Fixed Antennas DESKTOP MOUNT ANTENNAS Test Date Friday, July 19, 2013 Tested By: Glenn Robb (919) 200-0292 [email protected] Axis Antenna Under Test Orientation Notes (See Coordinate Diagram Tab And Separate Setup Photos) +Z Axis is Theta= 0 & Phi=any Axis of intended use -Z Axis is Theta= 180 & Phi=any Axis of feed line RTCE Antenna Testing Summary Sample Description Notes And Observations XZ Cut (Turntable) is Theta=0-360 & Phi=0, or Theta=0-180 & Phi=0 then Theta=180-0 & Phi=180 YZ Cut is Theta=0-360 & Phi=90, or Theta=0-180 & Phi=90 then Theta=180-0 & Phi=270 XY Cut is Theta=90 & Phi=0-360 Other Coordinate Notes, 3-Axis Cuts in Spherical Coordinates ... www.RTCE.com Frequency (MHz) Main Axis Realized Gain "+Z" (dBi) Rear Axis Gain "-Z" (dBi) Front/Back Ratio (dB) Side Axis Realized Gain "+X" (dBi) Side Axis Realized Gain "-X" (dBi) Side Axis Realized Gain "+Y" (dBi) Side Axis Realized Gain "-Y" (dBi) 695 7.1 -2.59.6-9.0-9.8-4.1-3.9 700 7.3 -3.410.7-9.8-10.1-3.9-3.8 705 7.4 -4.311.7-11.1-10.6-4.0-3.9 710 7.3 -5.312.7-12.7-10.9-4.1-4.1 715 7.2 -6.413.6-15.1-11.1-4.2-4.3 720 7.1 -7.714.7-16.9-11.1-4.0-4.1 725 7.1 -8.715.7-16.5-12.9-4.0-4.0 730 7.0 -9.216.2-17.3-14.5-3.9-3.8 735 6.9 -9.716.6-18.4-15.4-3.5-3.6 740 7.1 -9.917.1-19.0-15.8-3.3-3.4 745 7.3 -10.317.6-19.5-16.0-3.3-3.4 750 7.4 -10.517.9-20.0-16.1-3.3-3.4 755 7.4 -10.718.1-20.4-16.2-3.2-3.4 760 7.5 -10.818.2-20.4-16.0-3.1-3.4 820 7.5 -10.818.2-17.0-13.2-4.0-3.6 825 7.6 -10.518.1-17.8-13.8-4.0-3.7 830 7.7 -10.317.9-18.0-14.5-3.9-3.8 835 7.7 -10.117.8-18.0-15.3-3.9-3.9 840 7.8 -9.917.6-17.8-16.0-3.9-3.9 845 7.8 -9.817.6-17.6-16.8-3.8-3.9 850 7.8 -9.817.6-17.2-17.4-3.8-3.9 870 8.0 -9.717.7-16.3-21.2-3.4-3.6 875 8.1 -9.617.7-16.2-22.6-3.2-3.5 880 8.1 -9.617.8-16.2-24.1-3.1-3.5 885 8.1 -9.917.9-16.5-25.6-3.3-3.6 890 8.0 -10.218.1-16.9-27.4-3.6-4.0 895 7.7 -10.518.2-17.6-29.0-4.0-4.4 1710 8.1 -17.025.1-11.3-11.5-1.40.0 1715 8.2 -16.725.0-11.6-12.2-1.40.1 1720 8.3 -16.224.5-11.9-13.3-1.30.3 1725 8.4 -15.724.1-11.8-14.2-1.30.4 1730 8.4 -15.123.6-11.7-15.0-1.20.5 1735 8.5 -14.823.3-11.5-15.5-1.30.6 1740 8.5 -14.623.1-11.4-15.5-1.30.7 1745 8.6 -14.523.1-11.0-15.3-1.30.7 1750 8.7 -14.423.0-10.9-14.7-1.20.7 1755 8.7 -14.823.5-10.8-14.0-1.10.8 1850 8.7 -17.826.5-13.8-15.8-1.6-0.2 1855 8.6 -18.026.7-13.7-15.0-1.6-0.2 1860 8.5 -18.326.8-13.3-14.1-1.7-0.3 1865 8.5 -18.927.4-13.1-13.4-1.8-0.3 1870 8.4 -19.628.0-12.8-12.9-1.9-0.4 1875 8.4 -20.629.1-12.5-12.6-2.0-0.4 1880 8.5 -21.930.4-12.4-13.0-1.9-0.3 1885 8.6 -22.431.0-12.2-13.1-1.8-0.1 1890 8.7 -24.533.2-11.9-13.0-1.80.2 1895 8.8 -25.634.4-11.7-12.8-1.80.4 1900 8.9 -26.535.4-11.7-13.1-1.90.4 1905 9.0 -26.235.2-12.0-13.9-1.80.4 1910 9.1 -24.63…

Text truncated - open the document above for the full version.

November 1, 2013 Tuning and Adjustment of Wilson Model 460005 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, or downlink dependent region (RSSI) as provided in the test results. Sincerely, Patrick L. Cook Senior Research and Development Engineer

October 31, 2013 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460005 To Whom It May Concern: The MPE calculations for model 460005 signal booster were done for each frequency band: 800 MHz and 1900 MHz. For each band two calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: fixed outside and inside antennas. The order of the attached calculations is as follows: 800 MHz band: 1. Fixed Outside Antenna: 311124-400100 2. Inside Antenna: 311135 1900 MHz band: 1. Fixed Outside Antenna: 314473-0640 2. Inside Antenna: 311135 A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/29/2013, 4:29 PM460005 800 MHz Outside INPUT DATA Frequency MHz824 Pout Watts0.30867 Duty Cycle Percent100.0% Ant. Gain dBi9.64 Coax Loss dB4.74 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.90 Distance From Antenna In Inches8.00 EIRP (Watts)0.9539 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1840 REFERENCE DATA Pout dBm24.89 Antenna Gain (non-log)9.20 Coax loss (non-log)0.34 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311124-400100 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/29/2013, 4:29 PM460005 800 MHz Inside INPUT DATA Frequency MHz869 Pout Watts0.00060 Duty Cycle Percent100.0% Ant. Gain dBi6.10 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.10 Distance From Antenna In Inches8.00 EIRP (Watts)0.0025 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.0005 REFERENCE DATA Pout dBm-2.20 Antenna Gain (non-log)4.07 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311135 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/29/2013, 4:30 PM460005 1900 MHz Outside INPUT DATA Frequency MHz1850 Pout Watts0.17800 Duty Cycle Percent100.0% Ant. Gain dBi10.04 Coax Loss dB5.30 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.74 Distance From Antenna In Inches8.00 EIRP (Watts)0.5302 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1023 REFERENCE DATA Pout dBm22.50 Antenna Gain (non-log)10.09 Coax loss (non-log)0.30 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 314473-0640 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 10/29/2013, 4:30 PM460005 1900 MHz Inside INPUT DATA Frequency MHz1930 Pout Watts0.00062 Duty Cycle Percent100.0% Ant. Gain dBi6.70 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.70 Distance From Antenna In Inches8.00 EIRP (Watts)0.0029 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0006 REFERENCE DATA Pout dBm-2.10 Antenna Gain (non-log)4.68 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311135 RESULTS OF CALCULATIONS

November 1, 2013 Subject: Antenna Kitting Re: FCC ID: PWO460005 To Whom It May Concern: The antenna kitting options for model 460005 signal booster were done for 27 Outside Antenna kit options and 14 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna Kit Options: 1. Kit 314411-40075 2. Kit 314411-5825 3. Kit 314775-0630 4. Kit 301111-0675 5. Kit 301111-5850 6. Kit 301111-400170 7. Kit 311124-400100 8. Kit 311124-5840 9. Kit 311124-0660 10. Kit 311129-0650 11. Kit 311129-400100 12. Kit 311129-5830 13. Kit 311203-40020 14. Kit 311203-5820 15. Kit 311201-0620 16. Kit 301126 17. Kit 301111-11140 18. Kit 311201-1120 19. Kit 311124-11110 20. Kit 314475-1175 21. Kit 314453-5825 22. Kit 314453-40075 23. Kit 314473-0640 24. Kit 311141-0620 25. Kit 311129-1180 26. 311141-1120 27. 314473-1175 Inside Antenna Kit Options: 1. Kit 311135-40060 2. Kit 311155-40060 3. Kit 311135-5820 4. Kit 311155-0630 5. Kit 301121-40010 6. Kit 301151-0610 7. Kit 309900-50N 8. Kit 309902-75F 9. Kit 309903-75F 10. Kit 309904-75F 11. Kit 309905-50N 12. Kit 311155-1150 13. Kit 301151-1110 14. Kit 301213 Sincerely, Patrick L. Cook Senior Research and Development Engineer FCC ID:PWO460005FCC ID:PWO460005 Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)824-8491850-1910Uplink Frequency (MHz)824-8491850-1910 Uplink Output Power (dBm)24.922.5Uplink Output Power (dBm)24.922.5 1Wide Band Directional Antenna With 75' LMR 400314411-400757Yagi Antenna 311124 With 100' LMR 400311124-400100 Antenna Gains (dBi)7.89.1Antenna Gains (dBi)9.64-11.97 Coax Loss (dB)3.65.4Coax Loss (dB)4.77.1 Final Gain less Loss (dB)4.23.7Final Gain less Loss (dB)4.9-19.07 Output Power plus Final Gain (dBm EIRP)29.0926.2Output Power plus Final Gain (dBm EIRP)29.83.4 2Wide Band Directional Antenna With 25' RG-58314411-58258Yagi Antenna 311124 With 40' RG-58311124-5840 Antenna Gains (dBi)7.89.1Antenna Gains (dBi)9.64-11.97 Coax Loss (dB)3.25.4Coax Loss (dB)5.28.6 Final Gain less Loss (dB)4.63.7Final Gain less Loss (dB)4.4-20.6 Output Power plus Final Gain (dBm EIRP)29.526.2Output Power plus Final Gain (dBm EIRP)29.31.9 3Wide Band Directional Antenna With 30' RG-6314775-06309Yagi Antenna 311124 With 60' RG-6311124-0660 Antenna Gains (dBi)7.89.1Antenna Gains (dBi)9.64-11.97 Coax Loss (dB)3.45.3Coax Loss (dB)5.08.0 Final Gain less Loss (dB)4.43.8Final Gain less Loss (dB)4.64-19.95 Output Power plus Final Gain (dBm EIRP)29.326.3Output Power plus Final Gain (dBm EIRP)29.52.6 4Yagi Antenna 301111 With 75' RG-6301111-067510Yagi Antenna 311129 With 50' RG-6311129-0650 Antenna Gains (dBi)10.814.9Antenna Gains (dBi)-23.410.9 Coax Loss (dB)6.39.975Coax Loss (dB)4.26.7 Final Gain less Loss (dB)4.454.925Final Gain less Loss (dB)-27.604.25 Output Power plus Final Gain (dBm EIRP)29.327.4Output Power plus Final Gain (dBm EIRP)-2.726.8 5Yagi Antenna 301111 With 50' RG-58301111-5850Yagi Antenna 311129 With 100' LMR 400311129-400100 Antenna Gains (dBi)10.8-14.911Antenna Gains (dBi)-23.410.9 Coax Loss (dB)6.510.7Coax Loss (dB)4.77.1 Final Gain less Loss (dB)4.3-25.6Final Gain less Loss (dB)-28.13.8 Output Power plus Final Gain (dBm EIRP)29.2-3.1Output Power plus Final Gain (dBm EIRP)-3.2126.3 6Yagi Antenna 301111 With 170' LMR 400301111-40017012Yagi Antenna 311129 With 30' RG-58311129-5830 Antenna Gains (dBi)10.8-14.9Antenna Gains (dBi)-23.410.9 Coax Loss (dB)6.39.8Coax Loss (dB)3.96.4 Final Gain less Loss (dB)4.45-24.7Final Gain less Loss (dB)-27.34.5 Output Power plus Final Gain (dBm EIRP)29.3-2.2Output Power plus Final Gain (dBm EIRP)-2.427.0 Fixed Outside Antenna Kit OptionsFixed Outside Antenna Kit Options FCC ID:PWO460005FCC ID:PWO460005 Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)824-8491850-1915Uplink Frequency (MHz)824-8491850-1915 Uplink Output Power (dBm)24.922.5Uplink Output Power (dBm)24.922.5 13Omni Directional Antenna 311203 With 20' LMR 400311203-4002021Panel Antenna With 25' RG-58314453-5825 Antenna Gains (dBi)0.575.09Antenna Gains (dBi)4.410.04 Coax Loss (dB)0.71.1Coax Loss (dB)3.25.4 Final Gain less Loss (dB)-0.134.0Final Gain less Loss (dB)1.24.6 Output Power plus Final Gain (dBm EIRP)24.826.5Output Power plus Final Gain (dBm EIRP)26.127.1 14Omni Directional Antenna 311203 With 20' RG-58311203-582022Panel Antenna With 75' LMR 400314453-40075 Antenna Gains (dBi)0.575.09Antenna Gains (dBi)4.410.04 Coax Loss (dB)2.64.3Coax Loss (dB)3.65.4 Final Gain less Loss (dB)-2.030.79Final Gain less Loss (dB)0.84.64 Output Power plus Final Gain (dBm EIRP)22.923.3Output Power plus Final Gain (dBm EIRP)25.727.1 15Omni Directional Antenna 311201 With 20' RG-6311201-062023Panel Antenna With 40' RG-6314473-0640 Antenna Gains (dBi)0.575.09Antenna Gains (dBi)4.410.04 Coax Loss (dB)1.72.7Coax Loss (dB)3.45.3 Final Gain less Loss (dB)-1.132.39Final Gain less Loss (dB)1.04.74 Output Power plus Final Gain (dBm EIRP)23.824.9Output Power plus Final Gain (dBm EIRP)25.927.2 16Mini-Mag Antenna With 12.5' RG-17430112624Grey Panel With 20' RG-6311141-0620 Antenna Gains (dBi)1.976.89Antenna Gains (dBi)1.25.5 Coax Loss (dB)3.74.7Coax Loss (dB)1.72.7 Final Gain less Loss (dB)-1.732.19Final Gain less Loss (dB)-0.52.8 Output Power plus Final Gain (dBm EIRP)23.224.7Output Power plus Final Gain (dBm EIRP)24.425.3 17Yagi 301111 With 140' RG-11301111-1114025Yagi 311129 With 80' RG-11311129-1180 Antenna Gains (dBi)10.8-14.6Antenna Gains (dBi)-23.410.9 Coax Loss (dB)6.3810.9Coax Loss (dB)3.66.3 Final Gain less Loss (dB)4.37-25.5Final Gain less Loss (dB)-27.04.6 Output Power plus Final Gain (dBm EIRP)29.3-3.0Output Power plus Final Gain (dBm EIRP)-2.127.1 18Omni Directional Antenna 311201 With 20' RG-11311201-112026Grey Panel With 20' RG-11311141-1120 Antenna Gains (dBi)0.575.09Antenna Gains (dBi)1.25.5 Coax Loss (dB)0.91.6Coax Loss (dB)0.91.6 Final Gai…

Text truncated - open the document above for the full version.

January 23, 2014 To: Whom it May Concern Subject: Calculated Mobile Station Coupling Losses (MSCL) For FCCID: PWO460005 The following formulas were used to calculate MSCL with a 6 foot path loss and a 45 degree polarity mismatch between the inside antenna and the mobile device: Path Loss dB = 36.6 dB + 20Log(F MHz) dB+ 20Log(D miles ) dB Polarity Loss dB = 10Log(E 1 /E 2 ) 2 dB = P L dB P L dB= 10Log(E 1 2 /(E 1 Sin(45 deg )) 2 ) dB = 20Log(1/Sin(45 deg )) dB = 3.01dB Where: E 1 = Maximum Possible Magnitude of the Electric Field from the Mobile Device E 2 = Magnitude of the electric field from the Mobile device with a 45deg polarity mismatch = E 1 Sin(  MSCL dB = Path Loss dB + Polarity Loss dB - Antenna Gain dB The results of the calculations are shown in the following table: Note: Antenna Gain with Coax Loss as measured. Sincerely Patrick L. Cook Senior Electrical Engineer Uplink Center Frequency MHz 836.5 1880-1882.5 Path Loss (dB) 36.16 43.21 Polarity Loss (dB) 3 3 Antenna Gain with Coax Loss 2.9 4.98 MSCL (dB) 36.26 41.23 E 1 E 2 45deg

p1350025_FCC_Part 20_Rev 5.0 Page 1 of 75 Test Report Prepared for: Wilson Electronics, Inc. Model: 460005 Description: Dual Band In-Building Signal Booster FCC ID: PWO460005 To FCC Part 20 Date of Issue: January 27, 2014 On the behalf of the applicant: Wilson Electronics, Inc. 3301 E Deseret Drive St. George, UT 84790 To the attention of: Pat Cook, Sr. Electrical Engineer Ph: (435) 673-5021 Email: [email protected] Prepared By Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1350025 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1350025_FCC_Part 20_Rev 5.0 Page 2 of 75 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 9/27/2013 Mike Graffeo Original Document 2.0 10/24/2013 Mike Graffeo Retest 800 MHz band for new power and gain 3.0 11/6/2013 Amanda Reed Corrected model description; added firmware and software information 4.0 12/2/2013 Mike Graffeo Re-took plot on page 55, which fixed RWB for 1850- 1910 GSM UL input, Occupied bandwidth. 5.0 1/27/2013 John Erhard Update test summary table removing provider specific references p1350025_FCC_Part 20_Rev 5.0 Page 3 of 75 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 31 Noise Limits 38 Uplink Inactivity 46 Variable Gain 48 Occupied Bandwidth 52 Oscillation Detection 65 Radiated Spurious 73 Test Equipment Utilized 75 p1350025_FCC_Part 20_Rev 5.0 Page 4 of 75 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1350025_FCC_Part 20_Rev 5.0 Page 5 of 75 Test and Measurement Data Subpart 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Sub-part J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirement…
