PWO460007Model 460007 Signal Booster

Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Sleek ® 4G Cellular Signal Booster 460007/460107 2 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Contents Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Option 1: Vehicle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Option 2: In-Building Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Adjusting the Sleek 4G Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Understanding the Sleek 4G Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Safety and Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover IT IS VERY IMPORTANT TO POWER YOUR SIGNAL BOOSTER USING A SURGE PROTECTED AC POWER STRIP WITH AT LEAST A 1000 JOULE RATING. FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE . !! THE SIGNAL BOOSTER UNIT IS DESIGNED FOR USE IN AN INDOOR, TEMPERATURE- CONTROLLED ENVIRONMENT (LESS THAN 150 DEGREES FAHRENHEIT) . IT IS NOT INTENDED FOR USE IN ATTICS OR SIMILAR LOCATIONS SUBJECT TO TEMPERATURES IN EXCESS OF 150°F . Sleek ® 4G operates on (Band 12/17, 13) 700 / 800 / AWS (1700 / 2100) / (Band 2) 1900 MHz Model #460007 FCC: PWO460007 FCC requires to never use the cell phone in the cradle next to your ear . Mini-Magnet Mount Antenna (301126) Vehicle Dash Adhesive Mounting Bracket DC Plug-In Power Supply & USB cable (859910) Sleek 4G ® Adjustable Arms Inside this Package Appearance of device and accessories may vary . 3 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Installation Options Option 1: Vehicle Installation 1 . Attach the Mounting Bracket to the vehicle’s dashboard . • Clean the area where the bracket is to be mounted with the alcohol wipe included . Allow the area to dry . • Peel the backing to expose the adhesive and press the bracket onto the desired location on the dashboard . NOTE: Be sure the tab is positioned vertically . • Allow the adhesive to cure for 24 hours before you attach the Sleek 4G (Step 4) . 2 . Install the Outside Antenna . Select a location on top of the car that is: • Near the center of the vehicle’s roof. • At least 12 inches from any other antennas . • Free of obstructions. • At least 6 inches from any windows (including sunroofs) . • At least 8 inches from any people. The Outside Antenna must be installed vertically . 3 . Run the Outside Antenna cable into the car . The cable is strong enough that it may be shut in most vehicle doors without damaging the cable . For a cleaner look, carefully pull down the door seal, run the cable under the seal, and push the seal back into place . This method reduces wear on the cable as the door opens and closes . 4 . Attach the Sleek 4G to the Mounting Bracket . After waiting 24 hours for the adhesive on the bracket to cure, attach the Sleek 4G by aligning the rectangular hole on the back of the Sleek 4G with the tab on the Mounting Bracket, grasping the sides of the Sleek 4G, and sliding it downward approximately ¼ inch into place . The Mounting Bracket is designed to swivel for more convenient viewing angles . Once the Sleek 4G is in place, you can adjust the angle of the bracket by loosening the knurled nut, applying gentle pressure to the top or bottom of the Sleek 4G, and then tightening the nut when the desired angle is achieved . 5 . Attach the antenna to the Sleek 4G . Connect the cable from the Outside Antenna to the antenna connector on the bottom of the Sleek 4G . Do NOT plug in the power supply (next step) until the Outside Antenna cable is connected to the Sleek 4G . Note: The Sleek 4G has a convenient USB charging port located on the right side of your booster . This port allows for charging your phone or device, using your existing cable . 4 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST • With the bracket in place, attach the magnet base of the antenna to the flat surface of the bracket . The antenna must be mounted vertically for the best signal . 2 . Install the Mounting Bracket and Sleek 4G . Put your Sleek 4G in the Mounting Bracket (see instructions under Vehicle Installation) and place it in a convenient location such as a desk or table top in the room where you will use the phone . The location should be at least three feet from the Outside Antenna to avoid oscillation (feedback) . Your cell phone must be in the cradle for the Sleek 4G to amplify the signal . Use a Bluetooth headset, wired hands- free device or speakerphone for talking on the phone . 3 . Attach the antenna to the Sleek 4G . Connect the cable from the Outside Antenna to the antenna connector on the bottom of the Sleek 4G . Do NOT plug in the power supply (next step) until the Outside Antenna cable is connected to the Sleek 4G . 4 . Power up your Sleek . Connect the power cable to the mini-USB port on the bottom of the Sleek . Then insert the adapter into the AC power supply (8599…

Text truncated - open the document above for the full version.

January 13, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460007 Each Signal Booster certificated under FCC ID PWO460007 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Senior Research and Development Engineer

December 3, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460007 Signal Booster under FCC ID: PWO460007 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

December 5, 2013 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460007 Signal Booster are: Uplink Amplifier (698-716 MHz): 4.3 V, 0.5 A Downlink Amplifier (728-746 MHz): 4.3 V, 0.5 A Uplink Amplifier (777-787 MHz): 4.3 V, 0.5 A Downlink Amplifier (746-756 MHz): 4.3 V, 0.5 A Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1910 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1990 MHz): 4.3 V, 0.5 A Uplink Amplifier (1710-1755 MHz): 4.3 V, 0.5 A Downlink Amplifier (2110-2155 MHz): 4.3 V, 0.5 A Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460007 CT Project: P13a0013 From: Daniel Park Date: 1/27/14 1. Please provide the “inside antenna” specification for the booster. Wilson: It was agreed upon in ANSI C63 that 10 dB would be acceptable for a coupled device because the phone is in the near filed it is not acting as an antenna, but as a coupler. This can be seen in the MSCL exhibit. 2. Please show how the “internal antenna” will be connected to the booster circuit and show the location of the inside antenna in the device. Wilson: The internal antenna is connected to the booster circuit as shown in the block diagram exhibit. The location of the inside antenna and the location of the connector are indicated on the exhibit “Antenna Info.pdf”. 3. Please provide the details on the regular USB port function in the external and internal photo exhibits. Wilson: The USB port functions as a charging port for the cellular device in use with the booster. 4. Please confirm the micro USB port for just power or something else. Wilson: The micro USB port is just for powering the booster. 5. At the page 5 of RF test report, please provide the full name of KDB instead of stating as “the latest version of KDB 935210”. CT: Report has been corrected to match which version was used, “August 7, 2013” 6. At the page 13 of RF test report for “Maximum Power and gain, the rule part 20.21(e)(8)(i)(C)(2)(iii) should be also applicable due to inside of vehicle use as “User Manual” described. Please verify and show the compliance under this rule part as necessary. CT: Report has been corrected to use limit of 23dB (Uplink and Downlink Gain Test Results). 7. At the pages 55 & 77 of the RF test report and “RF Exposure_Antenna Kitting_PWO460007”, the frequencies information for some of 700MH band do not agreed with the various locations in the RF test report and other exhibits. Please revise the frequency numbers as below for consistency: 777MHz to 776MHz or/and 734MHz to 728MHz. CT: Report was been corrected. (5 locations and 2 locations) 8. At the page 56 of RF test report, it indicates the additional spurious emissions requirement under FCC 27.539(C )(3) for “base and fixed stations”. However, “Operational Description” and “User manual” indicate that the booster could be used inside of vehicle as well. Therefore, the rule part 27.53(c)(4) should be included in the test report. Please verify. CT: Report Test Result Summary has been updated to reflect this. 9. At the page 57 of RF test report, it states rule part FCC27.53(f) as the title. However, the actual content is for FCC 27.53(e ). Please verify and correct the information as necessary. CT: Report has been fixed for this new FCC rule change that occurred on Jan 6, 2014 10. At the page 76 of RF test report, it states only “Fixed Booster Maximum Noise Power”. As mentioned earlier, this particular booster was designed for in-car use as well. Therefore, the rule part 20.21(e )(8)(i)(2)(ii) should be included for the “Mobile” limit which is -59 dBm/MHz. Please verify. CT: Report was been updated with new limit of -59 dBm/MHz. Response by: Mike Graffeo for CT & Wilson Submitted by: Compliance Testing LLC Date: 1/29/14

Page 1 of 1 FCC ID: PWO460007 CT Project: P13a0013 From: Daniel Park Date: 1/29/14 1. In response for the inquire #1, the booster and phone potentially work like “coupled” device, however, none of exhibit supports that handset has to be close to the booster unit and make as near field communication. In fact, “Operational Description” indicates that other than cell phone such as PDA or modem could be used for the similar application as well. Therefore, phone and inside antenna of the booster can be treated as far field communication. Under this circumstance, the intended mode should be accounted for in the RF Exposure calculations using the realistic maximum power of the handset as used with this device of inside and outside antennas in the booster. It can be assumed that the handset is operating at its maximum allowed power output or at the actual operating parameters if this device controls the handset output. Please adjust RF exposure report accordingly and provide the inside antenna specification. Wilson: This one is the same as the PWO460006, which was accepted without inside antennas. We adjusted the operational description to further indicate the requirement of it being a coupled device, but the booster cannot be used for far field communication without physical adjustment and damage which voids its warranty. The use of a coaxial cable is mentioned in the operational description with the explanation that it is only for the purpose of testing. The only inside antenna used with this device is the one contained inside the case. The information for this antenna is part of the MSCL that was initially sent with the device. Please refer to Operational Description Rev 1 exhibit. 2. In the test report at the page 77, the “variable Uplink Nosie Power” Test result and “variable downlink Nosie Power” were not included for some reason. Please provide. 20.21(e )(8) (i) (A) (i) Technical Requirements --(A) Noise Limits. ( 1 ) The transmitted noise power in dBm/MHz of consumer boosters at their uplink and downlink ports shall not exceed -103 dBm/MHz--RSSI. CT: Please note, in the Test Results Summary, I have the following for Noise tests: per rule 20.21e... if noise is less than -70dBm/MHz (“Transmit Power OFF Mode”) then EUT will not shut off, therefore the following tests will not be performed: 1) Variable Uplink Noise Power Tests, 2) Variable Downlink Noise Power Tests, 3) Noise timing test Response by: Mike Graffeo for CT & Wilson Submitted by: Compliance Testing LLC Date: 1/31/14

Page 1 of 1 FCC ID: PWO460007 CT Project: P13a0013 From: Daniel Park Date: 2/5/14 1. The Operational Description still says “inside a vehicle or building”. Stating Building implies a larger operating area. There does not seem to be any description of Coupling the signal from Cell Phone to Cradle. There is a clear description of the Radiation of the signal from Cradle to Handset. Unless the coupling is performed by a wired connection, the Radiated testing for the DL band from cradle to handset will still need to be performed. Please provide clarification how we take this booster as coupling device. Please provide further detail information to prove or support as stated originally. Otherwise, provide RF exposure report for simultaneous transmission data like the MPE report from “PWO460013” application. Wilson: The information for the inside antenna specifications is included in the MPE and the MSCL that was originally submitted with the booster. Response by: Wilson Submitted by: Compliance Testing LLC Date: 2/5/14

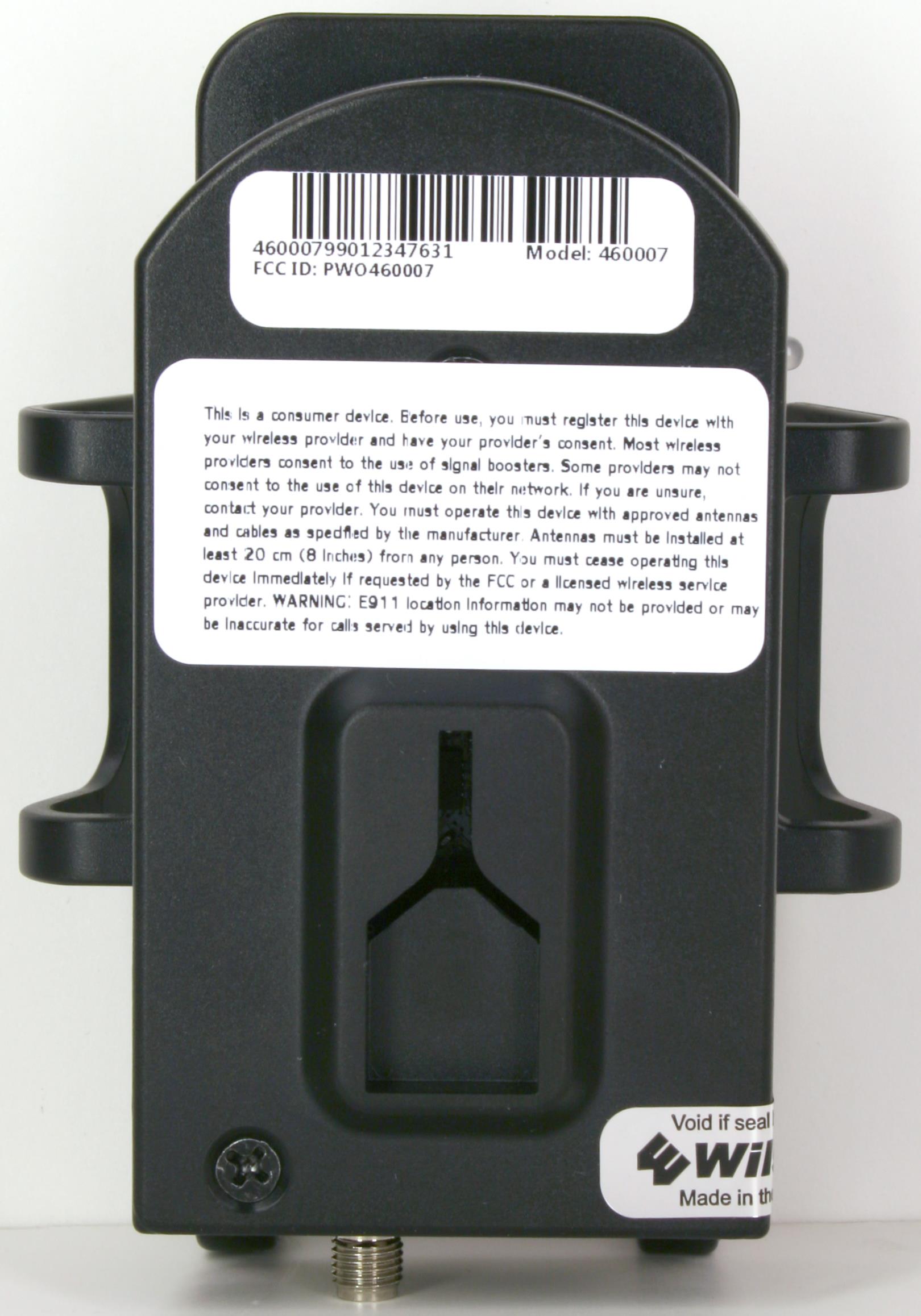

January 22, 2014 To: Whom it May Concern Subject: Alternative Warning Label Placement This letter is to request alternative warning label placement for the signal booster model number 460007. The signal booster is too small to fit the warning label as can be seen from the Label Placement and External Photos exhibits. Instead, the warning can be found on page 7 of the User Manual. Sincerely, Patrick L. Cook Senior Research and Development Engineer

December 3, 2013 Tuning and Adjustment of Wilson Model 460007 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Sincerely, Patrick L. Cook Senior Research and Development Engineer

December 3, 2013 Subject: Antenna Kitting Re: FCC ID: PWO460007 To Whom It May Concern: The antenna kitting options for model 460007 signal booster were done for 19 Mobile Outside Antenna kit options, 27 Fixed Outside Antenna kit options, and no Inside Antenna kit options. The Inside Antenna kits are not applicable for model 460007 due to an inside antenna integrated into the Signal Booster. The order of the attached calculations is as follows: Mobile Outside Antenna Kit Options: 1. Kits 311103, 311125, 311128, 314202 2. Kit 311703 3. Kit 301113, 301126 4. Kit 311101 5. Kit 311701 6. Kit 311119 7. Kit 311133 8. Kit 311104-17410 9. Kit 311112-17410 10. Kit 314203-17410 11. Kit 311130-5810 12. Kit 311114 13. Kit 311102 14. Kit 311104-5810 15. Kit 311112-5810 16. Kit 314203-5810 17. Kit 311104-40015 18. Kit 311112-40015 19. Kit 314203-40015 Fixed Outside Antenna Kit Options: 1. Kit 314411-40075 2. Kit 314411-5825 3. Kit 314775-0630 4. Kit 301111-0675 5. Kit 301111-5850 6. Kit 311124-400100 7. Kit 311124-5840 8. Kit 311124-0660 9. Kit 311129-0650 10. Kit 311129-400100 11. Kit 311203-40020 12. Kit 311203-5820 13. Kit 311201-0620 14. Kit 301126 15. Kit 301111-11140 16. Kit 314453-5825 17. Kit 314453-40075 18. Kit 314473-0640 19. Kit 311141-0620 20. Kit 311129-1180 21. Kit 311201-1120 22. Kit 311124-11110 23. Kit 314475-1175 24. Kit 301111-400170 25. Kit 311141-1120 26. Kit 314473-1175 27. Kit 311129-5830 Sincerely, Patrick L. Cook Senior Research and Development Engineer FCC ID:PWO 460007 Final Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)698-716777-787824-8491710-17551850-1910 Uplink Output Power (dBm)24.3523.0924.92222.69 1 Magnet Mount w/12.5' RG-174Kit Numbers:311103311125311128314202 Antenna Gains (dBi)-4.880.091.97-6.992.51 Coax Loss (dB)2.83.03.74.54.7 Final Gain less Loss (dB)-7.7-2.9-1.7-11.5-2.2 Output Power plus Final Gain (dBm EIRP)16.6720.1823.1710.5120.5 2 Magnet Mount w/12.5' RG-174311703 Antenna Gains (dBi)-15.07-4.230.69-1.991.13 Coax Loss (dB)2.83.03.74.54.7 Final Gain less Loss (dB)-17.9-7.2-3.0-6.5-3.6 Output Power plus Final Gain (dBm EIRP)6.4815.8621.8915.519.12 3 Mini-Mag Mount w/12.5' RG-174301113 301126 Antenna Gains (dBi)-0.36-2.15-1.921.161.85 Coax Loss (dB)2.833.74.54.7 Final Gain less Loss (dB)-3.2-5.2-5.6-3.3-2.9 Output Power plus Final Gain (dBm EIRP)21.1917.9419.2818.6619.8 4 Trucker Antenna w/10.5' RG-58311101 Antenna Gains (dBi)-4.510.41.72-3.626.12 Coax Loss (dB)1.21.31.42.22.3 Final Gain less Loss (dB)-5.7-0.90.3-5.83.8 Output Power plus Final Gain (dBm EIRP)18.622.225.216.226.5 5Trucker Antenna w/10.5' RG-58311701 Antenna Gains (dBi)-14.11-0.712.18-0.152.66 Coax Loss (dB)1.21.31.42.22.3 Final Gain less Loss (dB)-15.3-2.00.8-2.40.4 Output Power plus Final Gain (dBm EIRP)9.0421.0825.6819.6523.1 6 Trucker Antenna w/13.5' RG-58311119 Antenna Gains (dBi)-1.360.361.21-2.33.57 Coax Loss (dB)1.61.71.72.82.9 Final Gain less Loss (dB)-3.0-1.3-0.5-5.10.7 Output Power plus Final Gain (dBm EIRP)21.421.7524.4116.923.36 7 Trucker Antenna w/13.5' RG-58311133 Antenna Gains (dBi)-3.30.21.15-4.754.22 Coax Loss (dB)1.61.71.72.82.9 Final Gain less Loss (dB)-4.9-1.6-0.6-7.61.3 Output Power plus Final Gain (dBm EIRP)19.521.524.414.524.0 8 NMO Antenna 10' RG-174311104-17410 Antenna Gains (dBi)-4.1-0.92.48-3.511.8 Coax Loss (dB)2.32.43.03.63.8 Final Gain less Loss (dB)-6.4-3.3-0.5-7.1-2.0 Output Power plus Final Gain (dBm EIRP)17.9819.7624.3814.8920.69 9 NMO Antenna 10' RG-174311112-17410 Antenna Gains (dBi)-3.16-0.452.47-2.6-0.65 Coax Loss (dB)2.32.43.03.63.8 Final Gain less Loss (dB)-5.5-2.9-0.5-6.2-4.5 Output Power plus Final Gain (dBm EIRP)18.8920.2424.3715.818.24 10 NMO Antenna 10' RG-174314203-17410 Antenna Gains (dBi)-1.570.481.82-5.740.75 Coax Loss (dB)2.32.43.03.63.8 Final Gain less Loss (dB)-3.9-1.9-1.2-9.3-3.1 Output Power plus Final Gain (dBm EIRP)20.521.223.712.719.6 Mobile Outside Antenna Kit Options FCC ID:PWO 460007 Final Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)698-716777-787824-8491710-17551850-1910 Uplink Output Power (dBm)24.3523.0924.92222.69 11 Marine Antenna w/10' RG-58311130-5810 Antenna Gains (dBi)-1.0-1.60.65-1.683.57 Coax Loss (dB)1.21.21.32.12.1 Final Gain less Loss (dB)-2.2-2.9-0.6-3.71.4 Output Power plus Final Gain (dBm EIRP)22.220.224.318.324.1 12 Mini-Glass Mount w/14' RG-58311114 Antenna Gains (dBi)-7.53-6.11-5.392.571.44 Coax Loss (dB)1.61.71.82.93.0 Final Gain less Loss (dB)-9.1-7.8-7.2-0.3-1.6 Output Power plus Final Gain (dBm EIRP)15.215.317.721.721.1 13 Glass Mount w/14' RG-58311102 Antenna Gains (dBi)-3.68-2.54-0.862.193.39 Coax Loss (dB)1.61.71.82.93.0 Final Gain less Loss (dB)-5.3-4.2-2.7-0.70.4 Output Power plus Final Gain (dBm EIRP)19.0718.8522.2421.2923.1 14 NMO Antenna w/10' RG-58311104-5810 Antenna Gains (dBi)-4.1-0.92.48-3.511.8 Coax Loss (dB)1.21.21.32.12.1 Final Gain less Loss (dB)-5.3-2.11.2-5.6-0.3 Output Power plus Final Gain (dBm EIRP)19.0820.9626.0816.3922.39 15 NMO Antenna w/10' RG-58311112-5810 Antenna Gains (dBi)-3.16-0.452.47-2.6-0.65 Coax Loss (dB)1.21.21.32.12.1 Final Gain less Loss (dB)-4.4-1.71.2-4.7-2.8 Output Power plus Final Gain (dBm EIRP)19.9921.4426.0717.319.94 16 NMO Antenna w/10' RG-58314203-5810 Antenna Gains (dBi)-1.570.481.82-5.740.75 Coax Loss (dB)1.21.21.32.12.1 Final Gain less Loss (dB)-2.8-0.70.5-7.8-1.4 Output Power plus Final Gain (dBm EIRP)21.622.425.414.221.3 17 NMO Antenna w/15'LMR 400311104-40015 Antenna Gains (dBi)-4.1-0.92.48-3.511.8 Coax Loss (dB)0.80.80.91.11.3 Final Gain less Loss (dB)-4.9-1.71.6-4.60.5 Output Power plus Final Gain (dBm EIRP)19.4821.3626.517.3923.2 18 NMO Antenna w/15'LMR 400311112-40015 Antenna Gains (dBi)-3.16-0.452.47-2.6-0.65 Coax Loss (dB)0.80.80.91.11.3 Final Gain less Loss (dB)-4.0-1.31.6-3.7-2.0 Output Power plus Final Gain (dBm EIRP)20.3921.8426.4718.320.74 19 NMO Antenna w/15'LMR 400314203-40015 Antenna Gains (dBi)-1.570.481.82-5.740.75 Coax Loss (dB)0.80.80.91.11.3 Final Gain less Loss (dB)-2…

Text truncated - open the document above for the full version.

December 5, 2013 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460007 To Whom It May Concern: The MPE calculations for model 460007 signal booster were done for each frequency band: 1700 MHz, 800 MHz, 700 MHz Band 13, 700 MHz Band 12, and 1900 MHz. For each band two calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: fixed and mobile outside antennas. The order of the attached calculations is as follows: 1700 MHz band: 1. Fixed Outside Antenna: 314453-40075 2. Mobile Outside Antenna: 311114 800 MHz band: 3. Fixed Outside Antenna: 311124-400100 4. Mobile Outside Antenna: 311104 700 MHz band 13: 5. Fixed Outside Antenna: 314411-40075 6. Mobile Outside Antenna: 314203 700 MHz band 12: 7. Fixed Outside Antenna: 314411-40075 8. Mobile Outside Antenna: 301126 1900 MHz band: 9. Fixed Outside Antenna: 314473-0640 10. Mobile Outside Antenna: 311101 Radiation Safety 11. Calculated Combined Power Density A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Fixed Outside 1700 MHz INPUT DATA Frequency MHz1710 Pout Watts0.15849 Duty Cycle Percent100.0% Ant. Gain dBi8.20 Coax Loss dB4.39 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi3.81 Distance From Antenna In Inches8.00 EIRP (Watts)0.3811 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0735 REFERENCE DATA Pout dBm22.00 Antenna Gain (non-log)6.61 Coax loss (non-log)0.36 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 314453-40075 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Mobile Outside 1700 MHz INPUT DATA Frequency MHz1710 Pout Watts0.15849 Duty Cycle Percent100.0% Ant. Gain dBi2.57 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi2.57 Distance From Antenna In Inches8.00 EIRP (Watts)0.2864 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0553 REFERENCE DATA Pout dBm22.00 Antenna Gain (non-log)1.81 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311114 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Fixed Outside 800 MHz INPUT DATA Frequency MHz824 Pout Watts0.30903 Duty Cycle Percent100.0% Ant. Gain dBi9.60 Coax Loss dB4.70 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.90 Distance From Antenna In Inches8.00 EIRP (Watts)0.9550 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1842 REFERENCE DATA Pout dBm24.90 Antenna Gain (non-log)9.12 Coax loss (non-log)0.34 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311124-400100 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Mobile Outside 800 MHz INPUT DATA Frequency MHz824 Pout Watts0.30903 Duty Cycle Percent100.0% Ant. Gain dBi2.48 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi2.48 Distance From Antenna In Inches8.00 EIRP (Watts)0.5470 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1055 REFERENCE DATA Pout dBm24.90 Antenna Gain (non-log)1.77 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311104 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Fixed Outside 700 MHz Band 13 INPUT DATA Frequency MHz776 Pout Watts0.20370 Duty Cycle Percent100.0% Ant. Gain dBi7.20 Coax Loss dB3.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.20 Distance From Antenna In Inches8.00 EIRP (Watts)0.5358 FCC Power Density Limit (mw/cm 2 ) 0.52 Calculated Power Density (mw/cm 2 ) 0.1034 REFERENCE DATA Pout dBm23.09 Antenna Gain (non-log)5.25 Coax loss (non-log)0.50 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 314411-40075 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Mobile Outside 700 MHz Band 13 INPUT DATA Frequency MHz776 Pout Watts0.20370 Duty Cycle Percent100.0% Ant. Gain dBi0.48 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi0.48 Distance From Antenna In Inches8.00 EIRP (Watts)0.2275 FCC Power Density Limit (mw/cm 2 ) 0.52 Calculated Power Density (mw/cm 2 ) 0.0439 REFERENCE DATA Pout dBm23.09 Antenna Gain (non-log)1.12 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 314203 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:55 PM460007 Fixed Outside 700 MHz Band 12 INPUT DATA Frequency MHz698 Pout Watts0.27227 Duty Cycle Percent100.0% Ant. Gain dBi7.30 Coax Loss dB2.80 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.50 Distance From Antenna In Inches8.00 EIRP (Watts)0.7674 FCC Power Density Limit (mw/cm 2 ) 0.47 Calculated Power Density (mw/cm 2 ) 0.1480 REFERENCE DATA Pout dBm24.35 Antenna Gain (non-log)5.37 Coax loss (non-log)0.52 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 314411-40075 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 12/3/2013, 2:56 PM460007 Mobile Outside 700 MHz Band 12 …

Text truncated - open the document above for the full version.

October 21, 2013 To: Whom it May Concern Subject: Mobile Station Coupling Losses (MSCL) For FCCID: PWO460007 Sincerely Patrick L. Cook Senior Electrical Engineer Uplink Center Frequency MHz 707 782 836.5 1732.5 1880 MSCL (dB) 10.00 10.00 10.00 10.00 10.00

p13a0013_FCC_Part 20_Rev 5.0 Page 1 of 141 Test Report Prepared for: Wilson Electronics, Inc Model: 460007 Description: Quint Band Direct Connect Signal Booster FCC ID: PWO460007 To FCC Part 20 Date of Issue: November 18, 2013 On the behalf of the applicant: Wilson Electronics, Inc. 3301 E Deseret Drive St. George, UT 84790 To the attention of: Pat Cook, Sr. Electrical Engineer Ph: (435)673-5021 Email: [email protected] Prepared By Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p13a0013 This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested Mike Graffeo Project Test Engineer p13a0013_FCC_Part 20_Rev 5.0 Page 2 of 141 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 November 18, 2013 Mike Graffeo Original Document 2.0 December 3, 2013 Mike Graffeo Re-measured 824 - 849 MHz Pulsed GSM power page 14 and updated gain data on page 15 3.0 January 7, 2014 Mike Graffeo 1) Pages 1 & 5 corrected EUT description. 2) Page 5 corrected software/firmware versions. 3) Pages 55, 61, 62, 71, 82, 115, 116, corrected 1850 – 1915 MHz Band ranges. 4) Pages 55, 71, 116, corrected 746 - 756 MHz Band ranges. 4.0 January 9, 2014 Mike Graffeo Added additional spurious emissions data on pages 56, 57 and plots on pages 72-75 for compliance to rule part 27.53c and 27.53f. 5.0 January 27, 2014 Mike Graffeo 1) Updated Conducted Emissions rule sections in the test summary table on page 6 and 57 to match the new…
