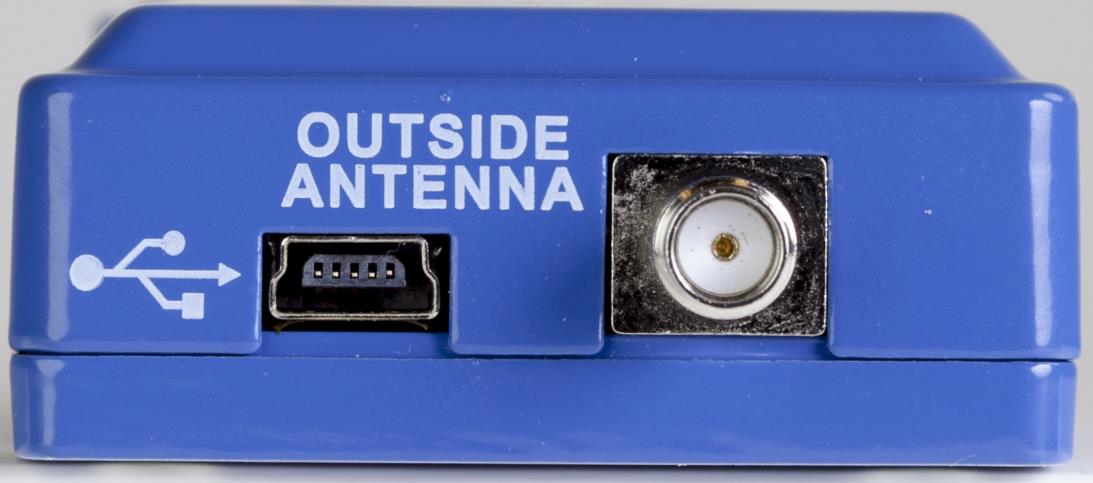

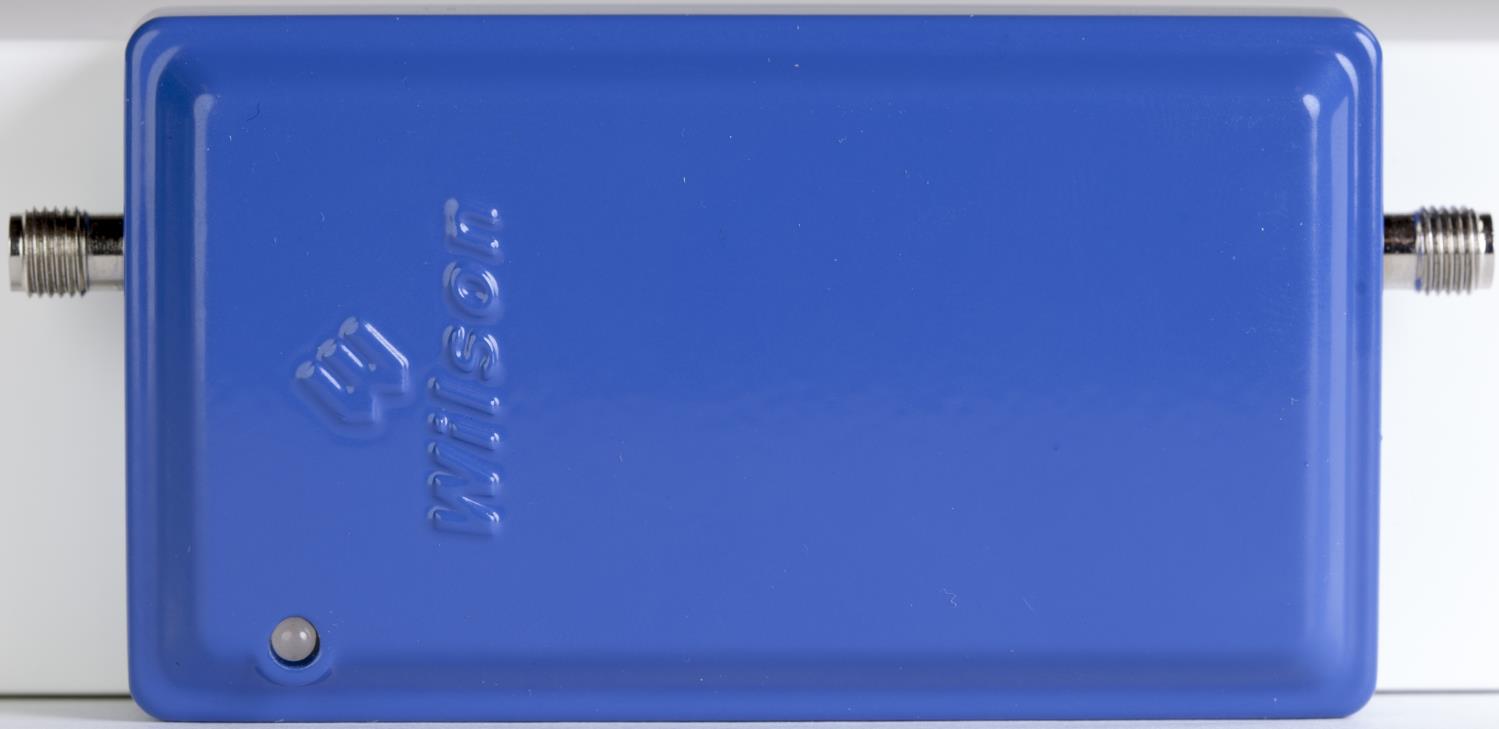

PWO460009Dual Band Direct Connect Signal Booster

Contents Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Accessories and Antenna Options . . . . . . . . . . . . . . . . . .1 Quick Installation Overview . . . . . . . . . . . . . . . . . . . . . . . .2 Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Installing the External Adapter . . . . . . . . . . . . . . . . . . . . . .3 Installing the Outside Antenna . . . . . . . . . . . . . . . . . . . . . .3 Installing a Wilson Electronics Signal Booster . . . . . . . . . .3 Powering Up a Wilson Electronics Signal Booster . . . . . .3 Installing the Mounting Plate (sold separately) . . . . . . . . .4 Warnings and Recommendations . . . . . . . . . . . . . . . . . . .5 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .6 Signal Booster Specifications . . . . . . . . . . . . . .Back Cover DataPro ™ Smartech III Note: This manual contains important safety and operating information . Please read and follow the instructions in this manual . Failure to do so could be hazardous and result in damage to your Signal Booster . Appearance of device and accessories may vary . 12 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected] Mon.- Fri. Hours: 7 am to 6 pm MST. Inside this Package Before Getting Started This guide will help you properly install your Wilson Electronics Signal Booster . It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment . For further assistance please contact our Wilson Electronics Technical Support Team: 866-294-1660 . Installation Instructions for the Following Wilson Electronics Signal Booster: DataPro: Model: 460009 FCC ID: PWO460009 IC: 4726A-460009 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . Mounting Plate (901138) Mobile Power Adapter (859910) Lightning Surge Protector (859902) 5V Power Supply (859969) 3’ RG174 w/ SMA Male to SMA Male (951151) Appearance of device and accessories may vary. Accessories (adapters may be required) DataPro Signal Booster Mobile Antennas Mini-Mag • 301126 w/ 12 .5 RG174 cable- SMA • 301113 w/ 12 .5 RG174 cable- FME 12” Mag Mount w/ 12.5’ RG174 • 311103 • 311125 • 311128 • 314202 • 311703 Trucker antenna w/10.5’ RG58 • 311101 • 311701 Trucker antenna w/13.5’ RG58 • 311119 • 311133 NMO Antenna’s w/ RG174 Kit 311104-17410 • 800/1900 NMO antenna • 10’ RG174 cable Kit 311112-17410 • 800/1900 NMO antenna • 10’ RG174 cable Kit 314203-17410 • 800/900/1900 NMO antenna • 10’ RG174 cable Marine antenna w/ 10’ RG58 Kit 311130-5810 • Marine Antenna • 10’ RG58 cable Glass Mount w/14’ RG58 cable • 311102 • 311114 ( Mini Glass Mount) NMO Antenna’s w/ RG58 Kit 311104-5810 • 800/1900 NMO antenna • 10’ RG58 cable Kit 311112-5810 • 800/1900 NMO antenna • 10’ RG58 cable Kit 314203-5810 • 800/900/1900 NMO antenna • 10’ RG58 cable 301152 Slim Low Profile w/ 10’ RG174 311106 Low Profile w/ 10’ RG58 Outside Fixed Antennas 50 Ohm Outside Antenna Kits Kit 314453-5825 • 50 Ohm Pole Mount Panel Antenna • 25’ RG58 Cable Kit 314411-5825 • 50 Ohm Wide Band Directional • 25’ RG58 Cable Kit 301111-5850 • Yagi Directional Antenna • 50’ RG58 Cable Kit 311129-5840 • 800 MHz Yagi Directional • 40’ RG58 Cable Kit 311203-5820 • Omni-Directional antenna • 20’ RG58 Cable Kit 311124-5830 • 1900 MHz Yagi Antenna • 30’ RG58 Cable Kit 314411-40075 • 50 Ohm Wide Band Directional • 75’ LMR400 Cable Kit 311203-40020 • Omni-Directional antenna • 20’ LMR400 Cable Kit 301111-400170 • Yagi Directional w/ N-Female • 170’ LMR400 Kit 311124-400100 • 1900 MHz Yagi Directional • 100’ LMR400 Cable Kit 311129-400100 • 800 MHz Yagi Antenna • 100’ LMR400 Cable Kit 314453-40075 • 50 Ohm Pole Mount Panel Antenna • 75’ LMR400 Cable 75 Ohm Outside Antenna Kits Kit 301111-0675 • Yagi Directional Antenna • 75’ RG6 Cable • N-Male to F-Female adapter Kit 311201-0620 • Omni Directional w/ F-Female • 20’ RG6 Cable Kit 311129-0660 • 800 MHz Yagi Directional • 60’ RG6 Cable • N-Male to F-Female adapter Kit 311124-0650 • 1900 MHz Yagi Directional • 50’ RG6 Cable • N-Male to F-Female adapter Kit 314473-0640 • 75 Ohm Pole Mount Panel Antenna • 40’ RG6 Cable Kit 314475-0630 • 75 Ohm Wide Band Directional • 30’ RG6 Cable Kit 311141-0620 • 75 Ohm Grey Brick Antenna • 20’ RG6 Cable Kit 301111-11140 • Yagi Directional Antenna • 140’ RG11 Cable • N-Male to F-Female adapter Kit 311201-1120 • Omni Directional w/ F-Female • 20’ RG11 Cable Kit 311129-11110 • 800 MHz Yagi Directional • 110’ RG11 Cable • N-Male to F-Female adapter Kit 311124-1180 • 1900 MHz Yagi Directional • 80’ RG11 Cable • N-Male to F-Female adapter Kit 314473-1175 • 75 Ohm Pole Mount Panel Antenna • 75’ RG11 Cable Kit 314475-1175 • 75 Ohm Wide Band Directional • 75’ RG11 Cable Kit 311141-1120 • 75 Ohm Grey Brick Antenna • 20’ RG11 Cable Accessories & Antenna Options (sold separately) 12 Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660 or email: [email protected] Mon.- Fri. Hours: 7 am to 6 pm MST. 1 . Select a location to install the Signal Booster that is away from excessive heat, direct sunlight, moisture and that has proper ventilation . Do not place the Signal Booster in an air-tight enclosure . 2 . Select a location on the top of the structure to install the Outside Antenna . Use a cell phone in test mode to find the strongest signal from the cell tower . Visit www.WilsonElectronics.com to find test mode function for your particular cell phone . 3 . Run the Outside Antenna cable to the Signal Booster and attach it to the connector labeled “Outside Antenna .” 4 . An external adapter is required to connect the cell phone or cellular data card to the Signal Booster . Th…

Text truncated - open the document above for the full version.

June 5, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460009 Each Signal Booster certificated under FCC ID PWO460009 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. However, in case booster indicator lights show the need, the gain may be adjusted as described in the User Manual. Such adjustments are “fail safe”, i.e., they will not enable the booster to be non-compliant to NPS or other compliance/safeguard requirements. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Chief Technology Officer

June 23, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, LLC. respectfully requests confidentiality of certain documentation provided with the submission of our model 460009 Signal Booster under FCC ID: PWO460009 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

June 5, 2014 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460009 Signal Booster are: Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1915 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1995 MHz): 4.3 V, 0.5 A Patrick L. Cook Chief Technology Officer

June 5, 2014 Tuning and Adjustment of Wilson Model 460009 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Sincerely, Patrick L. Cook Chief Technology Officer

June 24, 2014 To: Whom it May Concern Subject: Alternative Warning Label Placement for FCC ID: PWO460009 The subject signal booster is too small to fit the warning label as can be seen from the Label Placement and External Photos exhibits. Instead, the warning can be found in the User Manual. Sincerely, Patrick L. Cook Chief Technology Officer

Page 1 of 2 FCC ID: PWO460009 IC ID: 4726A-460009 CT Project: P1440022 From: Shawn McMillen Date: 06/21/2014 FCC: The confidentiality letters requests antenna measurments and testing data to be held confidential. Are they asking that the EMC reports be held confidential? DW—Revised copy saved. I see a request for an alternative warning label however I cannot find where this was resolved. DW—Revised copy saved.. Be advised that the signal generator should not be on the table when performing EMC measurements as it may obstruct emissions. I believe I commented on this on an earlier project and the reponse was that future filing would insure this would be taken care of. Please address. MG—Several projects were completed during this same time frame before this obstruction was discussed. Going forward all future projects (tested June and beyond) will have this resolved. This is a consumer booster which will require a PBA. ??? DW ??? Roger that. Testing of the part 15B was performed as a Class A device however this product is meant for in home use. MG—Device was retested with Class B and 15B report has been updated accordingly. Please indicate what carrier bandwidths were used for the LTE measurements. Carrier widths up to 20MHz can be expected. MG—These are signal amplifiers not transmitters, and most rules are discussed in KDB 935210 DO3 v02, which allows 4.1MHz AWGN as a substitute for a LTE signal. The conducted spuious emission limits were calculated to be -13dBm however I believe an additional 6dB is required. MG— -13dBm will be used for conducted emissions, but we use -19dBm limit for OOBE testing (300kHz or 3MHz outside of allowable band). Also note again that conducted spurious emission <1GHz should use a 100kHz RBW. MG— Several projects were completed during this same time frame before this was discussed. Going forward all future projects (tested June and beyond) will have this resolved. Page 2 of 2 Can’t tell but is the parts list missing from the schematic Diagram & parts lists document? DW—Customer states the parts list is on the schematic diagram.. IC: The IC application package indicates that a 10MHz LTE signal is included however no carrier of that width was tested. I find the maximum carrier width tested to be 5MHz. MG— KDB 935210 DO3 v02 allows 4.1MHz AWGN as a substitute for a LTE signal. In the IC package the band 824-849 is missing several emission designators. I believe they should be the same as the other bands. MG— CB750 was updated FYI: IC only requires investigation up to 5 times the carrier frequency. MG—thankyou, Acknowledged CT - Response by: Submitted by: Date:

June 3, 2014 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460009 To Whom It May Concern: The MPE calculations for model 460009 signal booster were done for each frequency band, 800 MHz and 1900 MHz, for the highest gain less coax loss outside antennas. This is a directly connected signal booster and will not include inside antenna options. The order of the attached calculations is as follows: 1. 800 MHz band Outside Antenna: 311129-400100 2. 1900 MHz band Outside Antenna: 311101 A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 6/5/2014, 1:24 PM460009 800 MHz Outside INPUT DATA Frequency MHz824 Pout Watts0.23933 Duty Cycle Percent100.0% Ant. Gain dBi4.90 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi4.90 Distance From Antenna In Inches8.00 EIRP (Watts)0.7396 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1427 REFERENCE DATA Pout dBm23.79 Antenna Gain (non-log)3.09 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna Kit # 311129-400100 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 6/5/2014, 1:24 PM460009 1900 MHz Outside INPUT DATA Frequency MHz1850 Pout Watts0.16982 Duty Cycle Percent100.0% Ant. Gain dBi6.12 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi6.12 Distance From Antenna In Inches8.00 EIRP (Watts)0.6950 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1341 REFERENCE DATA Pout dBm22.30 Antenna Gain (non-log)4.09 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna Kit # 311101 RESULTS OF CALCULATIONS

p1440022_FCC_Part 20_Rev 3.0 Page 1 of 67 Test Report Prepared for: Wilson Electronics, Inc. Model: 460009 Description: Dual Band Direct Connect Signal Booster FCC ID: PWO460009 To FCC Part 20 Date of Issue: July 8, 2014 On the behalf of the applicant: Wilson Electronics, Inc. 3301 E Deseret Drive St. George, UT 84790 To the attention of: Patrick Cook, Sr Research & Development Engineer Ph: (435) 673-5021 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1440022 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1440022_FCC_Part 20_Rev 3.0 Page 2 of 67 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 5/22/14 Mike Graffeo Original Document 2.0 6/18/14 Mike Graffeo Correct DL AWGN power readings/gain table, page 11 3.0 7/8/14 Mike Graffeo Updated test result summary table to show compliance to part 20 rules for noise limit, variable noise limit, and gain limit. p1440022_FCC_Part 20_Rev 3.0 Page 3 of 67 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 30 Noise Limits 37 Variable Gain 41 Occupied Bandwidth 44 Oscillation Detection 57 Radiated Spurious 65 Test Equipment Utilized 67 p1440022_FCC_Part 20_Rev 3.0 Page 4 of 67 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1440022_FCC_Part 20_Rev 3.0 Page 5 of 67 Test and Measurement Data Subpart 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 33.5 – 63.0 985.5 - 943.0 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: 460009 Description: Dual Band Direct Connect Signal Booster Firmware: A460009A Software: 460009A Additional Information: The EUT is a bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized and it is considered a direct connect device. Frequency Band (MHz) Uplink 824 - 849 1850 – 1915 Downlink 869 - 894 1930 - 1995 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSK, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p1440022_FCC_Part 20_Rev 3.0 Page 6 of 67 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) 27.53(f) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) 20.21(e)(8)(I) Noise Limits N/A Per the test data on page 32, the noise is below -70dBm/MHz (“Transmit Power OFF Mode”) therefore is by default compliant to the Variable Uplink Noise Power Tests, Variable Downlink Noise Power Tests, and Noise timing tests. These tests are not applicable. 20.21(e)(8)(i)(I) Uplink Inactivity N/A per rule 20.21e... if noise is less than - 70dBm/MHz (“Transmit Power OFF Mode”) then EUT will not shut off, therefore this test will not be performed 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(C)(H) 20.21(e)(8)(i)(C)(2)(iii) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p1440022_FCC_Part 20_Rev 3.0 Page 7 of 67 Authorized Frequency Band Name of Test: Authorized Frequency Band Engineer: Mike Graffeo Test Equipment Utilized: i00424 and i00405 Test Date: 5/19/14 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure ac…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: PWO460009 RF Conducted RF Radiated (EUT at 3 meters)
