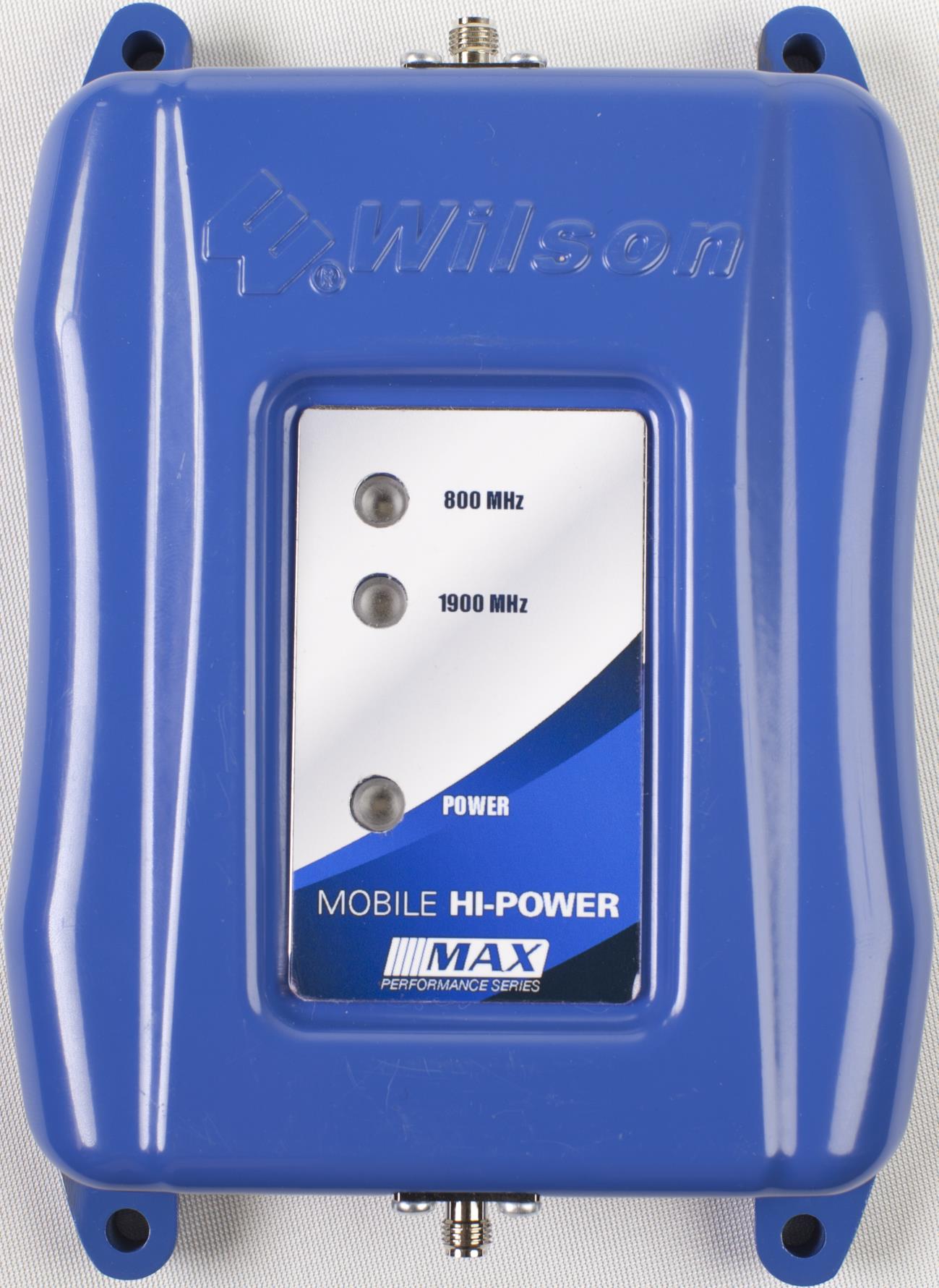

PWO460011Dual Band Signal Booster

Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST MobileMaxx 3G ™ Cellular Signal Booster 460011 2 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Contents Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Quick Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Understanding the Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover Installation Instructions for the Following Wilson Electronics Signal Boosters: MobileMaxx 3G SmarTech ™ Signal Booster Model # 460011 FCC ID: PWO460011 IC: 4726A-460011 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met . !! THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER WILL ADJUST TO THE TEMPERATURE OF ITS ENVIRONMENT, BUT IS DESIGNED TO PROTECT THE SIGNAL BOOSTER TECHNOLOGY . FOR EXAMPLE, IN THE SUMMER, THE SIGNAL BOOSTER CASE MAY BE AS HOT AS 150 DEGREES INSIDE YOUR VEHICLE . THESE HIGH TEMPERATURES WILL NOT DAMAGE THE SIGNAL BOOSTER, NOR DO THEY POSE A FIRE RISK TO THE VEHICLE . AGAIN, BE SURE TO PLACE YOUR SIGNAL BOOSTER IN A LOCATION WITH ADEQUATE VENTILATION AND AWAY FROM DIRECT SUNLIGHT OR MOISTURE . THE MobileMaxx 3G SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER SOURCES DO NOT AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF . THIS COULD RESULT IN DISCHARGING THE VEHICLES BATTERY IN ONE TO TWO DAYS . 3 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Before Getting Started Before you install your MobileMaxx 3G Booster and start enjoying improved cellular reception please do the following: 1 . Read through all the installation steps . This will help you know what to expect from start to finish. 2 . Watch the YouTube video demonstrating the MobileMaxx 3G Signal Boost installation at: wilsonelectronics .com/Mobile3Gvideo . 3 . Familiarize yourself with all materials in your product package . This will allow you to know which pieces are referenced in the instructions . Quick Install You can install your MobileMaxx 3G Signal Booster in your vehicle using the following steps . NOTE: Before completing your installation, create a “soft” installation by putting the components of your MobileMaxx 3G Signal Booster in place and testing the operation before mounting equipment . 1 . Install the Outside Antenna . Select a location on top of the car that is: • Near the center of the vehicle’s roof. • At least 12 inches from any other antennas . • Free of obstructions. • At least 6 inches from any windows (including sunroofs) . Kit Configuration Wilson Electronics manufactures a wide variety of antennas to help you customize your Signal Booster for your specific application . See your dealer or visit www.WilsonElectronics.com for more information . Package Contents Power Supply 12V / 3 .3A (2D9938) 12” Mag Mount w/12.5’ RG174 (311125) Slim Low Profile w/10’ RG174 (301152) Signal Booster Refer to page 6 for additional Antenna Kit Options Marine Antenna (311130-5810) Mini-Mag Antenna (301126) Trucker Antenna (311133) NMO Antenna (314203-5810) Optional Antenna Kits 4 Need help?www.WilsonElectronics.comTech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST • At least 8 inches from any people. The Outside Antenna must be installed vertically on a metallic surface . 2 . Run the Outside Antenna cable into the car . The cable is strong enough that it may be shut in most vehicle doors without damaging the cable . For a cleaner look, carefully pull down the door seal, run the cable under the seal, and push the seal back into place . This method reduces wear on the cable as the door opens and closes . 3. Install the Low-Profile Inside Antenna. • Identify a place on the right side of the driver’s seat to mount the Inside Antenna . The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used . • Install the Inside Antenna at the same angle as the cell phone when held in use or near the laptop’s cellular data card to maximize signal strength . For a more professional look, you can install the Inside Antenna underneath a car seat cover or upholstery . • When you have tested the functionality of your Signal Booster, mount the Inside Antenna by peeling off the backing of the Velcro ® and attach it to your selected location on the seat and secure the Inside Antenna . 4 . Place and connect the MobileMaxx 3G Signal Booster . • Select a location for the Signal Booster that is free from excessive heat, direct sunlight and moisture and that has proper ventilation . Good locations include underneath a seat or under the dashboard . • Connect the wire from the Outside Antenna to the port labeled “Outside Antenna” on the Signal Booster . Power Adapter From Outside Antenna From Inside Antenna • Connect the wire from the Inside Antenna to the port labeled “Inside Antenna” on the Signal Booster . • Plug the power adapter into vehicle’s 12V DC power supply and attach the cord to the side of Pow…

Text truncated - open the document above for the full version.

April 18, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460011 Each Signal Booster certificated under FCC ID PWO460011 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. However, in case booster indicator lights show the need, the gain may be adjusted as described in the User Manual. Such adjustments are “fail safe”, i.e., they will not enable the booster to be non-compliant to NPS or other compliance/safeguard requirements. (6) Future software upgrade will not cause non-compliance. Sincerely, Patrick L. Cook Senior Research and Development Engineer

April 18, 2014 Subject: Antenna Kitting Re: FCC ID: PWO460011 To Whom It May Concern: The antenna kitting options for model 460011 signal booster were done for 13 Mobile Outside Antenna kit options, 4 Fixed Outside Antenna kit options and 16 Inside Antenna kit options. The order of the attached calculations is as follows: Mobile Outside Antenna Kit Options: 1. Kits 311103, 311125, 311128, 314202 2. Kit 311703 3. Kit 301113, 301126 4. Kit 311701 5. Kit 311119 6. Kit 311133 7. Kit 311104-17410 8. Kit 311130-5810 9. Kit 311114 10. Kit 311102 11. Kit 314203-5810 12. Kit 311112-17410 13. Kit 314203-17410 Fixed Outside Antenna Kit Options: 1. Kit 311203-5820 2. Kit 311201-0620 3. Kit 301126 4. 311141-0620 Inside Antenna Kit Options: 1. Kit 301152 2. Kit 311106 3. Kit 311135-40060 4. Kit 311135-5820 5. Kit 311155-0630 6. Kit 301121-40010 7. Kit 301151-0610 8. Kit 309900-50N 9. Kit 309902-75F 10. Kit 309903-75F 11. Kit 309904-75F 12. Kit 309905-50N 13. Kit 311155-1150 14. Kit 301151-1110 Sincerely, Patrick L. Cook Senior Research and Development Engineer FCC ID:PWO460011FCC ID:PWO460011 Final Output Power Limited to 30 dBm EIRP in all frequency bandsFinal Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz)824-8491850-1915Uplink Frequency (MHz)824-8491850-1915 Uplink Output Power (dBm)29.027.1Uplink Output Power (dBm)2927.1 1 Magnet Mount w/12.5' RG-174 314202, 311103, 311125, 311128 10 Glass Mount w/14' RG-58311102 Antenna Gains (dBi)1.972.51Antenna Gains (dBi)-0.863.39 Coax Loss (dB)3.74.7Coax Loss (dB)1.83.0 Final Gain less Loss (dB)-1.7-2.2Final Gain less Loss (dB)-2.70.4 Output Power plus Final Gain (dBm EIRP)27.2724.9Output Power plus Final Gain (dBm EIRP)26.3427.5 2 Magnet Mount w/12.5' RG-174311703 11 NMO Antenna w/10' RG-58314203-5810 Antenna Gains (dBi)0.691.13Antenna Gains (dBi)1.820.75 Coax Loss (dB)3.74.7Coax Loss (dB)1.32.1 Final Gain less Loss (dB)-3.0-3.6Final Gain less Loss (dB)0.5-1.4 Output Power plus Final Gain (dBm EIRP)25.9923.53Output Power plus Final Gain (dBm EIRP)29.525.8 3 Mini-Mag Mount w/12.5' RG-174301126 301113 12 NMO Antenna 10' RG-174311112-17410 Antenna Gains (dBi)-1.40.4Antenna Gains (dBi)2.47-0.65 Coax Loss (dB)3.74.7Coax Loss (dB)3.03.8 Final Gain less Loss (dB)-5.1-4.3Final Gain less Loss (dB)-0.5-4.5 Output Power plus Final Gain (dBm EIRP)23.922.8Output Power plus Final Gain (dBm EIRP)28.4722.65 4Trucker Antenna w/10.5' RG-58311701 13 NMO Antenna 10' RG-174314203-17410 Antenna Gains (dBi)2.182.66Antenna Gains (dBi)1.820.75 Coax Loss (dB)1.42.3Coax Loss (dB)3.03.8 Final Gain less Loss (dB)0.80.4Final Gain less Loss (dB)-1.2-3.1 Output Power plus Final Gain (dBm EIRP)29.7827.5Output Power plus Final Gain (dBm EIRP)27.824.1 5Trucker Antenna w/13.5' RG-58311119 Antenna Gains (dBi)1.213.57 Coax Loss (dB)1.72.9 Final Gain less Loss (dB)-0.50.7FCC ID:PWO460011 Output Power plus Final Gain (dBm EIRP)28.5127.77 6 Trucker Antenna w/13.5' RG-58311133 1 Omni Directional Antenna With 20' RG-58311203-5820 Antenna Gains (dBi)1.154.22Antenna Gains (dBi)0.575.09 Coax Loss (dB)1.72.9Coax Loss (dB)2.64.3 Final Gain less Loss (dB)-0.61.3Final Gain less Loss (dB)-2.030.79 Output Power plus Final Gain (dBm EIRP)28.528.4Output Power plus Final Gain (dBm EIRP)27.027.9 7 NMO Antenna 10' RG-174311104-17410 2 Omni Directional Antenna With 20' RG-6311201-0620 Antenna Gains (dBi)2.481.8Antenna Gains (dBi)0.575.09 Coax Loss (dB)3.03.8Coax Loss (dB)1.72.7 Final Gain less Loss (dB)-0.5-2.0Final Gain less Loss (dB)-1.132.39 Output Power plus Final Gain (dBm EIRP)28.4825.1Output Power plus Final Gain (dBm EIRP)27.929.5 8 Marine Antenna w/10' RG-58311130-5810 3 Mini-Mag Antenna With 12.5' RG-174301126 Antenna Gains (dBi)0.653.57Antenna Gains (dBi) 1.976.89 Coax Loss (dB)1.32.1Coax Loss (dB) 3.74.7 Final Gain less Loss (dB)-0.61.4Final Gain less Loss (dB)-1.732.19 Output Power plus Final Gain (dBm EIRP)28.428.5Output Power plus Final Gain (dBm EIRP)27.329.3 9 Mini-Glass Mount w/14' RG-58311114 4 Grey Brick w/20' RG-6311141-0620 Antenna Gains (dBi)-5.391.44Antenna Gains (dBi)1.25.5 Coax Loss (dB)1.83.0Coax Loss (dB)1.72.7 Final Gain less Loss (dB)-7.2-1.6Final Gain less Loss (dB)-0.52.8 Output Power plus Final Gain (dBm EIRP)21.825.5Output Power plus Final Gain (dBm EIRP)28.529.9 Mobile Outside Antenna Kit OptionsMobile Outside Antenna Kit Options Fixed Outside Antenna Kit Options FCC ID:PWO460011 Uplink Frequency Band (MHz) 824-8491850-1910 Measured Uplink Gain (dB) 49.3048.80 Measured RSSI Shutoff (dBm/MHz) -57.60-48.40 MSCL Minimum (dB) 25.7034.40 1.5' Separation Distance Path Loss (dB) 25.7034.40 Polarity Loss (dB) 3.03.0 Max Antenna Gain Less Cable Loss (dB) 1.42-0.24 1Inside Antenna Kit 301152: Slim Low Profile with 10' RG-174 Antenna Gain Less Cable Loss (dB) -1.7-6.9 -3.07-6.67 2Inside Antenna Kit 311106: Low Profile with 14' RG-58 Antenna Gain Less Cable Loss (dB) -3.3-0.7 -4.71-0.41 Uplink Frequency Band (MHz) 824-8491850-1910 Measured Uplink Gain (dB) 49.3048.80 Measured RSSI Shutoff (dBm/MHz) -57.60-48.40 MSCL Minimum (dB) 25.0026.67 6' Separation Distance Path Loss (dB) 24.1231.16 Polarity Loss 3.03.0 Max Antenna Gain Less Cable Loss (dB) 2.127.49 3Inside Antenna Kit 311135-40060: Panel w/60' LMR 400 Antenna Gain Less Cable Loss (dB) 1.465.68 Margin (dB) -0.66-1.81 4Inside Antenna Kit 311135-5820: Panel w/20' RG-58 Antenna Gain Less Cable Loss (dB) 1.825.75 Margin (dB) -0.30-1.74 5Inside Antenna Kit 311155-0630: Panel w/30' RG-6 Antenna Gain Less Cable Loss (dB) 1.886.05 Margin (dB) -0.24-1.44 6Inside Antenna Kit 301121-40010: Dome Antenna w/10' LMR 400 Antenna Gain Less Cable Loss (dB) 0.062.42 Margin (dB) -2.06-5.07 7Inside Antenna Kit 301151-0610: Dome Antenna w/10' RG-6 Antenna Gain Less Cable Loss (dB) -0.082.02 Margin (dB) -2.20-5.47 8Inside Antenna Kit 309900-50N: 2 Panel Antennas and a 50 Ohm 3-Way Splitter Antenna Gain Less Cable/Splitter Loss (dB) 1.337.49 Margin (dB) -0.790.00 9Inside Antenna Kit 309902-75F: 2 Panel Antennas and a 75 Ohm 3-W…

Text truncated - open the document above for the full version.

April 18, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460011 Signal Booster under FCC ID: PWO460011 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Senior Research and Development Engineer

April 21, 2014 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460011 Signal Booster are: Uplink Amplifier (824-849 MHz): 4.0 V, 0.6 A Downlink Amplifier (869-894 MHz): 4.0 V, 0.6 A Uplink Amplifier (1850-1915 MHz): 4.0 V, 0.6 A Downlink Amplifier (1930-1995 MHz): 4.0 V, 0.6 A Patrick L. Cook Senior Research and Development Engineer

Page 1 of 1 FCC ID: PWO460011 IC ID: CT Project:P13b0008 From: Shawn McMillen Date: 5/3/14 1) Please note that pages 2 and 3 of the internal photos are identical. CT – 2) Please note that the number of points required must be greater than 2*span/RBW when using an average detector per KDB 971168. Some of the conducted spurious plots do not contain a sufficient number of points to meet this requirement. CT - KDB 971168 is for Measurement Guidance for Certification of Licensed Digital Transmitters, this EUT is a signal booster that boosts only the power, (no transmitter involved). Also for conducted spurious maximum points have been turned on. for all plots Response by: Mike Graffeo FYI. The requirement for the number of points to be greater than 2*span/RBW is for all FCC transmitters, licensed or unlicensed, when using an average detector. Also note that this booster falls into the licensed categories for transmitters. To address this issue you can set the point to the maximum number but set the span so that the equation limit is met. For this particular application I don’t see any emissions above the noise floor so I’m not asking that the data be retaken. However, please assure for future applications that the bin to bin spacing is observed when using an average detector. SM CT – Acknowledged Response by: Mike Graffeo Submitted by: Date:

April 21, 2014 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460011 To Whom It May Concern: The MPE calculations for model 460011 signal booster were done for each frequency band: 800 MHz, and 1900 MHz. For each band three calculations were done; these included the different possibilities of antennas that may be connected to this signal booster: mobile outside, fixed outside, and inside antennas. The order of the attached calculations is as follows: 800 MHz band: 1. Mobile Outside Antenna: 311701 2. Fixed Outside Antenna: 311141-0620 3. Inside Antenna: 311155 1900 MHz band: 1. Mobile Outside Antenna: 311130-5810 2. Fixed Outside Antenna: 311201-0620 3. Inside Antenna: 311155 A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non-log)*Coax loss (non-log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Senior Research and Development Engineer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:42 PM800 Mobile Outside INPUT DATA Frequency MHz824 Pout Watts0.79433 Duty Cycle Percent100.0% Ant. Gain dBi2.18 Coax Loss dB1.40 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi0.78 Distance From Antenna In Inches8.00 EIRP (Watts)0.9506 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1834 REFERENCE DATA Pout dBm29.00 Antenna Gain (non-log)1.65 Coax loss (non-log)0.72 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311701 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:42 PM800 Fixed Outside INPUT DATA Frequency MHz824 Pout Watts0.79433 Duty Cycle Percent100.0% Ant. Gain dBi1.20 Coax Loss dB1.70 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi-0.50 Distance From Antenna In Inches8.00 EIRP (Watts)0.7079 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1366 REFERENCE DATA Pout dBm29.00 Antenna Gain (non-log)1.32 Coax loss (non-log)0.68 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311141-0620 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:43 PM800 Inside INPUT DATA Frequency MHz869 Pout Watts0.00016 Duty Cycle Percent100.0% Ant. Gain dBi9.77 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi9.77 Distance From Antenna In Inches8.00 EIRP (Watts)0.0015 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.0003 REFERENCE DATA Pout dBm-7.90 Antenna Gain (non-log)9.48 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 Antenna # 311155 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:43 PM1900 Mobile Outside INPUT DATA Frequency MHz1850 Pout Watts0.51286 Duty Cycle Percent100.0% Ant. Gain dBi3.57 Coax Loss dB2.10 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi1.47 Distance From Antenna In Inches8.00 EIRP (Watts)0.7194 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1388 REFERENCE DATA Pout dBm27.10 Antenna Gain (non-log)2.28 Coax loss (non-log)0.62 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311130-5810 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:43 PM1900 Fixed Outside INPUT DATA Frequency MHz1850 Pout Watts0.51286 Duty Cycle Percent100.0% Ant. Gain dBi5.10 Coax Loss dB2.67 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi2.43 Distance From Antenna In Inches8.00 EIRP (Watts)0.8974 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1731 REFERENCE DATA Pout dBm27.10 Antenna Gain (non-log)3.24 Coax loss (non-log)0.54 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311201-0620 RESULTS OF CALCULATIONS Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources 4/21/2014, 2:43 PM1900 Inside INPUT DATA Frequency MHz1910 Pout Watts0.00117 Duty Cycle Percent100.0% Ant. Gain dBi9.77 Coax Loss dB0.00 Distance From Antenna In cm20.3 Ant. Gain less Coax Loss dBi9.77 Distance From Antenna In Inches8.00 EIRP (Watts)0.0111 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0021 REFERENCE DATA Pout dBm0.70 Antenna Gain (non-log)9.48 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) 1.00 Antenna # 311130-5810 RESULTS OF CALCULATIONS

p13b0008_FCC_Part 20_Rev 3.0 Page 1 of 72 Test Report Prepared for: Wilson Electronics, Inc. Model: 460011 Description: Dual Band Signal Booster FCC ID: PWO460011 To FCC Part 20 Date of Issue: May 16, 2014 On the behalf of the applicant: Wilson Electronics, Inc. 3301 E Deseret Drive St. George, UT 84790 To the attention of: Patrick Cook, Sr Research & Development Engineer Ph: (435) 673-5021 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p13b0008 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p13b0008_FCC_Part 20_Rev 3.0 Page 2 of 72 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 3/31/14 Mike Graffeo Original Document 2.0 05/15/14 Mike Graffeo Changed description from In-Building to mobile, fixed limits for gain, noise and timing 3.0 5/16/14 Mike Graffeo Corrected header for gain, noise, and timing p13b0008_FCC_Part 20_Rev 3.0 Page 3 of 72 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 30 Noise Limits 37 Uplink Inactivity 44 Variable Gain 46 Occupied Bandwidth 49 Oscillation Detection 62 Radiated Spurious 70 Test Equipment Utilized 72 p13b0008_FCC_Part 20_Rev 3.0 Page 4 of 72 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p13b0008_FCC_Part 20_Rev 3.0 Page 5 of 72 Test and Measurement Data Subpart 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 33.5 – 63.0 985.5 - 943.0 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: 460011 Description: Dual Band Signal Booster Firmware: A460011A Software: 460011A Additional Information: The EUT is a bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized and is considered a fixed device. Frequency Band (MHz) Uplink 824 - 849 1850 – 1910 Downlink 869 - 894 1930 - 1990 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSK, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p13b0008_FCC_Part 20_Rev 3.0 Page 6 of 72 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) 27.53(f) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity Pass 21(e)(8)(i)(C) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p13b0008_FCC_Part 20_Rev 3.0 Page 7 of 72 Authorized Frequency Band Name of Test: Authorized Frequency Band Engineer: Mike Graffeo Test Equipment Utilized: i00331 and i00405 Test Date: 3/31/14 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The RF input level was increased to a point just prior to the AGC being in control of the power. The Signal generator was set to sweep across 2X the operational band of the EUT while the spectrum analyzer was set to MAX HOLD. Two markers were placed at the edges of the operational band and a third marker was placed at the highest point within the band no closer than 2.5 MHz from the band edge. Test Set…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: PWO460011 RF Conducted RF Radiated (EUT at 3 meters)
