PWO460027Quint Band Signal Booster

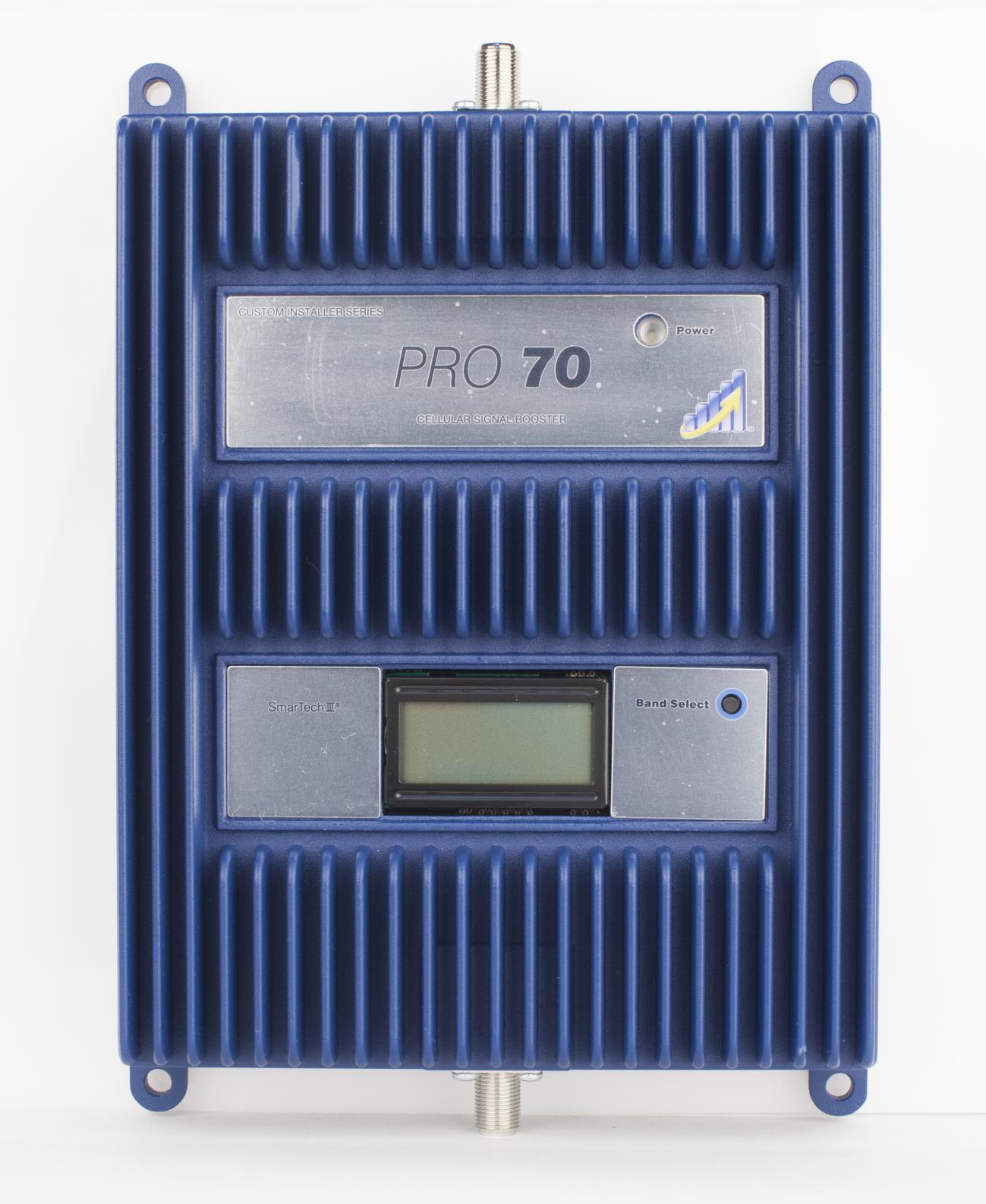

Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Cellular Signal Booster Pro 70 Plus ™ 2 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST IT IS VERY IMPORTANT TO POWER YOUR SIGNAL BOOSTER USING A SURGE PROTECTED AC POWER STRIP WITH AT LEAST A 1000 JOULE RATING. FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. !! THE SIGNAL BOOSTER UNIT IS DESIGNED FOR USE IN AN INDOOR, TEMPERATURE- CONTROLLED ENVIRONMENT (LESS THAN 150 DEGREES FAHRENHEIT). IT IS NOT INTENDED FOR USE IN ATTICS OR SIMILAR LOCATIONS SUBJECT TO TEMPERATURES IN EXCESS OF 150°F. Contents Package Contents .....................................................3 Before Getting Started .................................................3 Find the Strongest Signal ...............................................3 Installation Details .....................................................4 Quick Install ..........................................................5 Outside Antenna Installation ............................................5 Signal Booster Installation ..............................................5 Inside Antenna Installation ..............................................6 Powering Up the Signal Booster .........................................6 Troubleshooting & Understanding Lights ..................................7 Additional FAQ ........................................................8 Optional Equipment ...................................................8 Safety Guidelines ....................................................10 Signal Booster Specifications ..........................................11 Guarantee and Warranty ........................................Back Cover Pro 70 Plus ™ Band 12/17 & 13 (700 MHz), Band 5 (800 MHz), Band 4 (1700/2100 MHz), Band 25/2 (1900 MHz) In-Building Wireless SmarTech ™ Signal Booster Model # 470027 FCC ID: PWO460027 IC: 4726A460027 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Model # 460004 FCC ID: PWO460004 3 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST Before Getting Started Before you install your AG Pro 4G and start enjoying improved cellular reception in your facility, please do the following: 1. Read through all the installation steps. This will help you know what to expect from start to finish. 2. Watch the YouTube video demonstrating the AG Pro 4G installation at wilsonelectronics.com/ AGPro4Gvideo. 3. Familiarize yourself with all materials in your product package. This will allow you to know which pieces we reference in the instructions. 4. Identify the location of your best available cellular signal. See instructions that follow. 5. Determine the best installation locations for your Outside Antenna, Signal Boost, and Inside Antenna. Connect all cables and test the function of your AG Pro 4G system before finalizing installation. Package Contents Tools Required for Installation: (depending on your particular installation, you will need the following tools) 1. Pole mount - 10 mm open-end wrench or adjustable wrench 2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver Find the Strongest Cellular Signal Before you install your AG Pro 4G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance from your AG Pro 4G. You can find the strongest signal outside your building, typically at the highest point available, using any of the following methods: 1. Best method: After connecting power the power supply to your surge protected power strip, connect the Outside Antenna to the AG Pro 4G signal booster, and the AG Pro 4G to the Inside Antenna. Have one person outside (on the roof for best results) rotate the Outside Antenna with a second person inside the building near the Inside Antenna watching the signal strength on a phone. This allows you to read the signal strength from nearby cell towers. a. The person inside should have the phone in test mode so the numerical signal strength can be read. This is more accurate than the bar indicator. Go to Appearance of device and accessories may vary. Wall Mount BracketPole Mount Bracket Wide Band Directional Antenna 75’ RG11 Cable (314475-1175) Pro 70 Plus ™ (470027) AC/DC Power Supply 12V/3A (859900) 2’ RG11 Cable (951127) Lightning Surge Protector (859992) Wide Band Panel Antenna 50’ RG11 Cable (311155-1150) 4 Need help?www.WilsonElectronics.com Tech Support 866-294-1660 Mon.- Fri. Hours: 7 am to 6 pm MST www.wilsonelectronics.com/test- mode-instructions for help in finding the test mode for your phone. b. The person on the roof should turn the Outside Antenna 45 degrees at a time. Allow 30 seconds for the phone to register with each turn. R o t a t e c. The person inside should note the readings on the phone with each turn. Signal readings usually appear as a negative number. The closer the number gets to zero, the stronger the signal (for example, -86 dB would be a moderately good reading while -55 dB would be an excellent reading, and -110 dB would be a weak, or unusable signal). R o t a t e d. Once you have determined which direction provides the strongest outside signal, you can install the Outside Antenna in that general direction. 2. Good methods: a. Place calls from several locations outside your building. As you move to different locations, note where you get the best reception. b. If you have a smart phone, you can download apps that help you identify locations of cell phone towers or the strongest signal. Go to the App Store and search for “cell signal” to find available apps for your device. 3. Acceptable method: Check the bar indicator on your cell phone display and note where the signal appears the strong…

Text truncated - open the document above for the full version.

December 8, 2014 Attestation For Wilson Signal Booster: FCC ID PWO460027 Each Signal Booster certificated under FCC ID PWO460027 is manufactured and individually tested to ensure FCC compliance: (1) Licensee consent is not required for FCC certification equipment authorization purposes, but licensee consent does remain applicable per 20.21 provisions for both provider specific and wideband boosters. (2) NPS and other compliance/safeguard features have been implemented. (3) NPS and other compliance/safeguard features are defaulted to be “On” (in operation). (4) NPS and other compliance/safeguard features cannot be field reconfigured, disabled, or removed. (5) This consumer booster is not user programmable, does not need fine tuning or adjustment, and does not require professional installation. However, in case booster indicator lights show the need, the gain may be adjusted as described in the User Manual. Such adjustments are “fail safe”, i.e., they will not enable the booster to be non‐compliant to NPS or other compliance/safeguard requirements. (6) Future software upgrade will not cause non‐ compliance. Sincerely, Patrick L. Cook Chief Technology Officer

December 8, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality To Whom It May Concern: Wilson Electronics, Inc. respectfully requests confidentiality of certain documentation provided with the submission of our model 460027 Signal Booster under FCC ID: PWO460027 in accordance with sections 0.457 and 0.459 of the Commission’s regulations. We request that the following documents be kept confidential: 1. Schematic Diagram & Parts List 2. Operational Description 3. Block Diagram The above material is confidential and contains proprietary trade secrets and technical data which must be kept from competitors. Public access to these items could result in duplication of our circuitry and/or techniques thereby reducing our competitive advantage and causing us severe damage. Sincerely, Patrick L. Cook Chief Technology Officer

December 8, 2014 To: Whom it May Concern Subject: Final Amplification Stage Voltage and Current Please note that the maximum voltages and currents for the final amplification stages of the Model 460027 Signal Booster are: Uplink Amplifier (698-716 MHz): 4.3 V, 0.5 A Downlink Amplifier (728-746 MHz): 4.3 V, 0.5 A Uplink Amplifier (777-787 MHz): 4.3 V, 0.5 A Downlink Amplifier (746-756 MHz): 4.3 V, 0.5 A Uplink Amplifier (824-849 MHz): 4.3 V, 0.5 A Downlink Amplifier (869-894 MHz): 4.3 V, 0.5 A Uplink Amplifier (1850-1915 MHz): 4.3 V, 0.5 A Downlink Amplifier (1930-1995 MHz): 4.3 V, 0.5 A Uplink Amplifier (1710-1755 MHz): 4.3 V, 0.5 A Downlink Amplifier (2110-2155 MHz): 4.3 V, 0.5 A Patrick L. Cook Chief Technology Officer

December 8, 2014 Subject: Antenna Kitting Re: FCC ID: PWO460027 To Whom It May Concern: The antenna kitting options for model 460027 signal booster were done for 27 Outside Antenna kit options and 12 Inside Antenna kit options. The order of the attached calculations is as follows: Outside Antenna Kit Options: 1. Kit 314411‐40075 2. Kit 314411‐5825 3. Kit 314475‐0630 4. Kit 301111‐0675 5. Kit 301111‐5850 6. Kit 311203‐40020 7. Kit 311129‐400100 8. Kit 311129‐5840 9. Kit 311129‐0660 10. Kit 311124‐0650 11. Kit 311124‐400100 12. Kit 314453‐5825 13. Kit 311203‐5820 14. Kit 311201‐0620 15. Kit 301126 16. Kit 301111‐11140 17. Kit 311201‐1120 18. Kit 311129‐11110 19. Kit 314453‐40075 20. Kit 314473‐0640 21. Kit 311141‐0620 22. Kit 311124‐1180 23. Kit 311141‐1120 24. Kit 314473‐1175 25. Kit 314475‐1175 26. Kit 301111‐400170 27. Kit 311124‐5830 Inside Antenna Kit Options: 1. Kit 311135‐40060 2. Kit 311135‐5820 3. Kit 311155‐0630 4. Kit 301121‐40010 5. Kit 301151‐0610 6. Kit 309900‐50N 7. Kit 309902‐75F 8. Kit 309903‐75F 9. Kit 309904‐75F 10. Kit 309905‐50N 11. Kit 311155‐1150 12. Kit 301151‐1110 Sincerely, Patrick L. Cook Chief Technology Officer FCC ID: PWO460027 FCC ID: PWO460027 Final Output Power Limited to 30 dBm EIRP in all frequency bands Final Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz) 698 ‐ 716 777 ‐ 787 824 ‐ 849 1710 ‐ 1755 1850 ‐ 1915 Uplink Frequency (MHz) 698 ‐ 716 777 ‐ 787 824 ‐ 849 1710 ‐ 1755 1850 ‐ 1915 Uplink Output Power (dBm) 20.4 20.82 25.16 23.0 21.4 Uplink Output Power (dBm) 20.4 20.82 25.16 23.0 21.42 1 Wide Band Directional Antenna With 75' LMR 400 314411 ‐ 40075 6 Yagi Antenna 311129 With 100' LMR 400 311129 ‐ 400100 Antenna Gains (dBi) 7.3 7.2 7.8 7.9 9.1 Antenna Gains (dBi) 1.95 7.18 9.64 ‐ 6.67 ‐ 11.97 Coax Loss (dB) 2.8 3.0 3.6 4.4 5.4 Coax Loss (dB) 3.7 3.9 4.8 5.8 7.1 Final Gain less Loss (dB) 4.5 4.2 4.2 3.5 3.7 Final Gain less Loss (dB) ‐ 1.75 3.28 4.9 ‐ 12.47 ‐ 19.07 Output Power plus Final Gain (dBm EIRP) 24.9 25.02 29.36 26.5 25.1 Output Power plus Final Gain (dBm EIRP) 18.7 24.1 30.0 10.5 2.4 2 Wide Band Directional Antenna With 25' RG ‐ 58 314411 ‐ 5825 7 Yagi Antenna 311129 With 40' RG ‐ 58 311129 ‐ 5840 Antenna Gains (dBi) 7.3 7.2 7.8 7.9 9.1 Antenna Gains (dBi) 1.95 7.18 9.64 ‐ 6.67 ‐ 11.97 Coax Loss (dB) 2.9 3.1 3.2 5.1 5.4 Coax Loss (dB) 4.6 5.0 5.2 8.2 8.6 Final Gain less Loss (dB) 4.4 4.1 4.6 2.8 3.7 Final Gain less Loss (dB) ‐ 2.7 2.2 4.4 ‐ 14.9 ‐ 20.6 Output Power plus Final Gain (dBm EIRP) 24.8 24.9 29.8 25.8 25.1 Output Power plus Final Gain (dBm EIRP) 17.8 23.0 29.6 8.1 0.9 3 Wide Band Directional Antenna With 30' RG ‐ 6 314475 ‐ 0630 8 Yagi Antenna 311129 With 60' RG ‐ 6 311129 ‐ 0660 Antenna Gains (dBi) 7.3 7.2 7.8 7.9 9.1 Antenna Gains (dBi) 1.95 7.18 9.64 ‐ 6.67 ‐ 11.97 Coax Loss (dB) 3.0 3.2 3.4 5.1 5.3 Coax Loss (dB) 4.56 4.86 5.0 7.6 8.0 Final Gain less Loss (dB) 4.3 4 4.4 2.8 3.8 Final Gain less Loss (dB) ‐ 2.61 2.32 4.64 ‐ 14.29 ‐ 19.95 Output Power plus Final Gain (dBm EIRP) 24.7 24.8 29.56 25.8 25.2 Output Power plus Final Gain (dBm EIRP) 17.8 23.1 29.8 8.7 1.5 4 Yagi Antenna 301111 With 75' RG ‐ 6 301111 ‐ 0675 9 Yagi Antenna 311124 With 50' RG ‐ 6 311124 ‐ 0650 Antenna Gains (dBi) 10.0 10.0 10.8 ‐ 6.8 ‐ 13.8 Antenna Gains (dBi) ‐ 18.7 ‐ 18.7 ‐ 23.4 9.1 10.9 Coax Loss (dB) 5.7 6.075 6.3 9.525 9.975 Coax Loss (dB) 3.8 4.05 4.2 6.4 6.7 Final Gain less Loss (dB) 4.3 3.925 4.5 ‐ 16.325 ‐ 23.775 Final Gain less Loss (dB) ‐ 22.50 ‐ 22.75 ‐ 27.60 2.75 4.25 Output Power plus Final Gain (dBm EIRP) 24.7 24.7 29.66 6.7 ‐ 2.4 Output Power plus Final Gain (dBm EIRP) ‐ 2.1 ‐ 1.9 ‐ 2.4 25.8 25.7 5 Yagi Antenna 301111 With 50' RG ‐ 58 301111 ‐ 5850 10 Yagi Antenna 311124 With 100' LMR 400 311124 ‐ 400100 Antenna Gains (dBi) 10.0 10.0 10.8 ‐ 6.8 ‐ 13.8 Antenna Gains (dBi) ‐ 18.7 ‐ 18.7 ‐ 23.4 9.1 10.9 Coax Loss (dB) 5.8 6.2 6.5 10.3 10.7 Coax Loss (dB) 3.7 3.9 4.7 5.8 7.1 Final Gain less Loss (dB) 4.2 3.8 4.3 ‐ 17.1 ‐ 24.5 Final Gain less Loss (dB) ‐ 22.4 ‐ 22.6 ‐ 28.1 3.3 3.8 Output Power plus Final Gain (dBm EIRP) 24.6 24.6 29.5 5.9 ‐ 3.1 Output Power plus Final Gain (dBm EIRP) ‐ 2 ‐ 1.78 ‐ 2.94 26.3 25.22 Fixed Outside Antenna Kit Options Fixed Outside Antenna Kit Options FCC ID: PWO460027 FCC ID: PWO460027 Final Output Power Limited to 30 dBm EIRP in all frequency bands Final Output Power Limited to 30 dBm EIRP in all frequency bands Uplink Frequency (MHz) 698 ‐ 716 777 ‐ 787 824 ‐ 849 1710 ‐ 1755 1850 ‐ 1915 Uplink Frequency (MHz) 698 ‐ 716 777 ‐ 787 824 ‐ 849 1710 ‐ 1755 1850 ‐ 1915 Uplink Output Power (dBm) 20.4 20.82 25.16 23 21.42 Uplink Output Power (dBm) 20.4 20.82 25.16 23 21.42 11 Omni Directional Antenna (311203) With 20' LMR 400 311203 ‐ 40020 16 Panel Antenna With 25' RG ‐ 58 314453 ‐ 5825 Antenna Gains (dBi) ‐ 1.5 ‐ 0.24 0.57 ‐ 2.51 5.09 Antenna Gains (dBi) 3.84 3.63 4.4 8.21 10.04 Coax Loss (dB) 0.7 0.7 0.7 1.1 1.1 Coax Loss (dB) 2.9 3.1 3.2 5.1 5.4 Final Gain less Loss (dB) ‐ 2.2 ‐ 0.94 ‐ 0.13 ‐ 3.61 4.0 Final Gain less Loss (dB) 0.9 0.5 1.2 3.1 4.6 Output Power plus Final Gain (dBm EIRP) 18.2 19.9 25.0 19.4 25.4 Output Power plus Final Gain (dBm EIRP) 21.3 21.4 26.4 26.1 26.1 12 Omni Directional Antenna (311203) With 20' RG ‐ 58 311203 ‐ 5820 17 Panel Antenna With 75' LMR 400 314453 ‐ 40075 Antenna Gains (dBi) ‐ 1.5 ‐ 0.24 0.57 ‐ 2.51 5.09 Antenna Gains (dBi) 3.84 3.63 4.4 8.21 10.04 Coax Loss (dB) 2.3 2.5 2.6 4.1 4.3 Coax Loss (dB) 2.8 3.0 3.6 4.4 5.4 Final Gain less Loss (dB) ‐ 3.8 ‐ 2.74 ‐ 2.03 ‐ 6.61 0.79 Final Gain less Loss (dB) 1.04 0.63 0.8 3.81 4.64 Output Power plus Final Gain (dBm EIRP) 16.6 18.1 23.1 16.4 22.2 Output Power plus Final Gain (dBm EIRP) 21.4 21.5 26.0 26.8 26.1 13 Omni Directional Antenna (311201) With 20' RG ‐ 6 311201 ‐ 0620 18 Panel Antenna With 40' RG ‐ 6 314473 ‐ 0640 Antenna Gains (dBi) ‐ 1.5 ‐ 0.24 0.57 ‐ 2.51 5.09 Antenna Gains (dBi) 3.84 3.63 4.4 8.21 10.04 Coax Loss (dB) 1.5 1.6 1.7 2.5 2.7 Coax Loss (dB) 3.0 3.2 3.4 5.1 5.3 Final Gain less Loss (dB) ‐ 3 ‐ …

Text truncated - open the document above for the full version.

December 8, 2014 Tuning and Adjustment of Wilson Model 460027 Signal Booster There are no external tuning adjustments. The amplifier is factory set to not exceed maximum gains, power levels, and downlink dependent region (RSSI) set points as provided in the test results. Sincerely, Patrick L. Cook Chief Technology Officer

December 5, 2014 Subject: RF MPE EXPOSURE Re: FCC ID: PWO460027 To Whom It May Concern: The MPE calculations for model 460027 signal booster were done for each frequency band: 700 MHz Band 12, 700 MHz Band 13, 800 MHz, 1700/2100 MHz, and 1900 MHz. For each band two calculations were done; these included the worst case scenario for each of the different types of antennas that may be connected to this signal booster: outside and inside antennas. The order of the attached calculations is as follows: 700 MHz Band 12: 1. Outside Antenna: 314411‐40075 2. Inside Antenna: 311155 700 MHz Band 13: 1. Outside Antenna: 314411‐40075 2. Inside Antenna: 311155 800 MHz band: 1. Outside Antenna: 311129‐400100 2. Inside Antenna: 311155 1700/2100 MHz band: 1. Outside Antenna: 314453‐40075 2. Inside Antenna: 311155 1900 MHz band: 1. Outside Antenna: 311129 2. Inside Antenna: 311155 A booster’s uplink power must not exceed 1 watt equivalent isotropic radiated power (EIRP) for each band of operation. Composite downlink power must not exceed 0.05 watt EIRP for each band of operation ( 20.21(e)(8)(i)(D)). The following formula was used to calculate the equivalent isotropic radiated power: EIRP= Power Out (Watts)*Duty Cycle Percent*Antenna Gain (non‐log)*Coax loss (non‐log) The power density (mW/cm 2 ) is calculated using the following formula: Calculated Power Density=1000*EIRP (Watts)/(4*π*(Distance from Antenna (cm)^2)) Sincerely, Patrick L. Cook Chief Technology Officer Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz698 Pout Watts0.10965 Duty Cycle Percent100.0% Ant. Gain dBi7.30 Coax Loss dB2.80 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi4.50 Distance From Antenna In Inches7.87 EIRP (Watts)0.3090 FCC Power Density Limit (mw/cm 2 ) 0.47 Calculated Power Density (mw/cm 2 ) 0.0615 REFERENCE DAT A Pout dBm20.40 Antenna Gain (non-log)5.37 Coax loss (non-log)0.52 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:42 AM700 MHz Band 12 UL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz728 Pout Watts0.01435 Duty Cycle Percent100.0% Ant. Gain dBi4.16 Coax Loss dB0.00 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi4.16 Distance From Antenna In Inches7.87 EIRP (Watts)0.0374 FCC Power Density Limit (mw/cm 2 ) 0.49 Calculated Power Density (mw/cm 2 ) 0.0074 REFERENCE DAT A Pout dBm11.57 Antenna Gain (non-log)2.61 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:42 AM700 MHz Band 12 DL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz776 Pout Watts0.12078 Duty Cycle Percent100.0% Ant. Gain dBi7.20 Coax Loss dB3.00 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi4.20 Distance From Antenna In Inches7.87 EIRP (Watts)0.3177 FCC Power Density Limit (mw/cm 2 ) 0.52 Calculated Power Density (mw/cm 2 ) 0.0632 REFERENCE DAT A Pout dBm20.82 Antenna Gain (non-log)5.25 Coax loss (non-log)0.50 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:43 AM700 MHz Band 13 UL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz746 Pout Watts0.01099 Duty Cycle Percent100.0% Ant. Gain dBi4.16 Coax Loss dB0.00 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi4.16 Distance From Antenna In Inches7.87 EIRP (Watts)0.0286 FCC Power Density Limit (mw/cm 2 ) 0.50 Calculated Power Density (mw/cm 2 ) 0.0057 REFERENCE DAT A Pout dBm10.41 Antenna Gain (non-log)2.61 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:43 AM700 MHz Band 13 DL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz824 Pout Watts0.32810 Duty Cycle Percent100.0% Ant. Gain dBi9.6 Coax Loss dB4.74 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi4.84 Distance From Antenna In Inches7.87 EIRP (Watts)1.000 FCC Power Density Limit (mw/cm 2 ) 0.55 Calculated Power Density (mw/cm 2 ) 0.1989 REFERENCE DAT A Pout dBm25.16 Antenna Gain (non-log)9.08 Coax loss (non-log)0.34 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:44 AM800 MHz Band 5 UL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz869 Pout Watts0.00869 Duty Cycle Percent100.0% Ant. Gain dBi6.09 Coax Loss dB0.00 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi6.09 Distance From Antenna In Inches7.87 EIRP (Watts)0.0353 FCC Power Density Limit (mw/cm 2 ) 0.58 Calculated Power Density (mw/cm 2 ) 0.0070 REFERENCE DAT A Pout dBm9.39 Antenna Gain (non-log)4.06 Coax loss (non-log)1.00 General FCC Limit (mw/cm 2 ) f/1500 RESULTS OF CALCULATIONS 12/10/2014, 10:44 AM800 MHz Band 5 DL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz1710 Pout Watts0.24434 Duty Cycle Percent100.0% Ant. Gain dBi8.21 Coax Loss dB4.50 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi3.71 Distance From Antenna In Inches7.87 EIRP (Watts)0.5741 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.1142 REFERENCE DAT A Pout dBm23.88 Antenna Gain (non-log)6.62 Coax loss (non-log)0.35 General FCC Limit (mw/cm 2 ) 1.00 RESULTS OF CALCULATIONS 12/10/2014, 10:45 AM1700 MHz Band 4 UL.xlsx Minimum Safe Distance From Antennas Based upon FCC OET Bulletin 65 and other FCC Sources INPUT DATA Frequency MHz2110 Pout Watts0.01352 Duty Cycle Percent100.0% Ant. Gain dBi6.66 Coax Loss dB3.17 Distance From Antenna In cm20.0 Ant. Gain less Coax Loss dBi3.49 Distance From Antenna In Inches7.87 EIRP (Watts)0.0302 FCC Power Density Limit (mw/cm 2 ) 1.00 Calculated Power Density (mw/cm 2 ) 0.0060 REFERENCE DAT A Pout dBm11.31 Antenna Gain (non-log)…

Text truncated - open the document above for the full version.

p14b0014_FCC Part 20_Rev 3.0 Page 1 of 154 Test Report Prepared for: Wilson Electronics, Inc. Model: 460027 Description: Quint Band Signal Booster FCC ID: PWO460027 To FCC Part 20 Date of Issue: February 17, 2015 On the behalf of the applicant: Wilson Electronics, Inc. 3301 E Deseret Drive St. George, UT 84790 Attention of: Patrick Cook, Sr Research & Development Engineer Ph: (435) 673-5021 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14b0014 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p14b0014_FCC_Part 20_Rev 2.0 Page 2 of 155 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 November 24, 2014 Mike Graffeo Original Document 2.0 February 11, 2015 Mike Graffeo Added EIRP results page 16, per new FCC Equipment Authorization requirements 3.0 February 17, 2015 Mike Graffeo Updated 869-894 antenna kit information p14b0014_FCC_Part 20_Rev 2.0 Page 3 of 155 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 7 Authorized Frequency Band 8 Maximum Power and Gain 14 Intermodulation 17 Out-of-Band Emissions 23 Conducted Spurious Emissions 57 Noise Limits 82 Uplink Inactivity 94 Variable Gain 98 Occupied Bandwidth 104 Oscillation Detection 135 Radiated Spurious 152 Test Equipment Utilized 155 p14b0014_FCC_Part 20_Rev 2.0 Page 4 of 155 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p14b0014_FCC_Part 20_Rev 2.0 Page 5 of 155 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 33.5 – 63.0 985.5 - 943.0 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: 460027 Description: Quint Band Signal Booster Firmware: N/A Software: N/A Additional Information: The EUT is an In-Building, fixed install bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 698 - 716 776 - 787 824 - 849 1850 - 1915 1710 – 1755 Downlink 728 - 746 746 - 757 869 - 894 1930 - 1995 2110 - 2155 Modulation Type LTE GSM, CDMA, EDGE, HSPA. EVDO, LTE CDMA, HSPA, LTE, EDGE, EVDO Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p14b0014_FCC_Part 20_Rev 2.0 Page 6 of 155 Accessories: Qty Description Manufacturer Model S/N 1 50 to 75 ohm adaptor MiniCircuits SFMP-5075-3+ N/A 1 Power Supply, 5V, 3A Toshiba PA1650-21 N/A Cables: N/A Modifications: N/A p14b0014_FCC_Part 20_Rev 2.0 Page 7 of 155 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238((a) 27.53(c) 27.53(e) 27.53(f) 27.53(g) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity Pass 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(H) Choose: 20.21(e)(8)(i)(C)(2)(i) (Fixed) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p14b0014_FCC_Part 20_Rev 2.0 Page 8 of 155 Authorized Frequency Band Engineer: Mike Graffeo Test Date: 11/19/14 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The RF input level was increased to a point just prior to the AGC being in control of th…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: PWO460027 RF Conducted RF Radiated (below 1GHz) RF Radiated (above 1GHz)
