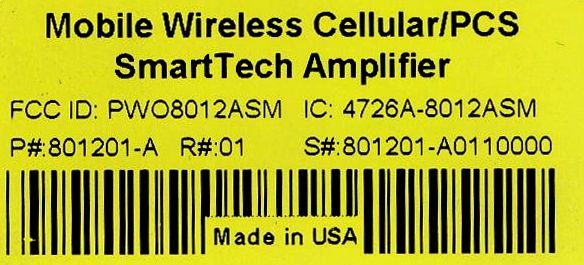

PWO8012ASMMobile Wireless Cellular/PCS SmartTech Amplifier

Mobile Wireless Dual Band Cellular/PCS Smart Technology TM Amplifier PART# 801201-A FCC ID: PWO8012ASM IC: 4726A-8012ASM Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 MOBILE Wireless The term “IC:” before the radio certification number signifies that Industry of Canada technical specifications were met. Cellular & PCS Analog & Digital - CDMA, GPRS, GSM, TDMA, 1x, HSDPA  1. PURPOSE OF THE AMPLIFIER This Wilson Smart Technology™ Amplifier greatly improves signal strength inside a vehicle without a physical connection to the phone or cellular data card. It also allows multiple devices to be used simultaneously. 2. PACKAGE CONTENTS • Bi-Directional Amplifier • DC plug-in power supply • Low Profile Antenna (Coax Included) • 6’ Extension Cable • Small Antenna 3. HOW THE AMPLIFIER FUNCTIONS The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna (not included). 4. AMPLIFIER SYSTEM INSTALLATION (See Illustration on pg. 5) 4.1 Mounting the Amplifier 4.1.1 Select a suitable location to mount the AMPLIFIER. The amplifier can be mounted to the selected location using screws. (Screws not included.) Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. PACKAGE CONTENTS Bi-Directional Amplifier OPTION A Low Profile Antenna (Coax Included) DC Power Supply 6' Extension Cable OPTION B Small Antenna  4.2 Installing the Wilson Cellular Inside Antenna (2 options included) 4.2.1A (option A) - The inside antenna should be mounted approximately 1 foot or less from where the phone is used. The best place to mount the inside antenna is shoulder height on the side of the drivers seat. The closer the inside antenna is placed to the phone, the better the performance. See option A. Do not mount on a surface near metal. 4.2.1B (option B) - For convenience, the Small Antenna directly attached to the phone will perform as well as a Direct Connection Amplifier or similar to the Low Profile antenna attached directly to the phone. The Small Antenna must be directly connected to the back of the phone using Velcro (included). The Small Antenna will not work away from the phone like the Low Profile antenna. Connect the 6’ extension cable to the Small Antenna (included). Attach Small Antenna to the back of the phone. See option B. 4.2.2 Connect the Inside Antenna (A) or 6’ Extension Cable (B) to the side labeled “INSIDE ANTENNA” on the AMPLIFIER. Amplifier Low Profile Antenna Amplifier6’ Extension Cable Small Antenna Small Antenna placement is depen- dant upon the location of the phones antenna. Place the Small Antenna as close as possible to the phones antenna. WARNING: Do not plug the amplifier directly into the phone using a phone specific adapter.  MOBILE AMPLIFIER LAYOUT Cell Phone(s) Inside Antenna Outside Antenna Amplifier DC Power Supply Cell Site 4.3 Installing the Wilson Cellular Outside Antenna (Sold Separately) 4.3.1 Select an outside mounting location. For best performance keep the antenna centered on the vehicle’s roof. 4.3.2 The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. NOTE: If the vehicle has a sunroof, place the outside antenna away from the sunroof so that the inside antenna is shielded from the outside antenna by metal. This is very important to avoid oscillation. 4.3.3 Connect the Outside Antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. NOTE: Do not place the outside antenna in the vehicle without turning the amplifier off. For example, when at the car wash. This will cause damage to your amplifier. NOTE: Do not use a glass mounted antenna with a mobile wireless amplifier. 4.4 Connect the DC Power Supply 4.4.1 Connect the large end of the DC Power Supply into your cigarette lighter and the other end into the input on your amplifier. Use only the supplied power supply. 4.5 Indicators Lights 4.5.1 PWR - Power Indicator Light – Indicates power to the unit. 800 MHz & 1900 MHz dual color Green/Red indicators Green – Amplifier is operating properly. Red – Indicates the amplifier is oscillating (needs more separation between the Inside and Outside Antennas) and/or the cell sites signal is strong and the amplifier has powered down. (see below) Oscillation – Try moving the outside antenna to a different location, creating more separation from the inside antenna. The inside antenna should be mounted within one foot (1’) of where the cell phone is being used. Strong Cell Signal – The amplifier is designed to power down when the cell site signal is strong. If you are installing the amplifier where the cell signal is strong, go to an area with low signal strength and verify that the light turns to Green. NOTE: You do not need amplification when the cell signal is strong. The amplifier is on only when the green light is on. In the city, you may only need amplification when the signal fades from buildings or other structures blocking the signal.  MOBILE AMPLIFIER LAYOUT Cell Phone(s) Inside Antenna Outside Antenna Amplifier DC Power Supply Cell Site 5. AMPLIFIER SPECIFICATIONS Dual Band 800 / 1900 MHz Part Number801201-A ConnectorsFME-Male 50 Ohms Dimensions5.6 x 3.6 x 1.7 inch or 14.2 x 9.1 x 4.4 cm Weight1.44 lbs or 0.65 kg Frequency824-894MHz / 1850-1990MHz Gain (up/down)37dB / 43dB Linear Output Power+30dBm Max Output Power3 Watts (Cell Site Controlled) Max RF (up/down)+35dBm / +10dBm Noise Figure (typical)3dB nominal IsolationUplink/Downlink more than 90dB Power Requirements Amplifier Usage6V, 3A (subject to Uplink power) 7 6. FEATURES Advanced Electronics Receive & T…

Text truncated - open the document above for the full version.

Mobile Wireless Dual Band Cellular/PCS Smart Technology TM Amplifi er PART# 801201-A FCC ID: PWO8012ASM IC: 4726A-8012ASM Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 MOBILE Wireless The term “IC:” before the radio certification number signifies that Industry of Canada technical specifications were met. Cellular & PCS Analog & Digital - CDMA, GPRS, GSM, TDMA, 1x, HSDPA 2 1. PURPOSE OF THE AMPLIFIER This Wilson Smart Technology™ Amplifi er greatly improves signal strength inside a vehicle without a physical connection to the phone or cellular data card. It also allows multiple devices to be used simultaneously. 2. PACKAGE CONTENTS • Bi-Directional Amplifi er • DC plug-in power supply • Low Profi le Antenna (Coax Included) • 6’ Extension Cable • Small Antenna 3. HOW THE AMPLIFIER FUNCTIONS The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna (not included). 4. AMPLIFIER SYSTEM INSTALLATION (See Illustration on pg. 5) 4.1 Mounting the Amplifi er 4.1.1 Select a suitable location to mount the AMPLIFIER. The amplifi er can be mounted to the selected location using screws. (Screws not included.) Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. PACKAGE CONTENTS Bi-Directional Amplifier OPTION A Low Profile Antenna (Coax Included) DC Power Supply 6' Extension Cable OPTION B Small Antenna 3 4.2 Installing the Wilson Cellular Inside Antenna (2 options included) 4.2.1A (option A) - The inside antenna should be mounted approximately 1 foot or less from where the phone is used. The best place to mount the inside antenna is shoulder height on the side of the drivers seat. The closer the inside antenna is placed to the phone, the better the performance. See option A. Do not mount on a surface near metal. 4.2.1B (option B) - For convenience, the Small Antenna directly attached to the phone will perform as well as a Direct Connection Amplifi er or similar to the Low Profi le antenna attached directly to the phone. The Small Antenna must be directly connected to the back of the phone using Velcro (included). The Small Antenna will not work away from the phone like the Low Profi le antenna. Connect the 6’ extension cable to the Small Antenna (included). Attach Small Antenna to the back of the phone. See option B. 4.2.2 Connect the Inside Antenna (A) or 6’ Extension Cable (B) to the side labeled “INSIDE ANTENNA” on the AMPLIFIER. Amplifi er Low Profi le Antenna Amplifi er6’ Extension Cable Small Antenna Small Antenna placement is depen- dant upon the location of the phones antenna. Place the Small Antenna as close as possible to the phones antenna. WARNING: Do not plug the amplifier directly into the phone using a phone specific adapter. 4 4.3 Installing the Wilson Cellular Outside Antenna (Sold Separately) 4.3.1 Select an outside mounting location. For best performance keep the antenna centered on the vehicle’s roof. 4.3.2 The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. NOTE: If the vehicle has a sunroof, place the outside antenna away from the sunroof so that the inside antenna is shielded from the outside antenna by metal. This is very important to avoid oscillation. 4.3.3 Connect the Outside Antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. NOTE: Do not place the outside antenna in the vehicle without turning the amplifi er off. For example, when at the car wash. This will cause damage to your amplifi er. NOTE: Do not use a glass mounted antenna with a mobile wireless amplifi er. 4.4 Connect the DC Power Supply 4.4.1 Connect the large end of the DC Power Supply into your cigarette lighter and the other end into the input on your amplifi er. Use only the supplied power supply. 4.5 Indicators Lights 4.5.1 PWR - Power Indicator Light – Indicates power to the unit. 800 MHz & 1900 MHz dual color Green/Red indicators Green – Amplifi er is operating properly. Red – Indicates the amplifi er is oscillating (needs more separation between the Inside and Outside Antennas) and/or the cell sites signal is strong and the amplifi er has powered down. (see below) Oscillation – Try moving the outside antenna to a different location, creating more separation from the inside antenna. The inside antenna should be mounted within one foot (1’) of where the cell phone is being used. Strong Cell Signal – The amplifi er is designed to power down when the cell site signal is strong. If you are installing the amplifi er where the cell signal is strong, go to an area with low signal strength and verify that the light turns to Green. NOTE: You do not need amplifi cation when the cell signal is strong. The amplifi er is on only when the green light is on. In the city, you may only need amplifi cation when the signal fades from buildings or other structures blocking the signal. 5 MOBILE AMPLIFIER LAYOUT Cell Phone(s) Inside Antenna Outside Antenna Amplifier DC Power Supply Cell Site 5. AMPLIFIER SPECIFICATIONS Dual Band 800 / 1900 MHz Part Number801201-A ConnectorsFME-Male 50 Ohms Dimensions5.6 x 3.6 x 1.7 inch or 14.2 x 9.1 x 4.4 cm Weight1.44 lbs or 0.65 kg Frequency824-894 MHz / 1850-1990 MHz Gain (up/down)37 dB / 43 dB Linear Output Power+30 dBm Max Output Power3 watts (Cell Site Controlled) Max RF (up/down)+35 dBm / +10 dBm Noise Figure (typical)3 dB nominal IsolationUplink/Downlink more than 90 dB Power Requirements Amplifi er Usage6 V, 3 A (subject to Uplink power) 6 6. FEATURES Advanced Electronics Receive & Transmit Better Than Your Cell Phone or Cellular Data Card • Power Control …

Text truncated - open the document above for the full version.

March 2, 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: This letter is to comply with sections 0.457 and 0.459 pertaining to confidential material. Wilson Electronics, Inc. requests that the following documents regarding this submission for FCC ID: PWO8012ASM be kept confidential. 1. Schematic Diagram: 801201RXSCHEM.JPG 2. Schematic Diagram: 801201TXSCHEM.JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Richard M. Kline, R&D Engineer

Response to E06-000048-1 and E06-000048-1 IC FCC 1. The 5.12 dBi figure is the correct number for the 800 MHz band, and 6.12 dBi is correct for the 1900 MHz band. We’ve updated our installation instructions to preclude any possible misunderstandings by mentioning the more conservative limitation of 6.12 dBi for both bands. For this reason, the minimum safe distance from the antenna has been increased from 14.5 inches to 17 inches. A revised users manual has been uploaded. 2. A revised MPE report has been uploaded. IC 1. A revised users manual has been uploaded. 2. A revised MPE report has been uploaded. 3. A revised Canadian application form has been uploaded with a new Canadian representative.

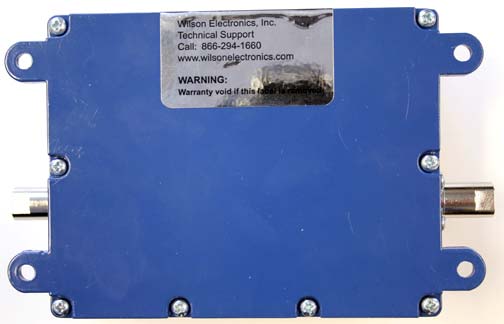

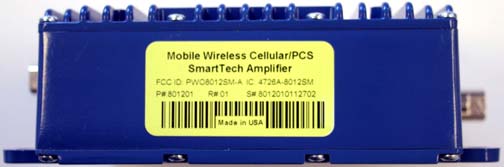

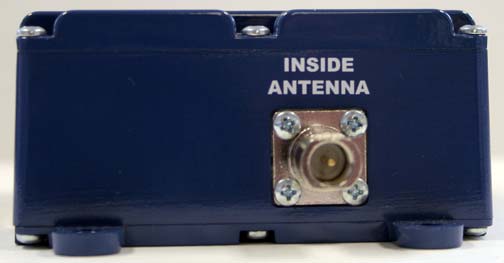

Top Bottom Side Side 1 Side 2 Side Power

Open Top Top Board Boards Back Open Bottom Bottom Board

Page 1 of 1 FCC Operational Description for the 801201-A : The 801201-A Bi-Directional Amplifier has 40 dB of gain on the uplink (transmission to cell site 824-849MHz & 1850-1910 MHz) and 40 dB of gain on the downlink (receive from cell site 869-894MHz & 1930-1990 MHz). The amplifier has no modulation circuitry. It is a linear Amplifier in both directions (RX and TX) and the modulation of the signal is controlled by the cell phone. The maximum uplink power is controlled by the received signal strength. The path loss from the cell phone to the inside antenna is usually equal to or greater then the gain of the amplifier thus allowing the cell phone to operate as if it was connected directly to the outside antenna. Frequency (uplink) 824-849MHz and 1850-1910 MHz Frequency (downlink) 869-894 MHz and 1930-1990 MHz Gain (up, down) (40dB, 40dB) Flatness (up, down) (+/- 3dB, +/- 4dB) Max RF (up, down) (+34.5dBm , +15dBm) Noise Figure (down) 3 dB Isolation Uplink/Downlink More than 90dB Power Consumption 12V, 0.5 - 1.5A (dependent upon uplink power) The 801201-A Bi-directional Amplifier greatly improves RF coverage for areas in which low signal strength or no signal is a problem when using a portable cell phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to the cell phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna. The use of this amplifier requires no physical connection to the amplifier and will allow multiple users.

Tune-Up Procedure – 84511 This amplifier has no external or internal adjustments. Sometimes, due to component variation, resistors may be changed. This is a production process that requires specialized equipment.

Page 1 of 17 Report No: FC06-012 R MPE EVALUATION REPORT FOR THE DUAL BAND BI-DIRECTIONAL AMPLIFIER, 811201-A FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: FEBRUARY 1, 2006 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5046 Sierra Pines Dr Mariposa, CA 95338 W.O. No.: 84511Date of test: December 14, 2005 Report No.: FC06-012R This report contains a total of 19 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 17 Report No: FC06-012 R TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................3 Approvals .........................................................................................................................4 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Specifications and Requirements .....................................................................................6 Summary of RF Exposure Conditions .............................................................................7 Report of Measurements ..................................................................................................8 Test Configuration ...........................................................................................................10 Test Procedure .................................................................................................................10 Reference Documents ......................................................................................................15 Appendix A: Photographs of the Test Setup Used ..........................................................16 Appendix B: Test Equipment List ...................................................................................17 Page 3 of 17 Report No: FC06-012 R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Dual Band Bi-Directional Amplifier, 801201-A with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Riki Kline SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range 1 (824-849 MHz) is 0.55 mW/cm 2 and for operating frequency range 2 (1850-1910 MHz) is 1.0 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 50 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 17 Report No: FC06-012 R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Page 5 of 17 Report No: FC06-012 R EQUIPMENT UNDER TEST Dual Band Bi-Directional Amplifier Manuf: Wilson Electronics Model: 801201-A Serial: 8012010112702 FCC ID: pending Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Signal Generator Manuf: HP Model: E4432B Serial: US40052968 FCC ID: DoC Signal Generator Manuf: HP Model: E4432B Serial: US400053750 FCC ID: DoC DC Power Supply Manuf: Topward Model: TPS-2000 Serial: 920035 FCC ID: DoC Page 6 of 17 Report No: FC06-012 R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500------f/150030 1500- 100,000------130 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Page 7 of 17 Report No: FC06…

Text truncated - open the document above for the full version.

Page 1 of 17 Report No: FC06-012 R MPE EVALUATION REPORT FOR THE DUAL BAND BI-DIRECTIONAL AMPLIFIER, 801201-A FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: MARCH 9, 2006 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5046 Sierra Pines Dr Mariposa, CA 95338 W.O. No.: 84511Date of test: December 14, 2005 Report No.: FC06-012R This report contains a total of 19 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 17 Report No: FC06-012 R TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................3 Approvals .........................................................................................................................4 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Specifications and Requirements .....................................................................................6 Summary of RF Exposure Conditions .............................................................................7 Report of Measurements ..................................................................................................8 Test Configuration ...........................................................................................................10 Test Procedure .................................................................................................................10 Reference Documents ......................................................................................................15 Appendix A: Photographs of the Test Setup Used ..........................................................16 Appendix B: Test Equipment List ...................................................................................17 Page 3 of 17 Report No: FC06-012 R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Dual Band Bi-Directional Amplifier, 801201-A with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Riki Kline SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range 1 (824-849 MHz) is 0.55 mW/cm 2 and for operating frequency range 2 (1850-1910 MHz) is 1.0 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 50 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 17 Report No: FC06-012 R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Page 5 of 17 Report No: FC06-012 R EQUIPMENT UNDER TEST Dual Band Bi-Directional Amplifier Manuf: Wilson Electronics Model: 801201-A Serial: 8012010112702 FCC ID: pending Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Signal Generator Manuf: HP Model: E4432B Serial: US40052968 FCC ID: DoC Signal Generator Manuf: HP Model: E4432B Serial: US400053750 FCC ID: DoC DC Power Supply Manuf: Topward Model: TPS-2000 Serial: 920035 FCC ID: DoC Page 6 of 17 Report No: FC06-012 R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000 ------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500------f/150030 1500- 100,000 ------130 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Page 7 of 17 Report No: FC06-…

Text truncated - open the document above for the full version.

DC Voltages – 84511 TX: DC Votls 5V Current j300mA – 1.5A RX DC volts 3.6V Current 50mA

Page 1 of 115 Report No.: FC06-011 WILSON ELECTRONICS TEST REPORT FOR THE MOBILE WIRELESS CELLULAR/PCS SMARTTECH AMPLIFIER, 801201-A FCC PART 22 AND RSS-131 COMPLIANCE DATE OF ISSUE: JANUARY 17, 2006 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: DBW801201-1 W.O. No.: 84511 Date of test: March 21 – December 20, 2005 Report No.: FC06-011 This report contains a total of 115 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 115 Report No.: FC06-011 TABLE OF CONTENTS Administrative Information .............................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................6 Temperature and Humidity During Testing.....................................................................7 FCC 2.1033(c)(3) User’s Manual ....................................................................................7 FCC 2.1033(c)(4) Type of Emissions ..............................................................................7 FCC 2.1033(c)(5) Frequency Range................................................................................7 FCC 2.1033(c)(6) Operating Power.................................................................................7 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................7 FCC 2.1033(c)(8) DC Voltages .......................................................................................7 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................7 FCC 2.1033(c)(10) Schematics and Circuitry Descriptio…

Text truncated - open the document above for the full version.
