PWO8012SMMobile Wireless Cellular/PCS SmartTech Amplifier

Mobile Wireless Dual Band Cellular/PCS Smart Technology TM Amplifier PART# 801201 FCC ID: PWO8012SM IC: 4726A-8012SM Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 MOBILE Wireless The term “IC:” before the radio certification number only signifies that Industry of Canada technical specifications were met. Cellular & PCS Analog & Digital - AMPS, CDMA, GPRS, GSM, TDMA 23 1. PURPOSE OF THE AMPLIFIER The Bi-directional Amplifier greatly improves cell phone coverage for areas in which low signal strength or no signal is a problem when using your portable phone inside the car. 2. PACKAGE CONTENTS 2.1 Bi-directional Amplifier 2.2 DC plug-in power supply with ON/OFF switch. 2.3 Low Profile Antenna (Coax Included) 3. HOW THE AMPLIFIER FUNCTIONS The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna (not included). 4. AMPLIFIER SYSTEM INSTALLATION (See Illustration on pg. 5) 4.1 Mounting the Amplifier 4.1.1 Select a suitable location to mount the AMPLIFIER. The amplifier can be mounted to the selected location using screws. (Screws not included.) Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. ��������������� �������������� ��������� ���������� ������� �������������� ����� ����������� 23 4.2 Installing the Wilson Cellular Inside Antenna (Included) 4.2.1 The inside antenna should be mounted about 1 foot from where the phone is used. The best place to mount the inside antenna is shoulder height on the side of the drivers seat. Do not mount on a surface within 4 inches of metal. (Metal found in the seat should not effect the antenna) 4.2.2 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on the AMPLIFIER. NOTE: Do not mount on a windshield. WARNING: The inside antenna must be mounted with a separation distance of at least 1 inch (2.5 cm) from all persons and must not be colocated in conjunction with any other antenna or amplifier. 4.3 Installing the Wilson Cellular Outside Antenna (Sold Separately) 4.3.1 Select an outside mounting location. For best performance try to keep the antenna centered on the car’s/truck’s roof. 4.3.2 The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. NOTE: When using a glass mount antenna, keep the separation distance between the inside and outside antennas at least 5ft. NOTE: If the vehicle has a sunroof, place the outside antenna away from the sunroof so that the inside antenna is shielded from the outside antenna. WARNING: The outside antenna must be mounted with a separation dis- tance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. 4.3.3 Connect the Outside Antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. 4.4 Connect the 12V Power Supply 4.4.1 Connect the large end of the 12V Power Supply into your cigarette lighter and the other end into the input on your amplifier labeled “DC 6V IN”. 45 4.5 Overload Indicators 4.5.1 PWR - Power Indicator Light – Indicates power to the unit. 800 MHz & 1900 MHz dual color Green/Red indicators Green – Amplifier is operating properly. Red – Indicates the amplifier is oscillating (needs more separation between the Inside and Outside Antennas) and/or the cell sites signal is strong and the amplifier has powered down. (see below) Oscillation – Try moving the outside antenna to a different location, this will create more separation from the inside antenna. The inside antenna should be mounted within one foot (1’) of where the cell phone is being used. Strong Cell Signal – The amplifier is designed to power down when the cell site signal is strong. If you are installing the amplifier where the cell signal is strong, go to an area with low signal strength and verify that the light turns to Green. If you need additional help – call Tech Support 1-866-294-1660 M-F 8am – 5pm MST or email [email protected]. OPTIONAL ACCESSORIES Carrying CaseHardwire Kit 45 MOBILE AMPLIFIER LAYOUT ����� ����� ������ ������������ ������ ������� �������������� ��������� ���� ����� ������ ���� ���� 5. AMPLIFIER SPECIFICATIONS Dual Band 800 / 1900 MHz Part Number801201 ConnectorsFME-Male 50 Ohms Dimensions5.6 x 3.6 x 1.7 inch or 14.2 x 9.1 x 4.4 cm Weight1.44 lbs or 0.65 kg Frequency824-894MHz / 1850-1990MHz Gain (up/down)40dB / 40dB Linear Output Power+30dBm Max Output Power3 Watts (Cell Site Controlled) Max RF (up/down)+35dBm / +10dBm Noise Figure (typical)3dB nominal Flatness (up/down)+/- 3dB +/- 4dB IsolationUplink/Downlink more than 90dB Power Requirements12V, .5A-1.5A (subject to Uplink power) 67 6. FEATURES Wireless Operation - No Physical Connection to Cellphone The Amplifier greatly improves signal strength inside a vehicle without a physical connection to your phone. It also allows multiple phones to be used simultaneously. Advanced Electronics Receive & Transmit Better Than Your Cellphone The Wilson Cellular Amplifier has a better receiver than what’s in your cellphone. Its advanced electronics are very sensitive and able to receive weak signals that would go undetected by most cellphones. It also has a better transmitter with more than double the power of your cellphone. This allows your voice to be heard by distant cell sites, increasing coverage up to 50 miles or more. 7. OPTIONAL ACCESSO…

Text truncated - open the document above for the full version.

May 4, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: This letter is to comply with sections 0.457 and 0.459 pertaining to confidential material. Wilson Electronics, Inc. requests that the following documents regarding this submission for FCC ID: PWO8012SM be kept confidential. 1. Schematic Diagram: 801201RXSCHEM.JPG 2. Schematic Diagram: 801201TXSCHEM.JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Richard M. Kline, R&D Engineer

April 5, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Wilson Electronics, Inc. would like the following documents regarding this submission for FCC ID: PWO8012SM to be kept confidential. 1. Schematic Diagram: 801201RXSCHEM.JPG 2. Schematic Diagram: 801201TXSCHEM.JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Richard M. Kline, R&D Engineer

Response to E05-000113-1 1. A revised confidentiality letter has been uploaded. 2. Please change the emissions designators on the 731 form as follows: CDMA=F9W, GSM=GXW, EDGE=G7W, AMPS=F1D 3. Revised test reports have been uploaded. 4. Revised test reports have been uploaded.

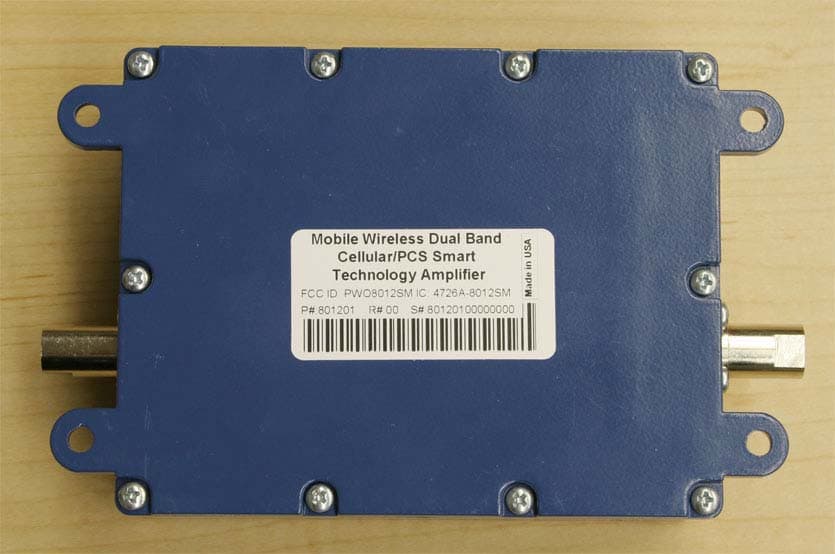

Front Back Top Bottom Left Right

Internal Top Internal Bottom Board 1 Board 2

Page 1 of 1 FCC Operational Description for the 801201 : The 801201 Bi-Directional Amplifier has 40 dB of gain on the uplink (transmission to cell site 824-849MHz & 1850-1910 MHz) and 40 dB of gain on the downlink (receive from cell site 869-894MHz & 1930-1990 MHz). The amplifier has no modulation circuitry. It is a linear Amplifier in both directions (RX and TX) and the modulation of the signal is controlled by the cell phone. The maximum uplink power is controlled by the received signal strength. The path loss from the cell phone to the inside antenna is usually equal to or greater then the gain of the amplifier thus allowing the cell phone to operate as if it was connected directly to the outside antenna. Frequency (uplink) 824-849MHz and 1850-1910 MHz Frequency (downlink) 869-894 MHz and 1930-1990 MHz Gain (up, down) (40dB, 40dB) Flatness (up, down) (+/- 3dB, +/- 4dB) Max RF (up, down) (+34.5dBm , +15dBm) Noise Figure (down) 3 dB Isolation Uplink/Downlink More than 90dB Power Consumption 12V, 0.5 - 1.5A (dependent upon uplink power) The 801201 Bi-directional Amplifier greatly improves RF coverage for areas in which low signal strength or no signal is a problem when using a portable cell phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to the cell phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna. The use of this amplifier requires no physical connection to the amplifier and will allow multiple users.

Tune-Up Procedure – 83305 There is nothing that can be adjusted or tuned by the user. There are some factory adjustments that are made internally. These involve only resistors and therefore, even at the factory nothing is tuned. Therefore, there is no tune-up procedure.

Page 1 of 4 Report No.: FC05-015- R Date of Report: April 4, 2005 Maximum Permissible Exposure Statement REPORT NO.: FC05-015-R Calculations prepared for: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 Calculations prepared by: Randal Clark CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Model Number: 801201 Fundamental Operating Frequency: 869-894 1930-1990 Maximum Rated Output Power: 15 mWatts Power Output and Operating Frequency Information used for these calculations were from CKC Laboratories, Test Reports FC05-015 (FCC Part 22) and FC05-017 (FCC Part 24). Purpose: The purpose of these calculations is to demonstrate RF Exposure compliance for mobile devices for the interior antenna(s) used with this device. Device and Antenna Operating Configuration: Input CDMA signal (representative of worst case) is provided via support signal generator. Signal generator output is fed to the input of the EUT through a preamplifier when necessary to obtain the maximum output. Antenna is an in-vehicle mobile antenna for downlink frequencies. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65. Other Considerations: The antenna sold with this device includes a length of cable. The calculations provided here exclude the cable loss for this antenna in order to provide the maximum estimated exposure levels. Manufacturer’s stated cable loss is -2.7dB (869-894) and -3.9 dB (1930-1990) Page 2 of 4 Report No.: FC05-015- R MPE Calculations for the 869-894 MHz Range: Maximum EIRP Calculation: Measured Output Power: 12.58 mWatts Maximum Antenna Gain: 2.2 dBi Maximum EIRP: 13.2 dBm EIRP MPE Limit in accordance with 1.1310: Occupational / Controlled Exposure XGeneral Population / Uncontrolled Exposure MPE Limit = f/1500 (mW/cm 2 ) = 0.549 (mW/cm 2 ) Note: Limit is calculated based on the lowest frequency used in the operating frequency range. 2 2 4 )/( d EIRP cmmWDensityPower

Given: EIRP in mW and d in cm EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Result 20.891.740.550Pass Page 3 of 4 Report No.: FC05-015- R MPE Calculations for the 1930-1990 MHz Range: Maximum EIRP Calculation: Measured Output Power: 9.77 mWatts Maximum Antenna Gain: 2.2 dBi Maximum EIRP: 13.1 dBm EIRP MPE Limit in accordance with 1.1310: Occupational / Controlled Exposure XGeneral Population / Uncontrolled Exposure MPE Limit = 1 (mW/cm 2 ) Note: Limit is calculated based on the lowest frequency used in the operating frequency range. 2 2 4 )/( d EIRP cmmWDensityPower

Given: EIRP in mW and d in cm EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Result 20.411.271.000Pass Page 4 of 4 Report No.: FC05-015- R Statement of Compliance: This device demonstrates compliance under the operating conditions specified in this document. Under normal operating conditions, the antenna is designed to be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. The MPE calculations shown above demonstrate compliance to the provisions of 1.1310 in accordance with the guidelines of OET 65. As can be seen from the MPE results, this device passes the limits specified in 1.1310 at a distance of less than 20cm and at maximum output power under normal operating conditions for both frequency bands.

Page 1 of 17 Report No: FC05-017- R MPE EVALUATION REPORT FOR THE MOBILE WIRELESS DUAL BAND CELLULAR/ PCS SMART TECHNOLOGY AMPLIFIER, 801201 FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: APRIL 4, 2005 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5076 Sierra Pines Drive Mariposa, CA 95338 W.O. No.: 83305Date of test: April 1, 2005 Report No.: FC05-017-R This report contains a total of 17 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 17 Report No: FC05-017- R TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................3 Approvals .........................................................................................................................4 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Specifications and Requirements .....................................................................................6 Summary of RF Exposure Conditions .............................................................................7 Report of Measurements ..................................................................................................8 Test Configuration ...........................................................................................................10 Test Procedure .................................................................................................................10 Reference Documents ......................................................................................................15 Appendix A: Photographs of the Test Setup Used ..........................................................16 Appendix B: Test Equipment List ...................................................................................17 Page 3 of 17 Report No: FC05-017- R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Mobile Wireless Dual Band Cellular/PCS Smart Technology Amplifier, 801201 with the RF Exposure Requirements for mobile devices for the exterior antenna(s) used with this device. REPRESENTATIVE: Riki Kline SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range 1 (824-849 MHz) is 0.55 mW/cm 2 and for operating frequency range 2 (1850-1910 MHz) is 1.0 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 40 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 17 Report No: FC05-017- R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Page 5 of 17 Report No: FC05-017- R EQUIPMENT UNDER TEST Mobile Wireless Dual Band Cellular/PCS Smart Technology Amplifier Manuf: Wilson Electronics Model: 801201 Serial: 8012010000006 FCC ID: pending Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Signal Generator Manuf: HP Model: E4433B Serial: US38440697 FCC ID: DoC Power Supply Manuf: Topward Electric Instruments Co., Ltd Model: TPS-2000 Serial: 920035 FCC ID: DoC Page 6 of 17 Report No: FC05-017- R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500------f/150030 1500- 100,000------130 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the poten…

Text truncated - open the document above for the full version.

DC Voltages - 83305 TX: DC Volts 5V, Current 300mA – 1.5A RX: DC Volts 3.6V Current 50mA

Page 1 of 134 Report No.: FC05-015 WILSON ELECTRONICS TEST REPORT FOR THE MOBILE WIRELESS DUAL BAND CELLULAR/ PCS SMART TECHNOLOGY AMPLIFIER, 801201 FCC PART 22 AND RSS-131 COMPLIANCE DATE OF ISSUE: MARCH 31, 2005 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: DBW801201-1 W.O. No.: 83305 Date of test: March 21-31, 2005 Report No.: FC05-015 This report contains a total of 134 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 134 Report No.: FC05-015 TABLE OF CONTENTS Administrative Information .............................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/22.913 - RF Power Output ...................................................7 FCC 2.1033(c)(14)/2.1047(b) - Audio Frequency Response...........................................9 FCC 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response.....................................9 FCC 2.1033(c)(14)/2.1049(i) - Occupied Bandwidth......................................................10 FCC 2.1049 Uplink Occupied Bandwidth .......................................................................14 FCC 2.1051 Downlink Block Edge .................................................................................19 FCC 2.1051 Uplink Block Edge ......................................................................................27 FCC 2.1033(c)(14)/2.1051/22.917 - Spurious Emissions at Antenna Terminal..............36 FCC 2.1051 – Intermodulation Attenuation ....................................................................62 FCC 2.1051 Intermodulation Attenuation Downlink ......................................................88 FCC 2.1051 Intermodulation Attenuation Uplink ...........................................................97 FCC 2.1033(c)(14)/2.1053/22.917 - Field Strength of Spurious Radiation ....................108 Input Downlink ................................................................................................................112 Input Uplink .....................................................................................................................116 Output Downlink .............................................................................................................120 Output Uplink ..................................................................................................................124 RSS-131 Downlink Passband Gain .................................................................................129 RSS-131 Uplink Passband Gain ......................................................................................130 RSS-131 Downlink Passbandwidth .................................................................................132 RSS-131 Uplink Passbandwidth ......................................................................................133 Page 3 of 134 Report No.: FC05-015 ADMINISTRATIVE INFORMATION DATE OF TEST: March 21-31, 2005 DATE OF RECEIPT: March 21, 2005 FREQUENCY RANGE TESTED: 30 MHz-10 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Riki Kline TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: FCC Part 22, TIA/EIA 603 and RSS-131 PURPOSE OF TEST: To demonstrate the compliance of the Mobile Wireless Dual Band Cellular/PCS Smart Technology Amplifier, 801201 with the requirements for FCC Part 22 and RSS-131 devices. Page 4 of 134 Report No.: FC05-015 FCC TO CANADA STANDARD CORRELATION MATRIX Canadian Standard Canadian Section FCC Standard FCC SectionTest Description RSS-1315.4N/AN/AExternal C…

Text truncated - open the document above for the full version.

Page 62 of 134 Report No.: FC05-015 FCC 2.1051- INTERMODULATION ATTENUATION ANALYZER BANDWIDTH SETTINGS PER FREQUENCY RANGE TESTBEGINNING FREQUENCYENDING FREQUENCYBANDWIDTH SETTING RADIATED EMISSIONS30 MHz1000MHz10 kHz RADIATED EMISSIONS1000MHz10 GHz100 kHz Test Location:CKC Laboratories •5473A Clouds Rest • Mariposa, CA 95338 • 1-800-500-4EMC (4362) Customer: Wilson Electronics Specification: FCC 22.917 Work Order #: 83305 Date: 03/25/2005 Test Type: Antenna Terminals Time: 14:47:32 Equipment: In Vehicle Wireless Dual Band Smart Amplifier Sequence#: 45 Manufacturer:Wilson ElectronicsTested By: Mike Wilkinson Model:801201 S/N:8012010000006 Test Equipment: FunctionS/NCalibration DateCal Due DateAsset # Agilent E4446A SAUS4430040701/12/200501/12/200702660 Attenuator 30dB, Bird 25-A-MFN-30 994905/09/200305/09/2005P01572 Equipment Under Test (* = EUT): FunctionManufacturerModel #S/N In Vehicle Wireless Dual Band Smart Amplifier* Wilson Electronics8012018012010000006 Support Devices: FunctionManufacturerModel #S/N Signal GeneratorHPE4433BUS38440697 DC Power SupplyTopwardTPS-2000920035 Signal GeneratorHPE4432BMY41000298 Test Conditions / Notes: EUT is a bidirectional amplifier for the 824 to 894MHz band. Uplink frequency range 824 - 849MHz. Downlink frequency range 869 - 894MHz. Intermodulation Attenuation and Spurious Emissions Test: Two signals are input to the amplifier through a combining network. The input signals are set such that the maximum output is provided at the antenna terminals. The internal ALC of the amplifier limits the maximum power output to a factory set level. Power output is continuously variable and directly proportional to the supplied RF input. Input Modulation: AMPS. Measurements were performed using the 2 tone method. Frequencies Tested: Downlink 869.03MHz 869.09MHz. Frequency Range Investigated: 30MHz to 10 GHz. Page 63 of 134 Report No.: FC05-015 Transducer Legend: T1=Pad 30dB Measurement Data: Reading listed by margin.Test Distance: None #FreqRdngT1DistCorrSpecMarginPolar MHzdBμVdBdBdBdBTabledBμVdBμVdBAnt 1 869.104M 79.6 +0.0 109.9 117.0 -7.1None +30.3 Fundamental 2 868.956M 55.8 +0.0 86.1 94.0 -7.9None +30.3 3 869.018M 77.0 +0.0 107.3 117.0 -9.7None +30.3 Fundamental 4 2607.222M 40.6 +0.0 70.5 94.0 -23.5None +29.9 5 869.166M 58.3 +0.0 88.6 117.0 -28.4None +30.3 6 868.890M 32.7 +0.0 63.0 94.0 -31.0None +30.3 7 3476.278M 29.0 +0.0 58.8 94.0 -35.2None +29.8 8 868.826M 27.7 +0.0 58.0 94.0 -36.0None +30.3 9 1738.110M 25.1 +0.0 55.4 94.0 -38.6None +30.3 10 868.746M 14.6 +0.0 44.9 94.0 -49.1None +30.3 11 4345.334M 9.2 +0.0 38.2 94.0 -55.8None +29.0 Page 64 of 134 Report No.: FC05-015 Test Location:CKC Laboratories •5473A Clouds Rest • Mariposa, CA 95338 • 1-800-500-4EMC (4362) Customer: Wilson Electronics Specification: FCC 22.917 Work Order #: 83305 Date: 03/25/2005 Test Type: Antenna Terminals Time: 15:16:43 Equipment: In Vehicle Wireless Dual Band Smart Amplifier Sequence#: 46 Manufacturer:Wilson ElectronicsTested By: Mike Wilkinson Model:801201 S/N:8012010000006 Test Equipment: FunctionS/NCalibration DateCal Due DateAsset # Agilent E4446A SAUS4430040701/12/200501/12/200702660 Attenuator 30dB, Bird 25-A-MFN-30 994905/09/200305/09/2005P01572 Equipment Under Test (* = EUT): FunctionManufacturerModel #S/N In Vehicle Wireless Dual Band Smart Amplifier* Wilson Electronics8012018012010000006 Support Devices: FunctionManufacturerModel #S/N Signal GeneratorHPE4433BUS38440697 DC Power SupplyTopwardTPS-2000920035 Signal GeneratorHPE4432BMY41000298 Test Conditions / Notes: EUT is a bidirectional amplifier for the 824 to 894MHz band. Uplink frequency range 824 - 849MHz. Downlink frequency range 869 - 894MHz. Intermodulation Attenuation and Spurious Emissions Test: Two signals are input to the amplifier through a combining network. The input signals are set such that the maximum output is provided at the antenna terminals. The internal ALC of the amplifier limits the maximum power output to a factory set level. Power output is continuously variable and directly proportional to the supplied RF input. Input Modulation: AMPS. Measurements were performed using the 2 tone method. Frequencies Tested: Downlink 893.91MHz 893.97MHz. Frequency Range Investigated: 30MHz to 10 GHz. Transducer Legend: T1=Pad 30dB Measurement Data: Reading listed by margin.Test Distance: None #FreqRdngT1DistCorrSpecMarginPolar MHzdBμVdBdBdBdBTabledBμVdBμVdBAnt 1 894.066M 56.0 +0.0 86.3 94.0 -7.7None +30.3 2 893.896M 79.0 +0.0 109.3 117.0 -7.7None +30.3 Fundamental 3 893.984M 78.0 +0.0 108.3 117.0 -8.7None +30.3 Fundamental 4 2681.806M 46.2 +0.0 76.0 94.0 -18.0None +29.8 Page 65 of 134 Report No.: FC05-015 5 894.156M 39.9 +0.0 70.2 94.0 -23.8None +30.3 6 893.812M 57.4 +0.0 87.7 117.0 -29.3None +30.3 7 894.238M 31.6 +0.0 61.9 94.0 -32.1None +30.3 8 894.326M 27.2 +0.0 57.5 94.0 -36.5None +30.3 9 1787.876M 26.5 +0.0 56.8 94.0 -37.2None +30.3 10 1787.966M 24.6 +0.0 54.9 94.0 -39.1None +30.3 11 3575.730M 23.0 +0.0 52.8 94.0 -41.2None +29.8 12 894.414M 16…

Text truncated - open the document above for the full version.
