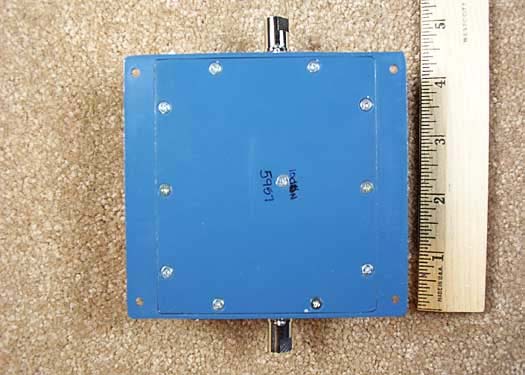

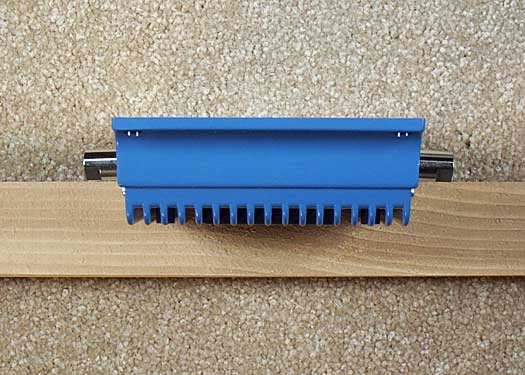

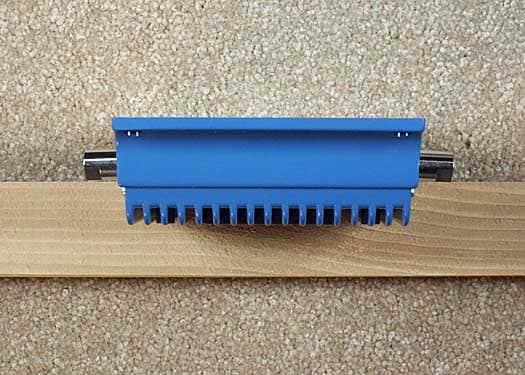

PWO806D - IDEN Bi-Directional Amplifier Direct

Users Manual

WARNING RF EXPOSURE COMPLAINCE: All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6’ from the ground and have at least 40 cm of separation from any persons near or around the vehicle.

Users Manual

iDEN DIRECT CONNECTION AMPLIFIER Part# 814001 FCC ID: PWO806D IC: 4726A-806D Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 DIRECT CONNECTION Vehicle & Building The term “IC:” before the radio certification number only signifies that Industry of Canada technical specifications were met. 23 1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER The Direct Connection Bi-directional Amplifier improves RF coverage in areas with no signal or low signal strength. Part# 811101 Amplifies the signal on 800MHz up to 3 watts and allows for the full benefit of the outside antenna on 1900MHz frequencies. Part# 814001 Amplifies the iDEN (Nextel) frequencies up to 3 watts. 2. PACKAGE CONTENTS 2.1 Bi-directional Direct Connection Amplifier. 2.2 DC plug-in power supply with ON/OFF switch. 2.3 6ft. Adapter Extension Cable. 3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS When using 800 MHz the signal is received by the outside antenna from the cell site. The signal is then AMPLIFIED and sent into your phone through the adapter (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter then AMPLIFIED and transmitted to the cell site through the outside antenna. When using 1900MHz (PCS) the signal bypasses the amplifier’s circuitry while getting full benefit from the outside antenna. NOTE: Amplifier #814001 does not have a 1900MHz (PCS) bypass as iDEN (Nextel) does not utilize this frequency. Package Contents AMPLIFIER DC PLUG-IN POWER SUPPLY 6FT ADAPTER EXTENSION CABLE 23 4. AMPLIFIER INSTALLATION (see illustration on pg.4) 4.1 Installing the Wilson Cellular Antenna 4.1.1 See antenna packaging for model specific instructions. WARNING: Verify that both the outside antenna and adapter extension cable are connected before powering up the AMPLIFIER. RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted with a separation distance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-building installations. RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. 4.2 Installing The Amplifier 4.2.1 Select a suitable location to mount the AMPLIFIER. • In vehicle installation - under the dash or vehicle seat • In building installation - on a wall or ceiling NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. DO NOT place the amplifier in an air-tight enclosure. Use #6 screws to mount the amplifier. 4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. 4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2004 Wilson Electronics, Inc. 45 �� In-Building Installation Mobile Installation

Users Manual

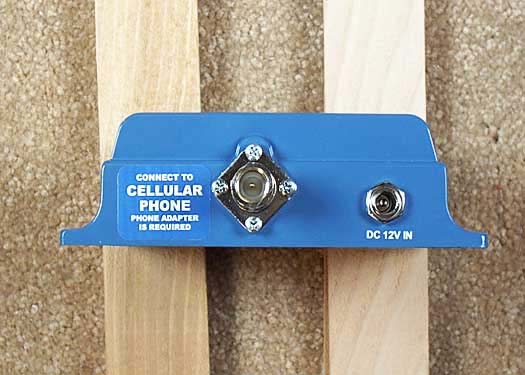

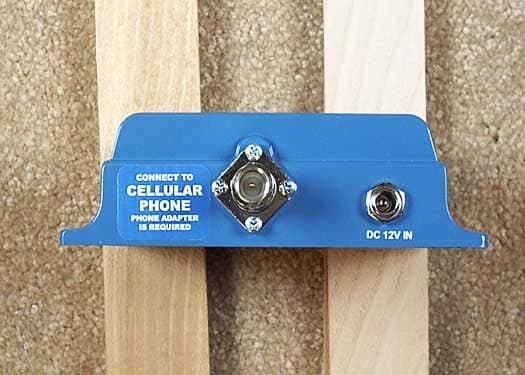

45 �� In-Building Installation Mobile Installation 45 labeled “CELLULAR PHONE”. 4.2.4 An external antenna adapter is required (sold separately) to connect the AMPLIFIER to the cellphone. External antenna adapters connect directly to the antenna extension cable. 4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both the OUTSIDE ANTENNA and the ADAPTER EXTENSION CABLE are connected before powering up the AMPLIFIER. NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter cross reference chart. If your phone’s adapter is not available from your retailer contact us at 1-866-294-6996 and we will help you locate one in your area. For further assistance contact our technical support Toll-Free at 1-866-294-1660. NOTE: iDEN Antennas are recommended for iDEN Amplifier 814001. 5. AMPLIFIER SPECIFICATIONS DIRECT CONNECTION AMPLIFIER PHYSICAL SPECIFICATIONS Connectors FME-Male 50 Ohms Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm) Weight 1.32 Pounds or 600G iDEN #814001 AMPLIFIER SPECIFICATIONS Frequency806-821MHz Uplink 851-866MHz Downlink Gain (up/down)Cell Site Controlled-Max 10/10db Flatness (up/down)(+/- 2dB / +/-3dB) Max RF (up/down)(+35dBm/+15dBm) Noise Figure (down)(3.5dB nominal) IsolationUplink/Downlink 90dB Power Consumption1.5A@12V 67 6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS 6.1 Coax Cable Extensions 50Ω (see chart on pg.7) 6.2 Antenna Options (see chart on last page) 6.3 N-Female To FME-Female Adapter - Adapts 9913 Coax to the 814001 Bi-directional Amplifier. 6.4 Lightning Suppressor (In-Building application) WARNING: Lightning protection is recommended for all In-Building installations. 6.5 Hardwire Power Supply Kit. 7 . WARNINGS �� : : in-building installations. WARNING: Verify that both the outside antenna and adapter extension cable are connected before powering up the AMPLIFIER. RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted with a separation distance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-building installations. RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. 67 8. TECH SUPPORT If you need further assistance with your installation: 1) Call us Toll-Free at 866-294-1660 2) E-mail tech support at [email protected] 3) Go to www.wilsonelectronics.com Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time) 9511015’ Extension Cable RG 58 Low Loss Coax (0.6 db loss) 95110210’ Extension Cable RG 58 Low Loss Coax (1.2 db loss) 95110315’ Extension Cable RG 58 Low Loss Coax (1.8 db loss) 95110420’ Extension Cable RG 58 Low Loss Coax (2.4 db loss) Used with the Yagi Antenna - (N-Male to FME Female) 95110820’ Extension Cable 9913 Ultra Low Loss Coax Only use 9913 Low Loss Coax for extensions 20’ or longer (0.8 db loss) 95110530’ Extension Cable 9913 Ultra Low Loss Coax (1.2 db loss) 95110650’ Extension Cable 9913 Ultra Low Loss Coax (2.0 db loss) 951107100’ Extension 9913 Low Loss Coax (4.0 db loss) EXTENSION CABLE CHART (RG 58 - FME connectors / 9913 - N connectors) Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Leaving the amplifier on in an unused vehicle for days may drain your battery. This can be avoided by plugging into an ignition switched outlet or by using the small white switch located on the power supply. 8 �� For more options visit www.wilsonelectronics.com Outside Antenna Options Pictures Are Not To Scale Not All Outside Antenna Options Are Shown Questions? 1-866-294-1660 www.wilsonelectronics.com 15 DAY MONEY BACK GUARANTEE All Wilson products have a 15 day money back guarantee with Proof of Purchase 1 YEAR WARRANTY The Wilson amplifier is warranted for one year against defects in workmanship and/or materials and will be repaired or replaced, at the discretion of the manufac- turer, to the original purchaser with dated proof of purchase or sales receipt. If you have questions about your amplifier please call technical support call 1-866-294-1660 or E-mail tech@wilsonelectroni…

Text truncated - open the document above for the full version.

Users Manual

iDEN DIRECT CONNECTION AMPLIFIER Part# 814001 FCC ID: PWO806D IC: 4726A-806D Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 DIRECT CONNECTION Vehicle & Building The term “IC:” before the radio certification number only signifies that Industry of Canada technical specifications were met. 23 1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER The Direct Connection Bi-directional Amplifier improves RF coverage in areas with no signal or low signal strength. Part# 811101 Amplifies the signal on 800MHz up to 3 watts and allows for the full benefit of the outside antenna on 1900MHz frequencies. Part# 814001 Amplifies the iDEN (Nextel) frequencies up to 3 watts. 2. PACKAGE CONTENTS 2.1 Bi-directional Direct Connection Amplifier. 2.2 DC plug-in power supply with ON/OFF switch. 2.3 6ft. Adapter Extension Cable. 3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS When using 800 MHz the signal is received by the outside antenna from the cell site. The signal is then AMPLIFIED and sent into your phone through the adapter (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter then AMPLIFIED and transmitted to the cell site through the outside antenna. When using 1900MHz (PCS) the signal bypasses the amplifier’s circuitry while getting full benefit from the outside antenna. NOTE: Amplifier #814001 does not have a 1900MHz (PCS) bypass as iDEN (Nextel) does not utilize this frequency. Package Contents AMPLIFIER DC PLUG-IN POWER SUPPLY 6FT ADAPTER EXTENSION CABLE 23 4. AMPLIFIER INSTALLATION (see illustration on pg.4) 4.1 Installing the Wilson Cellular Antenna 4.1.1 See antenna packaging for model specific instructions. WARNING: Verify that both the outside antenna and adapter extension cable are connected before powering up the AMPLIFIER. RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted with a separation distance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-building installations. RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. 4.2 Installing The Amplifier 4.2.1 Select a suitable location to mount the AMPLIFIER. • In vehicle installation - under the dash or vehicle seat • In building installation - on a wall or ceiling NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. DO NOT place the amplifier in an air-tight enclosure. Use #6 screws to mount the amplifier. 4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. 4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2004 Wilson Electronics, Inc. 45 �� In-Building Installation Mobile Installation

Users Manual

45 labeled “CELLULAR PHONE”. 4.2.4 An external antenna adapter is required (sold separately) to connect the AMPLIFIER to the cellphone. External antenna adapters connect directly to the antenna extension cable. 4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both the OUTSIDE ANTENNA and the ADAPTER EXTENSION CABLE are connected before powering up the AMPLIFIER. NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter cross reference chart. If your phone’s adapter is not available from your retailer contact us at 1-866-294-6996 and we will help you locate one in your area. For further assistance contact our technical support Toll-Free at 1-866-294-1660. NOTE: iDEN Antennas are recommended for iDEN Amplifier 814001. 5. AMPLIFIER SPECIFICATIONS DIRECT CONNECTION AMPLIFIER PHYSICAL SPECIFICATIONS Connectors FME-Male 50 Ohms Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm) Weight 1.32 Pounds or 600G iDEN #814001 AMPLIFIER SPECIFICATIONS Frequency806-821MHz Uplink 851-866MHz Downlink Gain (up/down)Cell Site Controlled-Max 10/10db Flatness (up/down)(+/- 2dB / +/-3dB) Max RF (up/down)(+35dBm/+15dBm) Noise Figure (down)(3.5dB nominal) IsolationUplink/Downlink 90dB Power Consumption1.5A@12V 67 6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS 6.1 Coax Cable Extensions 50Ω (see chart on pg.7) 6.2 Antenna Options (see chart on last page) 6.3 N-Female To FME-Female Adapter - Adapts 9913 Coax to the 814001 Bi-directional Amplifier. 6.4 Lightning Suppressor (In-Building application) WARNING: Lightning protection is recommended for all In-Building installations. 6.5 Hardwire Power Supply Kit. 7 . WARNINGS �� : : in-building installations. WARNING: Verify that both the outside antenna and adapter extension cable are connected before powering up the AMPLIFIER. RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted with a separation distance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-building installations. RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. 67 8. TECH SUPPORT If you need further assistance with your installation: 1) Call us Toll-Free at 866-294-1660 2) E-mail tech support at [email protected] 3) Go to www.wilsonelectronics.com Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time) 9511015’ Extension Cable RG 58 Low Loss Coax (0.6 db loss) 95110210’ Extension Cable RG 58 Low Loss Coax (1.2 db loss) 95110315’ Extension Cable RG 58 Low Loss Coax (1.8 db loss) 95110420’ Extension Cable RG 58 Low Loss Coax (2.4 db loss) Used with the Yagi Antenna - (N-Male to FME Female) 95110820’ Extension Cable 9913 Ultra Low Loss Coax Only use 9913 Low Loss Coax for extensions 20’ or longer (0.8 db loss) 95110530’ Extension Cable 9913 Ultra Low Loss Coax (1.2 db loss) 95110650’ Extension Cable 9913 Ultra Low Loss Coax (2.0 db loss) 951107100’ Extension 9913 Low Loss Coax (4.0 db loss) EXTENSION CABLE CHART (RG 58 - FME connectors / 9913 - N connectors) Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Leaving the amplifier on in an unused vehicle for days may drain your battery. This can be avoided by plugging into an ignition switched outlet or by using the small white switch located on the power supply. 8 �� For more options visit www.wilsonelectronics.com Outside Antenna Options Pictures Are Not To Scale Not All Outside Antenna Options Are Shown Questions? 1-866-294-1660 www.wilsonelectronics.com 15 DAY MONEY BACK GUARANTEE All Wilson products have a 15 day money back guarantee with Proof of Purchase 1 YEAR WARRANTY The Wilson amplifier is warranted for one year against defects in workmanship and/or materials and will be repaired or replaced, at the discretion of the manufac- turer, to the original purchaser with dated proof of purchase or sales receipt. If you have questions about your amplifier please call technical support call 1-866-294-1660 or E-mail [email protected] Most warranty cases can be handled by taking the amplifier and the re- ceipt to the store where it was purchased. If inconvenient, the amplifier and a copy of the receipt, may be sent to the factory, at purchasers expense, where it may be repaired or replaced and returned shipping paid. War…

Text truncated - open the document above for the full version.

Cover Letter(s)

November 11, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Wilson Electronics, Inc. would like the following documents regarding this submission for FCC ID: PWO806D to be kept confidential. 1. CONFIDENTIAL In Line 800-DC Schematic. JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Patrick Cook, Design Engineer Page 2

Cover Letter(s)

Response to E03-000107-1 1. The manufacturer’s FRN number is 0005-0146-18. 2.The test report has been revised so the MPE calculations correspond to the measured output power. 3.A revised users manual has been uploaded with the correct separation distance. 4. The gains of the antennas are 5.12 dBi and 13 dBi. Two antenna files were uploaded. 5. The frequency 851-866 MHz is receive only. This side is not connected to an antenna and is not a radiator, so it was not listed on the 731 form.

ID Label/Location Info

• 2.1033(c) (11) Label showing the information to be placed thereon. LABEL Bottom View Page 2

Operational Description

To: CKC LABORATORIES Attention: Randal Clark AMPLIFIER DESCRIPTION: MODEL NUMBERS 801102, 801103, and 801103 Frequency 824-849MHz Uplink 869-894MHz Downlink 43dB 50dB 60dB Gain (up/down) (43dB/43dB) (50dB/50dB) (60dB/60dB) Flatness (up/down) (+/- 4dB/+/-4dB) (+/- 4dB/+/-6dB) (+/- 4dB/+/-6dB) Max RF (up/down) (+31.7dBm/+10dBm) (+31.7dBm/+10dBm) (31.7dBm/+10dBm) Noise Figure (down) (3dB nominal) (3dB nominal) (3dB nominal) Isolation Uplink/Downlink More than 90dB Power Consumption 13.8V, 2A Supported Modulations: TDMA136, JTACS, GSM EDGE (EGSM), WCDMA, GPRS, and CDMA Operational Description: The in building amplifier is a bidirectional linear amplifier that receives signals from a cell site and transmits them inside the building at a maximum RF downlink (RX) power of 10dbm (conducted). It also transmits signals from the phone back to the cell site at a maximum uplink (TX) power of +35dbm (conducted). UPLINK PA RF3108: Power consumption for AMPS modulation 1.25A 5V 6.25watts TX 1watt Power consumption for all other stated modulations 1.75A 5V 8.75watts TX 1.5watts (25% DUTY CYCLE) DOWNLINK SGA-3586 MMIC: Power consumption for all stated modulations 35MA 3.3V 80mw RX 10mw MAXIMUM POWER CONSUMPTION FOR AMPLIFIER: 2A 13.8V 27.6watts

Operational Description

To: CKC LABORATORIES Attention: Randal Clark AMPLIFIER DESCRIPTION: MODEL NUMBERS 804003 and 804004 Frequency 806-821MHz Uplink 851-866MHz Downlink 43dB 50dB 60dB Gain (up/down) (43dB/43dB) (50dB/50dB) (60dB/60dB) Flatness (up/down) (+/- 4dB/+/-4dB) (+/- 4dB/+/-6dB) (+/- 4dB/+/-6dB) Max RF (up/down) (+31.7dBm/+10dBm) (+31.7dBm/+10dBm) (31.7dBm/+10dBm) Noise Figure (down) (3dB nominal) (3dB nominal) (3dB nominal) Isolation Uplink/Downlink More than 90dB Power Consumption 13.8V, 2A Supported Modulations: TDMA Operational Description: The in building amplifier is a bidirectional linear amplifier that receives signals from a cell site and transmits them inside the building at a maximum RF downlink (RX) power of 10dbm (conducted). It also transmits signals from the phone back to the cell site at a maximum uplink (TX) power of +35dbm (conducted). UPLINK PA RF3108: Power consumption for all stated modulations 1.75A 5V 8.75watts TX 1.5watts (25% DUTY CYCLE) DOWNLINK SGA-3586 MMIC: Power consumption for all stated modulations 35MA 3.3V 80mw RX 10mw MAXIMUM POWER CONSUMPTION FOR AMPLIFIER: 2A 13.8V 27.6watts

Parts List/Tune Up Info

Tune-Up Procedure is not applicable because it is pre-set at the factory and the consumer cannot change it.

RF Exposure Info

Page 1 of 16 Report No: FC03-071B-R MPE EVALUATION REPORT FOR THE IDEN BI-DIRECTIONAL AMPLIFIER DIRECT CONNECT, 814001 FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: JULY 14, 2004 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 W.O. No.:81210Date of test:June 1 – July 7, 2004 Report No.: FC03-071B-RD This report contains a total of 16 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 16 Report No: FC03-071B-R TABLE OF CONTENTS Administrative Information..............................................................................................3 Purpose of Test.................................................................................................................3 Representative..................................................................................................................3 Summary of Results.........................................................................................................3 Approvals.........................................................................................................................4 Equipment Under Test.....................................................................................................5 Peripheral Devices............................................................................................................5 Specifications and Requirements.....................................................................................6 Summary of RF Exposure Conditions.............................................................................7 Report of Measurements..................................................................................................8 Test Configuration............................................................................................................10 Test Procedure..................................................................................................................10 Reference Documents......................................................................................................13 Appendix A: Photographs of the Test Setup Used...........................................................14 Appendix B: Test Equipment List....................................................................................16 Page 3 of 16 Report No: FC03-071B-R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of The IDEN Bi-Directional Amplifier Direct Connect, 814001with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Patrick Cook SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA The Maximum Permissible Exposure (MPE) limit for the operating frequency of the evaluated device is 0.54 mW/cm 2 for General Population / Uncontrolled Exposure. The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 20 cm laterally from the vehicle mounted antenna (bystander requirement). GLASS MOUNTED ANTENNA The Maximum Permissible Exposure (MPE) limit for the operating frequency of the evaluated device is 0.54 mW/cm 2 for General Population / Uncontrolled Exposure. The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm below the vehicle glass mounted antenna base (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 20 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 16 Report No: FC03-071B-R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Mike Wilkinson, Lab Manager Page 5 of 16 Report No: FC03-071B-R EQUIPMENT UNDER TEST IDEN Bi-Directional Amplifier Direct Connect Manuf: Wilson Electronics Model: 814001 Serial: 5244 FCC ID: Pending 12VDC Power Adapter Manuf: Wilson Electronics Model: NA Serial: NA FCC ID: NA Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA Glass Mounted Antenna Manuf: Wilson Electronics Model: 301102 Serial: NA FCC ID: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Signal Generator Manuf: HP Model: E4437B Serial: MY41310476 FCC ID: DoC Preamplifier Manuf: Mini-Circuits Model: ZHL-42-SMA Serial: D030204-#19 FCC ID: DoC Page 6 of 16 Report No: FC03-071B-R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency Radiation Exposure Limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000 ------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power D…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 68 Report No.: FC03-071B ADDENDUM TO FC03-071A FOR THE IDEN BI-DIRECTIONAL AMPLIFIER DIRECT CONNECT, 814001 FCC PART 90 & RSS 131 COMPLIANC…

Text truncated - open the document above for the full version.
