PWO819DDual Band Bidirectional Amplifier

Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 DIRECT CONNECTION Vehicle & Building The term “IC:” before the radio certification number only signifies that Industry of Canada technical specifications were met. AMPS DIRECT CONNECTION AMPLIFIER Part# 811101 FCC ID: PWO824D IC: 4726A-824D iDEN DIRECT CONNECTION AMPLIFIER Part# 814001 FCC ID: PWO806D IC: 4726A-806D DUAL BAND DIRECT CONNECTION AMPLIFIER Part# 811201 FCC ID: PWO819D IC: 4726A-819D 23 1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER The Direct Connection Bi-directional Amplifier improves RF coverage in areas with no signal or low signal strength. Part# 811101 Amplifies the signal on 800MHz up to 3 watts and allows for the full benefit of the outside antenna on 1900MHz frequencies. Part# 814001 Amplifies the iDEN (Nextel) frequencies up to 3 watts. 2. PACKAGE CONTENTS 2.1 Bi-directional Direct Connection Amplifier. 2.2 DC plug-in power supply with ON/OFF switch. 2.3 6ft. Adapter Extension Cable. 3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS When using 800 MHz the signal is received by the outside antenna from the cell site. The signal is then AMPLIFIED and sent into your phone through the adapter (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter then AMPLIFIED and transmitted to the cell site through the outside antenna. When using 1900MHz (PCS) the signal bypasses the amplifier’s circuitry while getting full benefit from the outside antenna. NOTE: Amplifier #814001 does not have a 1900MHz (PCS) bypass as iDEN (Nextel) does not utilize this frequency. Package Contents AMPLIFIER DC PLUG-IN POWER SUPPLY 6FT ADAPTER EXTENSION CABLE 23 4. AMPLIFIER INSTALLATION (see illustration on pg.4) 4.1 Installing the Wilson Cellular Antenna 4.1.1 See antenna packaging for model specific instructions. WARNING: Verify that both the outside antenna and adapter extension cable are con- nected before powering up the AMPLIFIER. RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted with a separation distance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-build- ing installations. RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. 4.2 Installing The Amplifier 4.2.1 Select a suitable location to mount the AMPLIFIER. • In vehicle installation - under the dash or vehicle seat • In building installation - on a wall or ceiling NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or mois- ture. The amplifier needs proper ventilation. DO NOT place the amplifier in an air-tight enclosure. Use #6 screws to mount the amplifier. 4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. 4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side labeled “CELLULAR PHONE”. 4.2.4 An external antenna adapter is required (sold separately) to connect the AMPLIFIER to the cellphone. External antenna adapters connect directly to the antenna extension cable. 4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both the OUTSIDE ANTENNA and the ADAPTER EXTENSION CABLE are connected before powering up the AMPLIFIER. NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter cross 45 ����� ����������� ���������� ��������� ���� ���� �������������� ������������ ������������ ���������������� ������������������� ���� ����� ������� ������� ������������� ����� ����� ������� ���������������� �������������� ���� ���� ��������� ��������� In-Building Installation Mobile Installation 45 reference chart. If your phone’s adapter is not available from your retailer contact us at 1-866-294-6996 and we will help you locate one in your area. For further assistance contact our technical support Toll- Free at 1-866-294-1660. NOTE: iDEN Antennas are recommended for iDEN Amplifier 814001. Dual Band #811201 PCS 1900 Specifications Dual Band #811201 AMPS Specifications Frequency 1850-1910MHz Uplink 1930-1990MHz Downlink 824-849MHz Uplink 869-894MHz Downlink Gain (up/down) Cell Site Controlled-Max 11db/11db Cell Site Controlled-Max 10db/10db Flatness (up/down)(+/-2dB / +/-2dB) (+/-2dB / +/-3dB) Max RF (up/down)(+33dBm / +15dBm)(+35dBm / +15dBm) Noise Figure (down)(3.5dB nominal) (3.5dB nominal) IsolationUplink/Downlink 90dBUplink/Downlink 90dB Power [email protected]@12V The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2004 Wilson Electronics, Inc. 5. AMPLIFIER SPECIFICATIONS Connectors FME-Male 50 Ohms Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm) Weight 1.32 Pounds or 600G iDEN #814001AMPS #811101 Frequency 806-821MHz Uplink 851-866MHz Downlink 824-849MHz Uplink 869-894MHz Downlink Gain (up/down) Cell Site Controlled-Max 10/10db Cell Site Controlled-Max 10/10db Flatness (up/down)(+/-2dB / +/-3dB) (+/-2dB / +/-3dB) Max RF (up/down)(+35dBm / +15dBm)(+35dBm / +15dBm) Noise Figure (down)(3.5dB nominal) (3.5dB nominal) IsolationUplink/Downlink 90dBUplink/Downlink 90dB Power [email protected]@12V 67 6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS 6.1 Coax Cable Extensions 50Ω (see chart on…

Text truncated - open the document above for the full version.

WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle.

DC Voltages – 81935 10-15V DC Current 1.5A

APRIL 19, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Wilson Electronics, Inc. would like the following documents regarding this submission for FCC ID: PWO819D to be kept confidential. 1. CONFIDENTIAL: PWO819D.jpg The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Patrick Cook, Design Engineer Page 2

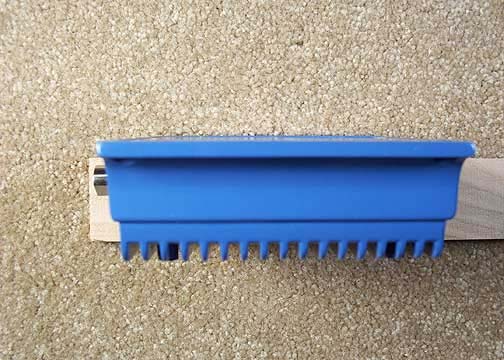

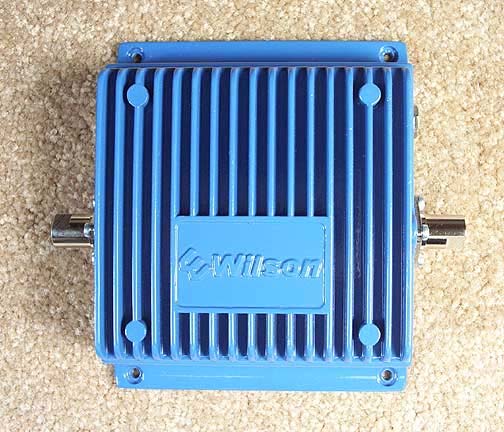

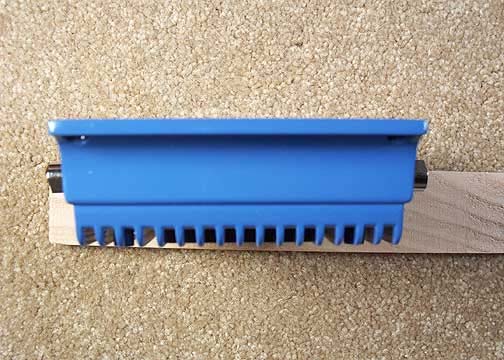

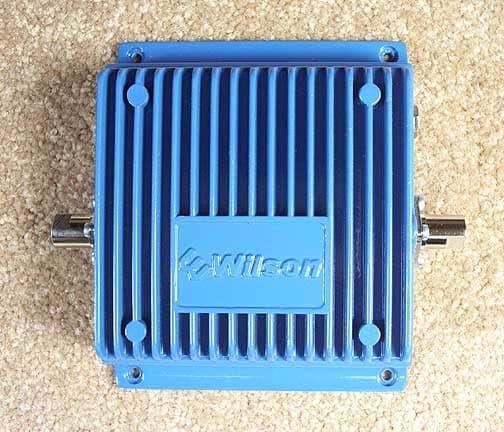

Exterior Top Exterior Bottom Exterior Front Exterior Back Exterior Left Exterior Right

• 2.1033(c) (11) Label showing the information to be placed thereon. LABEL Bottom View Page 2

Internal Overall PCB Bottom PCB Top

Page 1 FCC Operational Description for the 811201: The Direct Connection Bi-directional Amplifier (811201) improves RF coverage in areas with no signal or low signal strength. When using 800 MHz the signal is received by the outside antenna from the cell site. The signal is then AMPLIFIED and sent into your phone through the adapter (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter then AMPLIFIED and transmitted to the cell site through the outside antenna. When using 1900MHz (PCS) the signal is received by the outside antenna from the cell site. The signal is then AMPLIFIED and sent into your phone through the adapter (sold separately). When the phone transmits, the signal is sent to the amplifier through the adapter then AMPLIFIED and transmitted to the cell site through the outside antenna. The 811201 Bi-Directional Direct Connection Amplifier has a variable uplink gain to maintain the power control integrity of CDMA systems. The uplink gain is controlled by the cell site via the cell phone. The amplifier increases the dynamic range of the cell phone and has a better front end Noise Figure than the cell phone, thus increasing the cell phones coverage area and eliminating many dead spots and dropped calls. This amplifier is strictly a linear amplifier and does not modulate the input signal. All signal modulation is done by the cell phone. AMPLIFIER SPECIFICATIONS Connectors FME-Male 50 Ohms Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm) Weight 1.32 Pounds or 600G PCS 1900 Specifications AMPS Specifications Frequency 1850-1910MHz Uplink 1930-1990MHz Downlink 824-849MHz Uplink 869-894MHz Downlink Gain (up/down) Cell Site Controlled-Max 11db/11db Cell Site Controlled- Max 10db/10db Flatness (up/down) (+/-2dB / +/-2dB) (+/-2dB / +/-3dB) Max RF (+33dBm / +15dBm) (+35dBm / +15dBm) Page 2 (up/down) Noise Figure (down) (3.5dB nominal) (3.5dB nominal) Isolation Uplink/Downlink 90dB Uplink/Downlink 90dB Power Consumpti on 1.5A@12V 1.5A@12V

Tune Up Procedure – 81935 No user tune up is possible because it is factory set.

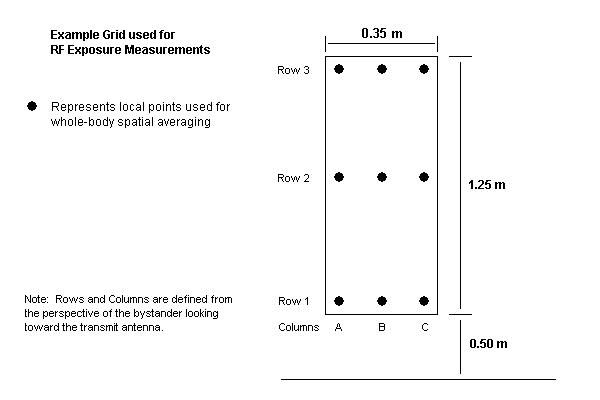

Page 1 of 18 Report No: FC04-021-R MPE EVALUATION REPORT FOR THE DUAL BAND BI-DIRECTIONAL AMPLIFIER, 811201 FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: JULY 14, 2004 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 W.O. No.:81935Date of test:June 1 – July 7, 2004 Report No.: FC04-021-RC This report contains a total of 19 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 18 Report No: FC04-021-R TABLE OF CONTENTS Administrative Information..............................................................................................3 Summary of Results.........................................................................................................3 Approvals.........................................................................................................................4 Equipment Under Test.....................................................................................................5 Peripheral Devices............................................................................................................5 Specifications and Requirements.....................................................................................6 Summary of RF Exposure Conditions.............................................................................7 Report of Measurements..................................................................................................8 Test Configuration............................................................................................................12 Test Procedure..................................................................................................................12 Reference Documents......................................................................................................15 Appendix A: Photographs of the Test Setup Used...........................................................16 Appendix B: Test Equipment List....................................................................................18 Page 3 of 18 Report No: FC04-021-R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Dual Band Bi-Directional Amplifier, 811201 with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Patrick Cook SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range 1 (824-849 MHz) is 0.55 mW/cm 2 and for operating frequency range 2 (1850-1910 MHz) is 1.0 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 40 cm laterally from the vehicle mounted antenna (bystander requirement). GLASS MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range 1 (824-849 MHz) is 0.55 mW/cm 2 and for operating frequency range 2 (1850-1910 MHz) is 1.0 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm below the vehicle glass mounted antenna base (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 20 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 18 Report No: FC04-021-R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Mike Wilkinson, Lab Manager Page 5 of 18 Report No: FC04-021-R EQUIPMENT UNDER TEST Dual Band Bi-Directional Amplifier Manuf: Wilson Electronics Model: 811201 Serial: 5218 FCC ID: pending 12VDC Power Adapter Manuf: Wilson Electronics Model: NA Serial: NA FCC ID: NA Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA Glass Mounted Antenna Manuf: Wilson Electronics Model: 301102 Serial: NA FCC ID: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Signal Generator (CDMA Adapter) Manuf: HP Model: 83205A Serial: US37461985 FCC ID: DoC Signal Generator Manuf: HP Model: 8921A Serial: 3519A01796 FCC ID: DoC Preamp Manuf: Mini-Circuits Model: ZHL-42-SMA Serial: D030204-#19 FCC ID: DoC Signal Generator Manuf: HP Model: E4437B Serial: MY41310476 FCC ID: DoC Page 6 of 18 Report No: FC04-021-R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000 ------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW…
