PWO819DASignalBoost Dual-Band Cellular/PCS Amplifier

Amplifier Installation Guide Warning: This manual contains important safety and operating information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your amplifier. ! SignalBoost™ Dual-Band Cellular / PCS Amplifier PART/MODEL# 811210 Contents: Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1 How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2 Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3 Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 Installing the Antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4 Installing the SignalBoost™ Amplifier (Vehicle) · · · · · · · 5 Installing the Antenna (Home/Office) · · · · · · · · · · · · · · · 6 Installing the SignalBoost™ Amplifier (Home/Office) · · · 6 Installing the Universal Connector · · · · · · · · · · · · · · · · · 7 Powering Up the Amplifier · · · · · · · · · · · · · · · · · · · · · · · 8 Warnings and Recommendations · · · · · · · · · · · · · · · · · 9 About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10 Amplifier Specifications · · · · · · · · · · · · · · · · · · Back Cover Wilson ® Electronics, Inc.  30-Day Money-Back Guarantee All Wilson Electronics products are protected by Wilson’s 30-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. 1-Year Warranty Wilson Electronics amplifiers are warranted for one (1) year against defects in workmanship and / or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Amplifiers may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer. This warranty does not apply to any amplifiers determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. RMA numbers may be obtained by phoning Technical Support at 866-294-1660. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. Copyright © 2006 Wilson Electronics, Inc. All rights reserved.  Installation Instructions for the Following Wilson Amplifier: SignalBoost™ Dual-Band Cellular/PCS Amplifier Part / Model #811210 FCC ID: PWO819DA IC: 4726A-819DA Patent Pending The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Inside this Package (antenna required - sold separately) How it Works Your new Wilson SignalBoost™ Amplifier has been carefully engineered to significantly improve the performance of your cell phone or cellular data card in both vehicle and home/ office applications. Together with an antenna (sold separately), the amplifier’s state-of- the-art technology is designed to increase your signal up to 10 times, reduce disconnects and dropouts, and increase data communication rates needed for 3G technologies. The universal connector fits all cellular and PCS phones and data cards. The antenna will collect the cell tower signal and send it through the cable to the amplifier. The signal is then boosted and sent through the extension cable to the universal connector on your cell phone or data card, which then communicates with the improved signal. When the cell phone or data card transmits, the signal goes through the universal connector and the extension cable, is boosted by the amplifier and broadcast back to the cell tower through the antenna. Wilson Electronics manufactures a wide variety of antennas and accessories to help you customize your SignalBoost™ Amplifier for your specific application. Several are shown below. See your dealer or visit www.wilsonelectronics.com. NOTE: Use of this amplifier with an antenna gain higher than 6.12 dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson mobile antennas are 6.12 dBi or less. SignalBoost™ amplifier 12 V DC plug-in power supply (vehicle) Universal connector 6‘ extension cable 4-inch Mini Magnet-Mount Antenna 12-inch Magnet-Mount Antenna Soft Carrying Case AC/DC Plug-In Power Supply (home/office) Window Bracket  Before Getting Started This guide will help you properly install Wilson’s dual-band, SignalBoost™ amplifier. It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, please contact Wilson Technical Support at 866-294-1660. Installation Overview The following steps provide a summary of the amplifier/antenna installation process using the optional mini magnet-mount antenna. However, they are not a substitute for the complete installation instructions on the following pages, which you should read thoroughly. If you are using a different antenna, follow the specific instructions that come with it. STEP 1 Install the Antenna For a vehicle installation,…

Text truncated - open the document above for the full version.

October 16, 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Data Confidentiality Gentlemen: This letter is to comply with sections 0.457 and 0.459 pertaining to confidential material. Wilson Electronics, Inc. requests that the following documents regarding this submission for FCC ID: PWO819DA be kept confidential. 1. Schematic Diagram: 811210REV5.jpg 2. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Richard M. Kline, R&D Engineer

Subject: Non-Conformities FCC ID: PWO819DA (Ref # E06-000229-1) 1 Test report FC04-021A (page 22, signal exceeds limit by 14 dB). Please explain RC: Revised test report has been uploaded. The emissions reported are fundamental emissions and should not have any limit applied; due to software limitations requiring a limit, an arbitrary limit is therefore applied. 2 Test report FC04-022 (page 18, 23, & 31 show limits being exceeded). Please explain. RC: The emissions reported on indicated pages are fundamental emissions and should not have any limit applied; due to software limitations requiring a limit, an arbitrary limit is therefore applied. Since this test report has already been approved under previous reviews, there is no update required. 3 Test report FC04-022A (page 18, 20, 23, 25, 29, & 31 show limits being exceeded). Please explain. RC: The emissions reported on indicated pages are fundamental emissions and should not have any limit applied; due to software limitations requiring a limit, an arbitrary limit is therefore applied. Since this test report has already been approved under previous reviews, there is no update required. 4 Test report FC04-022B (page 20 shows a reading 17.2 dB over the limit). Pages 80 & 83 show intermods slightly over the limit lines. Please explain. RC: Revised test report has been uploaded. The emissions reported on page 20 is a fundamental emission and should not have any limit applied; due to software limitations requiring a limit, an arbitrary limit is therefore applied. RC: The emissions reported on page 80&83 refer to test report FC04- 022A. These emissions are near the band edge and the span of the plot makes it appear that the limit line is exceeded due to a quality reduction when imported into the reporting format. Nonetheless, the indicated pages show intermodulation input signals which are not required to be tested under FCC guidelines. These plots were originally included due to a misunderstanding of the requirements.

Non-Conformities FCC ID: PWO819DA (Ref # E06-000229-1) The items listed below represent requests for information following review of this application. Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response 1 Test report FC04-021A (page 22, signal exceeds limit by 14 dB). Please explain 2 Test report FC04-022 (page 18, 23, & 31 show limits being exceeded). Please explain. 3 Test report FC04-022A (page 18, 20, 23, 25, 29, & 31 show limits being exceeded). Please explain. 4 Test report FC04-022B (page 20 shows a reading 17.2 dB over the limit). Pages 80 & 83 show intermods slightly over the limit lines. Please explain. 5 6 The items indicated above must be submitted before processing can continue on the referenced application. Failure to provide the requested information within 60 days may result in application dismissal pursuant to Section 2.917(c) and forfeiture of the filing fee pursuant to Section 1.1106.

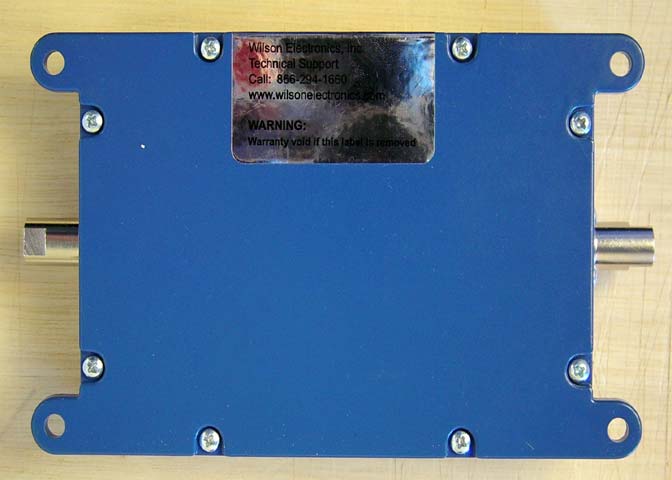

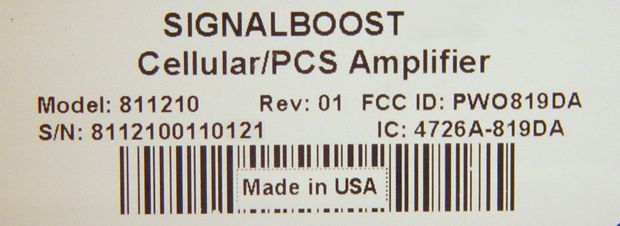

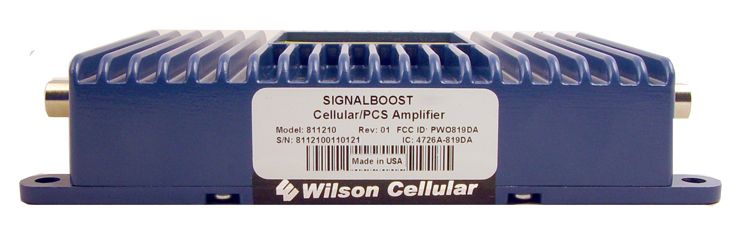

Front Back Top Bottom Left – Outside Antenna Right - Phone

Cover Removed Board Top Board Bottom

Tune-Up Procedure 2.1033(c)(9) Question: Tune-up procedure over the power range, or at specific operating power levels. NA – There are no adjustments to be made by the user of this equipment. Everything is internal and factory adjusted.

4056 Sierra Pines Dr. * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC – COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA * MARIPOSA, CA *REDMOND, WA Date of Report: October 11, 2006 Maximum Permissible Exposure Statement Calculations prepared for: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 Calculations prepared by: Randal Clark CKC Laboratories, Inc. 4056 Sierra Pines Dr. Mariposa, CA 95338 FCC ID Number:: PWO819DA Model Number: 811210 Fundamental Operating Frequency: 1850-1910 MHz Maximum Rated Output Power: 2.00 Watts EIRP Measured Output Power: 0.94 Watts EIRP Maximum Antenna Gain: 6.12 dBi Power Output and Operating Frequency Information used for these calculations were from: CKC Laboratories, Test Reports # FC04-021A & FC04-022B Device and Antenna Operating Configuration: Equipment operating at maximum output power. This report covers all whip antennas of gain equivalent to or lower than 6.12 dBi in the frequency range of 1850-1910 MHz. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65. Other Considerations: Calculations include loss in cable normally attached to the antenna as defined in above referenced test report. 4056 Sierra Pines Dr. * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC – COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA * MARIPOSA, CA *REDMOND, WA MPE Calculations: MPE Limit in accordance with 1.1310: Occupational / Controlled Exposure X General Population / Uncontrolled Exposure MPE Limit = 1.0 (mW/cm 2 ) = Note: Limit is calculated based on the lowest frequency used in the operating frequency range. 2 2 4 )/( d EIRP cmmWDensityPower π = Given: EIRP in mW and d in cm EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Result 940.00 8.65 1.000 Pass Statement of Compliance: This device demonstrates compliance under the operating conditions specified in this document. Under normal operating conditions, the antenna is designed to be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. The MPE calculations shown above demonstrate compliance to the provisions of 1.1310 in accordance with the guidelines of OET 65. As can be seen from the MPE results, this device passes the limits specified in 1.1310 at a distance of 8.7cm and at a output power of 0.94 Watts EIRP under normal operating conditions.

Page 1 of 16 Report No: FC04-021A- R MPE EVALUATION REPORT FOR THE DUAL BAND BI-DIRECTIONAL AMPLIFIER, 811210 FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: OCTOBER 26, 2006 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 W.O. No.: 85466 Report No.: FC04-021A-R This report contains a total of 16 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 16 Report No: FC04-021A- R TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................3 Approvals .........................................................................................................................4 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Specifications and Requirements .....................................................................................6 Summary of RF Exposure Conditions .............................................................................7 Report of Measurements ..................................................................................................8 Test Configuration ...........................................................................................................9 Test Procedure .................................................................................................................9 Reference Documents ......................................................................................................14 Appendix A: Photographs of the Test Setup Used ..........................................................15 Appendix B: Test Equipment List ...................................................................................16 Page 3 of 16 Report No: FC04-021A- R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Dual Band Bi-Directional Amplifier, 811210 with the RF Exposure Requirements for mobile devices. Note: This report demonstrates compliance for an additional glass mounted antenna configuration. Vehicle mounted configuration is covered under the original RF Exposure report available under the original certification for this FCC ID. REPRESENTATIVE: Riki Kline SUMMARY OF RESULTS GLASS MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range of 824-849 MHz is 0.55 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 20 cm laterally from the interior glass mounted antenna (bystander and operator requirements). Page 4 of 16 Report No: FC04-021A- R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Mike Wilkinson, EMC Engineer Page 5 of 16 Report No: FC04-021A- R EQUIPMENT UNDER TEST Dual Band Bi-Directional Amplifier Manuf: Wilson Electronics Model: 811210 Serial: 5218 FCC ID: PWO819DA (pending) IC ID: IC: 4762A-819DA Magnetic Mount Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA Antenna Mounting Bracket Manuf: Wilson Electronics Model: 901115 Serial: NA FCC ID: NA PERIPHERAL DEVICES Signal Generator Manuf: Marconi Model: 2022D Serial: 119259/016 FCC ID: NA DC Power Supply Manuf: Topward Electric Instruments Model: TPS-2000 Serial: 920035 FCC ID: NA Page 6 of 16 Report No: FC04-021A- R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures (B) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500-100,000------56 (C) Limits for General Population/Uncontrolled Exposure (D) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500------f/150030 1500-100,000------130 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Page 7 of 16 Report No: FC04-021A…
