PWO824WVBidirectional Amplifier Repeater

AMPS IN VEHICLE Bi-directional Amplifier PART# 801101 FCC ID: PWO824WV IC: 4726A-824WV iDEN IN VEHICLE Bi-directional Amplifier PART# 804002 FCC ID: PWO806WV IC: 4726A-806WV Installation Guide Wilson Electronics, Inc. 3301 E. Deseret Drive, St. George, Utah 84790 For additional technical support go to www.wilsonelectronics.com Phone: 1-866-294-1660 Fax: 1-435-656-2432 IN VEHICLE Wireless The term “IC:” before the radio certification number only signifies that Industry of Canada technical specifications were met. 23 1. PURPOSE OF THE 801101/804002 The 801101/804002 Bi-directional Amplifier greatly improves RF coverage for areas in which low signal strength or no signal is a problem when using your portable AMPS/iDEN phone inside the car. 2. PACKAGE CONTENTS 2.1 801101/804002 Bi-directional Amplifier 2.2 12V DC Power Supply (Cig. Lighter Included) 2.3 Stealth Antenna (Coax Included) 3. HOW THE 801101/804002 FUNCTIONS The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to your AMPS/iDEN phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna (not included). 4. AMPLIFIER SYSTEM INSTALLATION (See Illustration on pg. 4) 4.1 Mounting the Amplifier 4.1.1 Mount the AMPLIFIER under the dash or vehicle seat. NOTE: The amplifier should be mounted to the selected location using mounting screws. (Mounting screws not included.) NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or moisture. The amplifier needs proper ventilation. DO NOT place the amplifier in an air-tight enclosure. 4.2 Installing the Wilson Cellular Inside Antenna (Included) 4.1.1 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on the AMPLIFIER. ��������������� �������������� ��������� ������� ������� �������������� ����� ����������� ���������������� ��������� 23 4.2.2 The inside antenna should be mounted about 1-2 feet from where the phone is used. The best place to mount the inside antenna is shoulder height on the side of the drivers seat. Do not mount on a surface within 4 inches of metal. (Metal found in the seat should not effect the antenna) NOTE: Do not mount on a windshield. NOTE: If the vehicle has a sunroof, place the outside antenna away from the sunroof so that the inside antenna is shielded. WARNING: The inside antenna used with this amplifier must be mounted with a separation distance of at least 8 inches (20cm) from all persons and must not be co-located or operating in conjunction with any other antenna or amplifier. 4.3 Installing the Wilson Cellular Outside Antenna (Sold Separately) 4.3.1 Select an outside mounting location. For best performance try to keep the antenna centered on the car’s/truck’s roof. 4.3.2 The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. NOTE: When using a magnet mount, NMO or trucker antenna, keep the separation distance between the inside and outside antennas at least 4ft. When using a glass mount antenna, keep the separation distance between the inside and outside antennas at least 5ft. WARNING: The outside antenna must be mounted with a separation dis- tance of at least 15.5 inches from any of the vehicle occupants or nearby persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Use of a cellular amplifier with antenna gains higher than 5.12dBi is in violation of FCC regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less. 4.3.3 Connect the Outside Antenna to the AMPLIFIER side labeled “OUTSIDE ANTENNA”. 4.4 Connect the 12V Power Supply 4.4.1 Connect the large end of the 12V Power Supply into your cigarette lighter and the other end into the input on your amplifier labeled “DC 12V IN”. NOTE: If the power light does not turn on, press the on/off switch (white button) on the power supply. 45 5. AMPLIFIER SPECIFICATIONS FOR AMPS MODEL Part #: 801101 Frequency824-849MHz Uplink 869-894MHz Downlink Gain (up/down)(37dB/37dB) Flatness (up/down)(+/- 3dB / +/-4dB) Max RF (up/down)(+35dBm/+15dBm) Noise Figure (down)(4.5dB) IsolationUplink/Downlink More than 90dB Power Consumption12V, 1.5A ������� ������� ������������� ����� ����� ������� ���������������� �������������� ���� ���� ������������ ������ ������� ���������� Amplifier 45 MOBILE AMPLIFIER LAYOUT AMPLIFIER SPECIFICATIONS FOR iDEN MODEL Part #: 804002 Frequency806-821MHz Uplink 851-866MHz Downlink Gain (up/down)(37dB/37dB) Flatness (up/down)(+/- 3dB/+/-3dB) Max RF (up/down)(+35dBm/+15dBm) Noise Figure (down)(4.5dB) IsolationUplink/Downlink More than 90dB Power Consumption12V, 1.5A AMPS/iDEN AMPLIFIER PHYSICAL SPECIFICATIONS Connectors FME-Male 50 Ohms Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm) Weight 1.32 Pounds or 600G ������� ������� ������������� ����� ����� ������� ���������������� �������������� ���� ���� ������������ ������ ������� ���������� 67 6. FEATURES Wireless Operation - No Physical Connection to Cellphone The 801101/804002 Amplifier greatly improves signal strength inside a vehicle without a physical connection to your phone. It also allows multiple phones to be used simultaneously. Advanced Electronics Receive & Transmit Better Than Your Cellphone The Wilson Cellular Amplifier has a better receiver than what’s in your cellphone. Its advanced electronics are very sensitive and able to receive small signals that would go undetected by most cellphones. It also has a better transmitter with double the power of your cellphone. This allows your voice to be heard by distant cell sites, increasing coverage up to 50 miles or more. 7. OPTIONAL ACCESSORIES/ANTENNA OPTIONS 7.1 Outside Antenna Options See page 8 7.2 N-Female To FME-Female Adapter - Adapts 9913 Coax to fit the 801101/804002 Bi-directional Amplifier 8. TECH SUPPORT If you need further assis…

Text truncated - open the document above for the full version.

WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle. WARNING ! RF EXPOSURE COMPLIANCE All roof mount antennas should be centrally located on the roof of the car. Glass mount antennas should be located in the middle of either the front or back windshield. Mirror mount antennas should be at least 6' from the ground and leave at least 40 cm of separation from any persons near or around the vehicle.

DC Voltages – 81892 TX: DC Volts 5V Current 300mA – 1.5A RX DC Volts 3.6V Current 50mA

April 20, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Wilson Electronics, Inc. would like the following documents regarding this submission for FCC ID: PWO824WV to be kept confidential. 1. CONFIDENTIAL PWO824WV.JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Patrick Cook, Design Engineer Page 2

E04-000040-2 1. The Direct Connect manual was mistakenly uploaded for this product. Please delete it from the submittal. 2. An RF test report has been uploaded.

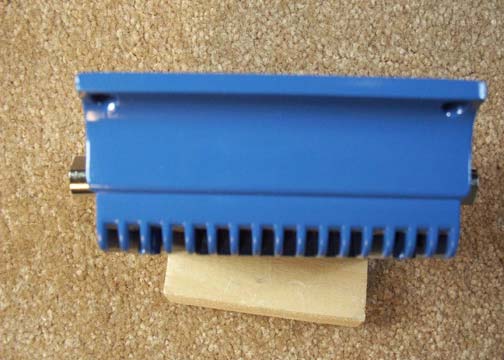

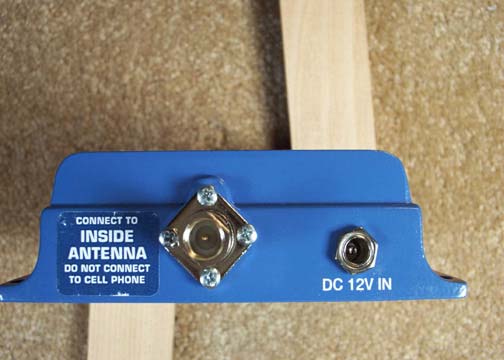

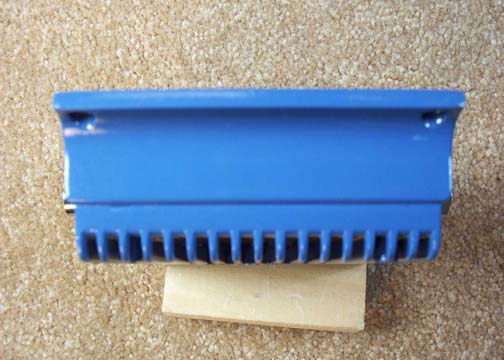

Front Back Top Bottom Left Right

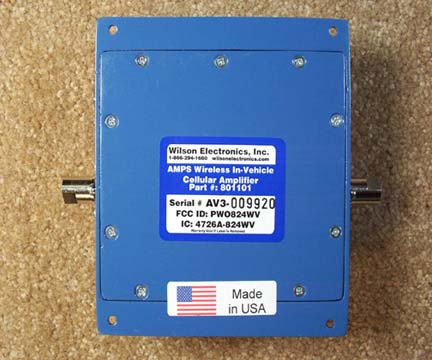

• 2.1033(c) (11) Label showing the information to be placed thereon. LABEL Bottom View Page 2

PCB Top PCB Bottom

Page 1 FCC Operational Description for the 801101: The 801101 Bi-Directional Amplifier has 37dB of gain on the uplink (transmission to cell site 824-849MHz) and 37dB of gain on the downlink (receive from cell site 869-894MHz). The amplifier has no modulation circuitry. It is a linear Amplifier in both directions(RX and TX) and the modulation of the signal is controlled by the cell phone. The max uplink power is controlled by the received signal strength. The path loss from the cell phone to the inside antenna is usually equal to or greater then the gain of the amp thus allowing the cell phone to operate as if it was connected directly to the outside antenna. Frequency 824-849MHz Uplink 869-894MHz Downlink Gain (up/down) (37dB/37dB) Flatness (up/down) (+/- 3dB / +/-4dB) Max RF (up/down) (+34.5dBm/+15dBm) Noise Figure (down) (4.5dB) Isolation Uplink/Downlink More than 90dB Power Consumption 12V, 1.5A The 801101Bi-directional Amplifier greatly improves RF coverage for areas in which low signal strength or no signal is a problem when using your portable cell phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED and transmitted to your cell phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna. It is then AMPLIFIED and transmitted to the cell site through the outside antenna. The use of this amplifier requires no physical connection to the amplifier and will allow multiple users.

Tune Up Procedure – 81892 No user tune up is possible because it is factory set.

Page 1 of 16 Report No: FC04-019-R MPE EVALUATION REPORT FOR THE BI-DIRECTIONAL AMPLIFIER REPEATER, 801101 FCC OET BULLETIN 65, EDITION 97-01, ANSI / IEEE C95.1-1992, AND ANSI / IEEE C95.3-1992 RF EXPOSURE COMPLIANCE DATE OF ISSUE: JULY 14, 2004 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Randy Clark CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 W.O. No.:81892Date of test:June 1 – July 7, 2004 Report No.: FC04-019-RD This report contains a total of 16 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 16 Report No: FC04-019-R TABLE OF CONTENTS Administrative Information..............................................................................................3 Summary of Results.........................................................................................................3 Approvals.........................................................................................................................4 Equipment Under Test.....................................................................................................5 Peripheral Devices............................................................................................................5 Specifications and Requirements.....................................................................................6 Summary of RF Exposure Conditions.............................................................................7 Report of Measurements..................................................................................................8 Test Configuration............................................................................................................10 Test Procedure..................................................................................................................10 Reference Documents......................................................................................................13 Appendix A: Photographs of the Test Setup Used...........................................................14 Appendix B: Test Equipment List....................................................................................16 Page 3 of 16 Report No: FC04-019-R ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the Bi-Directional Amplifier Repeater, 801101 with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Patrick Cook SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA The Maximum Permissible Exposure (MPE) limit for the operating frequency of the evaluated device is 0.55 mW/cm 2 for General Population / Uncontrolled Exposure. The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 40 cm laterally from the vehicle mounted antenna (bystander requirement). GLASS MOUNTED ANTENNA The Maximum Permissible Exposure (MPE) limit for the operating frequency of the evaluated device is 0.55 mW/cm 2 for General Population / Uncontrolled Exposure. The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, and OET Bulletin 65, Edition 97-01 for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm below the vehicle glass mounted antenna base (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 20 cm laterally from the vehicle mounted antenna (bystander requirement). Page 4 of 16 Report No: FC04-019-R APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Randy Clark, EMC Engineer Mike Wilkinson, Lab Manager Page 5 of 16 Report No: FC04-019-R EQUIPMENT UNDER TEST Bi-Directional Amplifier Repeater Manuf: Wilson Electronics Model: 801101 Serial: AV3-009920 FCC ID: pending 12VDC Power Adapter Manuf: Wilson Electronics Model: NA Serial: NA FCC ID: NA Vehicle Mounted Antenna Manuf: Wilson Electronics Model: 301103 Serial: NA FCC ID: NA Glass Mounted Antenna Manuf: Wilson Electronics Model: 301102 Serial: NA FCC ID: NA PERIPHERAL DEVICES Signal Generator Manuf: HP Model: E4437B Serial: MY41310476 FCC ID: DoC Preamplifier Manuf: Mini-Circuits Model: ZHL-42-SMA Serial: D030204-#19 FCC ID: DoC Signal Generator Manuf: HP Model: 8921A Serial: 3519A01796 FCC ID: DoC Signal Generator (CDMA Adapter) Manuf: HP Model: 83295A Serial: US37461985 FCC ID: DoC Page 6 of 16 Report No: FC04-019-R SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.16316 300-1500------f/3006 1500- 100,000 ------56 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (V/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500------f/150030 1500- 100,000 ------130 f = frequency in MHz * = Plane…

Text truncated - open the document above for the full version.

Page 1 of 142 Report No.: FC04-019 WILSON ELECTRONICS TEST REPORT FOR THE BIDIRECTIONAL AMPLIFIER REPEATER, 801101 FCC PART 22 AND RSS 131 COMPLIANCE DATE OF ISSUE: MARCH 5, 2004 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: PW0824WV-2-11-04 W.O. No.: 81892 Date of test: February 16-26, 2004 Report No.: FC04-019 This report contains a total of 142 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 142 Report No.: FC04-019 TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Measurement Uncertainty ................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/22.913 - RF Power Output ...................................................7 FCC 2.1033(c)(14)/2.1047(b) - Audio Frequency Response...........................................8 FCC 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response.....................................8 FCC 2.1033(c)(14)/2.1049(i) - Occupied Bandwidth......................................................9 FCC 2.1033(c)(14)/2.1051/22.917 - Spurious Emissions at Antenna Terminal..............17 FCC 2.1033(c)(14)/2.1053/22.917 - Field Strength of Spurious Radiation ....................65 Intermodulation Attenuation ............................................................................................68 Output Downlink .............................................................................................................123 Output Uplink ..................................................................................................................127 Input Downlink ................................................................................................................131 Input Uplink .....................................................................................................................135 RSS 131 Downlink 20dB Passbandwidth........................................................................139 RSS 131 Uplink 20dB Passbandwidth.............................................................................140 RSS 131 Downlink 20dB Passbandwidth Gain ...............................................................141 RSS 131 Uplink 20dB Passbandwidth Gain ....................................................................142 Page 3 of 142 Report No.: FC04-019 ADMINISTRATIVE INFORMATION DATE OF TEST: February 16-26, 2004 DATE OF RECEIPT: February 16, 2004 PURPOSE OF TEST: To demonstrate the compliance of the Bidirectional Amplifier Repeater, 801101 with the requirements for FCC Part 22 and RSS 131 devices. TEST METHOD: FCC Part 22 and RSS 131 FREQUENCY RANGE TESTED: 30 MHz-10 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Patrick Cook TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 142 Report No.: FC04-019 SUMMARY OF RESULTS As received, the Wilson Electronics Bidirectional Amplifier Repeater, 801101 was found to be fully compliant with the following standards and specifications: United States ¾ FCC Part 22 Canada RSS-131 using: ¾ FCC Part 22 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. Conducted emissions not required for this device. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Mike Wilkinson, Lab Manager Page 5 of 142 Report No.: FC04-019 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The EUT tested by CKC Laboratories was a…

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING DIRECT CONNECT TEST SETUP This photo represents testing of RF power, spurious emissions at antenna terminal, occupied bandwidth, input and output plots, intermodulation attenuation and RSS 131 plots. PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View Radiated Emissions - Back View
