PWOBD800AMRepeater, BD800AM

• 2.1033(c) (11) Label showing the information to be placed thereon. Wilson Electronics, Inc. AMPS / IN VEHICLE/ BLDG REAPEATER AMPLIFIER MODEL: BD800AM WARRENTY VOID IF LABEL IS REMOVED FCC ID: PWOBD800AM LABEL Bottom View Page 2

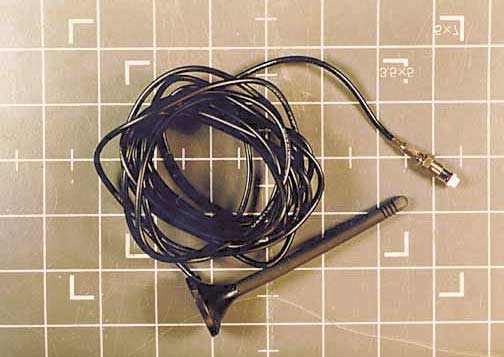

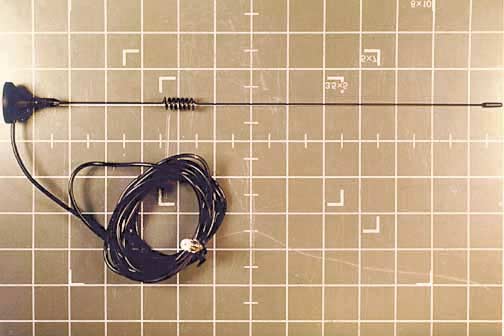

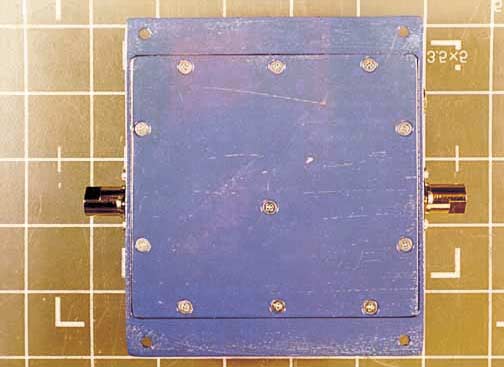

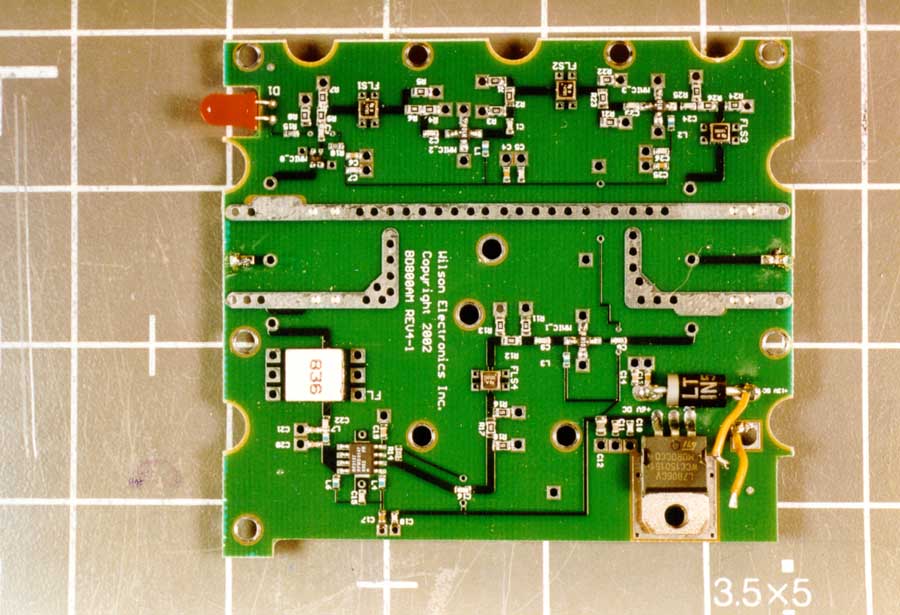

1. AMPLIFIER 1.1 About The Amplifier greatly improves signal strength when using your portable AMPS phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED/REPEATED and then transmitted to your AMPS phone through the inside antenna. When the phone transmits it is received by the inside antenna. It is then AMPLIFIED/REPEATED and then transmitted to the cell site through the outside antenna. 2.2 Specifications: FREQUENCY: 824-849 MHZ UPLINK 869-894 MHZ DOWNLINK GAIN: 37 DB UPLINK 37 DB DOWNLINK FLATNESS: + - 2DB MAX RF OUTPUT POWER: UPLINK 1W DOWNLINK 0.01W NOISE FIGURE: 6DB @894MHZ UPLINK DOWNLINK ISOLATION: > 90 DB POWER CONSUMPTION: 12V, .5Amps CONNECTOR: 2-FME-Male 50 OHMS DIMENSIONS: 5.5 x 4.3 x 1.4 (INCHES) OR 14.0 x 10.8 x 3.5(CM) WEIGHT: 1.32 POUNDS OR 600G ILLUSTRATION 4 ft of separation

Tune-Up Procedure A tune-up procedure is not applicable because the unit is a plug-in device.

Page 1 of 112 Report No.: FC02-079 WILSON ELECTRONICS TEST REPORT FOR THE REPEATER, BD800-AM FCC PART 22 SUBPART H COMPLIANCE DATE OF ISSUE: OCTOBER 4, 2002 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 5908 W.O. No.: 79405 Date of test: September 9-17, 2002 Report No.: FC02-079 This report contains a total of 112 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 112 Report No.: FC02-079 TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 2.1033(c)(3) User’s Manual.............................................................................................6 2.1033(c)(4) Type of Emissions ......................................................................................6 2.1033(c)(5) Frequency Range ........................................................................................6 2.1033(c)(6) Operating Power .........................................................................................6 2.1033(c)(7) Maximum Power Rating .............................................................................6 2.1033(c)(8) DC Voltages................................................................................................6 2.1033(c)(9) Tune-Up Procedure.....................................................................................6 2.1033(c)(10) Schematics and Circuitry Description ......................................................6 2.1033(c)(11) Label and Placement .................................................................................6 2.1033(c)(12) Submittal Photos .......................................................................................6 2.1033(c)(13) Modulation Information............................................................................6 2.1033(c)(14)/2.1046/22.913(a) - RF Power Output .......................................................7 Modulated Output Power Plots ............................................................................16 2.1033(c)(14)/2.1047(b) - Modulation - Audio Frequency Response .............................53 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response .............................................53 2.1033(c)(14)/2.1049/22.917 - Occupied Bandwidth ......................................................54 2.1033(c)(14)/2.1051/22.917(e)(f)- Spurious Emissions at Antenna Terminal...............69 Intermodulation Plots...........................................................................................97 2.1033(c)(14)/2.1053/22.917(e)- Field Strength of Spurious Radiation..........................108 2.1033(c)(14)/2.1055/ - Frequency Stability....................................................................112 2.1091- MPE Calculations ...............................................................................................112 Page 3 of 112 Report No.: FC02-079 CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: September 9-17, 2002 DATE OF RECEIPT: September 9, 2002 PURPOSE OF TEST: To demonstrate the compliance of the Repeater, BD800-AM with the requirements for FCC Part 22 Subpart H devices. TEST METHOD: FCC Part 22 Subpart H FREQUENCY RANGE TESTED: 9 kHz - 9 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Jim Wilson TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 112 Report No.: FC02-079 SUMMARY OF RESULTS As received, the Wilson Electronics Repeater, BD800-AM was found to be fully compliant with the following standards and specifications: United States ! FCC Part 22 Subpart H CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. Conducted emissions not required for this device. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Steve Behm, Director of Engineering ServicesMonika Brandle, EMC Engineer/ Evaluation Engineer Joyce Walker, Quality Assurance Administrative Manager Chuck Kendall, EMC/Lab Manager Page 5 of 112 Report No.: FC02-079 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The Repeater tested by CKC Laboratories was a production unit. EQUIPMENT UNDER TEST Repeater Manuf: Wilson Electronics Model: BD800-AM Serial: 09060…

Text truncated - open the document above for the full version.

DOWNLINK OUTPUT POWER UPLINK OUTPUT POWER DOWNLINK DIRECT CONNECT - AMPS DOWNLINK DIRECT CONNECT - CDMA DOWNLINK DIRECT CONNECT - TDMA UPLINK DIRECT CONNECT - AMPS UPLINK DIRECT CONNECT - CDMA UPLINK DIRECT CONNECT - TDMA DOWNLINK OATS DOWNLINK OATS UPLINK OATS UPLINK OATS
