PWOBD800NMIden Bi-Directional Amplifier, BD800NM

Rev 1.1 11/26/2002 USER’S GUIDE FOR THE BD800AM: AMPS MOBIL BI-DIRECTIONAL AMPLIFER/REPEATER MODEL: BD800NM Rev 1.1 PAGE 2 The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties which may result from its use. FCC ID: PWOBD800NM Copyright © 2002 Wilson Electronics, Inc. Rev 1.1 PAGE 3 1. PACKAGE CONTENTS 1.1 Amplifier/Repeater 1.2 12V Car Adapter 1.3 Low Profile Antenna (Inside Antenna) 1.4 (Outside Antenna Sold Separately) 800 MHz Magnet Mount Shown OUTSIDE ANTENNA NOT INCLUDED Rev 1.1 PAGE 4 2. AMPLIFIER 2.1 About The Amplifier greatly improves signal strength when using your portable IDEN phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED/REPEATED and then transmitted to your AMPS phone through the inside antenna. When the phone transmits it is received by the inside antenna. It is then AMPLIFIED/REPEATED and then transmitted to the cell site through the outside antenna. 2.2 Specifications: FREQUENCY: 806-821 MHZ UPLINK 851-866 MHZ DOWNLINK GAIN: 37 DB UPLINK 37 DB DOWNLINK FLATNESS: + - 2DB MAX RF OUTPUT POWER: UPLINK 1W DOWNLINK 0.01W NOISE FIGURE: 6DB @894MHZ UPLINK DOWNLINK ISOLATION: > 90 DB POWER CONSUMPTION: 12V, .5Amps CONNECTOR: 2-FME-Male 50 OHMS DIMENSIONS: 5.5 x 4.3 x 1.4 (INCHES) OR 14.0 x 10.8 x 3.5(CM) WEIGHT: 1.32 POUNDS OR 600G Rev 1.1 PAGE 5 3. AMPLIFIER/REPEATER INSTALLATION (REFER TO ILLUSTRATION) 3.1 Installing the Outside Antenna (800 MHz Magnet Mount) [Sold Separately] 3.1.1 Select a location on the roof: Try to keep Antenna centered on the car roof. 3.1.2 The Outside Antenna should be located in an area with at least a 12” (30cm) radius clear of obstructions, and other radiating elements. NOTE: When using a magnet mount or trucker antenna , keep the separation distance between the inside and outside antennas at least 4ft. When using a glass mount antenna , keep the separation distance between the inside and outside antennas at least 5ft. WARNING: The outside antenna used with this amplifier must be mounted with a separation distance of at least 8 inches from all persons and must not be co-located or operating in conjunction with any other antenna or amplifier. ILLUSTRATION 4 ft of separation Rev 1.1 PAGE 6 3.2 Installing The Amplifier/Repeater 3.2.1 Mount the AMPLIFIER/REPEATER under the dash or car seat. 3.2.2 Connect the Outside Antenna to the AMPLIFIER/REPEATER side labeled “OUTSIDE ANTENNA”. NOTE: The amplifier should be mounted to the selected location using mounting screws. 3.3 Installing The Inside Antenna 3.3.1 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on the AMPLIFIER/REPEATER. 3.3.2 The Inside Antenna should be centered in the vehicle. It can be placed in the seat back between the seat cushion and fabric or in the vehicle headliner. WARNING: The inside antenna used with this amplifier must be mounted with a separation distance of at least 8 inches from all persons and must not be co-located or operating in conjunction with any other antenna or amplifier. Rev 1.1 PAGE 7

October 16, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with section 0.457(d)(2)(i) pertaining to confidential material. Wilson Electronics, Inc. would like the following documents regarding this submission for FCC ID: PWOBD800NM to be kept confidential. 1. CONFIDENTIAL BD800NM AND ALL REVISIONS SCHEMATIC.JPG The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Patrick Cook, Design Engineer Page 2

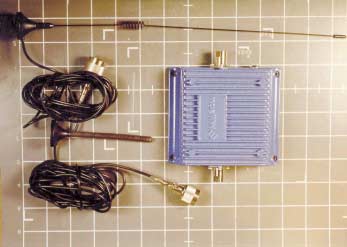

Overall with Antenna and EUT Top Bottom Front – Antenna Port Back – Phone Port

• 2.1033(c) (11) Label showing the information to be placed thereon. Wilson Electronics, Inc. IDEN / IN VEHICLE/ BLDG REAPEATER AMPLIFIER MODEL: BD800NM WARRENTY VOID IF LABEL IS REMOVED FCC ID: PWOBD800NM LABEL Bottom View Page 2

EUT with cover removed Overall with PCB removed Top of PCB Bottom of PCB

1. AMPLIFIER 1.1 About The Amplifier greatly improves signal strength when using your portable IDEN phone inside the car. The signal is received by the outside antenna from the cell site. It is then AMPLIFIED/REPEATED and then transmitted to your AMPS phone through the inside antenna. When the phone transmits it is received by the inside antenna. It is then AMPLIFIED/REPEATED and then transmitted to the cell site through the outside antenna. 2.2 Specifications: FREQUENCY: 806-821 MHZ UPLINK 851-866 MHZ DOWNLINK GAIN: 37 DB UPLINK 37 DB DOWNLINK FLATNESS: + - 2DB MAX RF OUTPUT POWER: UPLINK 1W DOWNLINK 0.01W NOISE FIGURE: 6DB @894MHZ UPLINK DOWNLINK ISOLATION: > 90 DB POWER CONSUMPTION: 12V, .5Amps CONNECTOR: 2-FME-Male 50 OHMS DIMENSIONS: 5.5 x 4.3 x 1.4 (INCHES) OR 14.0 x 10.8 x 3.5(CM) WEIGHT: 1.32 POUNDS OR 600G 4 ft of separation

Tune-Up Procedure is not applicable because it is pre-set at the factory and the consumer cannot change it.

Page 1 of 44 Report No.: FC02-097 WILSON ELECTRONICS TEST REPORT FOR THE IDEN BI-DIRECTIONAL AMPLIFIER, BD800NM FCC PART 90 COMPLIANCE DATE OF ISSUE: OCTOBER 23, 2002 PREPARED FOR: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 34201 W.O. No.: 79736 Date of test: October 14-18, 2002 Report No.: FC02-097 This report contains a total of 44 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 44 Report No.: FC02-097 TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Conditions for Compliance.............................................................................................. 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Temperature and Humidity During Testing .................................................................... 5 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 6 2.1033(c)(12) Submittal Photos....................................................................................... 6 2.1033(c)(13) Modulation Information ........................................................................... 6 2.1033(c)(14)/2.1046/90l.205(i)/90.2635(d) - RF Power Output.................................... 7 2.1033(c)(14)/2.1047(b) - Audio Frequency Response................................................... 12 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response ............................................. 12 2.1033(c)(14)/2.1049(i) - Occupied Bandwidth .............................................................. 12 2.1033(c)(14)/2.1051/90.210/90.691 - Spurious Emissions at Antenna Terminal.......... 21 2.1051– Intermodulation Plots ........................................................................................ 26 2.1033(c)(14)/2.1053/90.210/90.691 - Field Strength of Spurious Radiation................. 39 2.1033(c)(14)/2.1055/ - Frequency Stability ................................................................... 43 2.1091 – MPE Calculations ............................................................................................. 44 Page 3 of 44 Report No.: FC02-097 ADMINISTRATIVE INFORMATION DATE OF TEST: October 14-18, 2002 DATE OF RECEIPT: October 14, 2002 PURPOSE OF TEST: To demonstrate the compliance of the Iden Bi- directional Amplifier, BD800NM with the requirements for FCC Part 90 devices. TEST METHOD: FCC Part 90 FREQUENCY RANGE TESTED: 9 kHz – 10 GHz MANUFACTURER: Wilson Electronics 3301 East Deseret Drive St. George, UT 84790 REPRESENTATIVE: Patrick Cook TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 44 Report No.: FC02-097 SUMMARY OF RESULTS As received, the Wilson Electronics Iden Bi-directional Amplifier, BD800NM was found to be fully compliant with the following standards and specifications: United States ! FCC Part 90 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Steve Behm, Director of Engineering ServicesMonika Brandle, EMC Engineer/ Evaluation Engineer Joyce Walker, Quality Assurance Administrative Manager Chuck Kendall, EMC/Lab Manager Page 5 of 44 Report No.: FC02-097 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The Iden Bi-Directional Amplifier tested by CKC Laboratories was a production unit.. EQUIPMENT UNDER TEST Iden Bi-Directional Amplifier Manuf: Wilson Electronics Model: BD800NM Serial: 101402-001 FCC ID: PWOBD800NM (pending) PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): AC-DC Adaptor Manuf: Wilson Electronics Model: JOD-48U-36 Serial: 3G72 E149469 FCC ID: NA Signal Generator Manuf: HP Model: 8656A Serial: 2245A04338 FCC ID: DoC TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. Page 6 of 44 Report No.: FC02-097 2.1033(c)(3) USER’S MANUAL The necessary information is contained in a separate document. 2.1033 (c)(4) TYPE OF EMISSIONS F1DDXW 2.1033(c)(5) FREQUENCY RANGE TX – 802 MHz -821 MHz, RX – 851 MHz -866 MHz 2.1033(c)(6) OPERATING POWER Uplink 1 Watt, Downlink 10 mWat…

Text truncated - open the document above for the full version.

DIRECT CONNECT DIRECT CONNECT UPLINK INTERMODULATION DOWNLINK INTERMODULATION OATS DOWNLINK Oats Downlink - Front View OATS DOWNLINK Oats Downlink - Back View OATS UPLINK Oats Uplink - Front View OATS UPLINK Oats Uplink - Back View
