PXK-HL2018AOutlet speaker

1 / 4 User’s Manual Thank you for purchasing our Outlet speaker Read carefully and follow all instructions in this User's Manual before you use the Outlet speaker. Keep this User's Manual in a convenient location for future reference Safety Instructions This product is specially designed based on the full attention to safety; in order to make sure the accident-free operation, please abide the guidelines listed below: z Do not drop, unpack, open, beat, curve, prink and burn the unit. z Avoid using anything (something like needles) to block the unit holes. z Do not place any ware with full water on the top of the unit, such as vase, glass, pot, and please avoid placing candle on the speaker surface as well. z Protect the using of the unit from any overheating devices (such as radiator, heating installation, cooking stove or other heating devices) z Regardless of what reasons cause the unit damage, please ask for the maintenance personnel to repair. z If you want to do the cleaning, please turn off the unit and unplug the unit from the outlet first. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. WARNING: z No naked flame sources, such as lighted candles, should be placed on the apparatus. Package Contents 1. Outlet speaker main unit x 1 2. Aux cable x 1 3. User’s manual x 1 Fit Models z Apply to：all iPhone and iPad series, Smartphones, Laptop, Tablets and other Bluetooth devices. z Work with any device with standard 3.5mm earphone jack via the included Aux cable for connecting, such as MP3,PSP, Mobile phone...,etc. Part Names Main unit 1. Driver unit 2. Plug 3. Power button 4. Line in 5. USB charging port 6. Line out 7. Anti-slip pad 2 / 4 Basic Operation z Power on/power off 1. Power on the unit: Plug the unit into wall outlet, press the power button to turn on the unit, the LED indicator lights up at once, the BT function is on at the same time. 2. Power off the unit：Press the power button again to turn off the unit, the LED indicator goes out in the meanwhile, the BT function is off. z Connection 1. Work with Smartphone • Power on the unit, a short Bluetooth hint sound is coming form the unit, the Bluetooth function is on, the Bluetooth indicator lights up at the same time, these show the unit is enter pairing mode. • Turn on the Bluetooth function in your Smartphone, and search the Bluetooth device, then, your Smartphone will find the device named “bēm HL2018A”, enter the password “0000”, a short Bluetooth hint sound will come from the unit, these remind you it has been paired successfully. • After paired for the first time, your Smartphone and the unit can auto-pair without enter the password, just chose the device “bēm HL2018A”in the list, and then you Smartphone will connect the unit swiftly. Note: Please take the User’s manual of your cell phone for the details about Bluetooth connection. 2. Work with tablet PC • Please refer to the above Smartphone connection operation steps. 3. Work with laptop/ notebook computer /PC • As the Bluetooth version for laptop/ notebook computer /PC is various, the connection methods are different as well, if you can not connect with the unit for play on first use, you may need to install a new version of the Bluetooth driver in your laptop in advance. Please reference the instructions of laptop for details. z Play mode 1. Bluetooth mode: Play the audio signal from Bluetooth device connected with the unit. 2. AUX mode: Play the audio signal from the audio device with “LINE IN” port. Note: As long as the Aux cable is connected to the speaker, it will not play the music from Bluetooth z Play the music Play the audio signal from Bluetooth device 1. Follow the above connection steps to pair the Bluetooth device and the unit. 2. Enter in the Bluetooth device audio play menu, choose your favorite music to play. 3. Control the volume only on audio device. LINE IN： 1. Plug one end of the supplied Aux cable to the “LINE IN” port of unit, and then plug the other end of the cable to audio device. 2. Choose directly your favorite music in the audio device to play. 3. Control the volume only on audio device. LINE OUT: 1. Plug one end of the supplied Aux cable to the “LINE OUT” port of unit, and then plug the other end of the cable to “LINE IN” port on another speaker. 2. Choose directly your favorite music in the audio device, the music will come out from another speaker, the Outlet speaker is only a Bluetooth receiver at this moment. Note: • LINE OUT only works with audio signal from wireless Bluetooth, line in signal is invalid. • The audio device and another speaker itself can control the volume. z Adjusting the volume 1. Control the audio device volume directly to adjust the unit volume. Note: When the unit turns to be a Bluetooth receiver via LINE OUT function, the audio device and another speaker itself can control 3 / 4 the volume. z USB charge 1. Plug the unit into wall outlet. 2. Press the power button to turn on the unit. 3. Plug one end of the USB charging cable(not included in package) to the USB port on the unit, and then plug the other end of the cable to your iPhone, iPad, Smartphone, Tablets or other devices. 4. The Outlet speaker starts to charge the connected device. Technical parameters Note: All specifications are subject to change without notice. Product Name: Outlet speaker Model Name：HL2018A Input: 100‐240V~50/60HZ 0.5A Output: 1.5W x 2 RMS Bluetooth Profile Supported: A2DP, AVRCP Working range: up to 8-12m Working atmosphere: 0°C-40°C/20%-90%RH Maintenance Please follow the instructions be…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 ECORE TECHNOLOGY COMPANY LIMITED (2012-09-11) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ECORE TECHNOLOGY COMPANY LIMITED hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Outlet speaker(M/N: HL2018A) FCC ID: PXK-HL2018A We affirm that between SIEMIC and _ ECORE TECHNOLOGY COMPANY LIMITED _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Signature ____________________________________ Liucheng Liu [email protected] Tel: 0711-2383866 Fax: 0711-2383899 ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 ECORE TECHNOLOGY COMPANY LIMITED (2012-09 -12) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PXK-HL2018A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Signature ____________________________________ Liucheng Liu [email protected] Tel: 0711-2383866 Fax: 0711-2383899 ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China

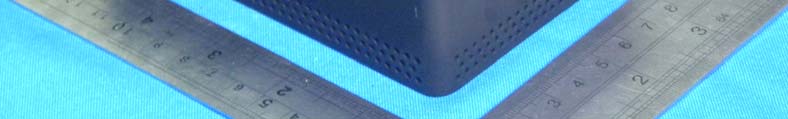

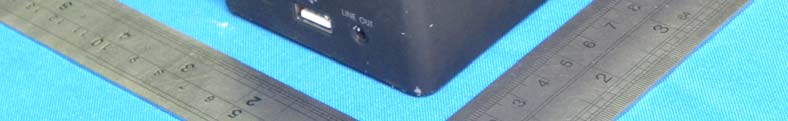

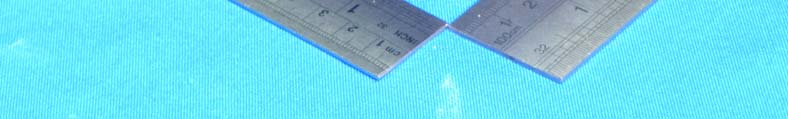

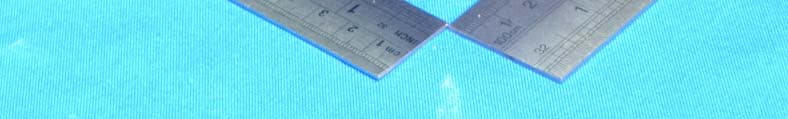

General Appearance of the EUT

FCC ID: PXK-HL2018A FCC ID: PXK-HL2018A 2200 2200

( Model: SW012S240050E1 ) ( Model: SW012S240050E1 ) ( Model: BI-050200-O ) ( Model: BI-050200-O ) Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：PXK-HL2018A EUT Specification EUT Outlet speaker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -10.31dBm (0.0001W) Antenna gain (Max) 0 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) op-mode 1 2402 0.093 0 1.85e-5 1 op-mode 2 2441 0.058 0 1.16e-5 1 op-mode 3 2480 0.036 0 7.16e-6 1 op-mode 6 2402 0.078 0 1.55e-5 1 op-mode 7 2441 0.050 0 9.95e-6 1 op-mode 8 2480 0.023 0 4.58e-6 1 op-mode 10 2402 0.074 0 1.47e-5 1 op-mode 11 2441 0.049 0 9.75e-6 1 op-mode 12 2480 0.031 0 6.17e-6 1 Signature ____________________________________ Liucheng Liu [email protected] Tel: 0711-2383866 Fax: 0711-2383899 ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China

DONGGUAN EMTEK CO., LTD. REPORT NO:KAD120813014E FCC ID: PXK-HL2018A DATE: 09/24/2012 Page 1 of 59 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Outlet speaker MODEL No.: HL2018A TRADE MARK: bēm TRADE NAME: 72018 FCC ID: PXK-HL2018A REPORT NO: KAD120813014E ISSUE DATE: September 24, 2012 Prepared for ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO:KAD120813014E FCC ID: PXK-HL2018A DATE: 09/24/2012 Page 2 of 59 VERIFICATION OF COMPLIANCE Applicant: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China Manufacturer: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China Product Description: Outlet speaker Trade Mark: bēm Trade Name: 72018 Model Number: HL2018A Serial Number: N/A Kind of Device: Bluetooth Ver. 2.1+EDR File Number: KAD120813014E Date of Test: August 13, 2012 to September 20, 2012 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO:KAD120813014E FCC ID: PXK-HL2018A DATE: 09/24/2012 Page 3 of 59 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 6 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................... 11 3. SUMMARY OF TEST RESULTS ....................................................................................... 12 4. DESCRIPTION OF TEST MODES .................................................................................... 12 5. CONDUCTED EMISSIONS TEST ..................................................................................... 13 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 13 5.4 MEASUREMENT RESULT:........................................................................................................................ 13 5.5 CONDUCTED MEASUREMENT PHOTOS: ................................................................................................. 18 6. RADIATED EMISSION TEST ............................................................................................ 19 6.1 MEASUREMENT PROCEDURE................................................................................................................. 19 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 20 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 21 6.4 MEASUREMENT RESULT......................................................................................................................... 21 6.5 RADIATED MEASUREMENT PHOTOS: ..................................................................................................... 33 7. CHANNEL SEPARATION TEST ....................................................................................... 34 7.1 MEASUREMENT PROCEDURE................................................................................................................. 34 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................…

Text truncated - open the document above for the full version.

Setup Photos
