PXK-HL2536Party Block

R 2 Product Overview Thank you for purchasing the be ̄m wireless Party Block. Our speaker will bring you a new found freedom from wires while delivering an incredible sound. The Party Block is compatible with all devices enabled with Bluetooth © technology... which is currently a lot of devices! Make sure to read through the following directions, fully charge your device and perform the initial Bluetooth © syncing process and you should be up and running in no time. If you have any problems stop on by bemwireless.com for the answers to all your questions. Package contents: Sender x 1 Satellite Speaker x 1 Power adapter x 2 Aux cable x 1 User’s Manual x 1 If any of these were missing or damaged, please visit bemwirelesss.com to obtain replacement. Compatibility All devices enabled with Bluetooth technology, including iPhones, iPads, iPods, smartphones, laptops, tablets and more. Also compatible with any device that has a standard 3.5mm earphone jack such as MP3 players, PSP, mobile phones, etc. 3 1. Bluetooth Indicator 2. Power/ Pair 3. Connection Indicator 4. Cradle 5. USB Charging Port 6. DC In 7. Aux In 8. Power Indicator Meet the Party Block Before learning your Party Block, take a moment to look it over and familiarize yourself with its features. Product Interface: The Sender 123 usb charge dc in aux in 5678 4 4 Product Interface: Satellite Speaker 1. Connection Indicator 2. Power/Pair 3. Light On/Off 4. Light Mode 5. Music Sensor On/Off 6. Volume - 7. Volume + 8. Power Indicator 9. Handle 10. LED Lights 11. Rubber Cap 12. DC In 11 12345678 9 10 12 5 Getting Started We know you are excited to experience your new Party Block. These two easy steps will get you up and running quickly. Step 1: Power It •Connect your Party Block to an outlet using the included 5V,2A power adapter. It will start charging the Sender. The power indicator will slowly flash during charging and goes out when it has reached a complete charge (Approx. 3.5 hours). •Connect the Satellite Speaker to an outlet using the included 12V,2A power adapter. The power indicator on speaker will slowly flash during charging and goes out when it has reached a complete charge (Approx. 4 hours). Step 2: Connect it There are two options for connecting to your Party Block — wirelessly by Bluetooth© or wired using the included aux cable. Connect Wirelessly Turn on the power of the Sender followed by powering on each of the 2 satellite speakers. Once the base is powered on the Bluetooth © indicator will light and a tone confirming that the unit is currently in paring mode will sound. Go to the Bluetooth © settings on your mobile phone, tablet or computer to find the device named “Party Block”. A tone will sound to confirm the device has paired successfully. 6 Operation Details Power on / Power off Sender: Press the power button to turn on the Sender of Party Block. The Bluetooth© indicator will light up to signify the unit is on and ready to be paired. Press the power button again to turn off the base and the Bluetooth indicator light will go out. Satellite Speakers: Press the power button to turn the speaker on. The Indicator on the speaker will light up to signify the unit is on. Press the power button again to turn off the speaker and the Indicator will also go out. Please note, always make sure to first turn on the sender unit before turning on the speaker. Step 2: Connect it (continued) Next time the Party Block and connected device will pair automatically. After completing this step you are ready to start playing audio from your connected device. Holding the Play/Pause button for 5 seconds will disconnect the connected device and enter pairing mode for pairing a new device. Direct Connection The Party Block can also be connected to any device that has a headphone jack or line out using the included aux cable. Please note the play/pause button only operates when connected via Bluetooth © . 7 Play modes •Bluetooth mode: plays an audio signal from the connected Bluetooth © device. •AUX mode: plays an audio signal from the connected “wired” device. Please note, the Bluetooth has the priority to play, if an Aux cable is connected to the speaker, please turn off the Bluetooth© music or disconnect Bluetooth device first for playing an audio signal from AUX. Audio Use Follow the above connection steps to pair a Bluetooth © device with the Party Block. At this point you can send any kind of audio signal to your speaker (music, video, gaming, etc.). Just use your device as normal and the audio will play through your Party Block Controls on the Speaker •Press the Power/Pair button to play or pause the music when using a music player •Press Light on/off to turn on / off the LED decoration light. •Press Light Mode to shift among 3 color (Red, Green, White),Lighting mode (warm white) and color change •Press Music Sensor on/off to turn on/off the music sensor, when the music is on, the light will flash following the pace of playing music. •Pressing the + and - buttons will increase or decrease the volume on the Party Block. Please note that this will not affect the volume levels on the connected device. Operation Details (cont.) 8 Connection Laptop / notebook / PC As the Bluetooth© versions for these types of devices varies greatly, the connection methods will differ as well. If you can not connect with the Party Block using the previous method instructed you may need to install a new version of the Bluetooth© driver. Please reference the instructions of device for details. Speaker Placement The Sender has built-in battery and is portable. This allows the perfect placement of the sender for maximum distance. The speaker can be set anywhere you like. Approximate range is 50ft away from the sender (open area). The Party Block uses 5.8gHz signal so you’re free to put the speakers where you like! Charging Connect your Party Block Sender to an outlet using the included 5V,2A power adapter. It will start charging the Sender. The power indicator wil…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

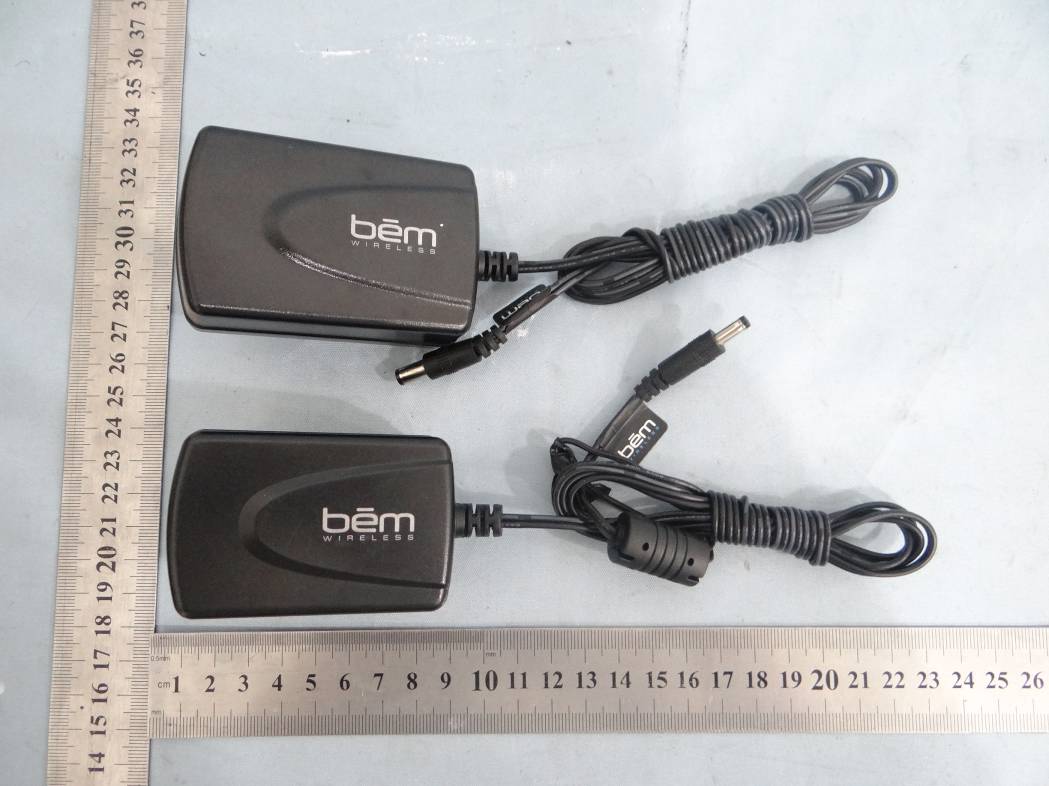

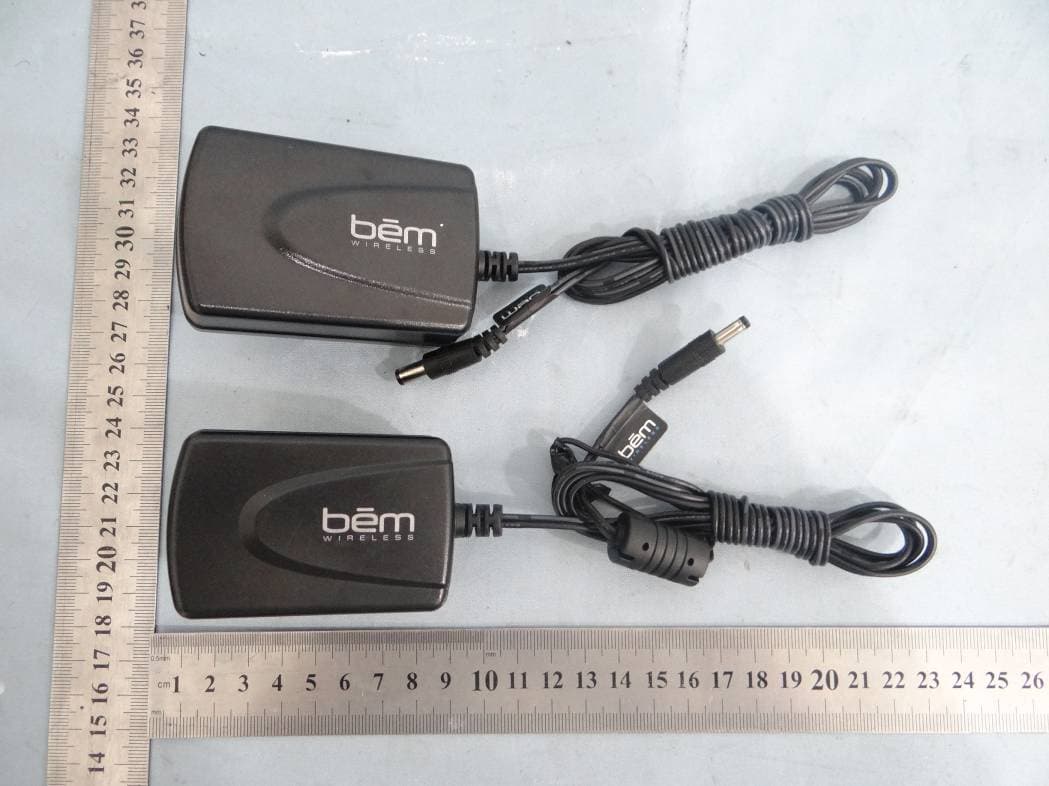

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 For Speaker Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 For Host Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 For Adapter Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536

Label Location

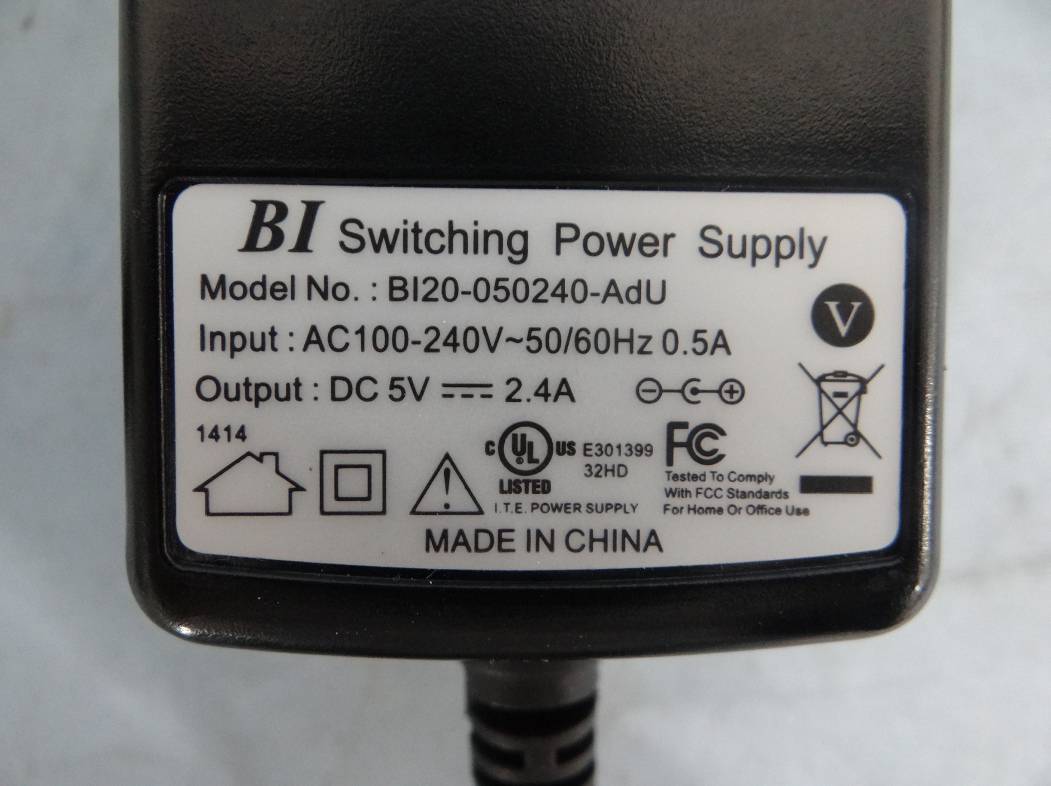

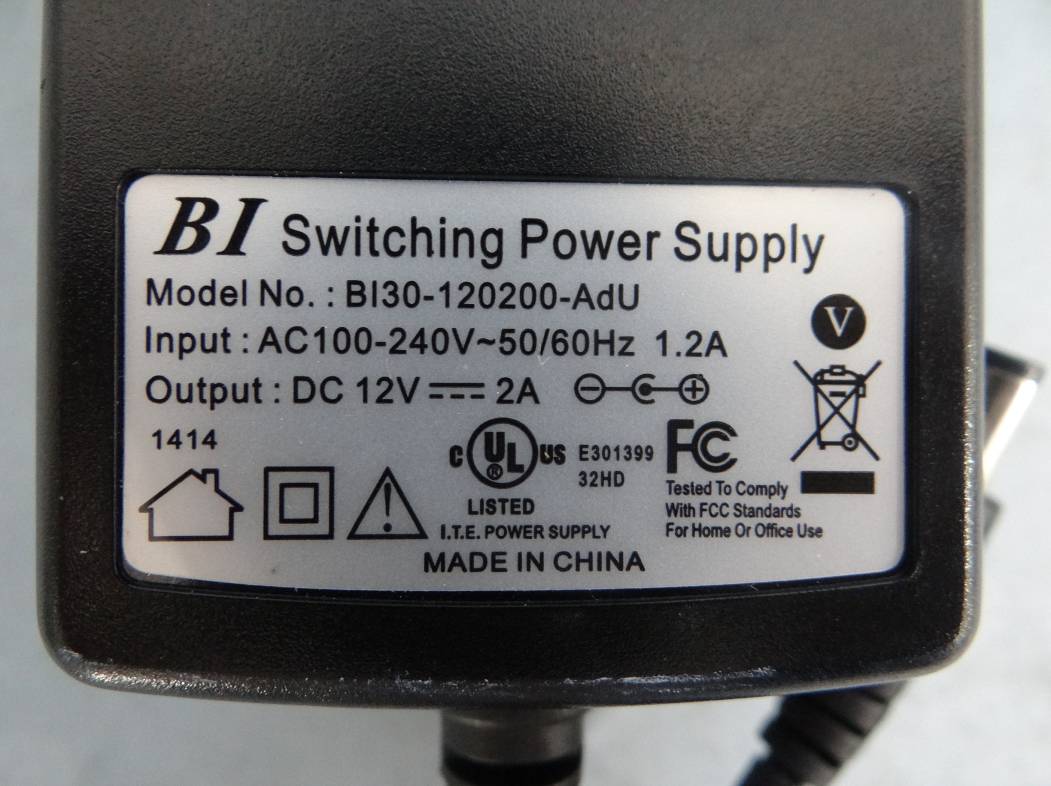

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 BT Chip BT Antenna 5.8G Chip 5.8G Antenna Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Adapter M/N: BI20-050240-AdU Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Adapter M/N: BI30-120200-AdU Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536

DONGGUAN NTC CO., LTD. FCC ID: PXK-HL2536 Report No.: NTC1406755F/-1/-2 RF EXPOSURE EVALUATION EUT Specification EUT Party Block Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -0.53dBm (0.89mW) For BT 2.1+EDR 5.16dBm (3.28mW) For BLE Antenna gain -0.61 dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. DONGGUAN NTC CO., LTD. FCC ID: PXK-HL2536 Report No.: NTC1406755F/-1/-2 Measurement Result For BT 2.1+EDR Channel Channel Frequency (MHz) Max Output AVG power (dBm) Max Output AVG power (mW) Calculation Value (Note 1) Threshold Value GFSK Low 2402.00 -3.34 0.46 0.14 3.0 Middle 2441.00 -0.53 0.89 0.28 3.0 High 2480.00 -2.18 0.61 0.19 3.0 π/4-DQPSK Low 2402.00 -3.92 0.41 0.13 3.0 Middle 2441.00 -1.08 0.78 0.24 3.0 High 2480.00 -1.84 0.65 0.20 3.0 8DPSK Low 2402.00 -3.86 0.41 0.13 3.0 Middle 2441.00 -1.01 0.79 0.25 3.0 High 2480.00 -1.80 0.66 0.21 3.0 For BT 4.0 Channel Channel Frequency (MHz) Max Output AVG power (dBm) Max Output AVG power (mW) Calculation Value (Note 1) Threshold Value Low 2402.00 4.09 2.56 0.79 3.0 Middle 2442.00 5.16 3.28 1.03 3.0 High 2480.00 4.06 2.55 0.80 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.46/5*√2.402=0.14 ≤ 3.0 According to KDB447498 D01 v05, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F FCC ID: PXK-HL2536 Page 2 of 58 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST.................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................ 6 1.3 TEST METHODOLOGY...................................................................................................................... 6 1.4 EQUIPMENT MODIFICATIONS............................................................................................................ 6 1.5 SUPPORT DEVICE............................................................................................................................ 6 1.6 TEST FACILITY AND LOCATION.......................................................................................................... 6 1.7 SUMMARY OF TEST RESULTS........................................................................................................... 7 2. SYSTEM TEST CONFIGURATION .................................................................................... 8 2.1 EUT CONFIGURATION...................................................................................................................... 8 2.2 SPECIAL ACCESSORIES.................................................................................................................... 8 2.3 DESCRIPTION OF TEST MODES......................................................................................................... 8 2.4 EUT EXERCISE................................................................................................................................8 3. CONDUCTED EMISSIONS TEST ...................................................................................... 9 3.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)..................................................................... 9 3.2 TEST CONDITION............................................................................................................................. 9 3.3 MEASUREMENT RESULTS................................................................................................................. 9 4. RADIATED EMISSION TEST........................................................................................... 12 4.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)................................................................... 12 4.2 MEASUREMENT PROCEDURE......................................................................................................... 13 4.3 LIMIT.............................................................................................................................................. 13 4.4 MEASUREMENT RESULTS ..................................................................................................... 15 5. CHANNEL SEPARATION TEST ...................................................................................... 19 5.1 MEASUREMENT PROCEDURE......................................................................................................... 19 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)................................................................... 19 5.3 MEASUREMENT RESULTS............................................................................................................... 19 6. 20DB BANDWIDTH.......................................................................................................... 25 6.1 MEASUREMENT PROCEDURE......................................................................................................... 25 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)................................................................... 25 6.3 MEASUREMENT RESULTS............................................................................................................... 25 7. HOPPING CHANNEL NUMBER ...................................................................................... 26 7.1 MEASUREMENT PROCEDURE......................................................................................................... 31 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)................................................................... 31 7.3 MEASUREMENT RESULTS............................................................................................................... 31 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F FCC ID: PXK-HL2536 Page 3 of 58 8. TIME OF OCCUPANCY (DWELL TIME).......................................................................... 33 8.1 MEASUREMENT PROCEDURE......................................................................................................... 33 8.2 MEASUREMENT RESULTS............................................................................................................... 33 9. MAXIMUM PEAK OUTPUT POWER ............................................................................... 33 9.1 MEASUREMENT PROCEDURE......................................................................................................... 39 9.2 MEASUREMENT RESULTS............................................................................................................... 39 10. BAND EDGE ..................................................................................................................39 10.1 MEASUREMENT PROCEDURE....................................................................................................... 45 10.2 LIMIT............................................................................................................................................ 45 10.3 MEASUREMENT RESULTS............................................................................................................. 46…

Text truncated - open the document above for the full version.

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Conducted Emission Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1406755F/-1/-2 FCC ID: PXK-HL2536 Radiated Emission
