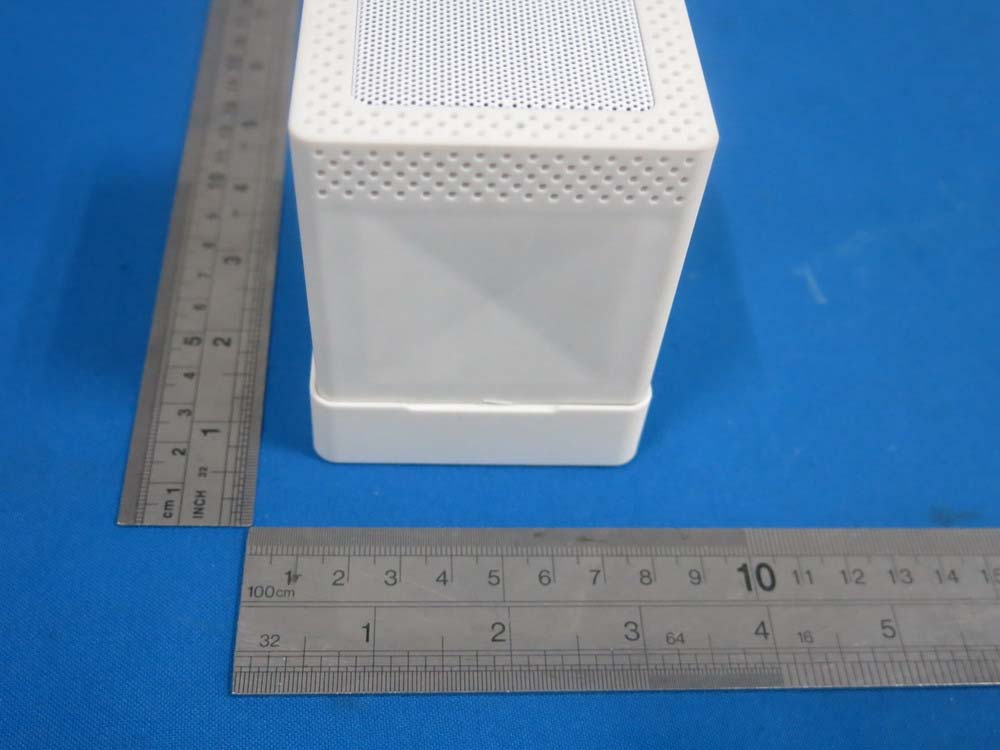

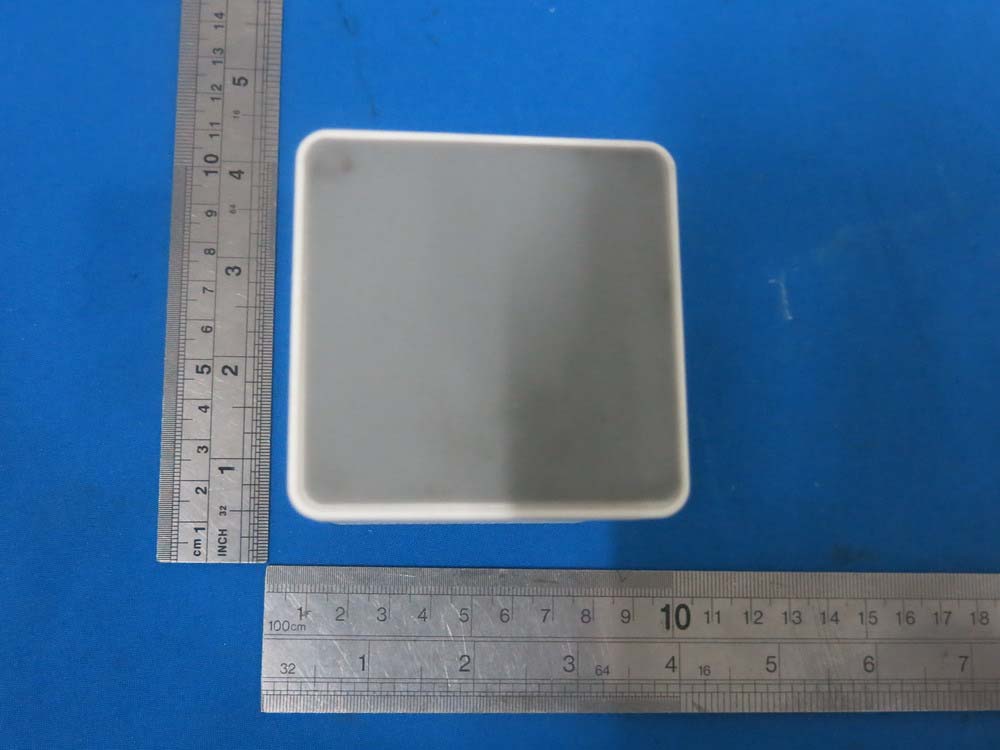

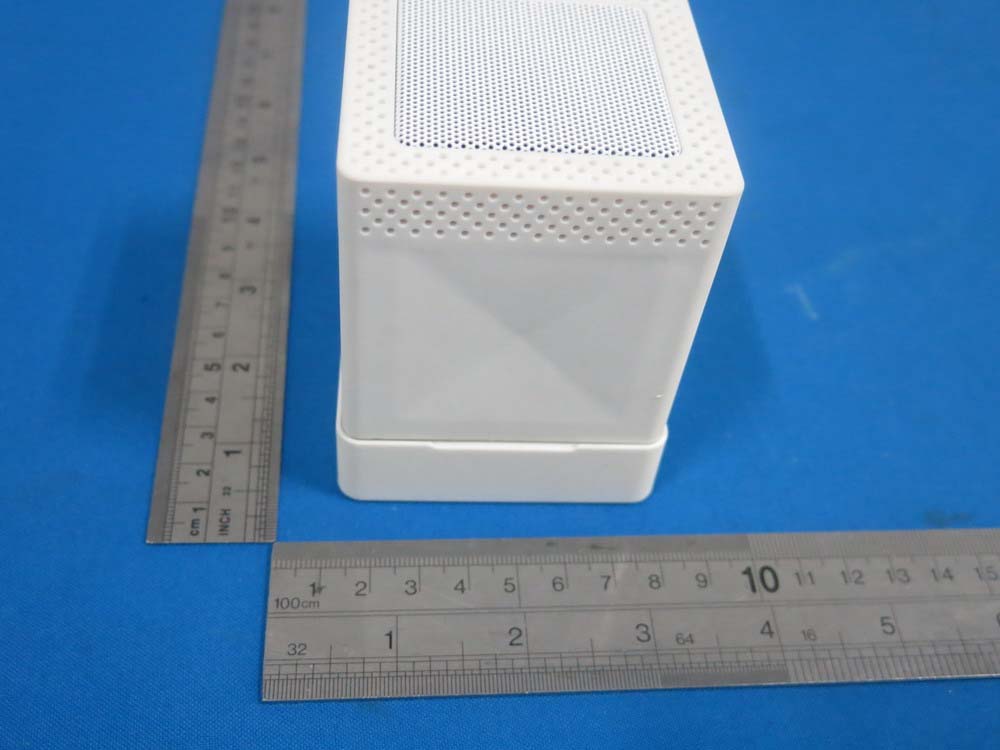

PXK-HL2739Speaker Mojo

Contents English Page 4 Canadian Fran is Page 19 Español Page 35 54 Product Overview In order to make sure you get the best possible results from your ne w Speaker Mojo, please thoroughly read and carefully follow all instructions in this User’s Manual or on the product. Keep this User’s Manual in a convenient location for future ref er ence. Package contents: Speaker Mojo x 1 Power cradle x 1 Power adapter x 1 Micro USB charging cable x 1 Aux cable x 1 User’s Manual x 1 If any of these wer e missing or damaged, please visit bemwirelesss.com to obtain replacement. Compatibility All devices enabled with Bluetooth technology, including iPhones, iP ads, iPods, smartphones, laptops, tablets and more. Also compatible with any device that has a standard 3.5mm earphone jack such as MP3 players, PSP, mobile phones, etc. Meet the Speaker Mojo Befor e learning about your Speaker Mojo, take a moment to look it over and familiarize yourself with its fea tures. Product Interface 1. Microphone 2. Volume + 3. Volume – 4. Play / Pause 5. Power Cradle 6. On/ Off switch 7. Bluetooth © indicator 8. Aux in 9. Micro USB power port 10 . Power indicator Power Cradle 11. USB port 12. Power Indicator 13. Charging switch 14. Micro USB power port Speaker Mojo HL2739_SpkMojo_UserGuide_Working.indd 2-32/25/14 10:46 PM 76 Getting Started We know you are excited to experience your new Speaker Mojo. These two easy steps will get you up and running quickly. Step 1: Charge It Connect your Speaker Mojo to an outlet using the USB charging cable and power adapter . T he red LED light will slowly flash during charging and turn green when it has reached a complete charge (Approx. 2 hours). You can also put your speaker mojo onto the power cradle, and connect it to an outlet using the USB charging cable and power adapter to charge them both. Step 2: Connect it There are two options for connecting to your Speaker Mojo — wirelessly by Bluetooth© or wired using the included aux cable. Connect Wir elessly Once the Speaker Mojo has entered Bluetooth mode, the is currently in Bluetooth pairing mode will sound. Go to the Bluetooth settings on your mobile phone, tablet or computer Speaker Mojo and connected device will pair automatically. Holding the Play/Pause button for 5 seconds will disconnect the connected device and enter pairing mode for pair ing a new device. Operation Details Power on / Power off Slide the power switch to “on” to turn on the Speaker Mojo. T he Bluetooth indicator will light up to signify the unit is on and ready to be paired. Slide the power switch to “off” t o turn off the unit and the Bluetooth indicator light will go out. Play modes •Bluetooth mode: play an audio signal from the connected Bluetooth device. •AUX mode: play an audio signal from the connected “wired” device. Please note, if an Aux cable is connected to the speaker it will not play music from Bluetooth© connected devices. Step 2: Connect it (continued) Direct Connection The Speaker Mojo can also be connected to any device that has a headphone jack or line out using the included aux cable. Please note the play/pause button only operates when connected via Bluetooth. HL2739_SpkMojo_UserGuide_Working.indd 4-52/25/14 10:46 PM 98 Operation Details (cont.) Play modes Touch the “audio mode” on either side of the speaker or pres s “audio mode” button on the remote to shift among following play modes: •Bluetooth mode: play an audio signal from the connected Bluetooth© device. •AUX mode: play an audio signal from the connected “wired” device. Please note, if an Aux cable is connected to the speaker it will not play music from Bluetooth© connected devices. •FM mode: play FM radio. •Nature Song Mode: play 6 built-in songs. •Pr es s “audio mode” switch to natural sound play mode; •Use SKIP+/SKIP- to select the sound you want to play, and the selected icon will flash on the screen; •The selected music will start playing immediately. Bluetooth is the default play mode when the speaker is powered mode and enter this mode automatically when it turns back on. Speaker Phone Aft er pairing your mobile phone to Speaker Mojo with Bluetooth, the speaker phone function can be used. •Making a call: Call will automatically transfer to the speakerphone. If not, tap play/pause button; •Answering a call: Tap play/pause button to answer the incoming call; •Ending a call : Tap play/pause button during the call to end the call; •Rejecting a call : Hold play/pause button to reject the incoming call; •Redial last number: Double tap play/pause button to redial the last number when it is not in a call. Both play/pause button on speaker and remote work with this function. Power Cradle The Power cradle is a backup batt ery pack for Speaker Mojo and your Bluetooth device. •The Speaker Mojo can be removed from the power cradle to be set anywhere you like. Put Speaker Mojo into the power cradle, it will triple the playing hours immediately. *(*The playing hours could vary due to differ ent working en vironments) HL2739_SpkMojo_UserGuide_Working.indd 6-72/25/14 10:46 PM 1110 •The Power cradle fea tures a standard USB charging port with 5V, 1A power output to charge your device like iPhones, iP ods and smartphones*. Slide the on/off switch on the Power cr adle to “on” to turn on the charging, to “off” t o turn off the charging. (*Please ref er ence the instructions of device for details. The charging cable is not included. ) Charging Your Device Audio Use Follow the above connection steps to pair a Bluetooth © device with the Speaker Mojo. At this point you can send any kind of audio signal to your speaker (music, video, gaming, etc.). Just use your device as normal and the audio will play through your Speaker Mojo. Controls Pr es s the Play/P ause button to play or pause the music when using a music player through your Bluetooth © c onnected device. Pr es sing the + and - buttons will increase or decrease the volume on the Speaker Mojo. Please note that this will not affect the volume…

Text truncated - open the document above for the full version.

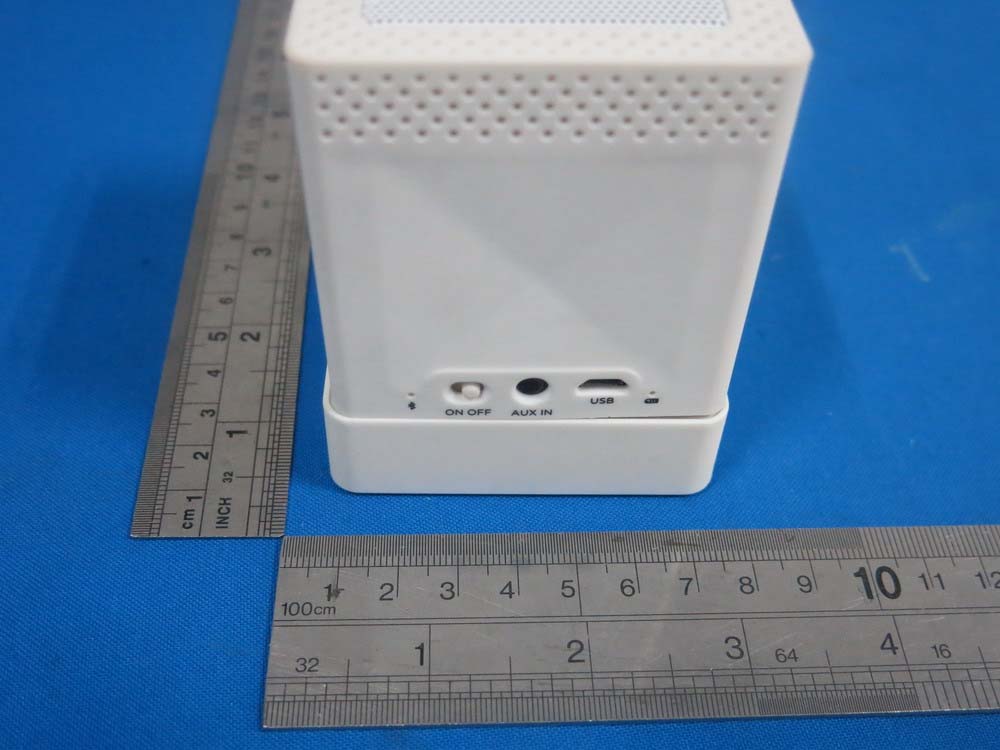

丝 产 产 丝产产 丝产产 USB CHARGE ON OFF USB USB ON OFF AUX IN USB CHARGE ON OFF USB USB ON OFF AUX IN Made in China Made in China Model Number: HL2739 Input: USB5V 1A Li-ion battery: 3.7V 600mAh Output: 1.5W X 2 FCC ID: PXK-HL2739 IC: 11348A-HL2739 Made in China Model Number: HL2739 Input: USB5V 1A Li-ion battery: 3.7V 600mAh Output: 1.5W X 2 FCC ID: PXK-HL2739 IC: 11348A-HL2739 Output: USB5V 1A Model Number: HL2739 Input: USB5V 1A Li-ion battery: 3.7V 1800mAh FCC ID: PXK-HL2739 IC: 11348A-HL2739 Made in China Output: USB5V 1A Model Number: HL2739 Input: USB5V 1A Li-ion battery: 3.7V 1800mAh FCC ID: PXK-HL2739 IC: 11348A-HL2739

Label Location ON EUT

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：PXK-HL2739 EUT Specification EUT Speaker Mojo Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -1.88dBm(0.000649W) Antenna gain (Max) 1.0 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Antenna Gain (numeric) Power density at 20cm (mW/ cm2 ) Power density Limits (mW/cm 2 ) op-mode 1 2402 0.649 1 1.258 0.0001624 1 op-mode 2 2441 0.326 1 1.258 0.0000816 1 op-mode 3 2480 0.134 1 1.258 0.0000335 1 op-mode 6 2402 0.564 1 1.258 0.0001412 1 op-mode 7 2441 0.277 1 1.258 0.0000693 1 op-mode 8 2480 0.107 1 1.258 0.0000268 1 op-mode 10 2402 0.624 1 1.258 0.0001562 1 op-mode 11 2441 0.318 1 1.258 0.0000796 1 op-mode 12 2480 0.141 1 1.258 0.0000353 1 Signature Liuchengliu [email protected] Tel: 0711-2383866 Fax: 0711-2383899 ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China

TRF No. FCC Part 15.247/A Page 1 of 60 Report No. KAD140213005E Rev1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Speaker Mojo Model No.: HL2739 Trade Mark: FCC ID: PXK-HL2739 Report No.: KAD140213005E Issue Date: March 17, 2014 Prepared for ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC Part 15.247/A Page 2 of 60 Report No. KAD140213005 Rev1.0 VERIFICATION OF COMPLIANCE Applicant: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Manufacturer: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Product Description: Speaker Mojo Trade Mark: Model Number: HL2739 Kind of Device: Bluetooth Ver. 3.0+EDR File Number: KAD140213005E Date of Test: February 13, 2014 to March 17, 2014 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. and SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2013). The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC Part 15.247/A Page 3 of 60 Report No. KAD140213005 Rev1.0 Modified History Rev. Summary Date of Rev. Report No. V1.0 Original Report 2014-03-17 KAD140213005E TRF No. FCC Part 15.247/A Page 4 of 60 Report No. KAD140213005 Rev1.0 Table of Contents 1. GENERAL INFORMATION ....................................................................................... 6 1.1 PRODUCT DESCRIPTION............................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 6 1.3 TEST METHODOLOGY.................................................................................................................. 6 1.4 SPECIAL ACCESSORIES................................................................................................................ 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 7 1.6 TEST FACILITY............................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ........................................................................... 8 2.1 EUT CONFIGURATION.................................................................................................................. 8 2.2 EUT EXERCISE............................................................................................................................ 8 2.3 TEST PROCEDURE....................................................................................................................... 8 2.4 LIMITATION.................................................................................................................................. 9 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 12 3. SUMMARY OF TEST RESULTS ............................................................................. 13 4. DESCRIPTION OF TEST MODES........................................................................... 14 5. CONDUCTED EMISSIONS TEST ........................................................................... 15 5.1 MEASUREMENT PROCEDURE: .................................................................................................... 15 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 15 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 15 5.4 MEASUREMENT RESULT: ............................................................................................................ 15 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................... 18 6. RADIATED EMISSION TEST .................................................................................. 19 6.1 MEASUREMENT PROCEDURE..................................................................................................... 19 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 19 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 20 6.4 MEASUREMENT RESULT............................................................................................................. 21 6.5 RADIATED MEASUREMENT PHOTOS:........................................................................................... 27 7. CHANNEL SEPARATION TEST ............................................................................. 28 7.1 MEASUREMENT PROCEDURE..................................................................................................... 28 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 28 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 28 7.4 MEASUREMENT RESULTS:.....................................................................…

Text truncated - open the document above for the full version.
