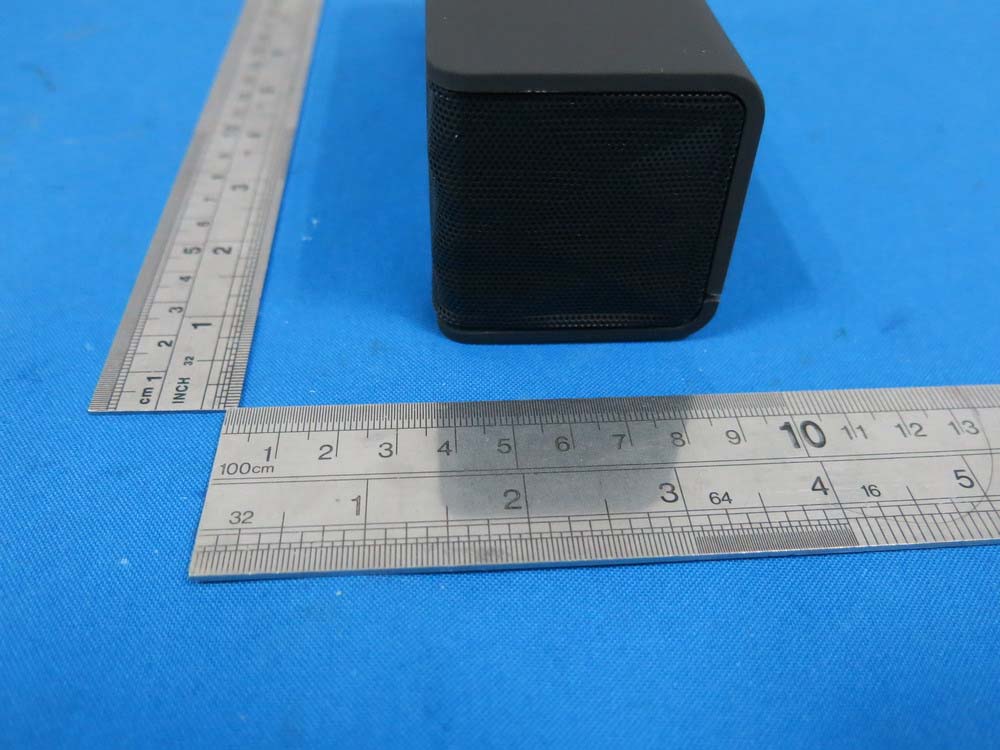

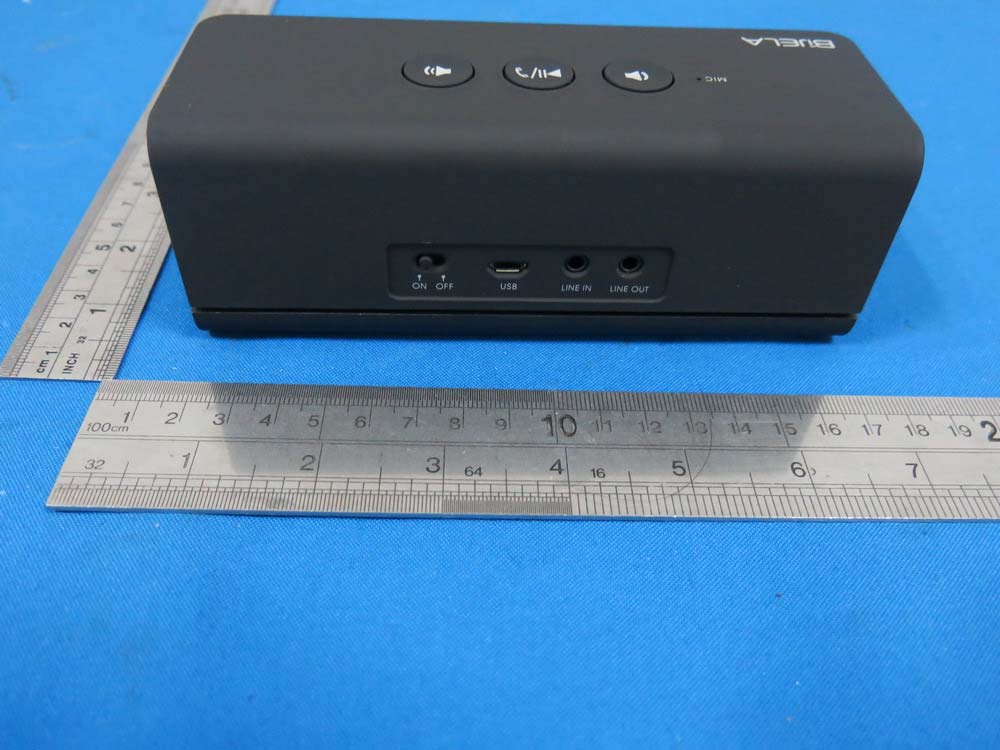

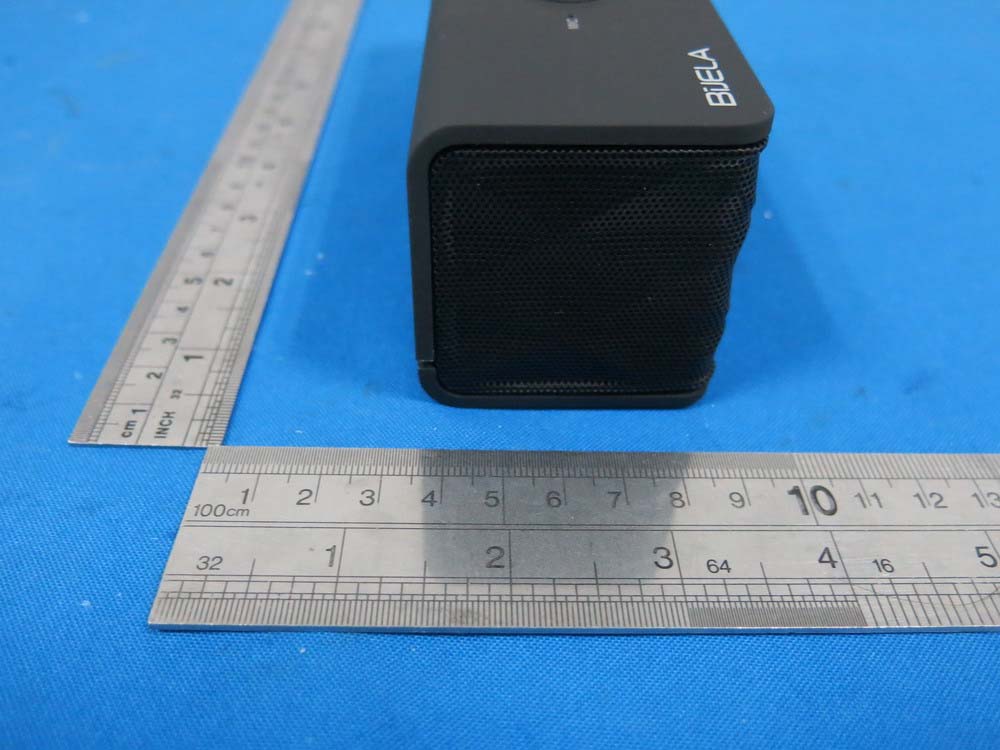

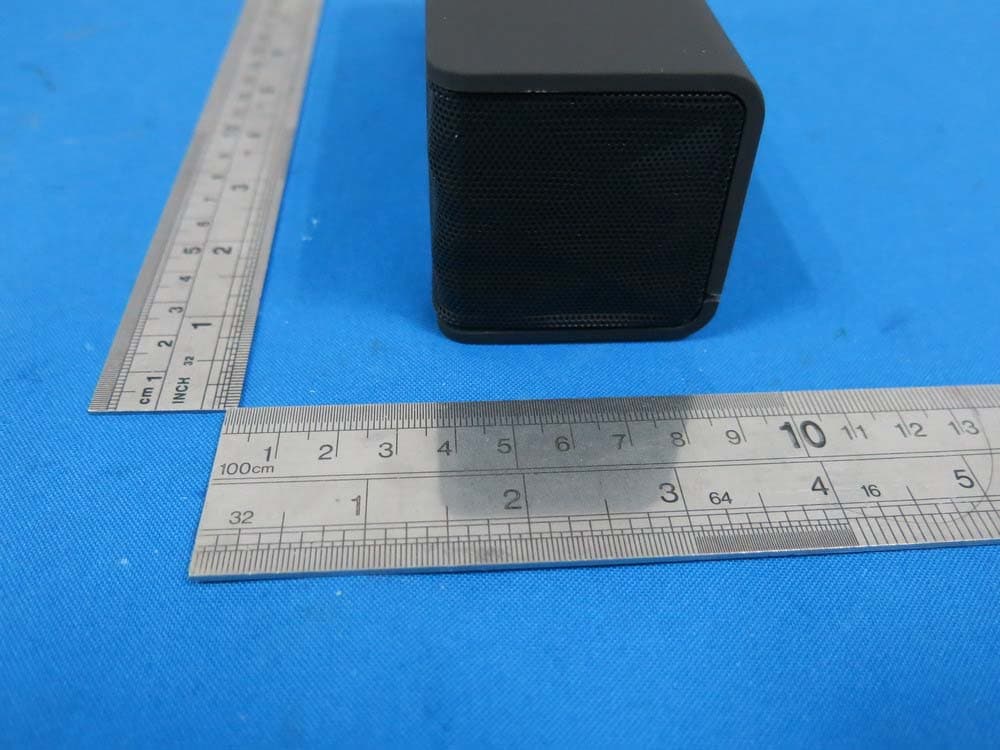

PXK-HT1051Magic SoundBox Bluetooth speaker

1 / 5 User’s Manual Thank you for purchasing our Magic SoundBox Bluetooth speaker Read carefully and follow all instructions in this User's Manual before you use the Magic SoundBox speaker. Keep this User's Manual in a convenient location for future reference Safety Instructions This product is specially designed based on the full attention to safety; in order to make sure the accident-free operation, please abide the guidelines listed below: z Always position the unit on a stable and level surface. Unstable surface can cause the unit to topple and fall, resulting in possible damage or injury z Do not drop, unpack, open, beat, curve, prink and burn the unit z Avoid using the unit nearby basins or sinks where it may come in contact with water z Do not place any ware with full water on the top of the unit, such as vase, glass, pot, and please avoid placing candle on the speaker surface as well z Protect the using of the unit from any overheating devices (such as radiator, heating installation, cooking stove or other heating devices) z Regardless of what reasons cause the unit damage, please ask for the maintenance personnel to repair z If you want to do the cleaning, please turn off the unit and unplug the power cable from the outlet first z Set the volume properly to prevent injury to the unit and your health Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. WARNING: z The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. z No naked flame sources, such as lighted candles, should be placed on the apparatus. z CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Package Contents 1. Magic SoundBox Bluetooth speaker main unit x 1 2. USB charging cable x 1 3. Aux cable x 1 4. User’s manual x 1 Fit Models z Apply to：all iPhone and iPad series, Smartphones, Laptop, Tablets and other Bluetooth devices z Work with any device with standard 3.5mm earphone jack via the included Aux cable for connecting, such as MP3,PSP, Mobile phone...,etc Outstanding Features Magic SoundBox speaker is compatible with all wireless Bluetooth devices such as iPad, iPhone, Smartphones, Laptops, Tablets and other Bluetooth devices. It is portable, wireless, hands-free. Just place it anywhere in a room and enjoy pristine streaming audio from your phone, computer, or other Bluetooth devices. Bring music, movies, and all your mobile audio vibrantly to life--all in the palm of your hand z Go Anywhere and Go Wireless 2 / 5 Easily compatible with iPhone, iPad, mobile phones, computers, tablets, or any other Bluetooth-enabled device Wireless working range is up to 8-12 meters, no cords, no hassle z Calling and Conference on the Go With a powerful, built-in microphone, it can frees you to share clean-sounding conference calls or personal calling anywhere--in the office, car, at home, alone, or with a group z Good sound system, enjoy your life Special speaker drive unit with woofer, amp up your Music, Movies, Games to let you experience the richest sound Built-in rechargeable battery, up to 6 hours of continuous play z Crafted outlook and function design Pretty lozenge metal mesh and good hand-feeling rubber casing, showing the high quality and taste LINE IN, almost work with any player LINE OUT, turn the speaker into a Bluetooth receiver to work with more powerful music play system Sleep mode to save the battery for long time play Part Names Main unit 1. Microphone 2. Volume - 3. Multi-function button (play/pause button & answer key) 4. Volume + 5. Bluetooth indicator 6. Charging indicator 7. ON/OFF switch 8. USB charging port 9. Line in 10. Line out 11. Bass vent 12. Anti-slip pad 3 / 5 Basic Operation z Power on/power off 1. Power on the unit: Slide the ON/OFF switch to “ ON” to turn on the unit, the Bluetooth indicator lights up at once 2. Power off the unit：Slide the ON/OFF switch to “ OFF” to turn off the unit, the Bluetooth indicator goes out in the meanwhile. z Connection 1. Work with phone • Power on the unit, and coming with a short Bluetooth hint sound from the unit, the Bluetooth function is on, the blue Bluetooth indicator lights up at the same time, these show the unit is enter pairing mode. • Turn on the Bluetooth function in your phone, and search the Bluetooth device, then, your phone will find the device named “BiJELA HT1051”, A tone will sound to confirm the device has paired successfully. Note: Please take the User’s manual of your cell phone for the details about Bluetooth connection. 2. Work with tablet PC • Please refer to the above phone connection operation steps. 3. Work with laptop/ notebook computer /PC • As the Bluetooth version for laptop/ notebook computer /PC is various, the connection methods are different as well, if you can not connect with the unit for play on first use, you may need to install a new version of the Bluetooth driver in your laptop in advance. Please reference the instructions of laptop for details. z Play mode 1. Bluetooth mode: play the audio signal from Bluetooth device connected with the unit. 2. AUX mode: play the audio signal from the audio device with “LINE IN” port. Note: As long as the Aux cable is connected to the speaker, it will not play the music from Bluetooth z Play the music Play the audio signal from Bluetooth device 1. Follow the above connection steps to pair the Bluetooth device and the unit. 2. Enter in the Bluetooth device audio play menu, choose your favorite music to play. 3. P…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 ECORE TECHNOLOGY COMPANY LIMITED (2014-09-01) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ ECORE TECHNOLOGY COMPANY LIMITED _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Name: Magic SoundBox Bluetooth speaker Model Number: HT1051 FCC ID: PXK-HT1051 Sincerely, Liuchengliu Manager ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 ECORE TECHNOLOGY COMPANY LIMITED (2014-09-01) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PXK-HT1051 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Liuchengliu Manager ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China

Label Location on EUT

Antenna

RF EXPOSURE EVALUATION EUT Specification EUT Magic SoundBox Bluetooth speaker Model Number HT1051 FCC ID PXK- HT1051 Antenna gain (Max) 0dBi Kind of Device Bluetooth Ver. 2.1+EDR Operation Frequency 2402-2480MHz Modulation GFSK, π/4-DQPSK, 8DPSK Input Rating DC 5V, 1A Max. output power 1.71dBm(0.001483W) Classification Per Stipulated Test Standard §15.247(i), §2.1093 Test Requirement: According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT(BT product). The minimum separation distance is 5mm. Channel Frequency (MHz) Maximum Peak Power output(dBm) Maximum Output Peak power (mW) Calculation Result Limits 2402 -1.95 0.638 0.1978 3 2441 1.18 1.312 0.4100 3 2480 1.71 1.483 0.4671 3 2402 -5.34 0.292 0.0905 3 2441 -2.22 0.600 0.1875 3 2480 -1.75 0.668 0.2104 3 2402 -4.82 0.330 0.1023 3 2441 -1.54 0.701 0.2190 3 2480 -1.03 0.789 0.2485 3 According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature Liuchengliu North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China

TRF No. FCC Part 15.247/A Page 1 of 66 Report No. KAD140819067E Ver.1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Magic SoundBox Bluetooth speaker Model No.: HT1051 Trade Mark: N/A FCC ID: PXK-HT1051 Report No.: KAD140819067E Issue Date: August 30, 2014 Prepared for ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC Part 15.247/A Page 2 of 66 Report No. KAD140819067E Ver.1.0 VERIFICATION OF COMPLIANCE Applicant: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Manufacturer: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou city, Hubei Province, China Product Description: Magic SoundBox Bluetooth speaker Trade Mark: N/A Model Number: HT1051 Kind of Device: Bluetooth Ver. 2.1+EDR File Number: KAD140819067E Date of Test: August 19, 2014 to August 30, 2014 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2013). The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC Part 15.247/A Page 3 of 66 Report No. KAD140819067E Ver.1.0 Modified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / KAD140819067E TRF No. FCC Part 15.247/A Page 4 of 66 Report No. KAD140819067E Ver.1.0 Table of Contents 1. GENERAL INFORMATION ............................................................................................................ 6 1.1 PRODUCT DESCRIPTION ............................................................................................................................. 6 1.2 RELATED SUBMITTAL(S) / GRANT (S)......................................................................................................... 6 1.3 TEST METHODOLOGY ................................................................................................................................. 6 1.4 SPECIAL ACCESSORIES .............................................................................................................................. 6 1.5 EQUIPMENT MODIFICATIONS ...................................................................................................................... 7 1.6 TEST FACILITY ............................................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION............................................................................................... 8 2.1 EUT CONFIGURATION ................................................................................................................................ 8 2.2 EUT EXERCISE ........................................................................................................................................... 8 2.3 TEST PROCEDURE ...................................................................................................................................... 8 2.4 LIMITATION................................................................................................................................................... 9 2.5 CONFIGURATION OF TESTED SYSTEM ..................................................................................................... 12 3. SUMMARY OF TEST RESULTS ................................................................................................. 13 4. DESCRIPTION OF TEST MODES .............................................................................................. 14 5. CONDUCTED EMISSIONS TEST ............................................................................................... 15 5.1 MEASUREMENT PROCEDURE: .................................................................................................................. 15 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................................... 15 5.3 MEASUREMENT EQUIPMENT USED: ......................................................................................................... 15 5.4 MEASUREMENT RESULT: .......................................................................................................................... 15 5.5 CONDUCTED MEASUREMENT PHOTOS: ................................................................................................... 18 6. RADIATED EMISSION TEST ...................................................................................................... 19 6.1 MEASUREMENT PROCEDURE ................................................................................................................... 19 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................................... 20 6.3 MEASUREMENT EQUIPMENT USED: ......................................................................................................... 21 6.4 MEASUREMENT RESULT ........................................................................................................................... 21 6.5 ADIATED MEASUREMENT PHOTOS: .......................................................................................................... 31 7. CHANNEL SEPARATION TEST ................................................................................................…

Text truncated - open the document above for the full version.
