PYZHSD329TNUSB STORAGE DEVICE

Hanbit Electronics Co., Ltd http://www.hbe.co.kr USER’S MANUAL Model : HSD329TN Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 2/2 www.hbe.co.kr Contents 1. Package Contains ------------------ Page 3 2, Locations and Function ------------------ Page 3 3, XDRUM N Stick ------------------ Page 4 * Key lock ------------------ Page 6 4, Windows98 Install ------------------ Page 7 5, Utility program ------------------ Page 9 * Password Set and Change ------------------ Page 11 * Boot Up function ------------------ Page 13 6, USB2.0 XDRUM N Stick ------------------ Page 16 7, Important Notice ------------------ Page 17 8, A/S and Cautions ------------------ Page 18 9, Guarantee ------------------ Page 19 Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 3/3 www.hbe.co.kr ■ Package Contains ※ Please check Package Contains in Box ■ Location and Function ─ Cap : USB Connector protect cap ─ LED : Lighting on operation ─ Write Protect Switch : Change switch to direction ─ Neck strap jack ─ USB Connector : USB Port connect part 1. USB2.0 XDRUM N Stick 1pcs 4. Extra cap 1pcs(option) 2. USB extension cable 1pcs(option) 5. CD Drive 1pcs(option) 3. Neck strap 1pcs(option) 6. Manual 1pcs(option) Cap LED USB Connector Neck Strap Write Protect Switch LED Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 4/4 www.hbe.co.kr ■ How to Use the USB2.0 XDRUM N Stick You can use the USB2.0 XDRUM N Stick right away simply by inserting it in the USB port of your PC. (WindowsME/2000/XP and beyond, excluding Windows98/SE, will automatically recognize the USB2.0 XDRUM N Stick) For users with Windows98/SE O/S, the Windows98/SE driver must first be installed. Please refer to page 7 for driver installation. Should you wish to use the security or partition functions, install the USB2.0 XDRUM N Stick.EXE program. Please refer to page 9. For more information about USB, visit http://www.usb.org.faq/. ■ How to Use the USB2.0 XDRUM N Stick with Windows When you insert the USB2.0 XDRUM N Stick in your USB port, Windows will automatically recognize it as a “portable storage device” and designate the drive accordingly. Go to “My Computer”, and the [portable disk] icon will appear. When the [safe hardware removal] icon is displayed on the [task bar], you can double-click it to remove the device safely. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 5/5 www.hbe.co.kr To confirm whether the device is installed properly, choose “Start-> Settings-> Control Panel-> System-> Hardware”, then double-click on the device manager to display the [Universal Serial Bus] icon. Double-click that icon to see if the “USB mass storage device” is installed. It is recommended to use USB2.0 XDRUM N Stick compatibly with “Hi-Speed USB 2.0”. If you connect the USB2.0 XDRUM N Stick to a “non Hi-Speed USB 2.0 Hub”, Windows will display a warning message as shown below. You may use the device without changing any settings, but reading/writing speed will slow down. Remove the USB2.0 XDRUM N Stick In order to remove the device safely, double-click the [safe hardware removal] icon, remove device, then choose “Stop-> OK-> OK-> Close”. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 6/6 www.hbe.co.kr Note: Whenever you remove a device without executing safe removal, a warning message that the “computer may stop responding, or you may lose data” will be displayed. Do not remove the device when the LED is flashing since this indicates that reading or writing is active. Remove the device safely after the LED turns off. Write-Protect Function ◈ Write-protect tab is located at the lower part of XDRUM N Stick. ◈ Open (when tab is slid up): you can freely read and write. ◈ Locked (when tab is pushed down): you can read, but cannot write. Note: If you change the setting of the tab when the device is not connected to the computer, it may cause the loss of data. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 7/7 www.hbe.co.kr ■ How to Install the USB2.0 XDRUM N Stick with Windows98 1) Double-click and execute “XDRUM N Stick Win98 Driver2.0. EXE” from the CD, and then choose “Next” when the “Installation Manager” file appears as follows. 2) When given options to make a new directory during installation, choose “Yes” and click “Next”. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 8/8 www.hbe.co.kr 3) After the UBS XDRUM N Stick is installed, click “OK” to finish installation. 4) When the UBS N Stick is connected to a UBS port, the computer will automatically locate software for the new device. Simply find the drive where your UBS N Stick is connected and use it. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 9/9 www.hbe.co.kr ■ How to Use the XDRUM N Stick Utility Program The XDRUM N Stick provides functions such as password protection, partitioning, and booting setup alteration. How to Install the XDRUM N Stick Utility Program Follow the installation guide: 1. Execute “XDRUM N Stick.EXE” from the driver CD enclosed with the product. 2. When the Installation Wizard appears, click [Next>]. 3. Installation Wizard begins to copy and install required files and programs. Click “Yes”, and then “Next”. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 10/10 www.hbe.co.kr 4. Clicking on “OK”, to completes installation of the utility program. 5. Check if the [XDRUM N Stick] folder is displayed in the [program] folder of the [Start] menu. Note: When the “XDRUM N Stick” is inserted into the USB port, a key-shaped program execution icon will appear in the lower right corner of the startup screen. Click that icon to execute the utility program. Hanbit Electronics Co.,Ltd. All rights reserved Rev.5.0, 2003-09-03 Page 11/11 www.hbe.co.kr ■ How to Use the XDRUM N Stick Utility Program Set/Check Password The XDRUM N Stick allows the setting or alteration of a [password]. …

Text truncated - open the document above for the full version.

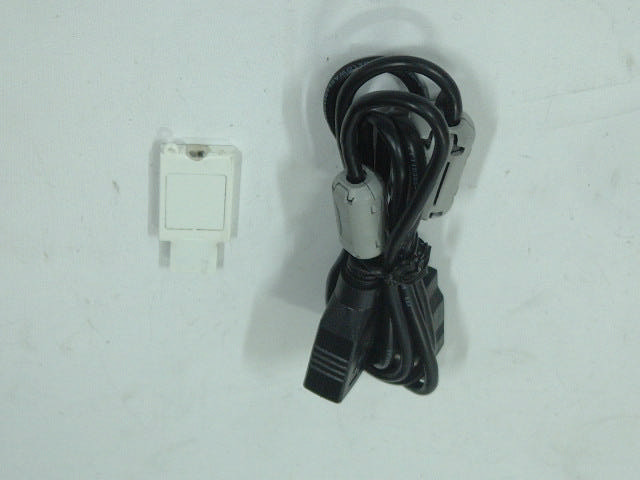

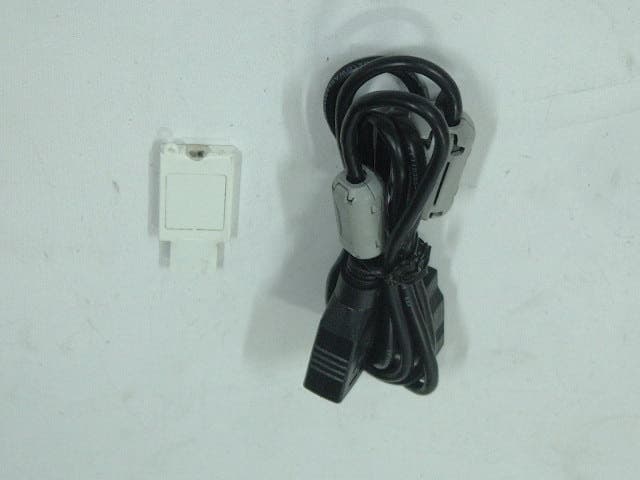

Test report Our reference : KEL03-F10054 Page : B1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL03-F10054 Page : D1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL03-F10054 Page : C1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL03-F10054 Page : C2 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL03-F10054 Page : C3 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <REAR VIEW OF MAIN BOARD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Nov. 15. 2003 Applicant’s Name : HANBit Electronics Co., Ltd. Applicant’s Address : 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Manufacturer’s Name : HANBit Electronics Co., Ltd. Manufacturer’s Address : 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Declares that the product Product Description : USB Storage Device Brand Name : HANBit Model Number : HSD329TN FCC ID : PYZHSD329TN Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Nov. 19. 2003 Report No : KEL03-F10054 Authorized Signature : M. S. CHO / President Test report Our reference : KEL03-F10054 Page : 2 of 13 Issued date : 2003-11-19 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL03-F10054 Page : 3 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : USB Storage Device Model Number : HSD329TN Serial Number : Prototype Manufacturer : HANBit Electronics Co., Ltd. 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Type of Test : FCC CLASS B Report Number : KEL03-F10054 Date Tested : Nov. 15. 2003 Tested By : S. J. LEE The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL03-F10054 Page : 4 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The HSD329TN is a USB Storage Device made by HANBit Electronics Co., Ltd. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION Memory 128 MB Read Performance 56 Mbit/sec Write Performance 48 Mbit/sec USB Interface USB2.0 and USB1.1 Compatible Dimension 18.5(W)x 42.55(H)x4(T) mm(Without CAP) 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer USB Storage Device HSD329TN PYZHSD329TN Prototype HANBit Electronics Co., Ltd. Desk Book TGIC-NP2400PA DoC 3070014 SAMBO Adapter ADP-150BB B Verification VBT0317010252 Delta Electronics Inc. Printer 2225C DSI6XU2225 3119S96116 HP Adapter 0912-TY Verification NONE HANSUNG Serial Mouse M-CE15 DZLMCE15 LT292R00285 LOGITECH USB Mouse U813I-O DoC K020803612 HP Speaker TGX-100 - NONE SAMBO MIC RM-1000 - NONE HANIL 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark MAIN B/D USB-N-STICK NONE HANBit Electronics Co., Ltd. Korea Test report Our reference : KEL03-F10054 Page : 5 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(NSLK8128, SCHWARZBECK) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Serial No Due C…

Text truncated - open the document above for the full version.

Test report Our reference : KEL03-F10054 Page : A1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL03-F10054 Page : A2 of Appendix Issued date : 2003-11-19 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL03-F10054 Page : A3 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
