PYZMP3N306MP3 Player

HANBiT Electronics Co., Ltd. http://www.hbe.co.kr User’s Manual Model : MP3N306 ♣ Safety Precautions ▶ When using the device, avoid the following places Places with too much humidity and dirt / places with direct sunlight / near fire or heating appliances/places with too much vibration / near things with magnetic properties / too cold or hot places ▶ Do not put metals or flammable foreign materials inside the player. ▶ Do not attempt to disassemble, repair, or modify. ▶ Press one button at a time. Do not press two or more buttons at the same time. ▶ When cleaning, do not spray water on the player. Gently wipe with a dry cloth. Never use chemicals or detergent that deform and discolor the device. ▶ When the player is soaked in water, take batteries off and contact the A/S center of our head office. If you use the player when it is wet, it will lead to malfunction. ▶ If you fall onto something or someone, while walking with the player hung around your neck, or in your pocket, you or the person you fell onto may get bruises or suffer a fracture. Please, mind that in mind. P R E C A U T I O N S 2 ♣ Components -------------------------------------- ♣ Option ----------------------------------------- 걸이 ♣ Accessories subject to change without notice and may vary from image shown. C O M P O N E N T S 3 Neck Strap USB Extention Cable CD Driver Earphone Manual Extra Cap Audio Cable Lithium ion Battery AAA Battery ▶ Safety Precautions ········································ 2 ▶ Components / Option ········································ 3 ▶ Table of Contents ········································ 4 1. Introduction 1.1 What is MP3 ·········································· 5 1.2 What is an MP3 Player? ·········································· 5 1.3 Names and Composition ·········································· 6~7 1.4 Functions and Details ·········································· 8 2. How to Use MP3 Player 2.1 Installing the Driver for MP3 Player ······················· 9~14 2.2 Transmitting Files Between PC and Player ······················· 15 2.3 Changing the Mode of MP3 Player ······················· 17 2.4 Listening to Music with MP3 Player ······················· 18 2.5 Learning Languages with MP3 Player ······················· 22 2.6 Recording with MP3 Player ······················· 25 2.7 Write protection function and Hold switch ······················· 28 2.8 Recharge MP3 Player ······················· 29 2.9 Depart MP3 Player from PC ······················· 30 2.10 LED reference ······················· 31 3. Customer Support and Firmware Upgrade ······························· 36 4. Troubleshooting ··········································· 37 5. Cautions ·············································· 38 T A B L E C O N T E N T S 4 1. Introduction 1.1 What Is MP3? MP3, a short for ‘MPEG Audio Layer-3’, is one of file extensions such as *.HWP, *.TXT. With MP3 technologies, a minimum of 150 songs can be saved on one blank CD of 650M. 1.2 What Is an MP3 Player With an MP3 player, you can save music you like from your computer and listen to it whenever you want; whether on the bus or subway or while working out. This means you can save music files from the Internet on the memory of an MP3 player, which plays them whenever and wherever you want. MP3 players, unlike small cassette players such as Walkman, are small and light. Numbers of songs that can be saved on an MP3 player vary according to the memory, but more than a cassette tape can contain. At the same time, MP3 players can save PC files or transmit data like portable disks. MP3 players offer a variety of merits. You can use MP3 players if you have a computer (regardless of type or brand) with basic functionality. Even when batteries are run out or when the power is turned off, all data saved on the memory, including music files, is not lost. Our MP3 players are multi-functional device that not only play music but also with storage functionality. Our MP3 players are so user-friendly that even beginners can easily learn how to use them. With our MP3 players, it is very easy to save data and to alter or move MP3 music files. You can listen to music of your choice and handle data of high volume without difficulty. Our Hanbit MP3 players also feature voice recording, five-mode (classis/ jazz/ pop/ rock/ normal) equalizer (EQ), and language exercise (selected block repetition / five-level speed control). I N T R O D U C T I O N 5 1.3 Names and Composition Earphone Jack Line in Jack LED MIC USB Connector Protect Cab STOP FF PLAY REW C O M P O S I T I O N 6 Write Protection Switch USB Connector Protect Cap C O M P O S I T I O N 7 Neck Strap Hole Rechargeable Battery Protect Cap 1.4 Functions and Details ▶ Music File : *.MP3, *.WMA, *.ASF file compatible ▶ Capacity Range : 16Mbyte ~ 512Mbyte ▶ Portable Data Storage : Music file and Data Storage and Transporting ▶ Equalizer Function : CLASSIC / JAZZ / POP / ROCK / NORMAL ▶ Language Study : Section Repeat / 5step Speed Control (Slow resume) ▶ Recording : Voice recording(MIC) / MP3 file recording from external Audio instrument by using audio cable ▶ Frequency Range : 20Hz~20KHz ▶ Bit rate : 52Kbps ~ 192Kbps ▶ Earphone Output : 6mW(L) + 6mW(R) at Max. Volume ▶ S/N Ratio : 90dB ▶ Auto Sleep Mode : Auto Power saving mode ▶ Connect and Music file Download : by USB connect ▶ USB Download speed : Approx. 6.4 Mbps ▶ Display : Color LED ▶ Peripherals : USB extention cable, Earphone, Driver CD, Extra Cap, Neck Strap, Audio Cable, AAA Battery, Lithium ion Battery, Manual ▶ Dimension : 31.6(W) x 88.4(L) x 19.1(D)mm ▶ Weight : 54 g(Except Battery) ▶ Playing time : AAA Battery : Approx. 8hours Lithium ion Battery : Approx. 14hours ▶ Power : Lithium ion Battery(USB port rechargeable) OR AAA Battery ▶ Operate System : Windows2000/XP/Me, Linux OS 2.4 or Above, Mac OS 9.0 or Above, Windows98(Only Windows98 need to install driver) D E T A I L S 8 2. How to Use an MP3 Player 2.1 Installing the Driver for MP…

Text truncated - open the document above for the full version.

Voltage Regulator Circuit USB (A Type) USBVCC-1 Dataminus-2 USBGND4 SHIELD5 Dataplus-3 J1 Host PC 5V D+ GND D- 1.5V Battery 3.7V Li-ion Charger TCC730Y MP3P controller U2 Y1 32.768 KHz Flash Memory K9K1G08U0M-YCB0) control Data /Address Flash Memory (ST49VF400-90) control 16bit Data Line Address 3.3V CODEC TLV320AIC23W control Data line Address Line In Line Out (Earphone) Hanbit Electronics co., Ltd MP3Player Block Diagram

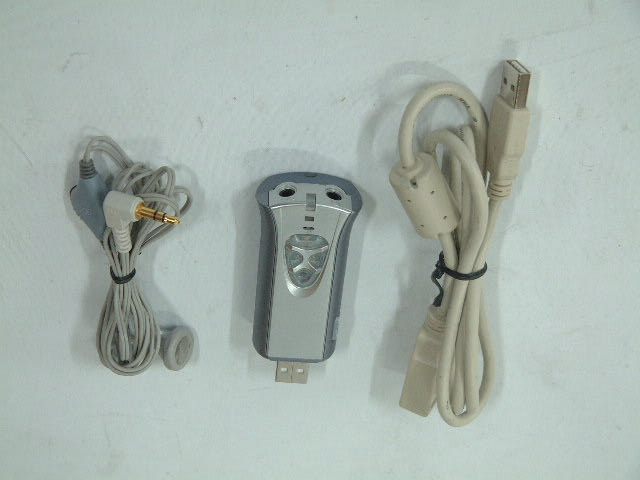

Test report Our reference : KEL03-F10053 Page : B1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL03-F10053 Page : D1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the side of product. - FCC ID label sample

Test report Our reference : KEL03-F10053 Page : C1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL03-F10053 Page : C2 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <FRONT VIEW OF BATTERY> Test report Our reference : KEL03-F10053 Page : C3 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <REAR VIEW OF BATTERY> Test report Our reference : KEL03-F10053 Page : C4 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL03-F10053 Page : C5 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL03-F10053 Page : C6 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <FRONT VIEW OF MEMORY> Test report Our reference : KEL03-F10053 Page : C7 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory <REAR VIEW OF MEMORY>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Nov. 14. 2003 Applicant’s Name : HANBit Electronics Co., Ltd. Applicant’s Address : 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Manufacturer’s Name : HANBit Electronics Co., Ltd. Manufacturer’s Address : 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Declares that the product Product Description : MP3 PLAYER Brand Name : HANBit Model Number : MP3N306 FCC ID : PYZMP3N306 Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Nov. 19. 2003 Report No : KEL03-F10053 Authorized Signature : M. S. CHO / President Test report Our reference : KEL03-F10053 Page : 2 of 13 Issued date : 2003-11-19 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL03-F10053 Page : 3 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : MP3 PLAYER Model Number : MP3N306 Serial Number : Prototype Manufacturer : HANBit Electronics Co., Ltd. 414-5, Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea Type of Test : FCC CLASS B Report Number : KEL03-F10053 Date Tested : Nov. 14. 2003 Tested By : S. J. LEE The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL03-F10053 Page : 4 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The MP3N306 is a MP3 PLAYER made by HANBit Electronics Co., Ltd. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION Music File *.MP3, *.WMA, *.ASF file compatible USB Download speed Approx. 6.4 Mbps Memory 128 MB Dimension 31.6(W) x 88.4(L) x 19.1(D) mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer MP3 PLAYER MP3N306 PYZMP3N306 Prototype HANBit Electronics Co., Ltd. Desk Book TGIC-NP2400PA DoC 3070014 SAMBO Adapter ADP-150BB B Verification VBT0317010252 Delta Electronics Inc. Printer 2225C DSI6XU2225 3119S96116 HP Adapter 0912-TY Verification NONE HANSUNG Serial Mouse M-CE15 DZLMCE15 LT292R00285 LOGITECH USB Mouse U813I-O DoC K020803612 HP Speaker TGX-100 - NONE SAMBO MIC RM-1000 - NONE HANIL 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark BATTERY MAIN B/D MEMORY 582248L521S1P6Z MP3P MP3P MEM NONE NONE NONE HANBit Electronics Co., Ltd. HANBit Electronics Co., Ltd. HANBit Electronics Co., Ltd. Korea Korea Korea Test report Our reference : KEL03-F10053 Page : 5 of 13 Issued date : 2003-11-19 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(NSLK8128, SCHWARZBECK) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATIO…

Text truncated - open the document above for the full version.

Test report Our reference : KEL03-F10053 Page : A1 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL03-F10053 Page : A2 of Appendix Issued date : 2003-11-19 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL03-F10053 Page : A3 of Appendix Issued date : 2003-11-19 Korea EMC Laboratory RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
