PYZXD403mp3 player

1 4035-MAN5060 User’s Manual Ver.1.0 S S m m a a r r t t A A u u d d i i o o P P l l a a y y e e r r Model : XD403 HANBiT Electronics Co., Ltd. http://www.hbe.co.kr 2 1. Preparations ------------------------------------------------------------2 Features ---------------------------------------------------- 4 Safety instruction ---------------------------------------- 5 Inserting battery ---------------------------------------------------- 6 Appearance --------------------------------------------------------------- 7 2. Drive installation for Windows 98 ---------------------------------------- 9 3. Basic function ----------------------------------------------------------- 12 4. Setup menu description ------------------------------------------------ 27 5. Firmware upgrade ------------------------------------------------------- 40 6. Application software ---------------------------------------------------- 48 7. Customer Support ----------------------------------------------------------- 49 Troubleshooting --------------------------------------------------------------- 50 Safety ------------------------------------------------------------------------51 Customer support and A/S ------------------------------------------------ 53 Company and website ---------------------------------------------------- 53 Accessories ------------------------------------------------------------------- 54 3 4 z USB portable memory storage device z Worldwide FM Tuner / Recorder z LCD back light and 4 line display (4 Line LCD) z Firmware upgradeable z User friendly navigation design z Direct MP3 encoding function: convert external audio files into MP3 files z 6 Band 6 EQ / User EQ mode support z Adjustable playback speed and repeat function z Line-in auto sync. function z MP3, WMA, ASF format support z Digital voice recorder z Sleep power off / Stop power off function z Sound balance function z TTS (Text to Speech) function (option) z Playlist function z 10 FM Preset / Auto-scan function z Built-In speaker z VAD (Voice Activity Detect) function z Long-lasting playback time only with a AA battery (more than 20 hours) z High-brightness LED flashlight z 5 application software : E-mail, PC Lock, Time Lock, File Lock, My-AD 5 z Don’t try to disassemble and repair the device yourself. z Don’t push two buttons at the same time or disjoint the machine. z Don’t spray or put water directly on the surface of the device for cleaning. Just smoothly wipe its surface with dry towel. Don’t use chemicals or cleaner asthey may damage its surface and color. z Don’t drop or put pressure on the device. Keep it away from a magnet or a place with strong vibration z Please contact customer service cente r when the player is wet or dropped in water. If you operate the player when it’s wet, it will cause malfunctioning. z Don’t expose to extreme temperatures (above 95F or below 23F) Don’t expose to moisture. 6 1. Slide the battery cover in the direction of arrow and open it like the picture. 2.Insert battery properly in accordance with the plus (+) and minus (-) directions. NOTE : Do not place heavy objects on the cover 3. Slide the battery cover in the direction of arrowand close it like the picture. 7 8 9 10 Please install the drive before connecting XD403 to PC. 1. Insert the installation CD into CD-ROM Drive. 2. Select Windows 98 Driver folder in the XDRUM XD403 folder in the CD. 3. Execute Win98Driver_XD403_En.exe in the folder. 4. Click “Next” button to continue and complete the installation 11 5. Restart your Computer (PC) after completing installation. 6. Connect the USB extension cable to PC’s USB port. 7. If you see “USB CONNECTED!” message on LCD screen, it’s successfully connected. Copy and paste files like a USB disk drive as shown below 12 13 ● Press and hold PLAY/STOP button to turn on / off the power. ● Lightly press PLAY/STOP button to play or stop music file. ● Push OK button in the direction of + / - to adjust VOLUME. ● Push OK button to  or  direction to play next or previous music ● Push and hold PLAY/STOP button to play fast forward or rewind. ● Press OK button on its center to select Music/Menu/Folder ● Press and hold OK button to display Setup Menu when stop playing. 14 You can easily search songs or folders in MP3 mode by using the NAVIGATION function. To use the NAVIGATION function, lightly press OK button in MP3 mode and search files by pushing the OK button toward plus (+) or minus (-) directions. Then, if you press OK button again, the song you found is selected. After selection, you can enjoy the song by pressing PLAY/STOP button. Press and hold REC/MODE button to display FUNCTION MENU. - Move between menus: pushing OK button to  or  direction. - Select Menu/Function: pressing OK button. 15 To use Repeating track function for folders or songs selected, lightly press REC/MODE button and select Repeating track options one-by-one when MP3 file is in Play or Stop mode. Repeats the whole track in the folder Repeats only one song Stops when all songs in the folder are played Deleting FILE/FOLDER function is only available when Play is stopped (in Stop mode). In NAVIGATION function, go to the file or folder you want to delete and press A-B/EQ button to display the message of ‘FILE DELETE, ARE YOU SURE?’, Upon seeing the message, push OK button to  or  direction to select YES or NO, and press the OK button to delete the file or folder selected. Before deleting a folder, data within the folder must be deleted in advance. 16 Use LOOP REPEATING function when you want to repeat a certain range of file in play. 1. Define Start point of repeat range: define start point (A point) of the repeat range for the music/voice file in play by pressing A-B/EQ button (A is displayed on the LCD screen). 2. Define End point of repeat range: press A-B/ EQ button again at the point where you want to stop REPEAT. (AÆB will be displayed on LCD screen. The defined range is repeatedly played) 3. To release REPEAT RANGE function, lightly …

Text truncated - open the document above for the full version.

Test report Our reference : KEL04-F04024 Page : B1 of Appendix Issued date : 2004-05-11 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> Korea EMC Laboratory <REAR VIEW OF EUT>

Test report Our reference : KEL04-F04024 Page : B1 of Appendix Issued date : 2004-05-11 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> Korea EMC Laboratory <REAR VIEW OF EUT>

Test report Our reference : KEL04-F04024 Page : D1 of Appendix Issued date : 2004-05-11 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample Korea EMC Laboratory

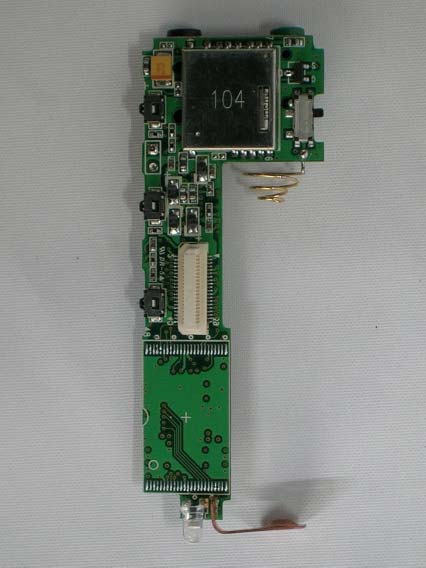

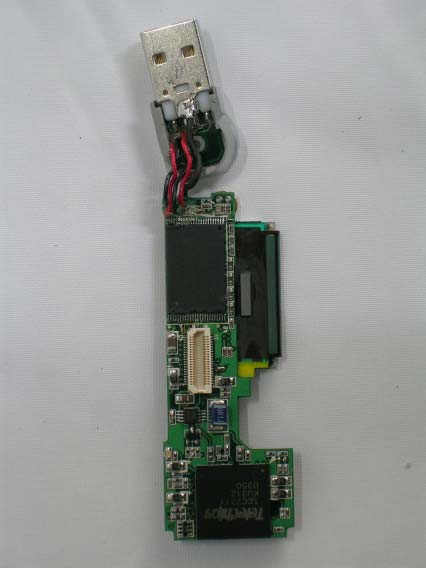

Test report Our reference : KEL04-F04024 Page : C1 of Appendix Issued date : 2004-05-11 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Korea EMC Laboratory Test report Our reference : KEL04-F04024 Page : C2 of Appendix Issued date : 2004-05-11 <FRONT VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL04-F04024 Page : C3 of Appendix Issued date : 2004-05-11 <REAR VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL04-F04024 Page : C4 of Appendix Issued date : 2004-05-11 <FRONT VIEW OF SUB BOARD> Korea EMC Laboratory Test report Our reference : KEL04-F04024 Page : C5 of Appendix Issued date : 2004-05-11 <REAR VIEW OF SUB BOARD> Korea EMC Laboratory
