Q2VBTCT5K02047PS3 BLUETOOTH CONTROLLER

PS3™ BLUETOOTH CONTROLLER INSTRUCTION MANUAL(ENGLISH) Feature: • With six-axis motion sensing technology • HOME button • Vibration Feedback Function • Built-in rechargable battery • USB charging cable included (1.2m) IMPORTANT INFORMATION: This controller features a firmware update function. If Sony releases a PS3™ firmware update that affects the function of the controller, solutions can be found on our website: www.gamestop.com Please retain this information for future reference. Basic Operation: Charging the Controller • With the system turned on (power indicator is lit green), connect the controller to the system using a USB cable. The port indicators of the controller flash slowly and charging begins. When charging has completed, the port indicators stop flashing. Please Notice: Before you use the controller for the first time, or after you have not used it for a long time, you must charge the battery. (If the controller will not be used for long periods of time, the battery should be recharged at least once every three months.) IMPORTANT: Make sure that the mini-USB plug is aligned correctly with the port before inserting into the plug to avoid damaging either the port or the plug. Recharging a battery that has not been fully discharged will shortens its life. Hints • The controller can be used while charging. Preparing for use To use this Bluetooth controller, you must first register or "pair" the controller with the PS3™ system and assign a number to the controller. Step 1: Pair the system and the controller When using the controller for the first time or when using with a different PS3™ system, you must first pair the devices. If you turn on the system and connect the controller using a USB cable, the pairing will be completed automatically. Step 2: Assign a controller number Each time you turn on the system, a number must be assigned to the controller. The controller number is shown by the number above the port indicators. For numbers 5-7, add the numbers of the lit indicators. Hints • Pairing and assigning controller numbers can only be done when the system is turned on (when the power indicator is lit solid green). • When a paired controller is used with another PS3™ system, the pairing with the original system is cleared. Pair the controller with the system again if the controller has been used with another system. • If the controller or the system is turned off, the port indicators on the controller will turn off and the assigned number will be cleared. Using the controller wirelessly If you disconnect the USB cable, you can use the controller wirelessly. To use it wirelessly, the controller’s battery must be charged. Hints • The USB cable can be connected or disconnected while the controller and the system are turned on. • If the controller does not function, press the HOME button and reassign the controller number. Battery charge level If you press and hold down the HOME button for more than two seconds, you can check the battery charge level on the screen. Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC warning Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment. Top Button Layout # Description 1 HOME button/Port indicators 2Select button 3 Left stick/L3 button 4 Directional pad 5Start button # Description 1USB port 2R1 button 3R2 button # Description 4 5 L1 button L2 button # Description 6 button 7 button 8 button 9 button 10Right stick/R3 button 9 10 5 4 6 SELECTSTART 7 3 8 SELECTSTART USB cable (supplied) Check that the system is turned on (power indicator is lit solid green). SELECTSTART USB cable (supplied) Check that the system is turned on (power indicator is lit solid green). Step 1: Pair the system and the controller. • When using for the first time • When using with a different PS3™ system Step 2: Assign a controller number. Every time the system is turned on Side View The battery has plenty of charge. The battery has started losing its charge. The battery charge level is low. The battery has no charge. The port indicators of the controller rapidly flash. Charge the controller. SELECTSTART Press the HOME button. All of the port indicators flash. When the controller has been assigned a number, the port indicators for the assigned number turn solid red. 12 34 12 34 SELECTSTART Example: Controller number 5 has been assigned. 12 34

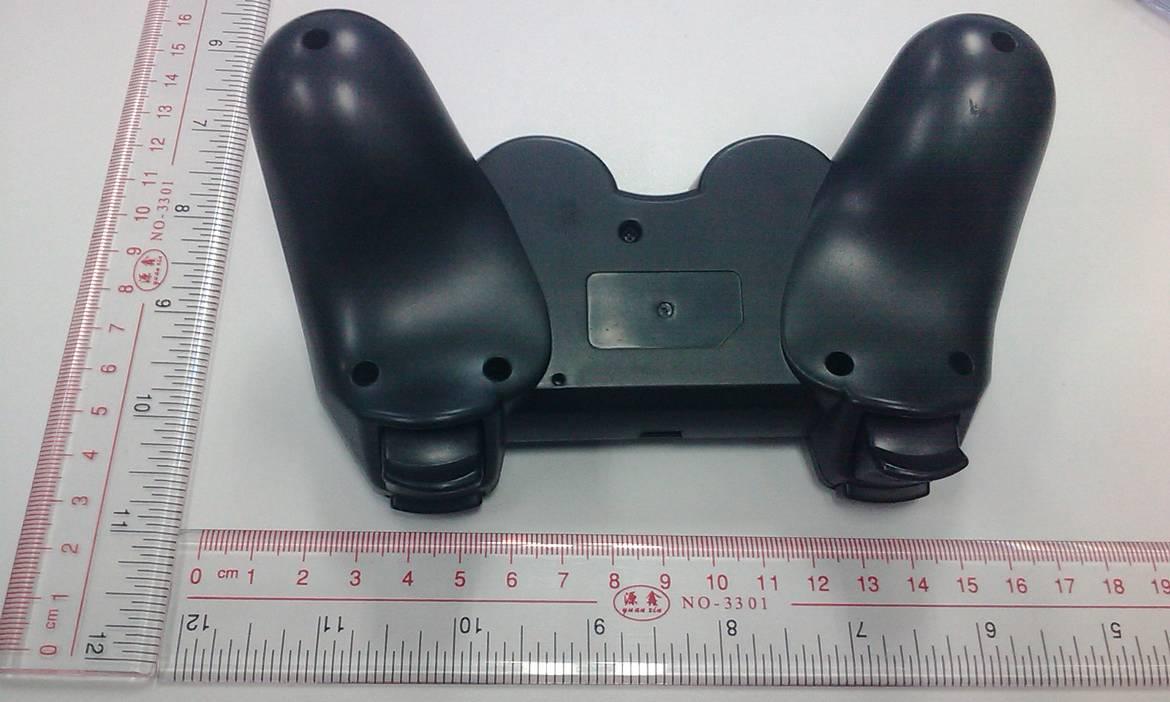

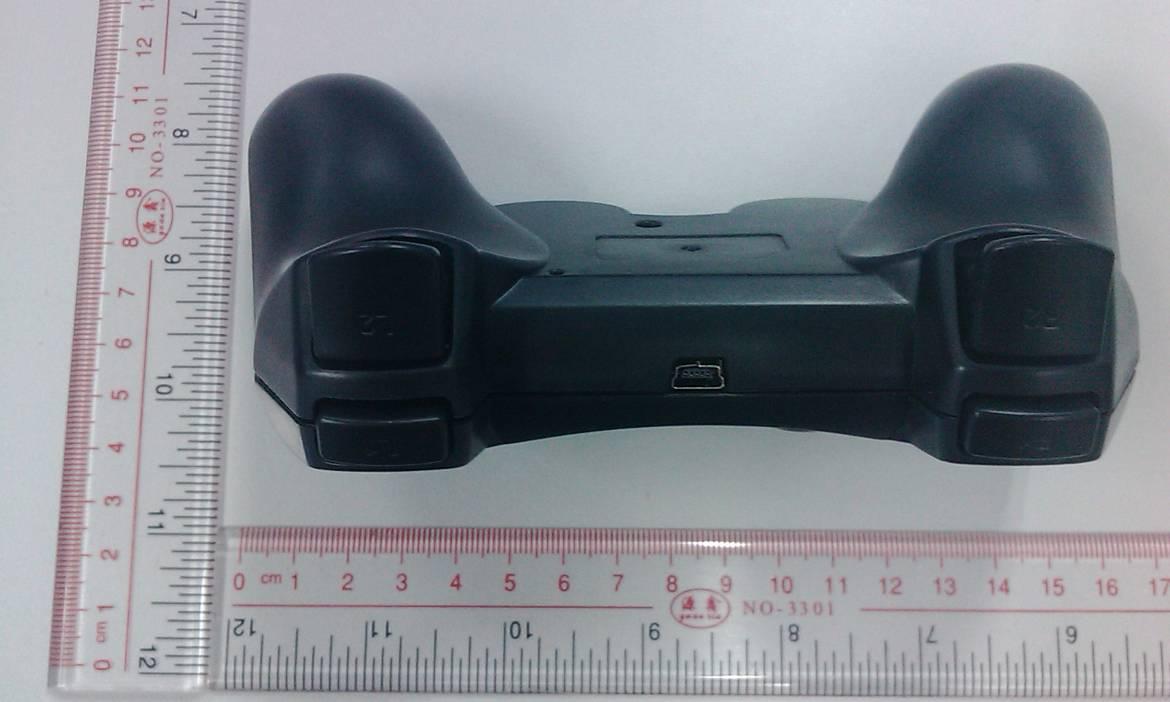

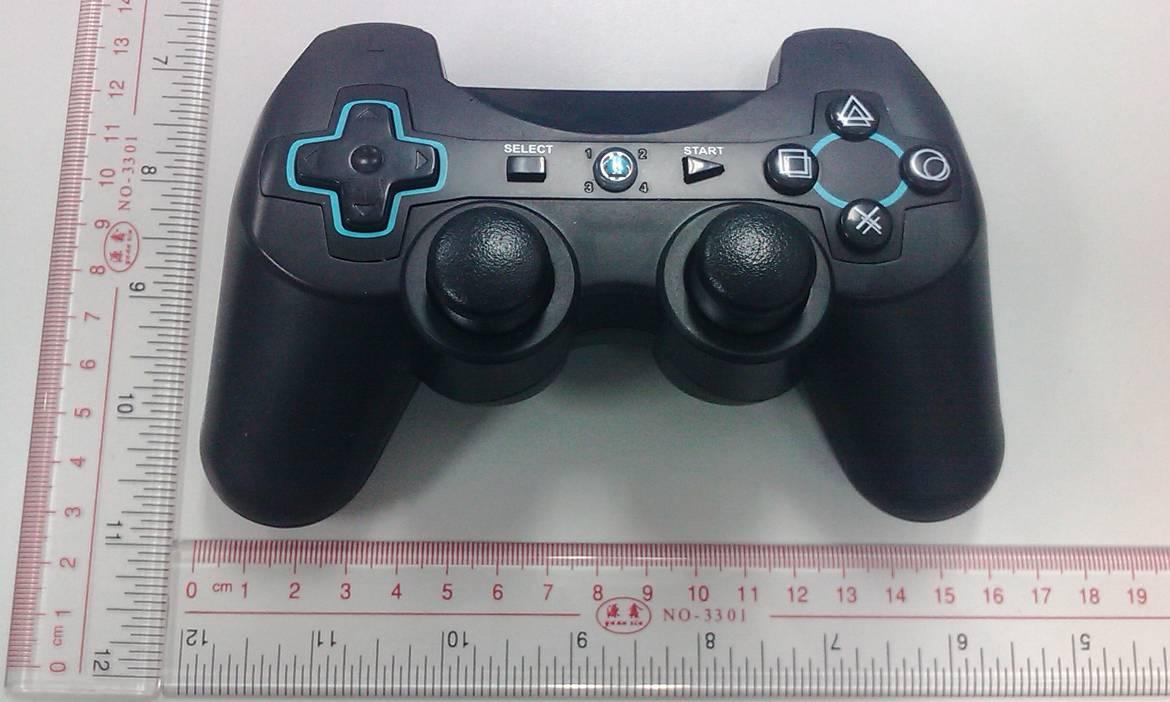

Report No.: 68.870.11.005.01F APPENDIX B – External of EUT Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Report No.: 68.870.11.005.01F APPENDIX B – External of EUT Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China.

Report No.: 68.870.11.005.01F APPENDIX C– Internal of EUT Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Report No.: 68.870.11.005.01F APPENDIX C– Internal of EUT Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Report No.: 68.870.11.005.01F APPENDIX C– Internal of EUT Page 3 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Report No.: 68.870.11.005.01F APPENDIX C– Internal of EUT Page 4 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China.

5.0 RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a portable device according to OET Bulletin 65, Edition 01-01, therefore SAR evaluation is under taken. Frequency Band:2.402GHz ~2.480GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power0.0395mW Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation Limit: SAR requirement ( general population ): 60/fGHmW for d<2.5cm = 60/2.4mW = 25mW. Conclusion: -No SAR evaluation required since the transmitter power is below FCC threshold.

TEST REPORT Date: 2011-10-24 Report No.: 68.870.11.005.01F Page 1 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Applicant: MAXWISE Production Enterprise Ltd. Room 1501, 15/F., AT Tower, 180 Electric Road, North Point, Hong Kong Description of Samples:Model name: PS3 BLUETOOTH CONTROLLER Brand name: --- Model no.: 5K02047MW, P-0105760, 155273, 233467 FCCID: Q2VBTCT5K02047 Date Samples Received:2011-10-08 Date Tested:2011-10-08 to 2011-10-20 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- John ZhiNicolas Cheng Project EngineerProject Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 68.870.11.005.01F Page 2 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. CONTENT: Cover Page 1 of 29 Content Page 2-3 of 29 1.0General Details 1.1Test Laboratory Page 4 of 29 1.2Applicant Details Page 4 of 29 1.3Equipment Under Test [EUT] Page 5 of 29 1.4 Related Submittal(s) Grants Page 5 of 29 2.0Technical Details 2.1Investigations Requested Page 6 of 29 2.2Test Standards and Results Summary Page 6 of 29 3.0Test Methodology 3.1Radiated Emission Page 7 of 29 3.2Field Strength Calculation Page 7 of 29 3.3Conducted Emission Page 7 of 29 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 29 4.2 20dB Bandwidth Measurement Page 9-10 of 29 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 29 4.4 Average Time of Occupancy Page 12 of 29 4.5 Pseudorandom Hopping Algorithm Page 13 of 29 4.6 Band Edge Measurement Page 14-15 of 29 4.7 Maximum Output Power Page 16-17 of 29 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 18-24 of 29 4.9 Conducted Emission on AC Mains Page 25-28 of 29 Report No.: 68.870.11.005.01F Page 3 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. 5.0List of Measurement Equipments Page 29 of 29 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 68.870.11.005.01F Page 4 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. 1.0General Details 1.1Test Laboratory SEM.Test Compliance Services Co., Ltd. EMC Laboratoryregistered by FCC with FCC Registration Number:994117 Test By˖ Susan Su 1.2Applicant Details Applicant MAXWISE Production Enterprise Ltd. Kong Room 1501, 15/F., AT Tower, 180 Electric Road, North Point, Hong Kong Manufacturer MAXWISE Production Enterprise Ltd. No.1 Henghai Road, South District, Zhongshan, Guangdong,China Report No.: 68.870.11.005.01F Page 5 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. 1.3Equipment Under Test [EUT] Description of EUT Product Description: PS3 BLUETOOTH CONTROLLER Model No.: 5K02047MWˈ P-0105760, 155273, 233467 Brand Name: Nil FCCID: Q2VBTCT5K02047 Rating:DC 3.6V, LTT-AAA700mAh 3.6V NI-MH USB 5V for Charging Antenna Type:Integral Operated Frequency:2402 -2480 MHz No. of Channel:79 Accessories and Auxiliary Equipments:PC (Manufacture: Lenovo) General Operation of EUT The Equipment Under Test (EUT) is a transmitterofPS3 bluetooth controlleroperated at2.4GHz;it takes digital signal to the PC. This EUT is designed for portable used, as it is powered by Li-ion chargeable battery only, and the USB jack at the side panel of EUT is for charging input, it cannot share data information with computer. As per Client Declaration, the circuit design, PCB Layout, shielding and interface of 5K02047MW with other models of P-0105760, 155273, 233467 are the same, they only differ in cosmetic only. So we use 5K02047MW as a representative model to perform all testing. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 79 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. Report No.: 68.870.11.005.01F Page 6 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2009 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) See note 1 Antenna RequirementSection 15.203 See note 2 Note 1 : Since this EUT is not a portable product it is deemed to fulfill this requirement without conducting SAR measurement. Note 2 : The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 68.870.11.005.01F Page 7 of 29 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square,…

Text truncated - open the document above for the full version.

Report No.: 68.870.11.005.01F APPENDIX A – Photos of Test Setup Page 1 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Conducted Emission (150kHz to 30MHz) Radiated Emission (Below 1GHz) Report No.: 68.870.11.005.01F APPENDIX A – Photos of Test Setup Page 2 of 2 TÜV SÜD China. 6thFloor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen, China. Radiated Emission (Above 1GHz)
