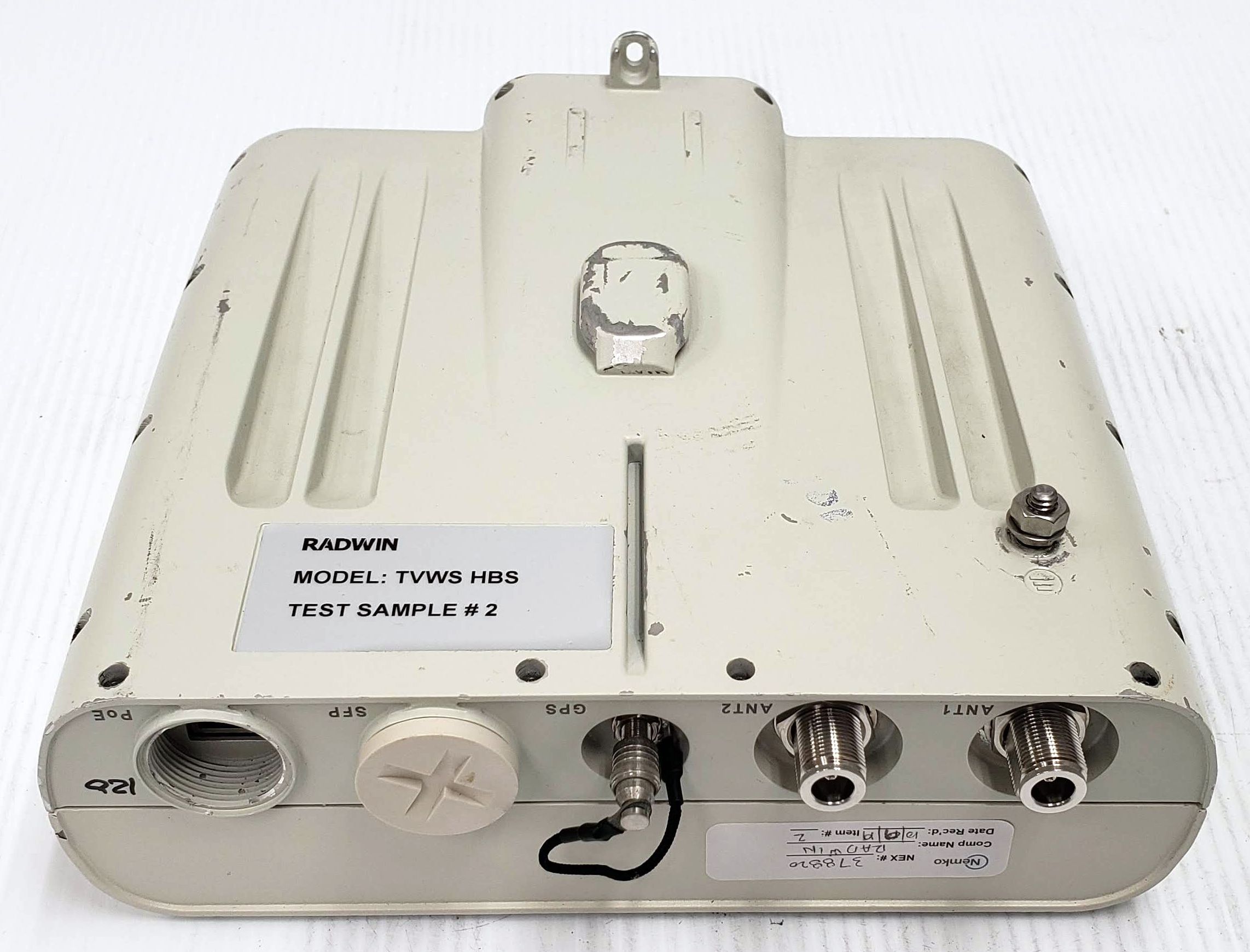

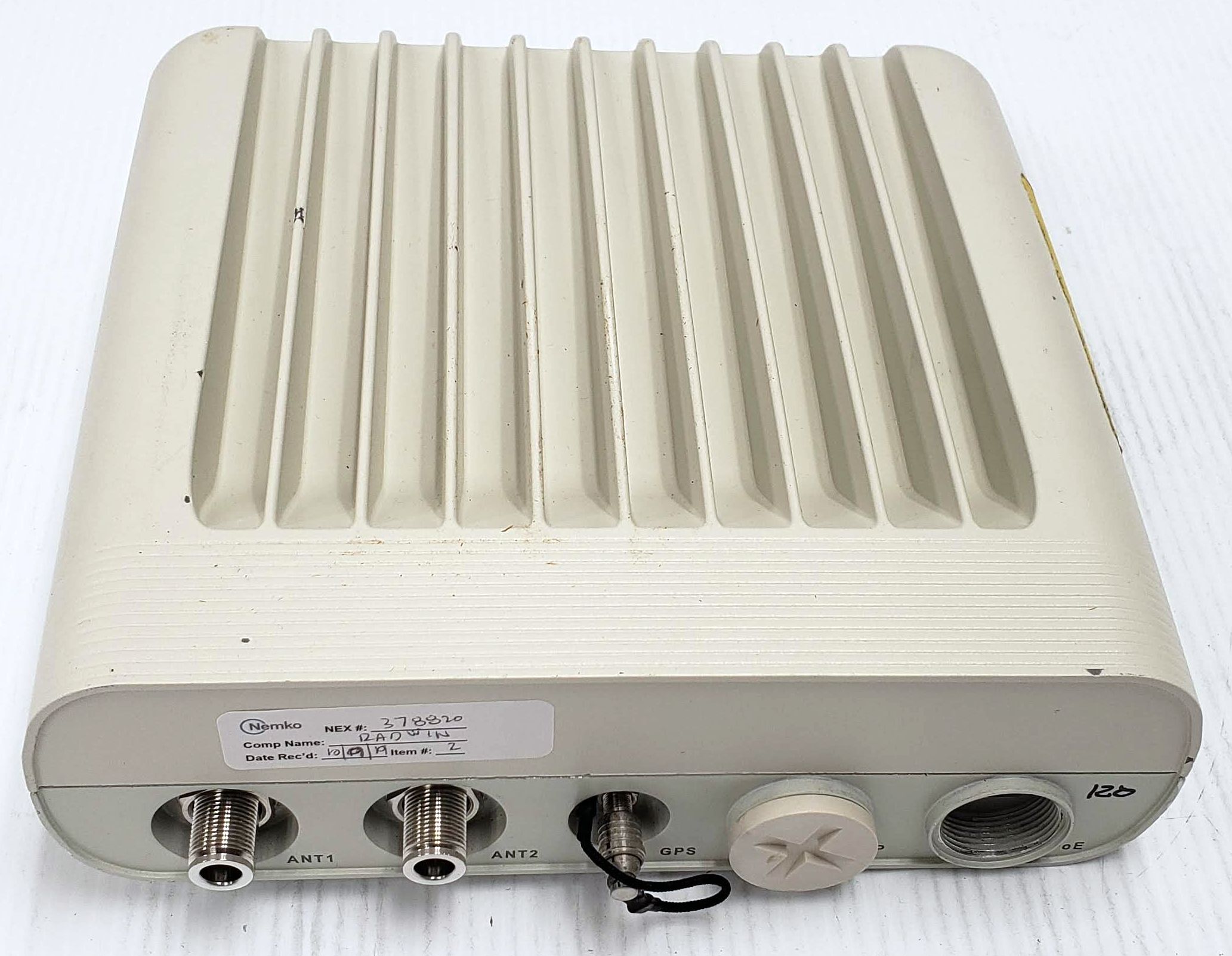

Q3K-500TVWSBSTV White Space Base Station

INSTALLATION GUIDE RADWIN TV WHITE SPACE Release 1.0 FOR REGULATORY USES ONLY TV White Space Installation GuideRelease 1.01‐1 Table of Contents Chapter 1: Introduction 1.1 Scope of This Document...................................................................................................... 1‐1 1.2 RADWIN TV White Space Overview .................................................................................... 1‐1 1.2.1 Radio Units..................................................................................................................1-1 1.2.2 Method of Work..........................................................................................................1-3 1.2.3 Management Tools .....................................................................................................1-4 1.3 Key features of TV White Space .......................................................................................... 1‐4 1.4 What’s New in Release 1.0.................................................................................................. 1‐5 1.5 Notifications........................................................................................................................ 1‐5 Chapter 2: Installation Steps 2.1 Prepare Laptop.................................................................................................................... 2‐2 2.2 Connect Laptop to Radio Unit............................................................................................. 2‐2 2.2.1 TV White Space HBS Units...........................................................................................2-3 2.2.2 TV White Space SU Units.............................................................................................2-3 2.3 Update Connectivity Parameters of Radio Unit ................................................................. 2‐4 2.3.1 HBS Units.....................................................................................................................2-4 2.3.2 SU Units.......................................................................................................................2-5 2.4 Check items to be installed ................................................................................................. 2‐5 2.5 Prepare Tools ...................................................................................................................... 2‐6 2.6 Mount the HBS.................................................................................................................... 2‐6 2.6.1 Mounting the HBS with its antenn a ... .........................................................................2-6 2.6.2 Mounting the HBS adjacent to its antenna.................................................................2-7 2.7 Connect HBS antenna.......................................................................................................... 2‐7 2.8 Install SU Mounting Kit........................................................................................................ 2‐9 2.8.1 Standard Mounting Kit................................................................................................2-9 2.8.2 Vertical Pole ..............................................................................................................2-10 2.8.3 Horizontal Pole..........................................................................................................2-12 2.8.4 Wall...........................................................................................................................2-12 2.9 Mounting the SU ............................................................................................................... 2‐13 2.10 Ground Radio Unit........................................................................................................... 2‐13 2.10.1 HBS Units.................................................................................................................2-13 2.10.2 SU Units...................................................................................................................2-14 2.11 Mounting the Lightning P rotection Units........................................................................ 2‐14 2.12 Waterproofing................................................................................................................. 2‐17 2.13 Connect Radio (External Connections)............................................................................ 2‐18 2.13.1 HBS Units.................................................................................................................2-18 2.13.2 SU Units...................................................................................................................2-19 2.14 Check Connectivity to Radio............................................................................................ 2‐19 2.15 Request (and receive) permitted frequencies................................................................. 2‐20 2.16 Activate HBS.................................................................................................................... 2‐20 2.17 Align SU Unit ................................................................................................................... 2‐21 Chapter 3: Safety Practices and Provisions 3.1 Scope of this Chapter .......................................................................................................... 3‐1 3.1.1 Preventing Overexposure to RF Energy.......................................................................3-1 3.1.2 Grounding ...................................................................................................................3-1 3.1.3 Protection against Lightning.......................................................................................3-1 3.1.4 General.............................................................................................…

Text truncated - open the document above for the full version.

Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: Q3K-500TVWSBS Model: TVWS BS EXT Request for Permanent Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the Commission’s rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Bill of Materials  Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated: 1/9/2020 Signed: Printed name: Shlomo Weiss Title: Standardization Officer On behalf of: Radwin, Ltd.

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Tom Tidwell of Nemko USA, Inc. at 2648 FM 407, Suite 200, Bartonville, TX 76226 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Radwin, Ltd. Dated: 1/9/2020 Agency agreement expiration date: 1/8/2021 Sincerely, Shlomo Weiss Standardization Officer

LABEL AND LABEL LOCATION Label Artwork Label Location

TVWS BS EXT INTERNL PHOTOS Photo 1: Internal Assembly View Photo 2: PCB P.S. view Photo 3: PCB P.S. view with shields off Photo 4: PCB C.S. view Photo 5: PCB C.S. view with heatsink off

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at device output terminal:24.09dBm Cable and Jumper loss:0.3dB Maximum peak output power at antenna input terminal:23.79dBm 239.3315756mW Single Antenna gain (typical):12.8dBi Number of Antennae:1 Total Antenna gain (typical):12.8dBi 19.05460718(numeric) Prediction distance:30cm Prediction frequency:662MHz MPE limit for uncontrolled exposure at prediction frequency:0.441333333mW/cm 2 Power density at prediction frequency:0.403225 mW/cm 2 4.032252W/m 2 Tx On time:1.000000ms Tx period time:1.000000ms Average Factor:100.000000% Average Power density at prediction frequency:4.032252W/m 2 Maximum allowable antenna gain:13.19219104dBi Margin of Compliance:0.392191038dB 2 4R PG S   Choose Scandinavian trust

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15 H Date: March 2016 MRA il ac SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust Wireless test report – 376028-4TRFWL Type of assessment: Original Certification Applicant: RADWIN Ltd. Description of product as marketed: Television Band Device (TVBD) Model (BS): Model number variant (BS): FCC ID (BS): TVWS BS EXT RW-5PG5-02WS Q3K-500TVWSBS Model (CPE): Model number variant (CPE): FCC ID (CPE): TVWS SU INT RW-5HA0-0PWS Q3K-500TVWSSU Test Standard Specification: FCC 47 CFR Part 15 Subpart H, §15.713 White Space devices; White space database. Date of issue: December 10, 2019 Andrey Adelberg, Senior Wireless/EMC Specialist Test engineer(s) Signature Kevin Rose, Wireless/EMC Specialist Reviewed by Signature Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 2 of 56 Test location Company name Nemko Canada Inc. Address 303 River Road City Ottawa Province Ontario Postal code K1V 1H2 Country Canada Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Site number FCC: CA2040; (3 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 3 of 56 Table of contents Table of contents ......................................................................................................................................... 3 Section 1. Report summary ........................................................................................................................ 5 1.1 Applicant and manufacturer ......................................................................................................................... 5 1.2 Test specifications ......................................................................................................................................... 5 1.3 Test methods ................................................................................................................................................ 5 1.4 Statement of compliance .............................................................................................................................. 5 1.5 Exclusions ...................................................................................................................................................... 5 1.6 Test report revision history .......................................................................................................................... 5 Section 2. Summary of test results ............................................................................................................. 6 2.1 FCC Part 15 Subpart H test results ................................................................................................................ 6 Section 3. Equipment under test (EUT) details ............................................................................................ 7 3.1 Sample information ...................................................................................................................................... 7 3.2 EUT information ............................................................................................................................................ 7 3.3 Technical information ................................................................................................................................... 7 3.4 Product description and theory of operation ............................................................................................... 7 3.5 Database information ................................................................................................................................... 7 Section 4. Engineering considerations ........................................................................................................ 8 4.1 Modifications incorporated in the EUT ........................................................................................................ 8 4.2 Technical judgment....................................................................................................................................... 8 4.3 Deviations from laboratory tests procedures ............................................................................................... 8 Section 5. Test conditions .......................................................................................................................... 9 5.1 Atmospheric conditions ................................................................................................................................ 9 5.2 Power supply range ...................................................................................................................................... 9 Section 6. Measurement uncertainty .............................................................…

Text truncated - open the document above for the full version.

Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 41 of 56 8.19.4 Test data Figure 8.19-1: Received channel list for coordinates set in scenarios (a) and (b). DCA channel 18 at location coordinates 38.4N, 86.5W Figure 8.19-2: Received channel list for coordinates set in scenarios (a) and (b). DRT channel 33 at location coordinates 39.8N, 80.0W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 42 of 56 Figure 8.19-3: Received channel list for coordinates set in scenarios (a) and (b). DTS channel 32 at location coordinates 35.66N, 114.0W Figure 8.19-4: Received channel list for coordinates set in scenarios (a) and (b). DTV channels 22 and 36 at location coordinate 33.0N, 115.3W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 43 of 56 Figure 8.19-5: Received channel list for coordinates set in scenario (a) and (b). LPA channel 27 at location coordinates 33.7N, 113.8W Figure 8.19-6: Received channel list for coordinates set in scenario (a) and (b). LPD channel 11 (outside operational band of the EUT) at location coordinates 48.0N, 111.0W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 44 of 56 Figure 8.19-7: Received channel list for coordinates set in scenario (a) and (b). LPT channel 27 and TV receive site channel 11 (outside operational band of the EUT) at location coordinates 48.87N, 111.19W Figure 8.19-8: Received channel list for coordinates set in scenario (a) and (b). LPX channels 24, 26, 29, 31 and 33 at location coordinates 33N, 114.3W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 45 of 56 Figure 8.19-9: Received channel list for coordinates set in scenario (a) and (b). MVPD channel 26 at location coordinates 34.0N, 113.0W Figure 8.19-10: Received channel list for coordinates set in scenario (c). Fixed BAS link channel 36 at location coordinates 33.2N, 112.0W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 46 of 56 Figure 8.19-11: Received channel list for coordinates set in scenario (d). PLMRS/CMRS operations channel 16 at location coordinates 36.1N, 117.9W Figure 8.19-12: Received channel list for coordinates set in scenario (e). Offshore radiotelephone on channel 15 at location coordinates 28.6N, 97.1W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 47 of 56 Figure 8.19-13: Received channel list for coordinates set in scenario (g). Mexico border at location coordinates 31.35N, 111.0W Figure 8.19-14: Channel availability for coordinates set in scenario (g) from Nominet. Mexico border at 31.35N, 111.0W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 48 of 56 Figure 8.19-15: Received channel list for coordinates set in scenario (g). Canada border at location coordinates 48.98N, 111.0W Figure 8.19-16: Channel availability for coordinates set in scenario (g) from Nominet. Canada border at 48.98N, 111.0W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 49 of 56 Figure 8.19-17: Received channel list for coordinates set in scenario (h). Radio astronomy services on channel 37 at location coordinates 30.5N, 103.8W Figure 8.19-18: Received channel list for coordinates set in scenario (i). 600 MHz service band on channels 39–42, 47–50 at location coordinates 42.3N, 85.7W Section 8 Testing data Test name FCC 15.712 Interference protection requirements (Fixed and personal/portable) Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 50 of 56 Figure 8.19-19: Received channel list for coordinates set in scenario (k). 488–494 MHz band in Hawaii channel 17 at location coordinates 21.5N, 158.0W Section 8 Testing data Test name FCC 15.711(c)(2)(ii), (d)(3), 15.715(e) Fixed and Mode II Power level reduction Specification FCC Part 15 Subpart H Report reference ID: Applicant: Models: 378820-4TRFWL RADWIN Inc. TVWS BS EXT; TVWS SU INT Page 51 of 56 8.20 FCC 15.711(c)(2)(ii), (d)(3), 15.715(e) Fixed and Mode II Power level reduction 8.20.1 Definitions and limits Using system management software, make a channel availability request to the database. Using the spectrum analyzer, confirm that the WSD operates at no more than the maximum power level indicated by the database and that the power level cannot be set to a higher level than indicated by the database at that specific location. If the device cannot red…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15 Subpart H and RSS-222.docx; Date: September 2015 MRA il ac SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust Wireless test report – 378820-1TRFWL Type of assessment: Original Certification Applicant: RADWIN Ltd. Description of product as marketed: Television Band Device (TVBD) Model: Model variant: TVWS BS EXT RW-5PG5-02WS FCC ID: Q3K-500TVWSBS Test Standard Specification:  FCC 47 CFR Part 15 Subpart H – RF testing only Television Band Devices Date of issue: December 10, 2019 Andrey Adelberg, Senior Wireless/EMC Specialist Test engineer(s) Signature Kevin Rose, Wireless/EMC Specialist Reviewed by Signature Report reference ID: Applicant: Model: 378820-1TRFWL RADWIN Ltd. TVWS BS EXT Page 2 of 39 Test location Company name Nemko Canada Inc. Facility Name Ottawa Address 303 River Road City Ottawa Province ON Postal code K1V 1H2 Country Canada Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Site number FCC: CA2040; (3 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: Applicant: Model: 378820-1TRFWL RADWIN Ltd. TVWS BS EXT Page 3 of 39 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer .................................................................................................................................................................................... 4 1.2 Test standard specification ....................................................................................................................................................................................... 4 1.3 Test procedures ........................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15, general requirements test results ........................................................................................................................................................ 5 2.2 FCC Part 15 Subpart H, test results ........................................................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 EUT exercise details .................................................................................................................................................................................................. 6 3.6 EUT setup diagram ................................................................................................…

Text truncated - open the document above for the full version.
