Q3K-5XACMODMS5 GHz MS RF Module

AP0260210 5 GHz MS RF Module REFERENCE GUIDE Regulatory Compliance FCC/ISED - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and ISED RSS standards. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204 and ISED RSS standards. Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC partie 47 CFR 15.204 et ISDE normes RSS. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial Caution liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. AP0260210 Reference Guide i Warning Avertissement Les unités extérieures et les antennes doivent être installés que par des professionnels expérimentés d'installation qui sont familiers avec les normes locales et les codes de sécurité et, si applicable, sont agréées par les autorités gouvernementales de réglementation compétents. Ne pas le faire peut annuler la garantie du produit et peuvent exposer l'utilisateur final ou le fournisseur de services d'obligations juridiques et financiers. Revendeurs ou distributeurs de ces équipements ne sont pas responsables des blessures, des dommages ou violation des règlements liés à l'installation des unités extérieures ou des antennes. L'installateur doit configurer le niveau de puissance de sortie des antennes conformément aux réglementations nationales et le type d'antenne. Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 201 cm from all persons Les antennes utilisées pour cet émetteur doivent être installées de manière à fournir une distance de séparation d'au moins 145 cm par rapport à toutes les personnes The module is granted to operate under FCC certification in the 5.1/5.8 GHz bands. Warning Le module est autorisé à fonctionner sous certification ISDE dans les bandes 5,8 GHz. Avertissement This device complies with Part 15 of the FCC rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme la norme d’Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d’interférences, et 2. Cet appareil doit accepter toute 3nterference, y compris les 3nterferences qui peuvent causer un mauvais fonctionnement de l’appareil. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada AP0260210 Reference Guide ii Prudence Avertissement Overview The AP0260210 is an RF module operating in the 5.1 and 5.8 GHz frequency bands. It is a TDD OFDM radio supporting 20 MHz, 40 MHz and 80 MHz channel bandwidths. It is a 2x2 MIMO transceiver, with two RF interfaces capable of toggling between them. The MS RF module cannot work as a stand-alone device. It can operate and be controlled only when installed in a host enclosure manufactured by RADWIN. The MS RF module is certified as a limited modular approval type under the FCC ID: Q3K- 5XACMODMS. It is also certified under IC: 5100A-5XACMODMS for 5.8 GHz band. Condition of Use The AP0260210 MS RF module is a proprietary radio interface and can only be connected to digital boards manufactured by RADWIN. The MS RF module is not for sale to the general public or for installation in hosts not manufactured by RADWIN. FCC rules and ISED Regulation Restrictions The host firmware is factory programmed to operate under the FCC rules and ISED regulation restrictions. The firmware is locked and inaccessible by any third party. As a result of the above the user interface allows both the installer and the user to control the host only within the boundar…

Text truncated - open the document above for the full version.

RDWN71 AP0260210 FCC Restr Config Cntl Attstn Rev1.1.docx Date: August 11, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Restriction Configuration Control Attestation for FCC ID: Q3K-5XACMODMS. To Whom It May Concern: RADWIN Ltd. attests that the software used in conjunction with the radio module model AP0260210 conforms to the requirements of the FCC’s “SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES” specified in 594280 D02 U-NII Device Security v01r03 and KDB 442812 D01 SDR Apps Guide v02r03 under the SDR rules when installed in any RADWIN manufactured host. We have submitted separate documentation to the FCC outlining the software security features. Furthermore that the software used in conjunction with the radio module model AP0260210 cannot be modified by any third party in any way that causes the AP0260210 to operate in violation of the limits of the FCC GRANT OF EQUIPMENT AUTHORIZATION for FCC ID: Q3K-5XACMODMS. Sincerely Yours, Name: Shlomo Weiss Date: August 11, 2020 Title: Standardization Officer RADWIN Ltd. Phone: +972-3-7662988 Fax: +972-3-7662902 Email: [email protected]

RDWN71 AP0260210SW Config Cntl Declaration Rev1.1.docx FCC Software Configuration Control Declaration Date: August 10, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: 5 GHz MS RF Module / AP0260210 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Shlomo Weiss Date: August 10, 2020 Title: Standardization Officer Signature of applicant

Agent Authorization Company: RADWIN Ltd. Address: 27 Habarzel Street Tel Aviv, 6971039 Israel Product Name: 5 GHz MS RF Module Model Number(s): AP0260210 Product Description: 5 GHz MS RF Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: August 8, 2020 Name: Shlomo Weiss Title: Standardization Officer Company: RADWIN Ltd.

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 15, 2020 Subject; Request for Confidentiality FCC ID: Q3K-5XACMODMS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Additionally the device is not accessible to users being installed in hosts manufactured only by RADWIN and hosts being mounted on antenna towers. Schematic Diagram Block Diagram Parts List Operational Description Security Descriptions Internal Photos In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shlomo Weiss Title: Standardization Officer

FCC Request Date: August 9, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: 5 GHz MS RF Module / AP0260210 FCC ID: Q3K-5XACMODMS To whom it may concern; The enclosed documents constitute a formal submittal and application for Equipment Authorization for a software defined radio pursuant to the following rules; Subpart E of Part 15 of FCC rules (CFR 47) UNII devices The device is a 5 GHz MS RF Module The application is seeking approval as a software defined radio. Name: Shlomo Weiss Date: August 9, 2020 Title: Standardization Officer Signature of applicant

FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 9, 2020 Subject; Modular Transmitter Application Company name: RADWIN Ltd. FCC ID: Q3K-5XACMODMS Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: Q3K-5XACMODMS has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The module has its own RF shielding as shown in the presented in the photo at the end of this document. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. The module is based on Atheros chipset which provides the buffering and data/modulation. The module must contain power supply regulation on the module. The module certification type is LMA but nevertheless it has on-board regulators for power supply as seen in the schematics page 5. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The module is supplied with unique antenna connector. The module is installed into the host at RADWIN’s production line with the unique antenna cabling and connectors, as tested. Only the RADWIN antennas detailed in the manual are marketed with the module. The final installation of the host is done only by professional installers trained by RADWIN representatives. The module must demonstrate compliance in a stand-alone configuration. The unit was tested in a stand-alone configuration. The test was performed in an enclosure with the module attached to a digital board representing typical RADWIN host configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The module will be labeled with the FCC ID: Q3K-5XACMODMS as shown in the photo at the end of this document. The host into which FCC Modular Approval Request Rev 3.0 the module is installed will also display a label referring to the enclosed module: “Contains FCC ID: Q3K-5XACMODMS”. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The module was tested for compliance to FCC rule Part 15 subpart E. The integration of the module is done by RADWIN and there is no access to RADWIN manufactured device by third party. The module must comply with RF exposure requirements The module complies with RF exposure requirements as shown in the MPE documents Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules 5 2.3 Summarize the specific operational use conditions 5 2.4 Limited module procedures 4 2.5 Trace antenna designs Not Applicable 2.6 RF exposure considerations 3 2.7 Antennas 5 2.8 Label and compliance information 6 2.9 Information on test modes and additional testing requirements Not Applicable 2.10 Additional testing, Part 15 Subpart B disclaimer Not Applicable Name: Shlomo Weiss Date: August 9, 2020 Title: Standardization Officer Signature of applicant

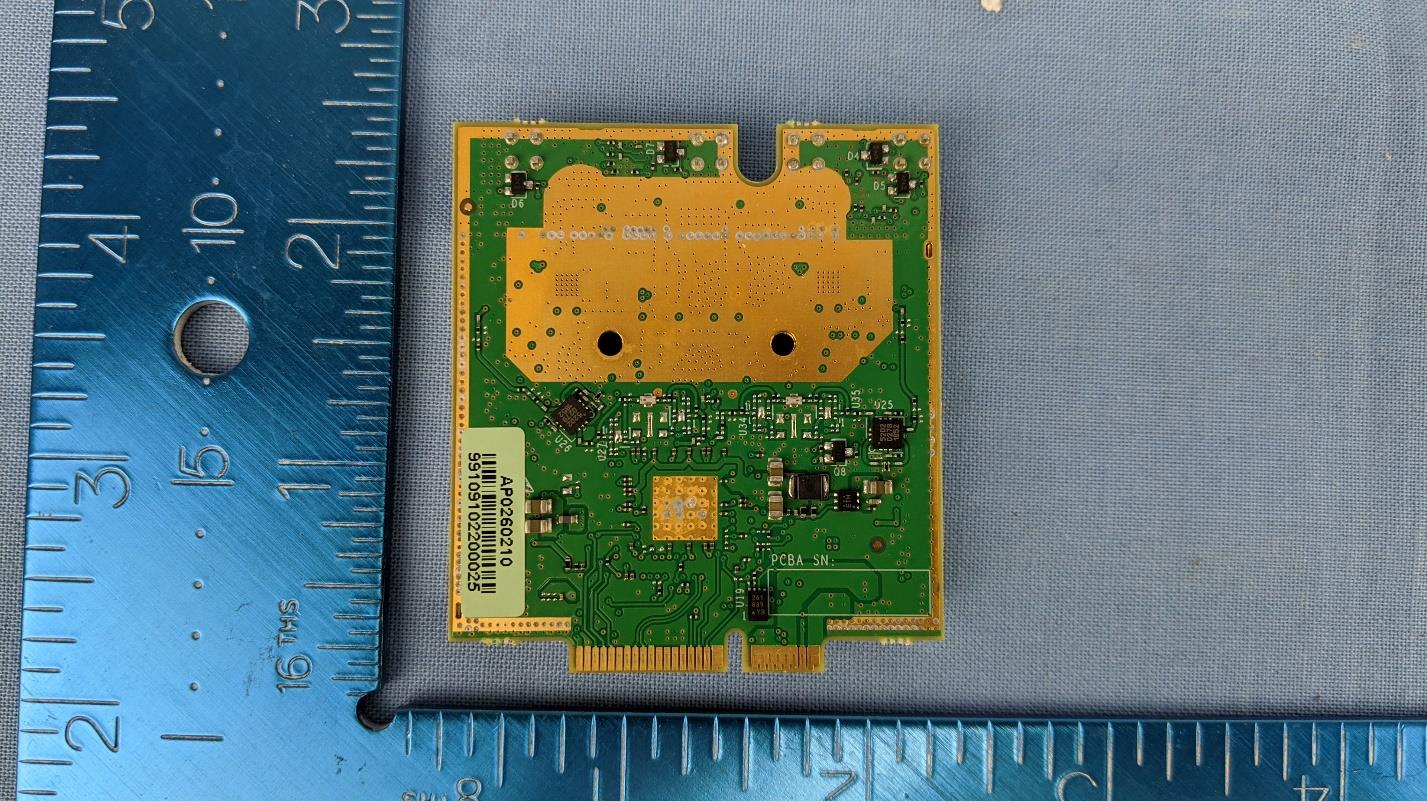

PHOTOS - EXTERNAL Company: Radwin Ltd. Product Name: AP0260210 Module Report No.: RDWN71 – External Photos Title: RDWN71 AP0260210 External Photos To: Serial #: Issue Date: 28 July 2020 Page: 2 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. External Photographs 1.1.1. Product - External Module Top View Title: RDWN71 AP0260210 External Photos To: Serial #: Issue Date: 28 July 2020 Page: 3 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Module Bottom View 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

LABEL AND LOCATION Photo #1: Label Artwork Photo #2: Label Location on RF Module

MPE/RF EXPOSURE REPORT FCC CFR 47 Part 1.1310 Report No.: RDWN71-U2 MPE FCC Rev A Company: Radwin Ltd. Model: AP0260210 MPE/RF EXPOSURE REPORT FROM Evaluation of: AP0260210 To: FCC CFR 47 Part 1.1310 Report Serial No.: RDWN71-U2 MPE FCC Rev A This report supersedes: NONE Applicant: Radwin Ltd. 27 Habarzel Street Tel Aviv, 6971039 Israel Issue Date: 26th August 2020 This Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 1.1310 Serial #: RDWN71 MPE FCC Rev A Issue Date: 26th August 2020 Page: 3 of 6 This report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. MAXIMUM PERMISSABLE EXPOSURE Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4*π*d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Equipment is professional installation subject to Radiation Exposure limits for Occupational/Controlled Exposure per FCC CFR 47 §1.1310(e)(1) Table 1 to Limits for Maximum Permissible Exposure (MPE). These calculations represent worst case in terms of the exposure levels. Point to Point operation exposure was assessed for lowest and highest directional antenna gains (15dBi and 31dBi). 1.1 Evaluation for each band. Point to Multi Point Operation Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 20cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance Point to Multi-Point 5150.0 - 5250.0 10.00 10.00 25.98 396.28 0.788 5.00 7.94 5.00 5725.0 - 5850.0 10.00 10.00 25.97 395.37 0.787 5.00 7.73 5.00 Note1: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Point to Point Operation 15dBi antenna Calculated minimum safe distance = 22 cm Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 22cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance Point to Point 5150.0 - 5250.0 15.00 31.62 29.39 868.96 4.518 5.00 20.91 5.00 5725.0 - 5850.0 15.00 31.62 29.79 952.80 4.954 5.00 21.90 5.00 Point to Point Operation 31dBi antenna Calculated minimum safe distance = 142 cm Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 142cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance Point to Point 5150.0 - 5250.0 31.00 1258.93 30.0 1000.0 4.968 5.00 142.0 5.00 5725.0 - 5850.0 31.00 1258.93 30.0 1000.0 4.968 5.00 142.0 5.00 Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 1.1310 Serial #: RDWN71 MPE FCC Rev A Issue Date: 26th August 2020 Page: 4 of 6 This report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1.2 Assessments for simultaneous operation Point to Multipoint Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance for Summation (cm) Power Density Limit (mW/cm 2 ) E ref Power Density (mW/cm 2 ) E i Summation E i /E ref 5150-5250 10.0 10.00 25.98 396.28 20 5.00 0.788 0.1576 5725-5850 10.0 10.00 25.97 395.37 20 5.00 0.787 0.1574 Total Evaluation: 0.315 The Total Evaluation was calculated using the formula: Where Ei: calculated E-field Strength for transmitter Eref: E-field strength related limit Note1: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Point to Point Operation 15dBi antenna Calculated minimum safe distance = 31 cm Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance for Summation (cm) Power Density Limit (mW/cm 2 ) E ref Power Density (mW/cm 2 ) @Calc Safe Distance E i Summation E i /E ref 5150-5250 15.0 31.62 29.39 868.96 31 5.00 2.276 0.4552 5725-5850 15.0 31.62 29.79 952.80 31 5.00 2.495 0.4990 Total Evaluation: 0.954 The Total Evaluation was calculated using the formula: Where Ei: calculated E-field Strength for transmitter Eref: E-field strength related limit Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 1.1310 Serial #: RDWN71 MPE FCC Rev A Issue Date: 26th August 2020 Page: 5 of 6 This report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Assessment for simultaneous operation Point to Point Operation 31dBi antenna Calculated minimum safe distance = 201 cm Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance for Summation (cm) Power Density Limit (mW/cm 2 ) E ref Power Density (mW/cm 2 ) @Calc Safe Distance E i Summation E i /E ref 5150-5250 31.00 1258.93 30.0 1000.0 201 5 2.480 0.496 5725-5850 31.00 …

Text truncated - open the document above for the full version.

REGULATORY COMPLIANCE TEST REPORT FCC CFR 47 Pt 15.407 Report No.: RDWN71-U2 Master Rev A Company: Radwin Ltd. Model: AP0260210 MASTER TEST REPORT FROM Test of: AP0260210 To: FCC CFR 47 Part 15 Subpart E 15.407 Test Report Serial No.: RDWN71-U2 Master Rev A This report supersedes: NONE Applicant: Radwin Ltd. 27 Habarzel Street Tel Aviv, 6971039 Israel Issue Date: 26th August 2020 Master Document Number Addendum Reports RDWN71-U2 Master RDWN71-U2 Conducted RDWN71-U2 Radiated This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 15.407 Serial #: RDWN71-U2 Master Rev A Issue Date: 26th August 2020 Page: 3 of 24 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION ................................................................................ 4 1.1. TESTING ACCREDITATION ........................................................................................................ 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE ............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References .................................................................................................................. 9 4.2. Test and Uncertainty Procedure ................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ..................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program .............................................................................................................. 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 14 5.6. Test Configurations ..................................................................................................................... 15 5.7. Equipment Modifications ............................................................................................................. 15 5.8. Deviations from the Test Standard ............................................................................................. 15 6. TEST SUMMARY ................................................................................................................................ 16 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 17 7.1. Radiated Emissions - 3m Chamber ............................................................................................ 17 7.2. Conducted ................................................................................................................................... 21 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 23 Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 15.407 Serial #: RDWN71-U2 Master Rev A Issue Date: 26th August 2020 Page: 4 of 24 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. ACCREDITATION, LISTINGS & RECOGNITION 1.1. TESTING ACCREDITATION MiCOM Labs, Inc. is an accredited Electrical testing laboratory per the international standard ISO/IEC 17025:2017. The company is accredited by the American Association for Laboratory Accreditation (A2LA) www.a2la.org test laboratory number 2381.01. MiCOM Labs test schedule is available at the following URL; http://www.a2la.org/scopepdf/2381-01.pdf Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 15.407 Serial #: RDWN71-U2 Master Rev A Issue Date: 26th August 2020 Page: 5 of 24 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1.2. RECOGNITION MiCOM Labs, Inc has widely recognized wireless testing and certification capabilities. In addition to being recognized for Testing and Certification under Phase 2 agreements with Canada, Europe and Japan, our international recognition includes Conformity Assessment Body designation under Phase 1 agreements with APEC MRA co…

Text truncated - open the document above for the full version.

CONDUCTED TEST REPORT FCC CFR 47 Pt 15.407 Report No.: RDWN71-U2 Conducted Rev A Company: Radwin Ltd. Model: AP0260210 CONDUCTED TEST REPORT FROM Test of: AP0260210 To: FCC CFR 47 Part 15.407 Test Report Serial No.: RDWN71-U2 Conducted Rev A This report supersedes: NONE Applicant: Radwin Ltd. 27 Habarzel Street Tel Aviv, 6971039 Israel Issue Date: 26th August 2020 Master Document Number Addendum Reports RDWN71-U2 Master RDWN71-U2 Conducted RDWN71-U2 Radiated This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin Ltd. AP0260210 RF Module To: FCC CFR 47 Part 15.407 Serial #: RDWN71-U2 Conducted Rev A Issue Date: 26th August 2020 Page: 3 of 179 This test report may be reproduced in full only. The document may only be …

Text truncated - open the document above for the full version.
